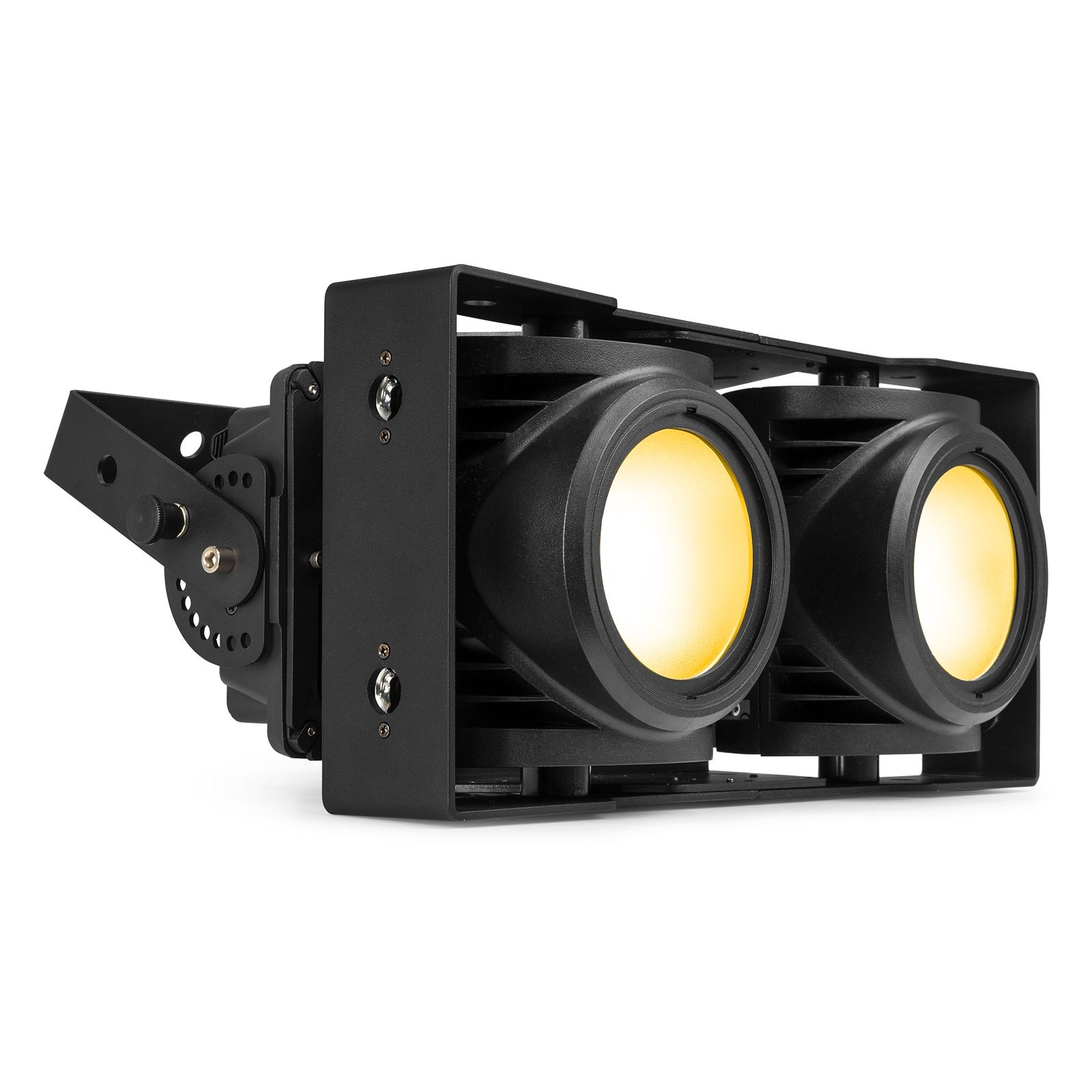

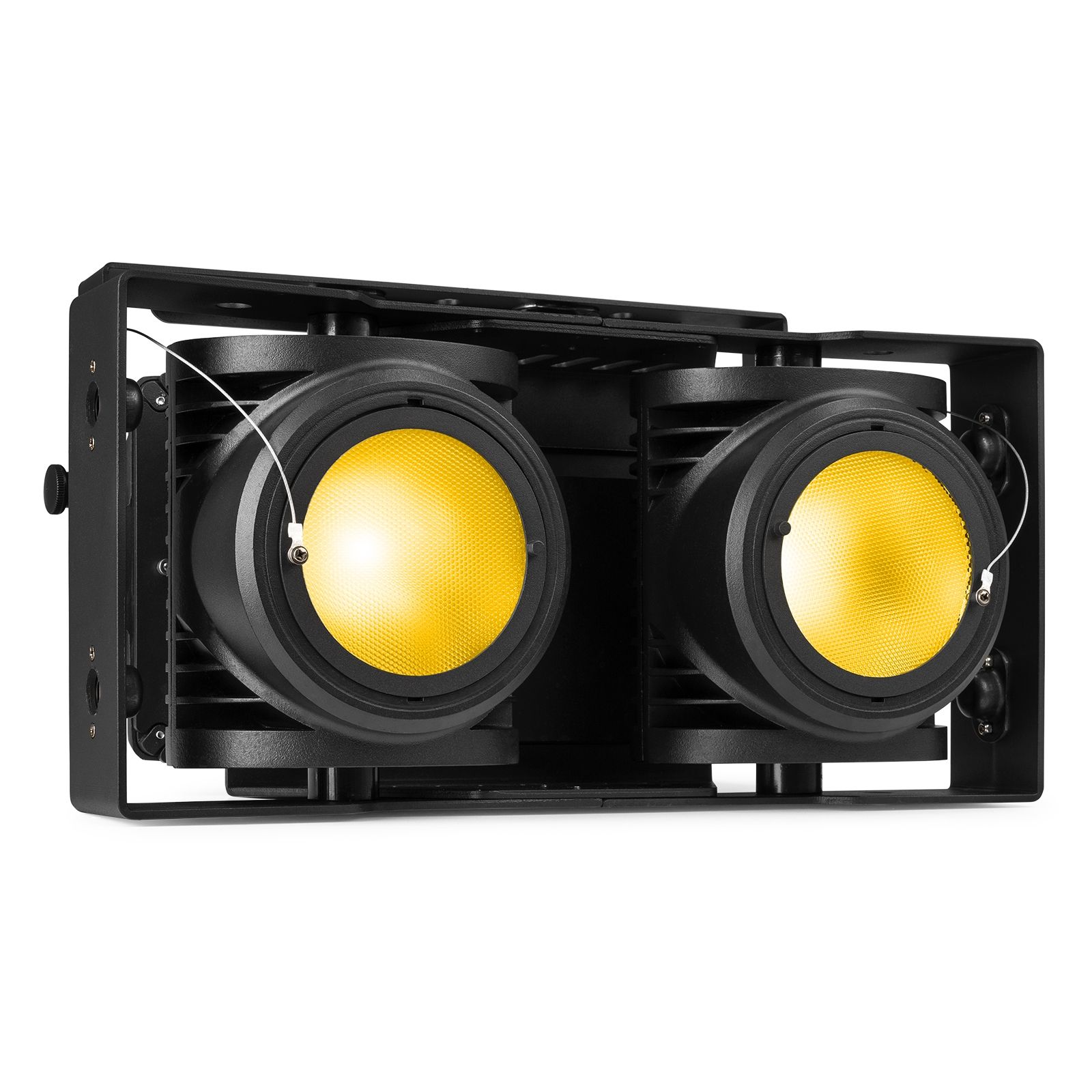

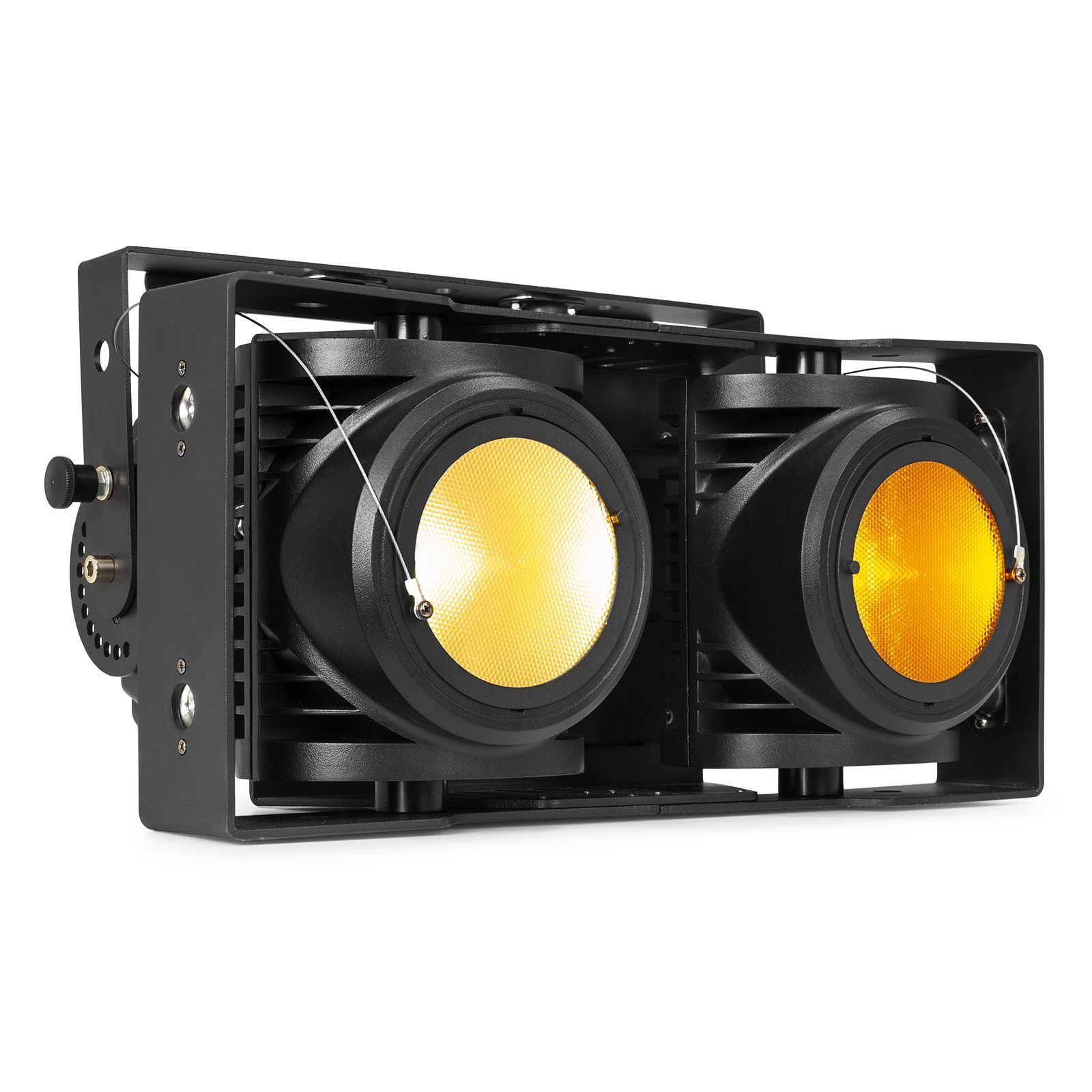

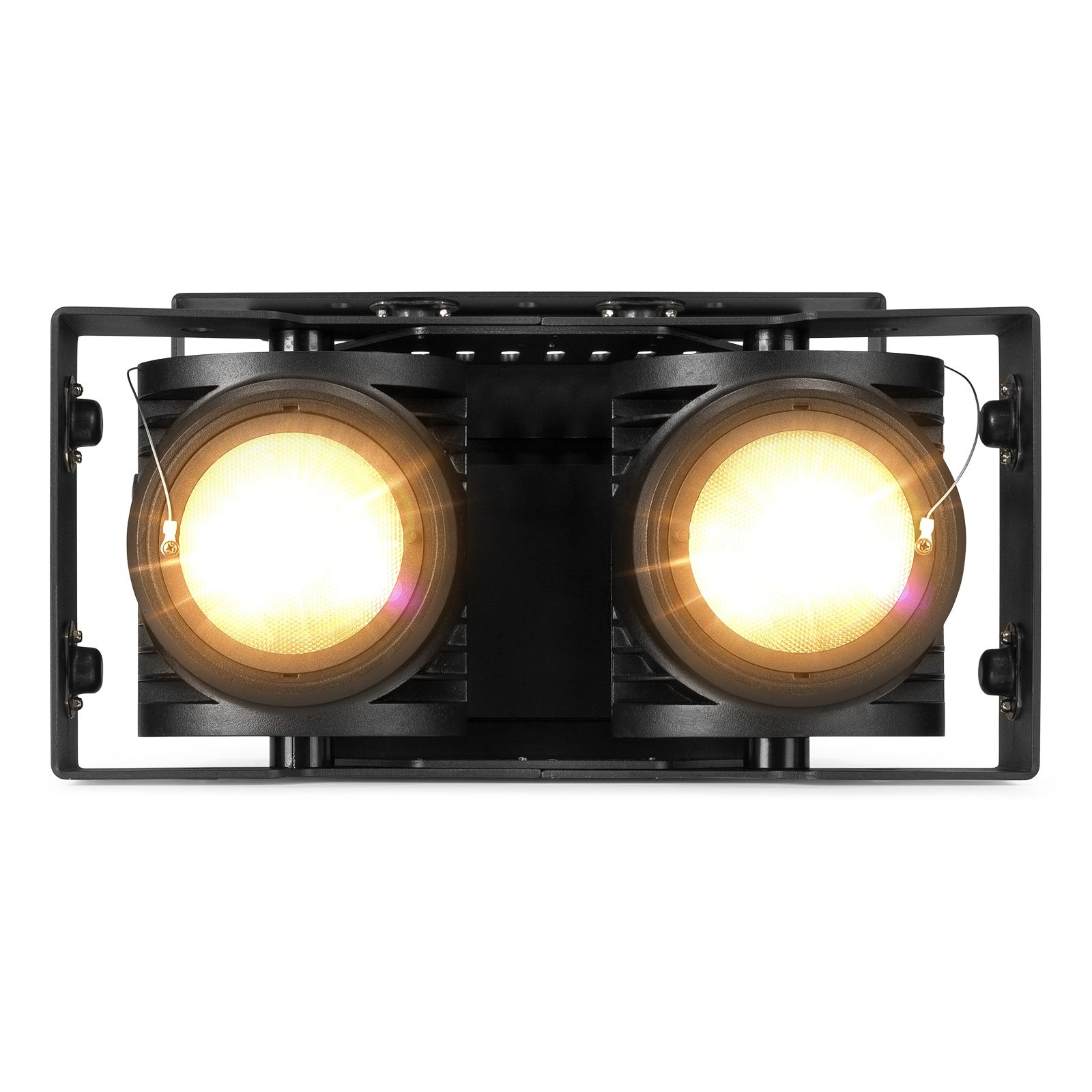

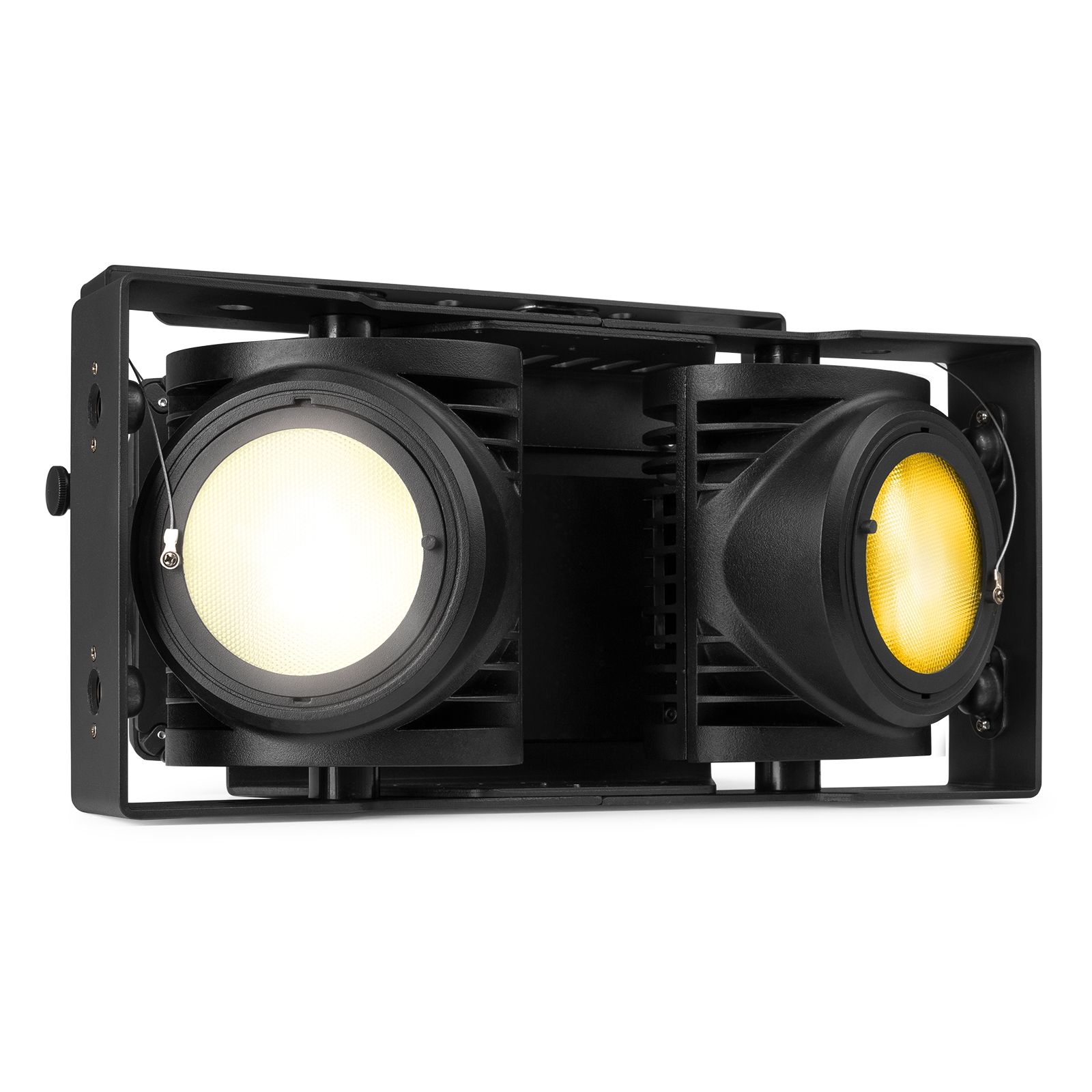

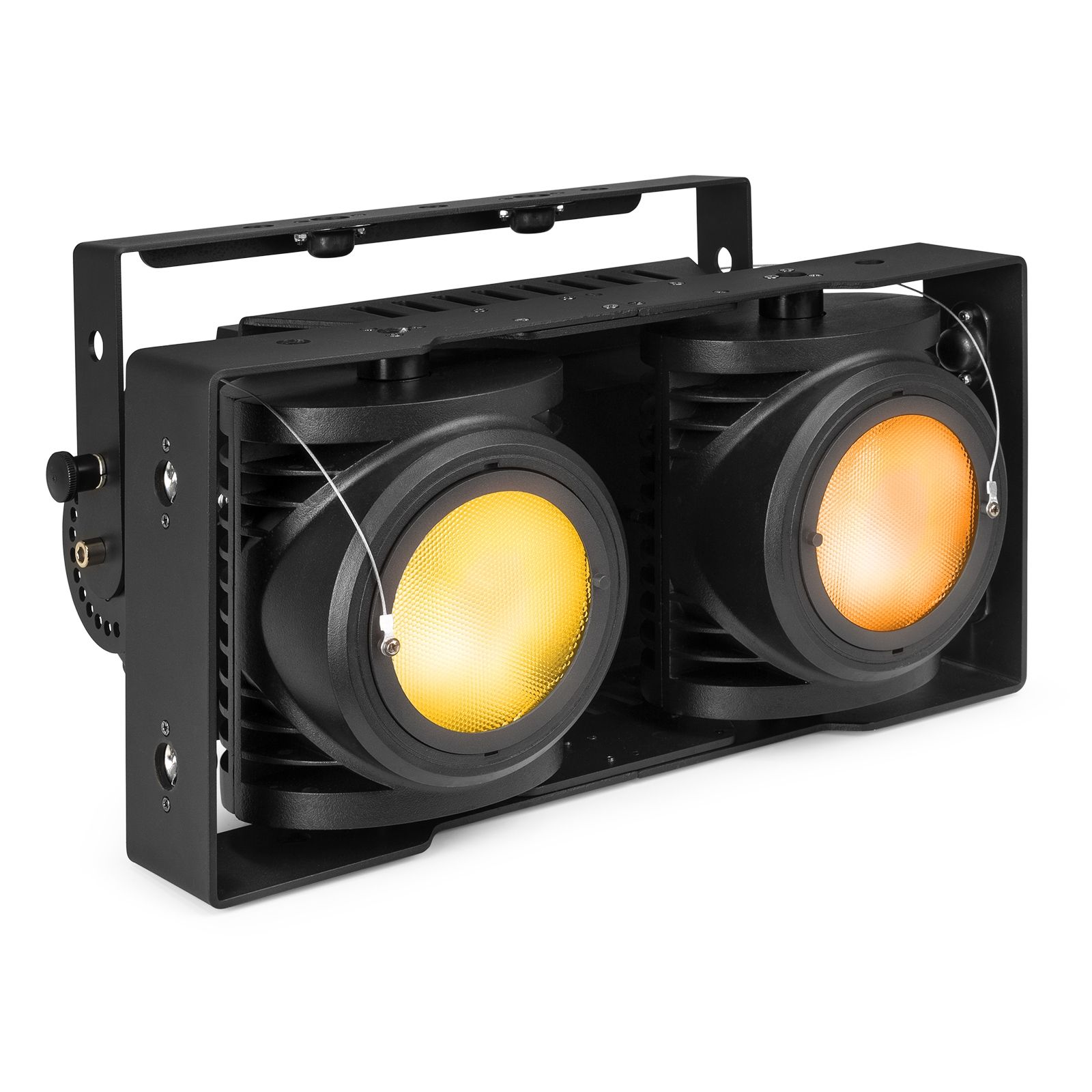

SB220IP
Stage Blinder IP65 WW/Amber
SKU 150.456
|EAN 8715693341928
+10
All product information
Compare
SB series
Description
Highlights

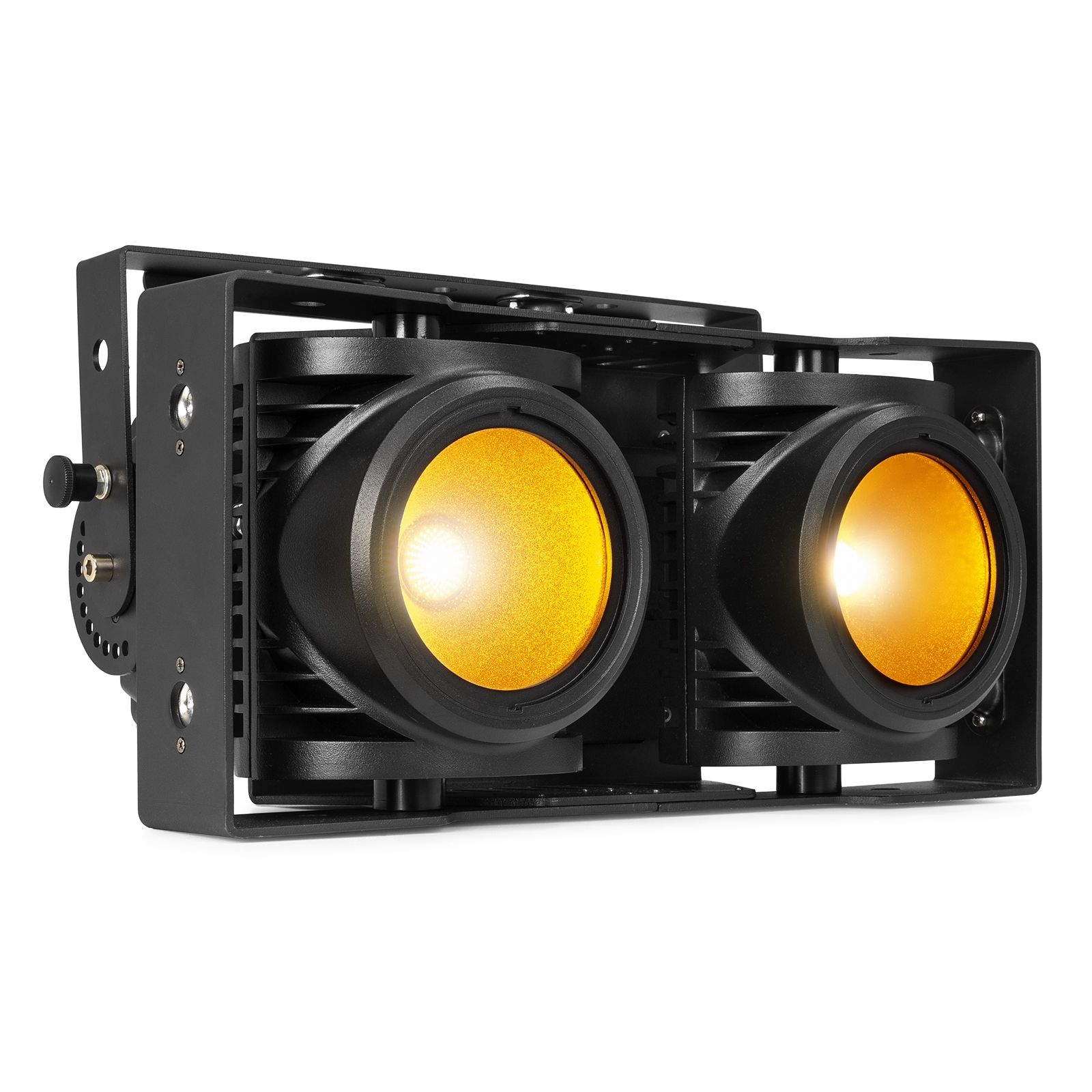

- 2x 85W Warm White COB LEDs
- 2x 20W Amber COB LEDs
- Tungsten mode
- Rugged die-cast aluminium exterior

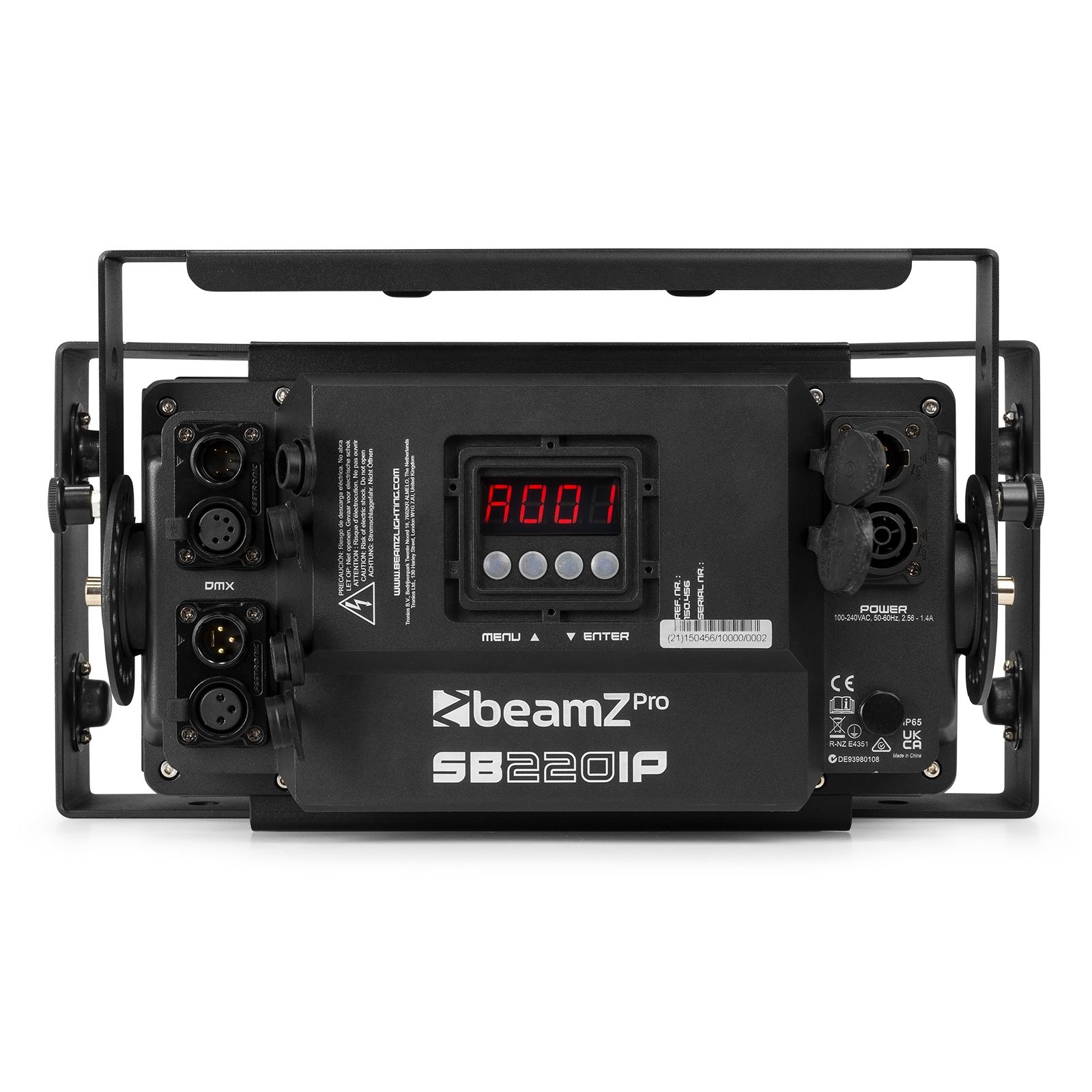

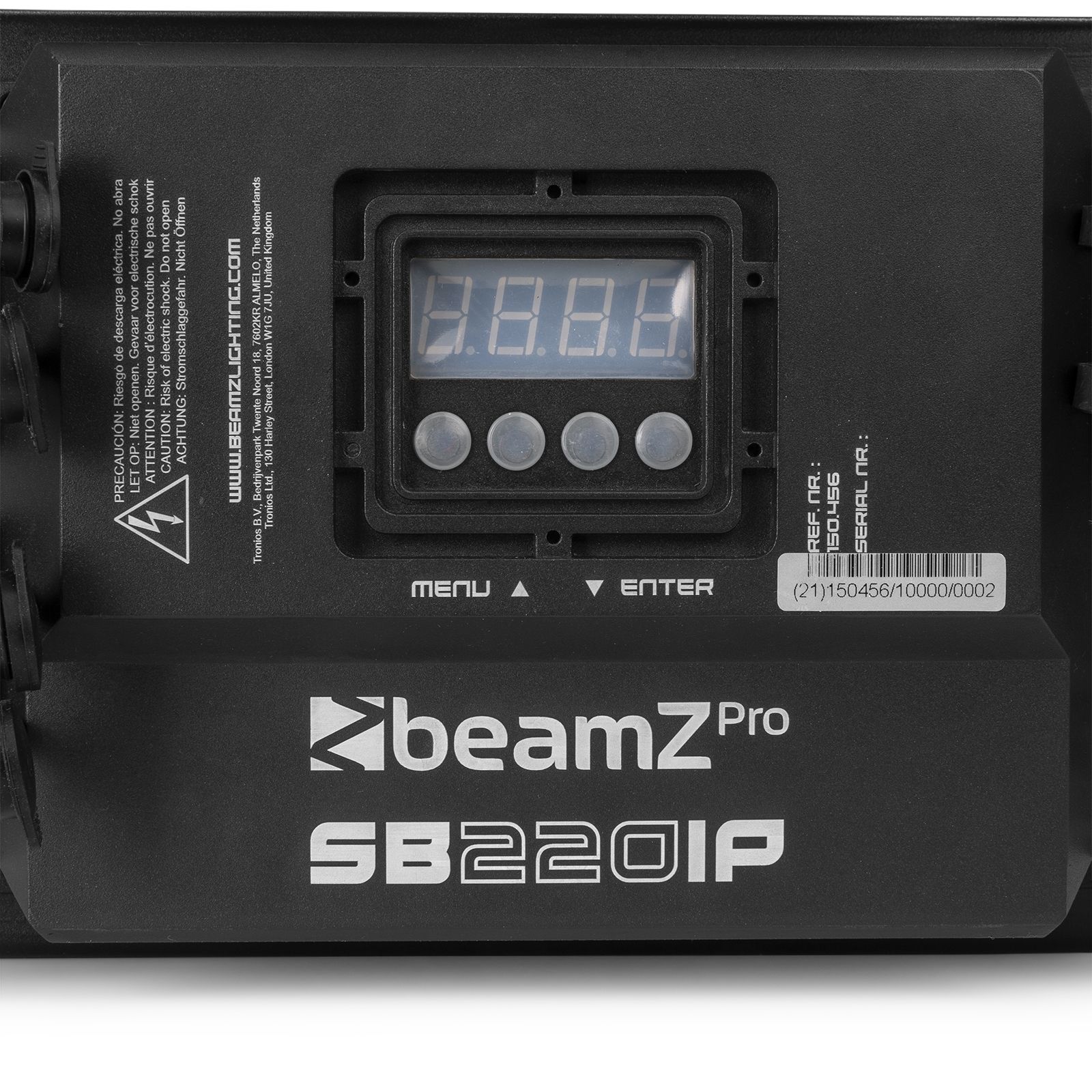

- 4-button control panel and LED menu display
- DMX/RDM and Stand-alone mode
- 1, 2, 3 or 5 DMX channels
- Master/slave function
- Auto mode with adjustable speed
- IP65 rated DMX and Powerconnector TR in/out

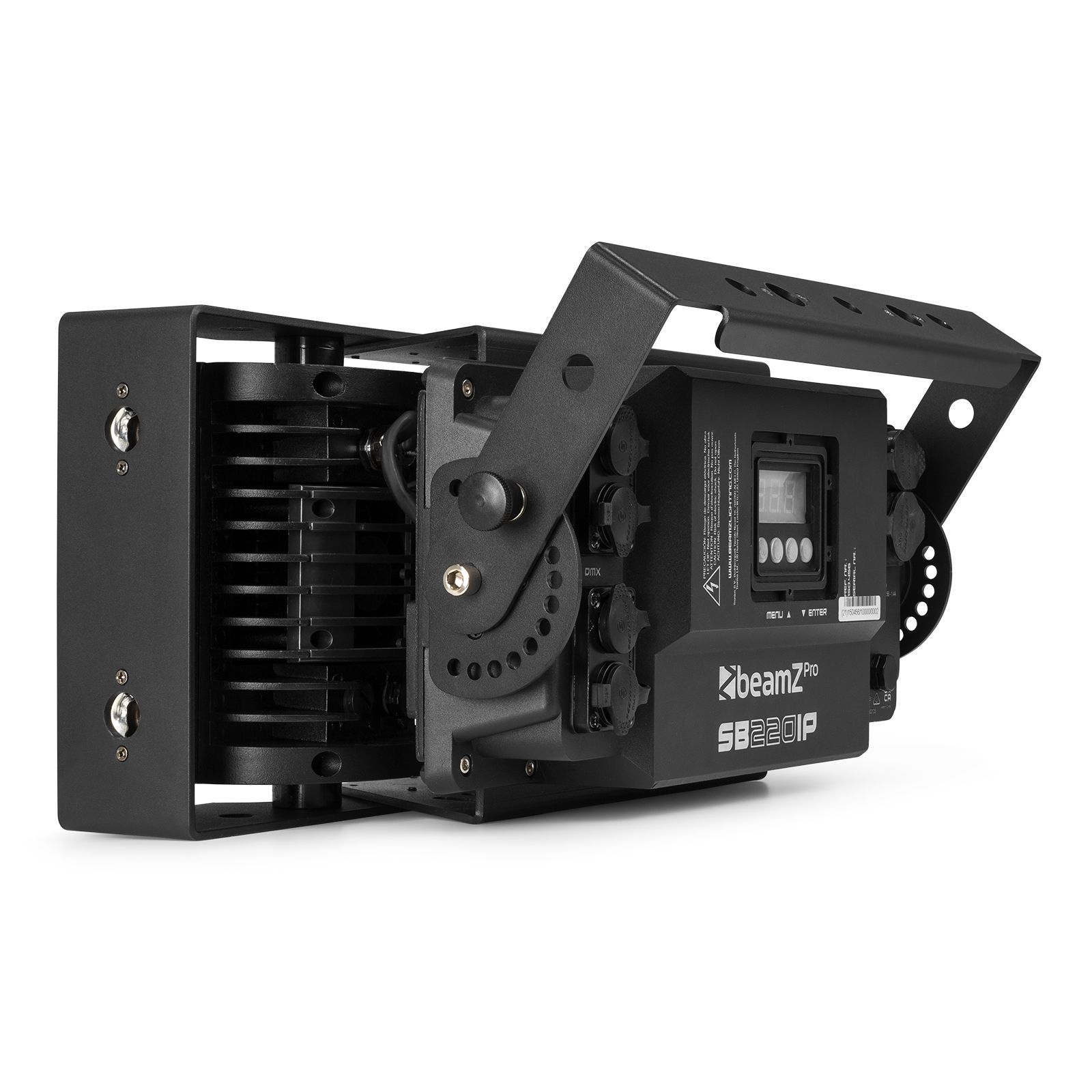

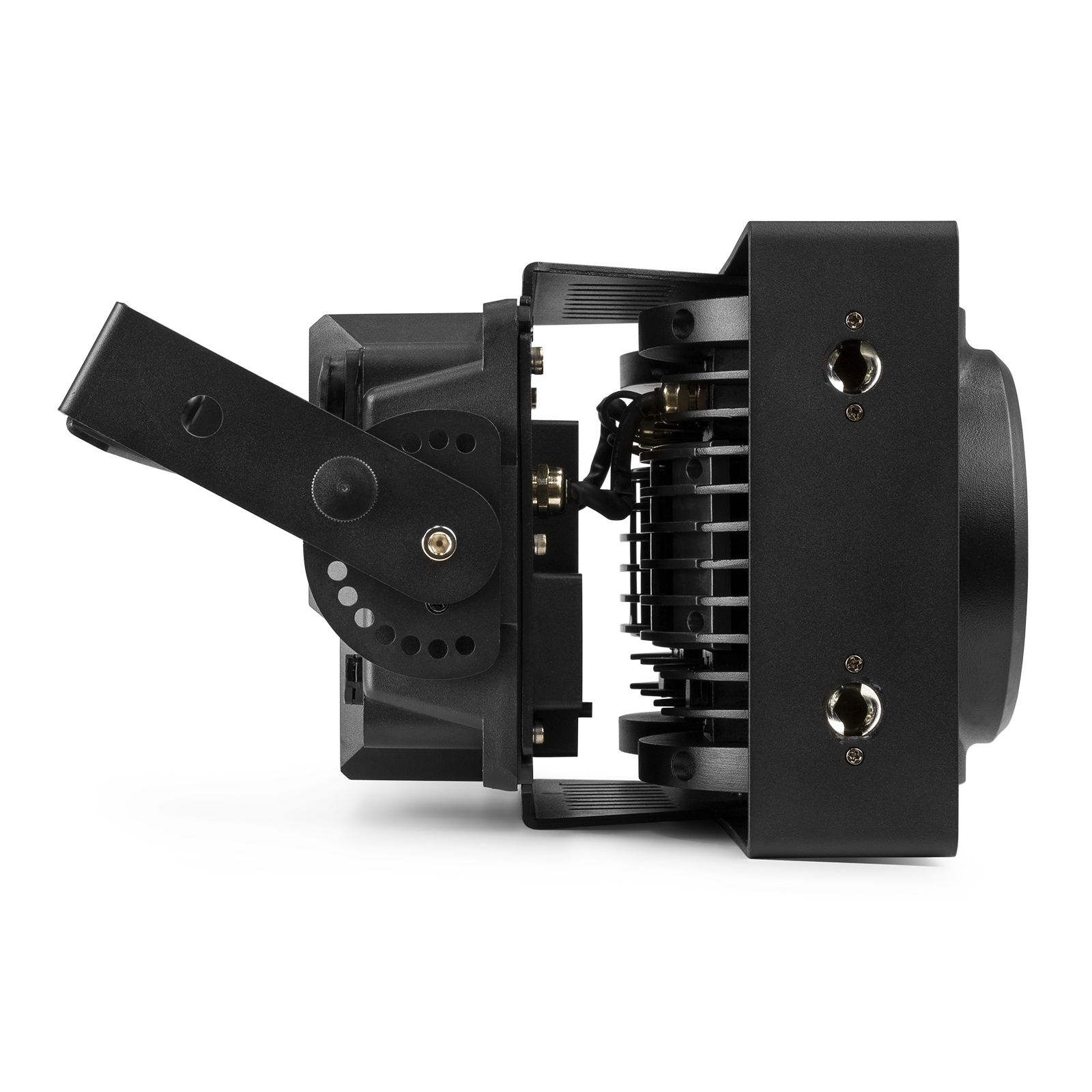

- Quick Lock bracket for different types of mounting

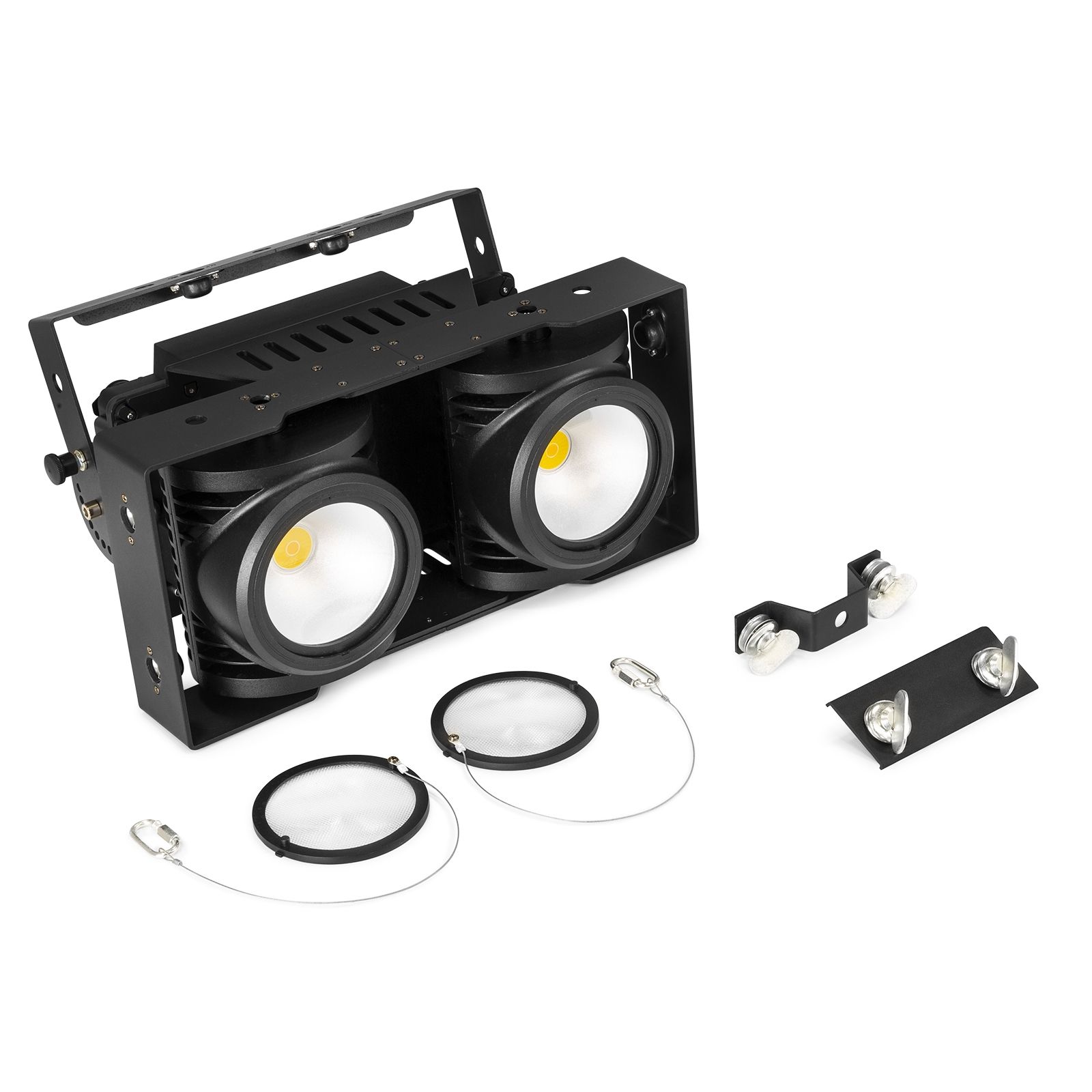

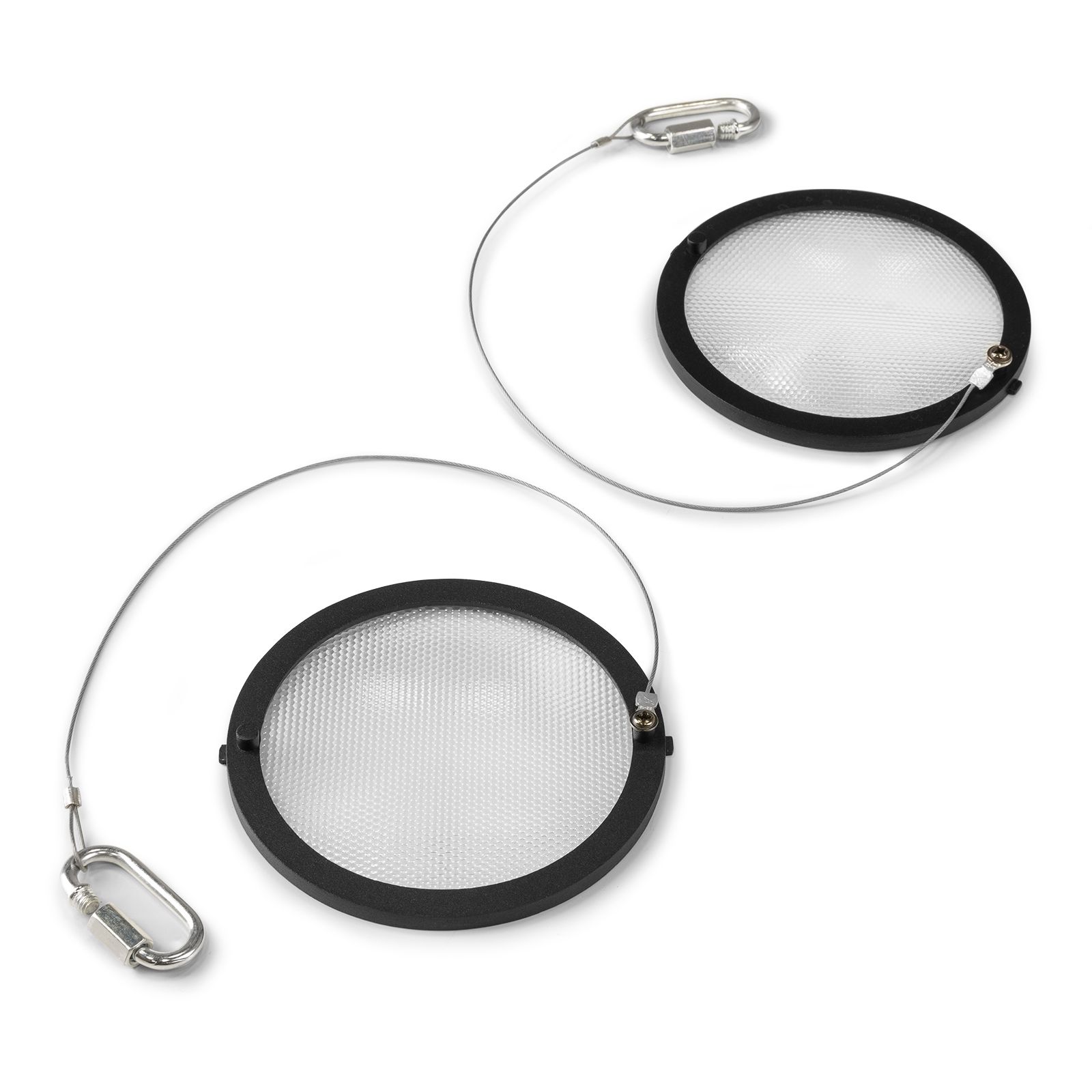

- Including diffusion filters
Specifications
BrandbeamZ Professional
Product serieSB series
ColourBlack
Light source
Light source
- 2x 85W Warm white COB LED
Light source
- 2x 20W Amber COB LED
Illuminance17300 lx @ 1m
Optics
Beam angle
- 48°
Control
Control modesAuto programs, DMX, Master/Slave, Manual
DMX Channels1, 3, 4, 8
RDMNo
DMX connector3-pin XLR, 5-pin XLR
Connections
Input connections
- 1x Power - Powerconnector TR1 IP65 (A)
- 1x DMX - 3-pin XLR IP65 (M)
- 1x DMX - 5-pin XLR IP65 (M)
Output connections
- 1x Power - Powerconnector TR1 IP65 (B)
- 1x DMX - 3-pin XLR IP65 (F)
- 1x DMX - 5-pin XLR IP65 (F)
Hardware features
Display typeLED
CoolingConvection
Environmental
IP ratingIP65
Electrical
Power Supply100-240VAC 50/60Hz
Mechanical
Dimensions
- 405 x 200 x 310 mm (W x D x H)
Weight
- 7.6 kg
Accessories
Included Accessories
- Mounting bracket
