PMDA4500

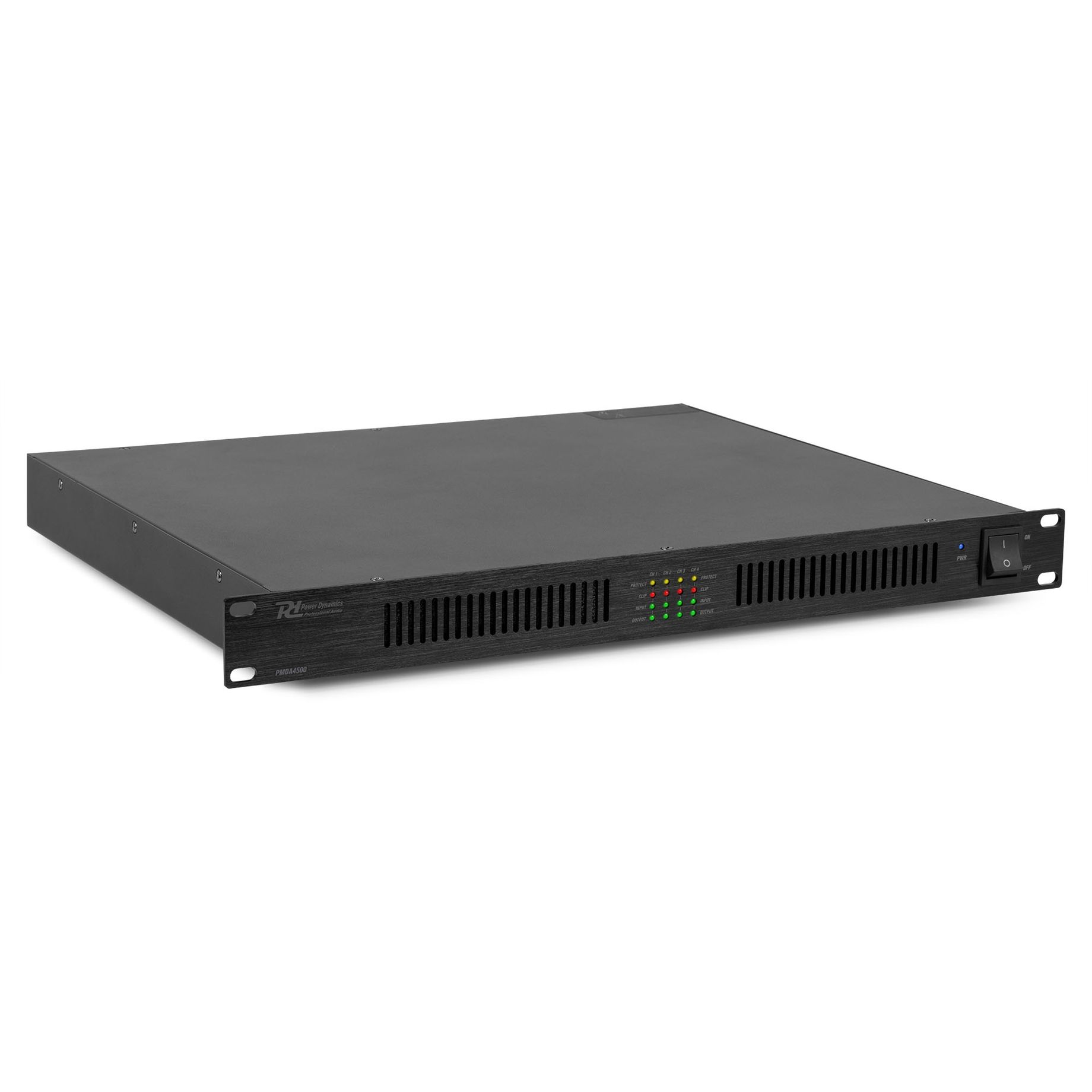

4-Channel Class-D Amplifier 100V/8Ohm 4x 500W
SKU 954.104
|EAN 8715693342123
All product information
Compare
PMDA series
Description
Highlights
- 4-Channel public address system
- High efficient Class-D Power Amplifier
- Lightweight and compact 1U design
- Automatic standby feature
- Four channel separate speaker outputs 8Ω/100V
- Rate power output of 4x 500W
- 4 Balanced inputs per channel
- Each input with separate gain control
- On all channels, high pass option at 70Hz
- Convenient dip switch pre-setting on the rear panel
- Complete short circuit, overload, high temp and clip protection
- Ground lift switch
- Euro block screw terminals with lock possibility
- Suitable for 19" Mounting
Specifications
BrandPower Dynamics
Product seriePMDA series
ColourBlack
Amplifier typePower amplifier
Output channels4
Frequency Response20 - 20,000 Hz
Impedance4 Ω, 8 Ω, 16 Ω, 100V
Audio specifications
Input Level: Line750mV
Signal-to-noise ratio: Main>80dB
THD: Main<0.1%
Amplifier specifications
Output power RMS @ 4 Ω per channel400 W
Output power RMS @ 8 Ω per channel350 W
Output power RMS @ 100V per channel500 W
Electrical
Power Supply100-240VAC 50/60Hz
Mechanical
Dimensions
- 375 x 482 x 44 mm (W x D x H)
Weight
- 9.2 kg
Accessories
Included Accessories
- Power cable
Manuals & Documents
Manual
PDF
