PMDA4120

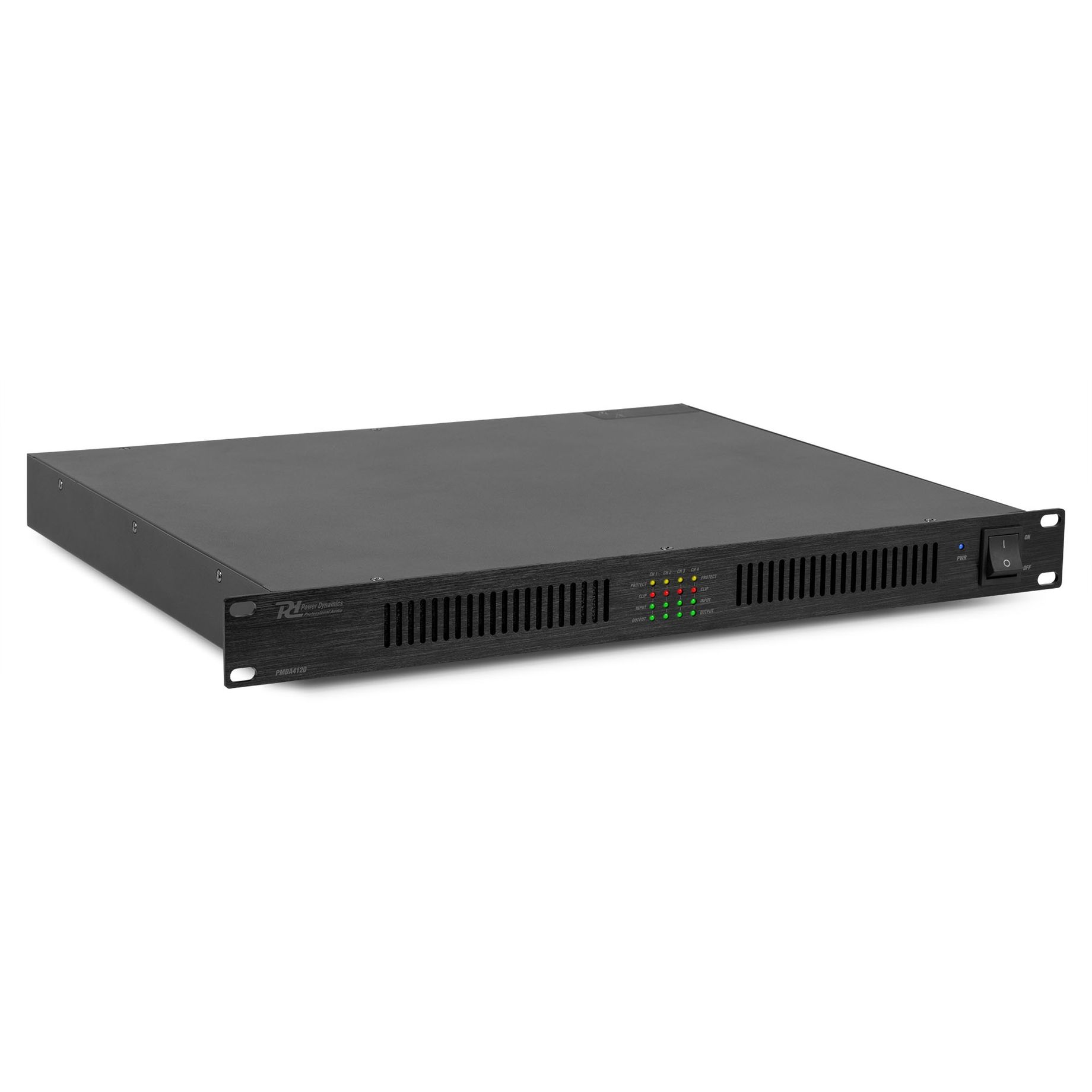

4-Channel Class-D Amplifier 100V/8Ohm 4x 120W
SKU 954.100
|
EAN 8715693342109
Compare
PMDA series
SKUShort descriptionRSP price
PMDA4120 4-Channel Class-D Amplifier 100V/8Ohm 4x 120W
£599.00
incl. VAT
PMDA4240 4-Channel Class-D Amplifier 100V/8Ohm 4x 240W
£799.00
incl. VAT
PMDA4500 4-Channel Class-D Amplifier 100V/8Ohm 4x 500W
£799.00
incl. VAT
Description
Highlights
  • 4-Channel public address system
  • High efficient Class-D Power Amplifier
  • Lightweight and compact 1U design
  • Automatic standby feature
  • Four channel separate speaker outputs 8Ω/100V
  • Rate power output of 4x 120W
  • 4 Balanced inputs per channel
  • Each input with separate gain control
  • On all channels, high pass option at 70Hz
  • Convenient dip switch pre-setting on the rear panel
  • Complete short circuit, overload, high temp and clip protection
  • Ground lift switch
  • Euro block screw terminals with lock possibility
  • Suitable for 19" Mounting
Specifications
BrandPower Dynamics
Product seriePMDA series
ColourBlack
Amplifier typePower amplifier
Output channels4
Frequency Response20 - 20,000 Hz
Impedance4 Ω, 8 Ω, 16 Ω, 100V
Audio specifications
Input Level: Line750mV
Signal-to-noise ratio: Main>80dB
THD: Main<0.1%
Amplifier specifications
Output power RMS @ 4 Ω per channel200 W
Output power RMS @ 8 Ω per channel120 W
Output power RMS @ 100V per channel120 W
Electrical
Power Supply100-240VAC 50/60Hz
Mechanical
Dimensions
  • 375 x 482 x 44 mm (W x D x H)
Weight
  • 6.45 kg
Accessories
Included Accessories
  • Power cable
Manuals & Documents
Manual
PDF
