Phoenix

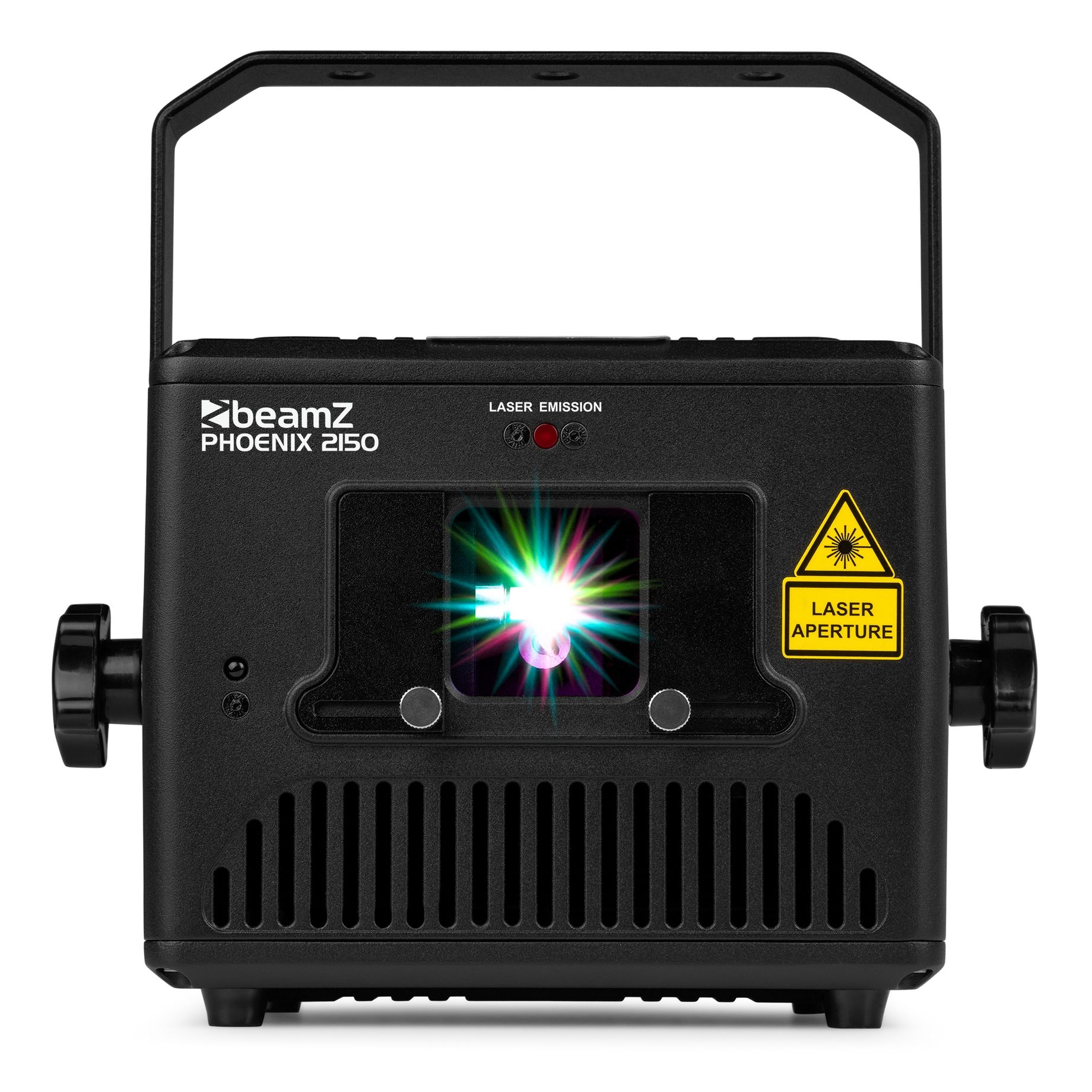

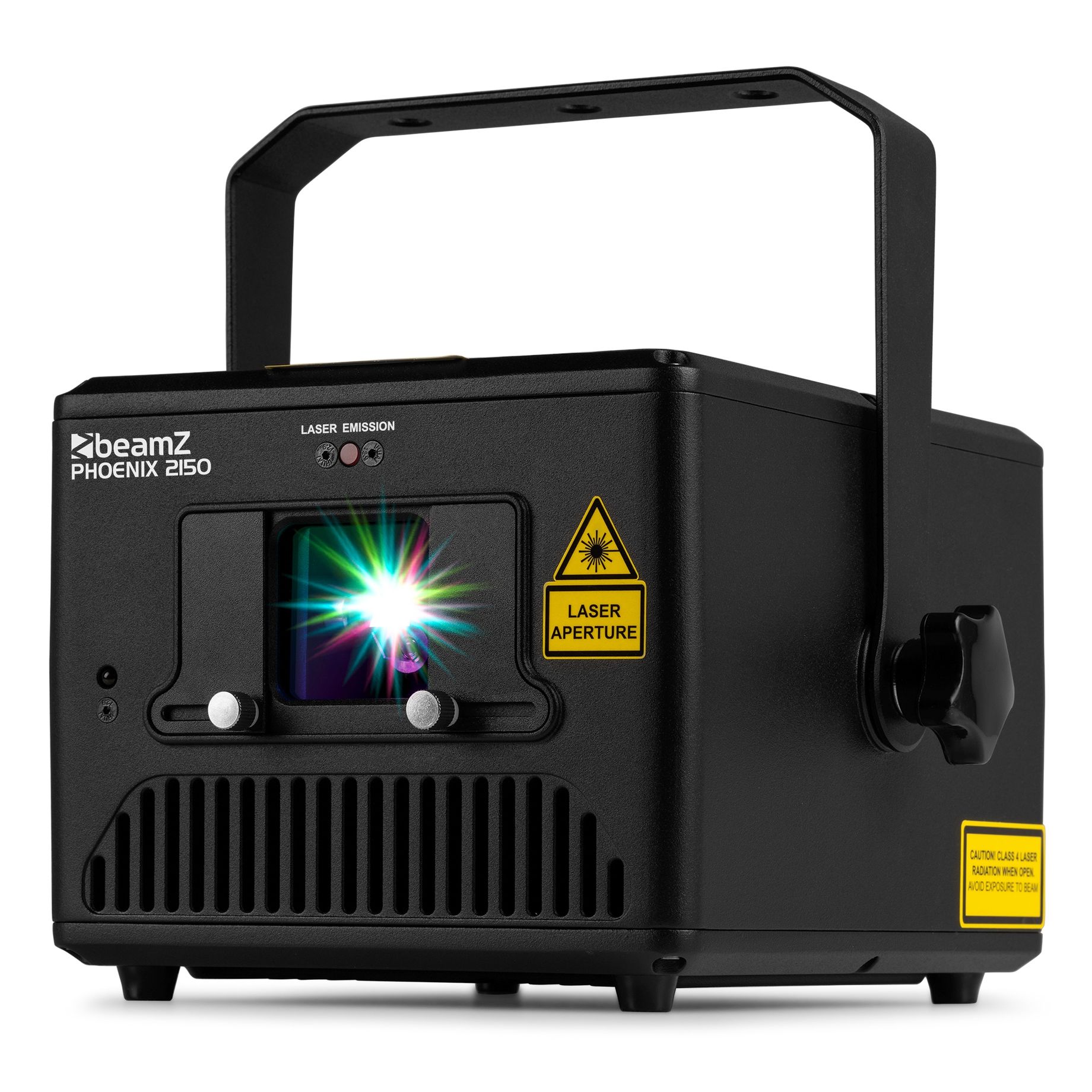

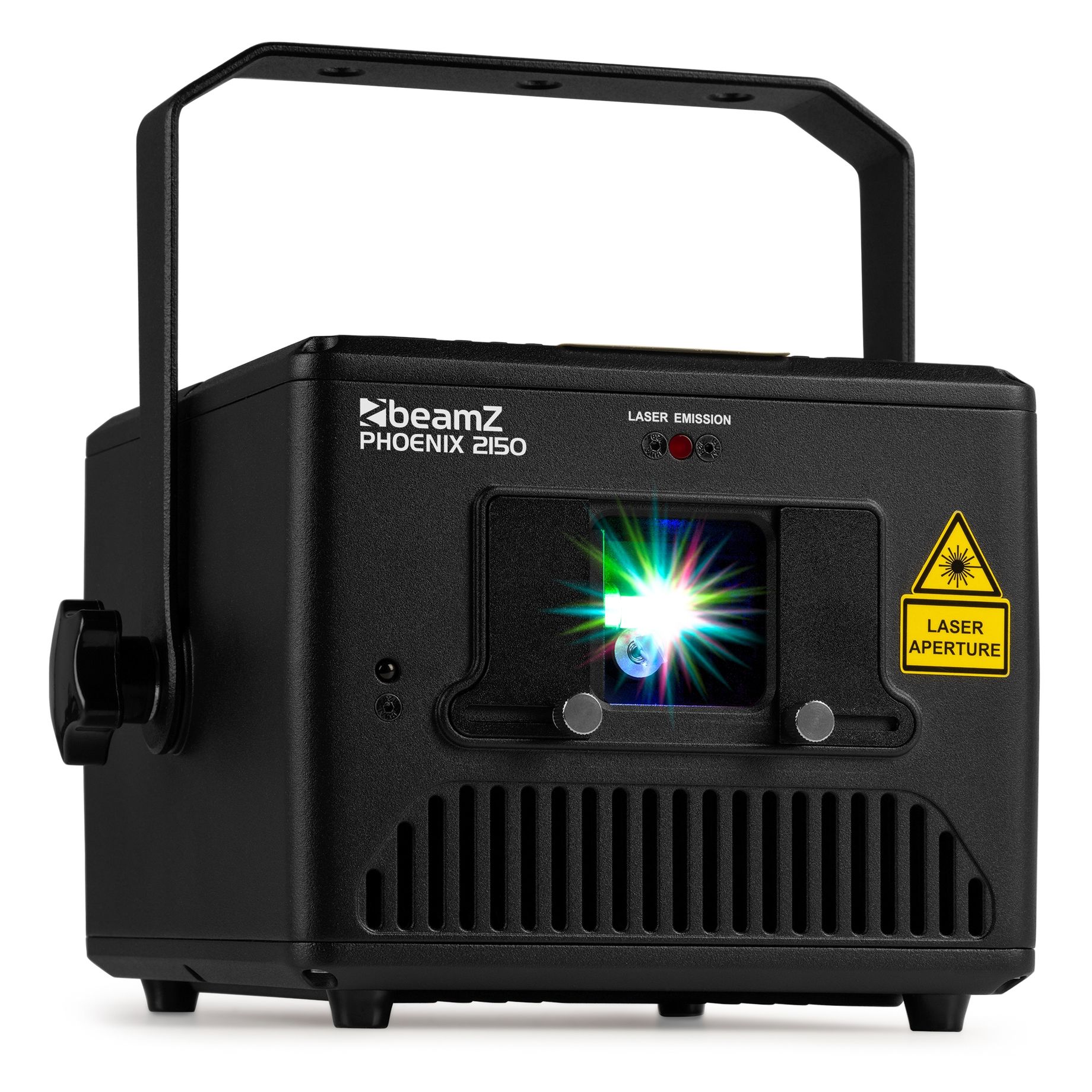

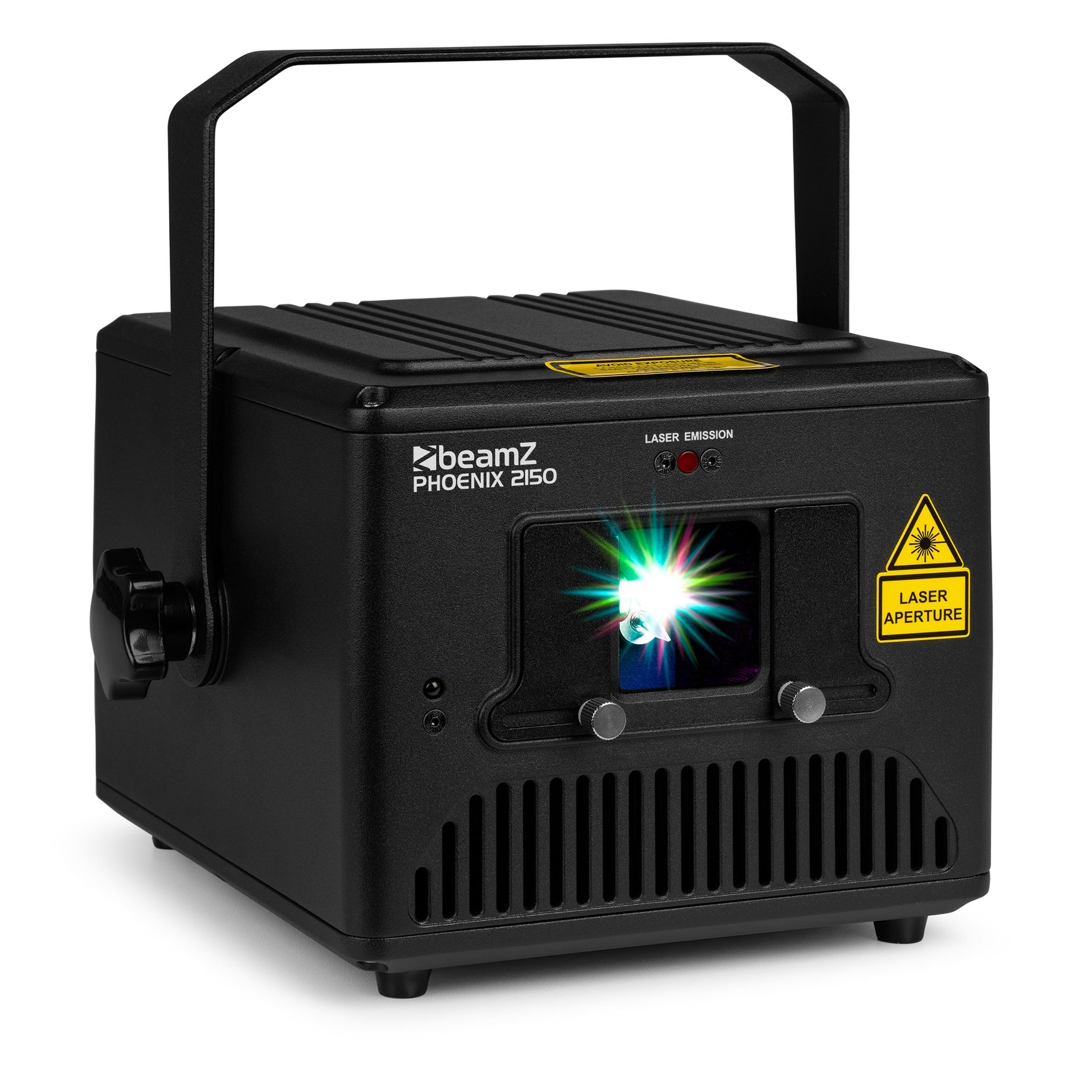

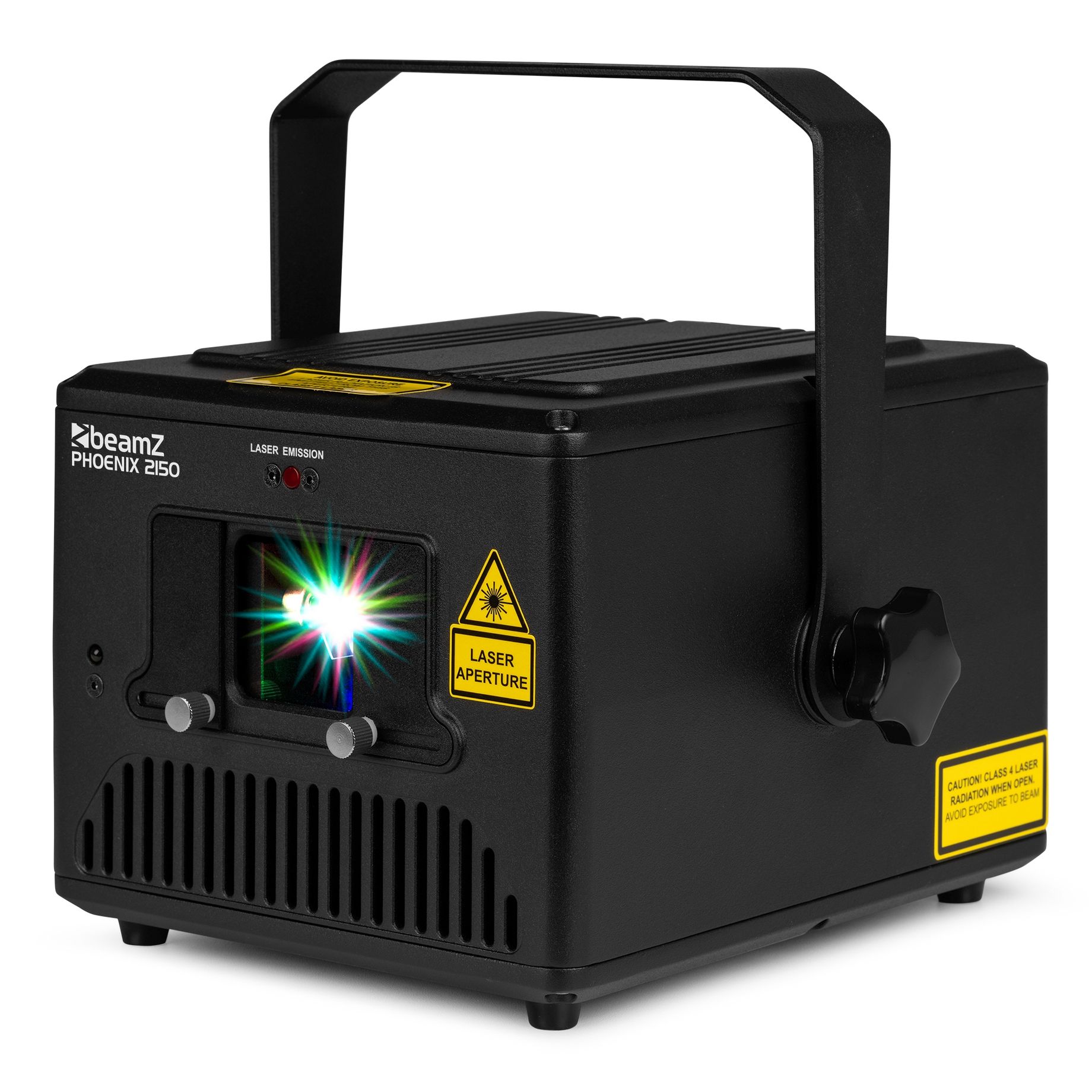

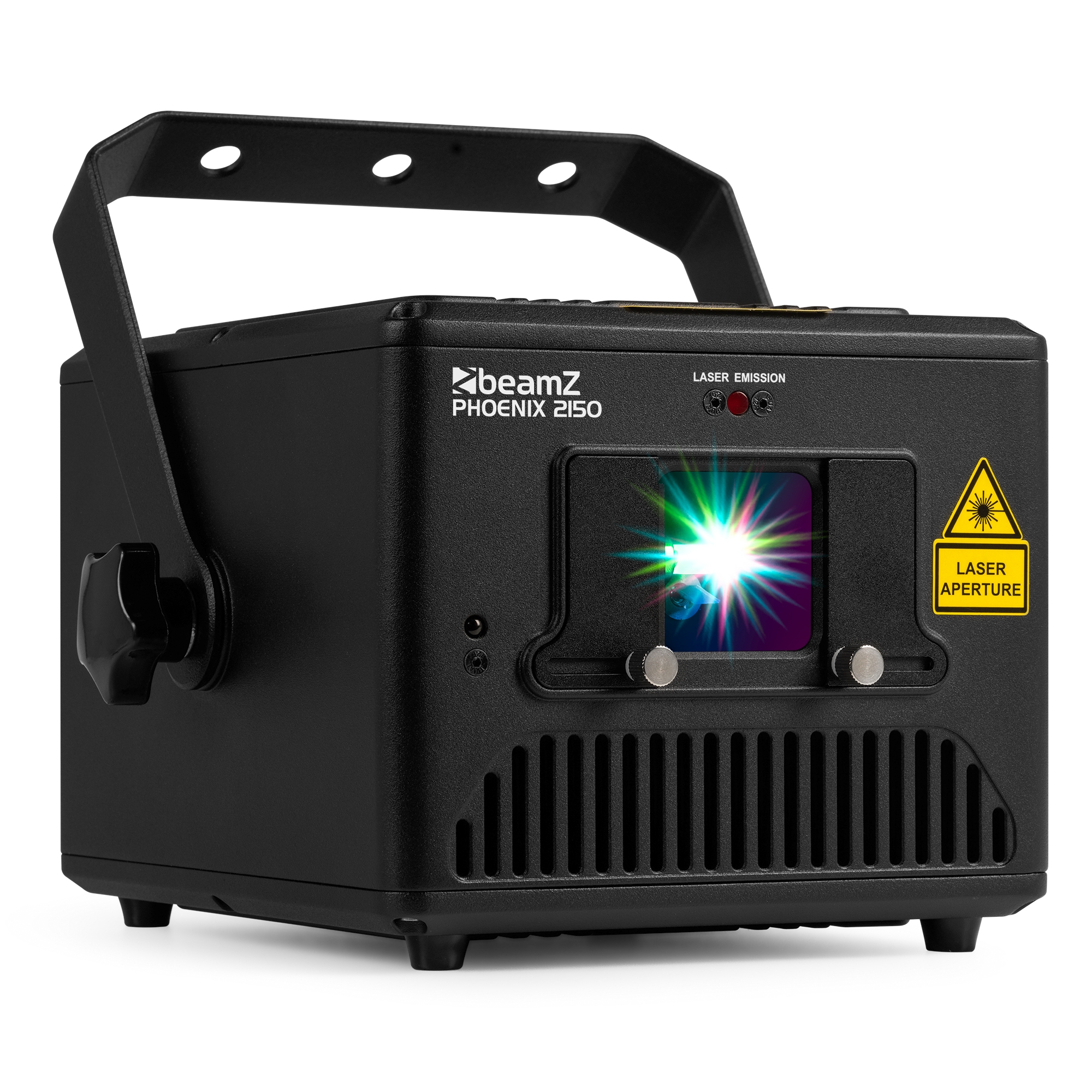

2150 Analog Laser System
SKU 152.543
|EAN 8715693354515
All product information
Compare
Phoenix series
Description
Highlights
- 2W Full-colour RGB laser projector
- Semiconductor laser diode
- Red (350mW), Green (800mW) and Blue (1000mW) laser modules
- 25K high speed optical scanner system
- Scan angle: 40°
- Beam divergence: <1.0mrad (full angle)
- DMX and Stand-alone mode
- Sound activated with adjustable sensitivity
- Auto mode
- Preprogrammed patterns and animations
- DMX in/output via 3-pin XLR
- PC/Laptop controllable via ILDA (DB25)
- Laser cover plate on the front
- Control panel with LCD display with function setting knob
- Incl. 2 keys and interlock bypass
- Incl. remote control
Specifications
BrandbeamZ
Product seriePhoenix series
ColourBlack
Light source
Laser Red350mW @ 638nm
Laser Green800mW @ 520nm
Laser Blue1000mW @ 445nm
Optics
Laser Scan Angle Max.40 °
Laser Scanner System25 kpps @ 8°
Control
Control modesAuto programs, DMX, Sound, ILDA
DMX Channels10, 34
DMX connector3-pin XLR
ILDA connectorDB25

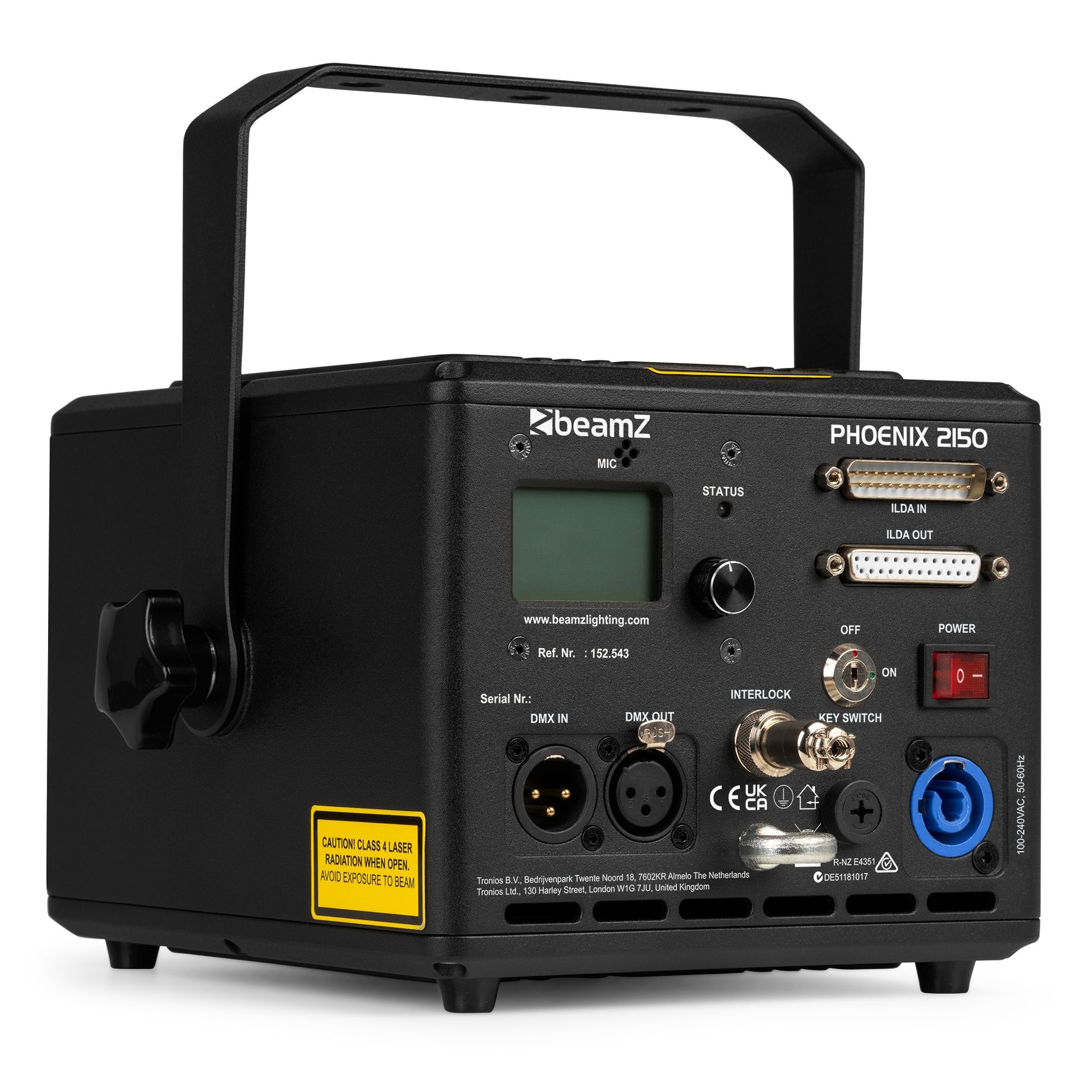

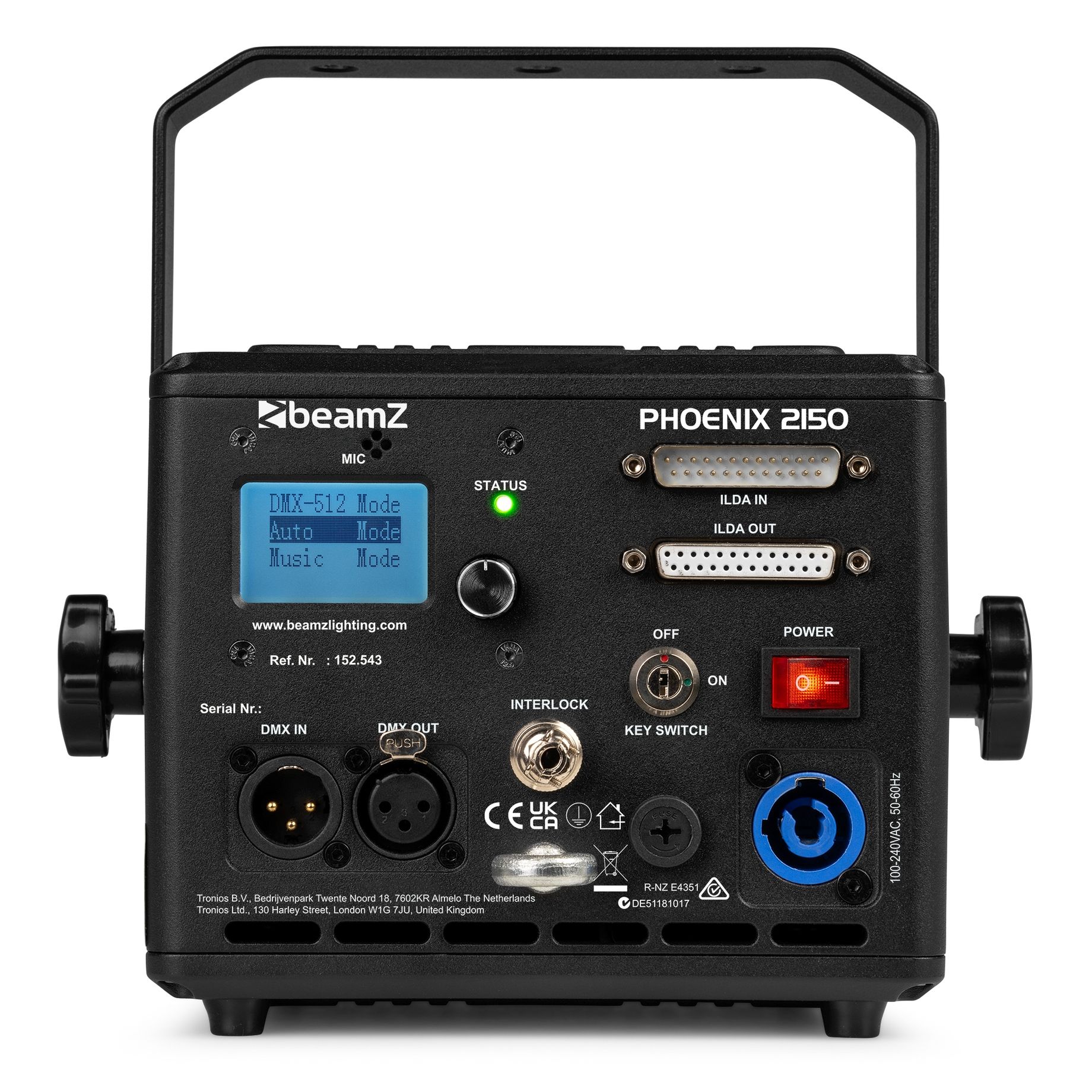

Connections
Input connections
- 1x Power - Powerconnector (A)
- 1x DMX - 3-pin XLR (M)
- 1x Ilda - DB25 (M)
- 1x Interlock
Output connections
- 1x DMX - 3-pin XLR (F)
- 1x Ilda - DB25 (F)
Hardware features
CoolingTemperature controlled fan
Environmental
IP ratingIP20
Electrical
Power Supply100-240VAC 50/60Hz
Mechanical
Dimensions
- 220 x 260 x 220 mm (W x D x H)
Weight
- 3.45 kg
Accessories
Included Accessories
- Power cable
Manuals & Documents
Manual
PDF
