Phoenix

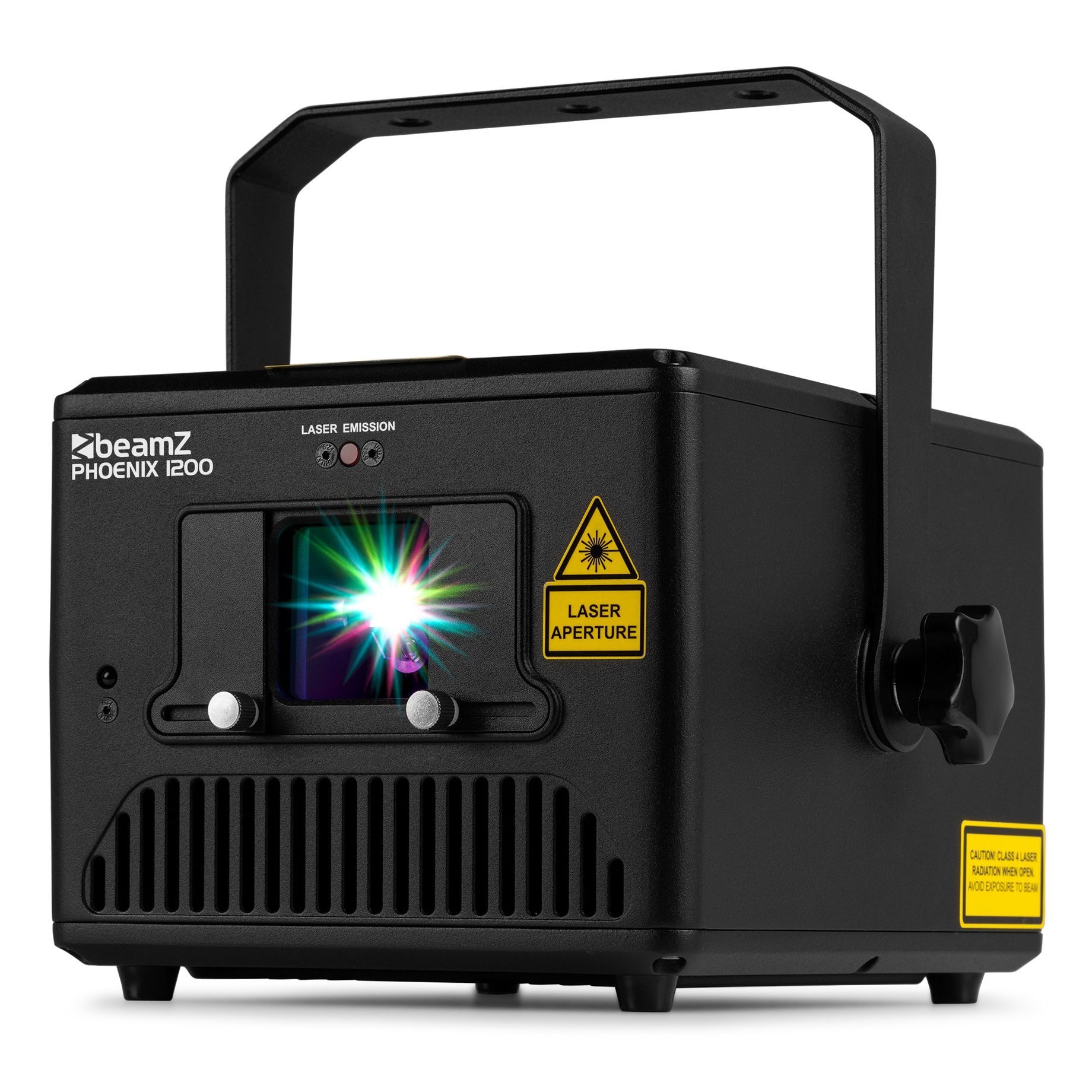

1200 Analog Laser System
SKU 152.546
|
EAN 8715693354539
Compare
Phoenix series
SKUShort descriptionRSP price

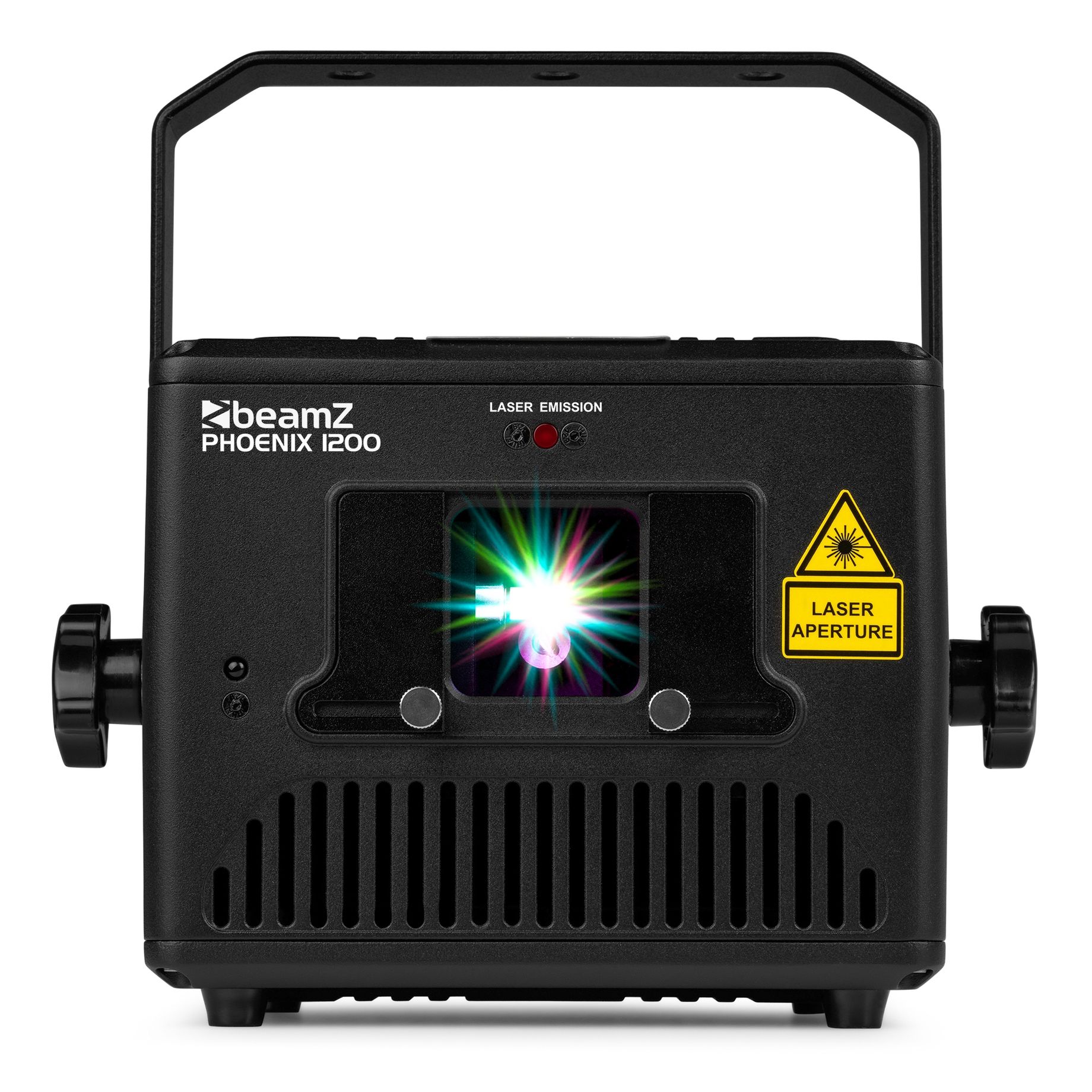

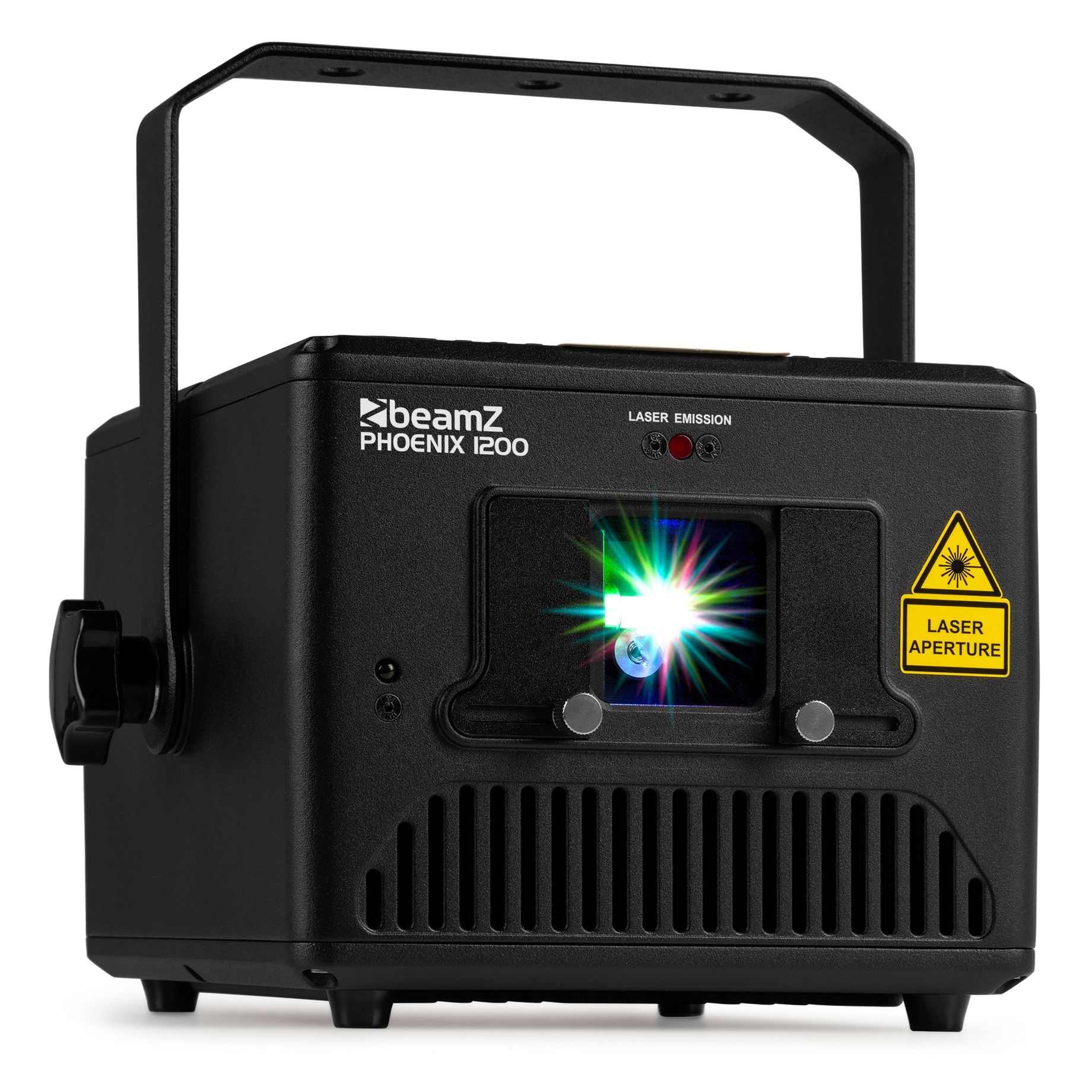

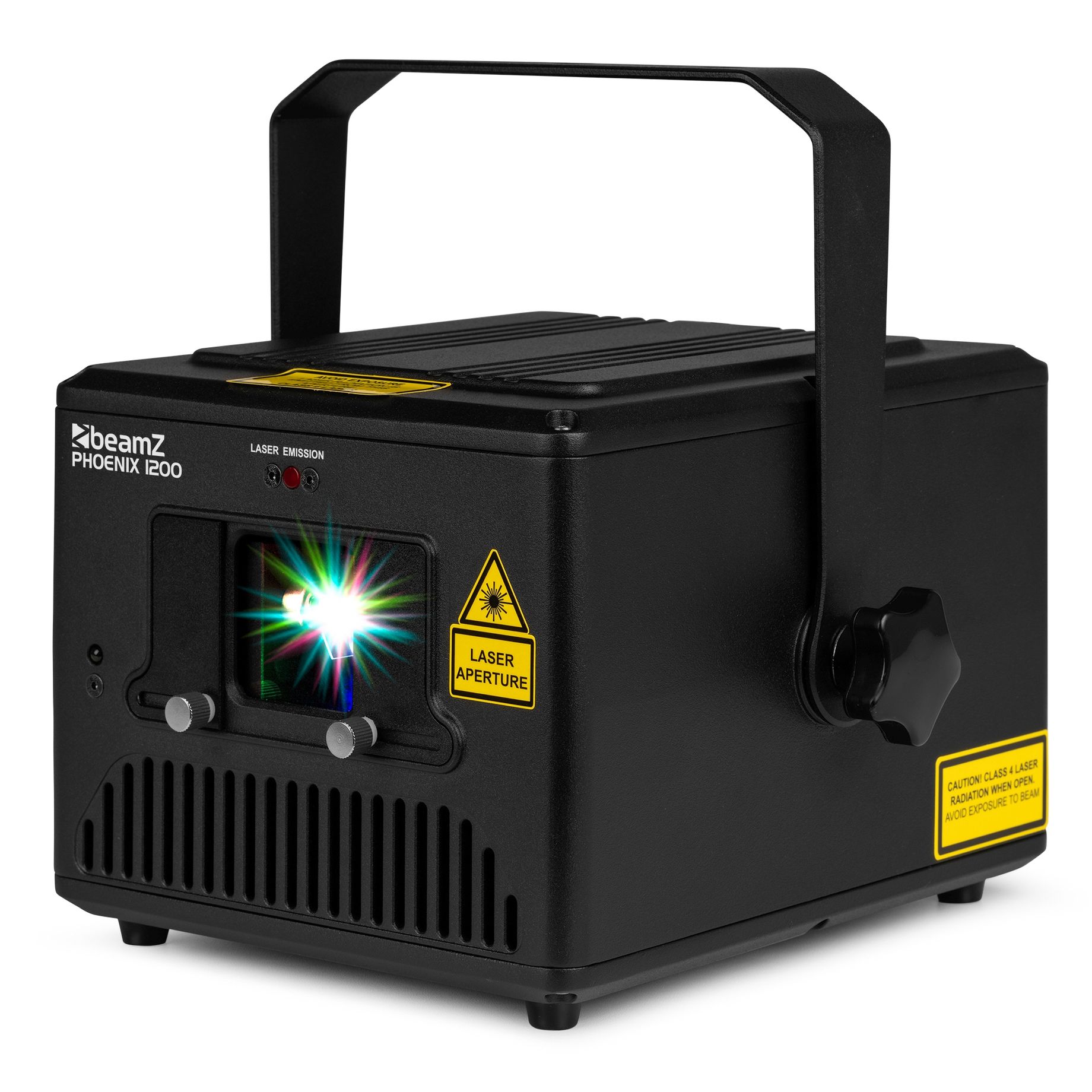

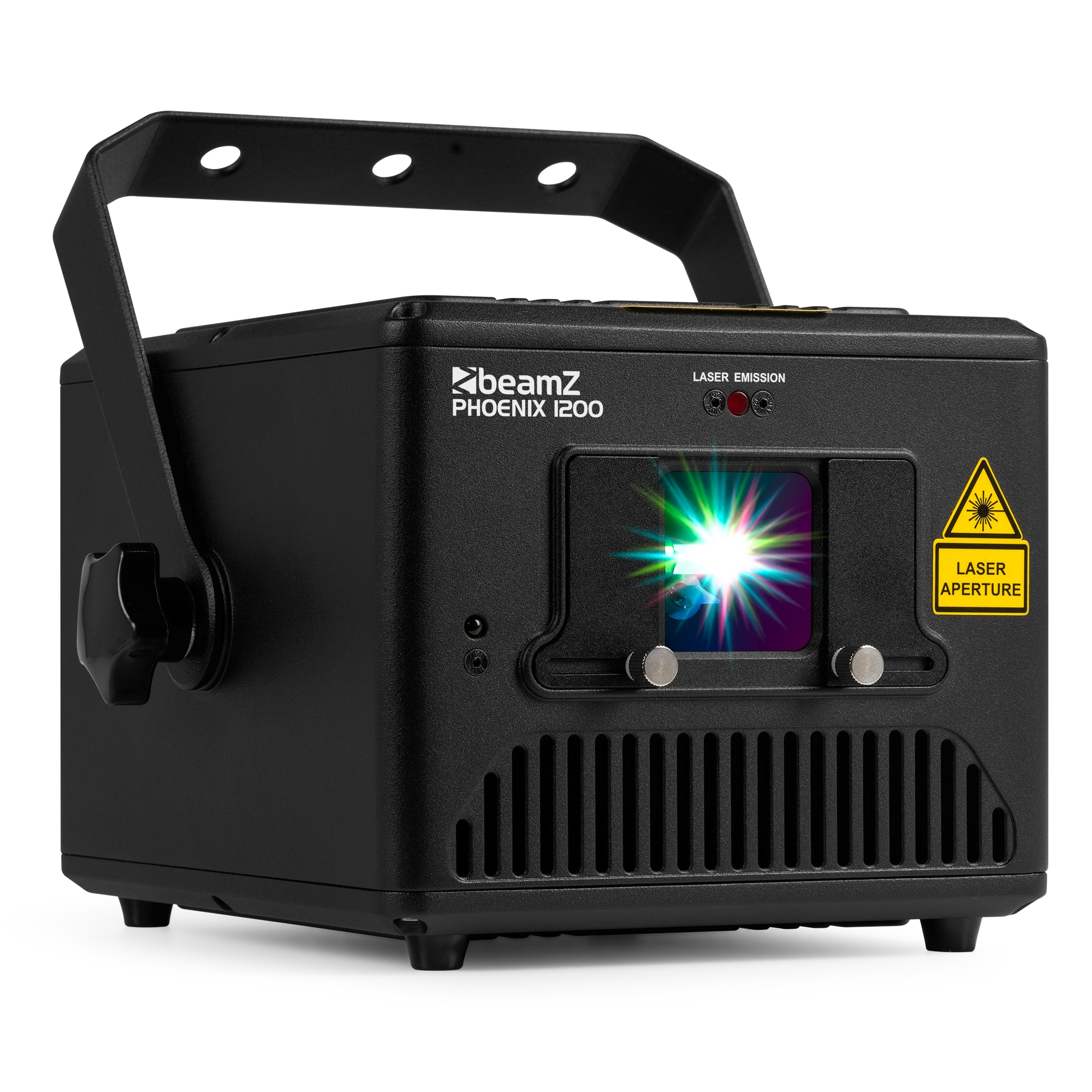

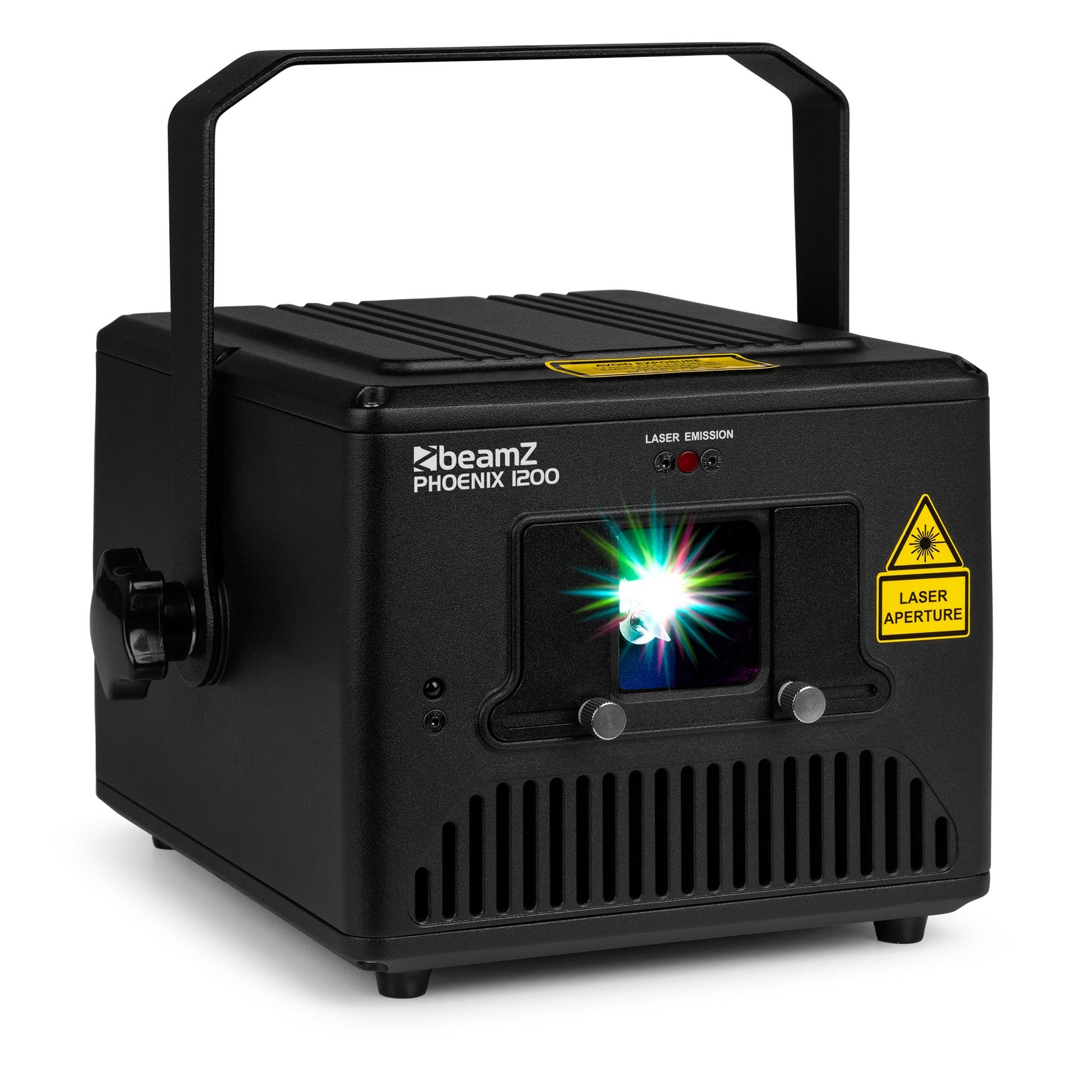

Phoenix 1200 Analog Laser System
£399.00
incl. VAT
Phoenix 5000 Analog Laser System
£899.00
incl. VAT
Phoenix 3000 Analog Laser System
£599.00
incl. VAT
Phoenix 2150 Analog Laser System
£479.00
incl. VAT
Description
Highlights
  • 1W Full-colour RGB laser projector
  • Semiconductor laser diode
  • Red (300mW), Green (300mW) and Blue (600mW) laser modules
  • 25K high speed optical scanner system
  • Scan angle: 40°
  • Beam divergence: <1.0mrad (full angle)
  • DMX and Stand-alone mode
  • Sound activated with adjustable sensitivity
  • Auto mode
  • Preprogrammed patterns and animations
  • DMX in/output via 3-pin XLR
  • PC/Laptop controllable via ILDA (DB25)
  • Laser cover plate on the front
  • Control panel with LCD display with function setting knob
  • Incl. 2 keys and interlock bypass
  • Incl. remote control
Specifications
BrandbeamZ
Product seriePhoenix series
ColourBlack
Light source
Laser Red300mW @ 638nm
Laser Green300mW @ 520nm
Laser Blue600mW @ 445nm
Optics
Laser Scan Angle Max.40 °
Laser Scanner System25 kpps @ 8°
Control
Control modesAuto programs, DMX, Sound, ILDA
DMX Channels10, 34
DMX connector3-pin XLR
ILDA connectorDB25

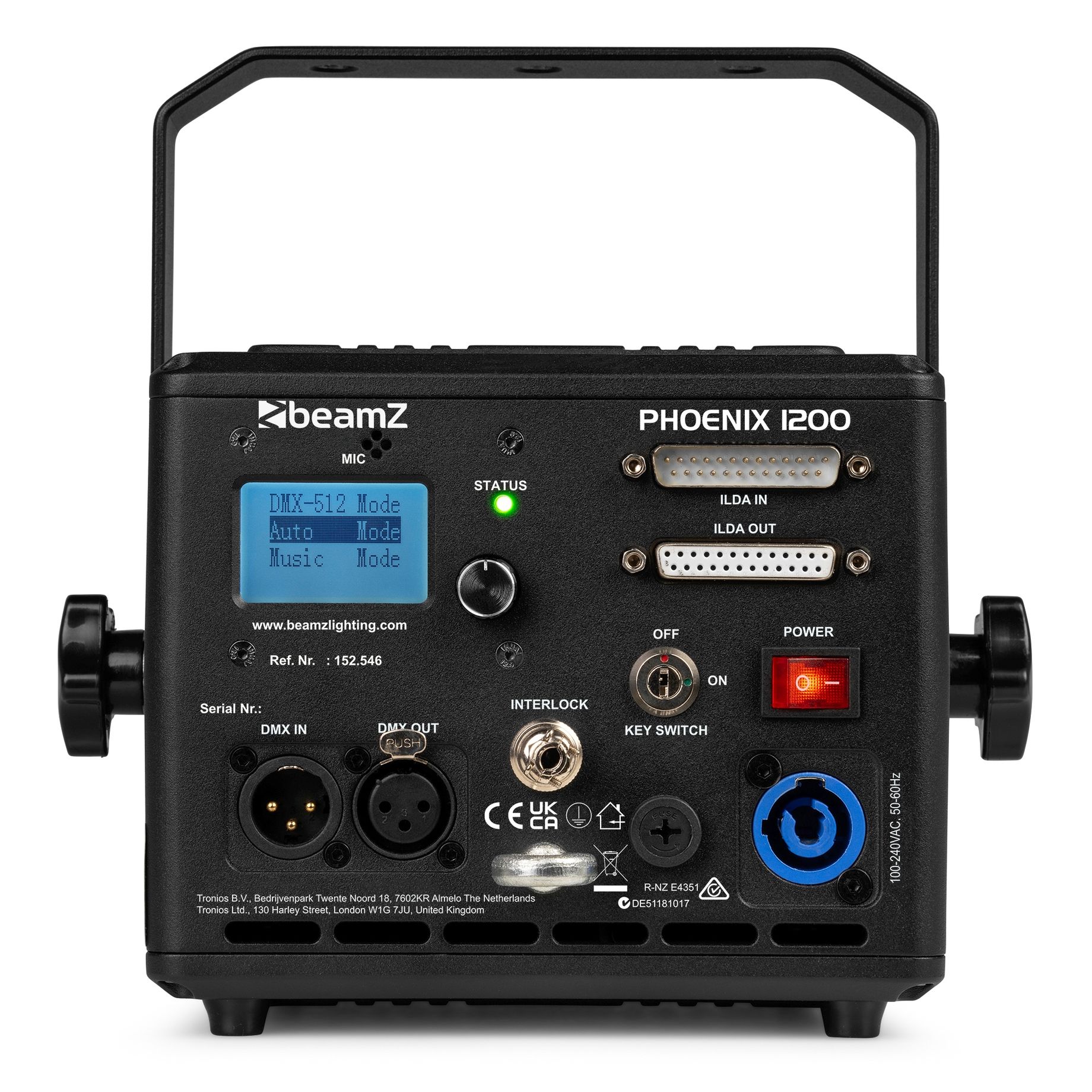

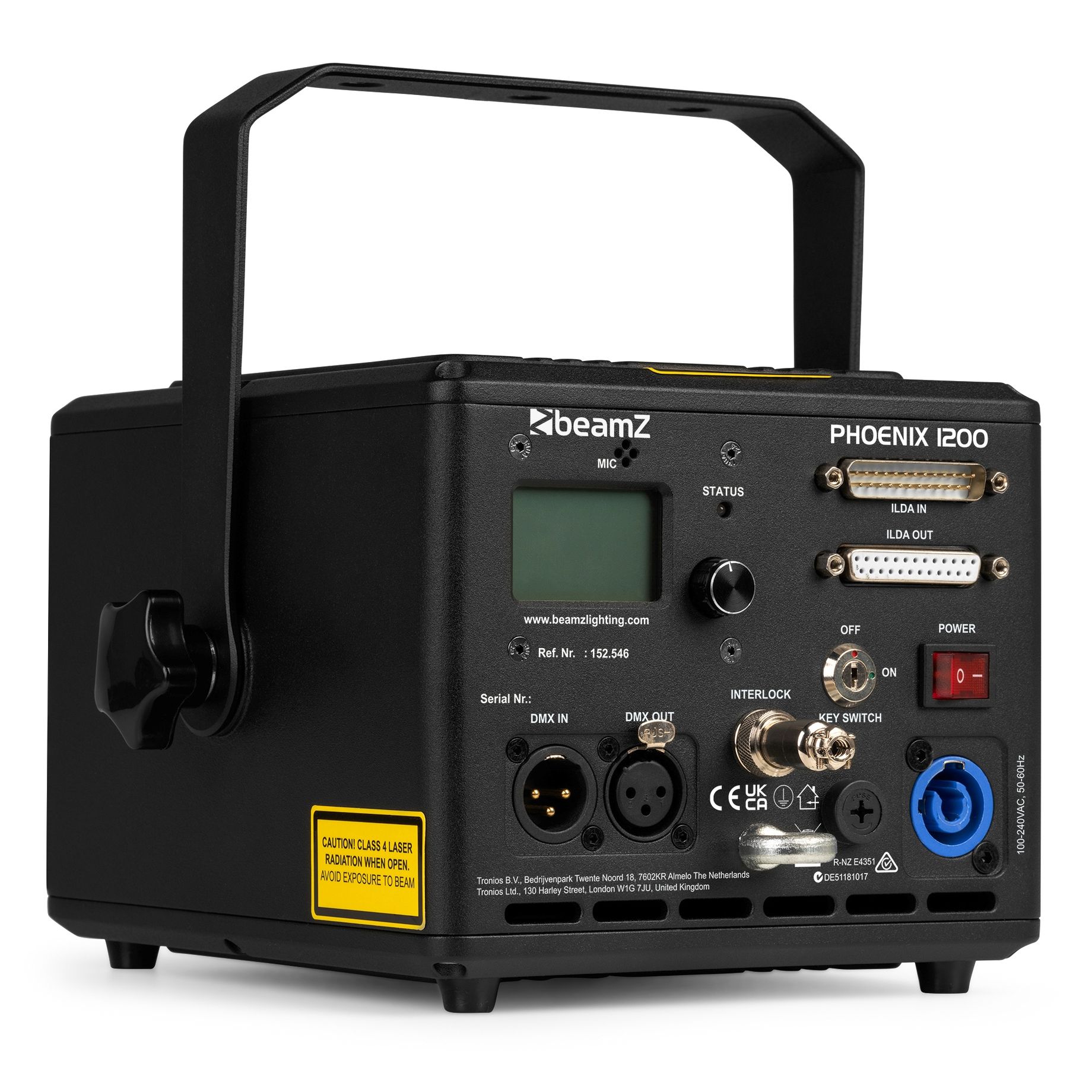

Connections
Input connections
  • 1x Power - Powerconnector (A)
  • 1x DMX - 3-pin XLR (M)
  • 1x Ilda - DB25 (M)
  • 1x Interlock
Output connections
  • 1x DMX - 3-pin XLR (F)
  • 1x Ilda - DB25 (F)
Hardware features
CoolingTemperature controlled fan
Environmental
IP ratingIP20
Electrical
Power Supply100-240VAC 50/60Hz
Mechanical
Dimensions
  • 220 x 260 x 220 mm (W x D x H)
Weight
  • 3.45 kg
Accessories
Included Accessories
  • Power cable
Manuals & Documents
Manual
PDF
