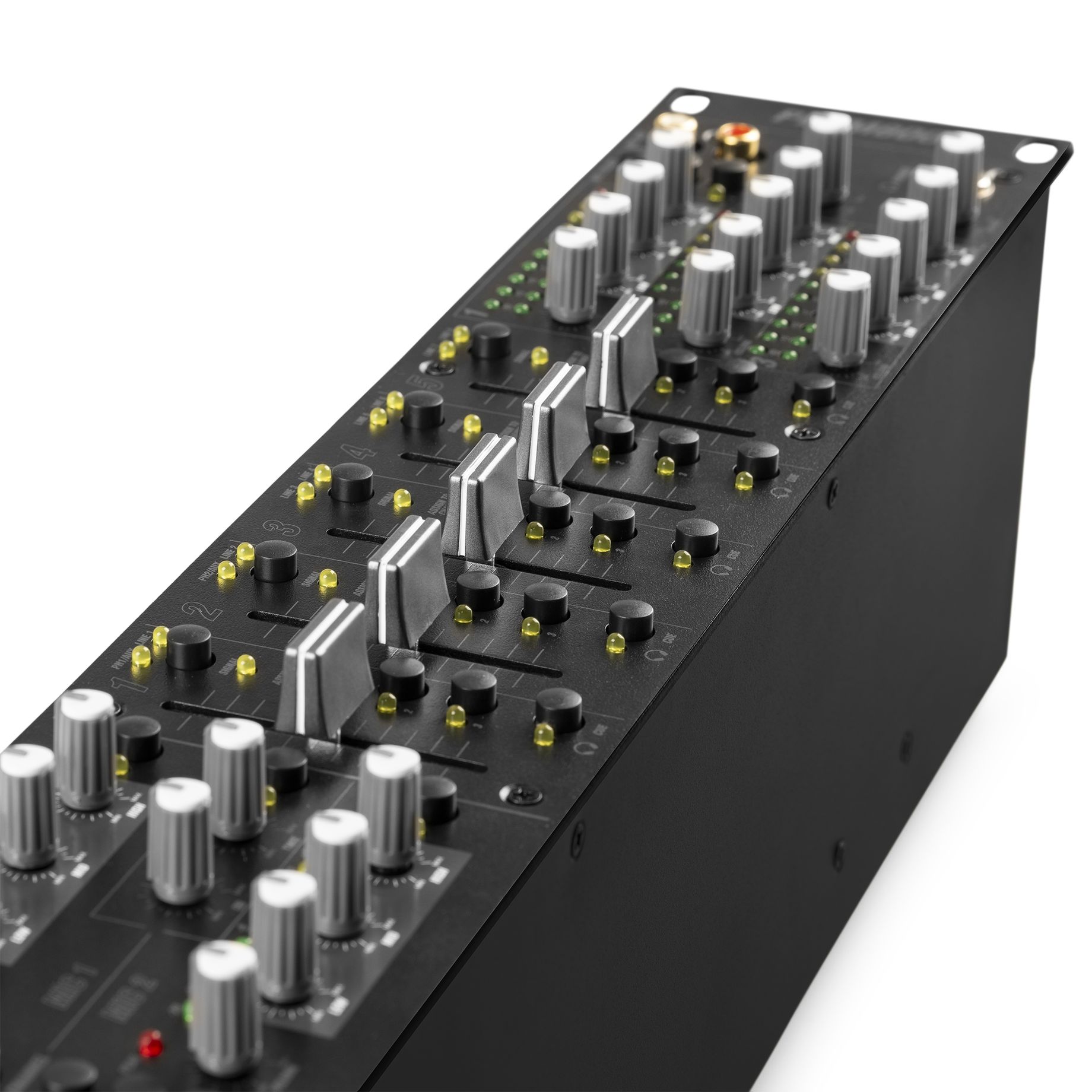

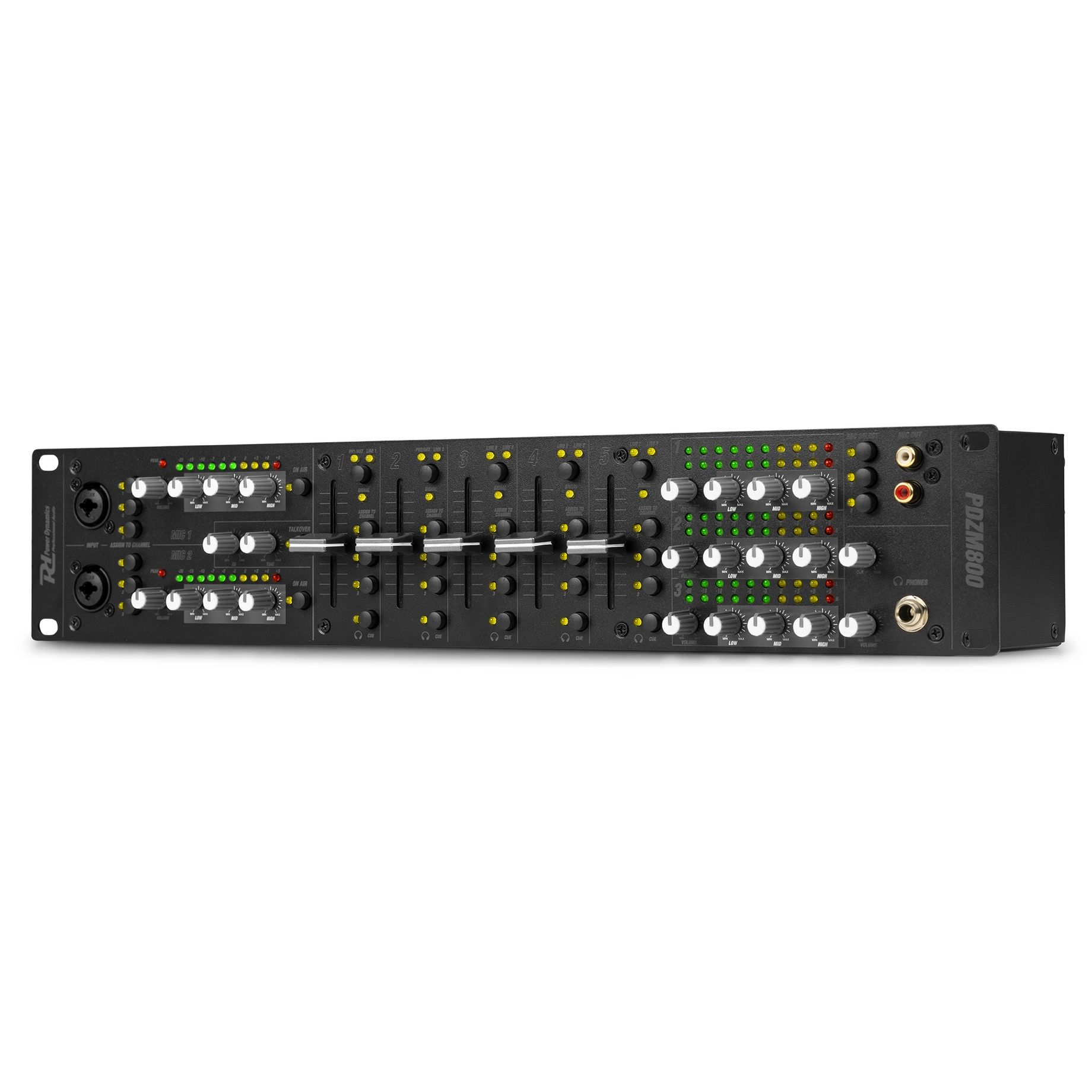

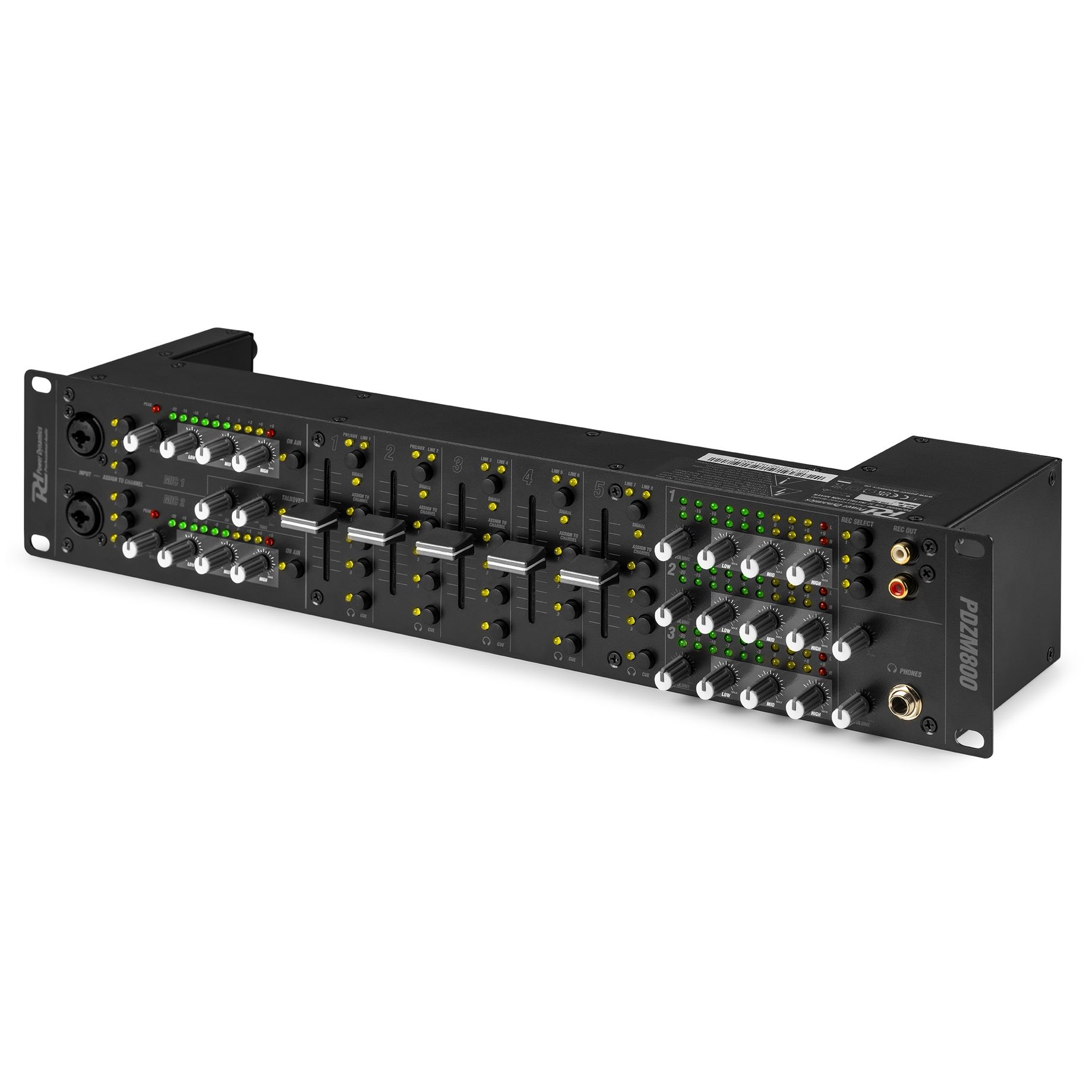

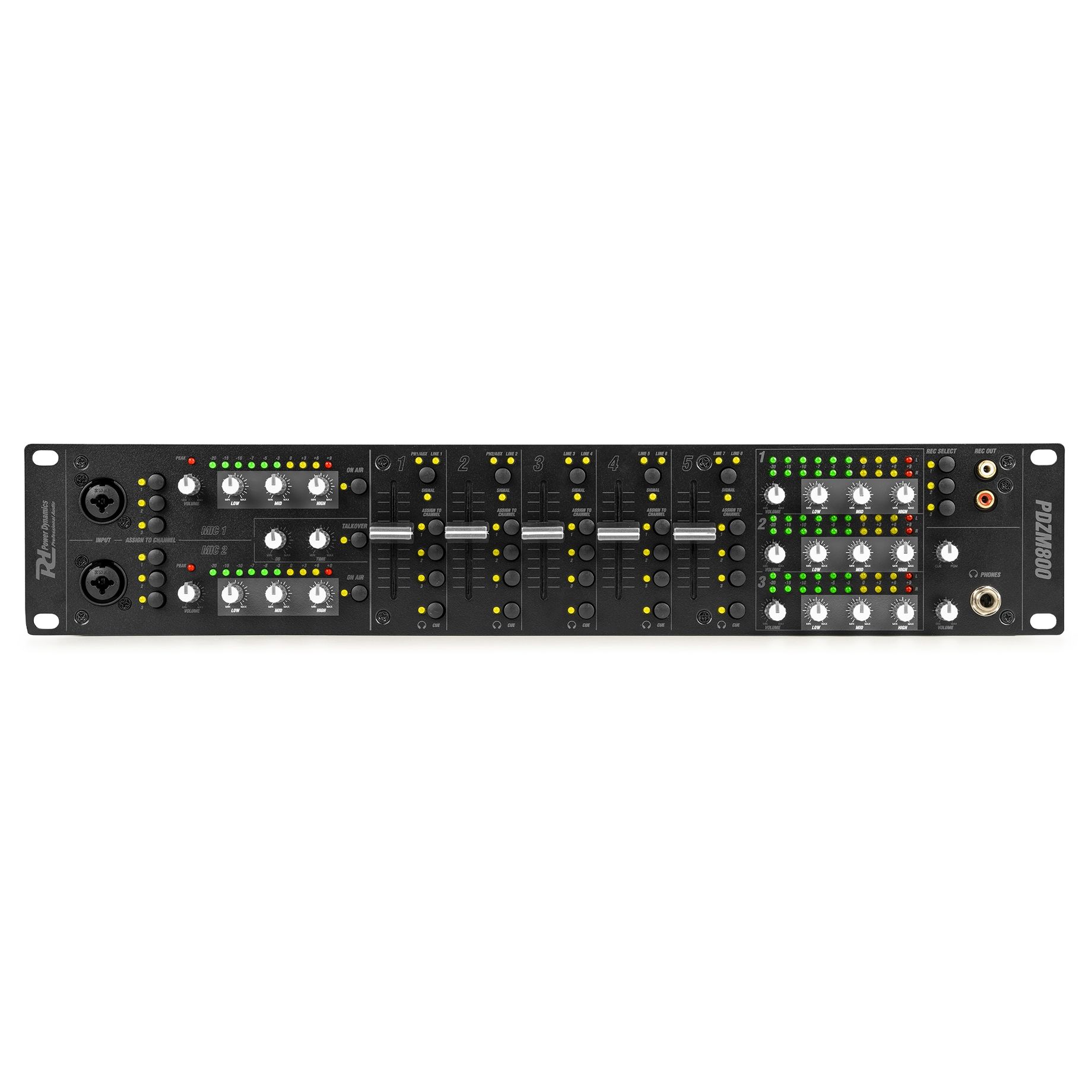

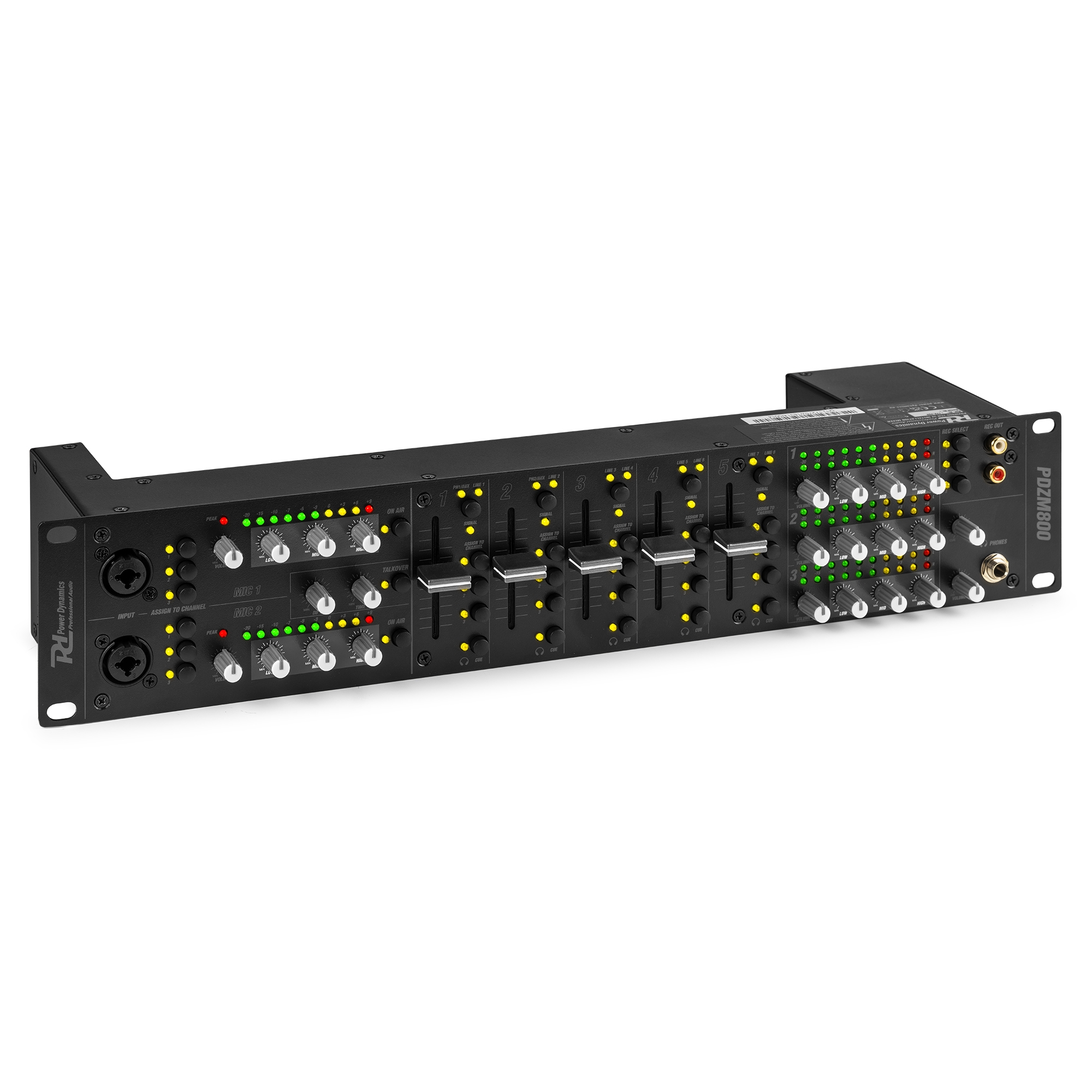

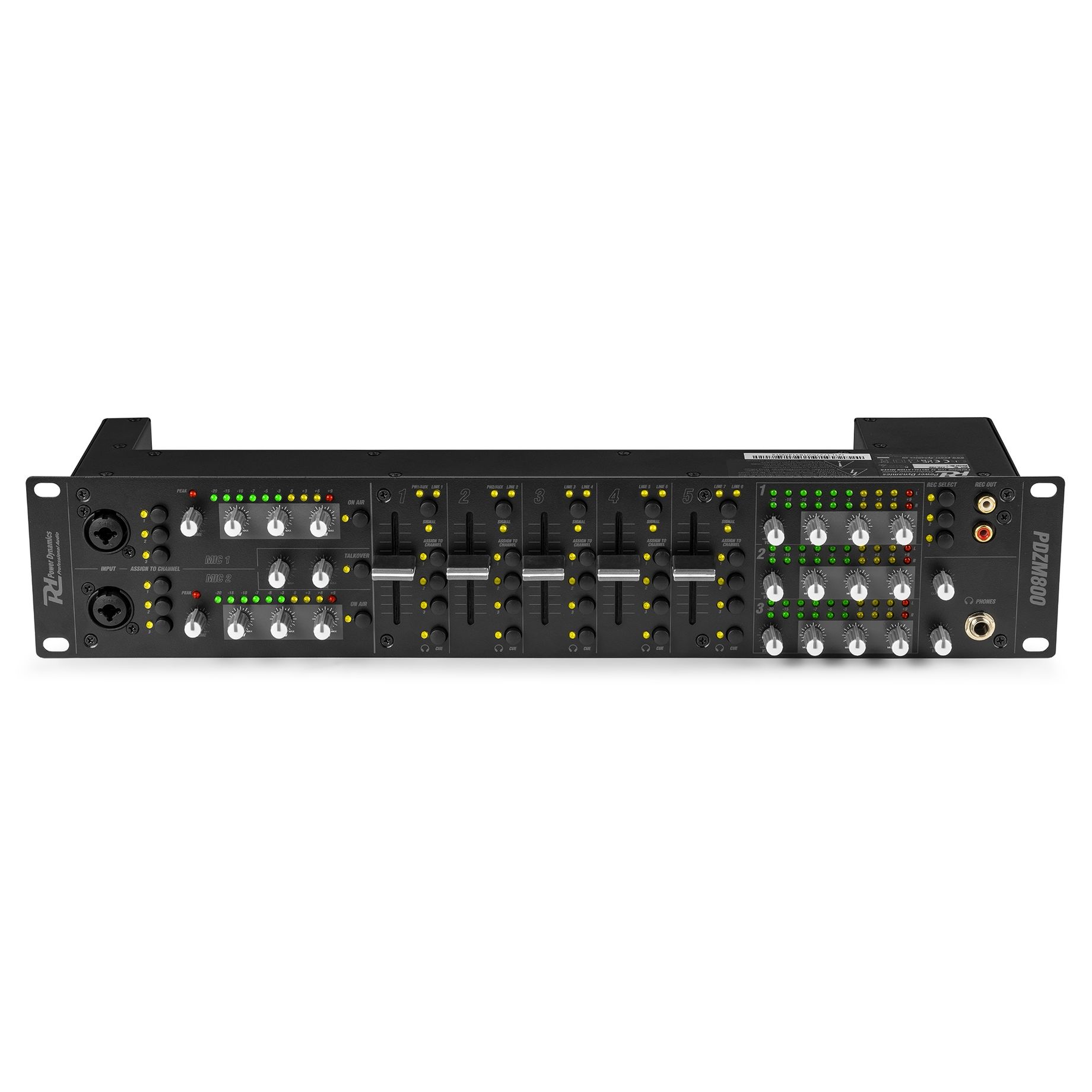

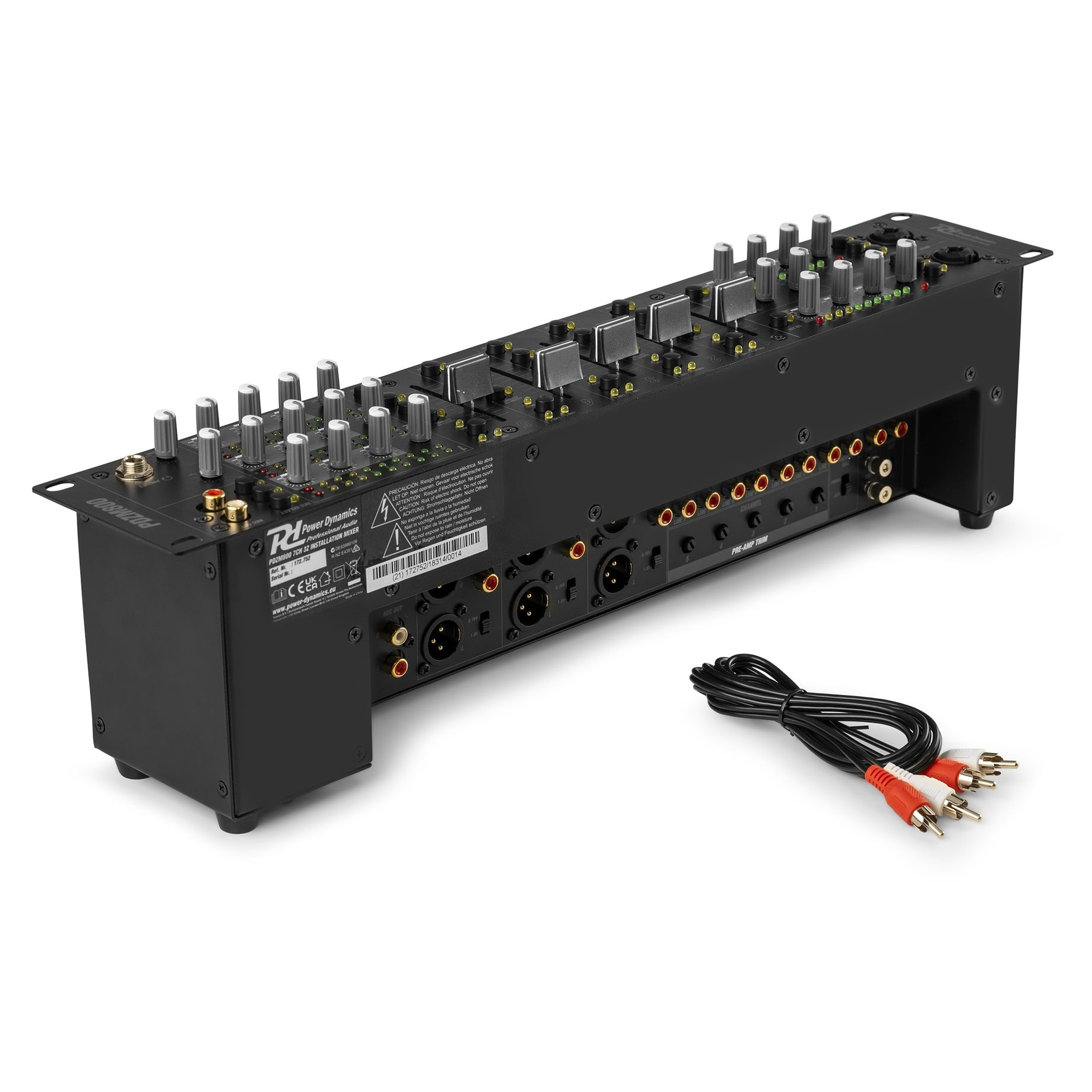

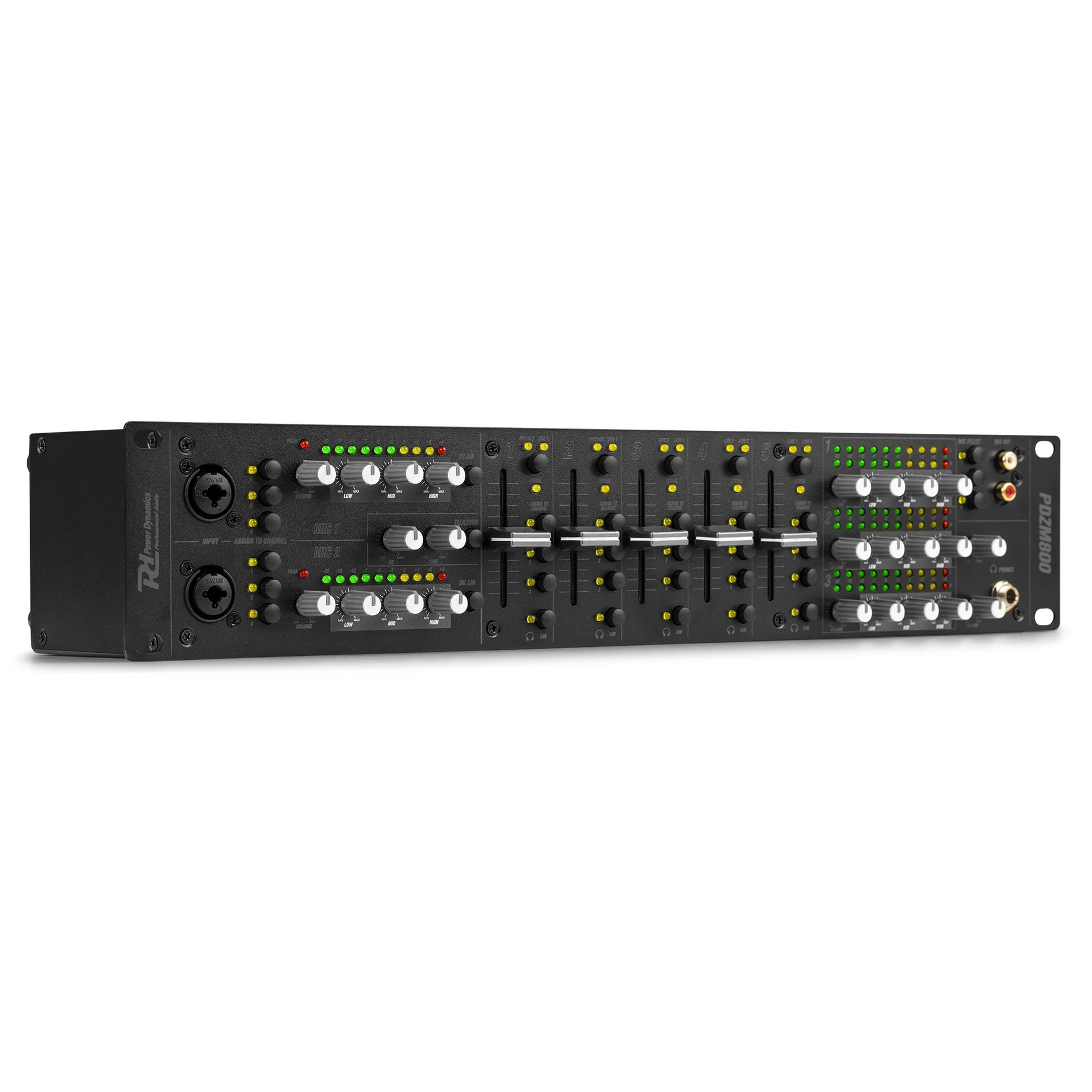

PDZM800
7Ch Installation Mixer with 3 zones
SKU 172.752
|EAN 8715693342680
+6
All product information
Compare
PDZM series
Description
Highlights
- Multifunctional 5+2-channel mixer with 3 zones
- 5 Input channels with recessed gain control
- 2 Microphone inputs via combo jacks (XLR/6.3 mm)
- Routing option per input
- Talkover level and adjustable response time
- Pre-fader listening (CUE) to the stereo input channels
- 2 Record outputs (independent of the master channels)

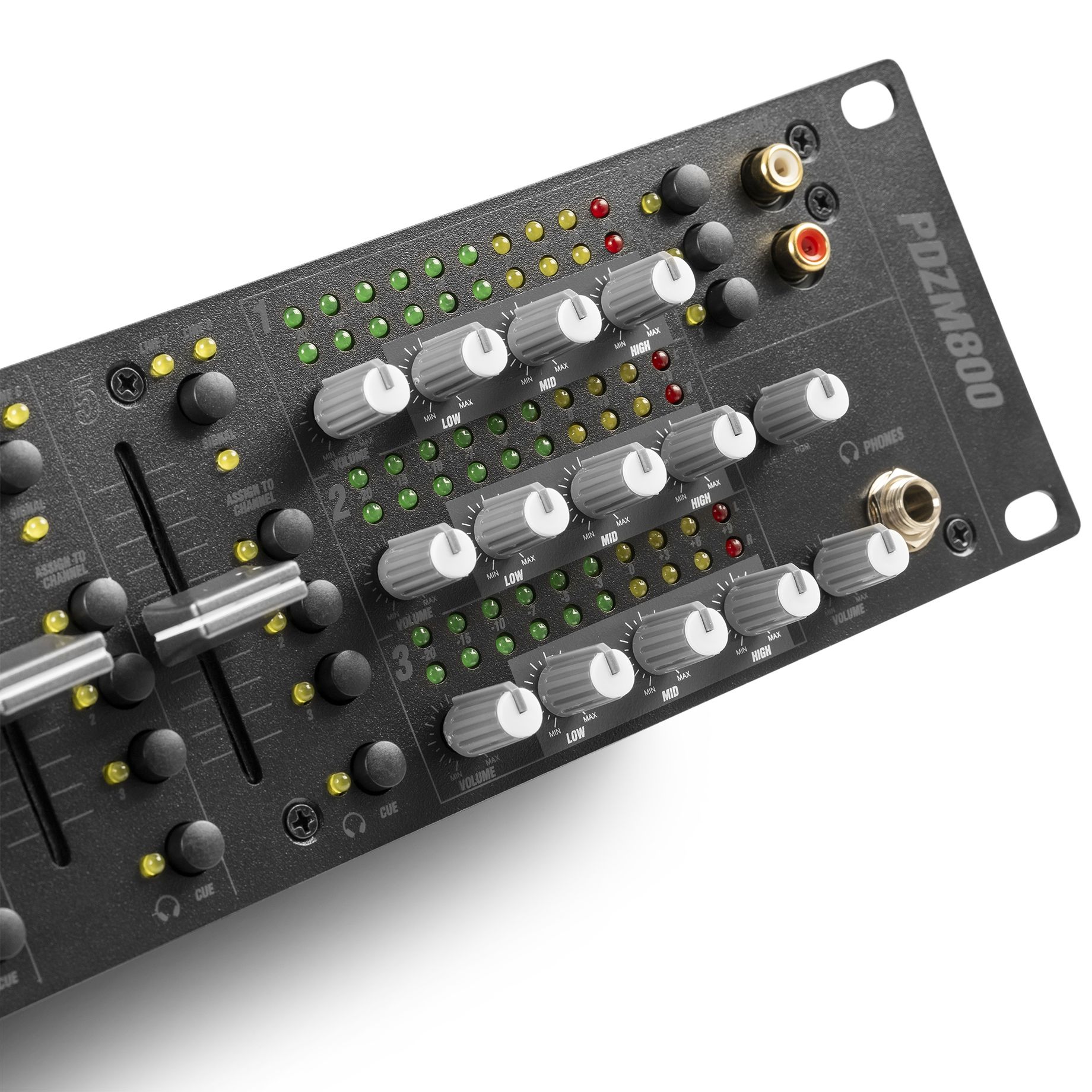

- LED VU meters and tone controls per output
- 8 Line inputs and 2 line/phono inputs via RCA jacks
- Headphone jack
- Settings on the back cannot be changed by unauthorized personnel
- 19” Rack installation (2 U)
Specifications
BrandPower Dynamics
Product seriePDZM series
ColourBlack
Frequency Response20 - 20,000 Hz
Audio specifications
Signal-to-noise ratio: Main>60dB
THD: Main<0.02%

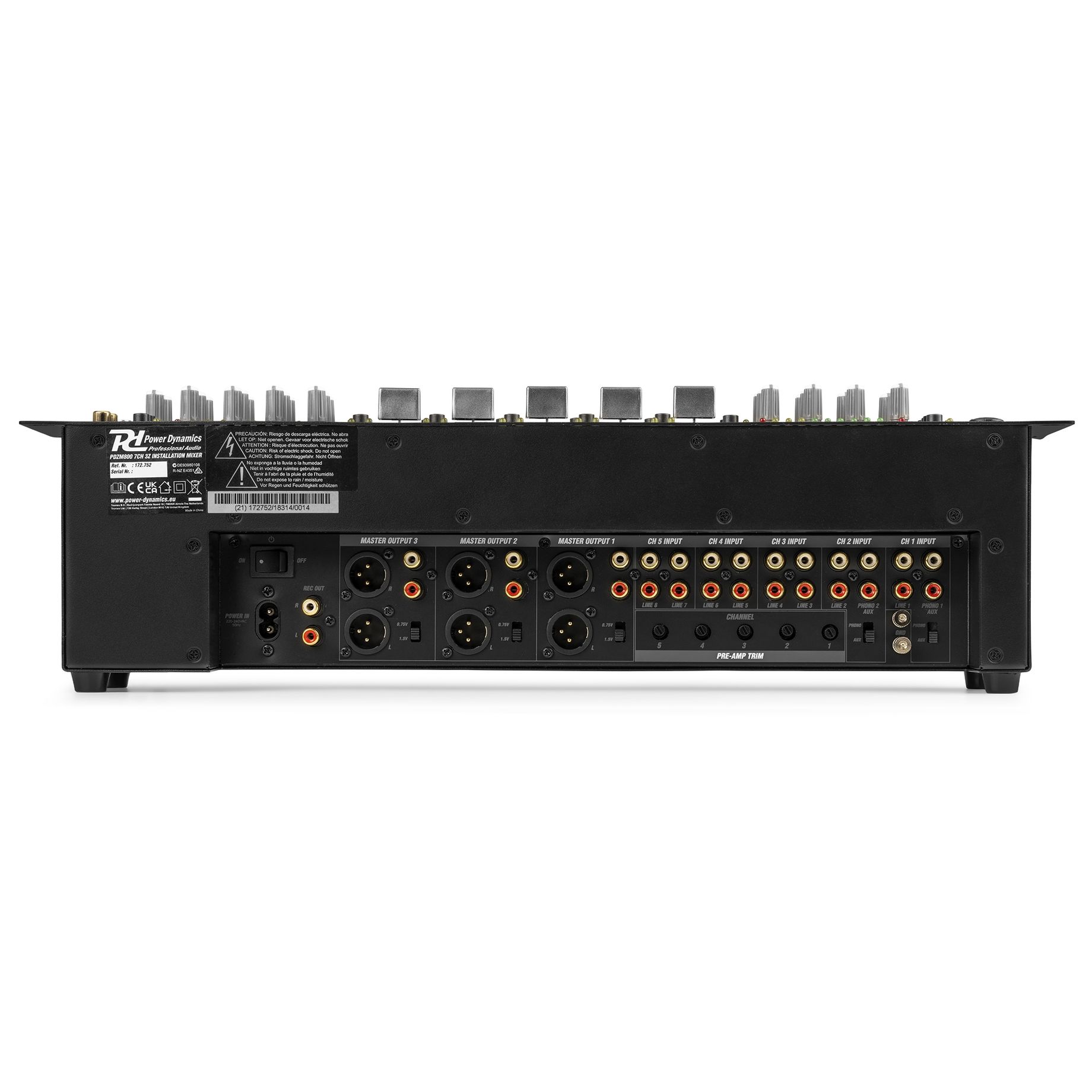

Connections
Input connections
- XLR
- RCA
- 6.3 mm jack
Output connections
- 6.3 mm jack
- RCA
- XLR
Electrical
Power Supply100-240VAC 50/60Hz
Mechanical
Dimensions
- 145 x 484 x 90 mm (W x D x H)
Weight
- 3 kg
Manuals & Documents
Manual
PDF
