PDZM700

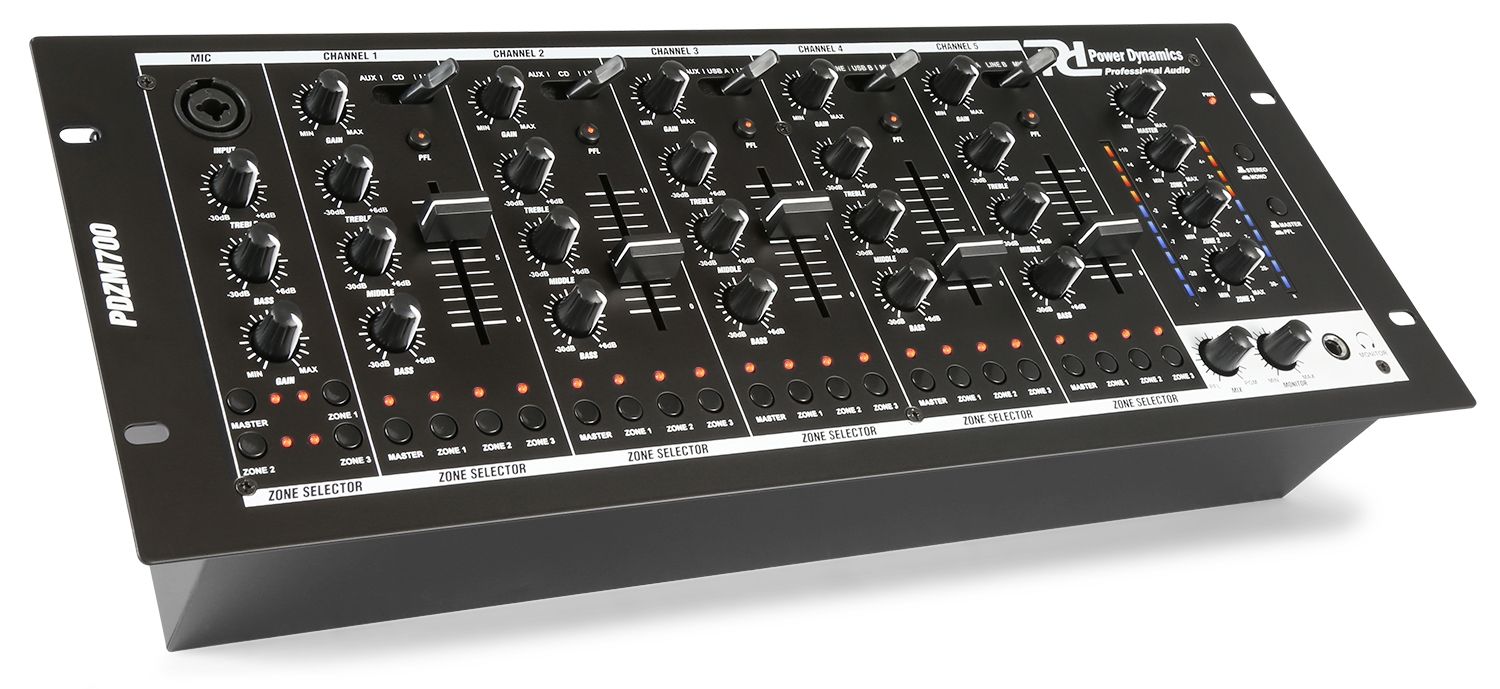

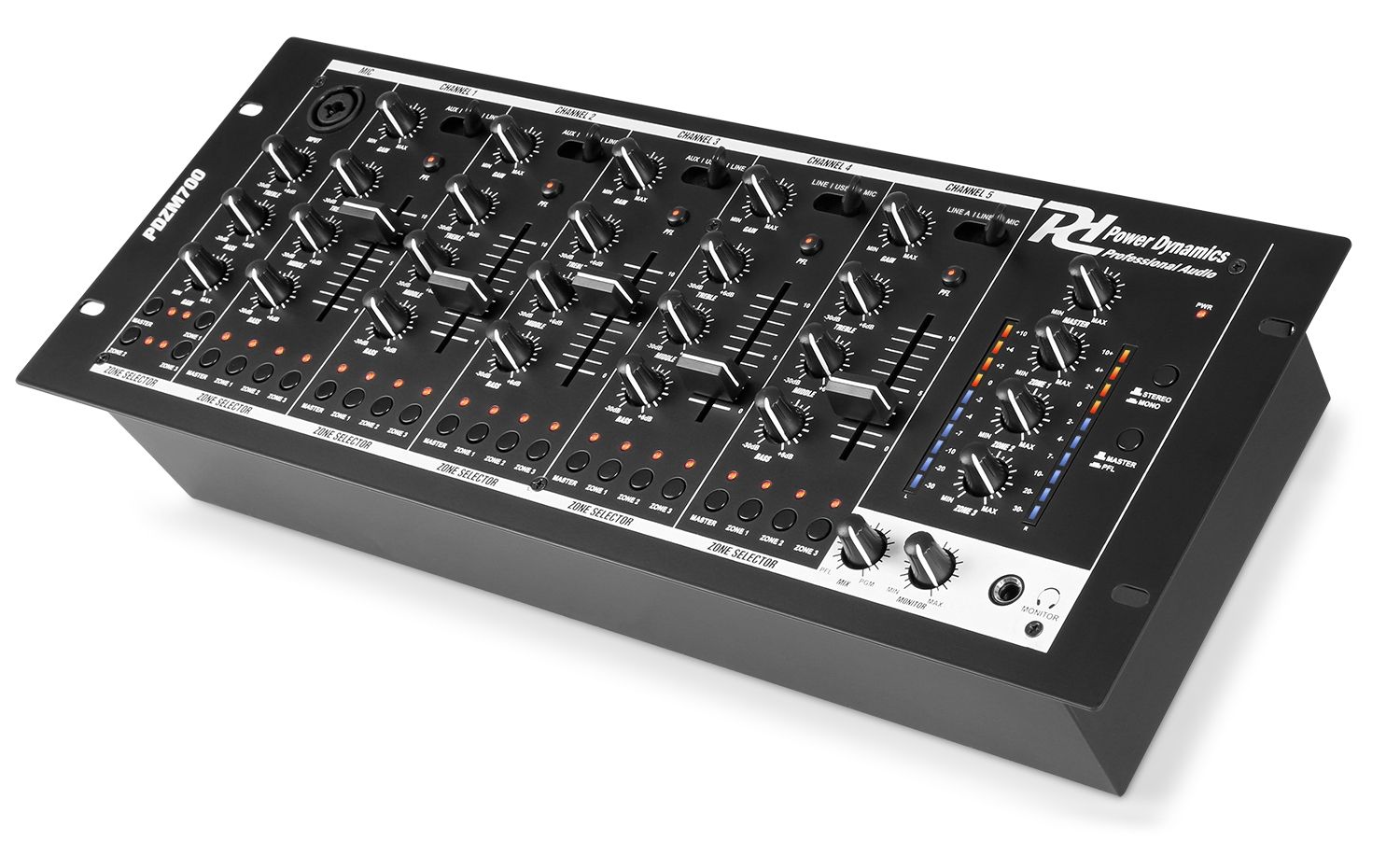

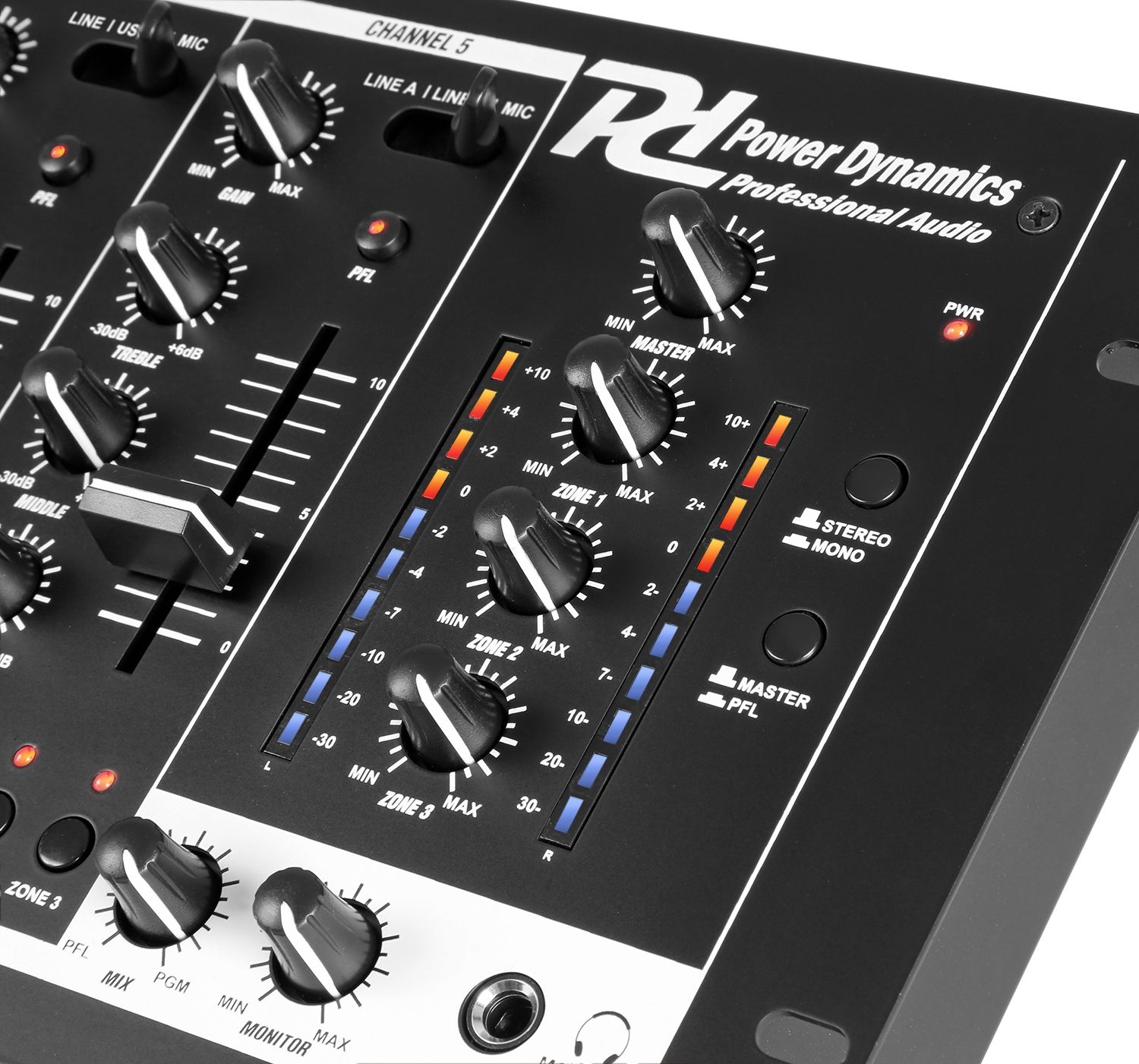

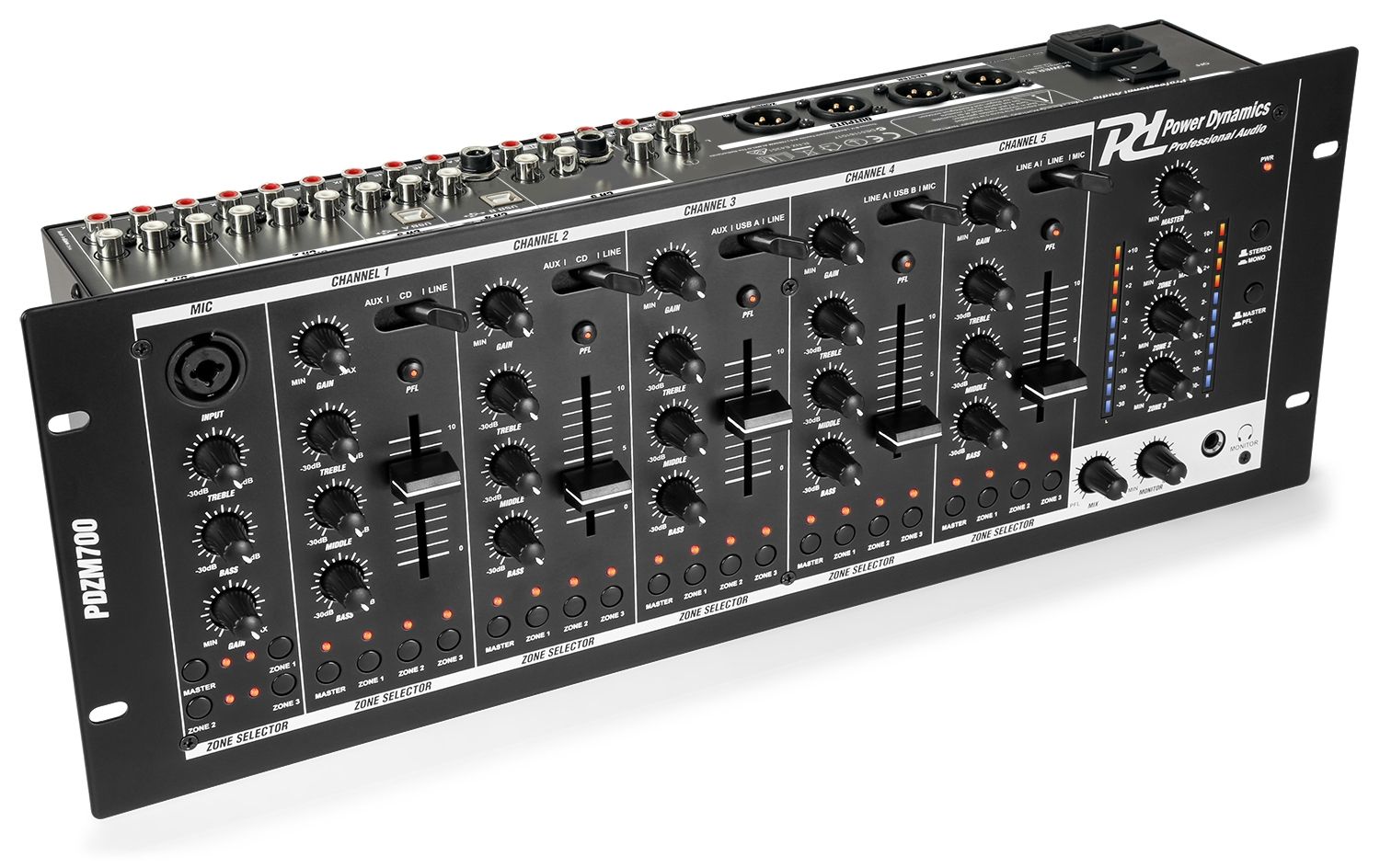

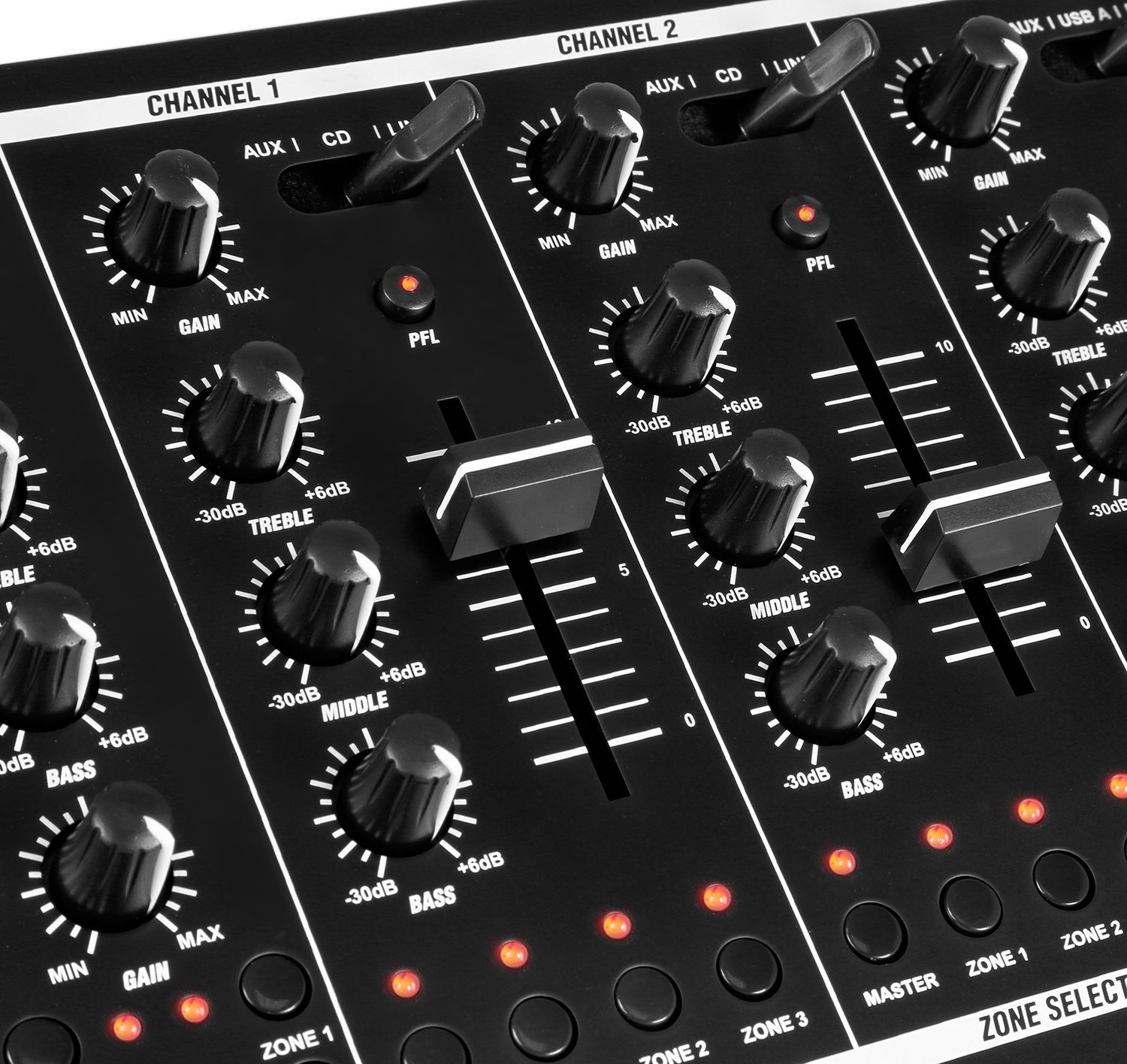

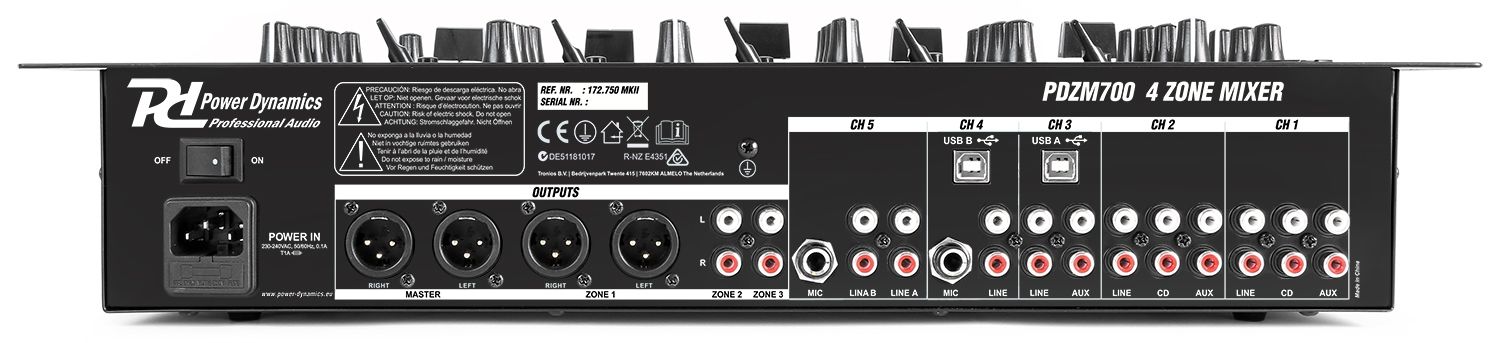

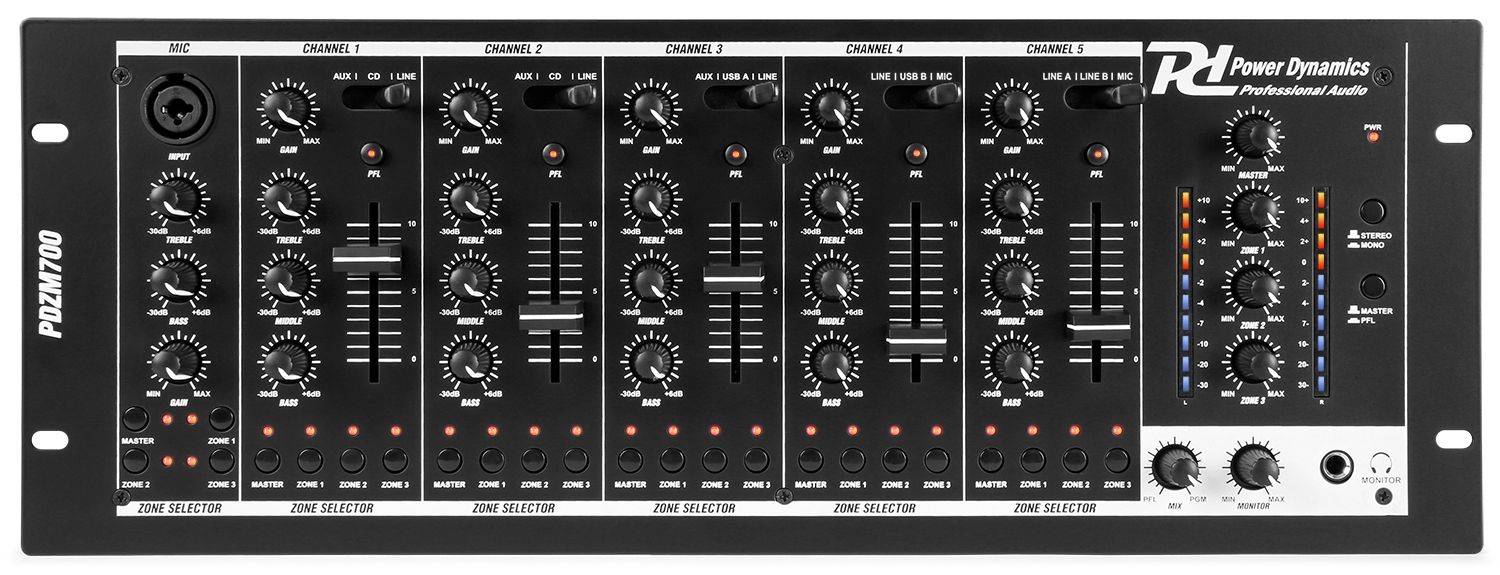

6 Channel Installation Mixer USB 4 zones
SKU 172.750
|EAN 8715693276671
All product information
Compare
PDZM series
Description
Highlights
- Professional 4-zone mixer designed for bars, clubs, restaurants, and event installations.
- Independent volume control for Master, Zone 1, Zone 2, and Zone 3.
- Dual USB audio interface allows connection of one or two computers simultaneously.
- Multiple input options including Line, AUX, and Microphone (XLR / 6.3 mm combo).
- Balanced and unbalanced outputs.
- 3-band EQ and Gain control on each channel.
- Input selector to choose between connected audio sources per channel.
- PFL (Pre-Fade Listen) for pre-monitoring through headphones.
- Stereo/Mono switch for easy output configuration.
- LED VU meters for clear visual level monitoring.
- Headphone/Monitor section with mix and volume controls.
- User-friendly 19” rack design ideal for fixed or mobile setups.
Specifications
BrandPower Dynamics
Product seriePDZM series
ColourBlack
Channels6
Frequency Response15 - 30,000 Hz
Sound editing
Equalizer: Line3-Bands
Equalizer: Mic.2-Bands
Audio specifications
Input Level: Mic.1.5mV, 2 kOhm
Signal-to-noise ratio: Main>110dB
THD: Main<0.05%
Features
FeaturesMulti-zone mixer, USB audio interface
Electrical
Power Supply220-240VAC 50Hz
Mechanical
Dimensions
- 17.8 x 48.2 x 10 mm (W x D x H)
Weight
- 3.8 kg
Manuals & Documents
Manual
PDF
Ask away

Or ...
Email your question directly
If you have any questions about this product or serie? Fill in this form and we'll answer your question as soon as possible.
