PDW8W

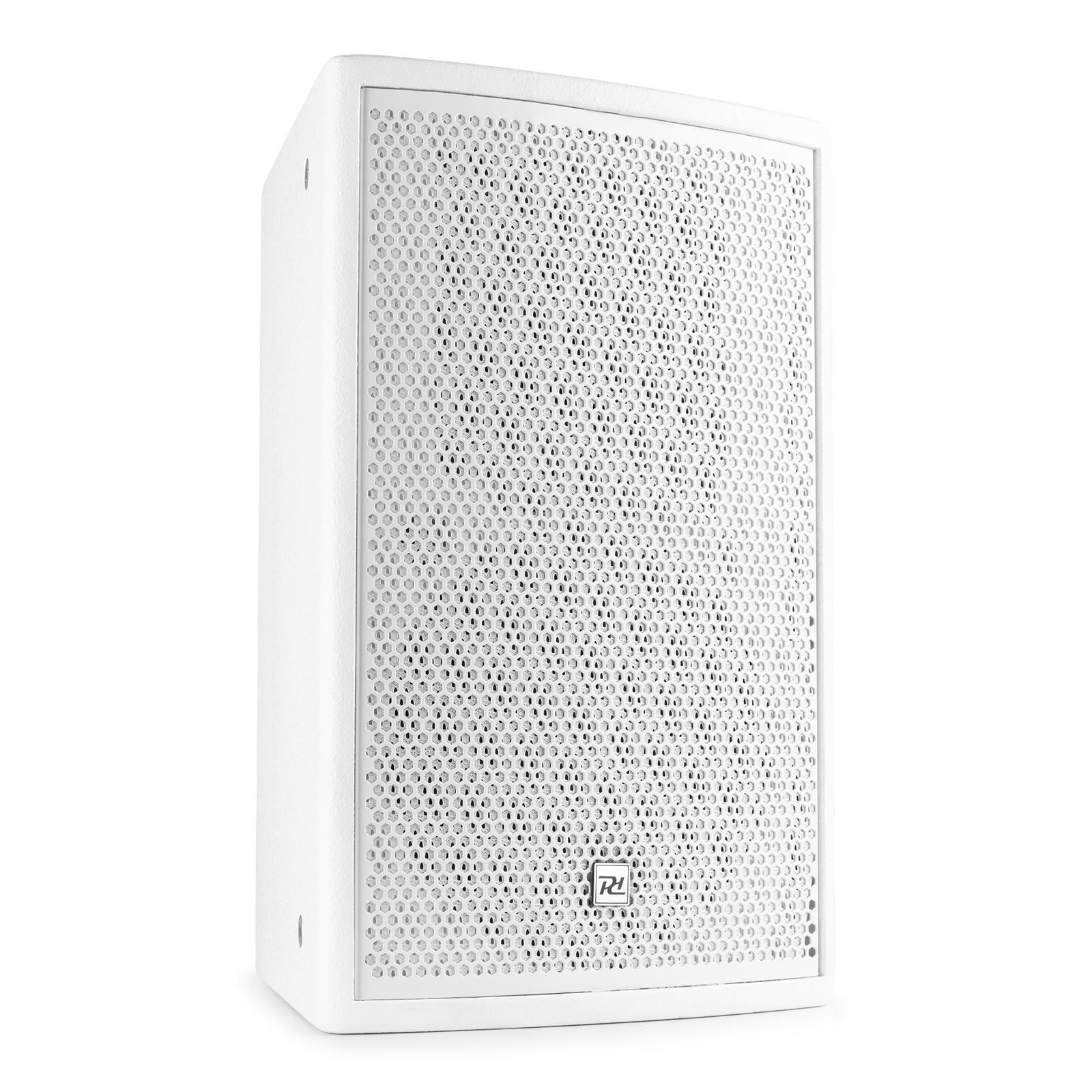

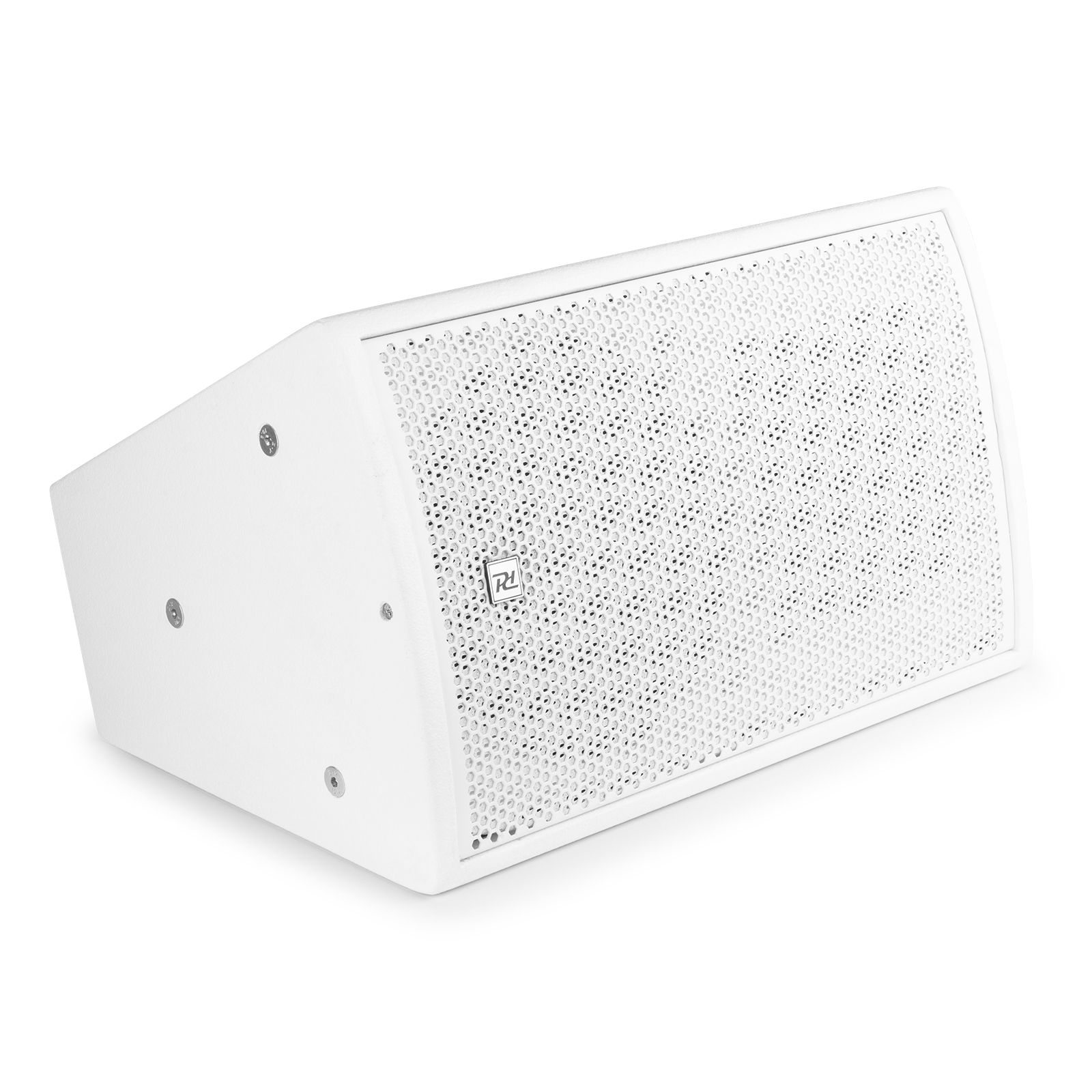

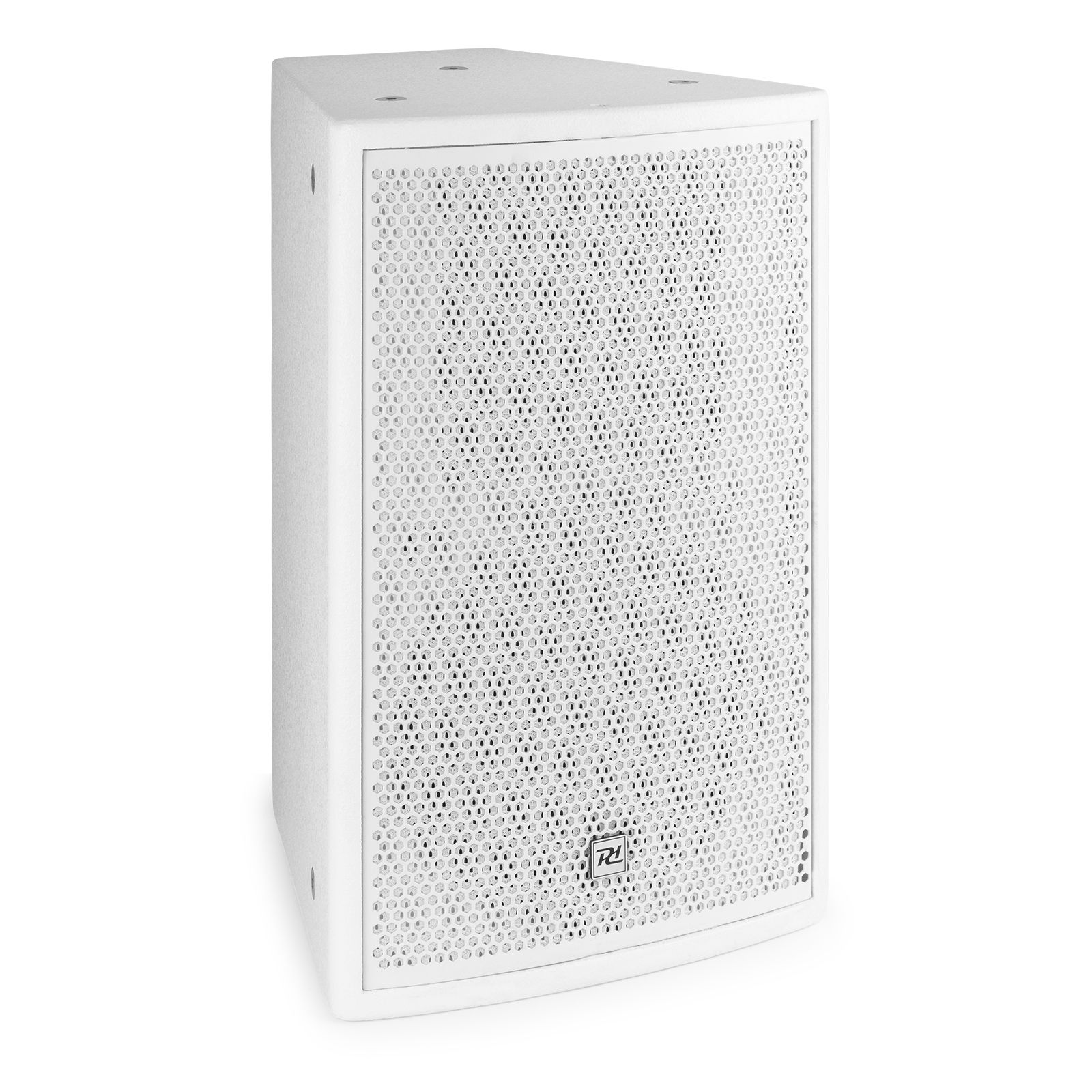

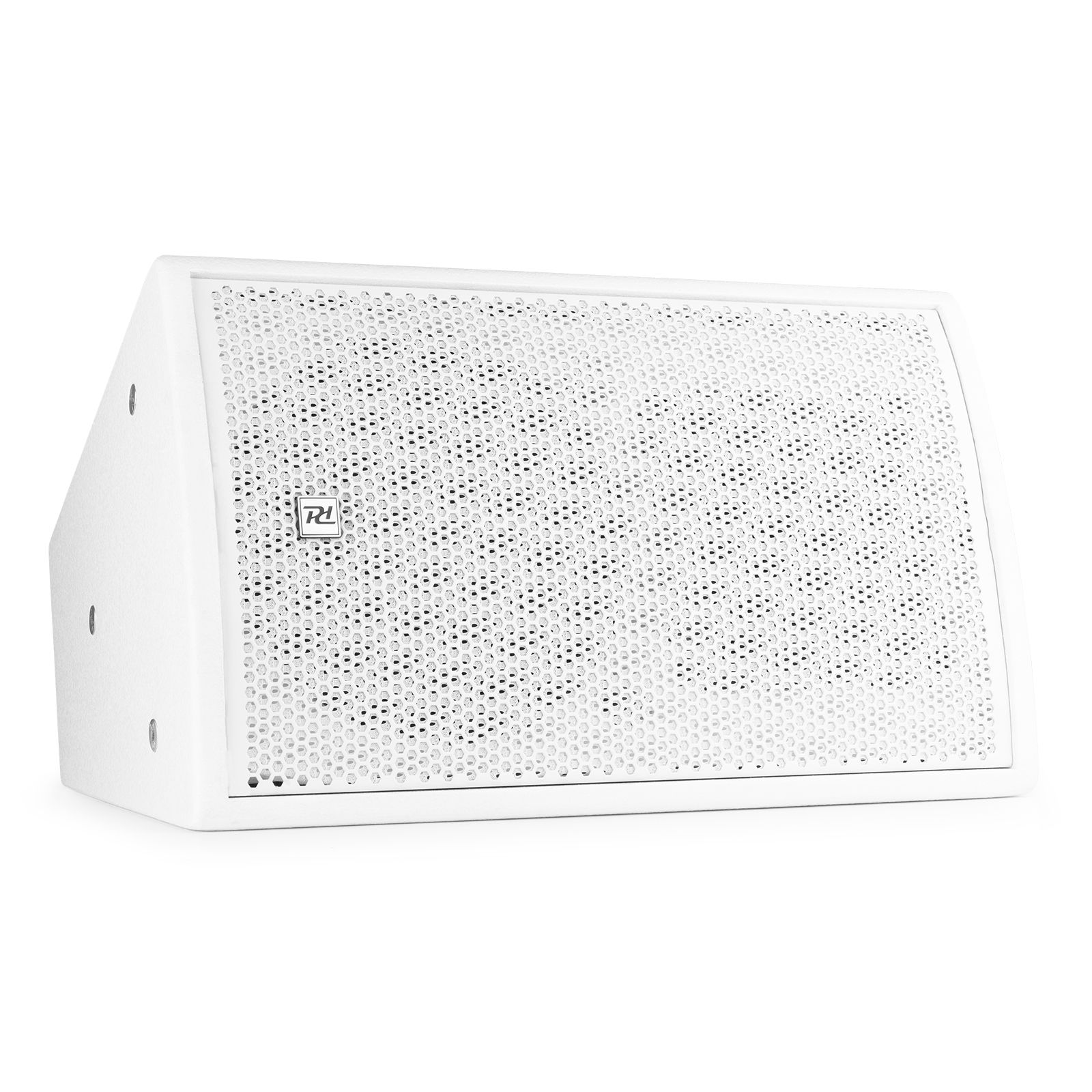

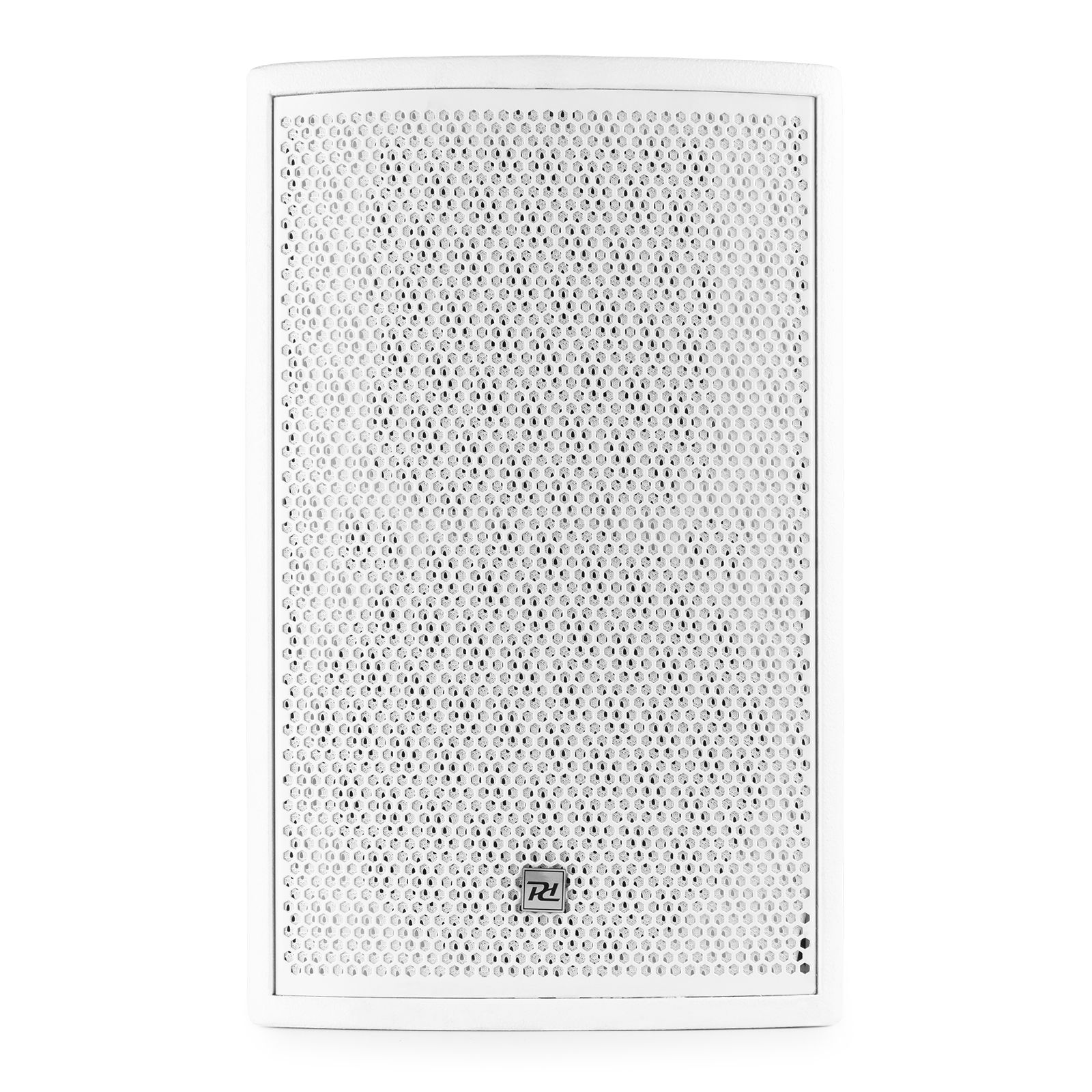

Passive Speaker 8" White
SKU 178.615
|EAN 8715693333541
+6
All product information
Compare
PDW series
Description
Highlights
- Passive 2-way bass-reflex speaker
- Internal passive crossover filter

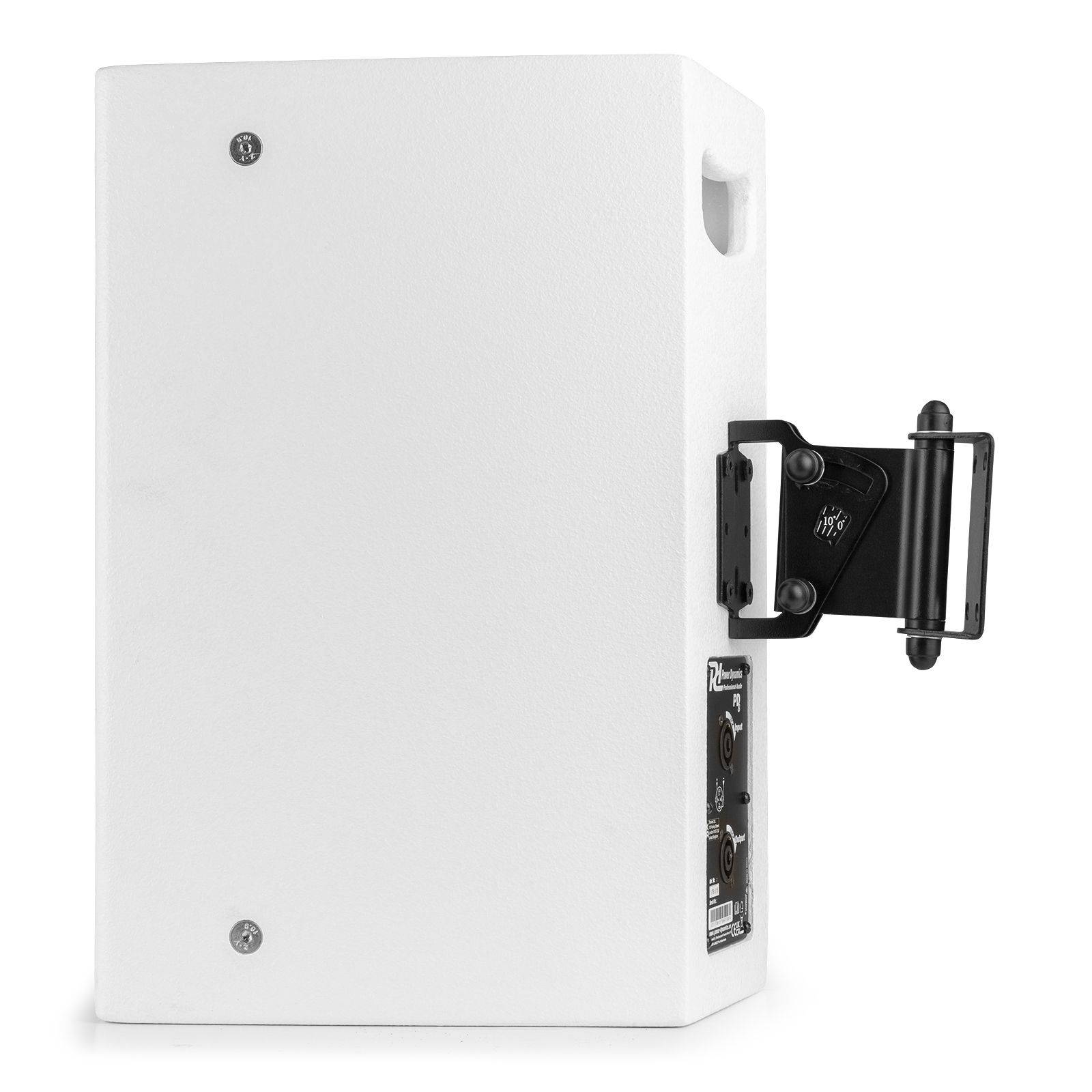

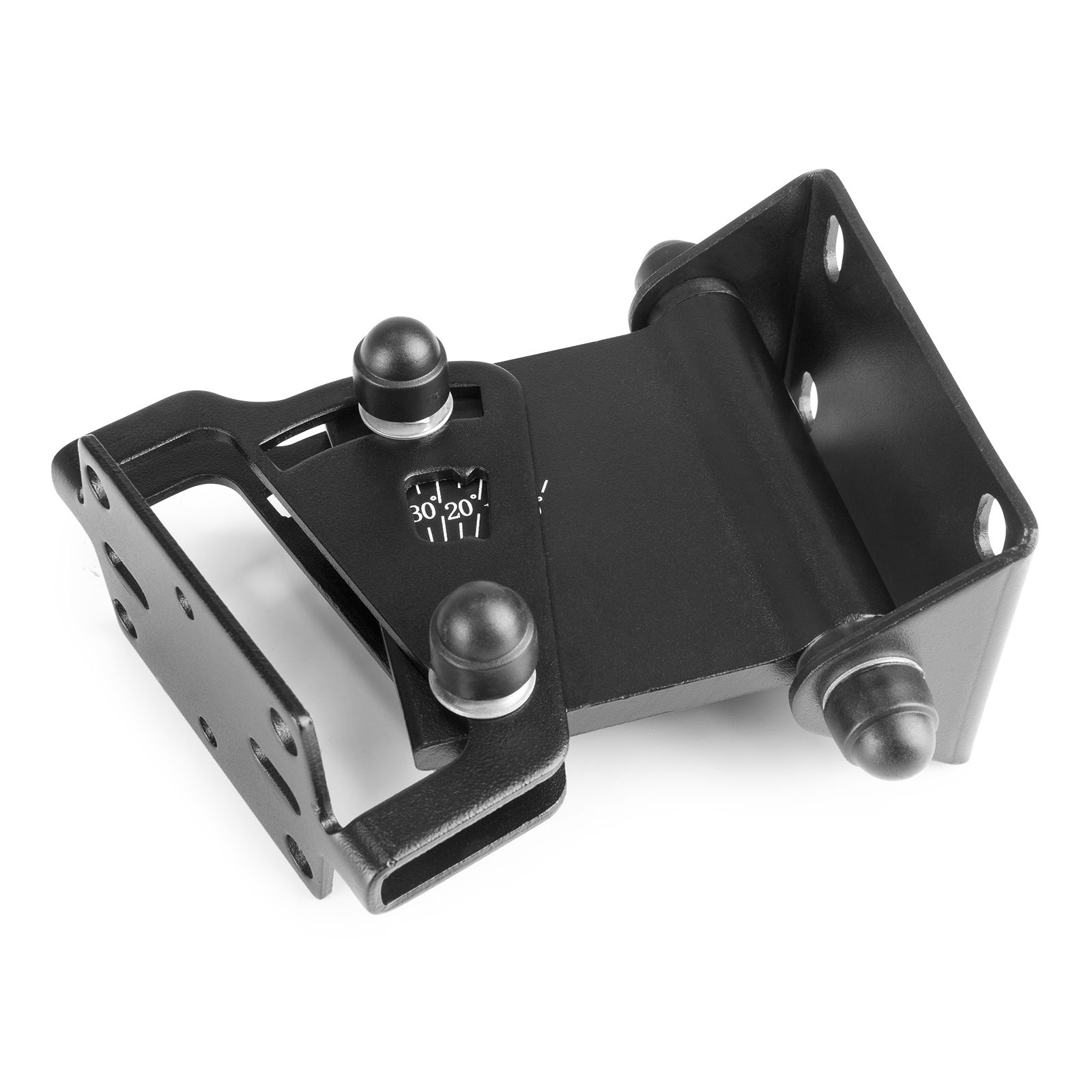

- Including metal wall mount
- Plywood cabinet
- White textured paint finish
- Robust metal grille

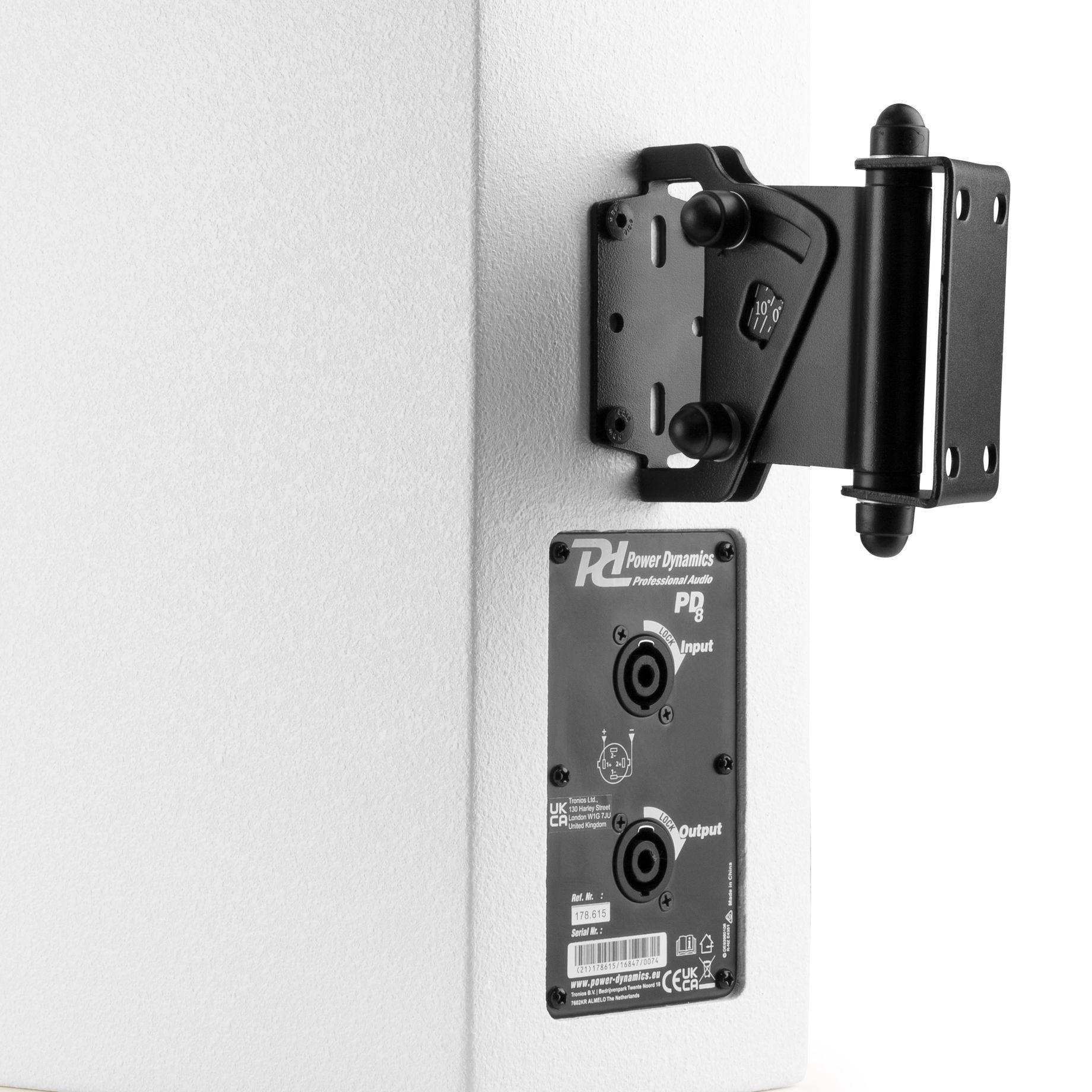

- Connections 2x NL4
- Supplied per piece
Specifications
BrandPower Dynamics
Product seriePDW series
ColourWhite
Speaker typePassive (non-amplified)
Speaker Power Peak300 W
Speaker Power RMS150 W
Frequency Response80 - 20,000 Hz
Sensitivity (1W/1m)92 dB
Max. SPL (Peak)116 dB
Impedance8 Ω
Dispersion (H x V)90° x 60°
Audio specifications

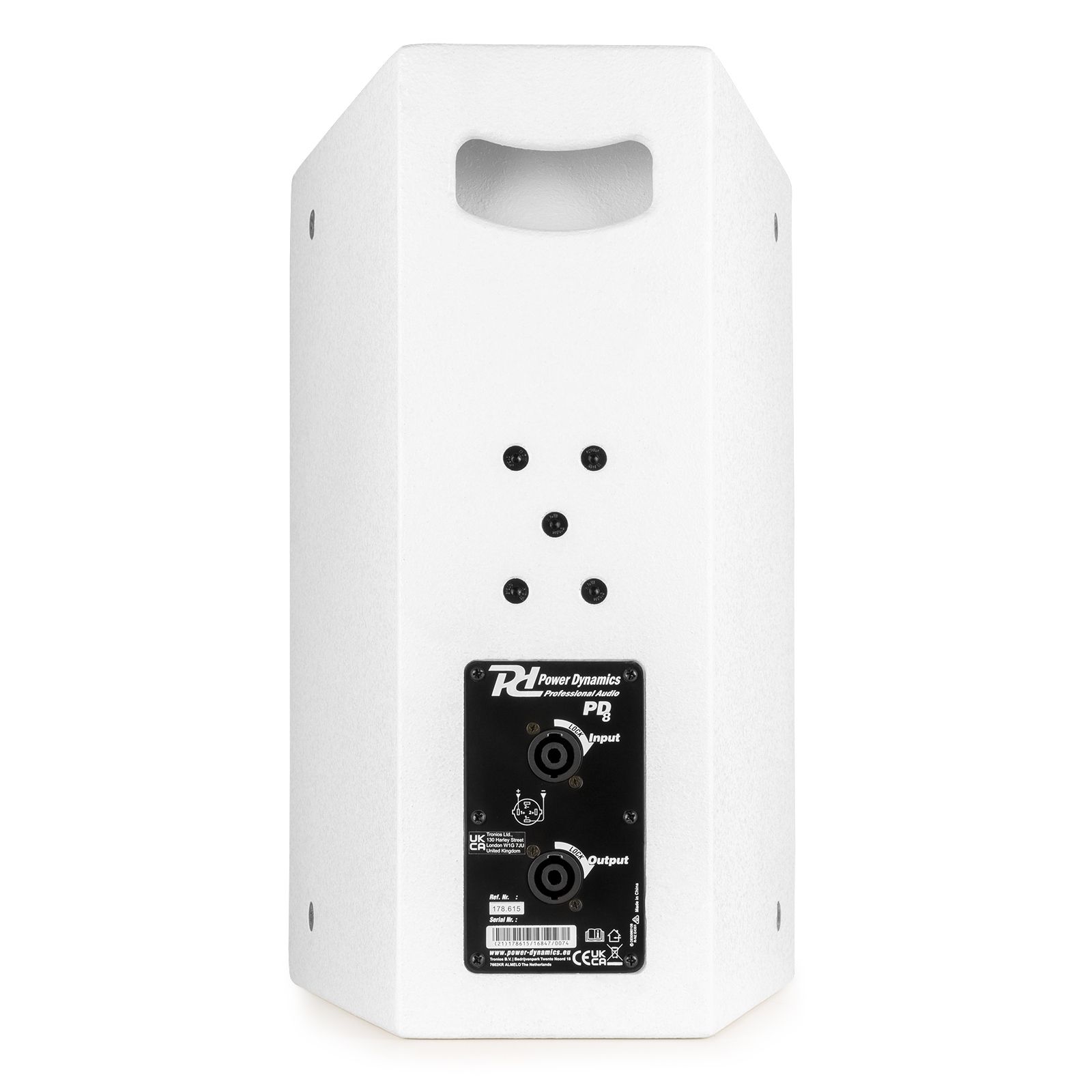

Connections
Input connections
- NL4
Output connections
- NL4
Environmental
IP ratingIP20
Mechanical
Stand Fitting35mm pole adapter on bottom
Rigging Points10x M8
Dimensions
- 290 x 290 x 460 mm (W x D x H)
Weight
- 8.85 kg

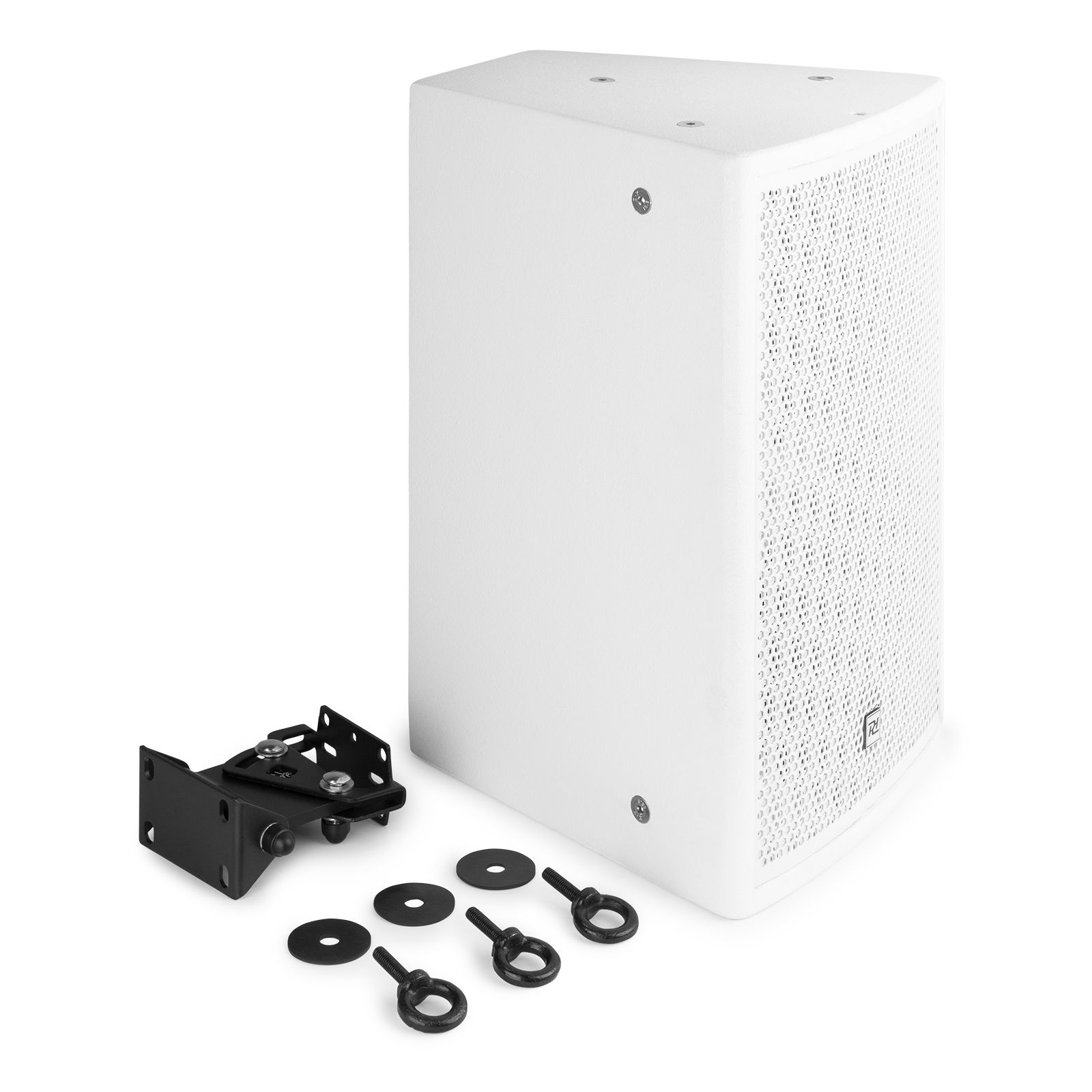

Accessories
Included Accessories

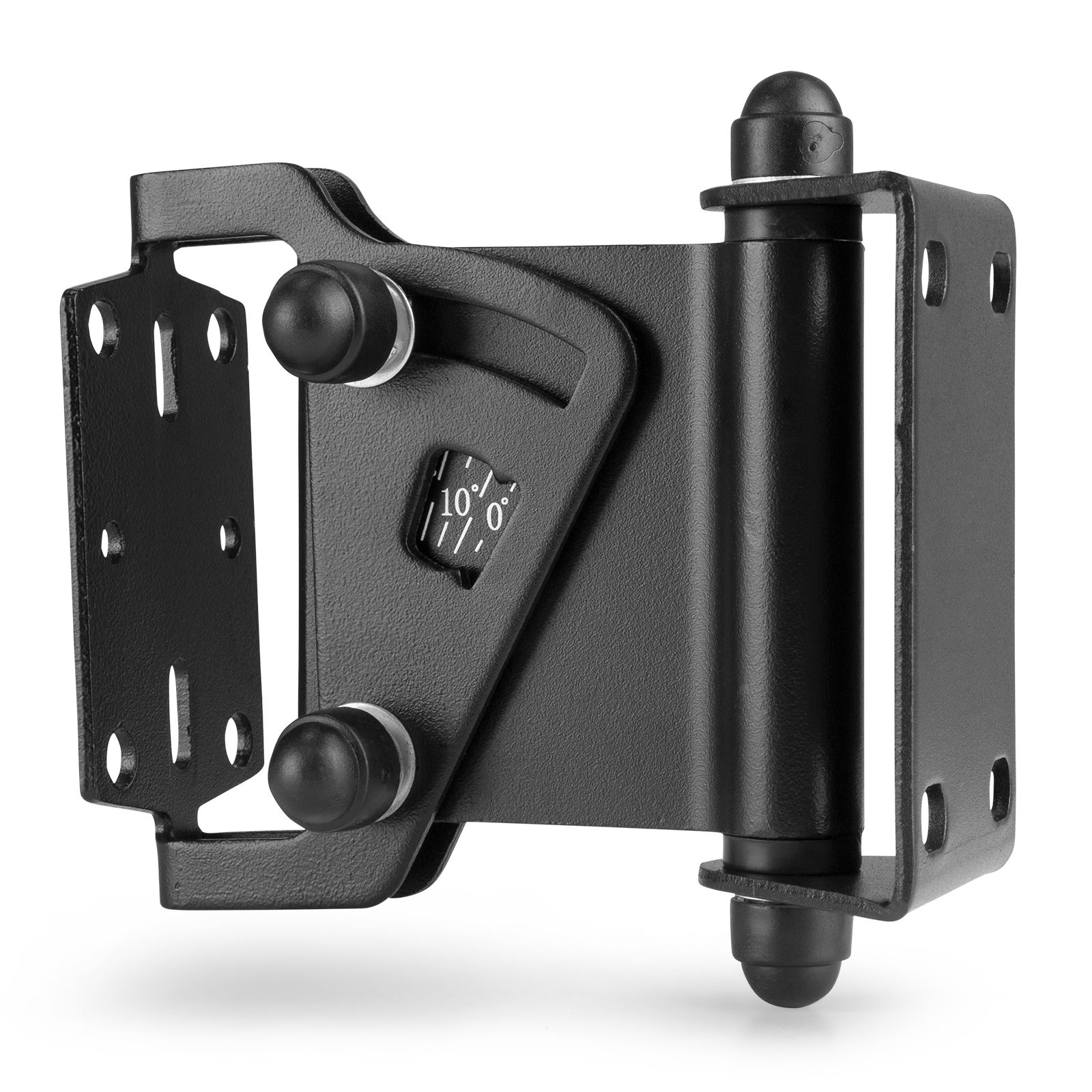

- Mounting bracket
Manuals & Documents
Manual
PDF
