PDW500MP3

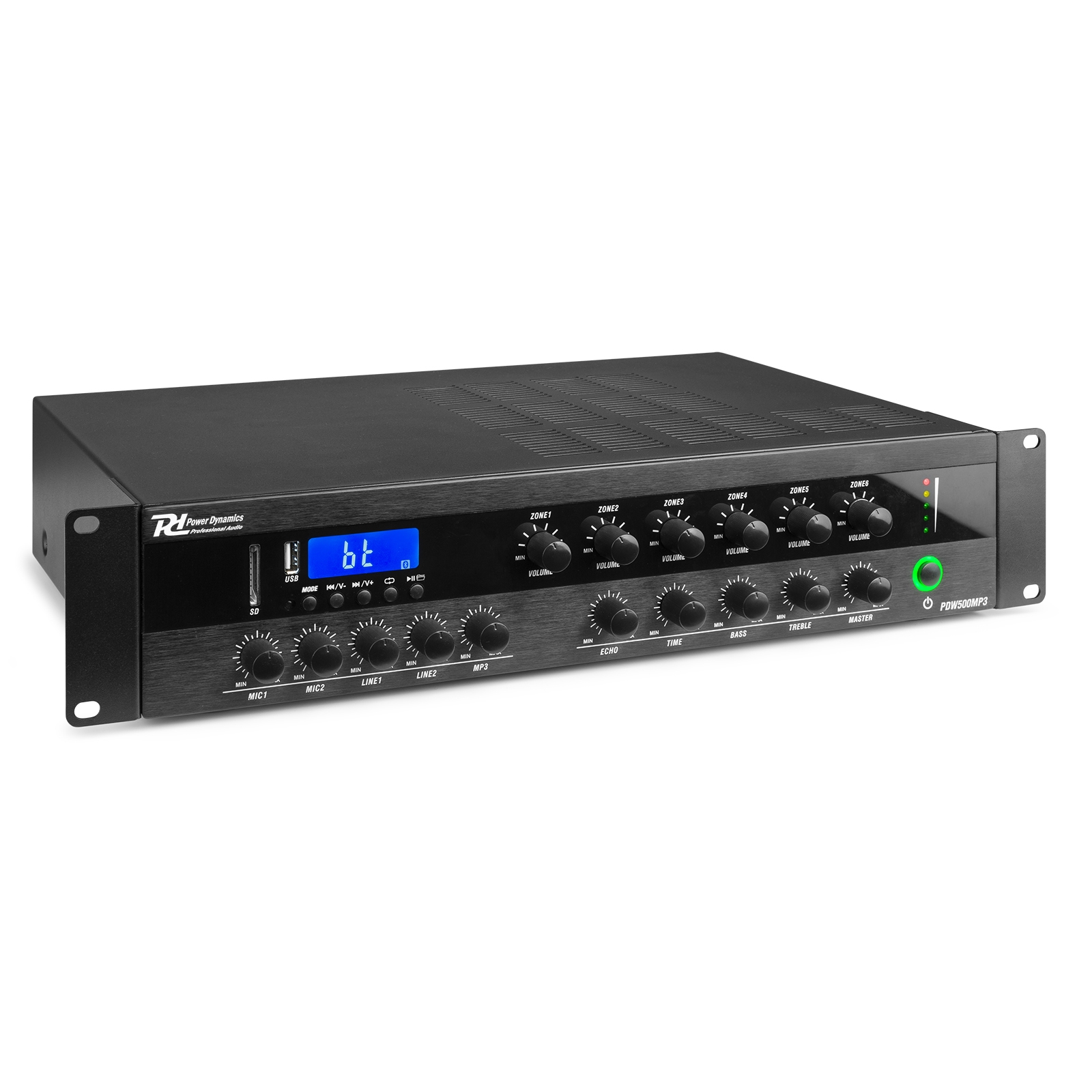

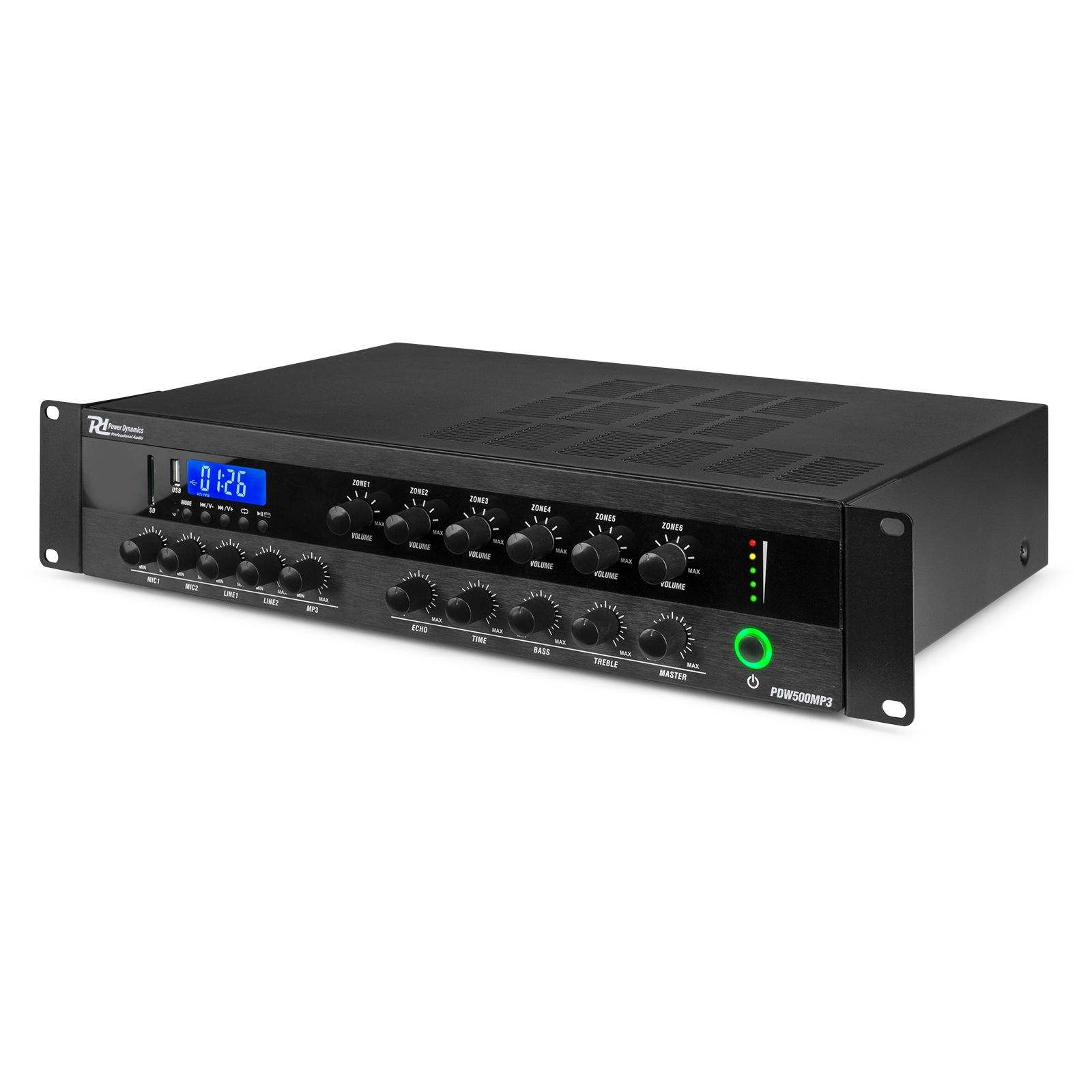

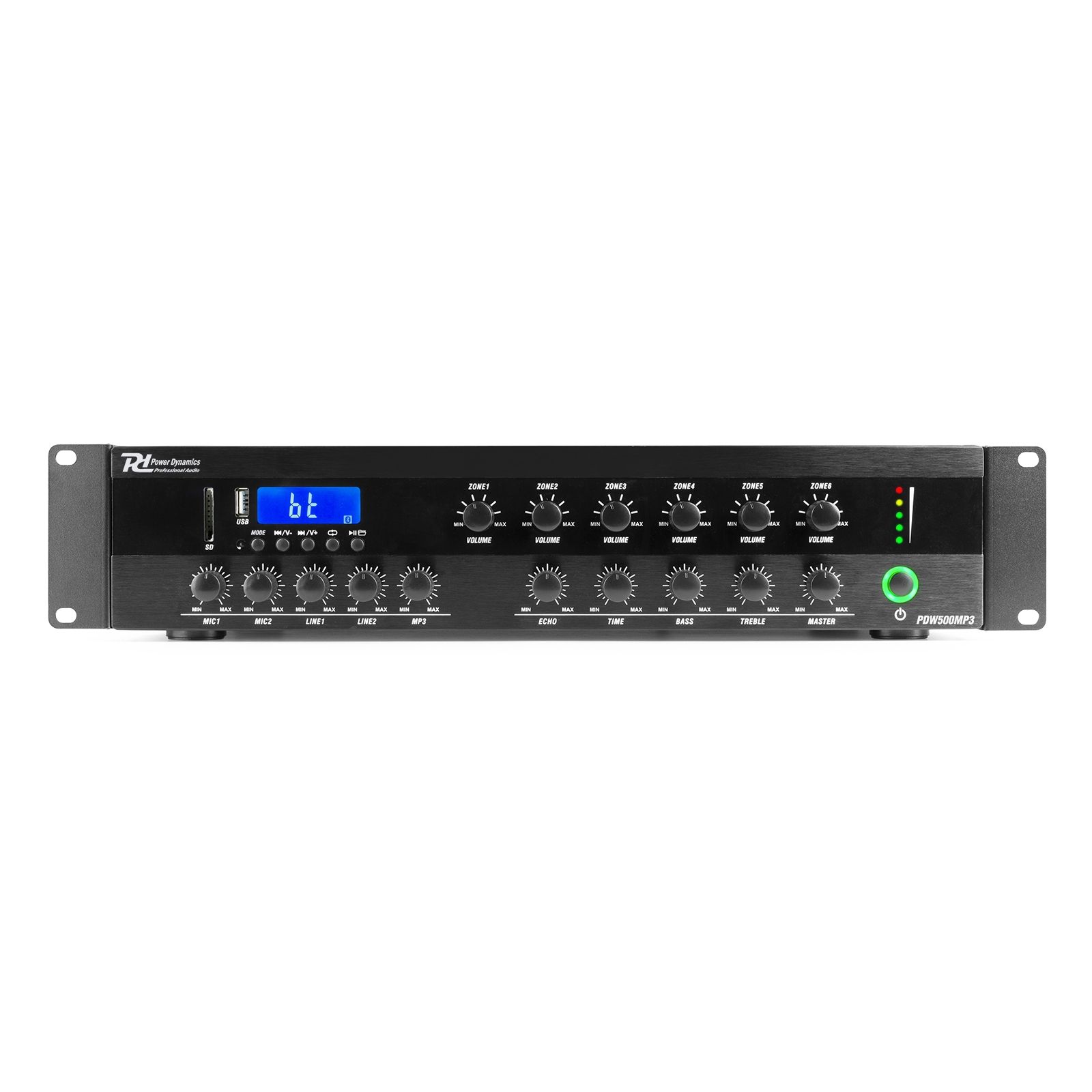

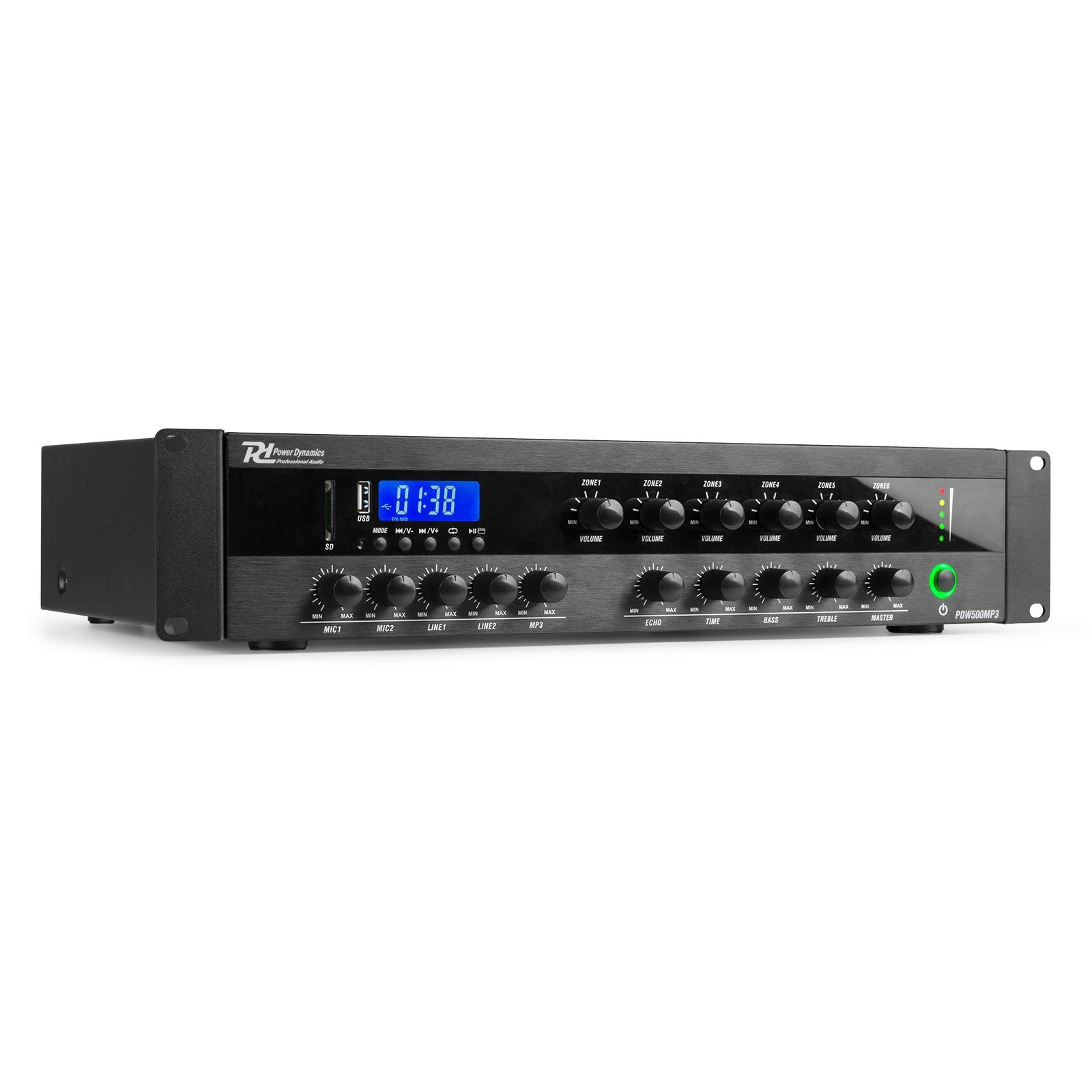

PA Mixer Amplifier 500W/100V 6 zones
SKU 952.088
|EAN 8715693335347
+3
All product information
Compare
PDW series
Description
Highlights
- PA amplifier with 6 zones and separate volume controls

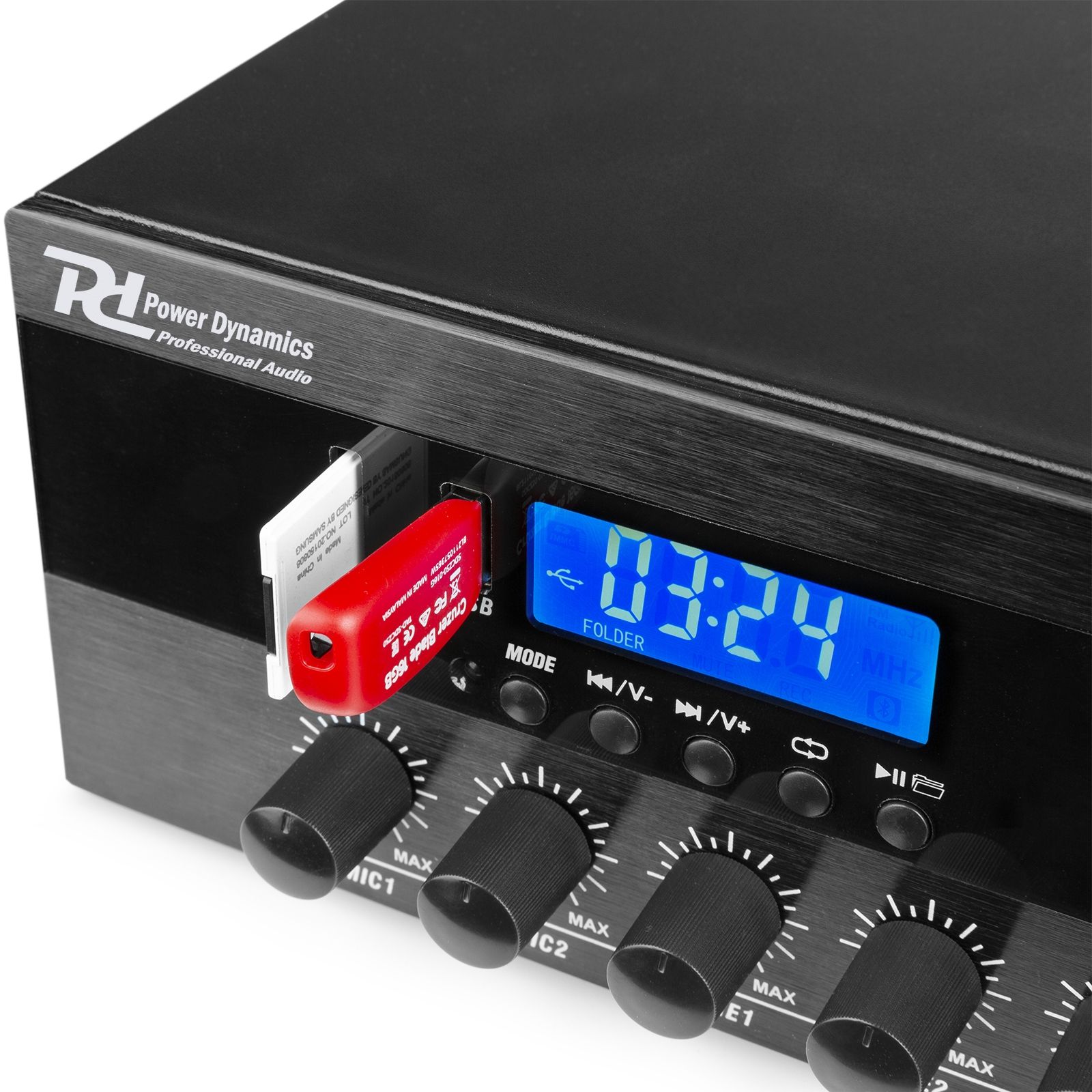

- Media player with FM Tuner, USB and SD slot
- BT receiver for audio streaming
- 500W Class-D amplifier
- 100V/70V or 16, 8, 4 Ohm
- Zone volume control
- Bass/Treble/Echo control
- Digital LCD display
- XLR microphone input with switchable phantom power (24V)
- 6.3 mm microphone input with priority

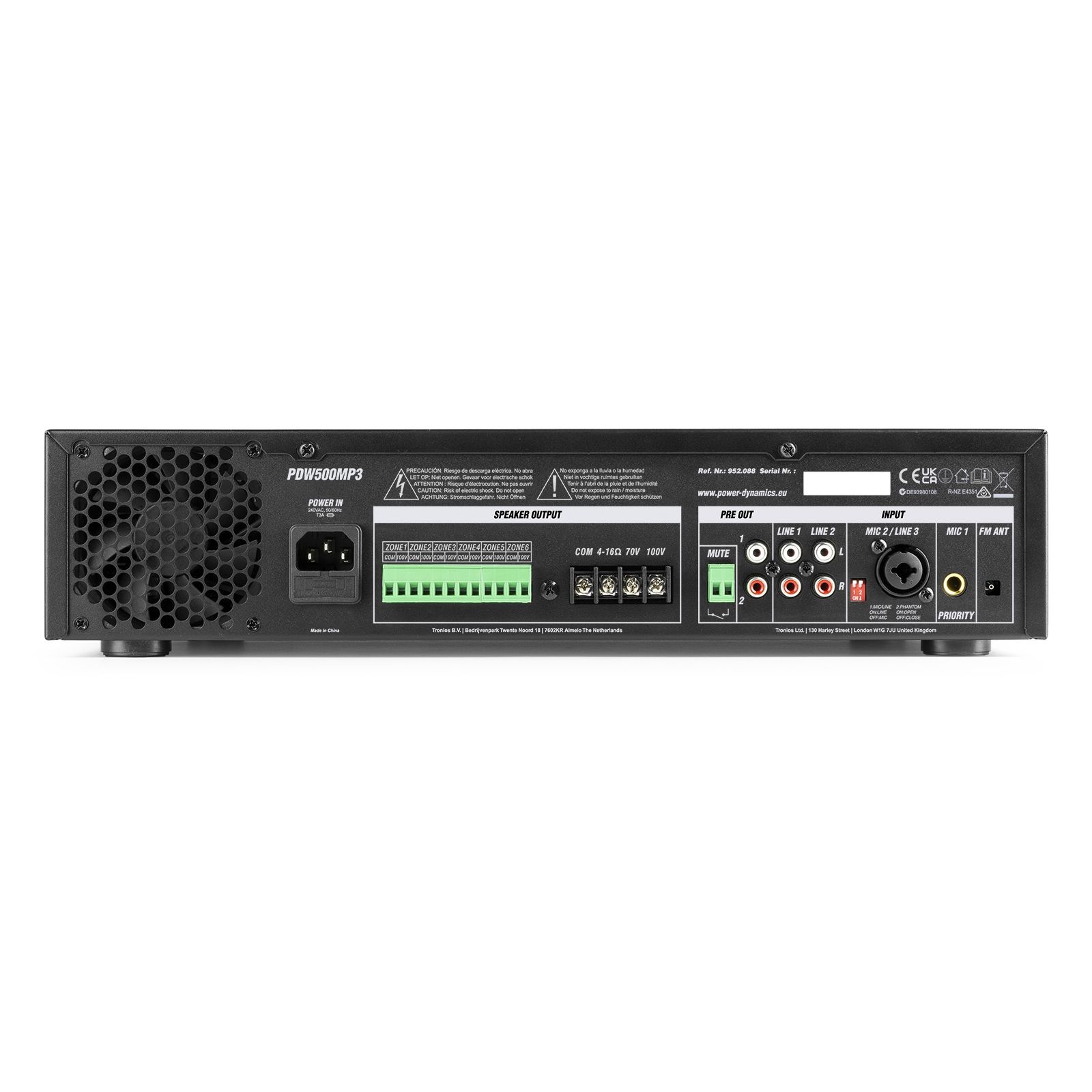

- 2x RCA line inputs and 1x RCA line output
- 19" rack mountable (2U)
Specifications
BrandPower Dynamics
Product seriePDW series
ColourBlack
Amplifier typeMixing amplifier, Multi-zone amplifier
Output channels6
Frequency Response100 - 19,000 Hz
Impedance4 Ω, 8 Ω, 16 Ω, 70V, 100V
Playback
Playback optionsBT streaming, FM radio, SD, USB
Audio specifications
Electrical
Power Supply100-240VAC 50/60Hz
Mechanical
Dimensions
- 48.2 x 31 x 9.5 mm (W x D x H)
Weight
- 9.9 kg
Accessories

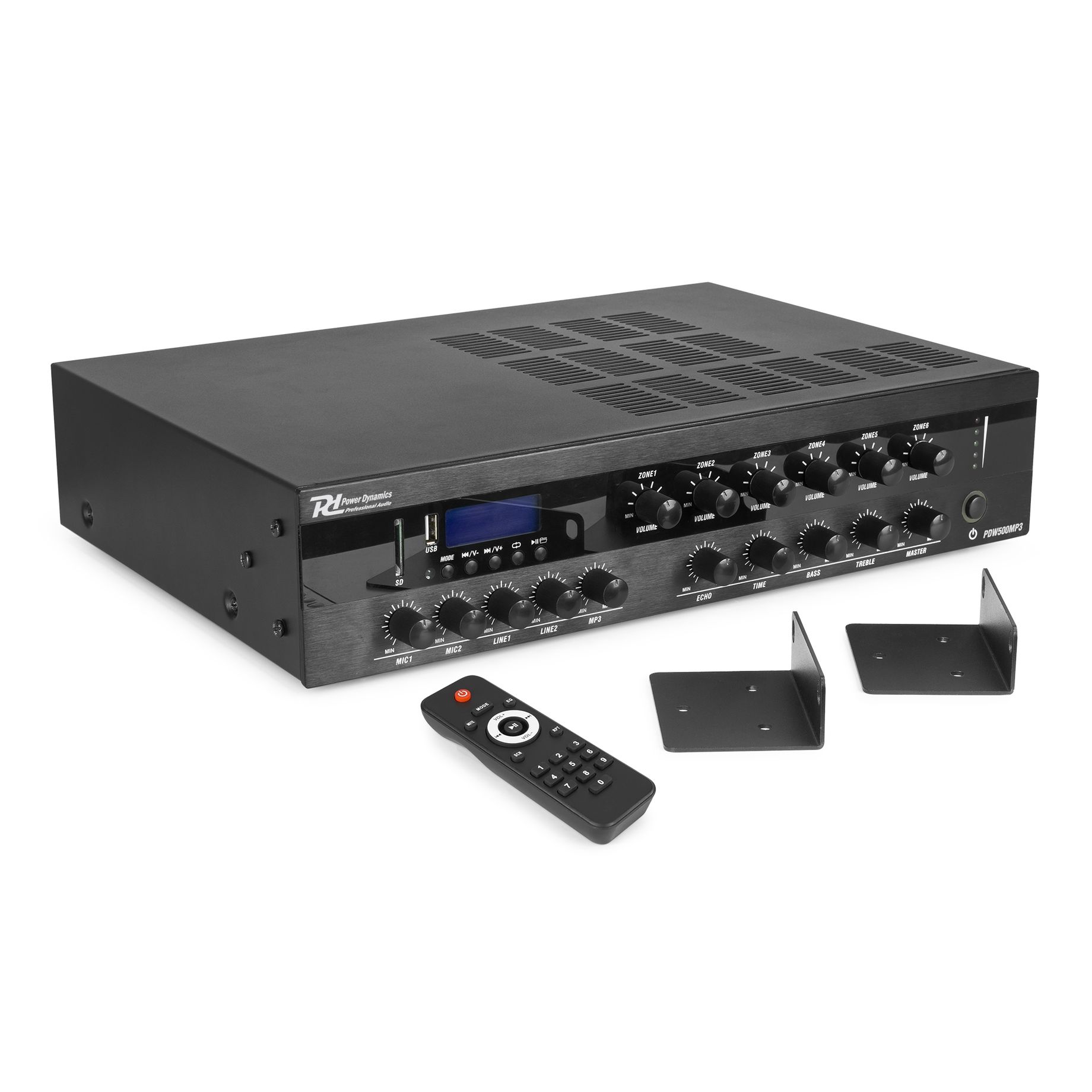

Included Accessories
- Mounting bracket
- Power cable
Manuals & Documents
Manual
PDF
