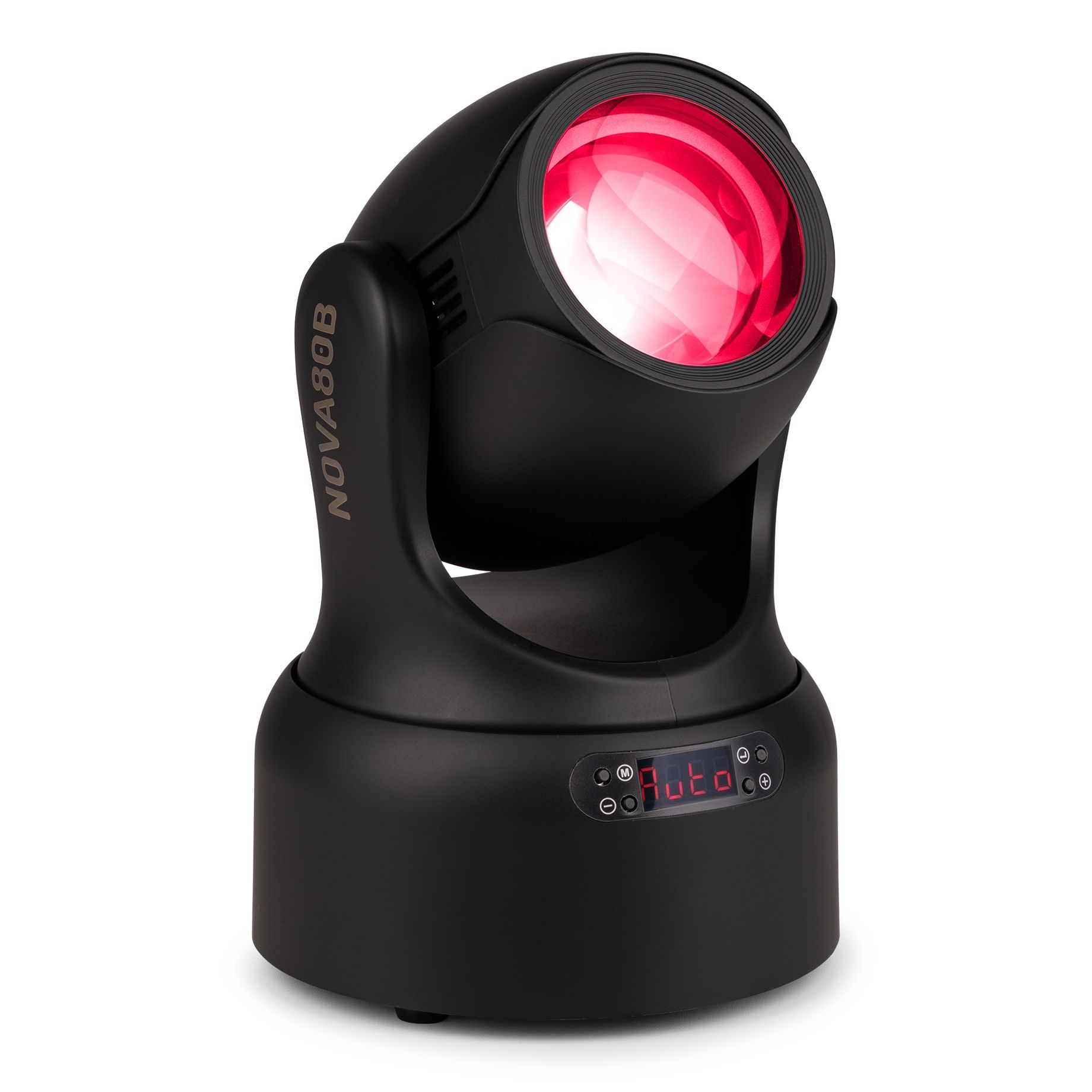

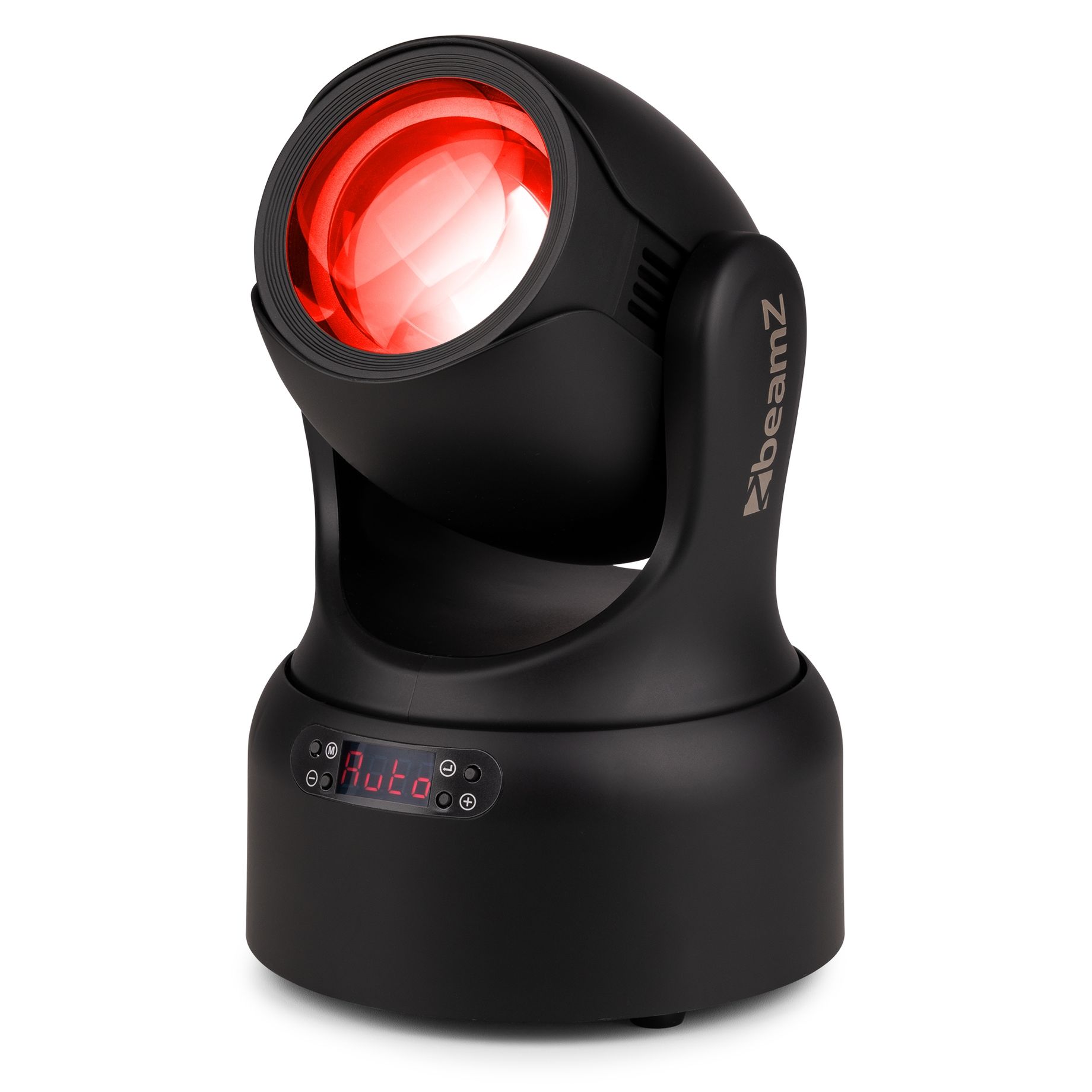

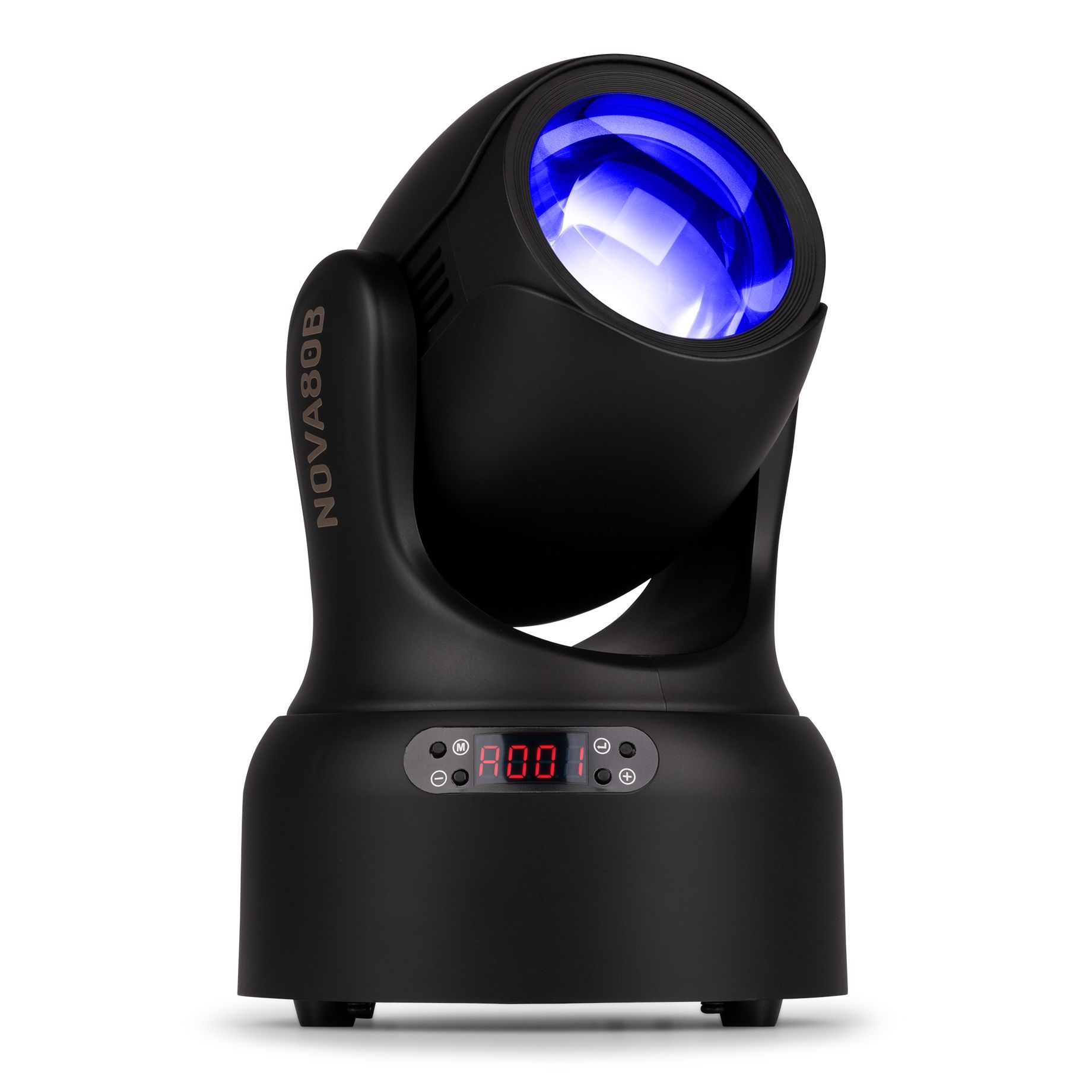

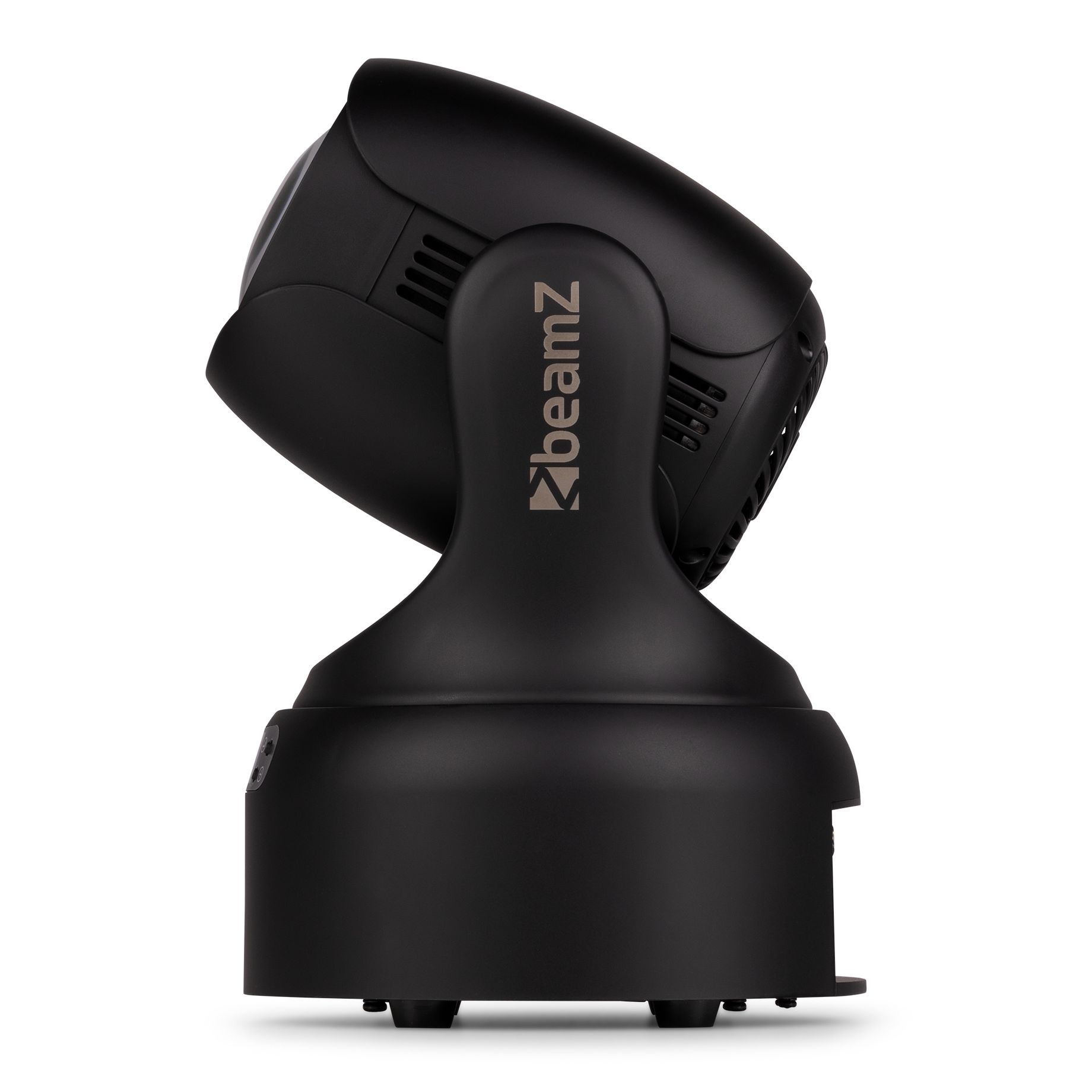

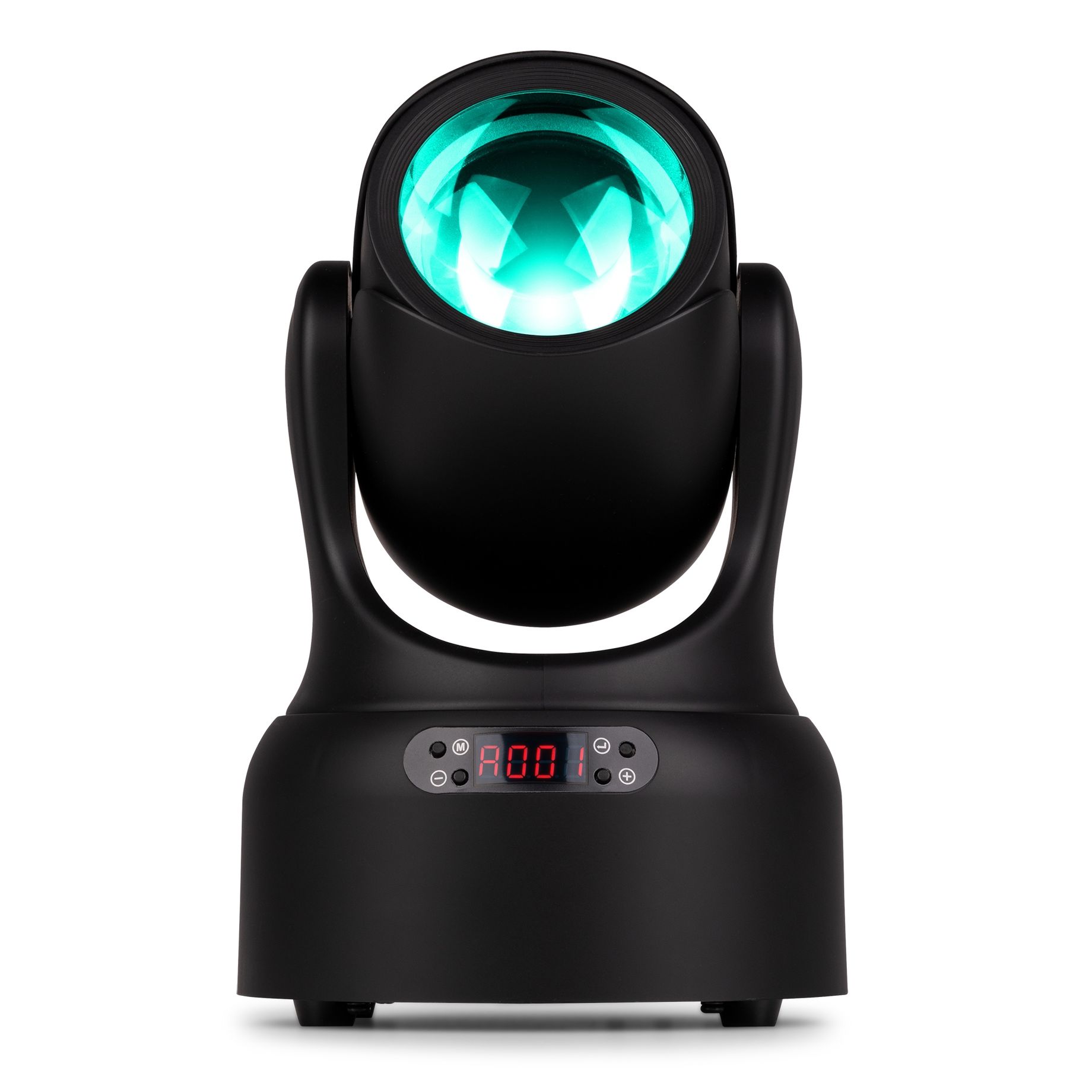

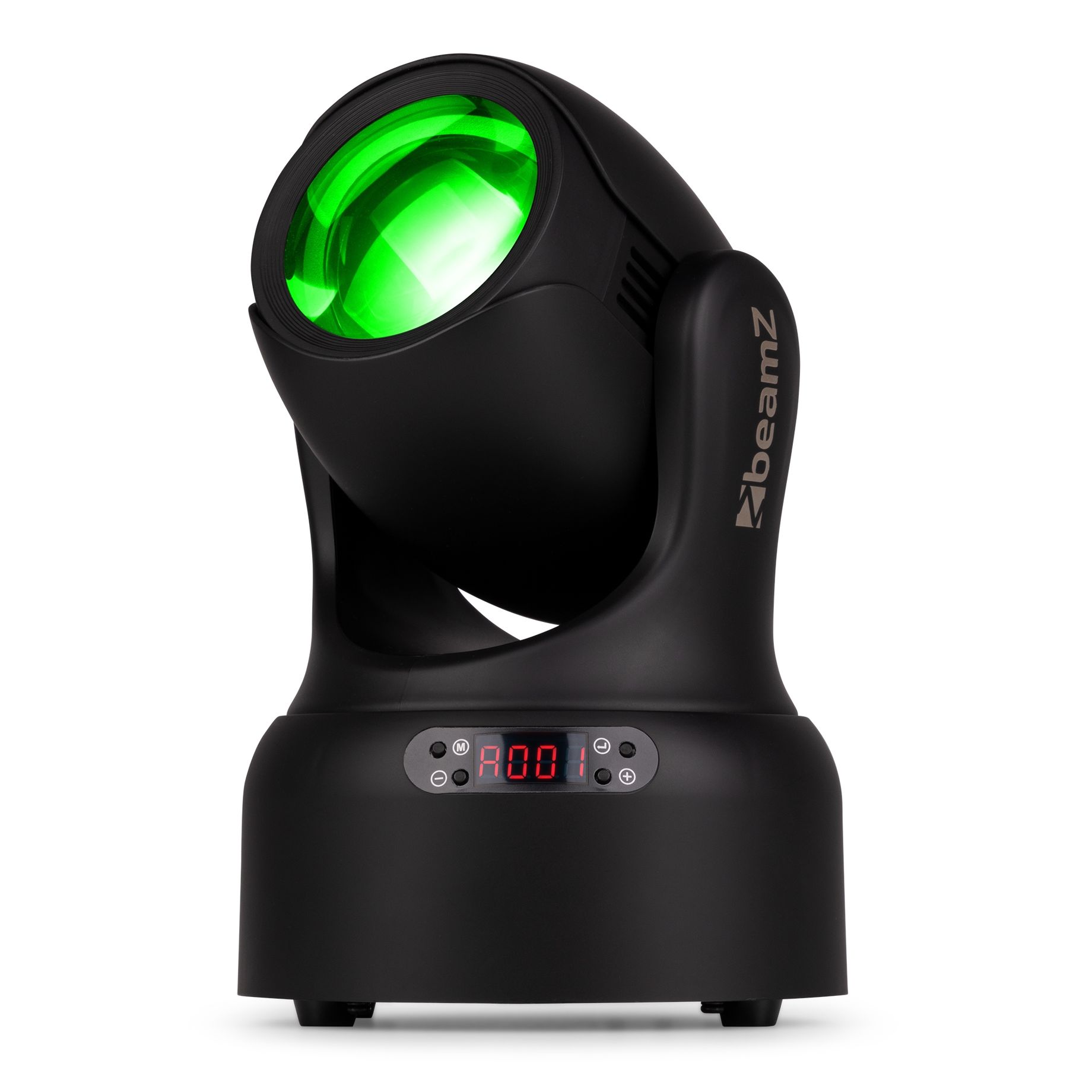

NOVA80B-BK
MH Beam Moving Head
SKU 156.019
|EAN 8715693353471
+4
Color
All product information
Compare
Nova S
Description
Highlights
- Beam Moving Head
- 80W White High Power LED
- Gobo Wheel: 7 + 1
- Colour Wheel: 7 + 1
- Prism: 18-Facet rotating prism
- Fixed-focus: 3-3.5m
- High speed electronic strobe
- DMX, auto program or Stand-alone mode
- 0 - 100% Linear Dimming
- Pan and Tilt Range: 540° pan / 180° tilt
- Fine pan and fine tilt
- Control panel with LED display
- DMX in/output via 3-pin XLR
- IEC power input
- Mounting ring for ceiling optional (156.025 Black, 156.026 White)
Specifications
BrandbeamZ
Product serieNova series
ColourBlack
Moving head typeBeam
Light source
Light source
- 1x 80W White LED (8000K)
Illuminance194788 lx @ 1m
Optics
Beam angle
- 4°
ZoomNo
FocusFixed
Movement
Pan Movement540° (16-bit)
Tilt Movement180° (16-bit)
Features
Control
Control modesAuto programs, DMX, Master/Slave
DMX Channels10, 14
RDMYes
DMX connector3-pin XLR

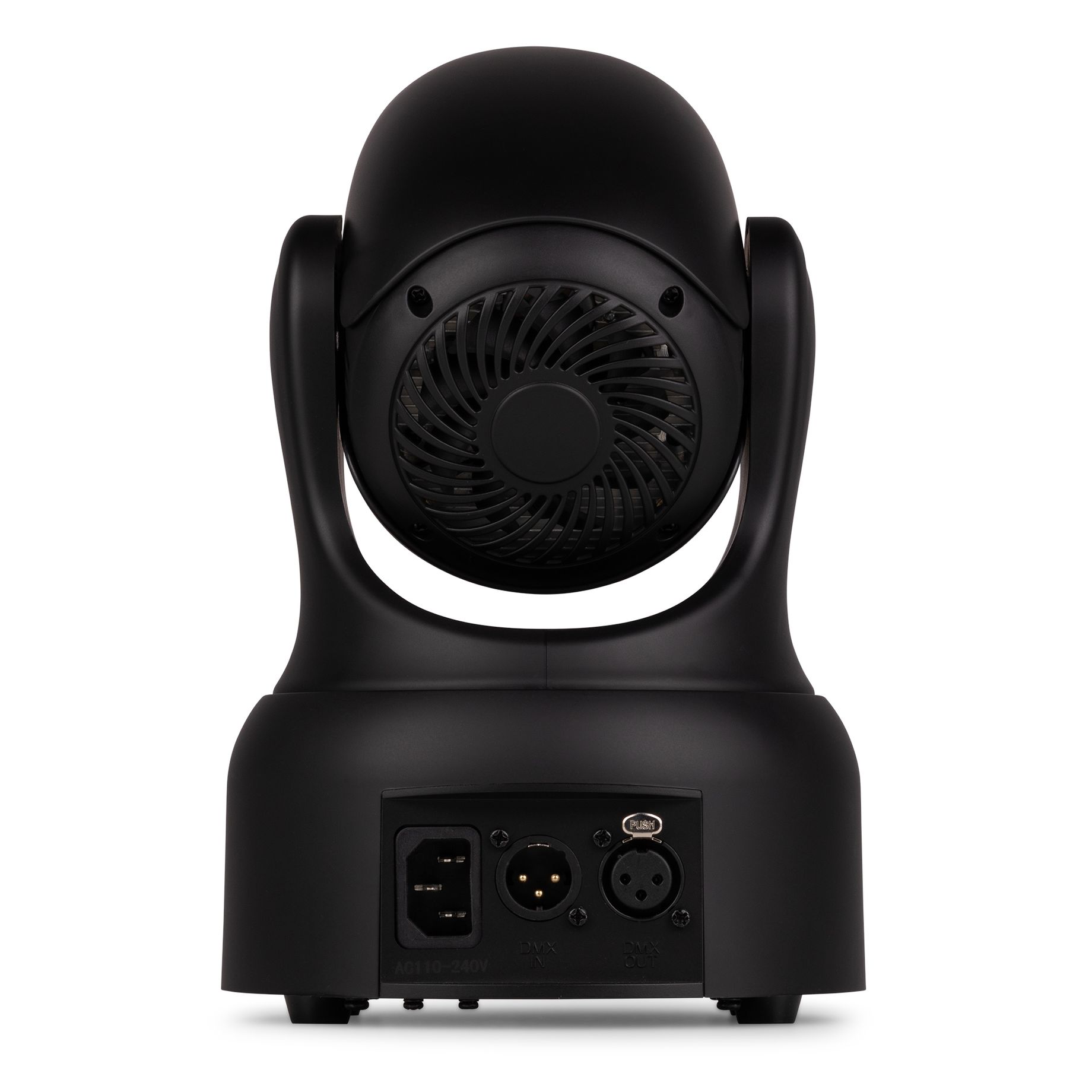

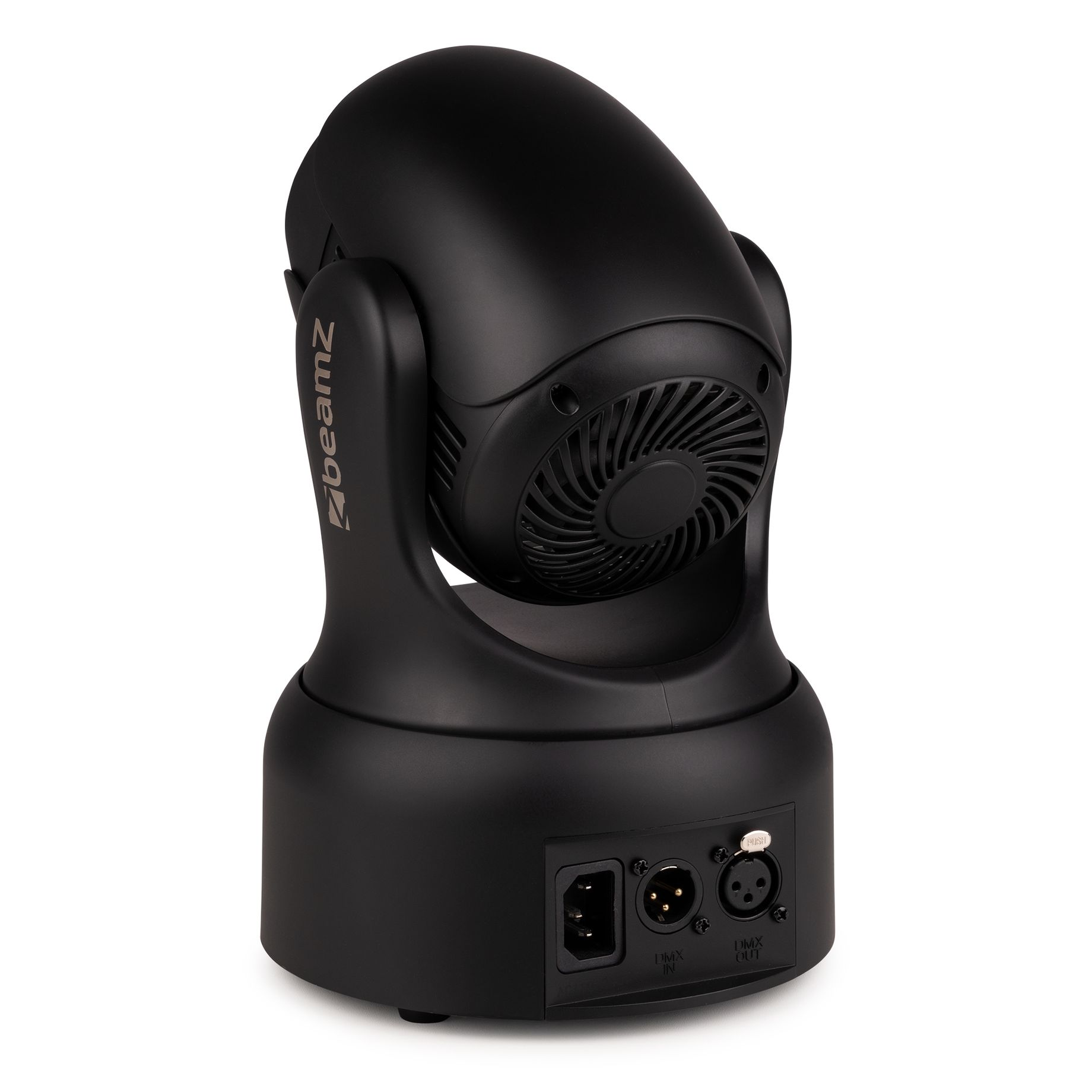

Connections
Input connections
- 1x Power - IEC (M)
- 1x DMX - 3-pin XLR (M)
Output connections
- 1x DMX - 3-pin XLR (F)
Hardware features
Display typeLED
CoolingTemperature controlled fan
Environmental
IP ratingIP20
Electrical
Power Supply100-240VAC 50/60Hz
Mechanical
Dimensions
- 171 x 171 x 258 mm (W x D x H)
Weight
- 3.23 kg
Accessories

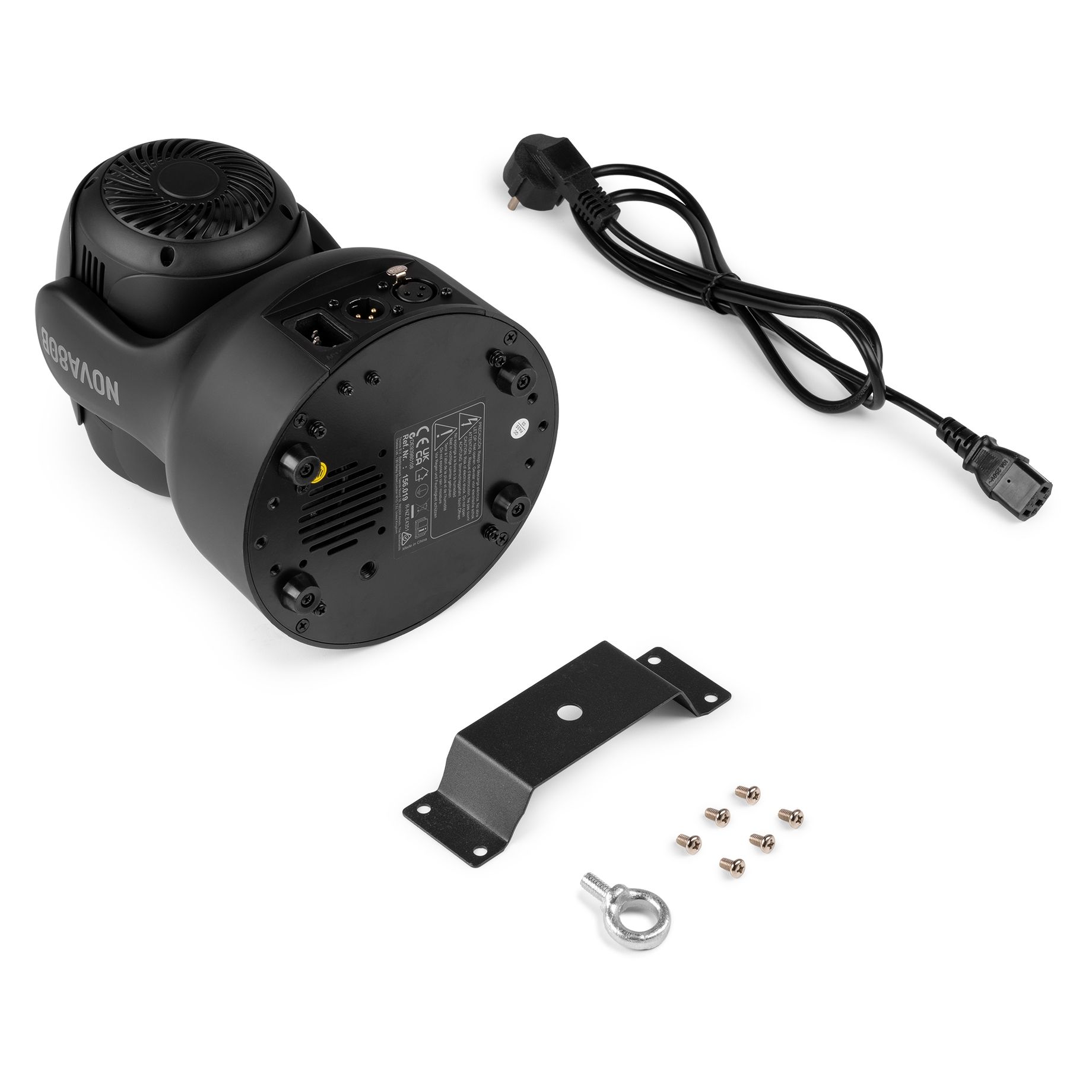

Included Accessories
- Mounting bracket
- Power cable
