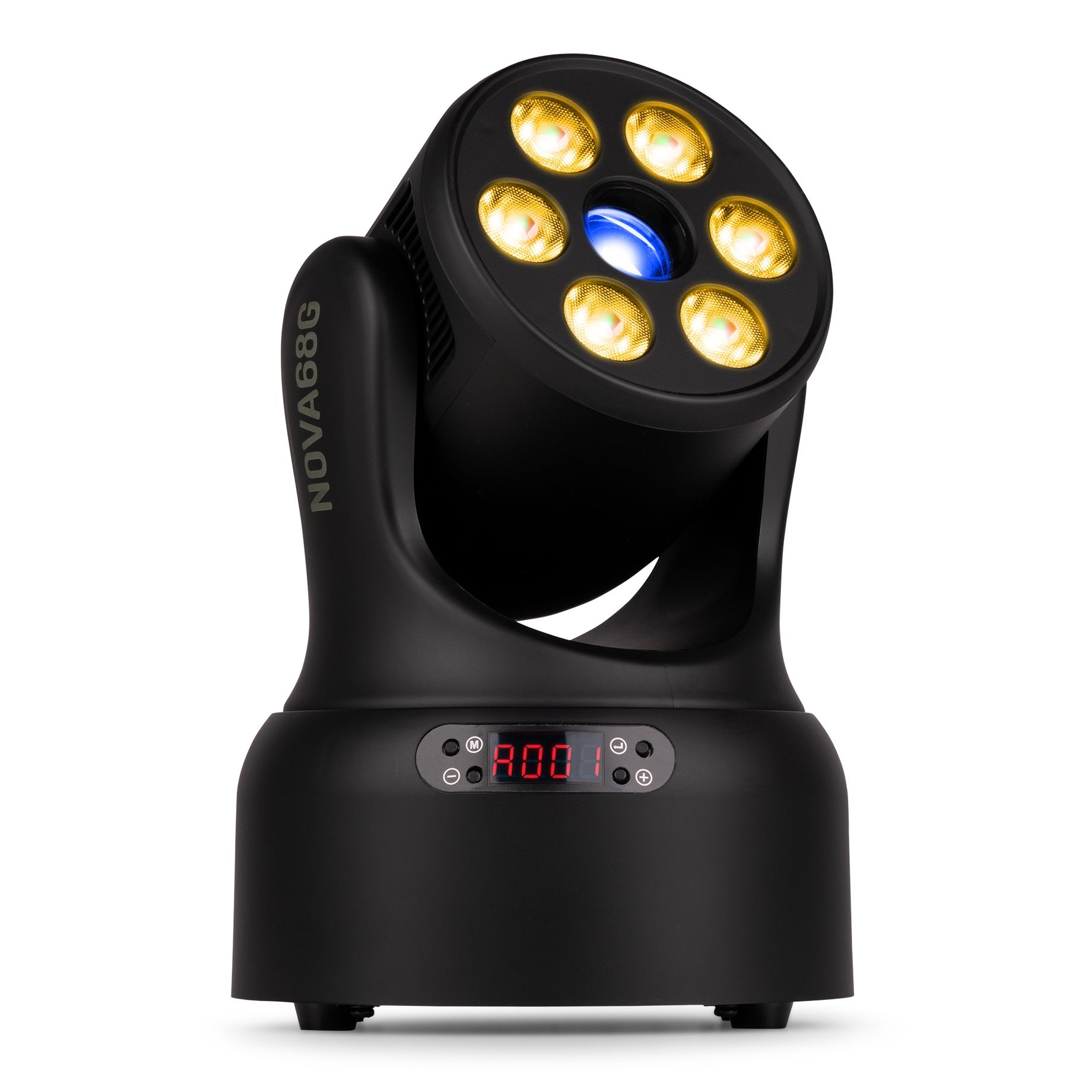

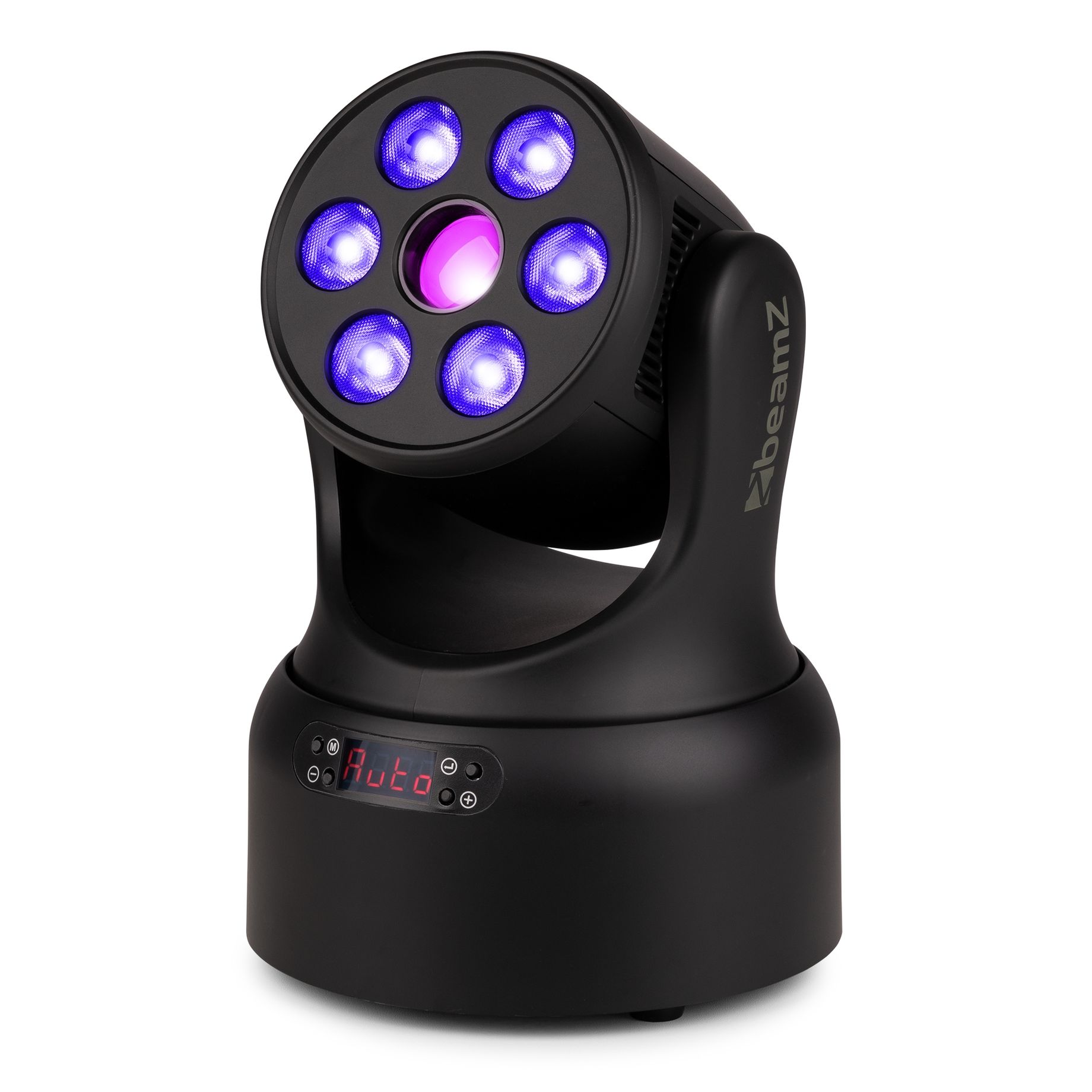

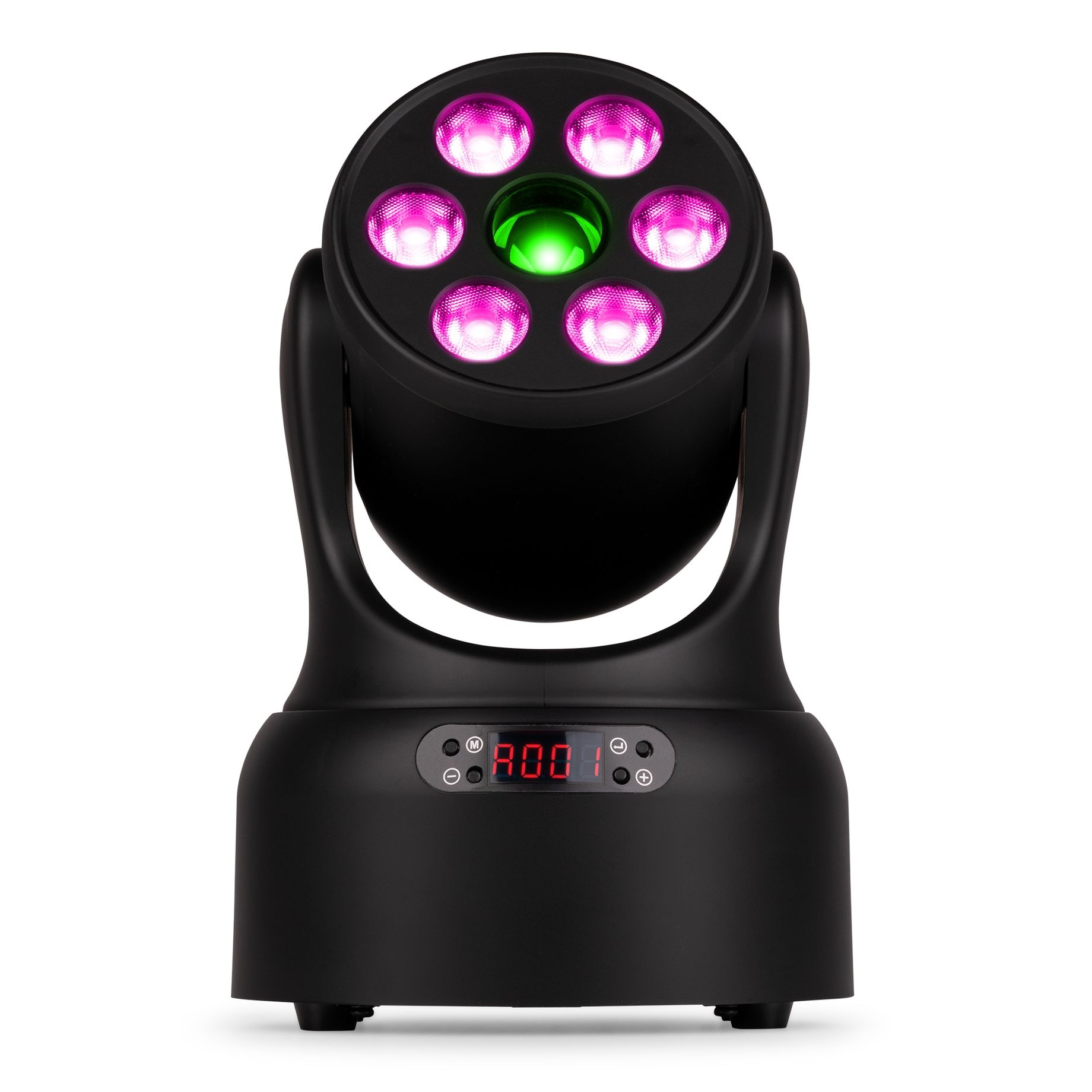

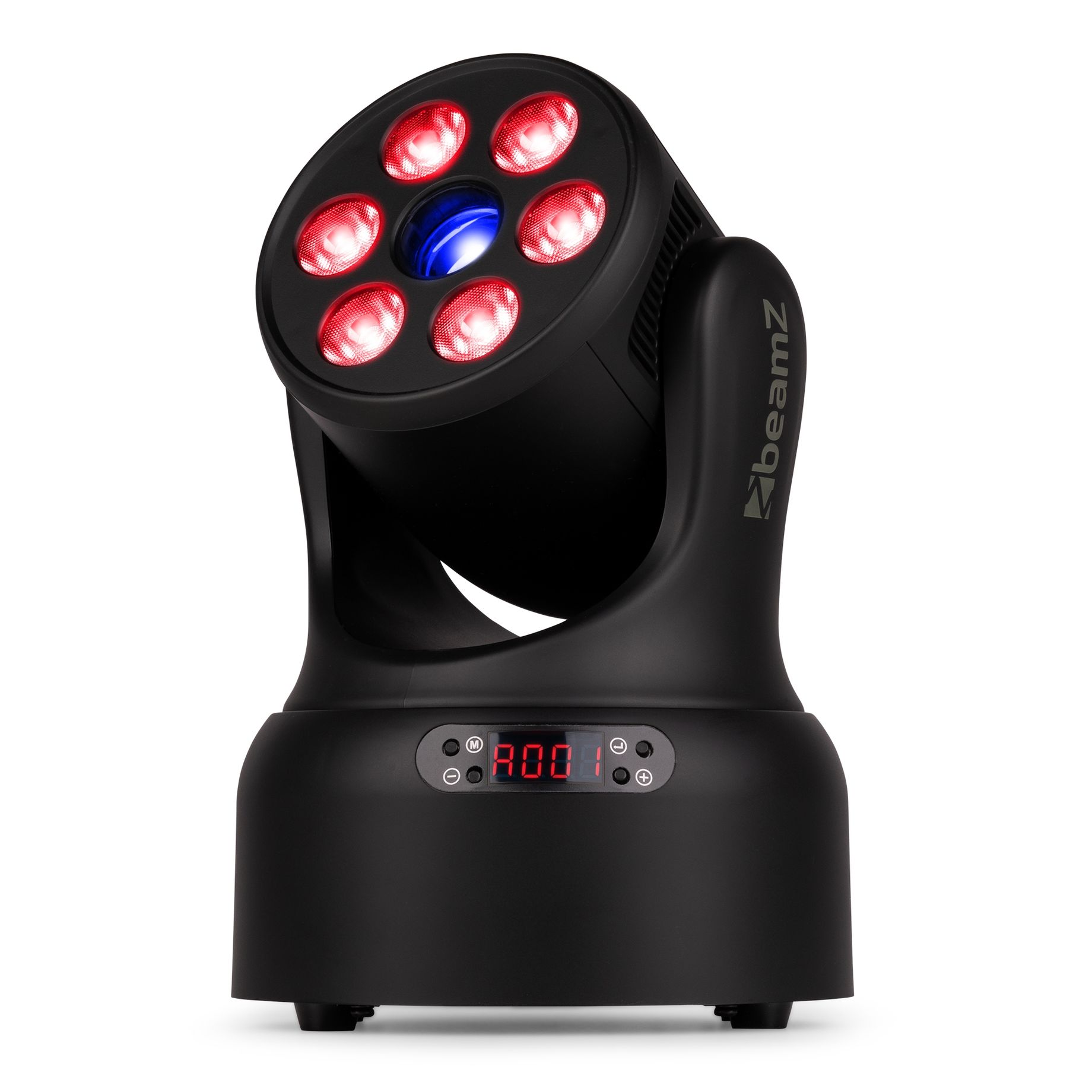

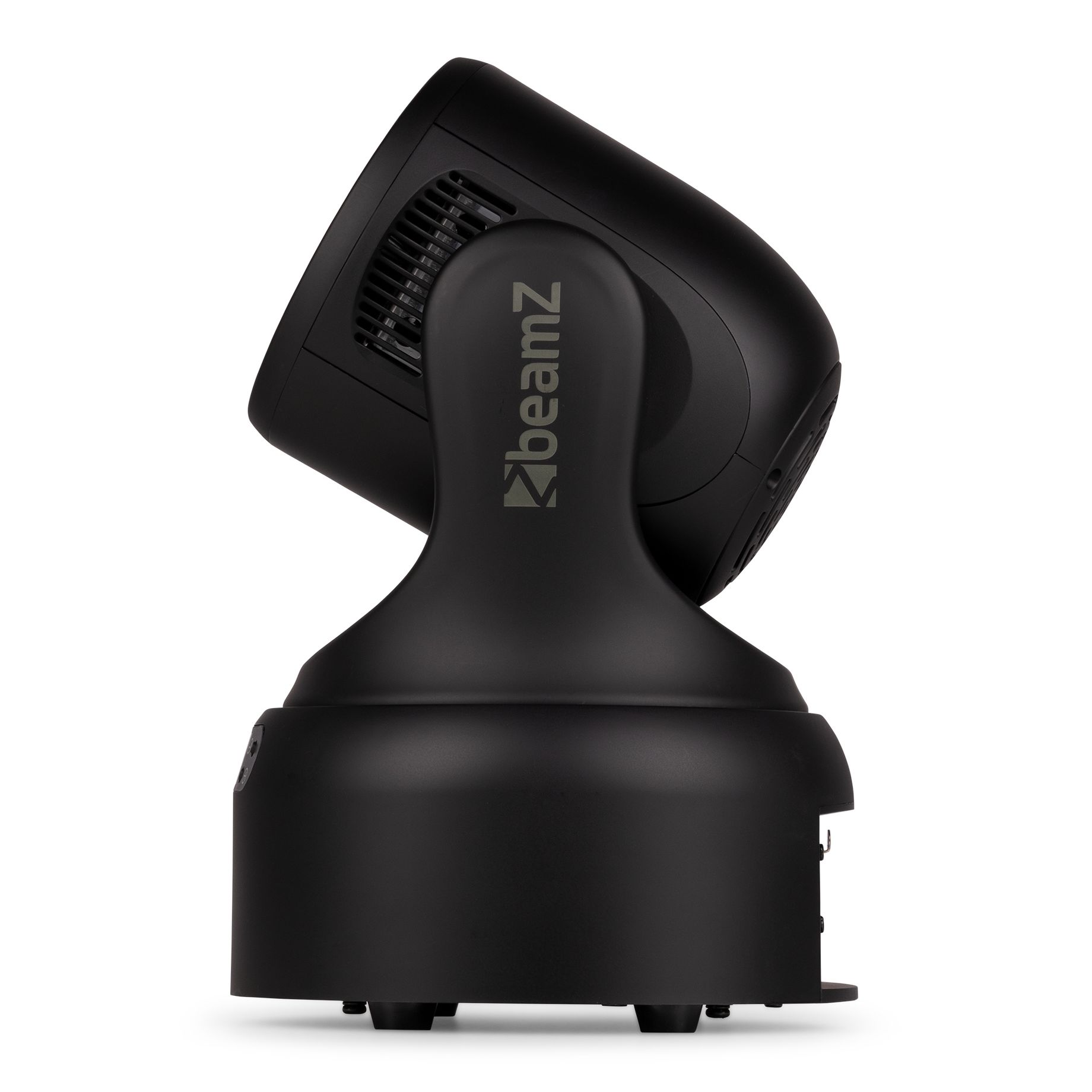

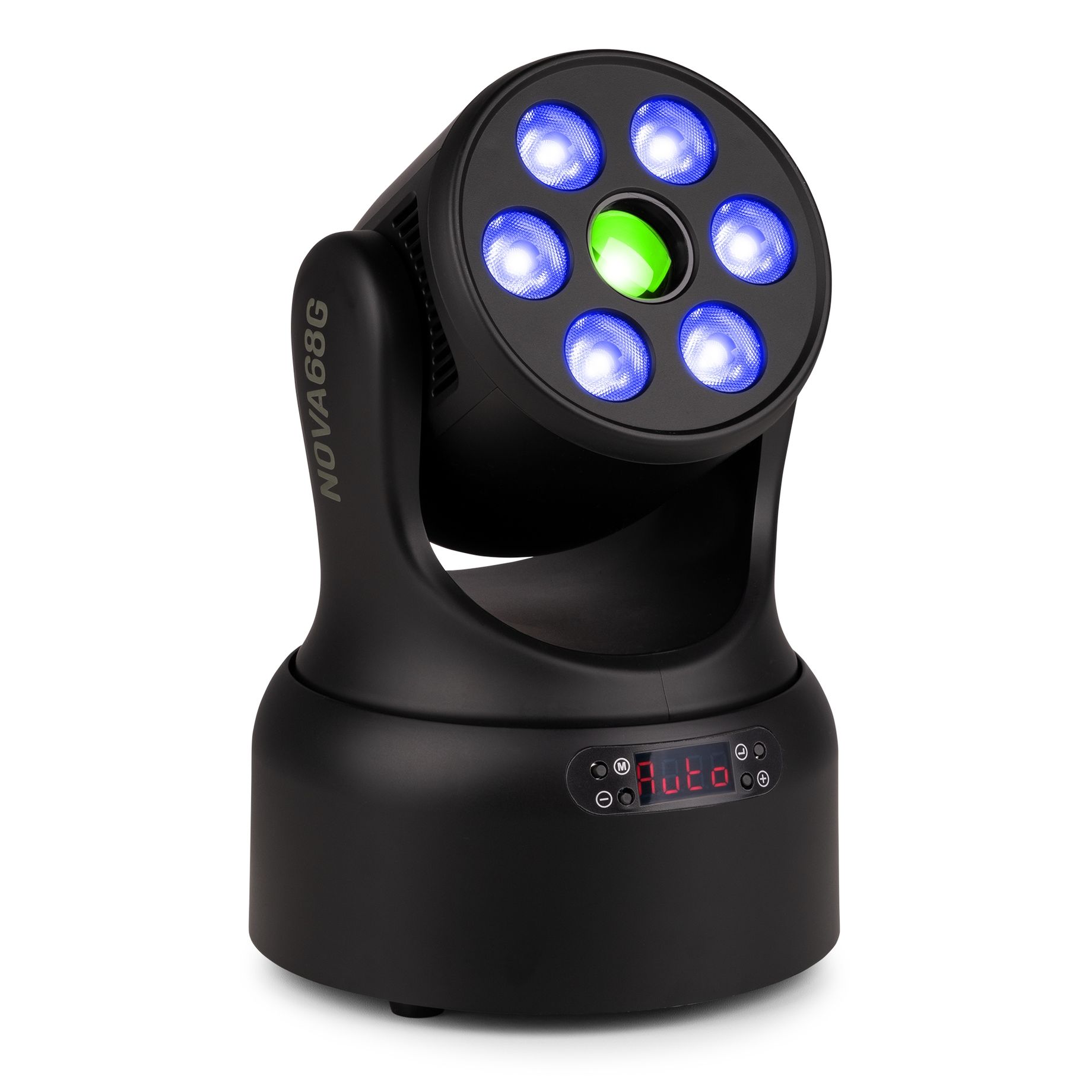

NOVA68G-BK
MH Wash Moving Head with Gobo
SKU 156.013
|EAN 8715693353396
+4
Color
All product information
Compare
Nova S
Description
Highlights
- Wash Moving Head with Gobo
- 6x 8W 4-in-1 High Power LEDs
- 30W White LED Spot
- Lens with 8° degree beam angle
- Colours: RGBW
- Gobo Wheel: 7 + 1
- Colour Wheel: 7 + 1
- DMX, auto program or Stand-alone mode
- Electronic Dimmer
- Pan and Tilt Range: 540° pan / 270° tilt
- Fine pan and fine tilt
- Control panel with LED display
- DMX in/output via 3-pin XLR
- IEC power input
- Mounting ring for ceiling optional (156.025 Black, 156.026 White)
Specifications
BrandbeamZ
Product serieNova series
ColourBlack
Moving head typeWash, Spot
Light source
Light source: Wash
- 7x 8W RGBW LED
Light source: Spot
- 1x 30W White LED
Illuminance Wash 6.658 lx @ 1m - Spot 26.140 lx @ 1m
Optics
Beam angle: Wash
- 19°
Beam angle: Spot
- 9°
ZoomNo
Movement
Pan Movement540° (16-bit)
Tilt Movement270° (16-bit)
Features
Control
Control modesAuto programs, DMX, Master/Slave
DMX Channels19, 20
RDMYes
DMX connector3-pin XLR

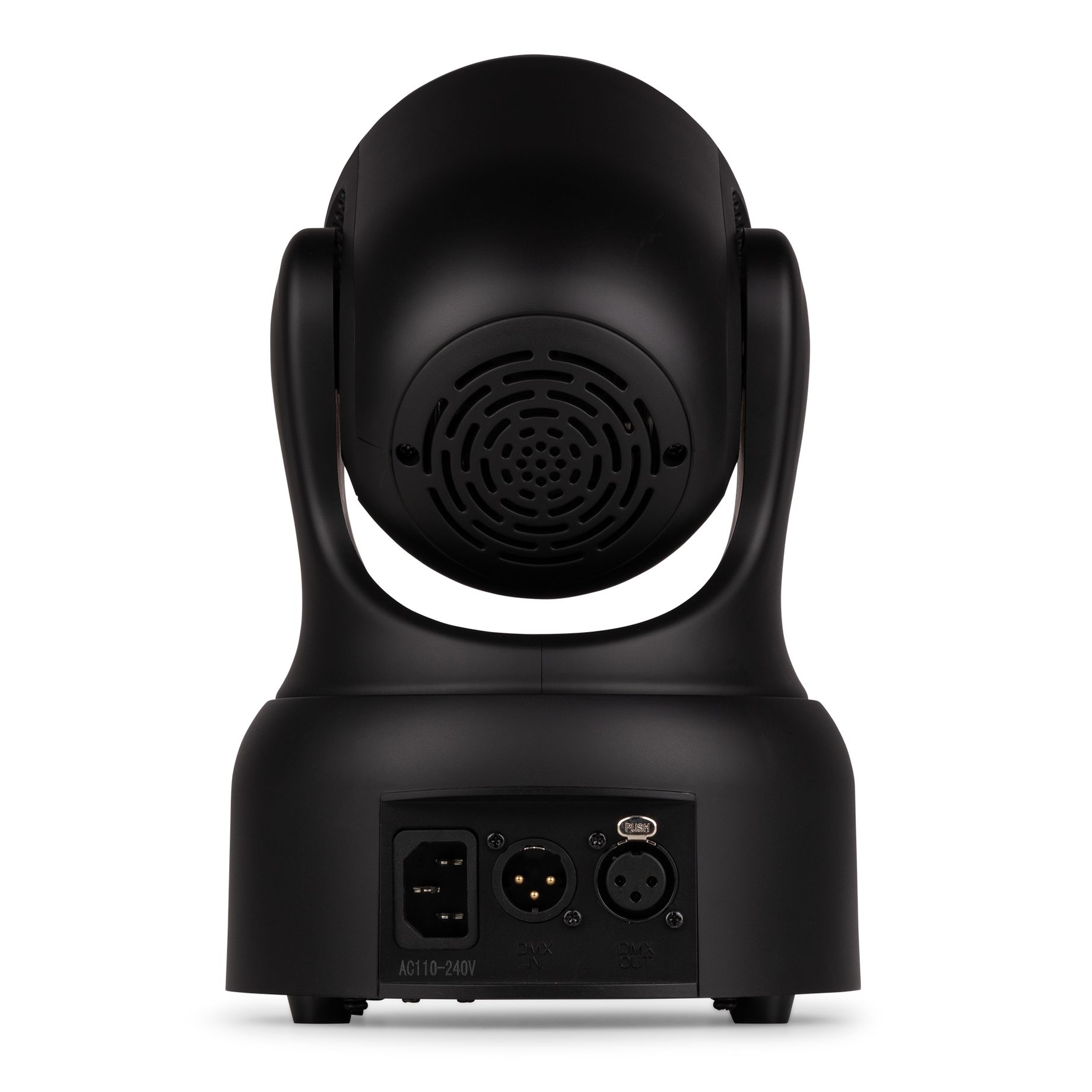

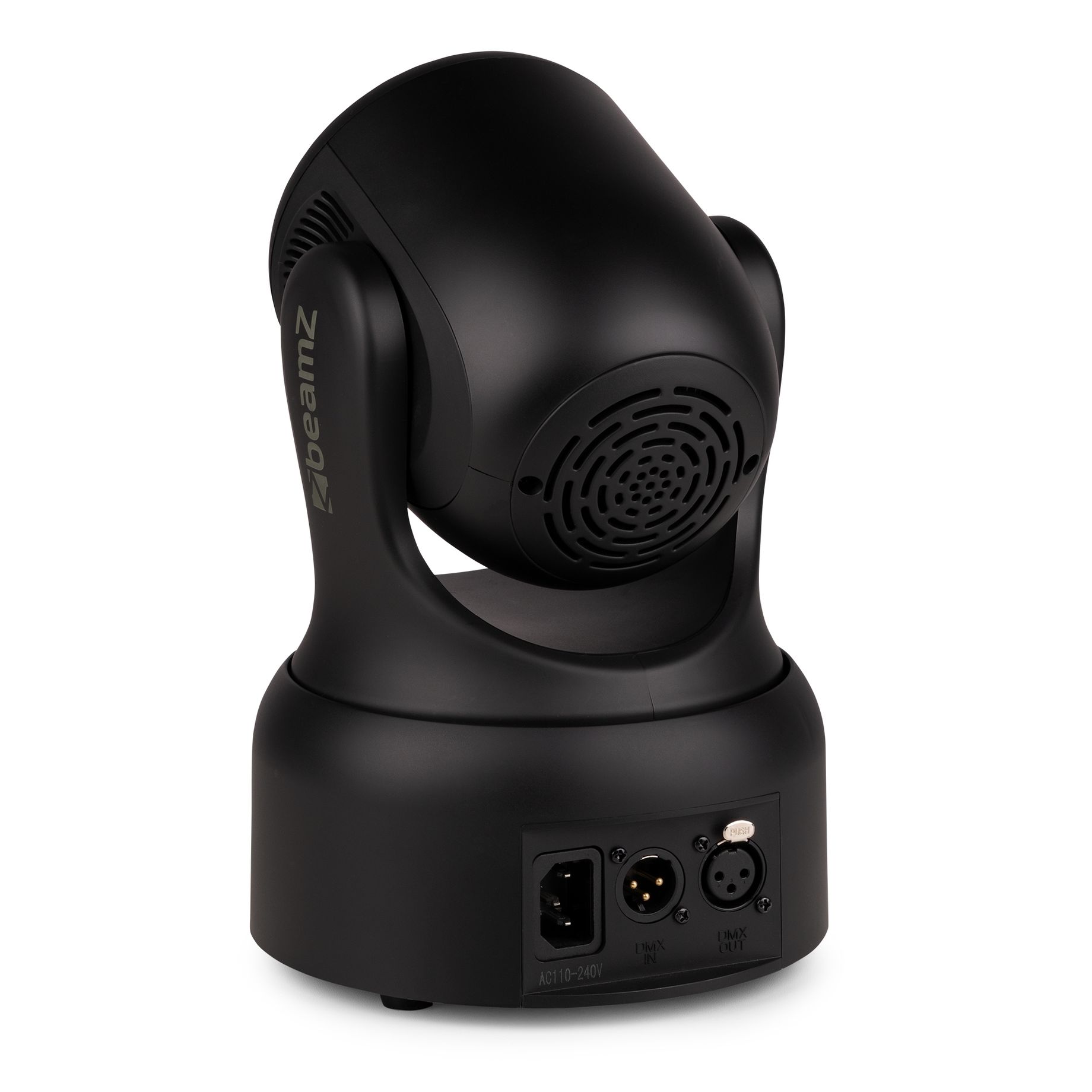

Connections
Input connections
- 1x Power - IEC (M)
- 1x DMX - 3-pin XLR (M)
Output connections
- 1x DMX - 3-pin XLR (F)
Hardware features
Display typeLED
CoolingTemperature controlled fan
Environmental
IP ratingIP20
Electrical
Power Supply100-240VAC 50/60Hz
Mechanical
Dimensions
- 170 x 170 x 270 mm (W x D x H)
Weight
- 2.62 kg
Accessories

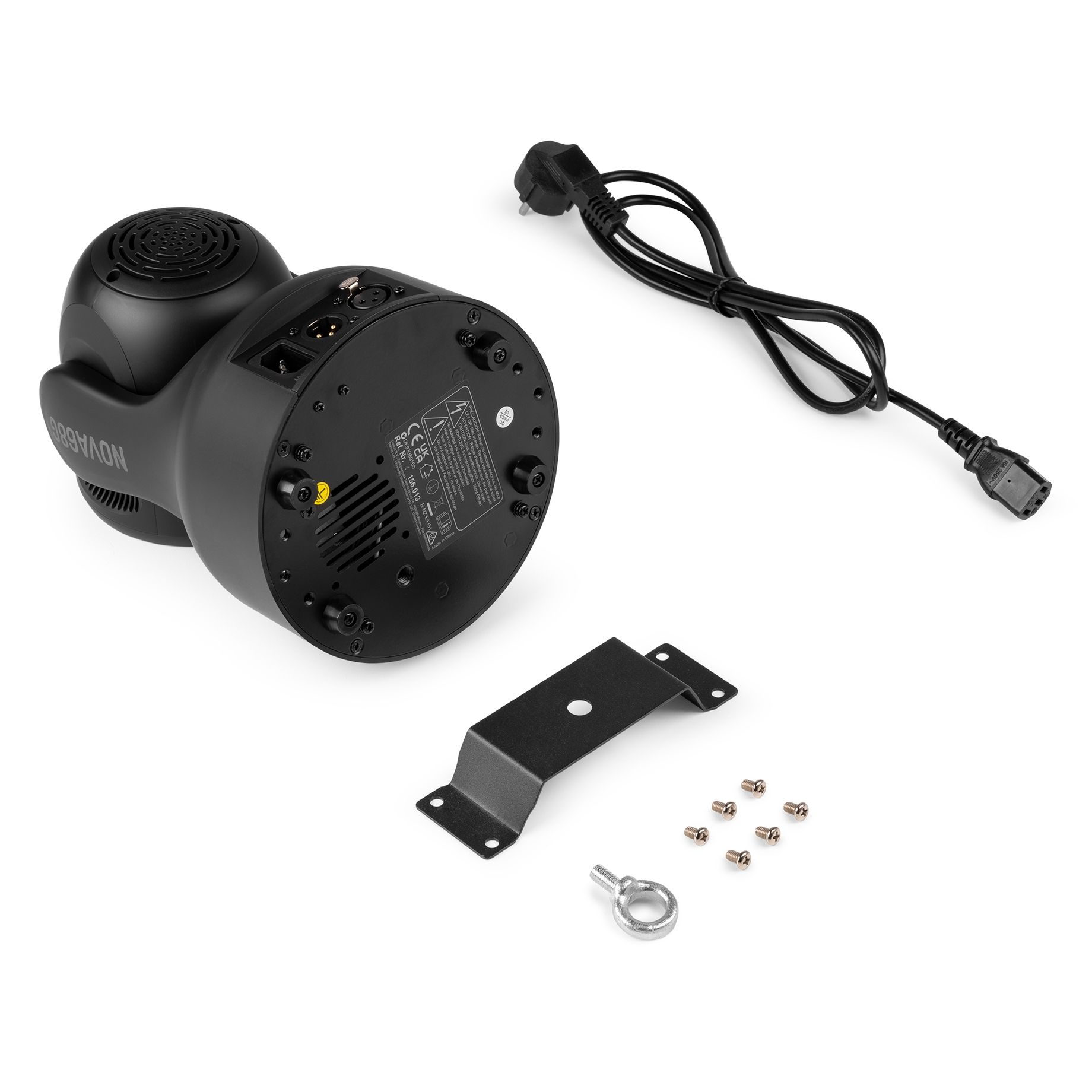

Included Accessories
- Mounting bracket
- Power cable
