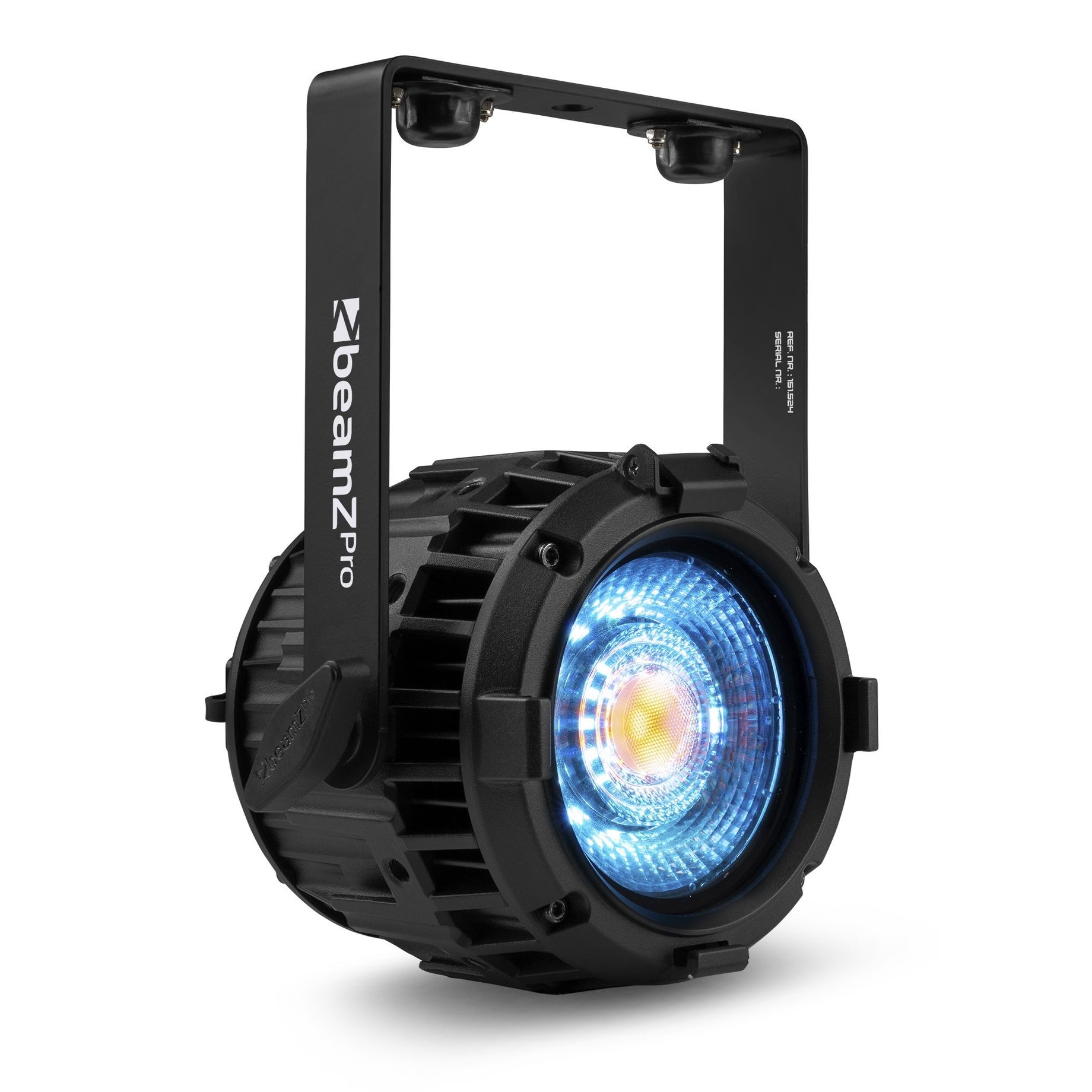

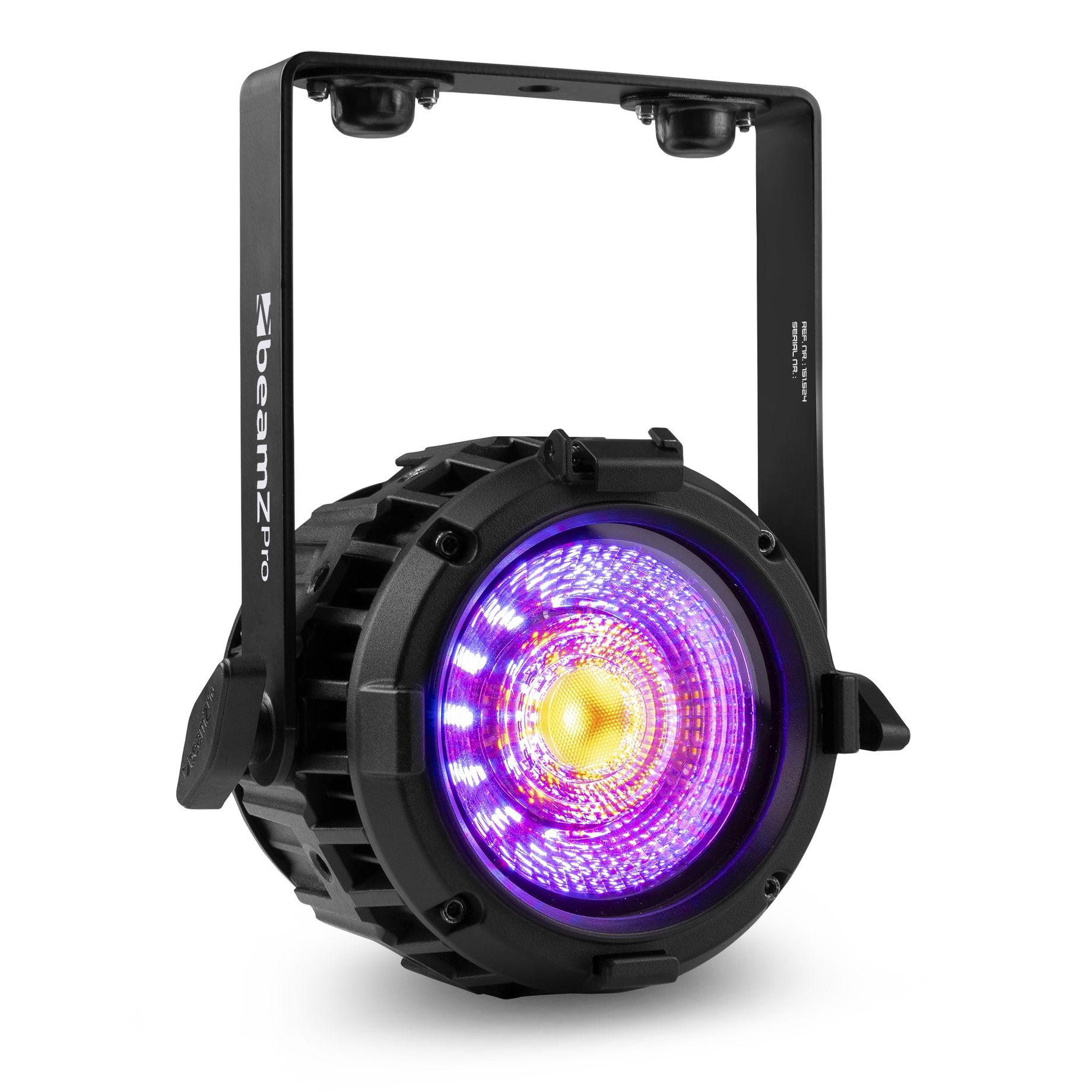

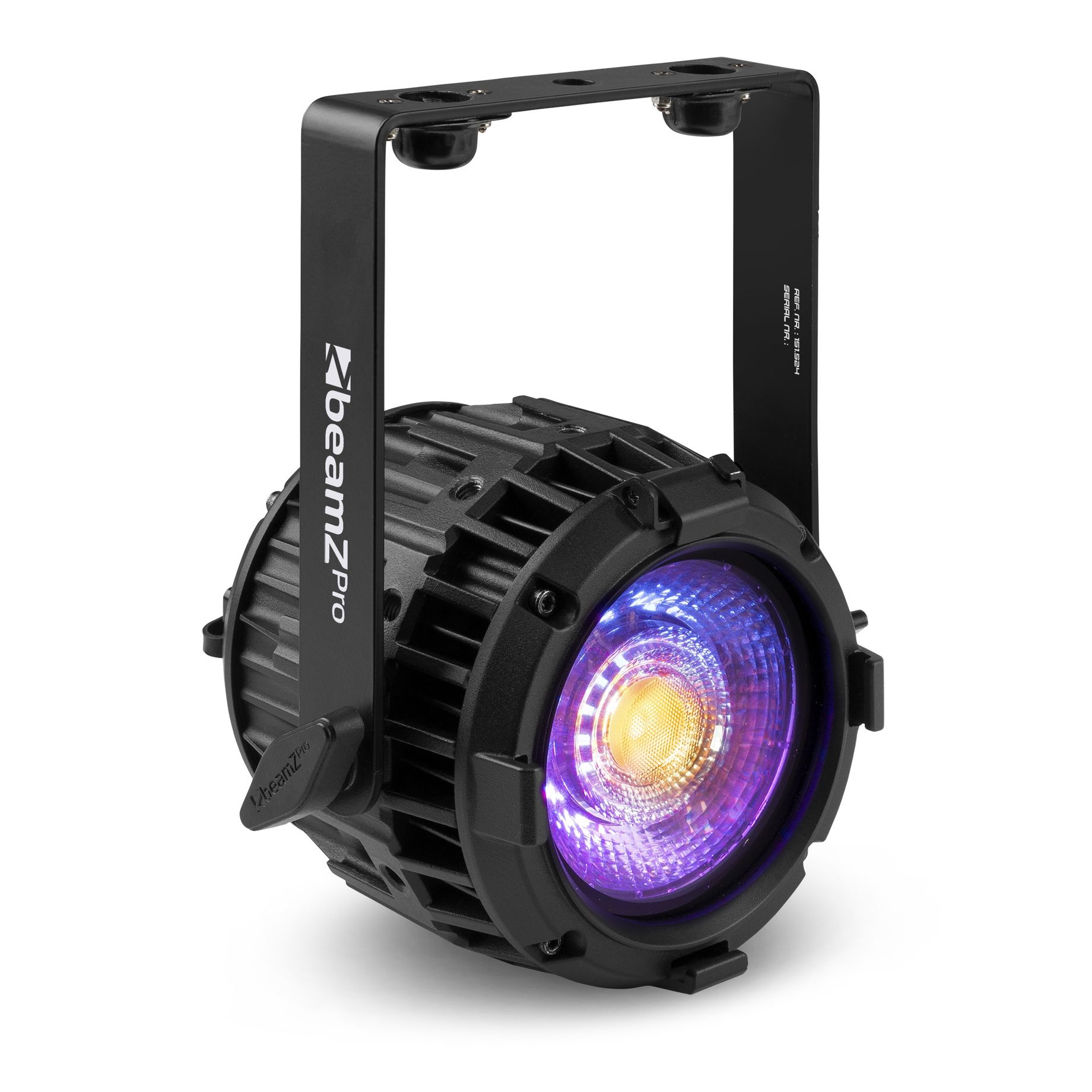

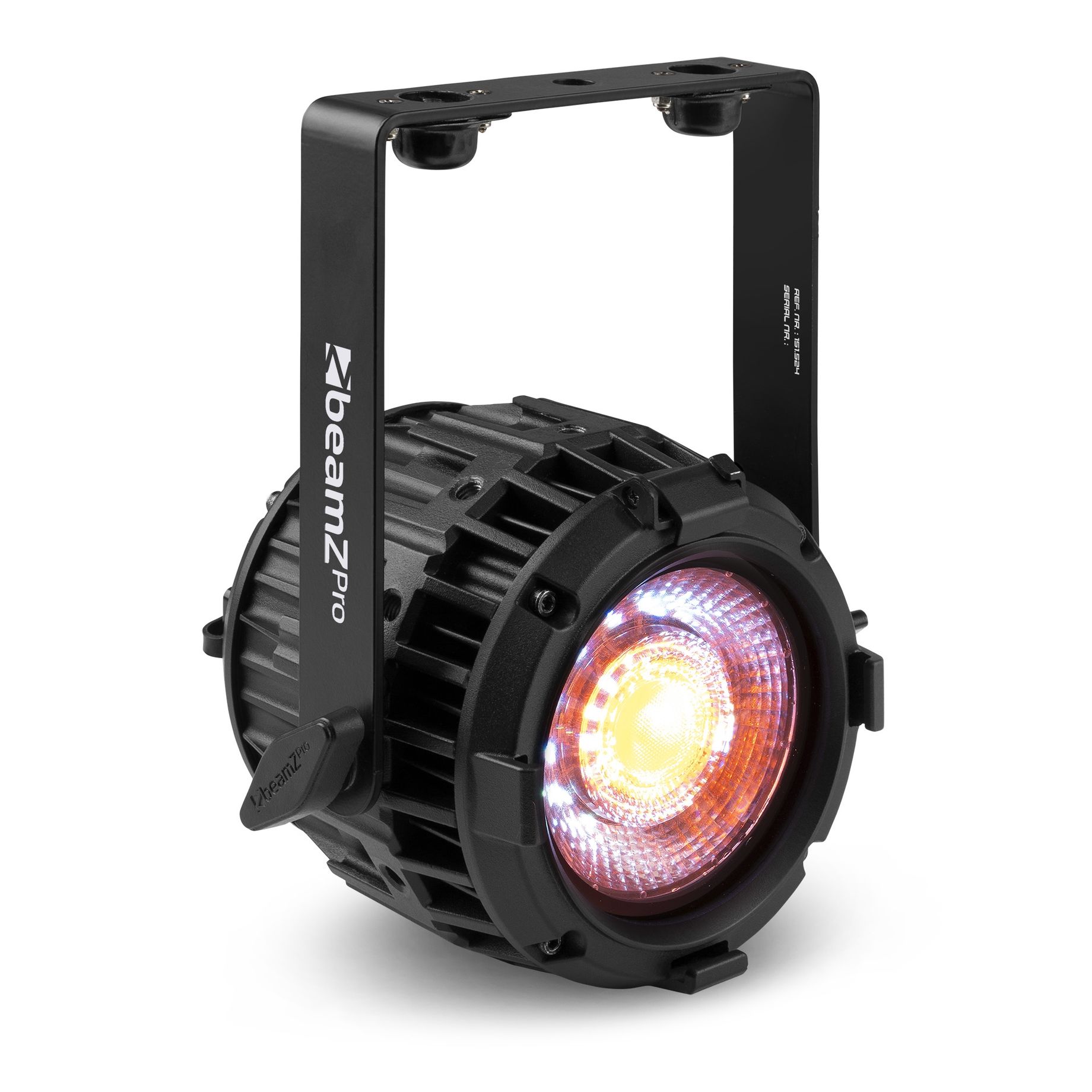

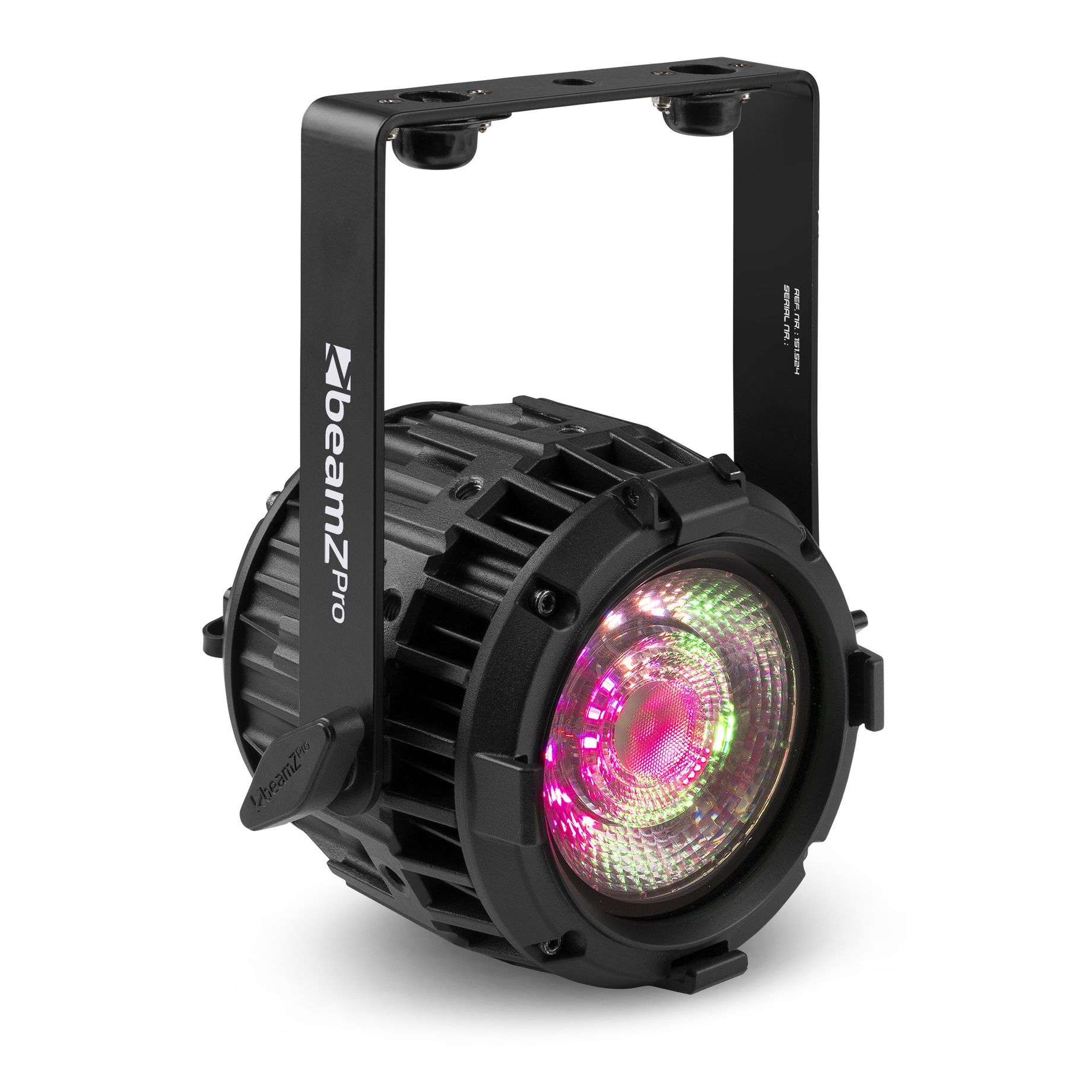

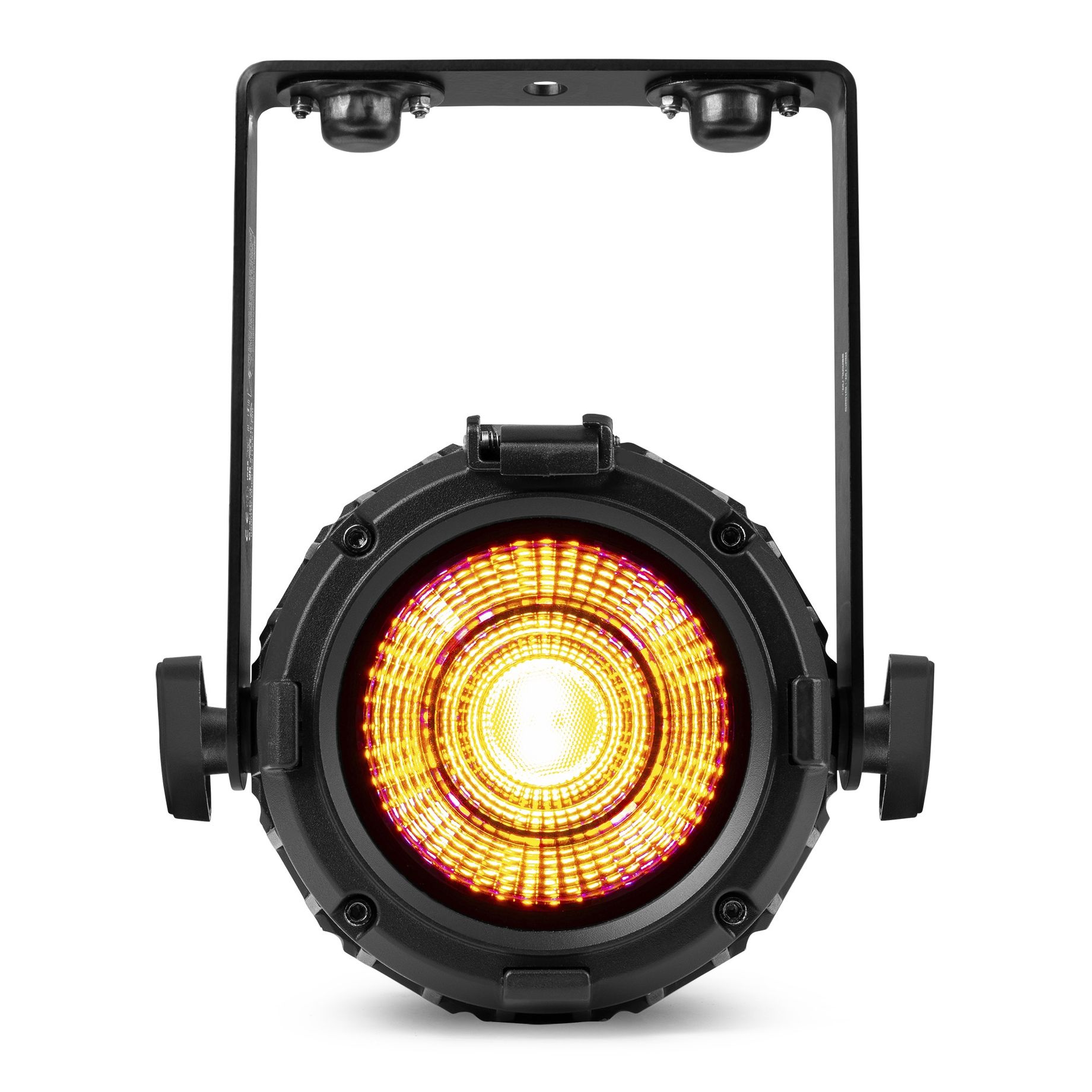

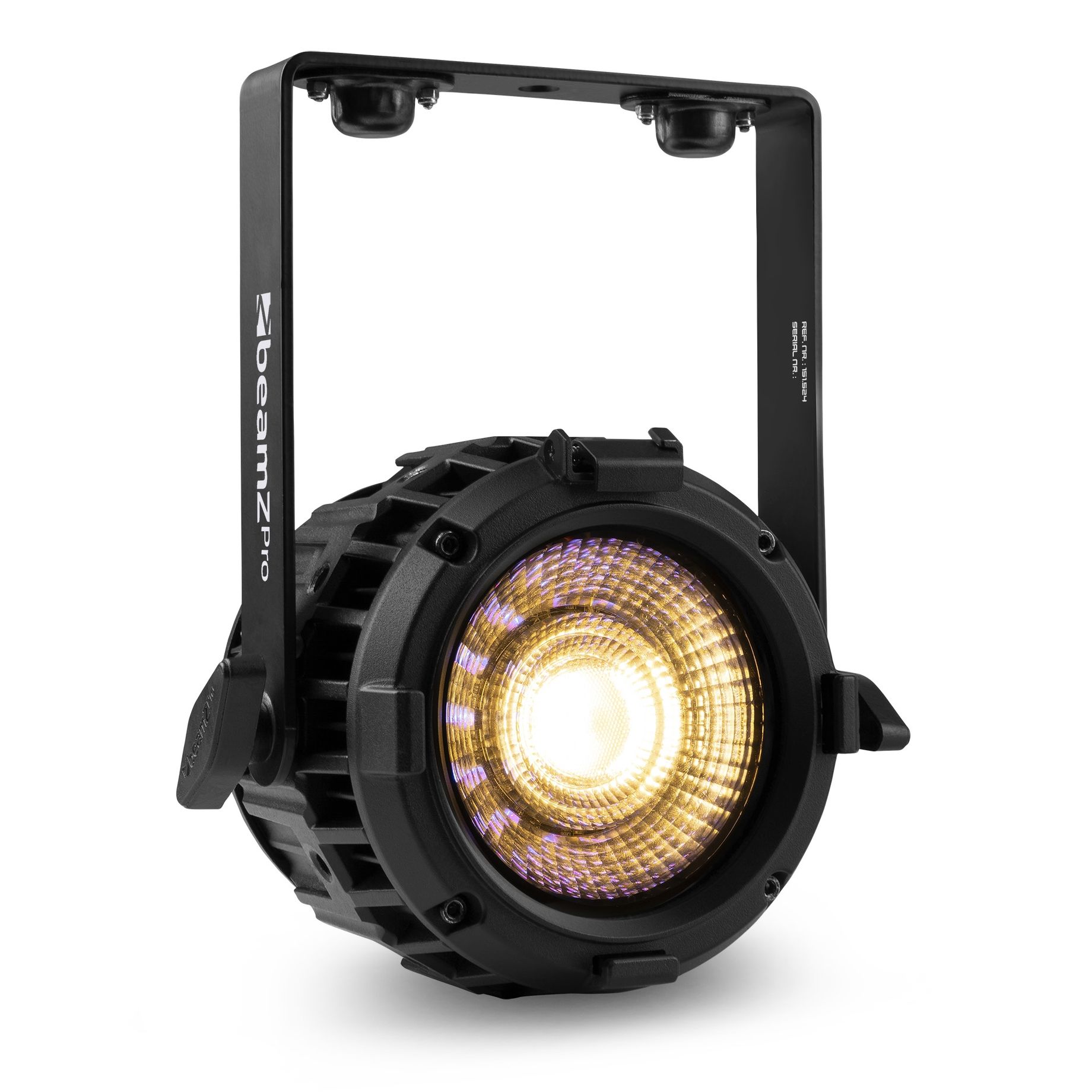

NEUTRON-DOT
TM Linkable 60W WW+Amber+RGB
SKU 151.524
|EAN 8715693354393
+12
All product information
Compare
Neutron series
Description
Highlights

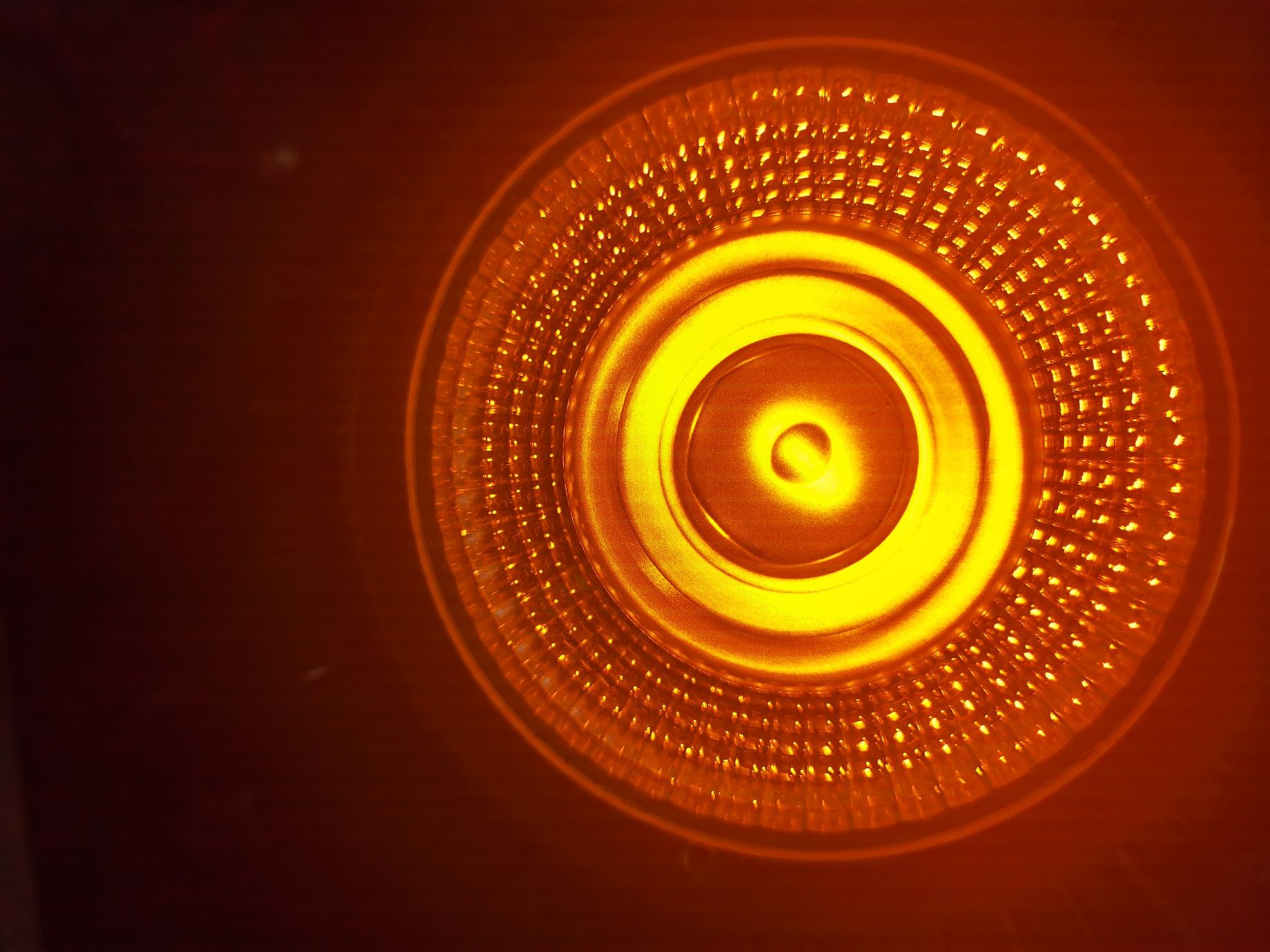

- High power warm white + Amber LED
- Tungsten mode
- Pixel-controllable RGB Aura backlight
- Compact and lightweight aluminium housing
- IP65 Rating, for indoor and outdoor use
- Beam angle of 23 degrees
- 16-bit PWM dimming
- Smart coupling system (2 pcs included)

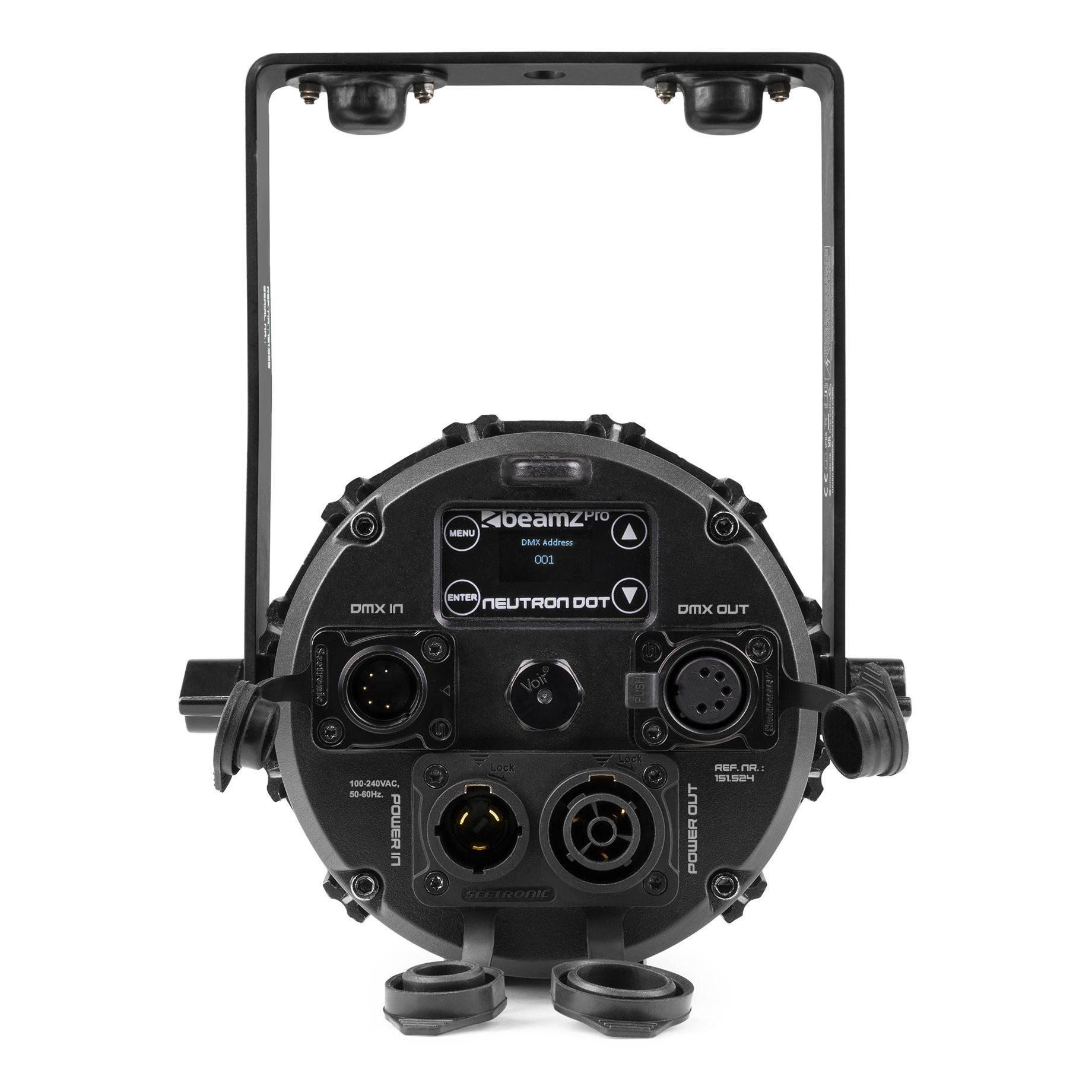

- Control panel with OLED display
- Key lock option and possibility of reverse display
- Auto mode
- Intelligent cooling system
- Weatherproof connectors, DMX and Power Connector TR (in/out)
- For architectural and entertainment use
Specifications
BrandbeamZ Professional
Product serieNeutron series
ColourBlack
General
Accessories177.923
Light source
Light source: Blinder
- 1x 60W WW/Amber LED
Light source: Backlight
- 16x 0.5W RGB LED
Illuminance18908 lx @ 1m
Optics
Beam angle: Blinder
- 23°
Features
Flash Per Second0 - 20 Hz
Control
Control modesAuto programs, DMX, Manual
DMX Channels4, 9, 11, 15, 18, 52, 63
RDMYes
DMX connector5-pin XLR

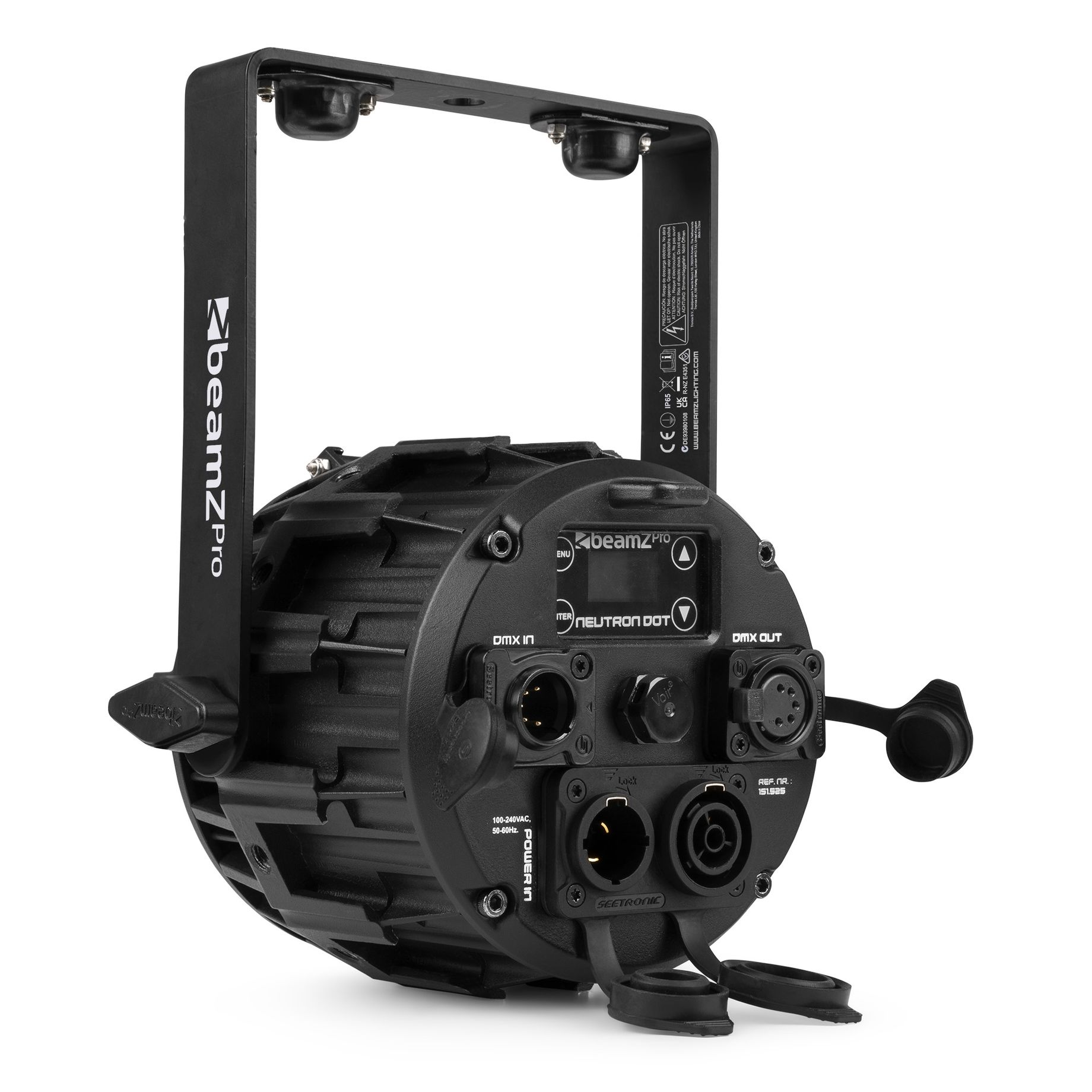

Connections
Input connections
- 1x Power - Powerconnector TR1 IP65 (A)
- 1x DMX - 5-pin XLR IP65 (M)
Output connections
- 1x Power - Powerconnector TR1 IP65 (B)
- 1x DMX - 5-pin XLR IP65 (F)
Hardware features
Display typeOLED
CoolingConvection
Environmental
IP ratingIP65
Electrical
Power Supply100-240VAC 50/60Hz
Mechanical
Dimensions
- 218 x 142 x 142 mm (W x D x H)
Weight
- 2.7 kg
Accessories

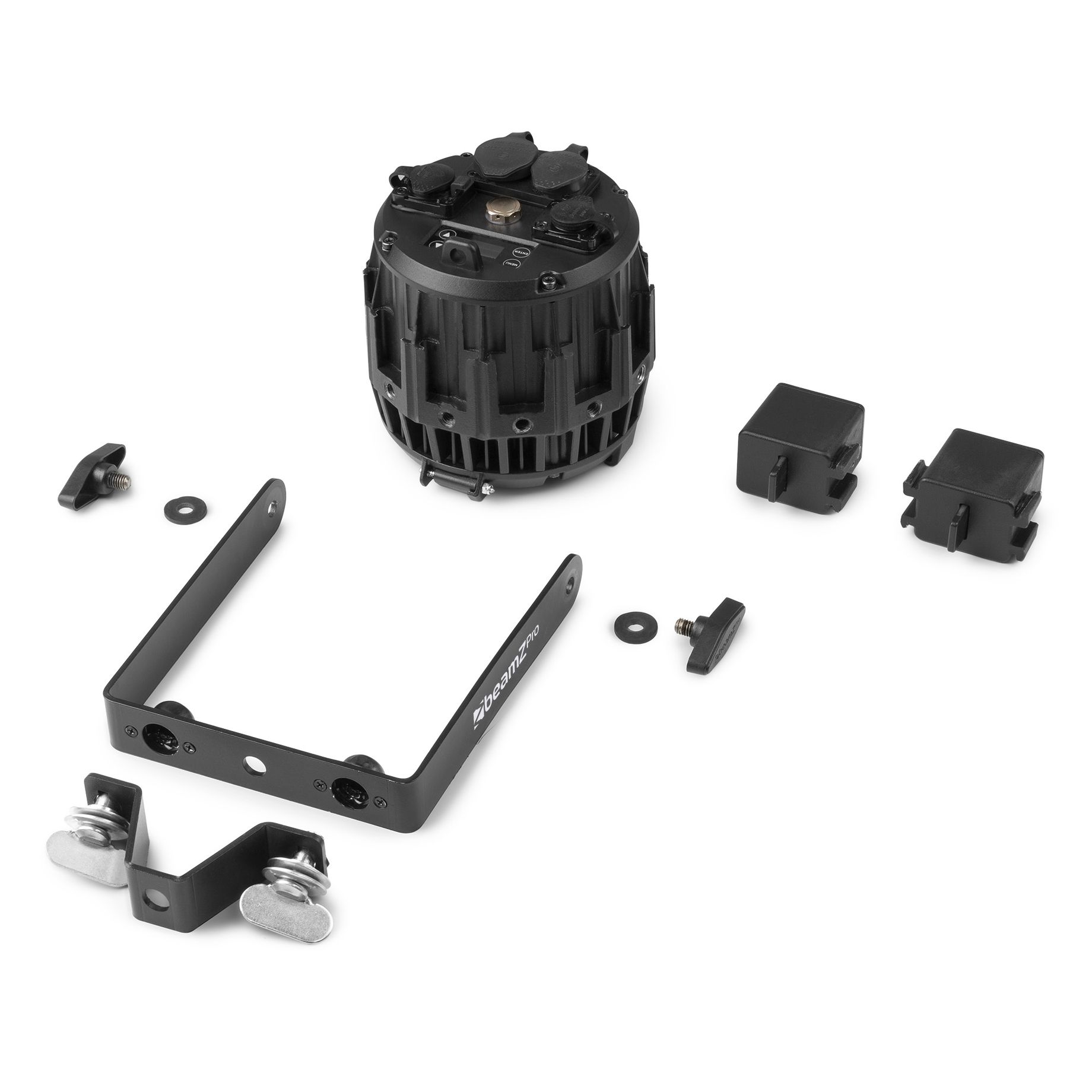

Included Accessories
- Adapter for singles
- Mounting bracket
- Power cable
