NEUTRON-ATOM
FC Linkable 200W RGBAL+RGB
SKU 151.534
|EAN 8715693355987
+6
All product information
Compare
Neutron series
Description
Highlights
- High power RGBAL LED

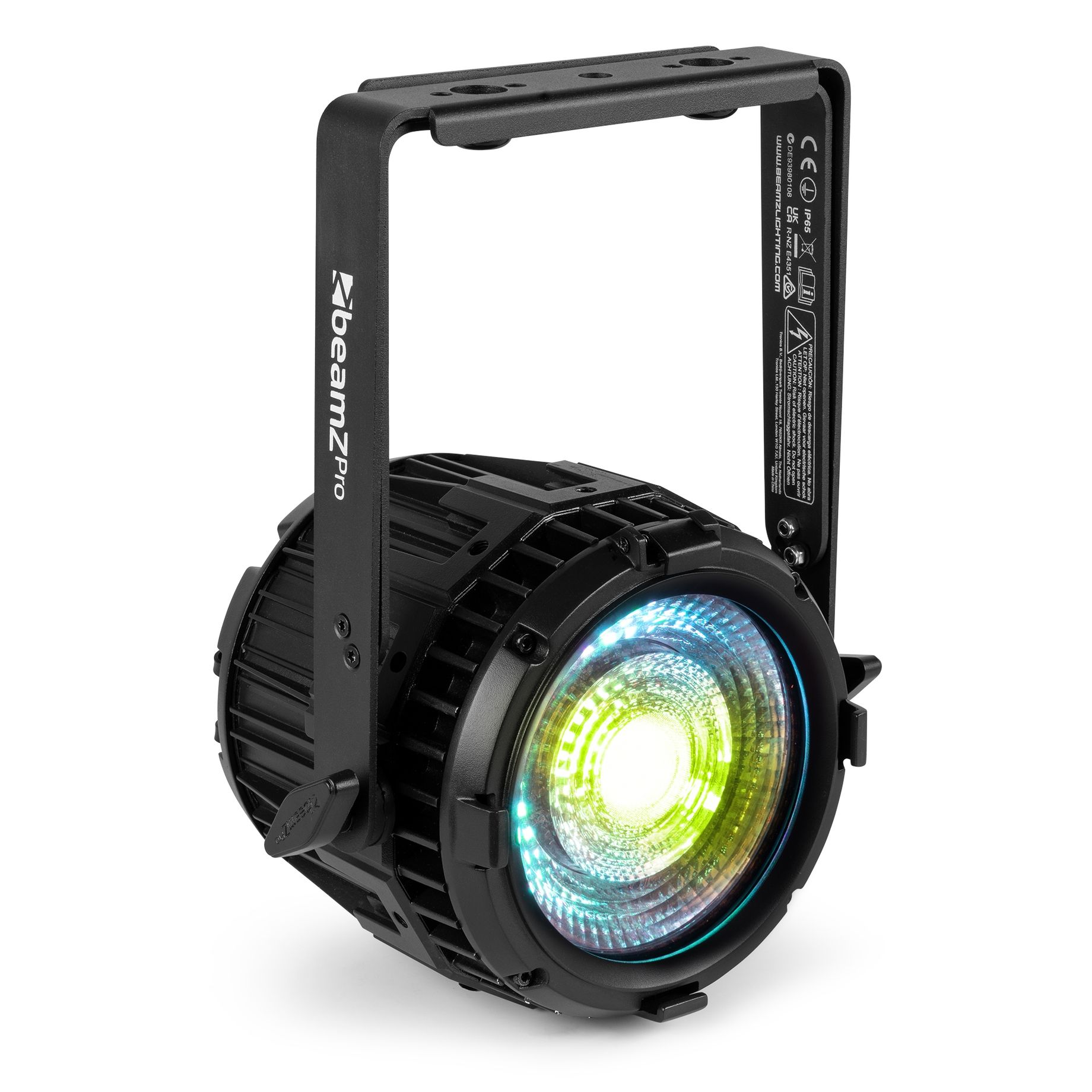

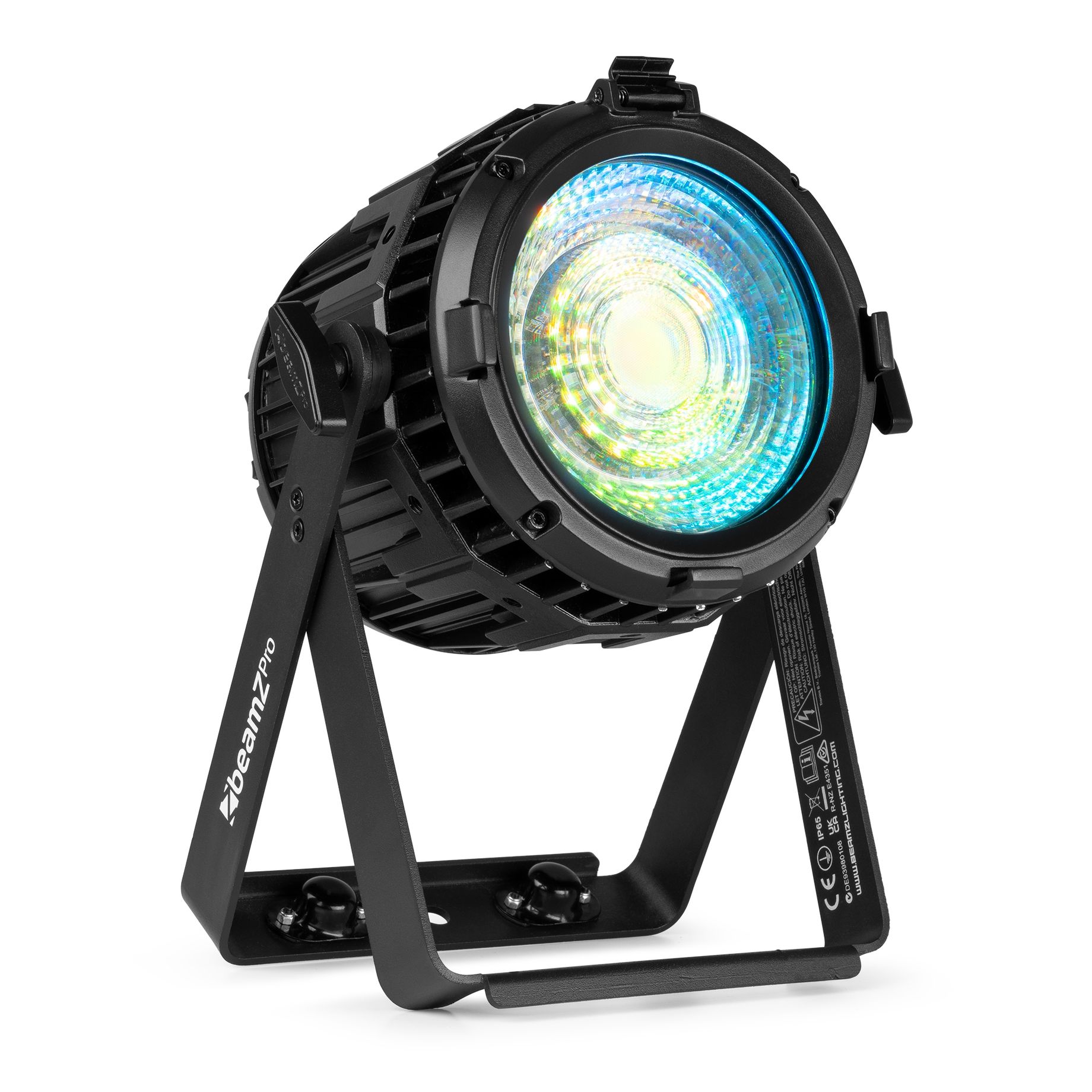

- Pixel-controllable RGB Aura backlight
- Compact and lightweight aluminium housing
- IP65 Rating, for indoor and outdoor use
- Beam angle of 23 degrees
- 16-bit PWM dimming

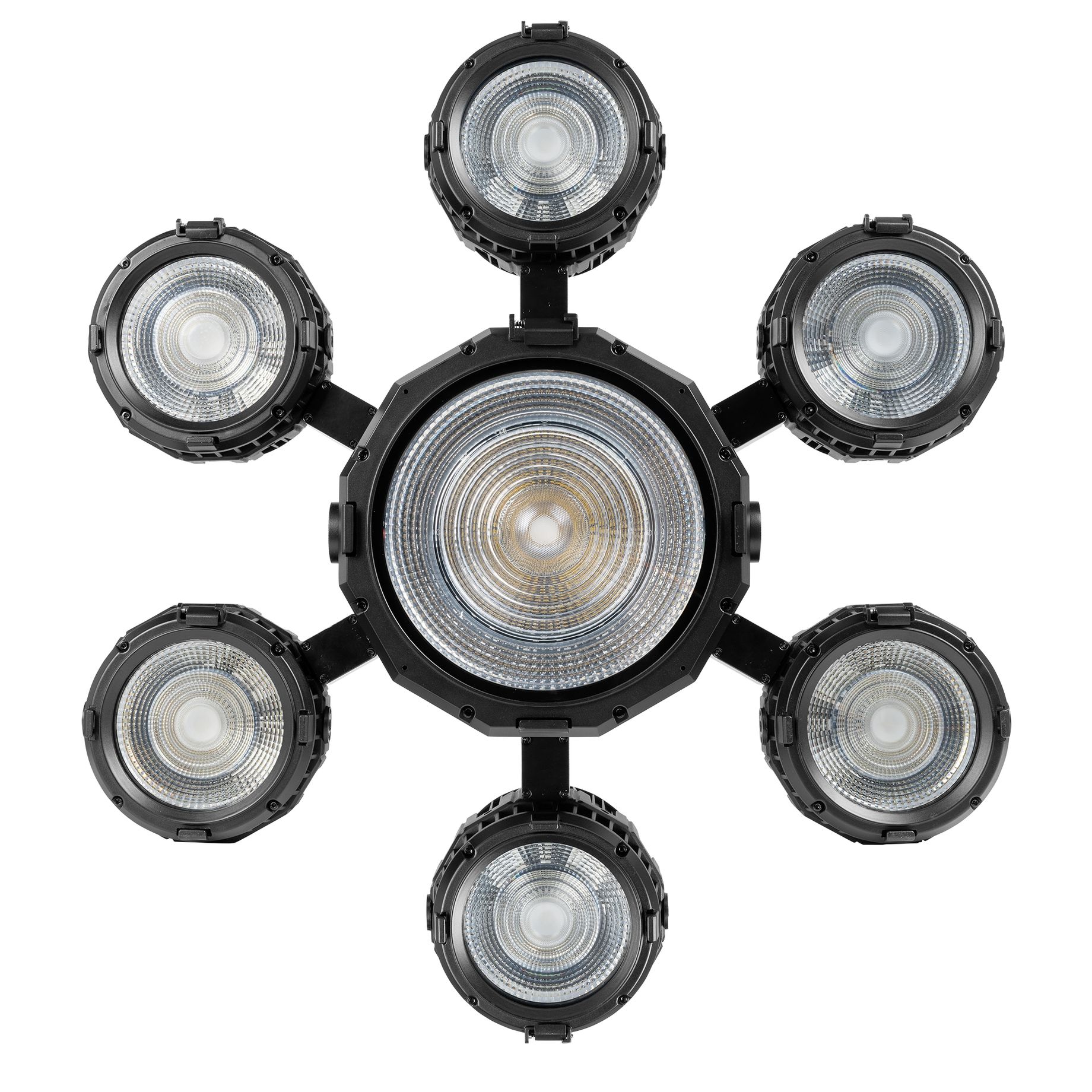

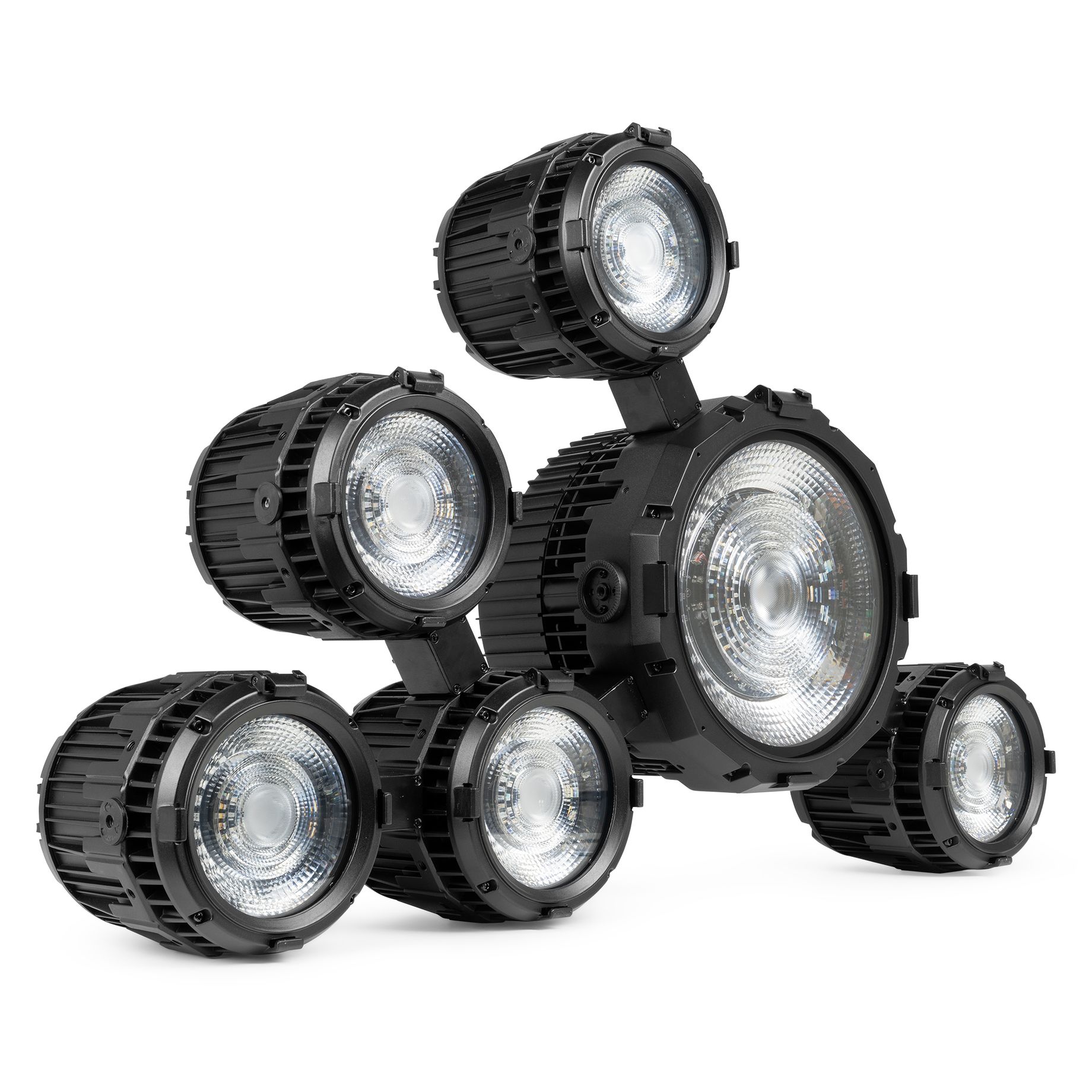

- Smart coupling system (2 pcs included)
- Control panel with OLED display
- Key lock option and possibility of reverse display
- Auto mode
- Intelligent cooling system
- Weatherproof connectors, DMX and Power Connector TR (in/out)
Specifications
BrandbeamZ Professional
Product serieNeutron series
ColourBlack
Light source
Light source: Blinder
- 1x 200W RGBAL LED
Light source: Backlight
- 36x 0.5W RGB LED
Optics
Beam angle: Blinder
- 23°
Features
Flash Per Second1 - 31 Hz
Control
Control modesAuto programs, DMX, Manual
DMX Channels6, 8, 14, 21, 24
RDMYes
DMX connector3-pin XLR, 5-pin XLR

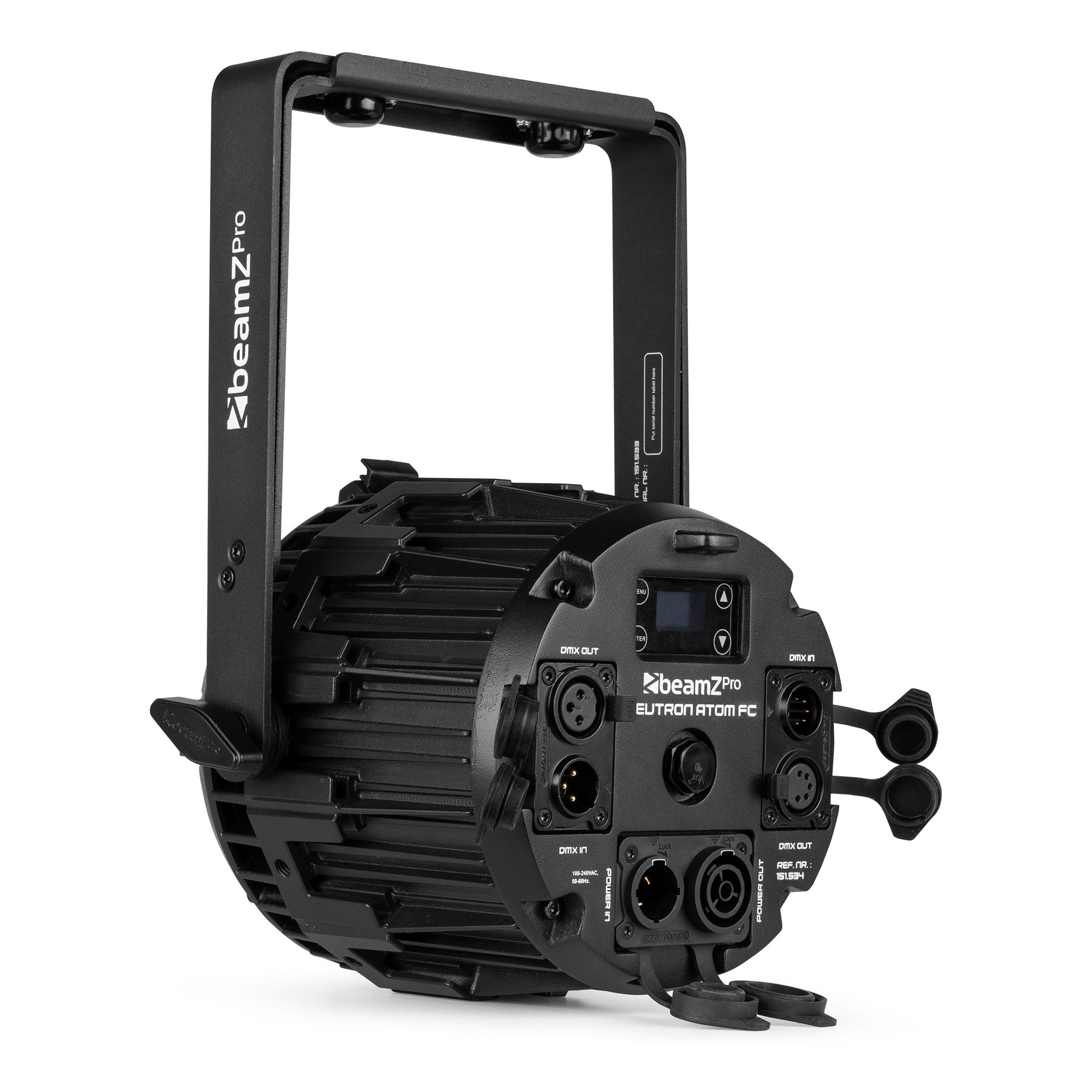

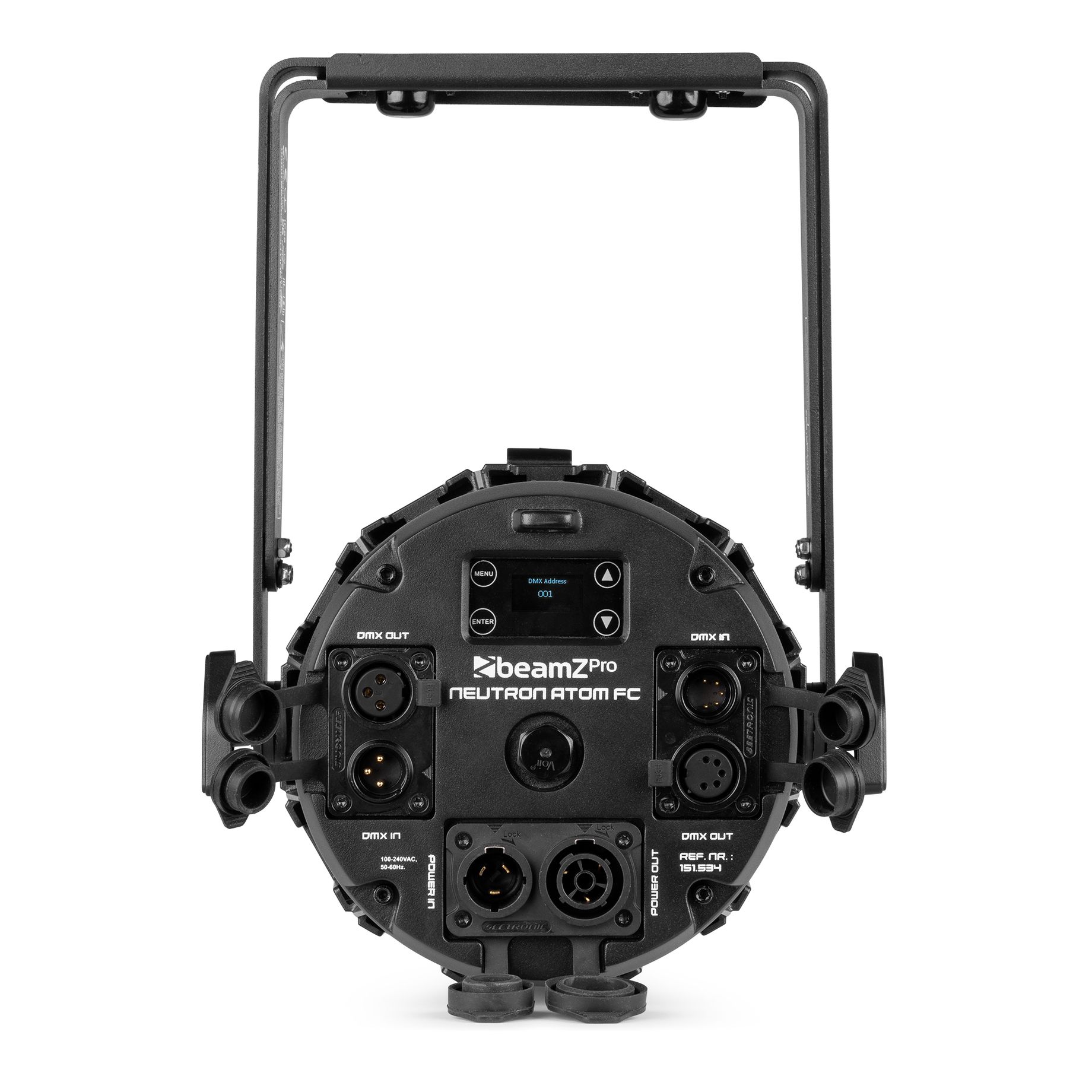

Connections
Input connections
- 1x Power - Powerconnector TR1 IP65 (A)
- 1x DMX - 3-pin XLR IP65 (M)
- 1x DMX - 5-pin XLR IP65 (M)
Output connections
- 1x Power - Powerconnector TR1 IP65 (B)
- 1x DMX - 3-pin XLR IP65 (M)
- 1x DMX - 5-pin XLR IP65 (M)
Hardware features
Display typeOLED
CoolingConvection
Environmental
IP ratingIP65
Electrical
Power Supply100-240VAC 50/60Hz
Mechanical
Dimensions
- 300 x 235 x 185 mm (W x D x H)
Weight
- 4.4 kg

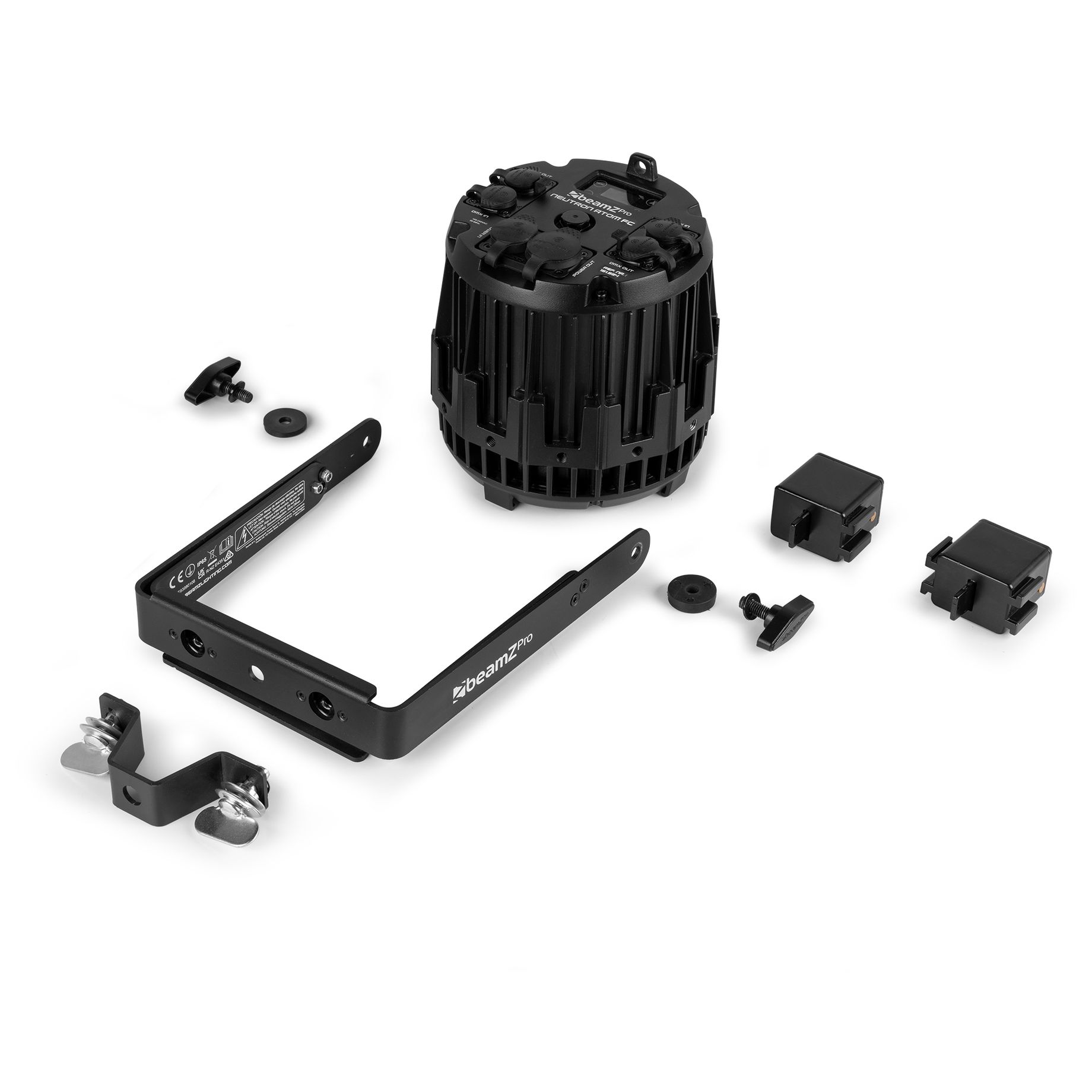

Accessories
Included Accessories
- Adapter for singles
- Mounting bracket
- Power cable
Manuals & Documents
Manual
PDF
