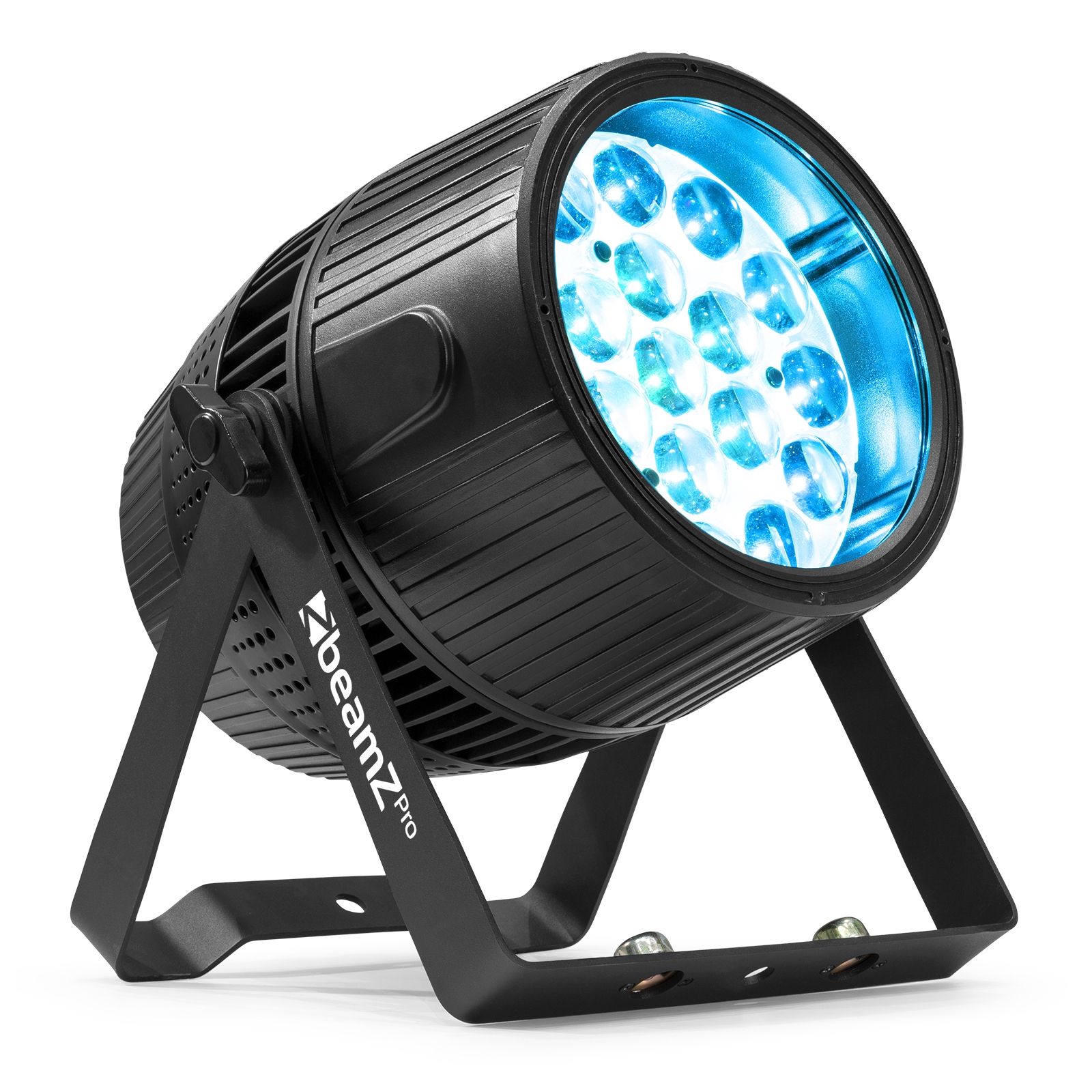

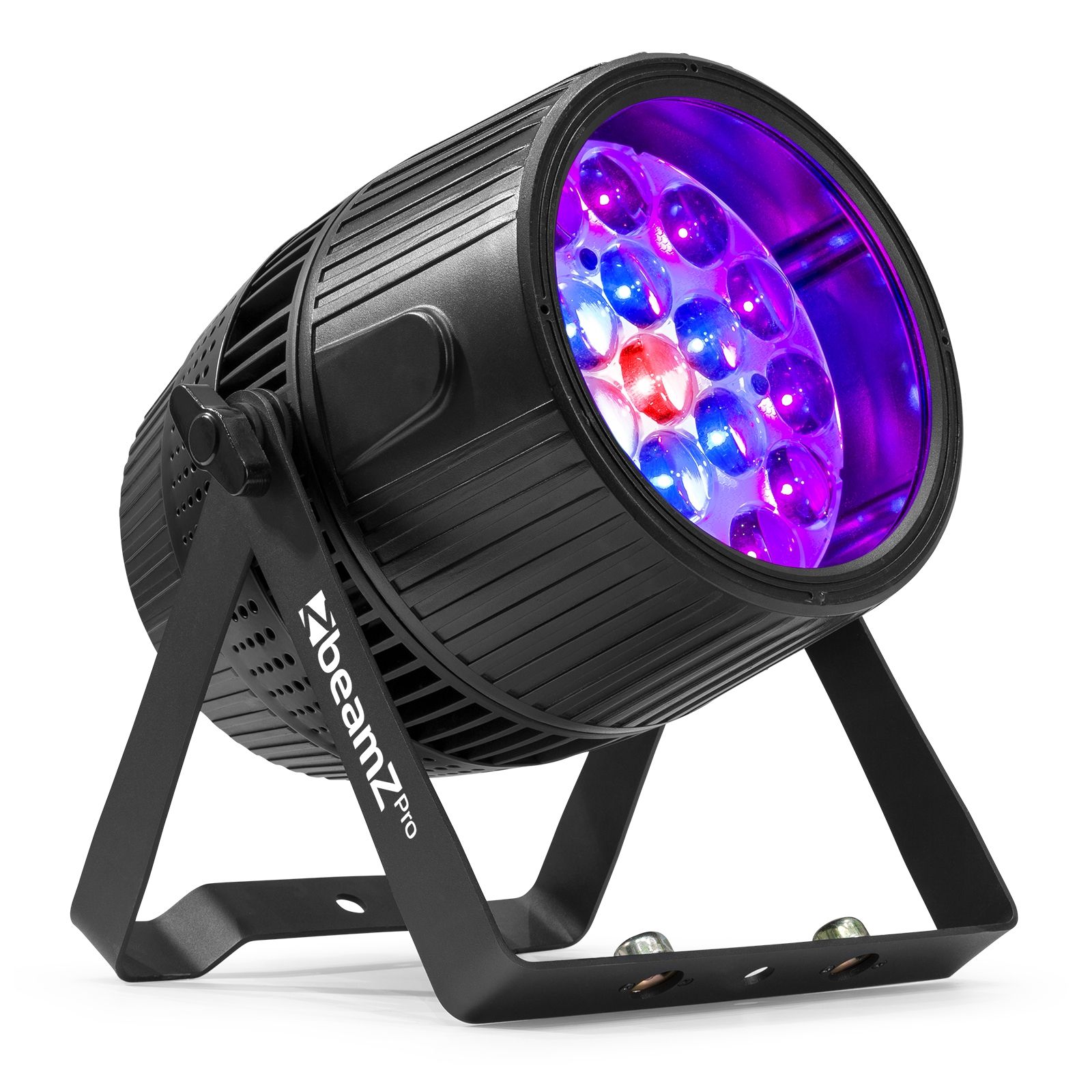

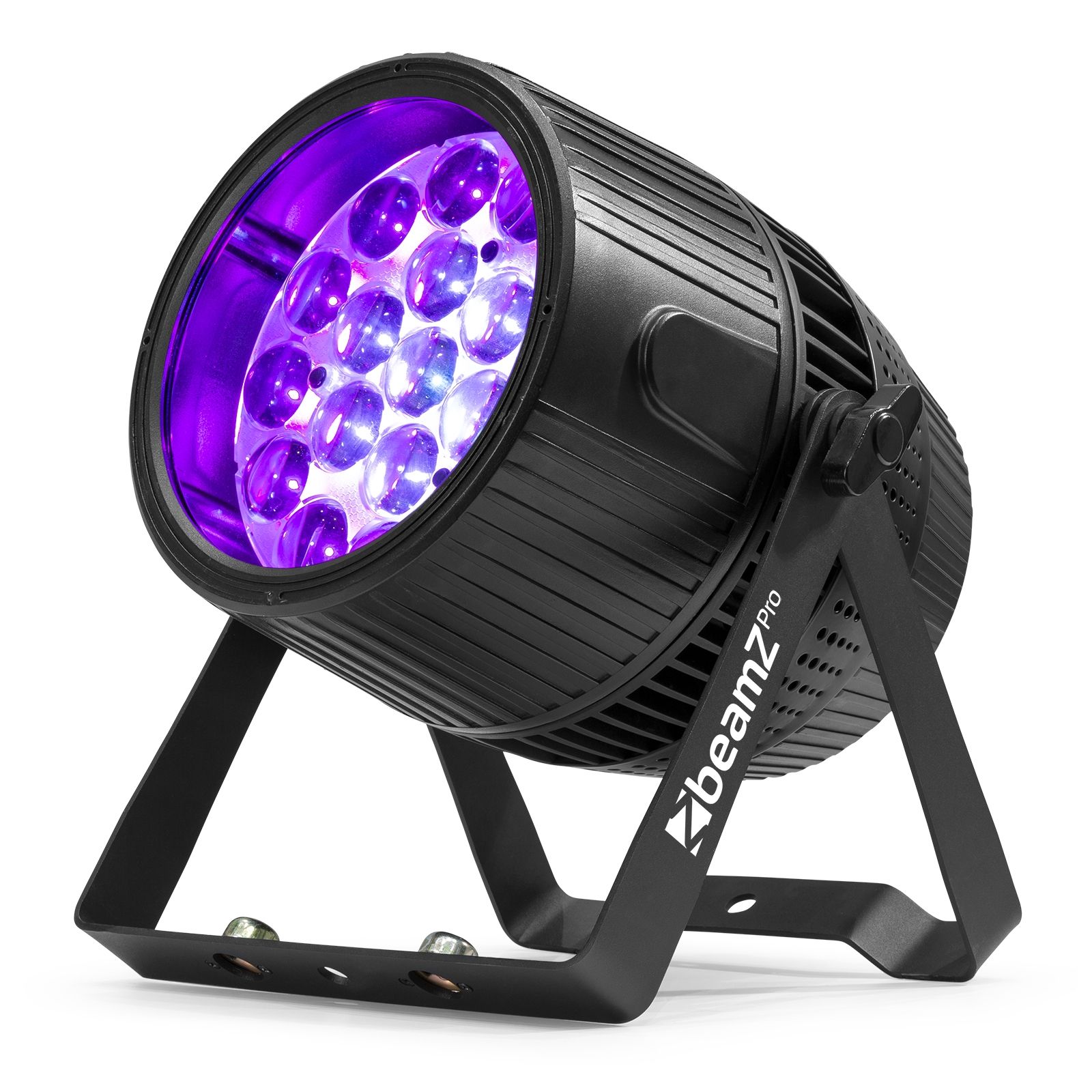

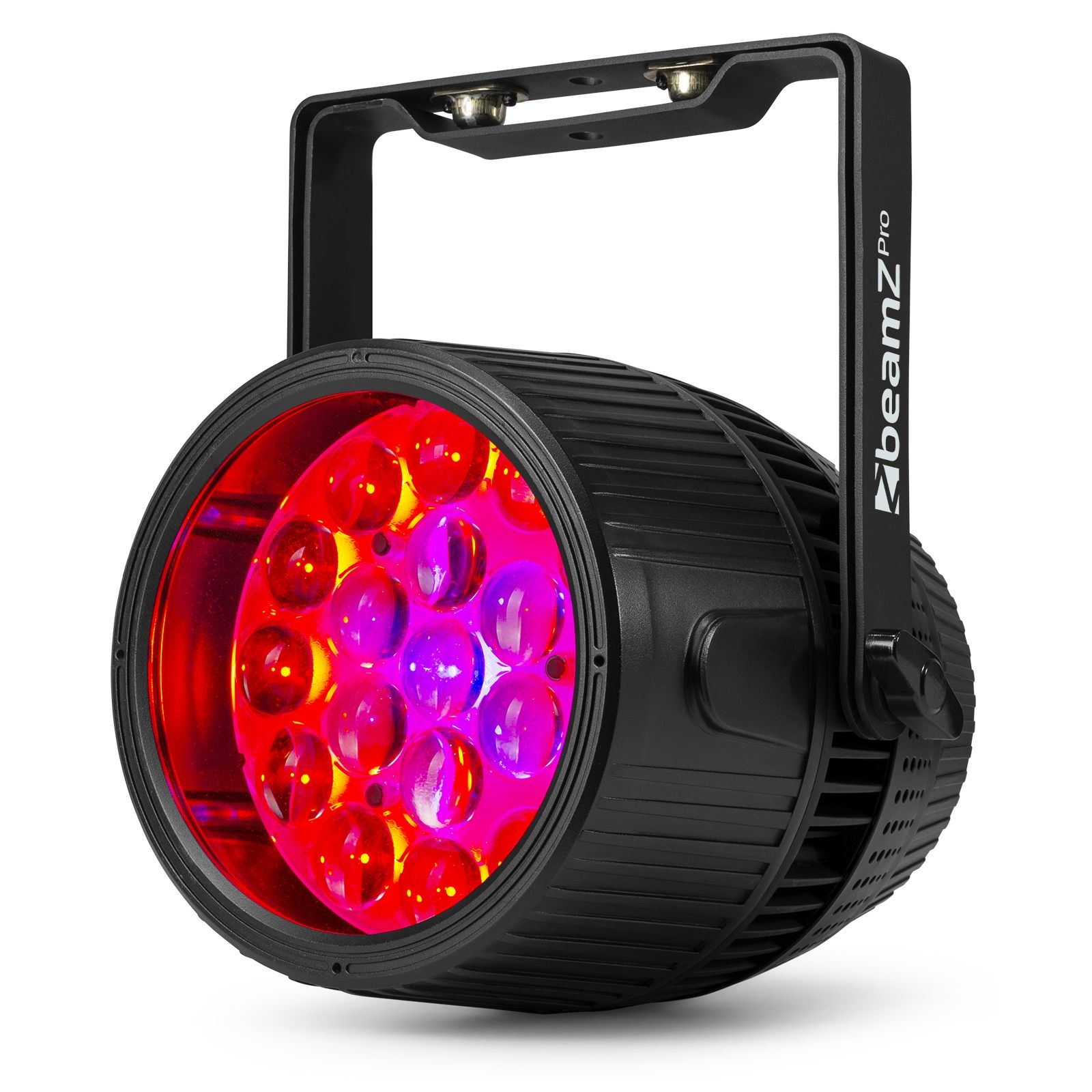

BWA550Z
Outdoor PRO PAR with Zoom
SKU 150.775
|EAN 8715693341898
+8
All product information
Compare
BWA series
Description
Highlights
- 19x 15W 4-in-1 LEDs
- RGBW colour mixing
- Motorized zoom
- Zoom range: 2° - 25°
- IP65 weatherproof

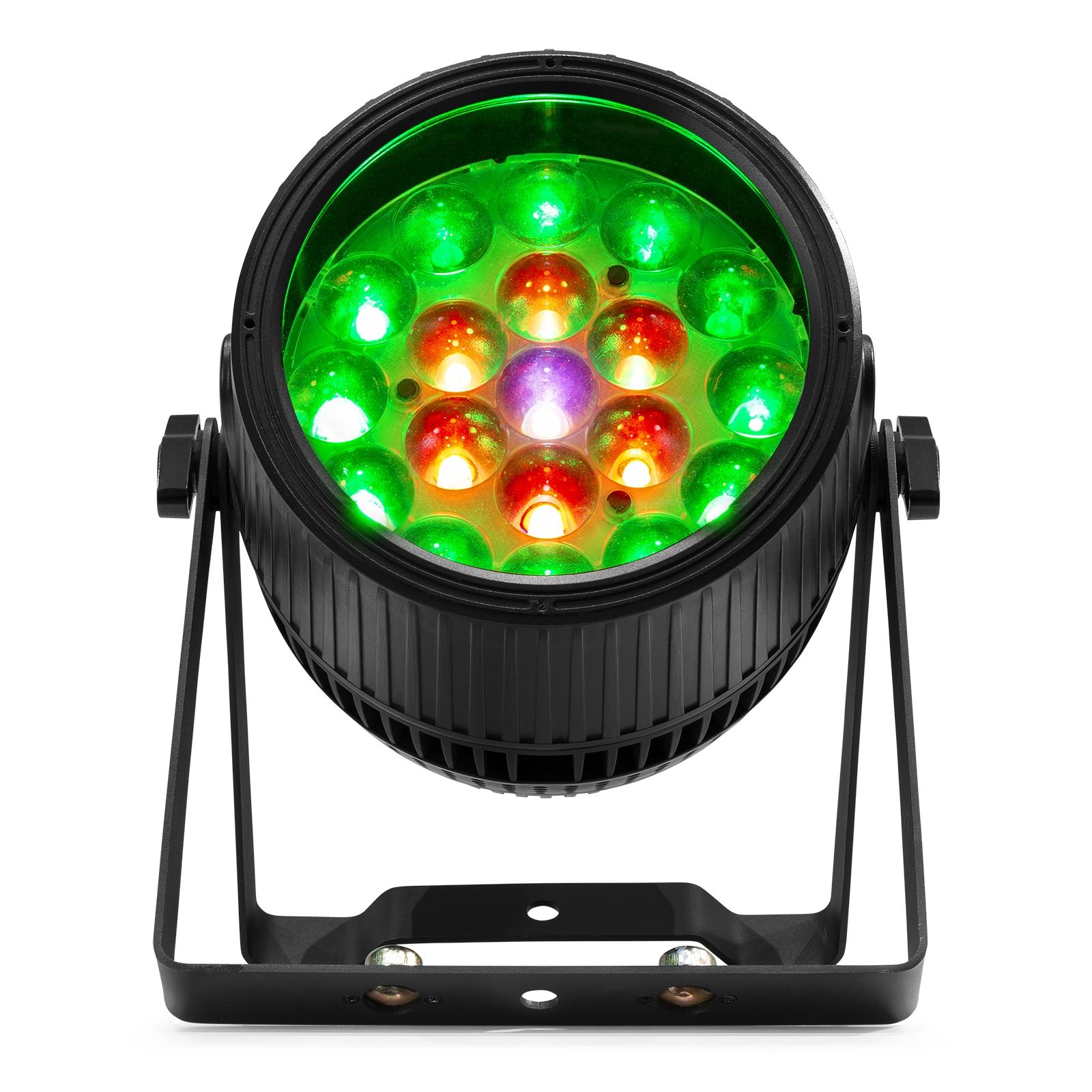

- 3 separate controllable LED zones
- 0-100% electronic dimmer
- Lightweight aluminium housing
- Low noise level due to the efficient cooling system
- DMX and Stand-alone mode
- Master/slave function

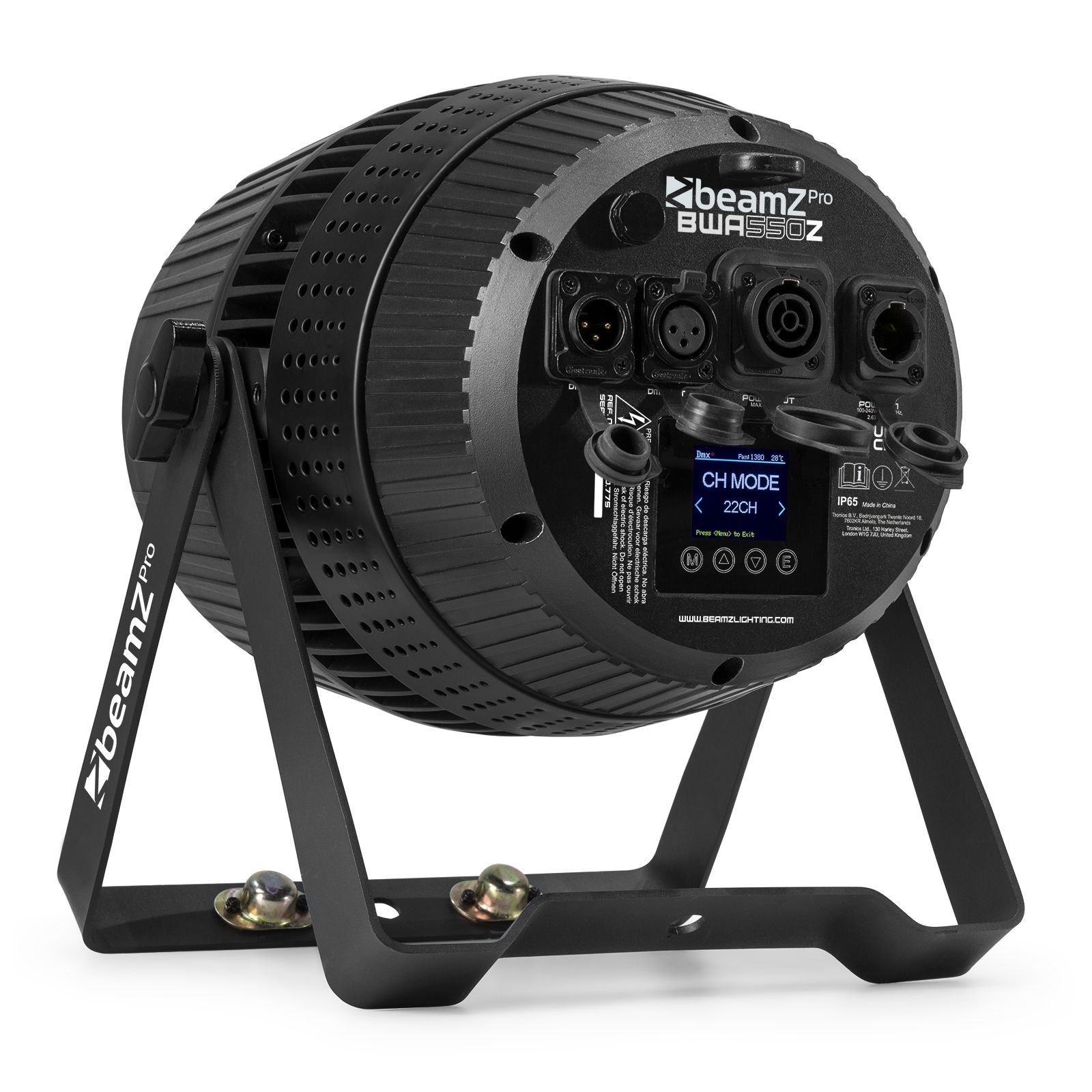

- DMX in/output via 3-pin XLR
- RDM controllable
- 3 Auto programs with adjustable speed

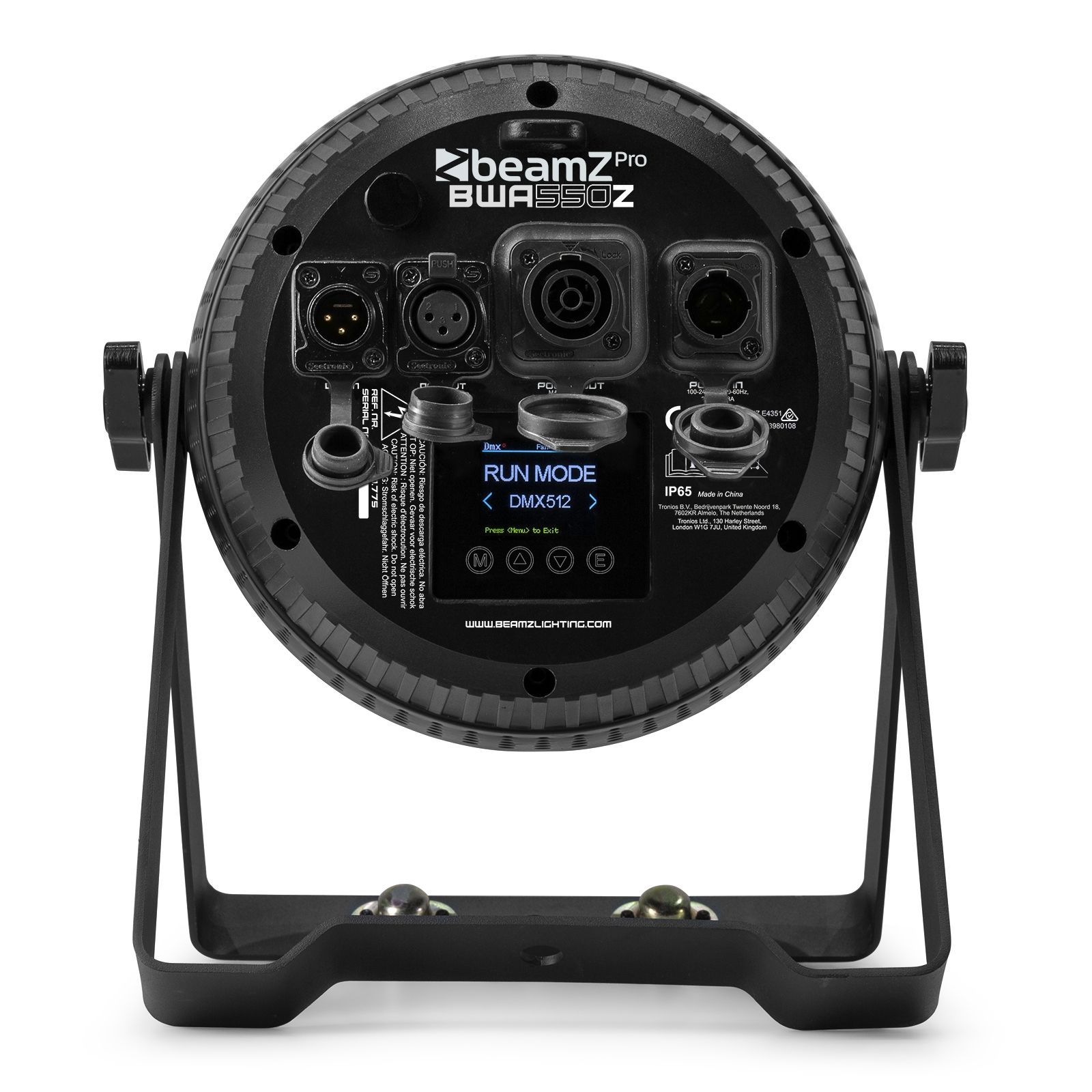

- Control panel with touchscreen OLED display
- P-Con TR input/output
- Double bracket also acts as floor stand

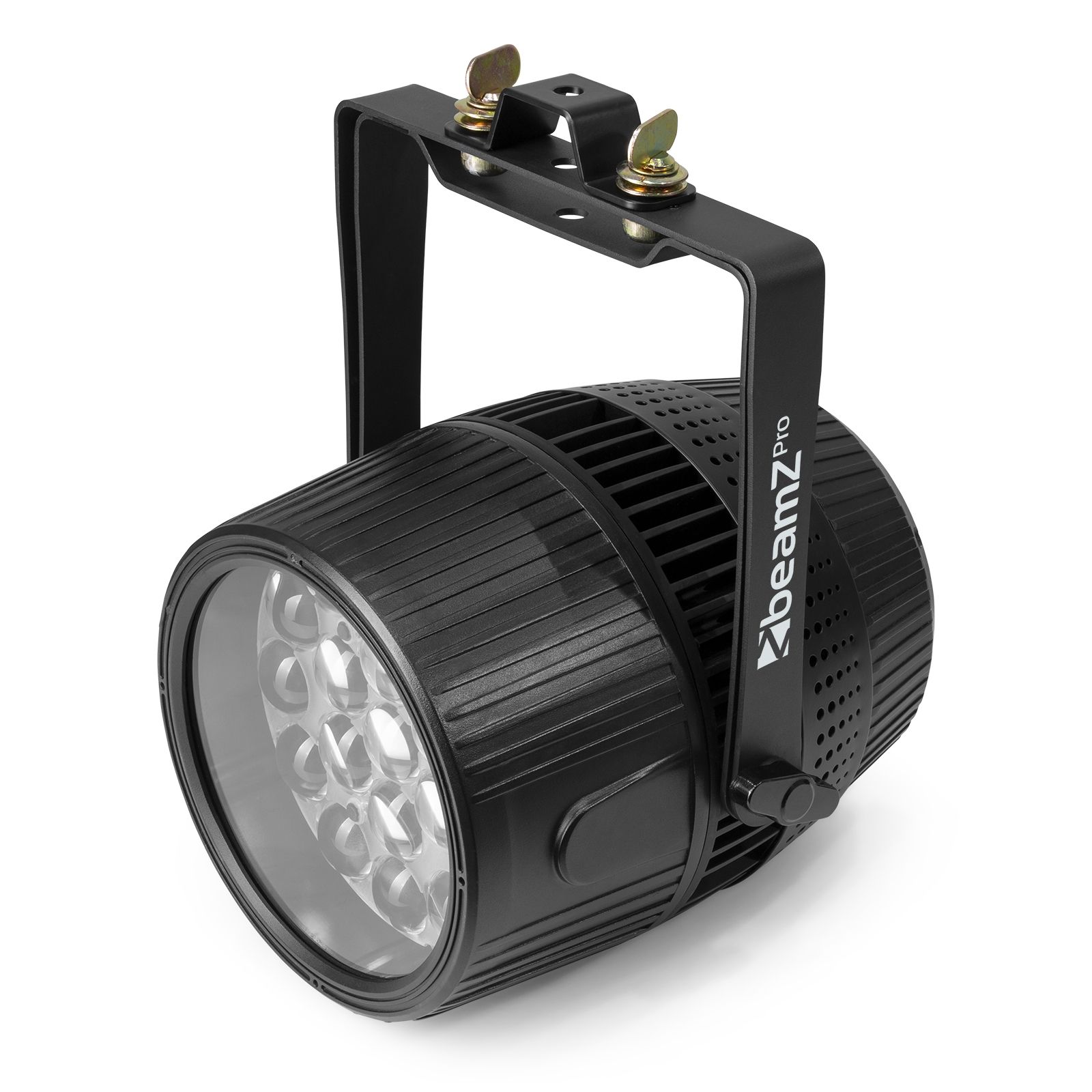

- Including Omega bracket
Specifications
BrandbeamZ Professional
Product serieBWA series
ColourBlack
TypeAluminium Par
Light source
Light source
- 19x 15W RGBW LED
Illuminance88808 lx @ 1m
Optics
Beam angle
- 2 - 25
Features
Flash Per Second1 - 20 Hz
Control
Control modesAuto programs, DMX, Master/Slave, Manual
DMX Channels11, 22
DMX connector3-pin XLR
Connections
Input connections
- 1x Power - Powerconnector TR1 IP65 (A)
- 1x DMX - 3-pin XLR IP65 (M)
Output connections
- 1x Power - Powerconnector TR1 IP65 (B)
- 1x DMX - 3-pin XLR IP65 (F)
Hardware features
Display typeOLED
CoolingTemperature controlled fan
Environmental
IP ratingIP65
Electrical
Power Supply100-240VAC 50/60Hz
Mechanical
Dimensions
- 37 x 21.8 x 29.6 mm (W x D x H)
Weight
- 9.4 kg

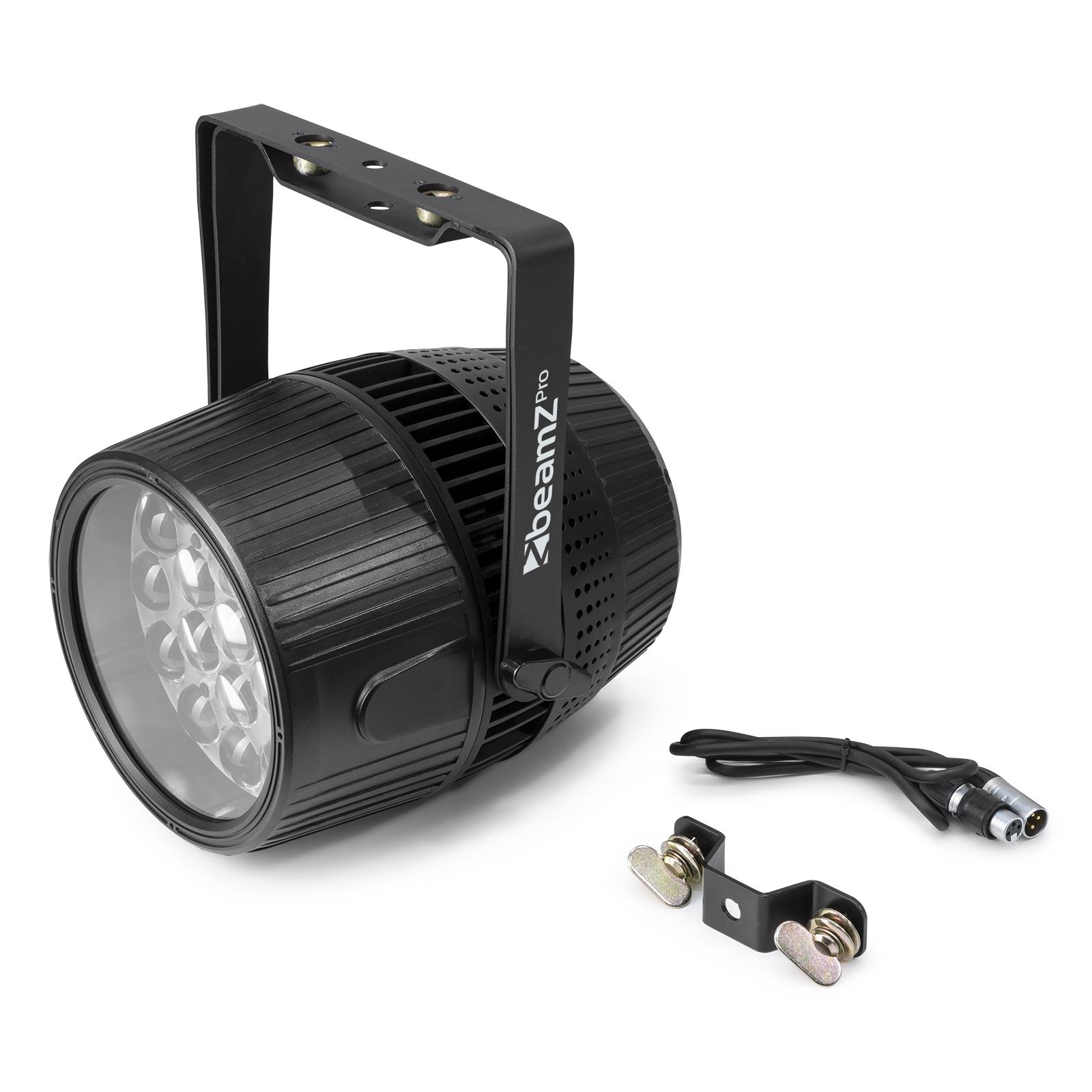

Accessories
Included Accessories
- Mounting bracket
