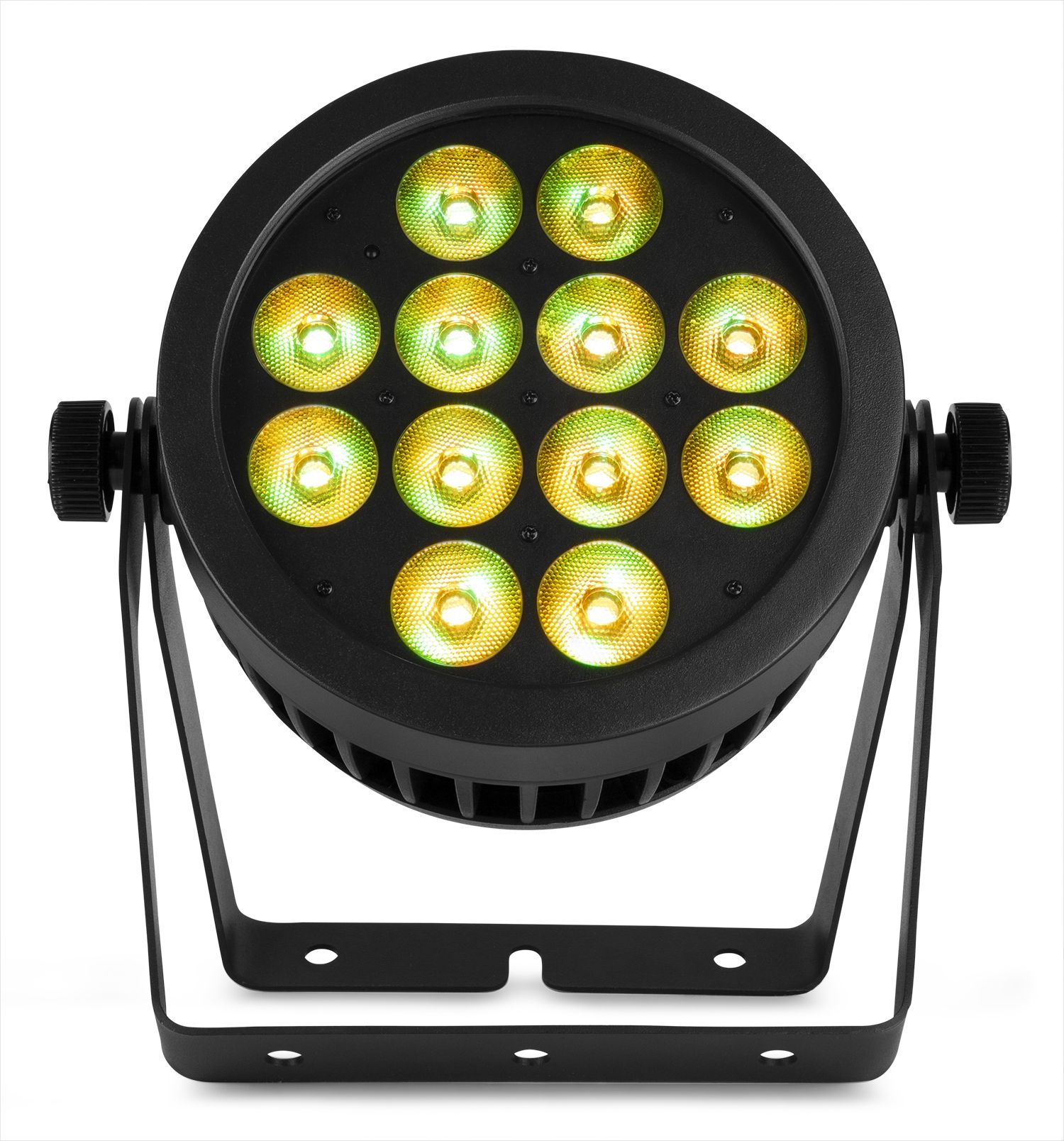

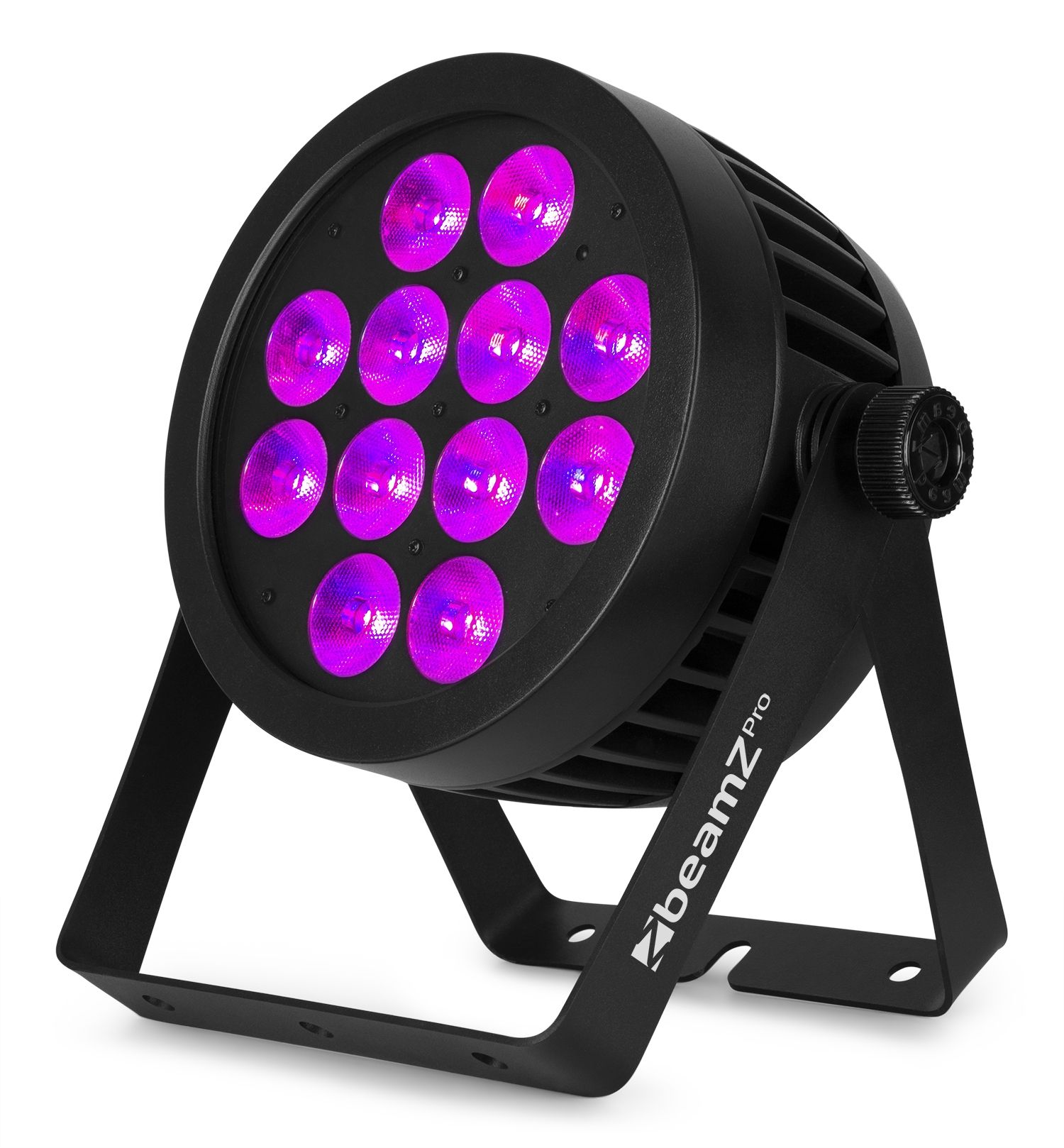

BWA532

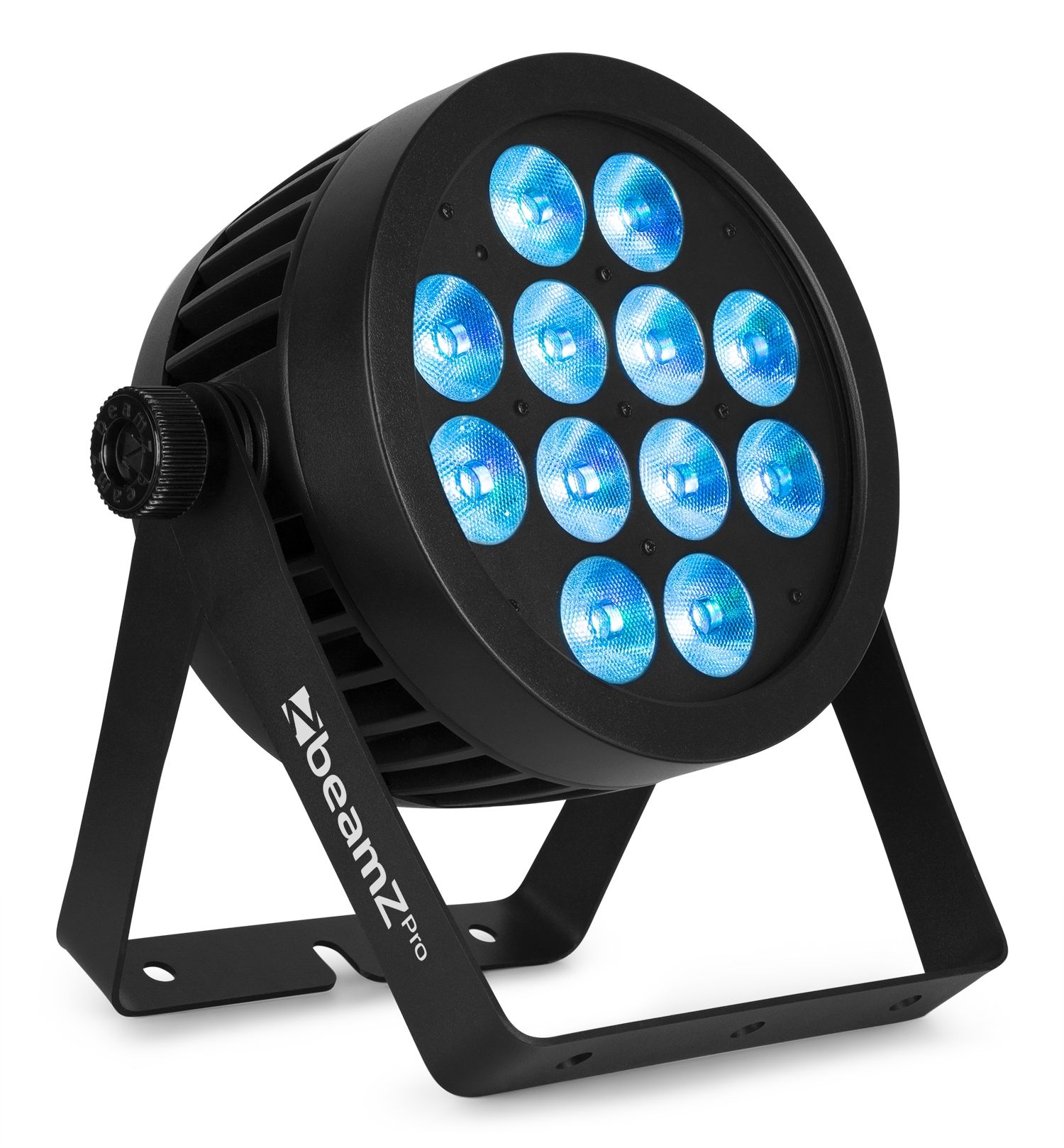

Aluminium IP65 LED PAR 12x 12W 4-in-1
SKU 150.794
|EAN 8715693311341
+6
All product information
Compare
BWA series
Description
Highlights
- 12x 12W 4-in-1 LEDs
- RGBW colour mixing
- 25x different colour presets
- Colour temperature 2700, 3200, 4300, 5600, 6500, 8000K
- 9x pre-programmed shows and adjustable speed
- Electronic dimming: 0 - 100%
- 3, 4, 5 or 10 DMX channels
- Strobe effect
- Selectable colour fade and flash
- DMX and Stand-alone mode
- Master/Slave function
- DMX in/output via 3-pin XLR
- Control panel with LED display (touch button)
- Display lock via password
- Aluminium housing
- Waterproof IP65 for outdoor use
- Waterproof connectors, Powerconnector TR (in-out)
- IR remote control
Specifications
BrandbeamZ Professional
Product serieBWA series
ColourBlack
TypeAluminium Par
Light source
Light source
- 12x 12W RGBW LED
Illuminance17000 lx @ 1m
Optics
Beam angle
- 19°
Features
Flash Per Second1 - 20 Hz
Control
Control modesAuto programs, DMX, Master/Slave, Manual
DMX Channels3, 4, 5, 10
DMX connector3-pin XLR

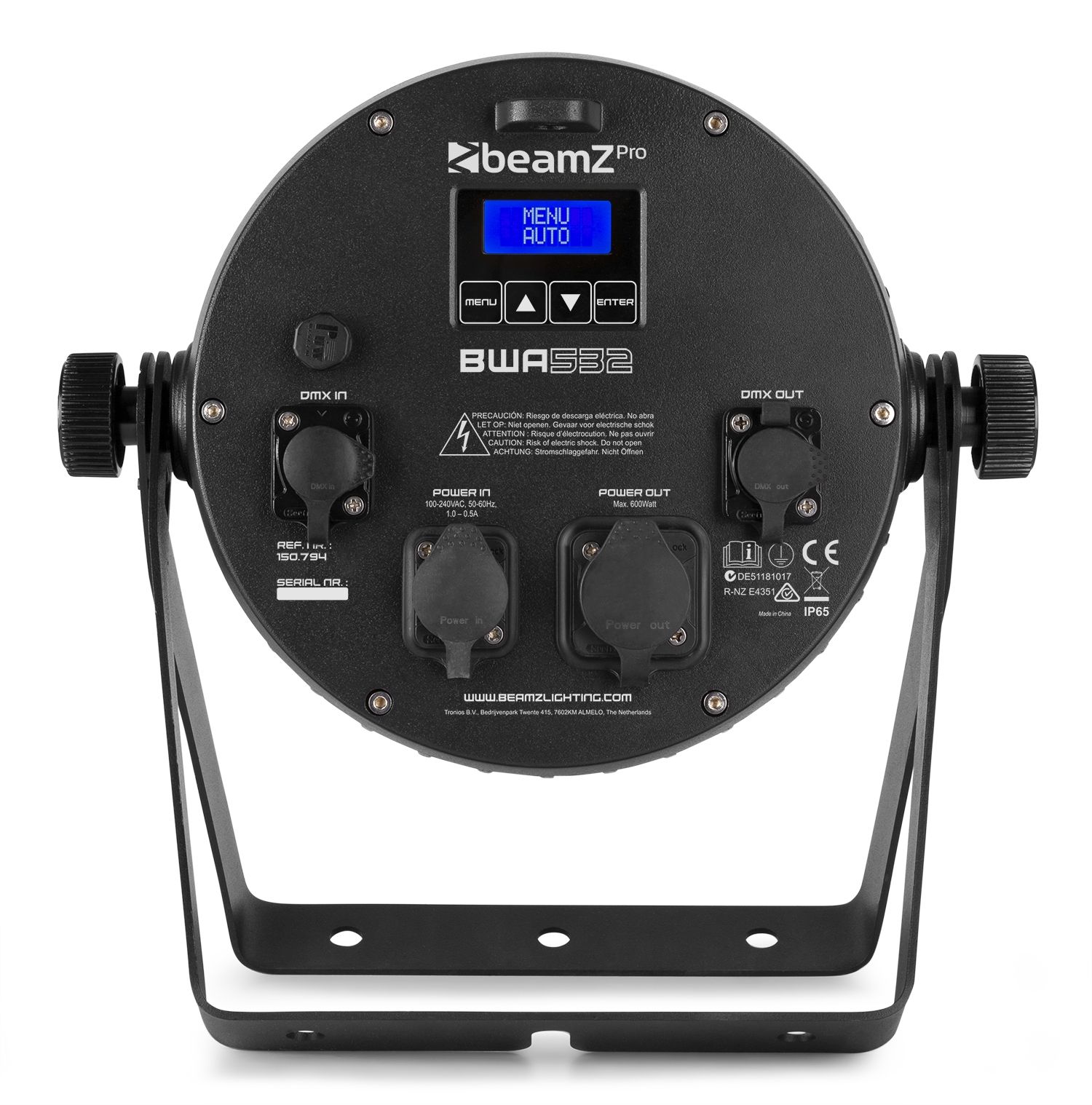

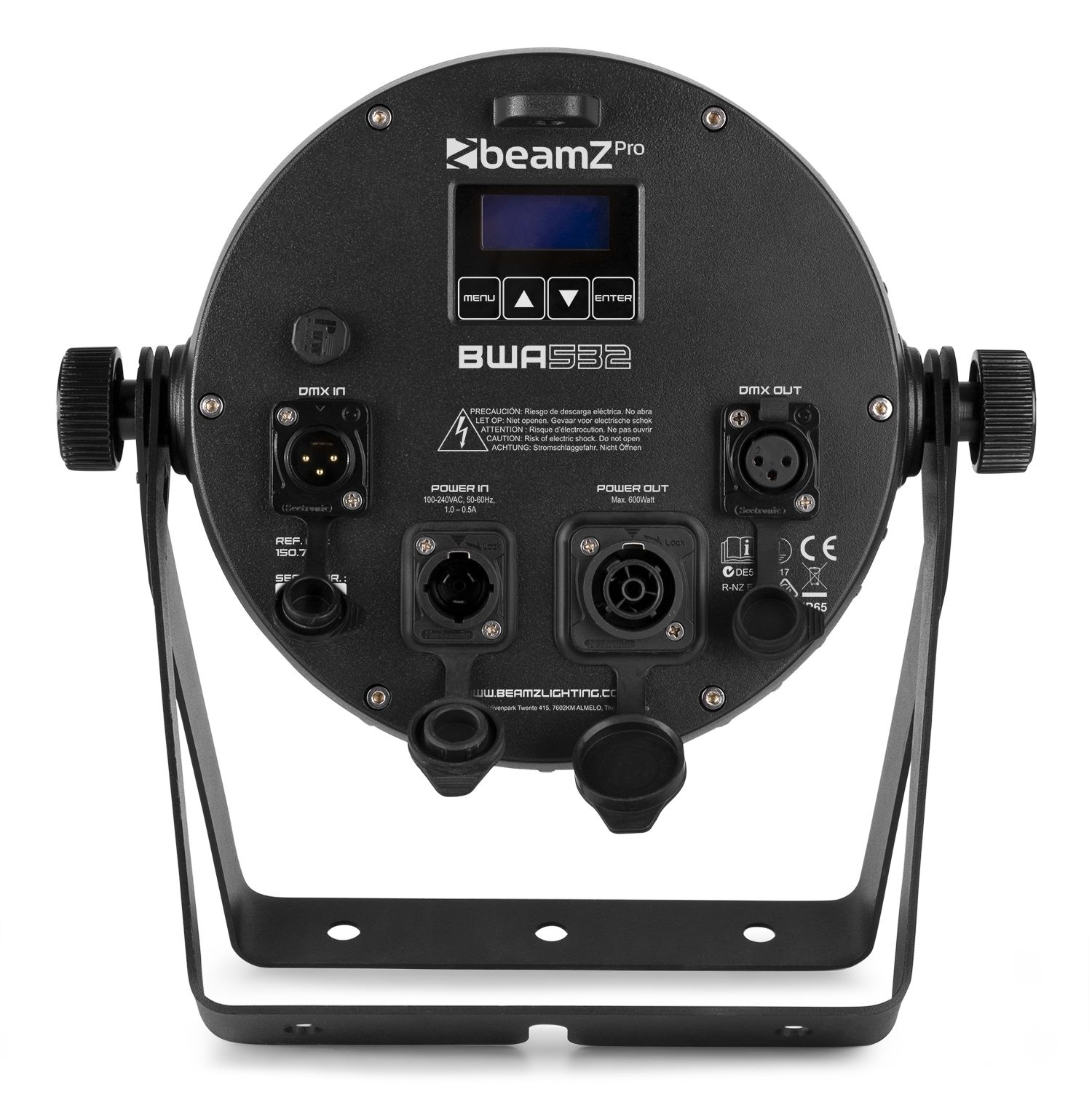

Connections
Input connections
- 1x Power - Powerconnector TR1 IP65 (A)
- 1x DMX - 3-pin XLR IP65 (M)
Output connections
- 1x Power - Powerconnector TR1 IP65 (B)
- 1x DMX - 3-pin XLR IP65 (F)
Environmental
IP ratingIP65
Electrical
Power Supply110-250VAC 50/60Hz
Mechanical
Dimensions
- 310 x 300 x 150 mm (W x D x H)
Weight
- 5.2 kg
Accessories
Included Accessories
- Mounting bracket

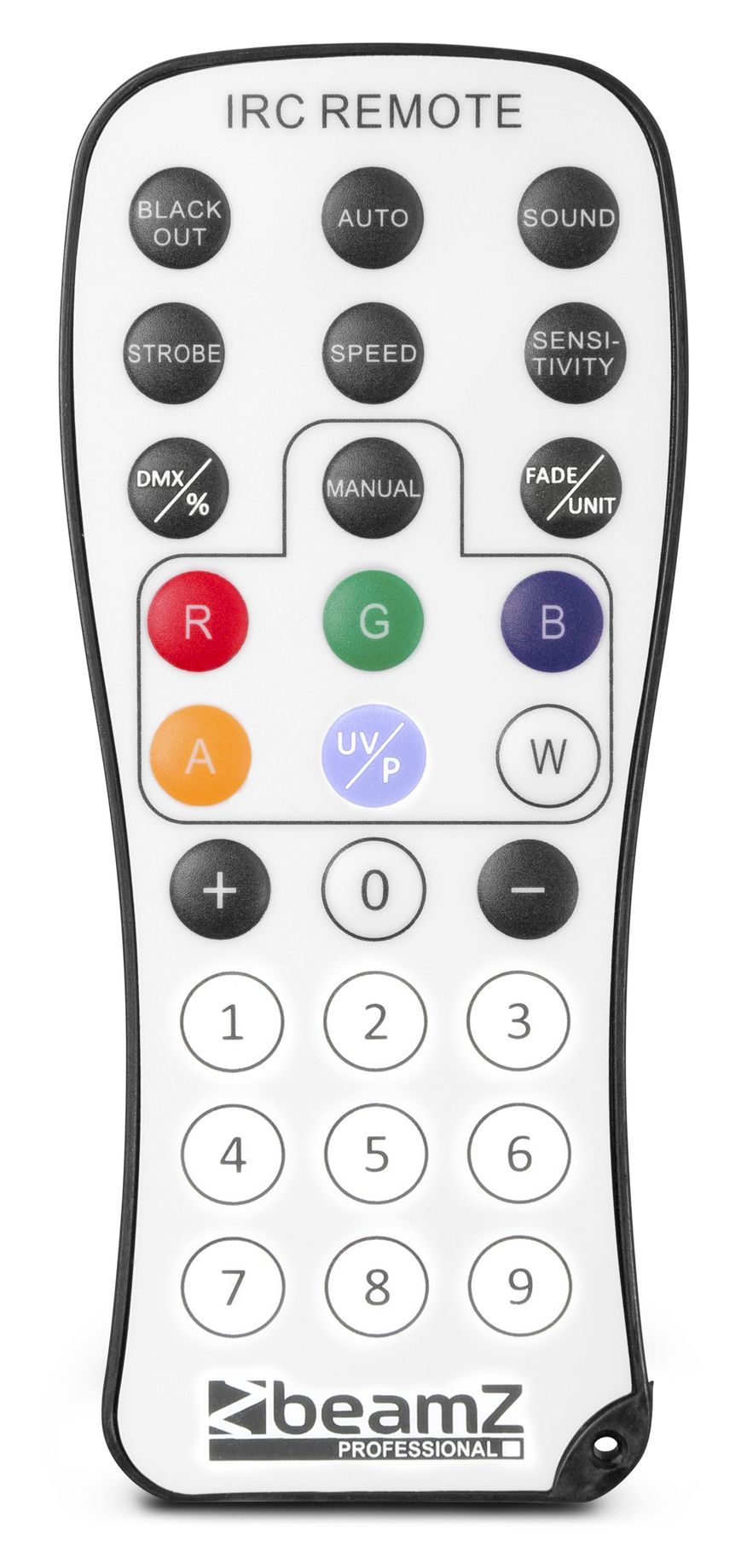

- Remote control (wireless)
