BTSE200

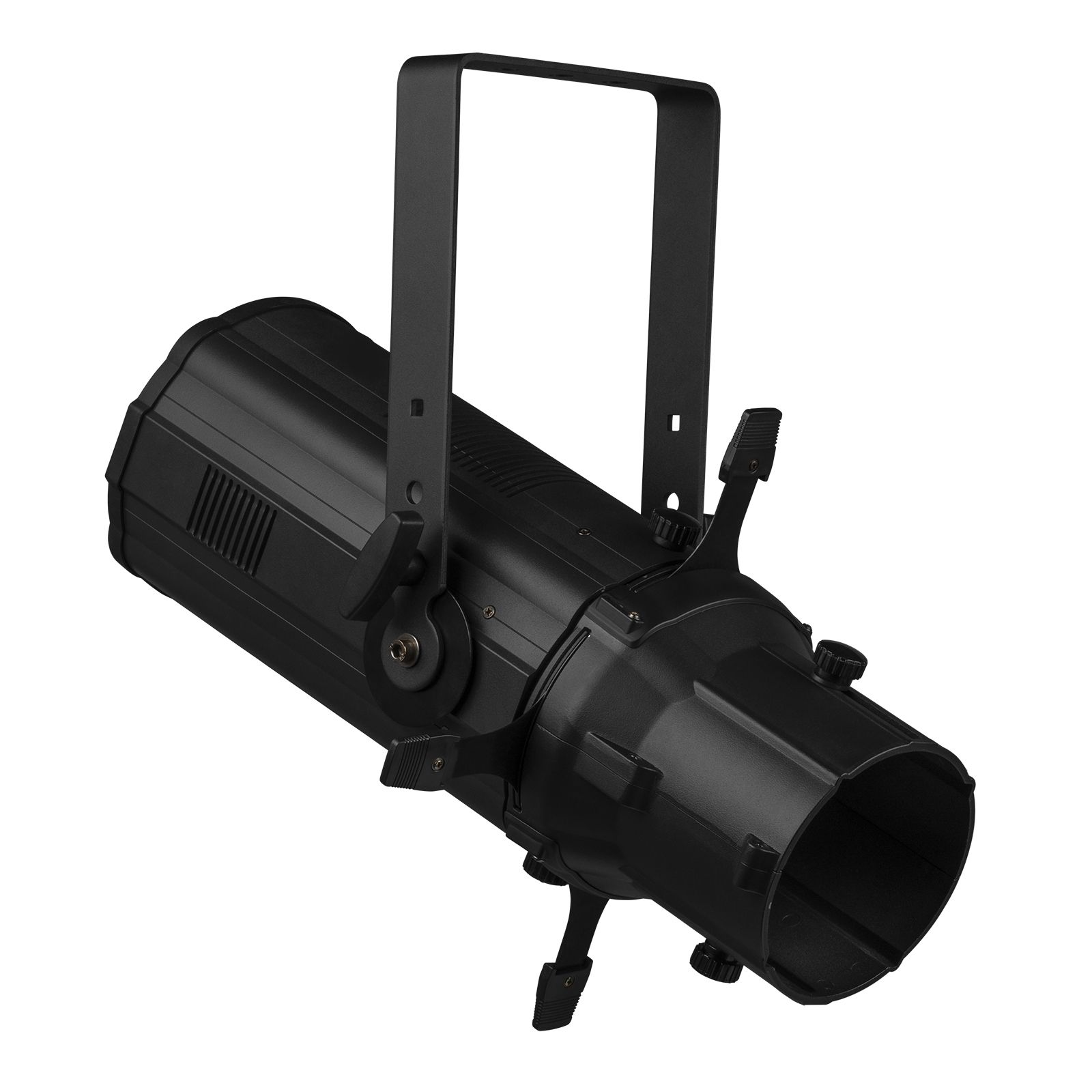

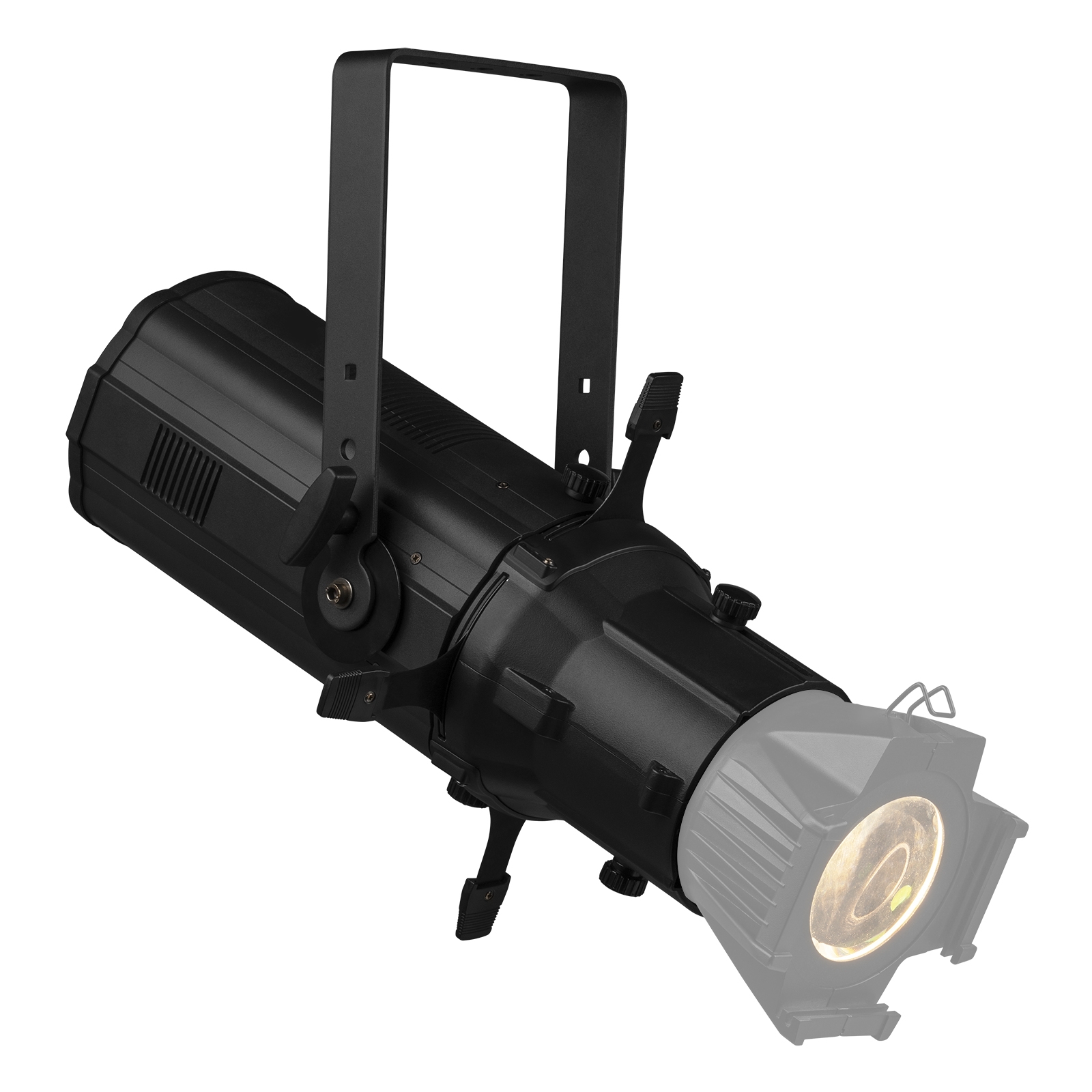

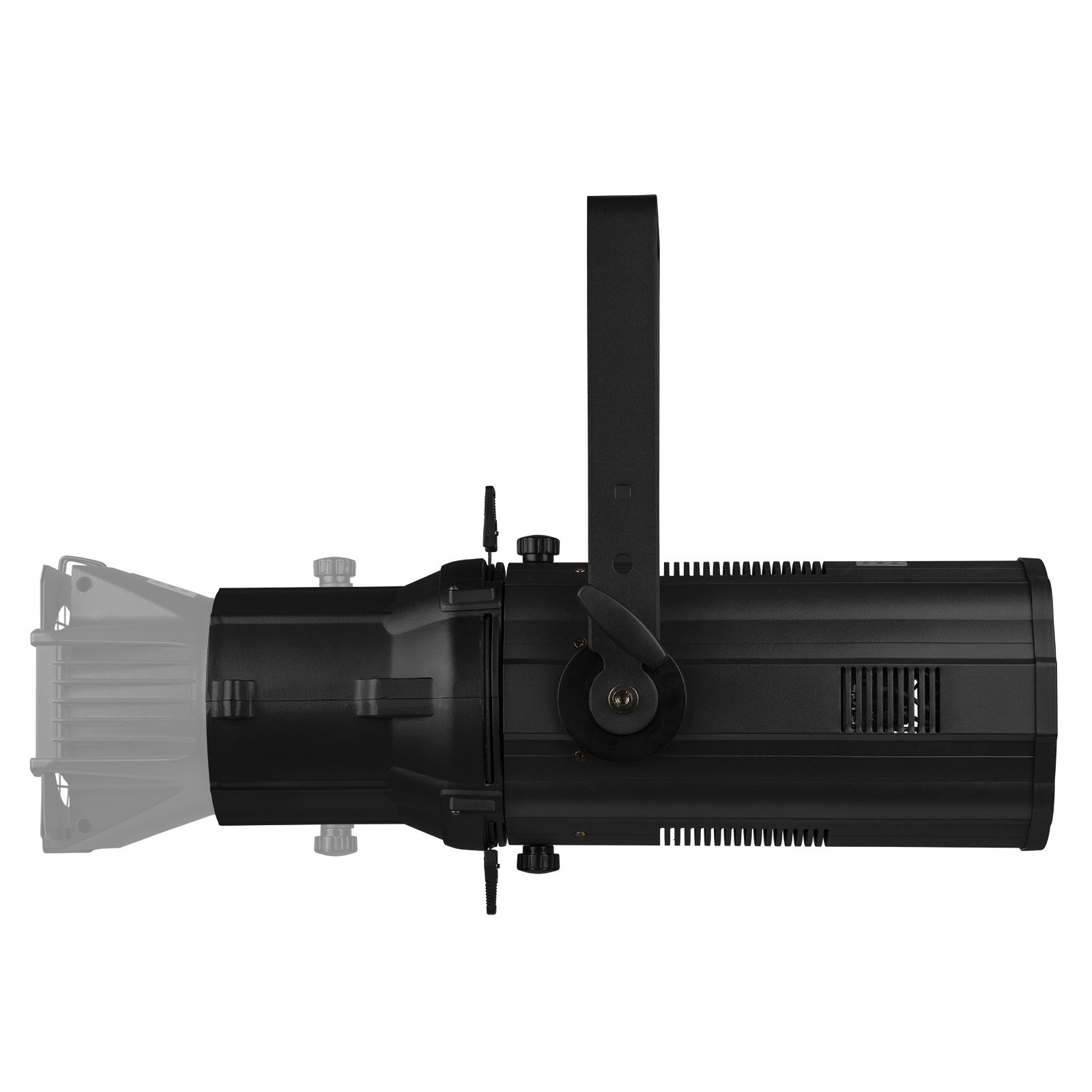

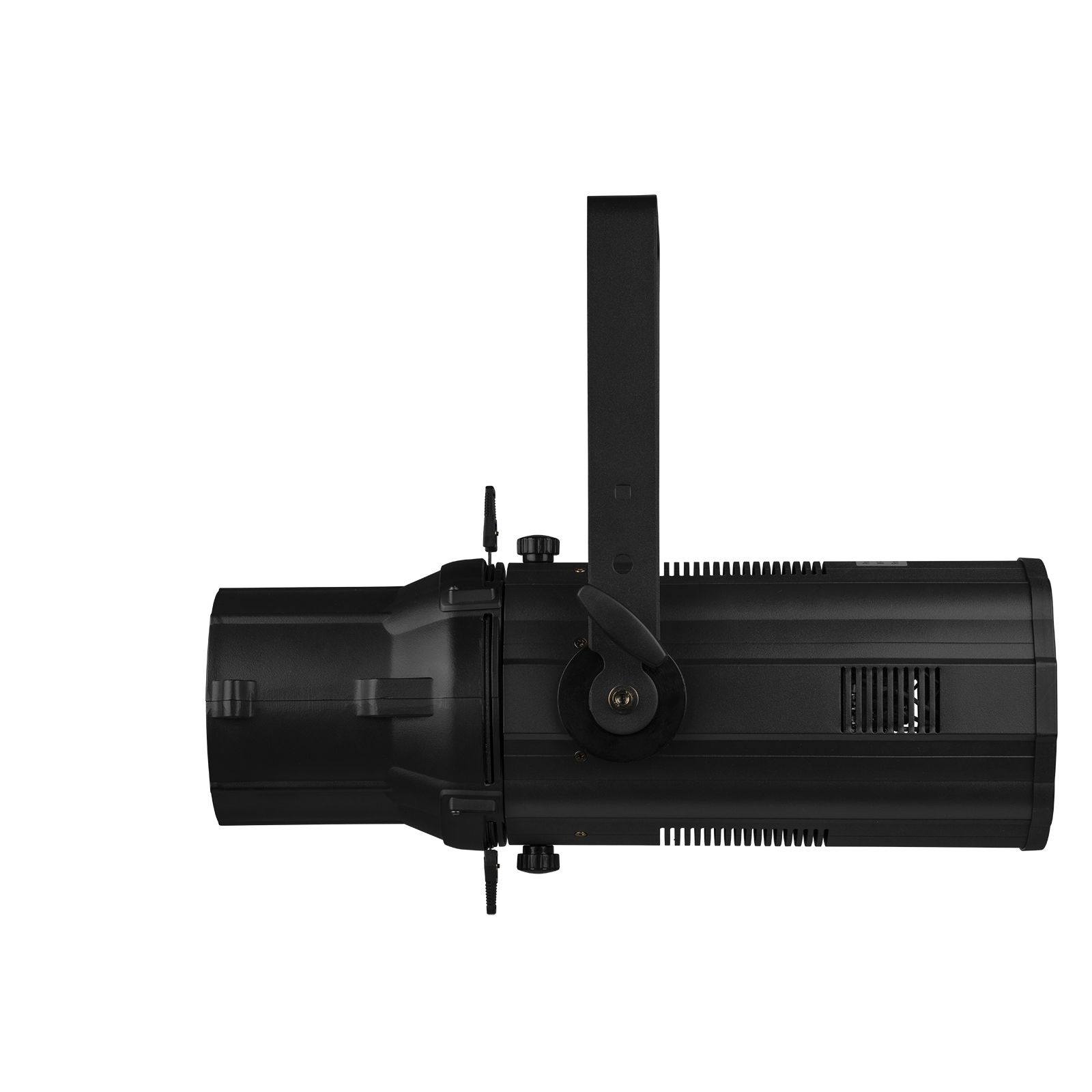

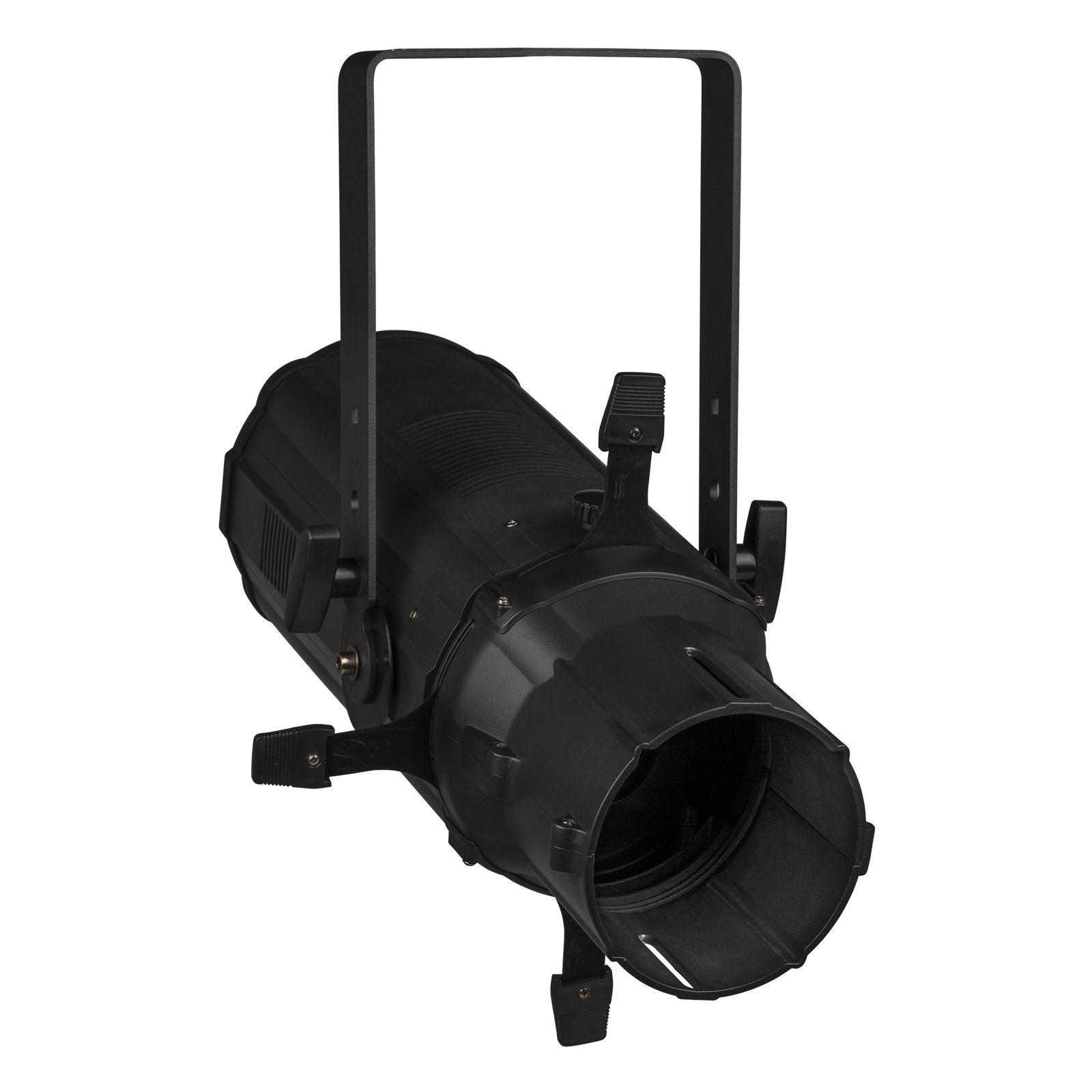

LED Profile Spot Engine 200W Warm White
SKU 151.387
|EAN 8715693345322
+4
All product information
Compare
BTS series
Description
Highlights
- Profile LED Engine Warm White
- 200W WW COB LED
- Colour temperature: 3200K
- Colour rendering index: CRI 95%
- Dimming: 0-100% linear dimming
- Flicker free

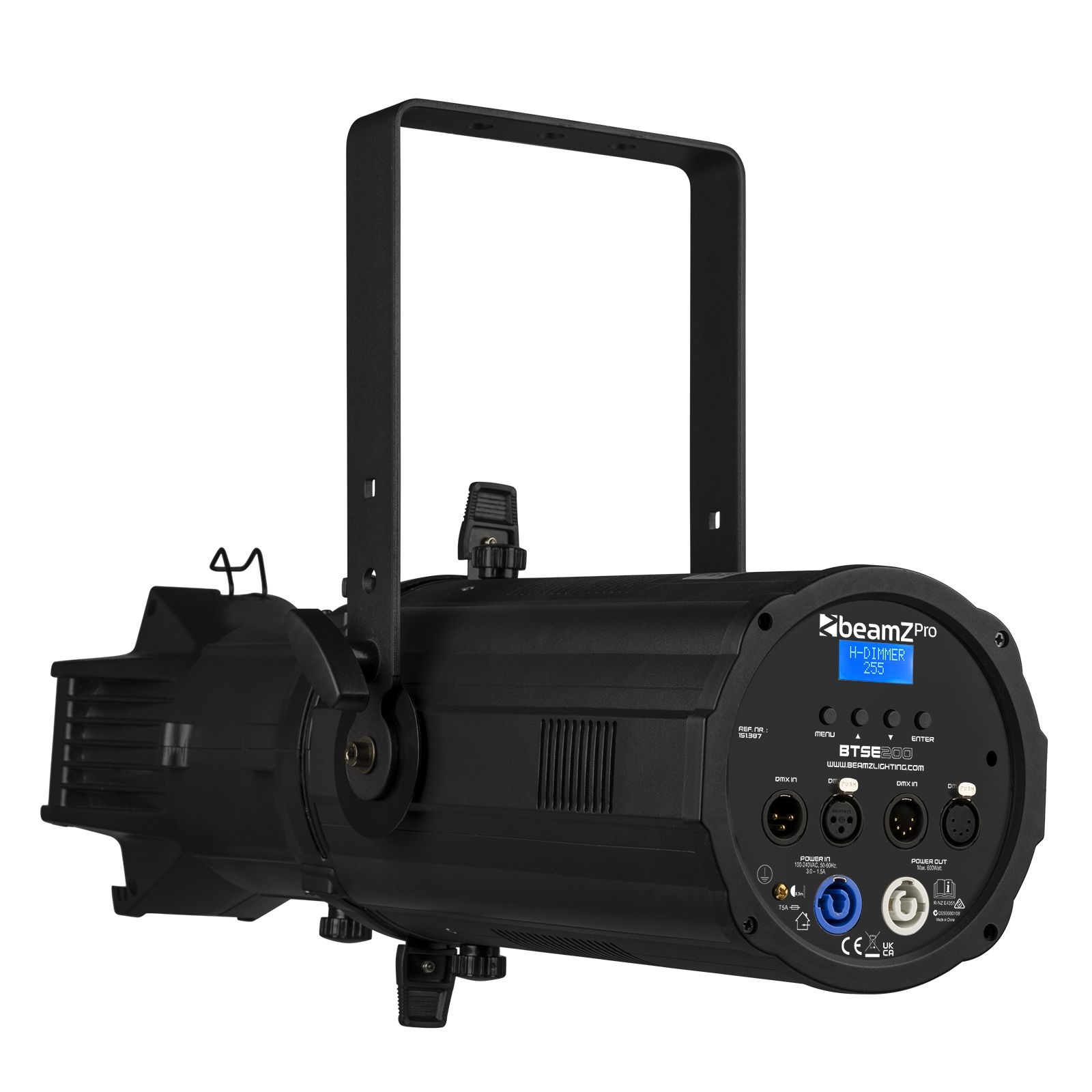

- Control Panel: LCD Display
- DMX (3/5-pin) or manual control
- Iris and Gobo holder slot
- Intelligent temperature control for silent operation
- P-Con In-Out connections for linking multiple units
- Housing Materials: Aluminium and ABS
- Lens tubes available separately (19°, 26° and 36°)
Specifications
BrandbeamZ Professional
Product serieBTS series
ColourBlack
Light source
Light source
- 1x 200W Warm white COB LED (3000K)
Illuminance135293 lx @ 1m
CRI≥95
Optics
ZoomNo
Features
Flash Per Second1 - 11 Hz
Control
Control modesAuto programs, DMX, Manual
DMX Channels2
RDMNo
DMX connector3-pin XLR, 5-pin XLR

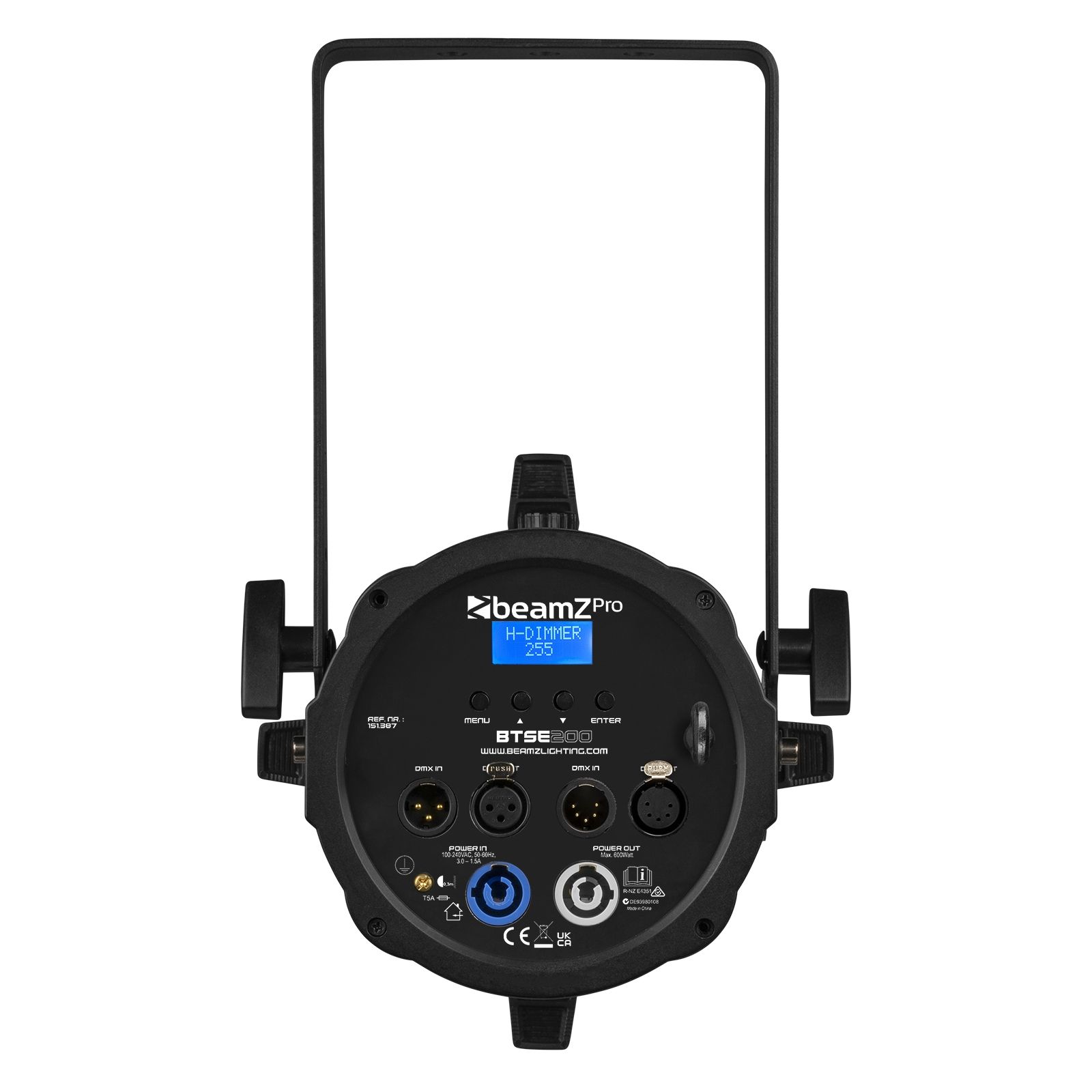

Connections
Input connections
- 1x Power - Powerconnector (A)
- 1x DMX - 3-pin XLR (M)
- 1x DMX - 5-pin XLR (M)
Output connections
- 1x Power - Powerconnector (B)
- 1x DMX - 3-pin XLR (F)
- 1x DMX - 5-pin XLR (F)
Hardware features
Display typeLCD
CoolingTemperature controlled fan
Environmental
IP ratingIP20
Electrical
Power Supply100-240VAC 50/60Hz
Mechanical
Dimensions
- 640 x 260 x 275 mm (W x D x H)
Weight
- 8.65 kg
Accessories
Included Accessories

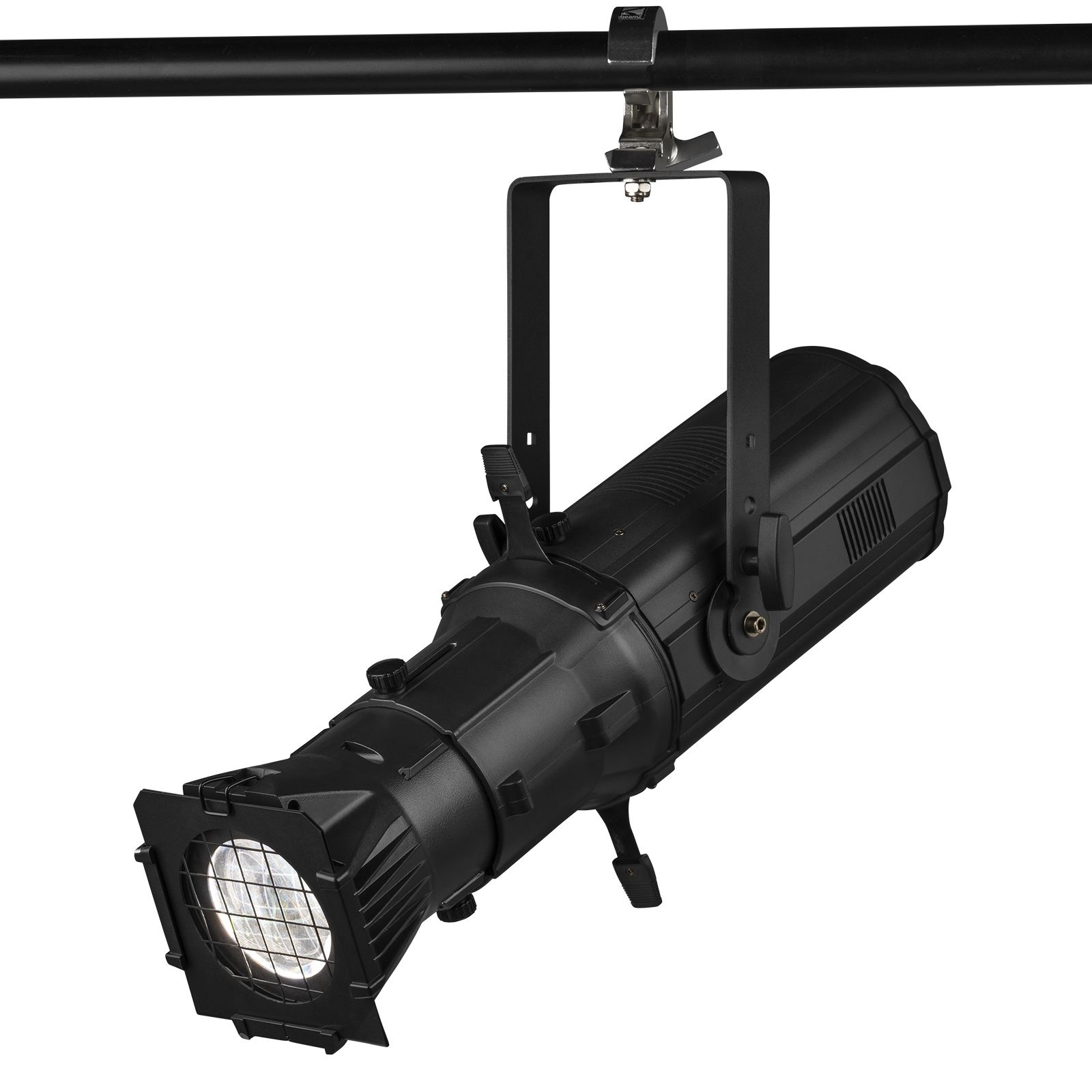

- Mounting bracket
Manuals & Documents
Manual
PDF
