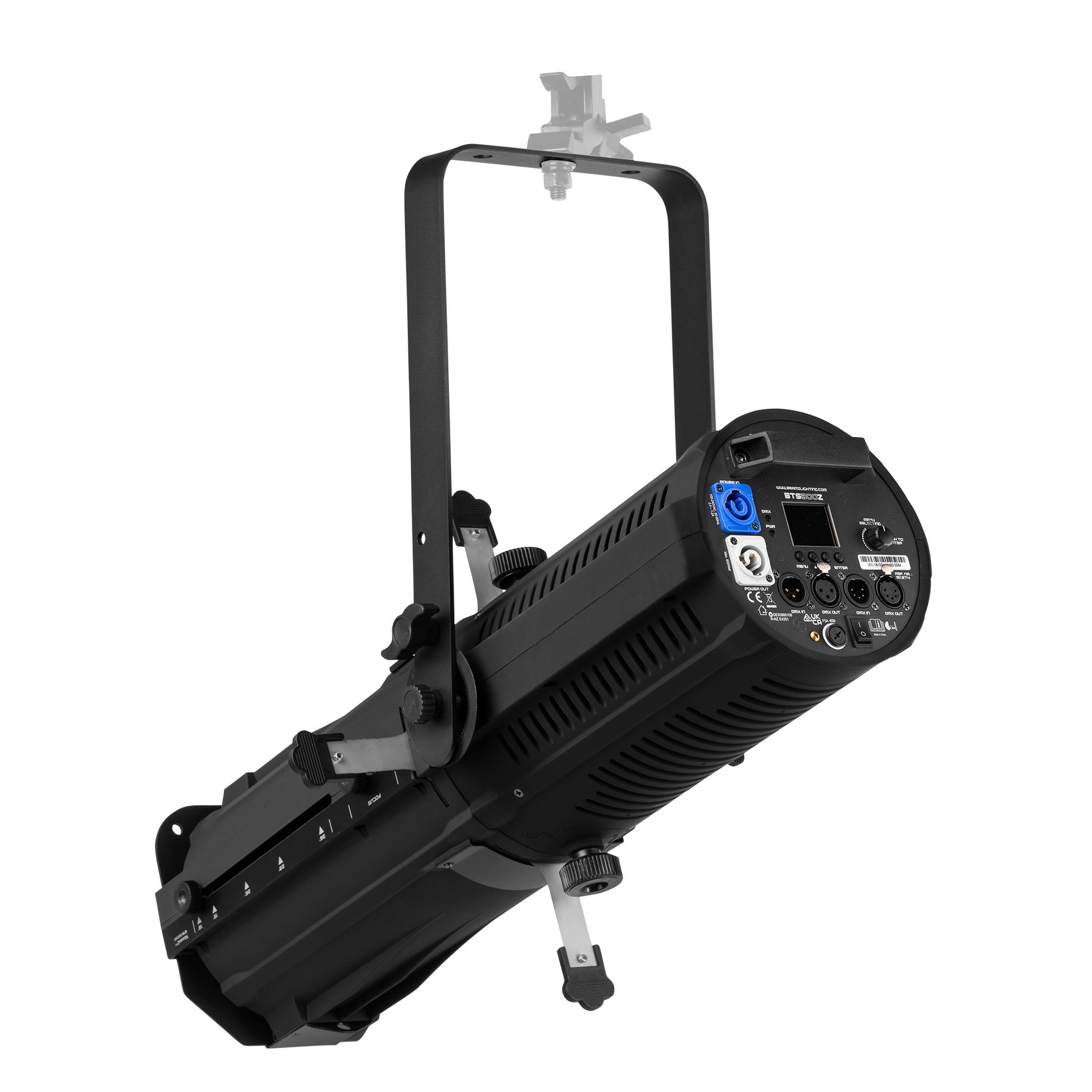

BTS300Z

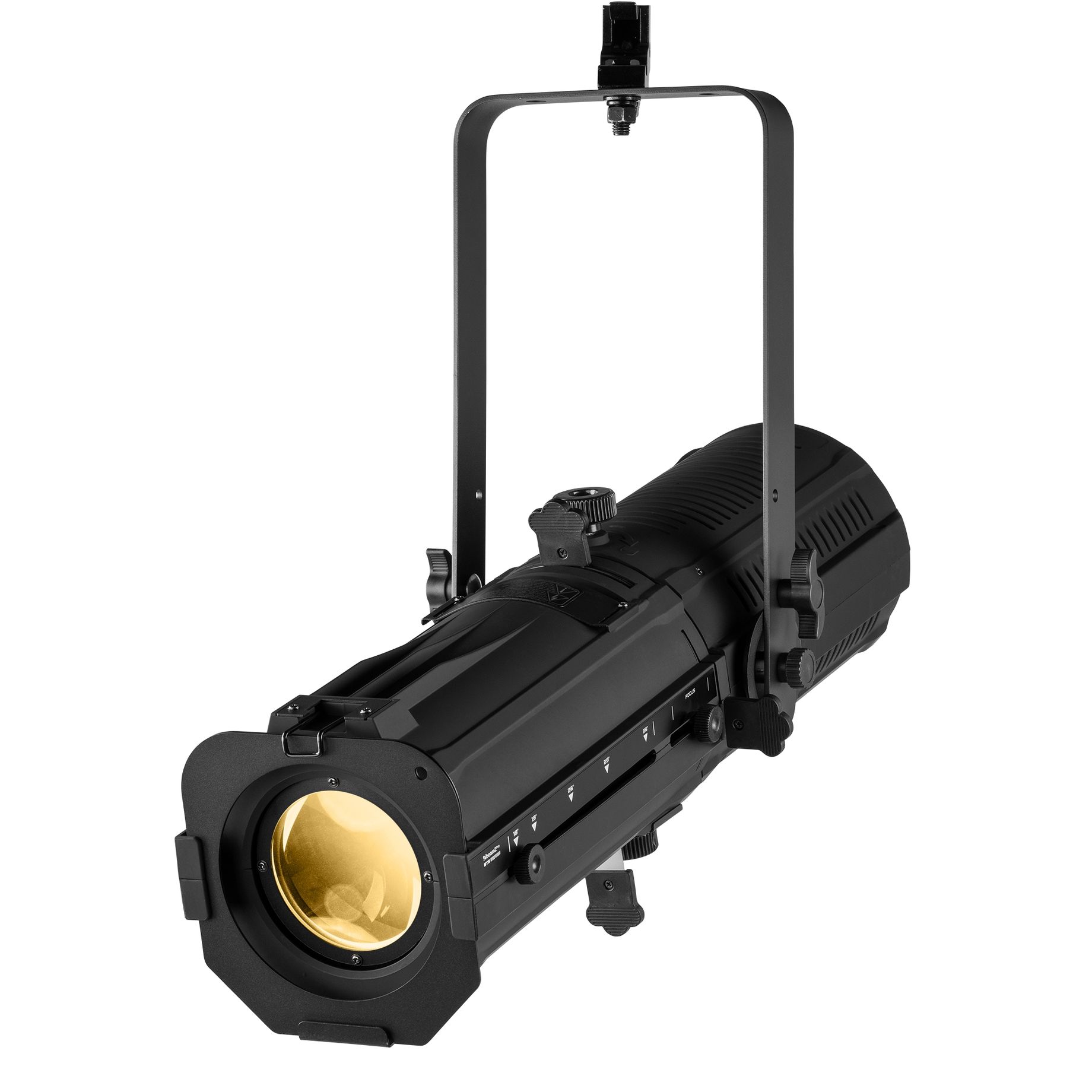

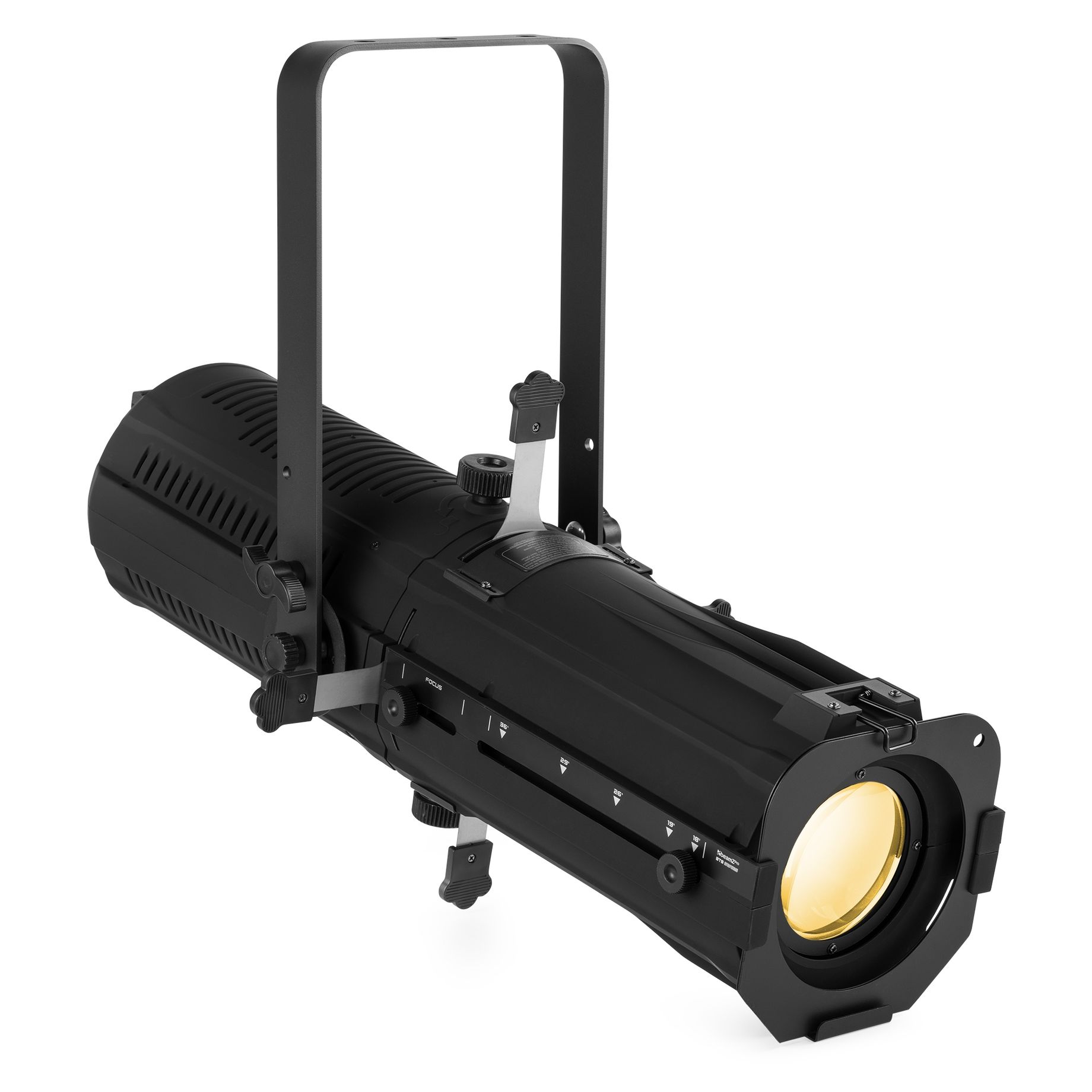

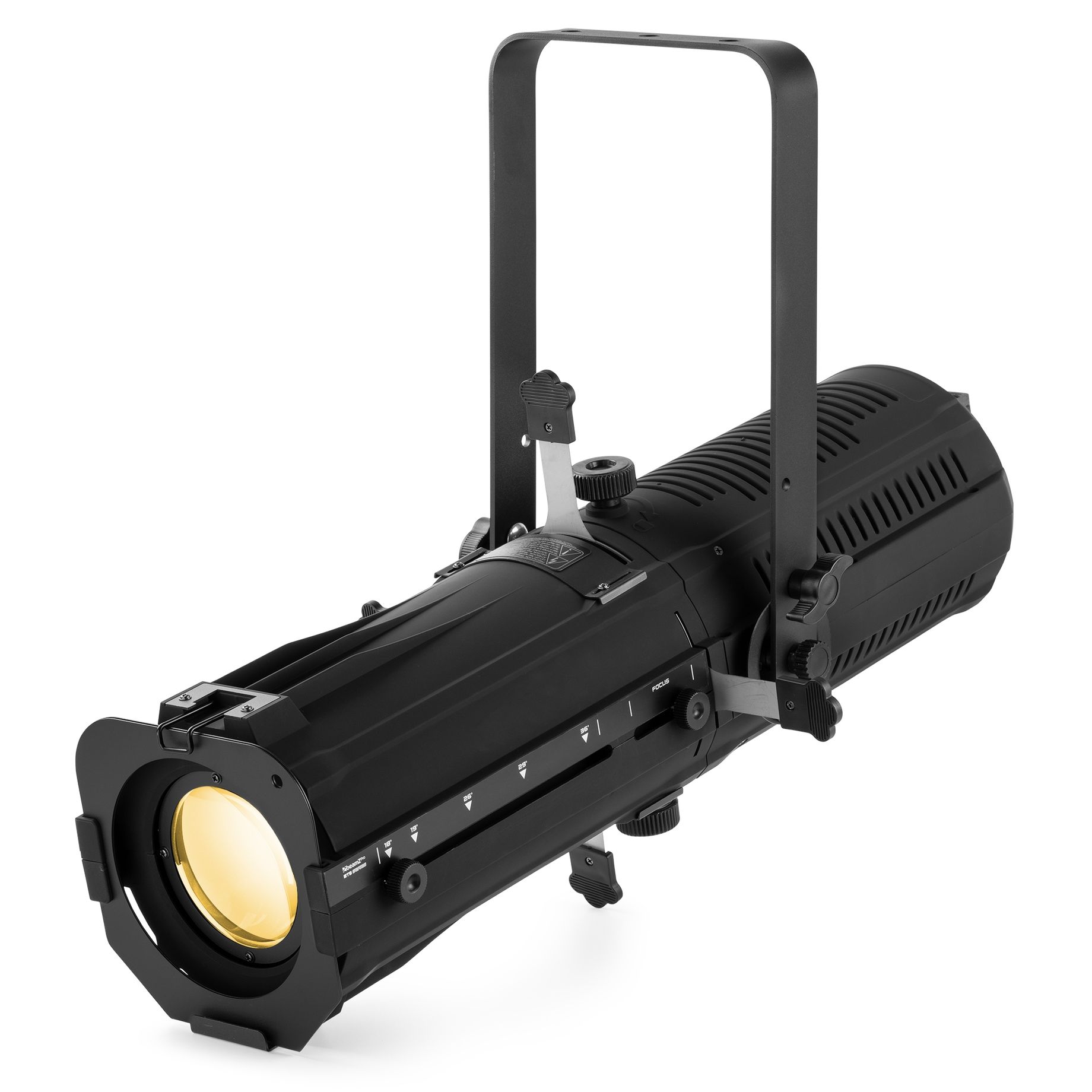

LED Profile Spot Zoom 300W Warm White
SKU 151.374
|EAN 8715693310030
+8
All product information
Compare
BTS series
Description
Highlights
- 300W Warm White COB LED 3200K
- Lifetime LED: 50.000 hours
- 18° to 36° Manual zoom
- Replaces 1KW – 1.5KW Tungsten Halogen profile spots
- Compact and lightweight ABS body
- HQ optical system, beam with clean metal shutter cuts
- 16 bit dimming via DMX
- Flicker free with selectable PWM
- Control Panel: full colour LCD Display
- CRI 97, TLCI up to 98
- DMX and manual control options
- Gobo slot
- 5 dimmer curves
- Intelligent temperature control for silent operation
- Powerconnector in&out

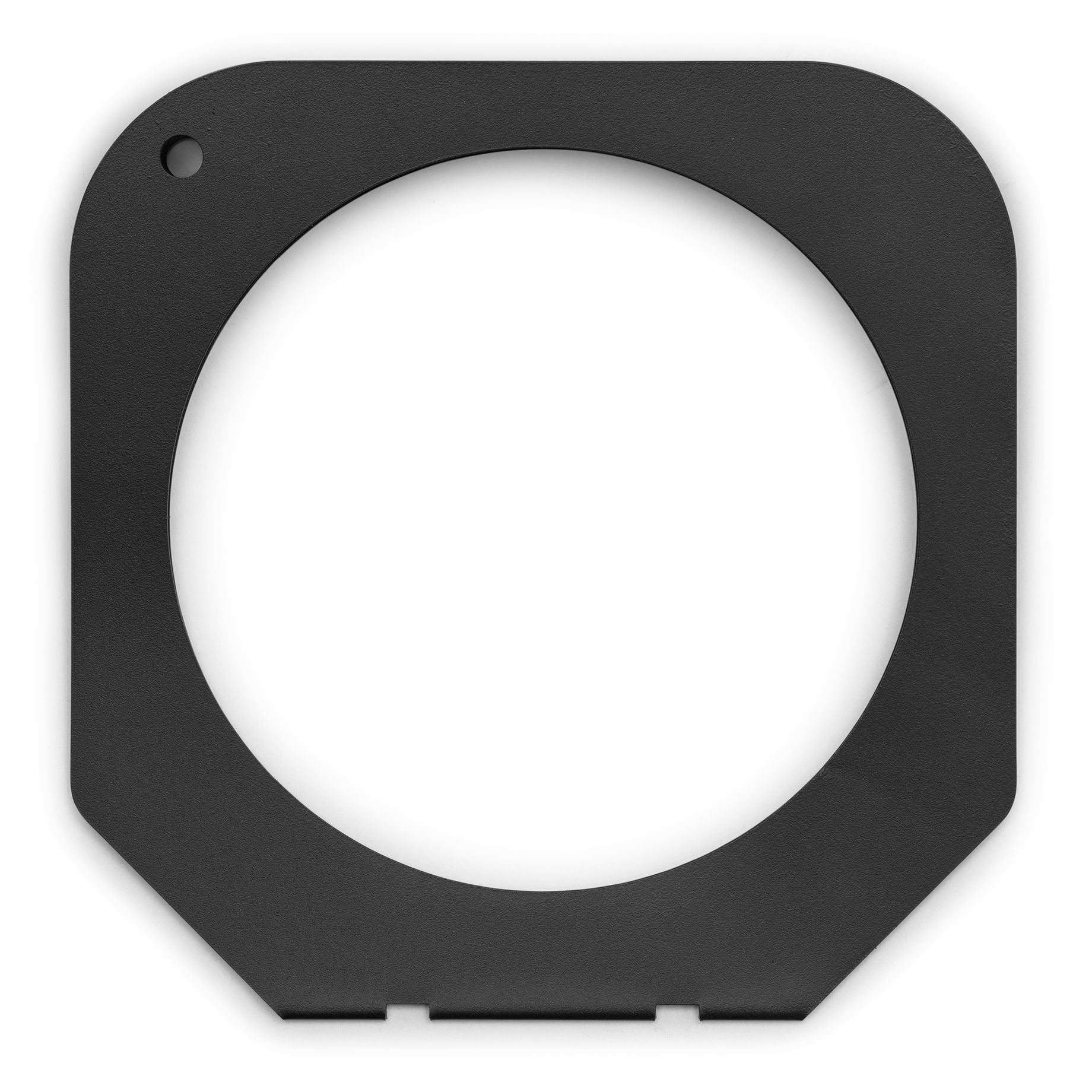

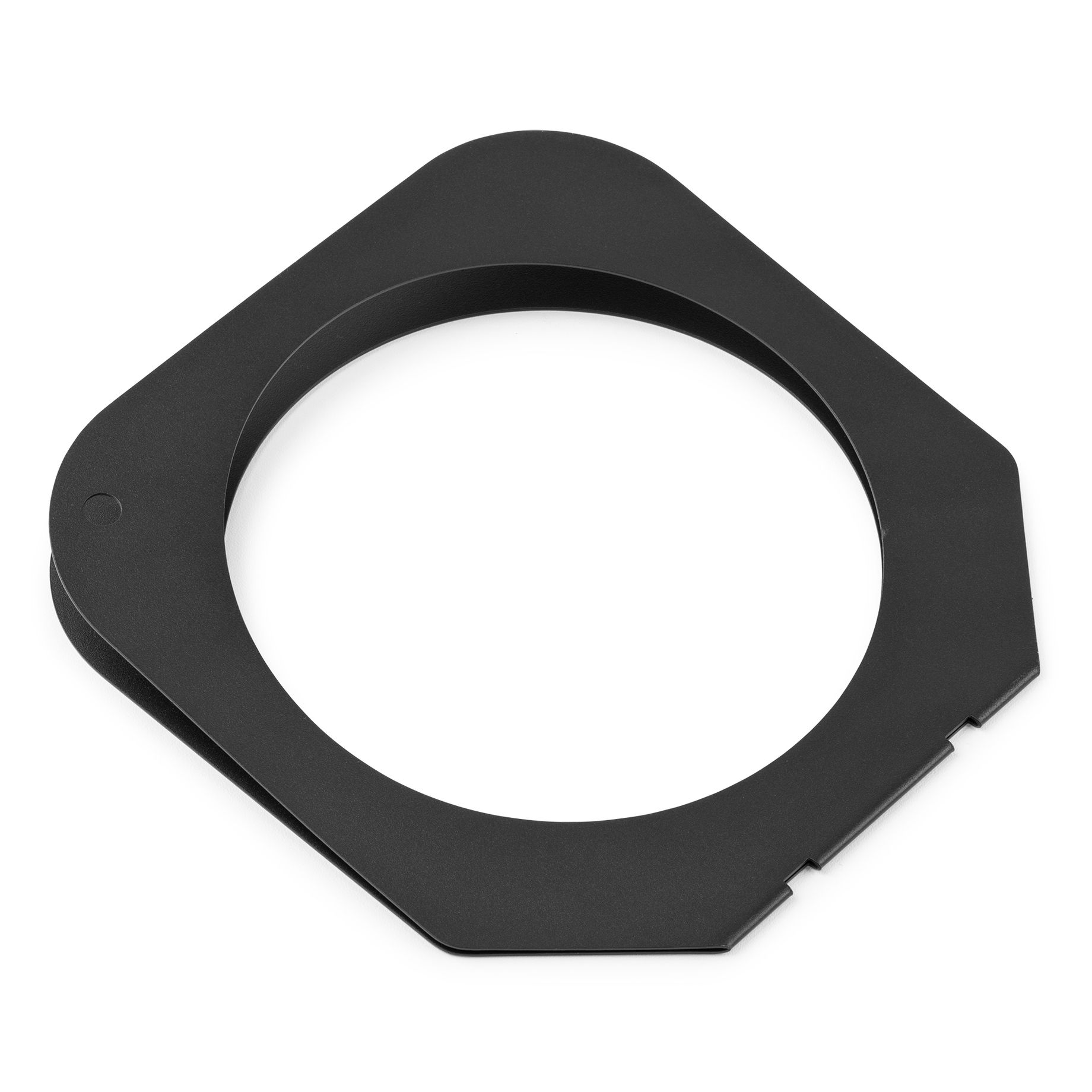

- Including safety cord and colour frame
Specifications
BrandbeamZ Professional
Product serieBTS series
ColourBlack
Light source
Light source
- 1x 300W Warm white COB LED (3200K)

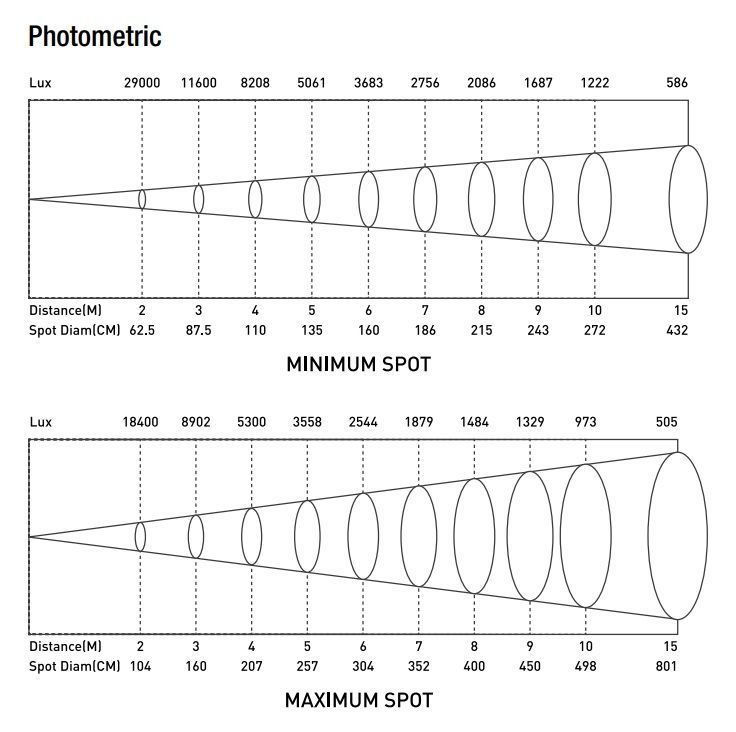

Illuminance93538 lx @ 1m
CRI≥97
Optics
Beam angle
- 18 - 36
ZoomYes
Features
Flash Per Second1 - 15 Hz
Control
Control modesAuto programs, DMX, Manual
DMX Channels1, 2, 3
DMX connector3-pin XLR, 5-pin XLR

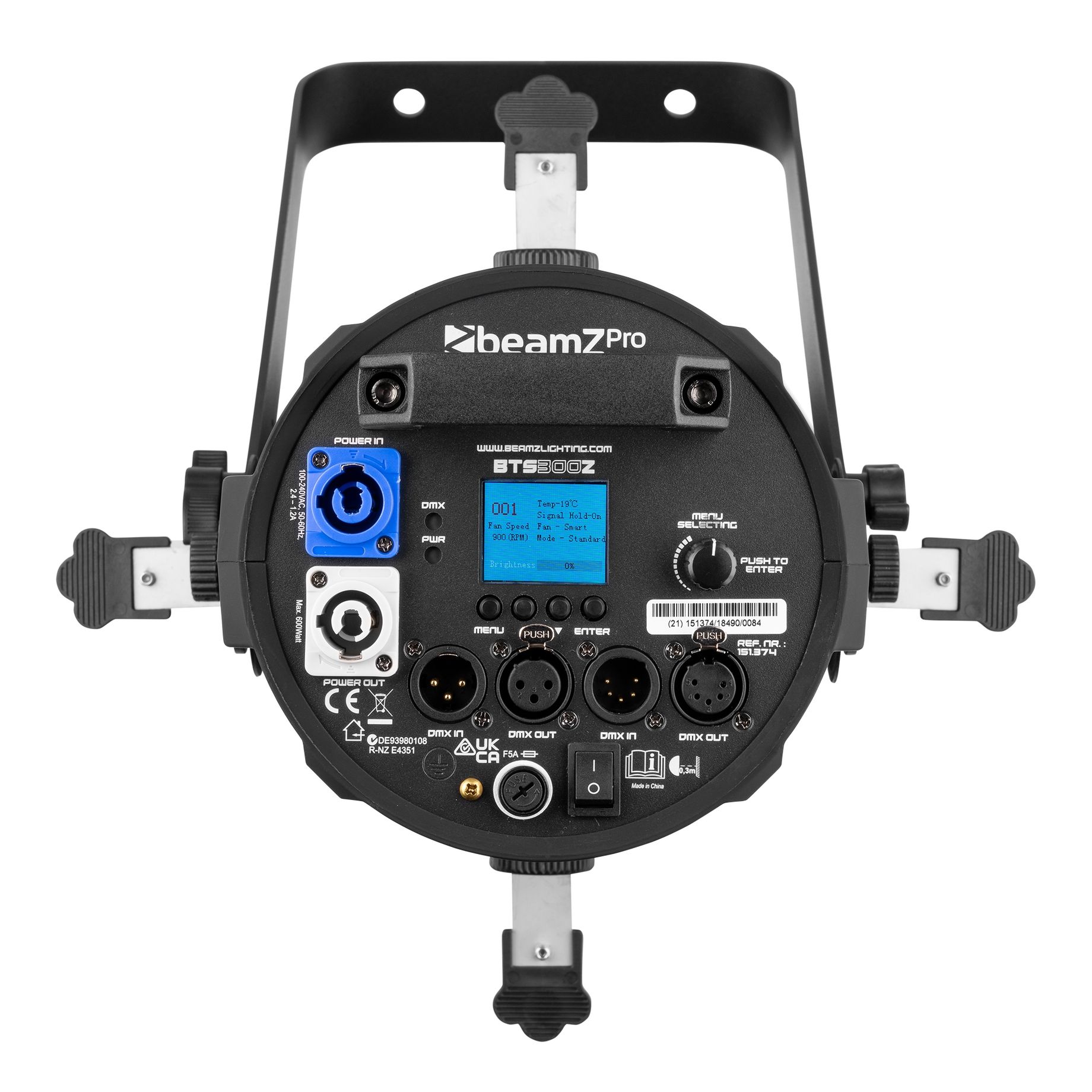

Connections
Input connections
- 1x Power - Powerconnector (A)
- 1x DMX - 3-pin XLR (M)
- 1x Power - 5-pin XLR (M)
Output connections
- 1x Power - Powerconnector (B)
- 1x DMX - 3-pin XLR (F)
- 1x DMX - 5-pin XLR (F)
Hardware features
Display typeLCD
CoolingTemperature controlled fan
Environmental
IP ratingIP20
Electrical
Power Supply100-240VAC 50/60Hz
Mechanical
Dimensions
- 745 x 294 x 294 mm (W x D x H)
Weight
- 9.2 kg
Accessories
Included Accessories
- Mounting bracket
- Safety cord
Manuals & Documents
Manual
PDF
