BHW40WH
Speaker Set In/Outdoor 4" 60W 100V White
SKU 952.186
|EAN 8715693343717
+3
Color
All product information
Compare
BHW series
Description
Highlights
- Weatherproof IPX5 wall loudspeaker
- Suitable for in- and outdoor use

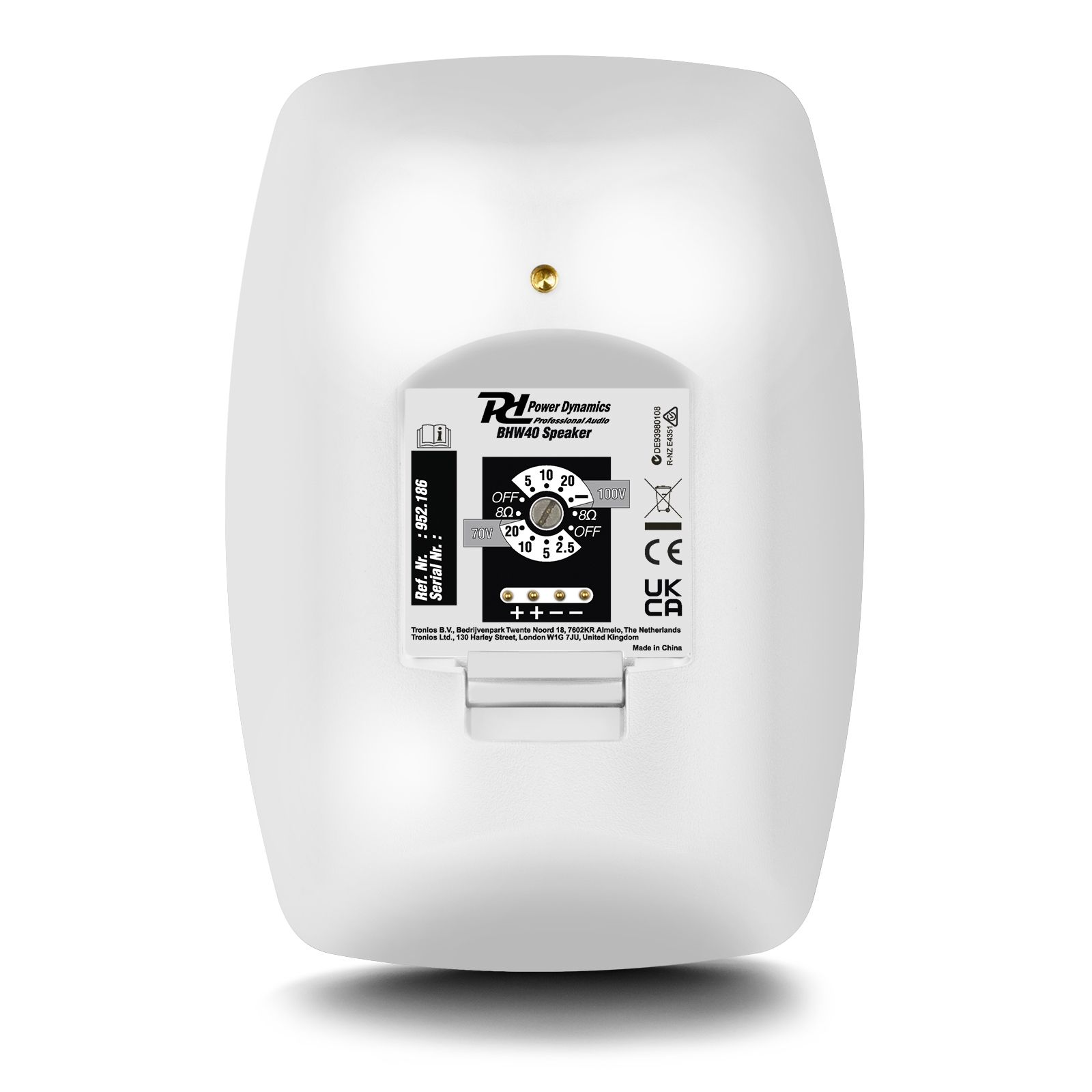

- Adjustable rotary switch for 100V or 8 Ohm operation
- 2 way speaker system with crossover network
- Aluminium marine grade grille

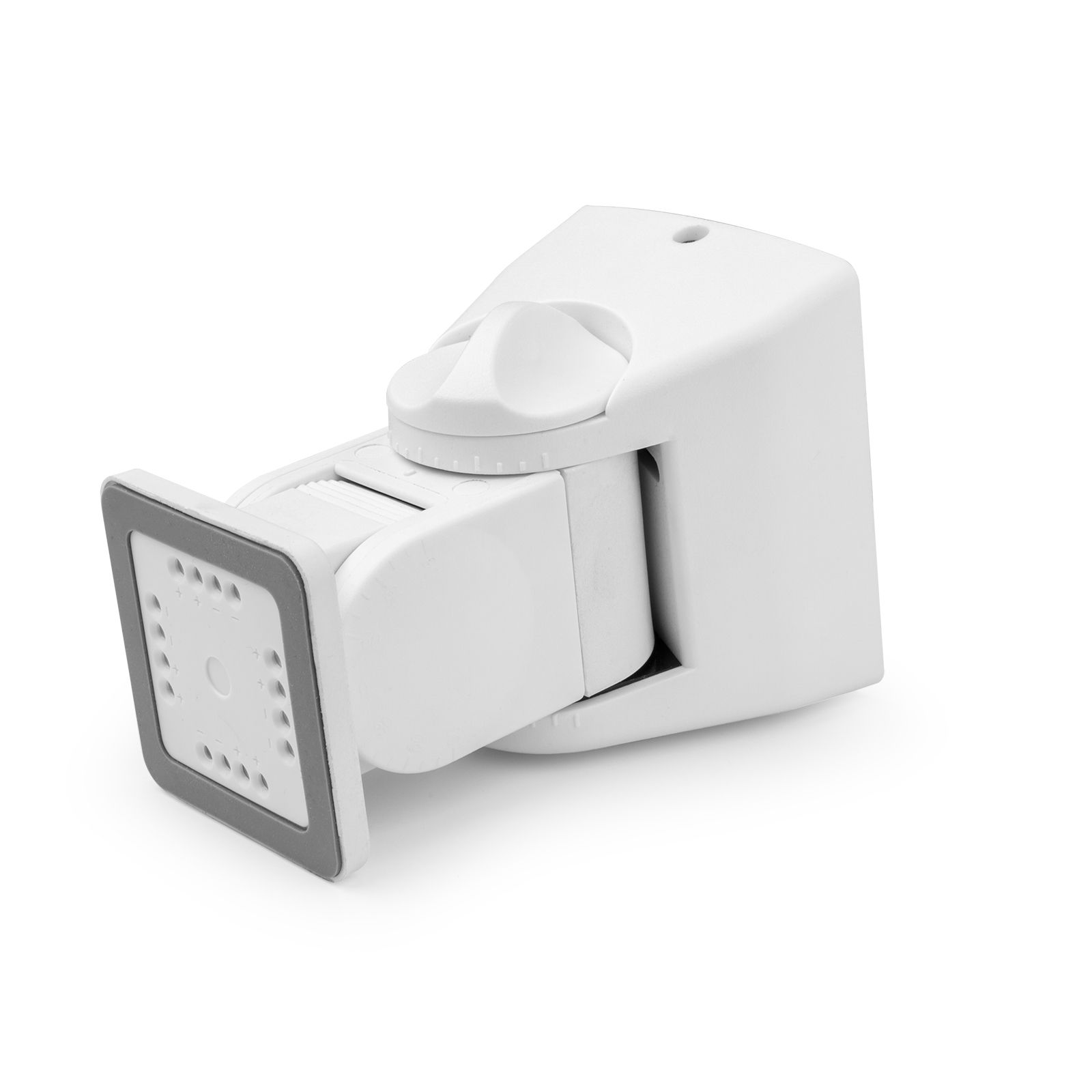

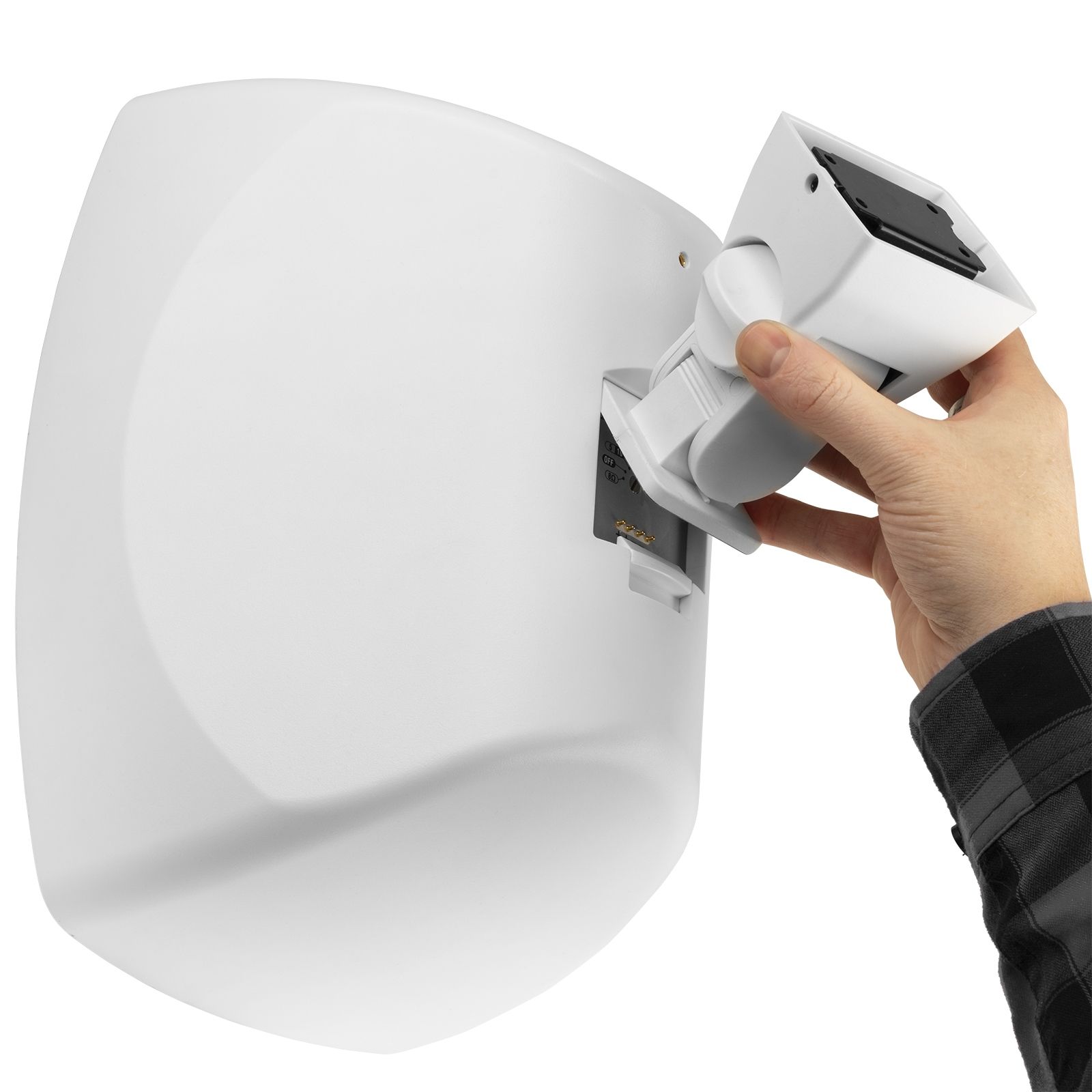

- Easy wireless installation thanks to the click-on wall bracket

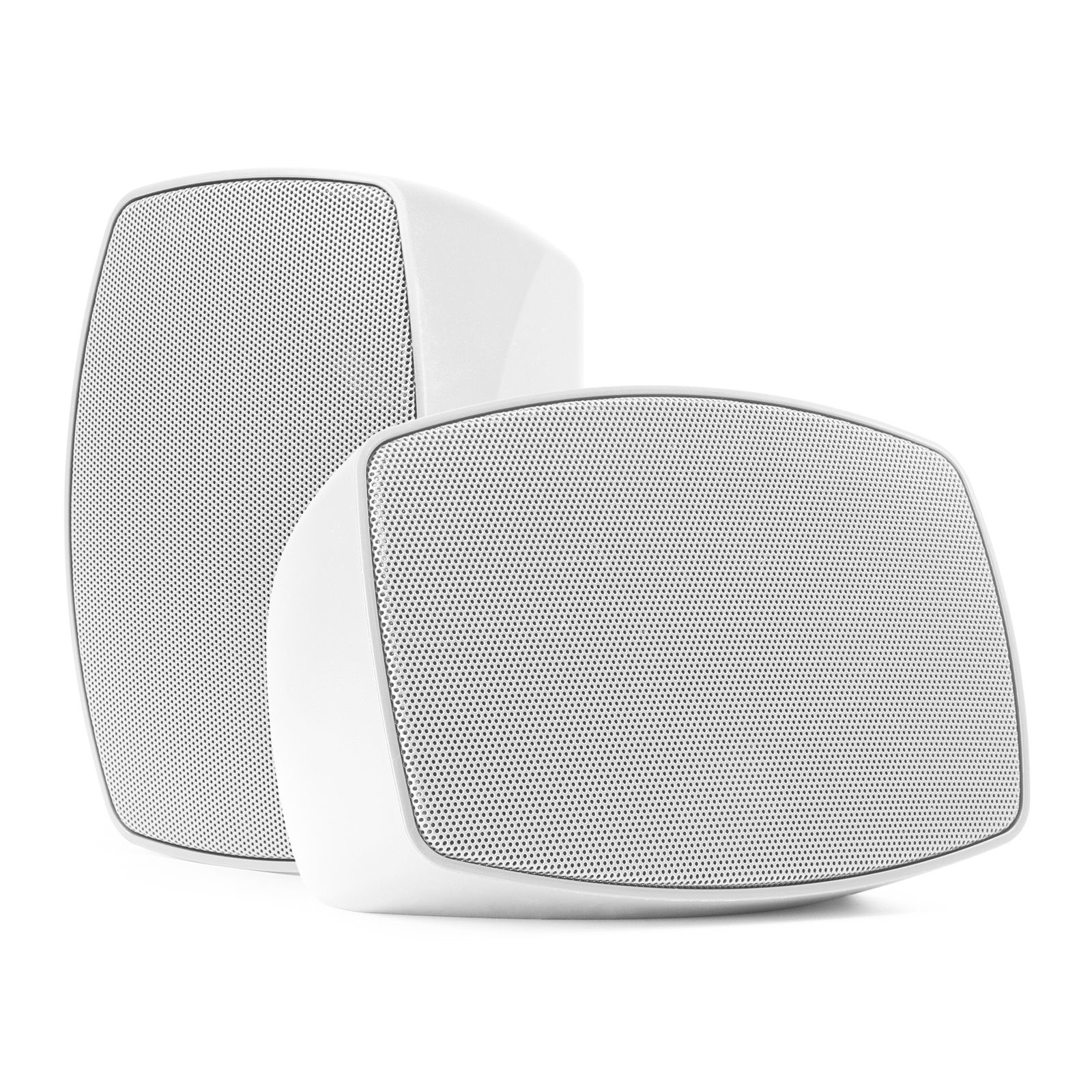

- Supplied in pairs
- Colour: White
Specifications
BrandPower Dynamics
Product serieBHW series
ColourWhite
Speaker typePassive (non-amplified)
Speaker Power Peak60 W
Speaker Power RMS30 W
Transformer Taps (100V)5W, 10W, 20W
Transformer Taps (70V)2.5W, 5W, 10W, 20W
Frequency Response ± 3dB100 - 20,000 Hz
Frequency Response -10dB85 - 20,000 Hz
Sensitivity (1W/1m)84 dB
Max. SPL (Peak) @ 8 Ω99 dB
Max. SPL (Peak) @ 100V97 dB
Impedance8 Ω, 70V, 100V
Dispersion (H x V)120°
Audio specifications
Tweeter typeDome
Tweeter diameter1/2"
Woofer diameter4"
Woofer Magnet TypeFerrite
Environmental
IP ratingIPX5
Operating Temperature-20 °C ~ 60 °C
Mechanical
Dimensions
- 200 x 140 x 135 mm (W x D x H)
Weight
- 1.25 kg
Accessories
Included Accessories

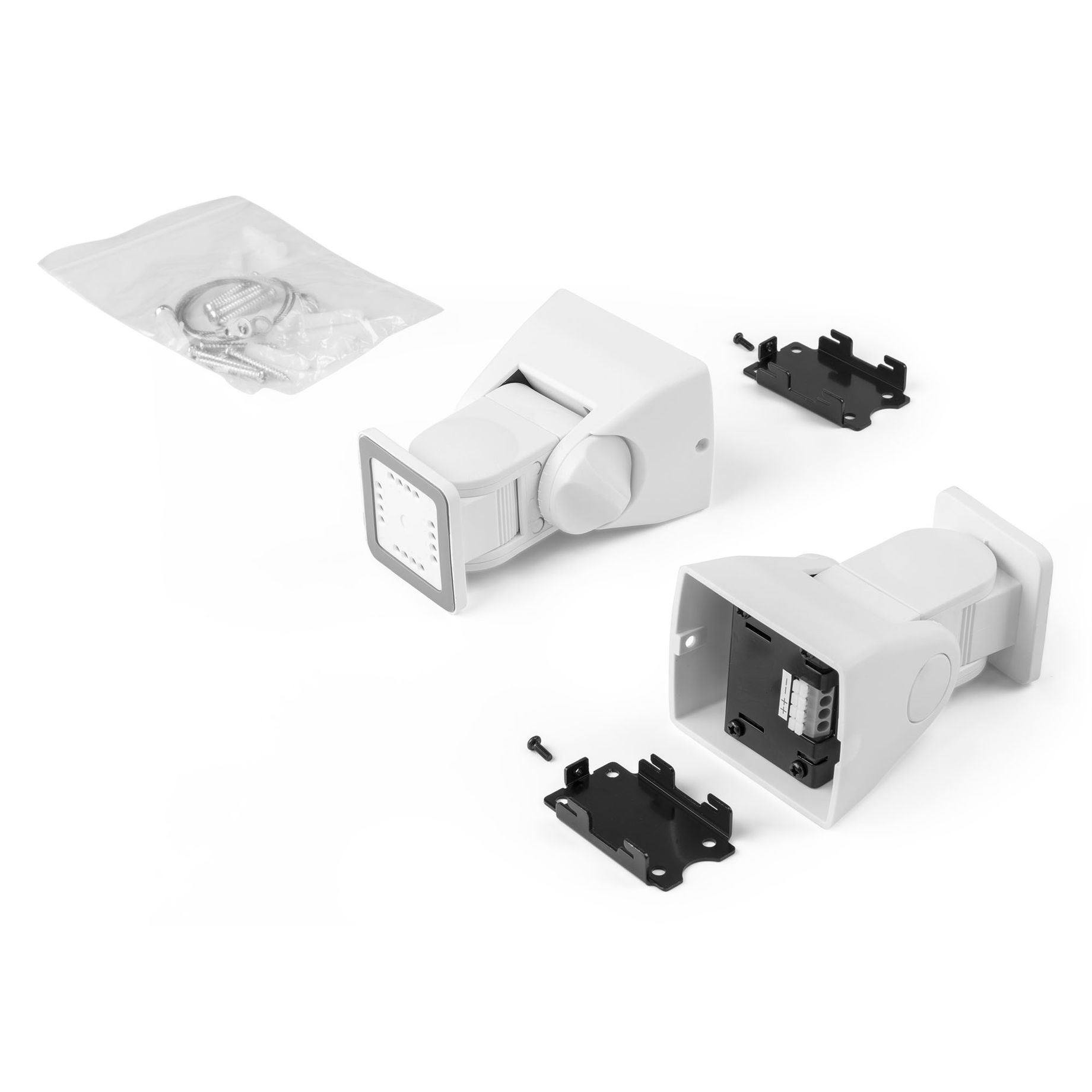

- Mounting bracket
