BHW30WH

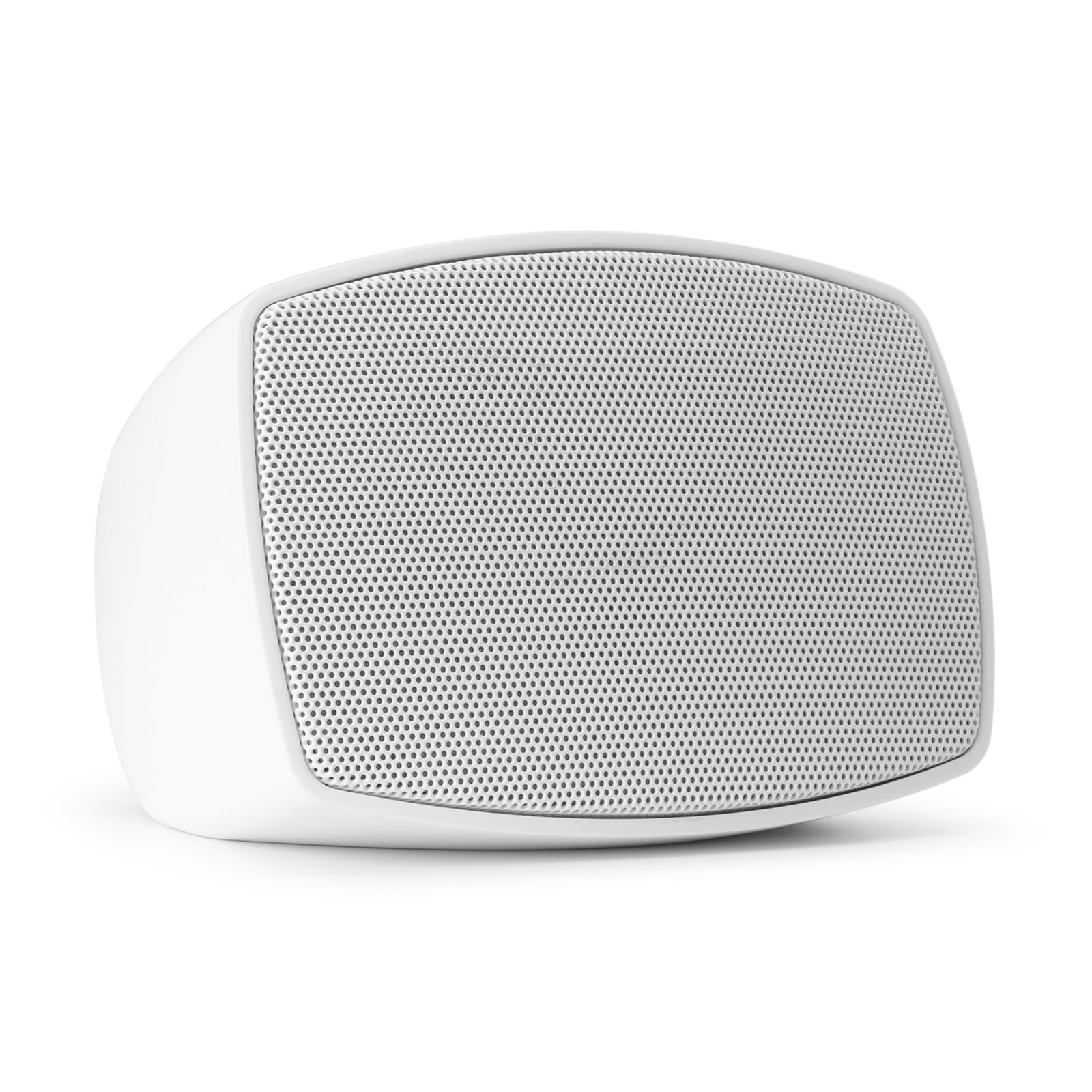

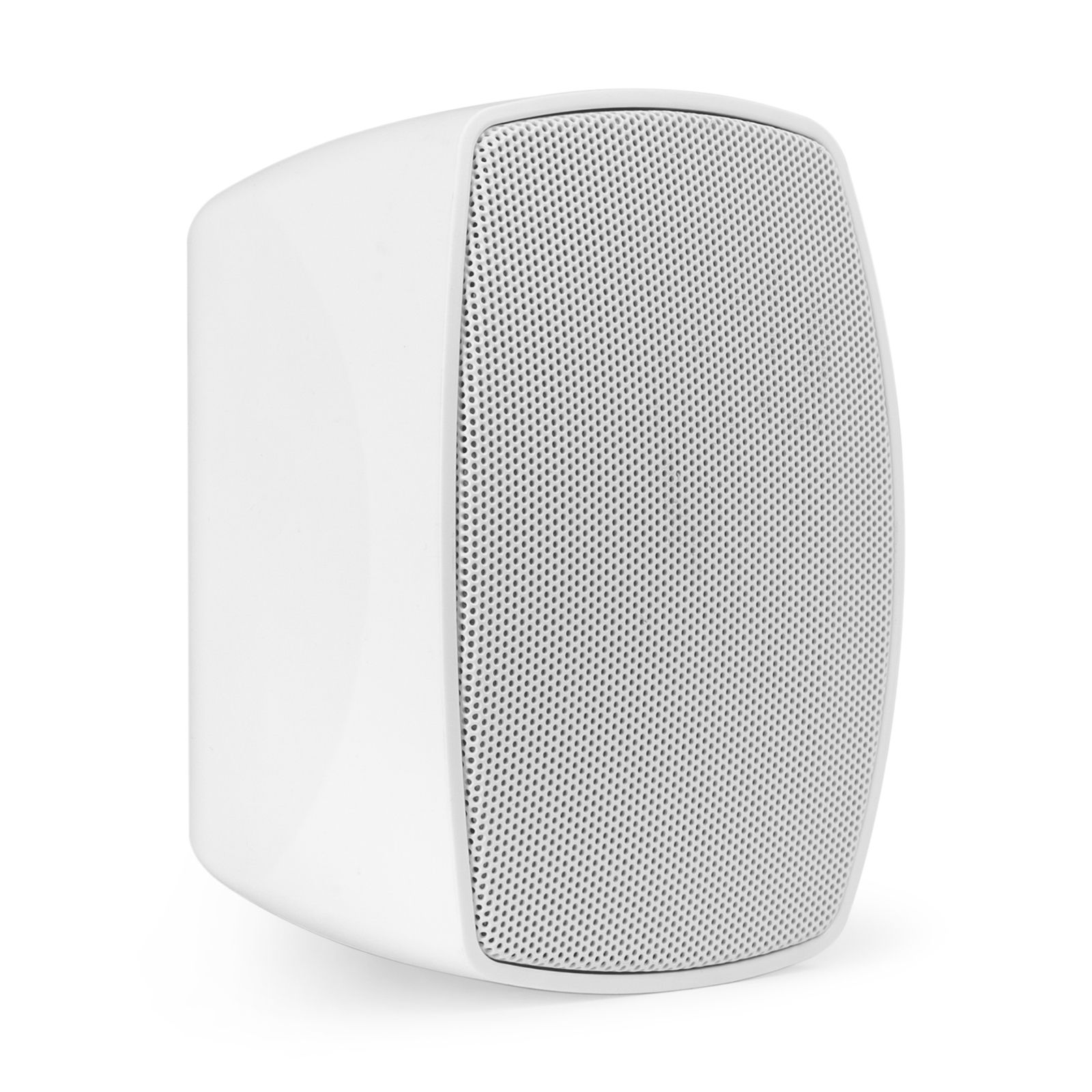

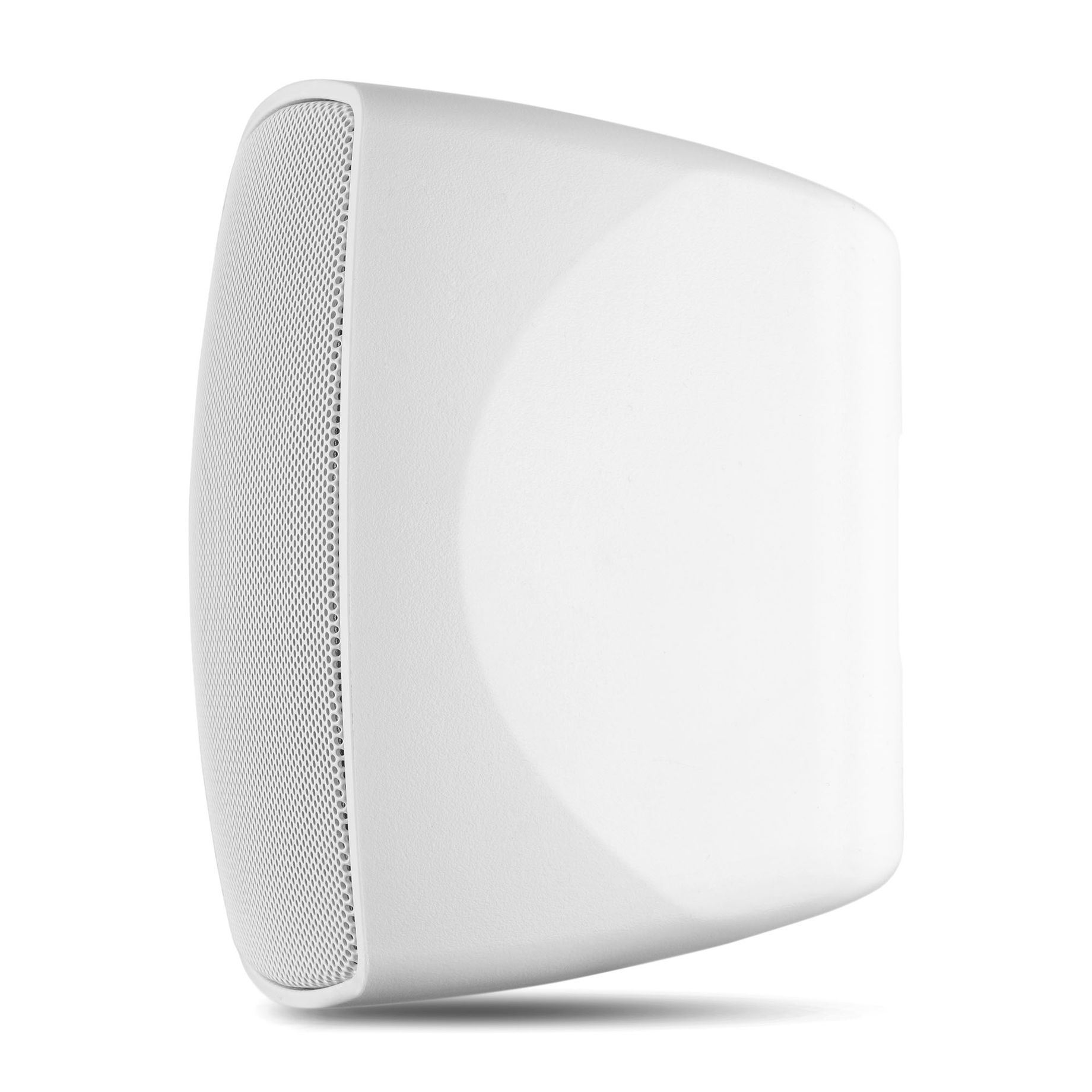

Speaker Set In/Outdoor 3" 40W 100V White
SKU 952.182
|EAN 8715693343694
+3
Color
All product information
Compare
BHW series
Description
Highlights
- Weatherproof IPX5 wall loudspeaker
- Suitable for in- and outdoor use

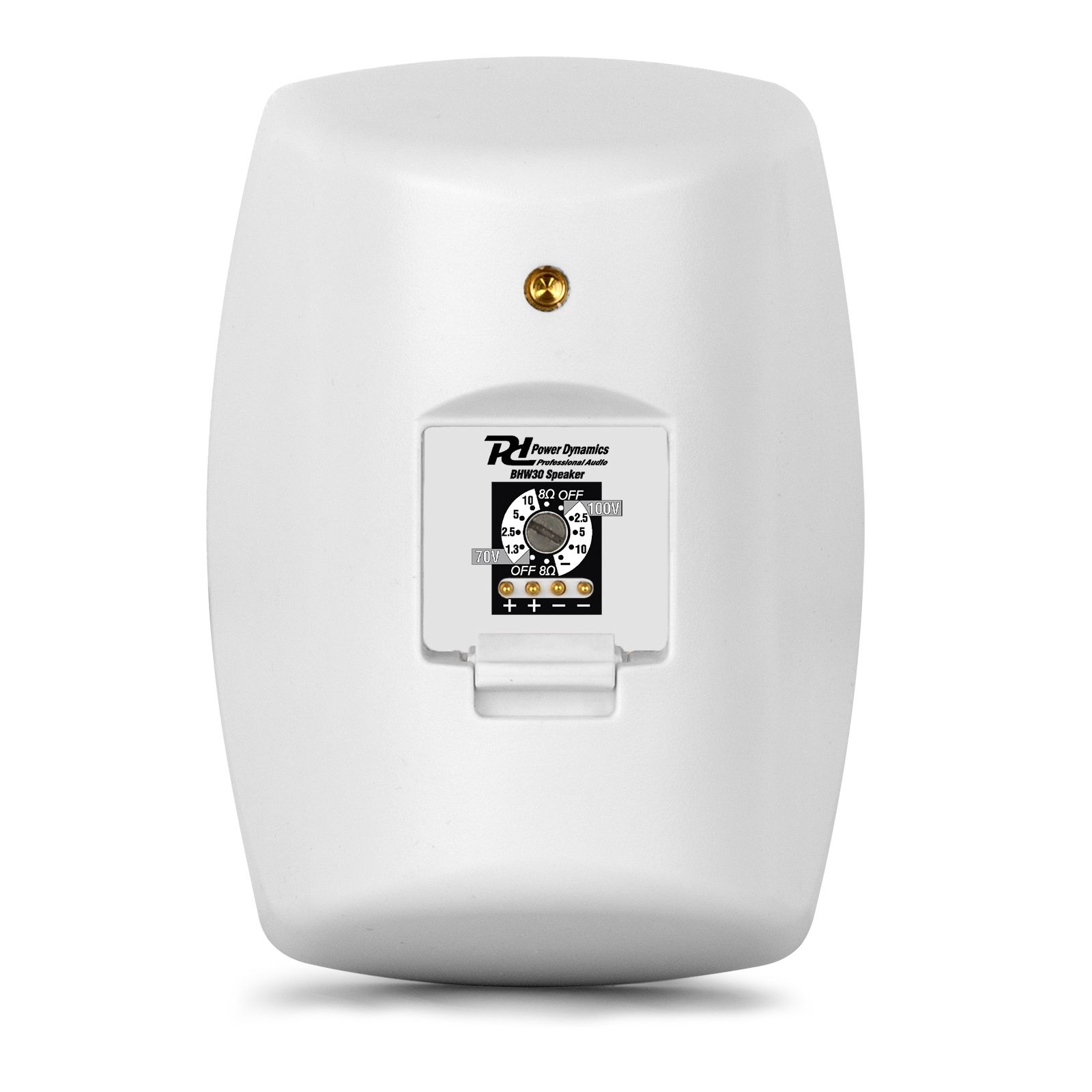

- Adjustable rotary switch for 100V or 8 Ohm operation
- 2 way speaker system with crossover network
- Aluminium marine grade grille

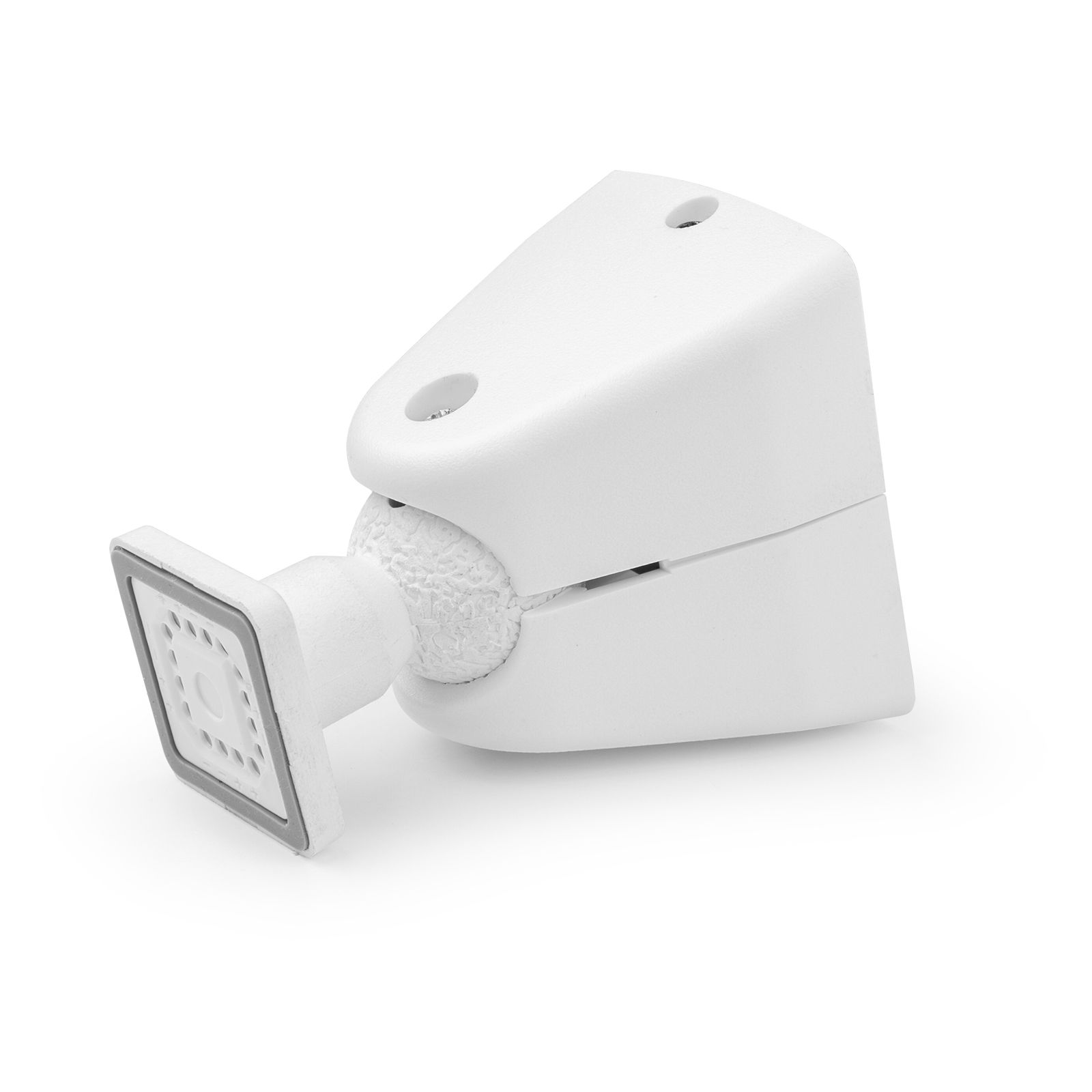

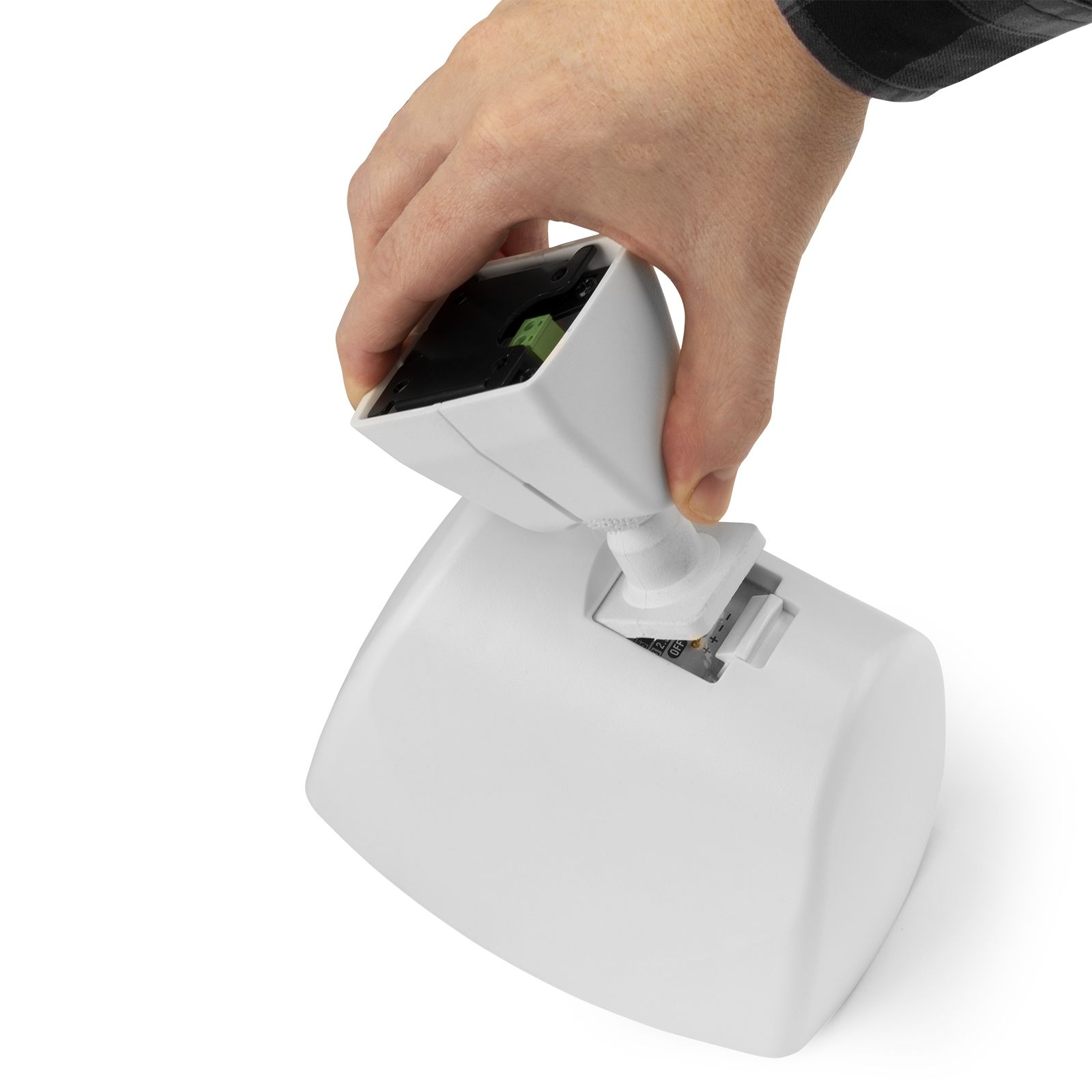

- Easy wireless installation thanks to the click-on wall bracket

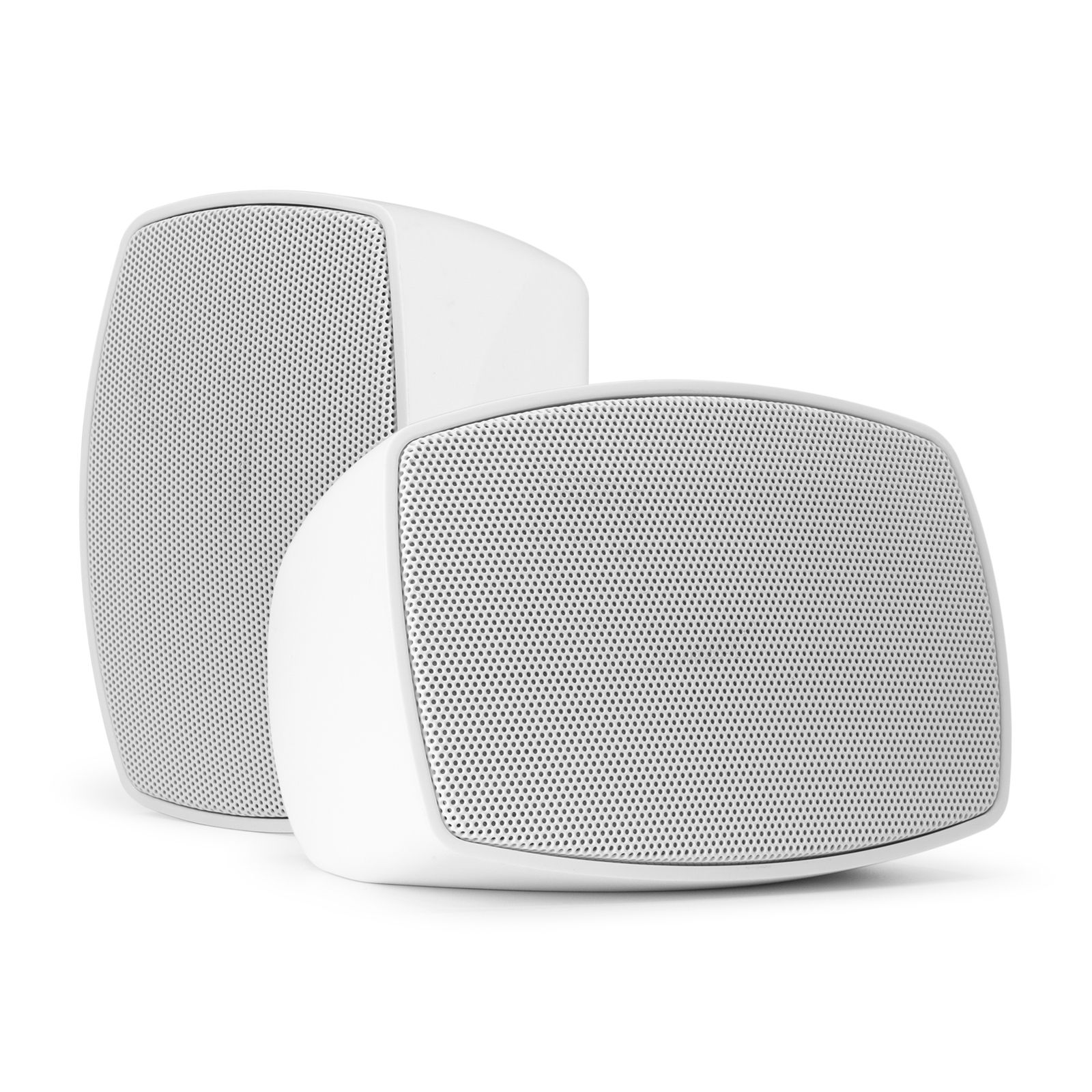

- Supplied in pairs
- Colour: White
Specifications
BrandPower Dynamics
Product serieBHW series
ColourWhite
Speaker typePassive (non-amplified)
Speaker Power Peak40 W
Speaker Power RMS20 W
Transformer Taps (100V)2.5W, 5W, 10W
Transformer Taps (70V)1.25W, 2.5W, 5W, 10W
Frequency Response ± 3dB120 - 20,000 Hz
Frequency Response -10dB105 - 20,000 Hz
Sensitivity (1W/1m)81 dB
Max. SPL (Peak) @ 8 Ω94 dB
Max. SPL (Peak) @ 100V91 dB
Impedance8 Ω, 70V, 100V
Dispersion (H x V)120°
Audio specifications
Tweeter typeDome
Tweeter diameter1/2"
Woofer diameter3"
Woofer Magnet TypeFerrite
Environmental
IP ratingIPX5
Operating Temperature-20 °C ~ 60 °C
Mechanical
Dimensions
- 150 x 106 x 114 mm (W x D x H)
Weight
- 0.84 kg
Accessories
Included Accessories

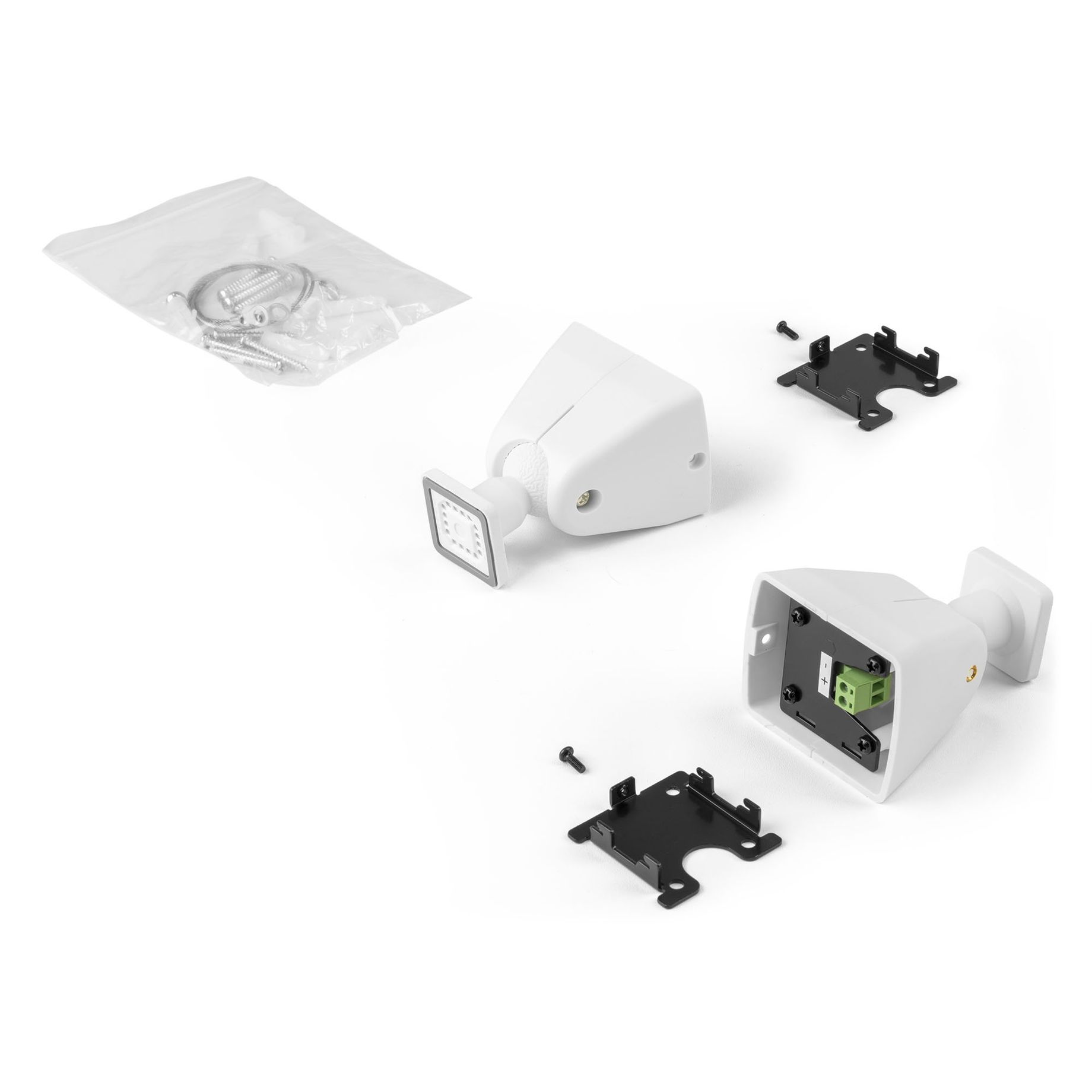

- Mounting bracket
