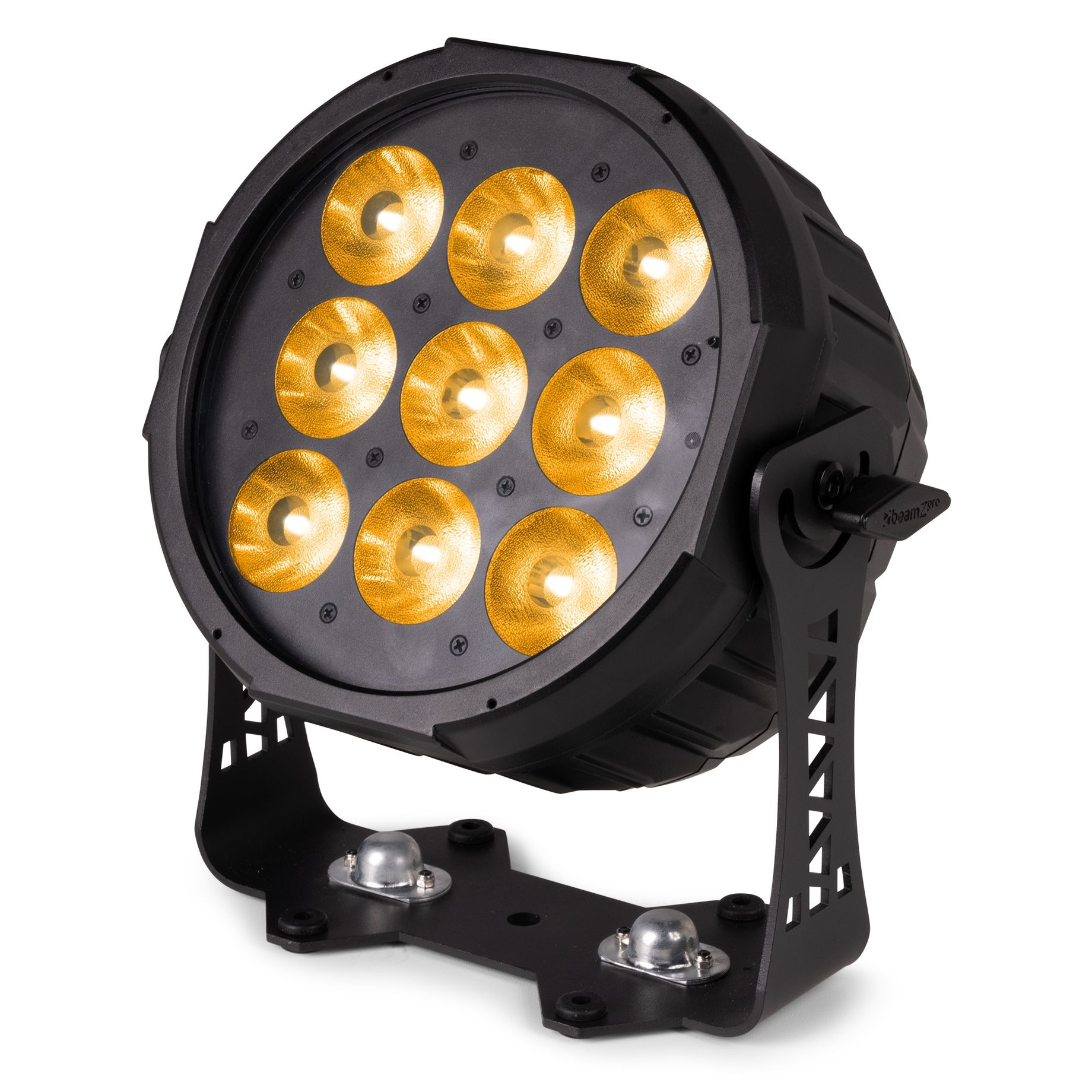

WX92
Outdoor LED Par RGBA
SKU 150.880
|EAN 8715693365498
Coming soon
All product information
Compare
WXB series
Description
Highlights
- Weatherproof PAR in die-cast aluminium housing
- 9x 20W 4-in-1 LEDs
- RGBA colour mixing
- Control panel with OLED display
- Built-in wireless receiver/transmitter for wireless DMX
- CCT correction settings
- 16.7 million colour range
- Electronic dimming: 0-100% flicker free
- Master/Slave function
- Waterproof IP65 for outdoor use
- Waterproof connectors
- Magnets for frost filter
- Including Omega Quick Lock bracket
Specifications
BrandbeamZ Professional
Product serieWXB series
ColourBlack
TypeAluminium Par
Light source
Light source: LED par
- 9x 20W RGBA LED
Colour Temperature2 - 10 K
Illuminance40762 lx @ 1m
Optics
Beam angle
- 20°
ZoomNo
Features
Flash Per Second1 - 20 Hz
Control

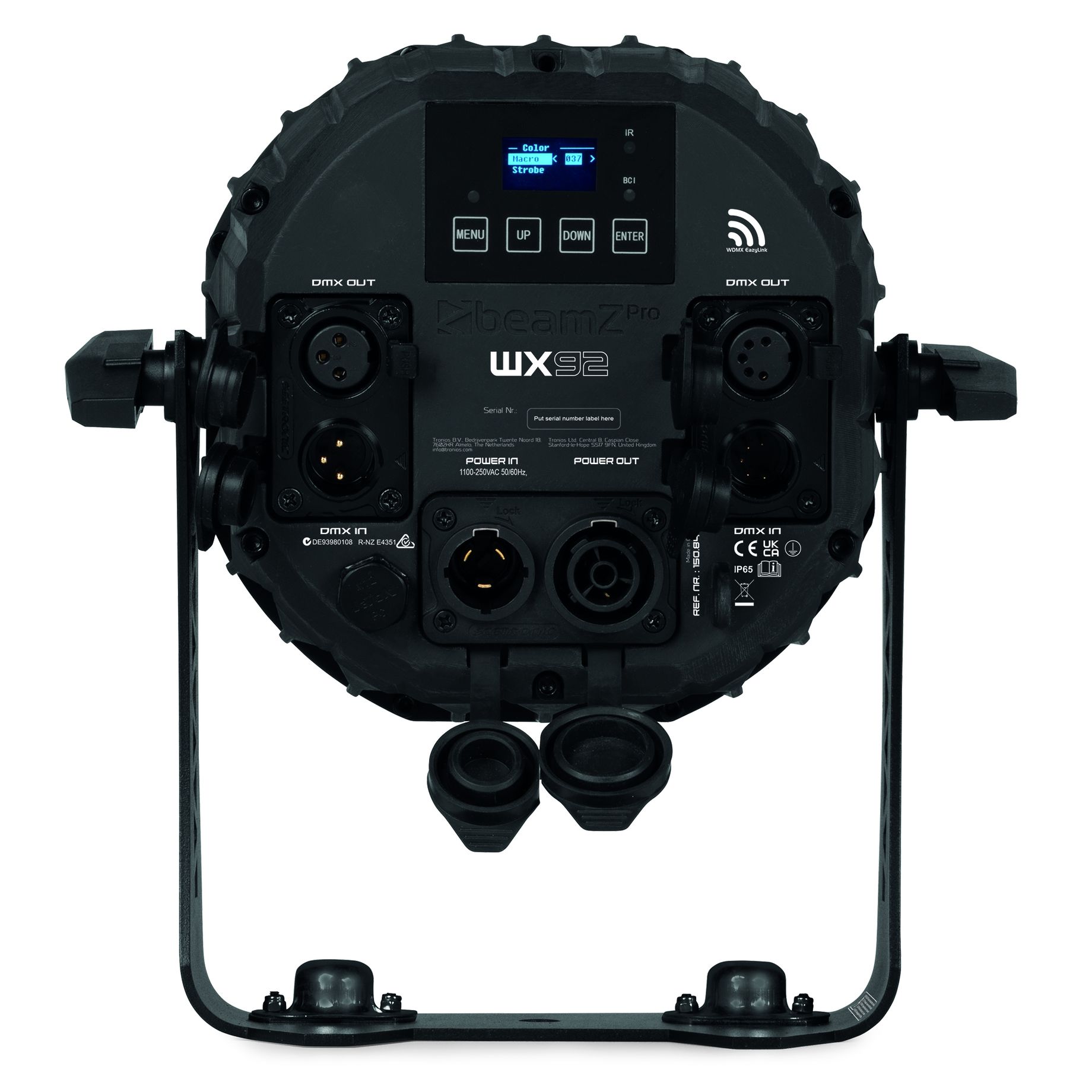

Connections
Input connections
- 1x DMX - 3-pin XLR IP65 (M)
- 1x DMX - 5-pin XLR IP65 (M)
- 1x Power - Powerconnector TR1 IP65 (A)
- 1x Power - Powerconnector TR1 IP65 (A)
- 1x DMX - 3-pin XLR IP65 (M)
- 1x DMX - 5-pin XLR IP65 (M)
Output connections
- 1x DMX - 3-pin XLR IP65 (F)
- 1x DMX - 5-pin XLR IP65 (F)
- 1x Power - Powerconnector TR1 IP65 (B)
- 1x Power - Powerconnector TR1 IP65 (B)
- 1x DMX - 3-pin XLR IP65 (F)
- 1x DMX - 5-pin XLR IP65 (F)
Hardware features
Display typeOLED
CoolingConvection
Environmental
IP ratingIP65
Electrical
Power Supply110-240VAC 50/60Hz
Mechanical
Dimensions
- 235 x 280 x 215 mm (W x D x H)
Weight
- 5 kg
Accessories
Included Accessories
- Mounting bracket
- Remote control (wireless)
Manuals & Documents
Manual
PDF
