WX(B) series

WX(B) SERIES

OUTDOOR LED PARS

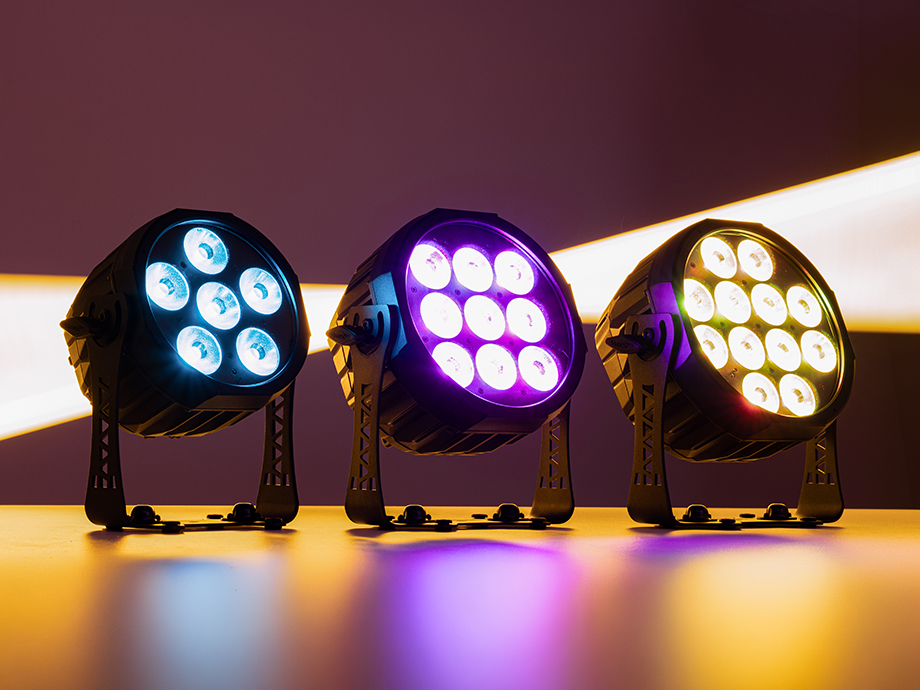

The new WX(B) series is the ultimate choice for powerful and versatile outdoor illumination. Featuring a robust IP65-rated housing, these advanced LED pars are engineered for any venue, festival or architectural. With the choice between mains-powered and battery-operated models, plus built-in wireless control, the WX(B) series delivers premium, reliable performance for any outdoor lighting project!

The WX(B) series represents the next step in professional outdoor illumination. Engineered with a robust IP65-rated housing, these LED pars are fully equipped to withstand the elements, making them the ultimate choice for festivals, outdoor events, and demanding venues. For maximum operational flexibility, the series is divided into two variations: the standard WX series and the WX(B) series, which features a powerful built-in battery for completely cable-free setups.

Both series deliver exceptional color mixing and high-output performance. The mains-powered WX series is available in RGBA, RGBWA-UV, and RGBALC configurations, featuring 6, 9, or 12 high-power 20W LEDs. For those requiring ultimate wireless versatility, the battery-powered WX(B) series offers the advanced RGBALC color engine in the same 6, 9, and 12x 20W LED formats.
The WX(B) series features a custom-developed battery system and intelligent battery management system (BMS), designed for optimal power control, thermal protection, and extended battery lifespan. Real-time battery and system status monitoring ensures reliable performance in demanding professional applications.

Designed for seamless professional integration, all fixtures feature secure P-Con TR1 IN/OUT power connectors alongside 3-pin and 5-pin XLR DMX connections. Furthermore, a built-in wireless receiver/transmitter enables effortless wireless DMX control, complemented by a dedicated APP function for quick, intuitive adjustments on the go.

In short, the WX(B) series delivers ultimate wireless flexibility and professional-grade color mixing in a rugged, weather-resistant design.

Key features

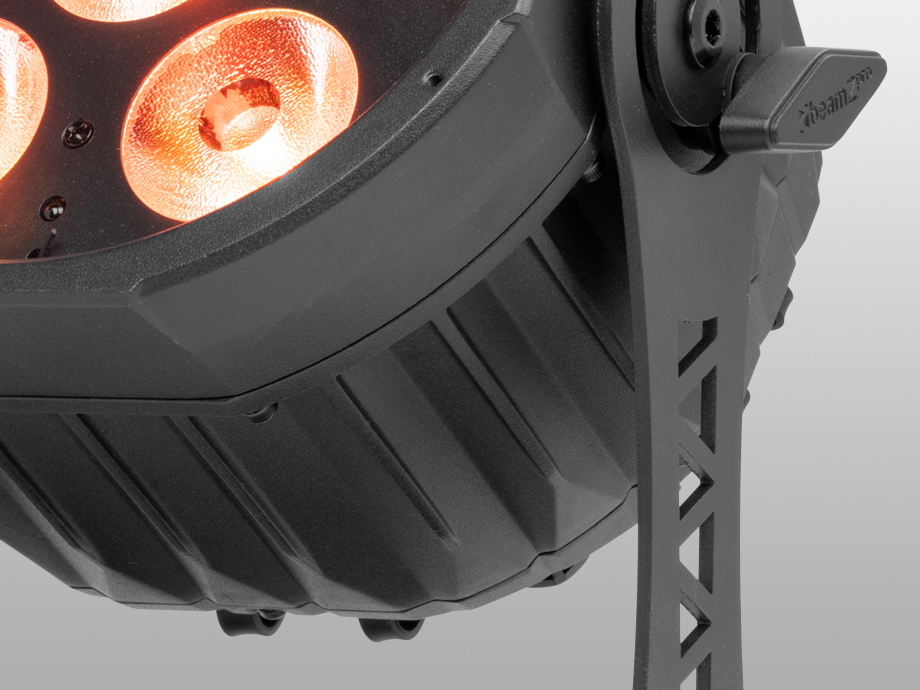

Convection cooling

Cooling is achieved through cooling fins, which leads to quieter operation, reduced wear on components and minimal maintenance requirements over time.

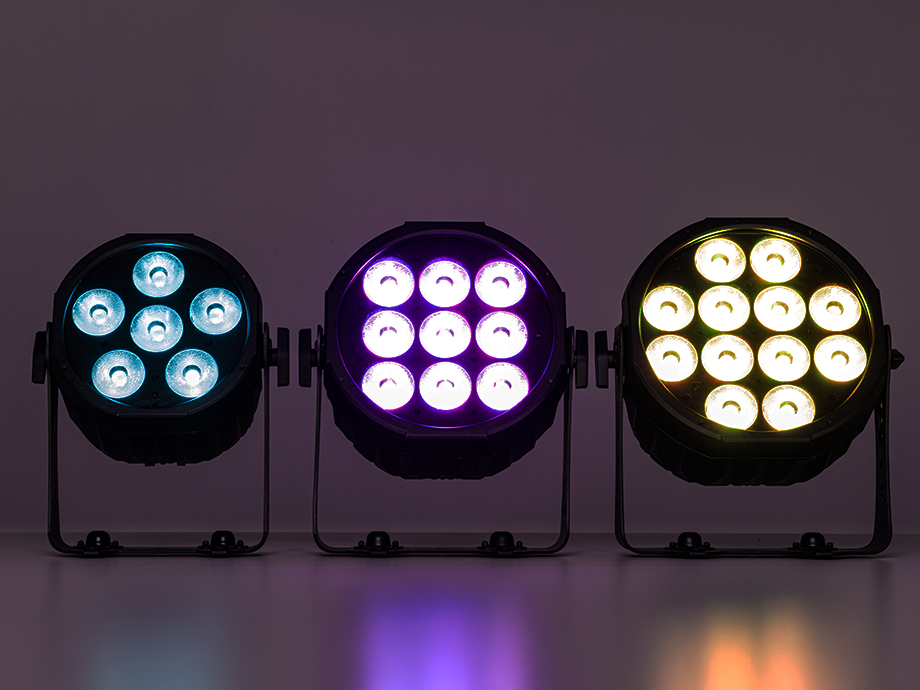

Colour options

The WX series features high-power multi-in-one LEDs, available in RGBA, RGBWA-UV, and RGBALC configurations, delivering a wide range of customizable colours and endless creative possibilities in lighting design. The WXB series is exclusively available with the advanced RGBALC LED engine, combining vibrant colour mixing with maximum flexibility for professional applications.

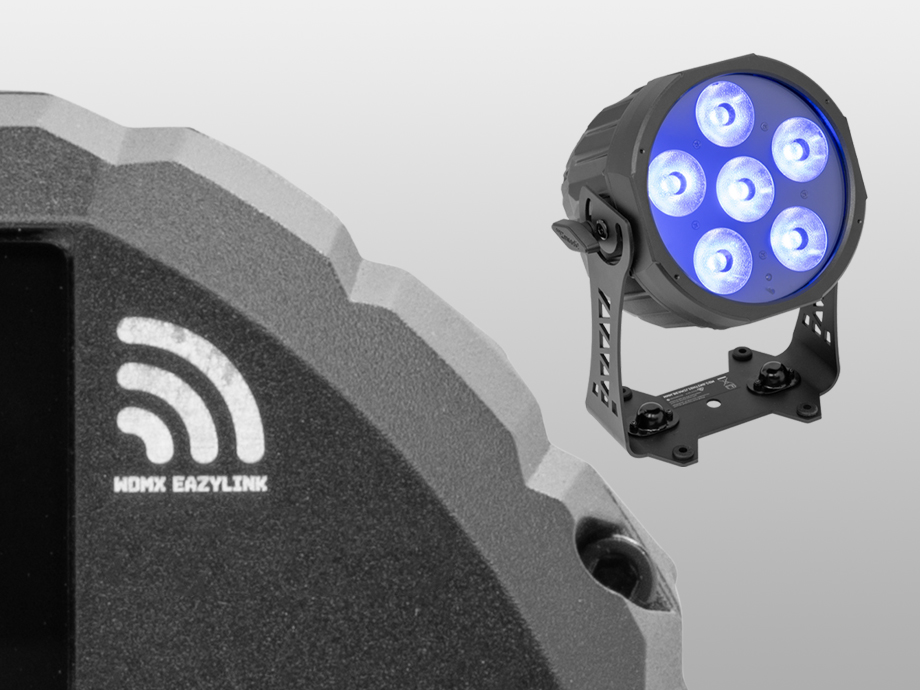

Advanced wireless control

Features a built-in wireless DMX transmitter/receiver and a dedicated app function, enabling quick and direct control of the fixtures via smartphone or tablet. Additionally, WXB models include an IR remote control for quick, out-of-the-box operation.

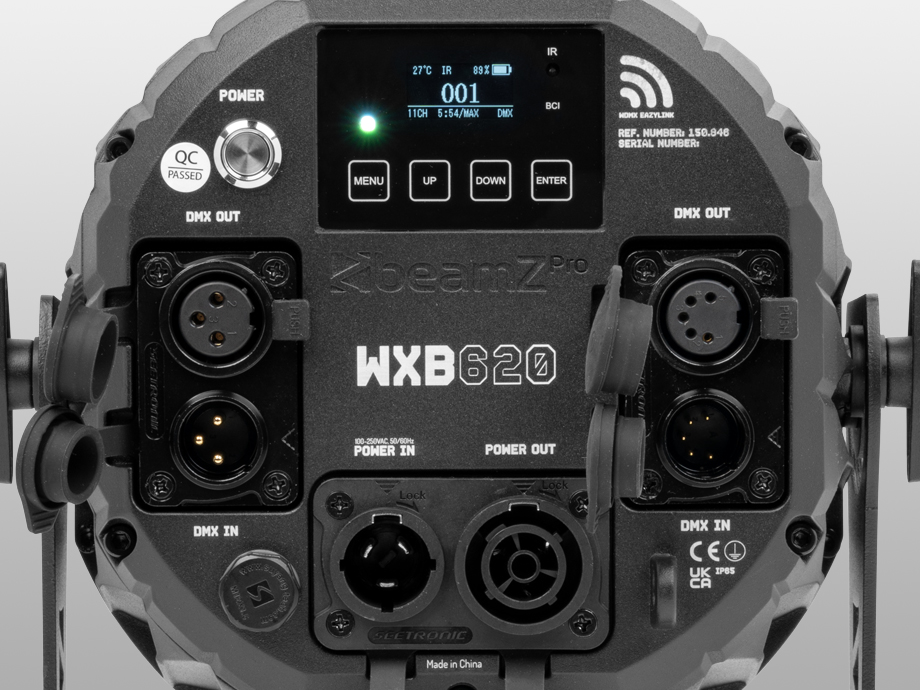

Easy integration

With P-Con TR1 IN/OUT and 3 and 5-pin XLR connectors, the fixtures are easy to integrate into any kind of lighting setup. Each unit is equipped with an OLED display and an easy to navigate menu system, ensuring quick and straightforward configuration.

Battery powered

The WXB series features a built-in battery that provides up to 20 hours of operation (when using a single colour) and recharges in just 5 hours. The intelligent battery management system (BMS) protects the battery against overcharging and deep discharge, while active thermal protection ensures safe operation in sealed IP65 housings. Real-time battery and system status can be easily checked via the display.

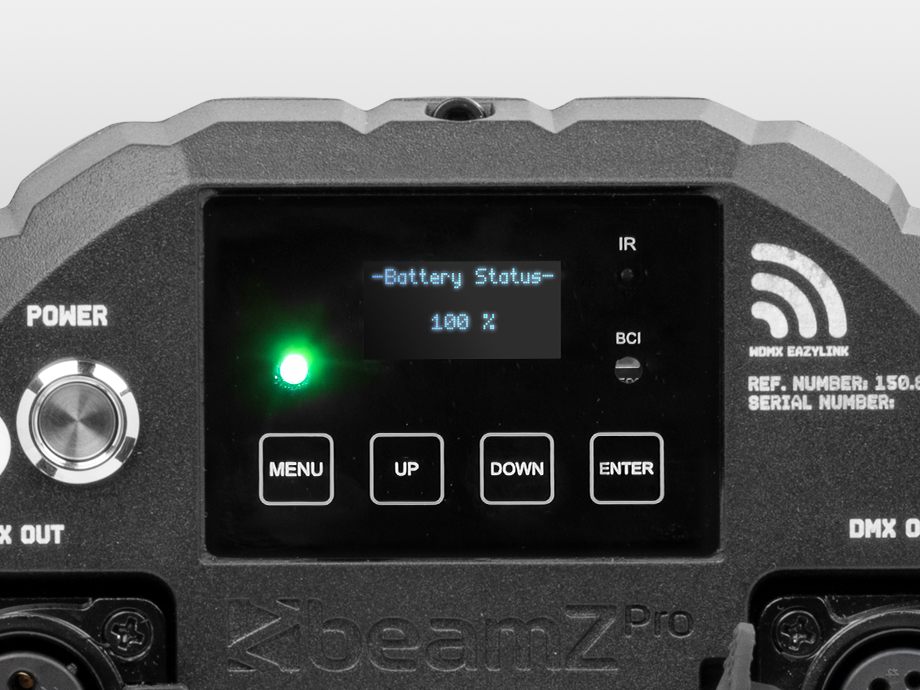

Battery management system

The WXB series features an intelligent battery management system (BMS) that monitors battery status, runtime, temperature, and protection levels. Users can set the desired colour and operating time, while the BMS automatically manages power output to maintain consistent light performance. Optimized charging and discharging cycles ensure reliable operation and extend battery lifespan.

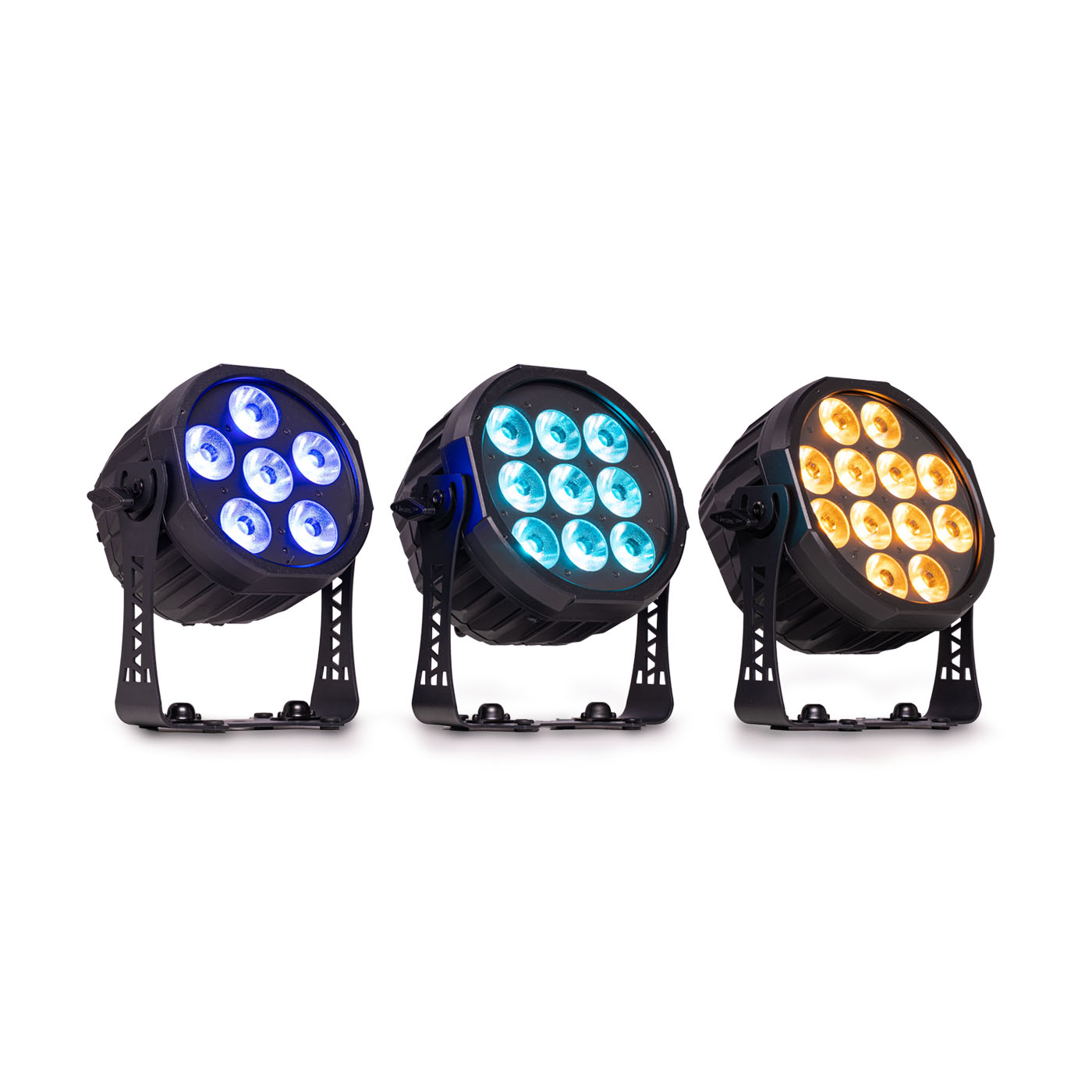

Compare the WXB series here

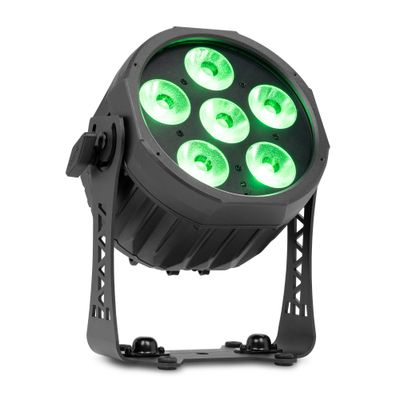

WXB620
WXB620
Outdoor Battery LED Par RGBALC
  • 6x 20W 6-in-one LED's
  • RGBALC colour mixing
  • Beam Angle: 20º
  • DMX: 3 and 5-pin IN/OUT
  • Power: P-Con TR1 IN/OUT
  • 23 x 21 x 17cm (W x H x D)
  • Weight: 4,0 kg
RSP incl. VAT
£389.00
View product

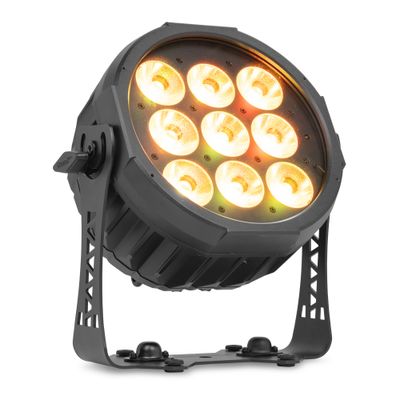

WXB920
WXB920
Outdoor Battery LED Par RGBALC
  • 9x 20W 6-in-one LED's
  • RGBALC colour mixing
  • Beam Angle: 20º
  • DMX: 3 and 5-pin IN/OUT
  • Power: P-Con TR1 IN/OUT
  • 23,5 x 28 x 21,5cm (W x H x D)
  • Weight: 5,0 kg
RSP incl. VAT
£479.00
View product

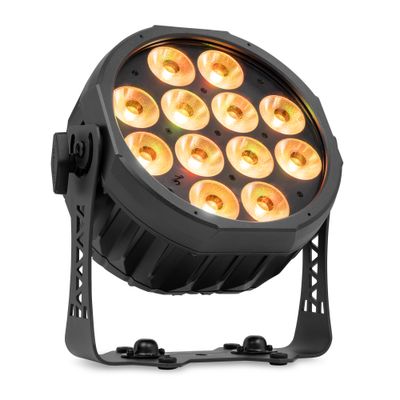

WXB1220
WXB1220
Outdoor Battery LED Par RGBALC
  • 12x 20W 6-in-one LED's
  • RGBALC colour mixing
  • Beam Angle: 20º
  • DMX: 3 and 5-pin IN/OUT
  • Power: P-Con TR1 IN/OUT
  • 24,6 x 28 x 21,7cm (W x H x D)
  • Weight: 5,2 kg
RSP incl. VAT
£549.00
View product
Compare the WX series here

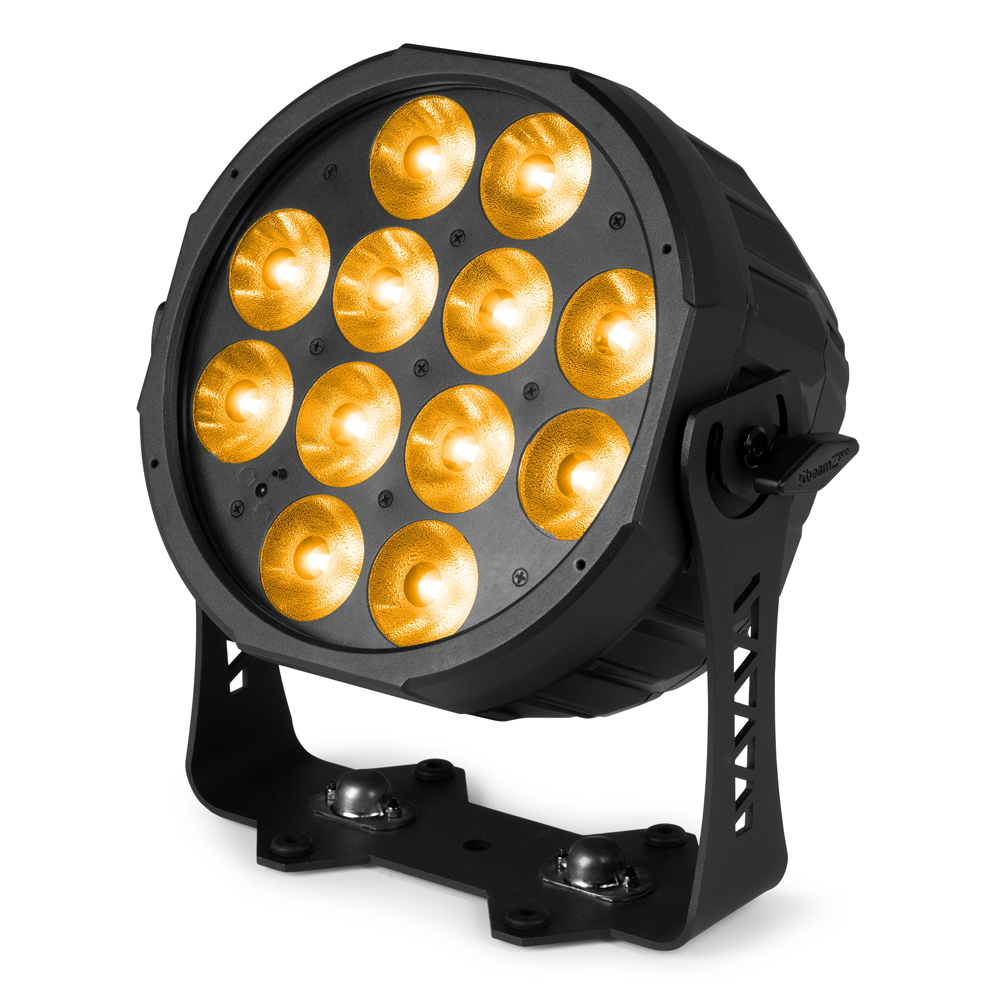

WX122 (coming soon)
WX122 (coming soon)
Outdoor LED Par RGBA
  • 12x 20W 4-in-one LED's
  • RGBA colour mixing
  • Beam Angle: 20º
  • DMX: 3 and 5-pin IN/OUT
  • Power: P-Con TR1 IN/OUT
  • 24,6 x 28 x 21,7cm (W x H x D)
  • Weight: 5,2 kg
RSP incl. VAT
£349.00
View product
WX124 (coming soon)
WX124 (coming soon)
Outdoor LED Par RGBWA-UV
  • 12x 20W 6-in-one LED's
  • RGBWA-UV colour mixing
  • Beam Angle: 20º
  • DMX: 3 and 5-pin IN/OUT
  • Power: P-Con TR1 IN/OUT
  • 24,6 x 28 x 21,7cm (W x H x D)
  • Weight: 5,2 kg
RSP incl. VAT
£369.00
View product
WX126 (coming soon)
WX126 (coming soon)
Outdoor LED Par RGBALC
  • 12x 20W 6-in-one LED's
  • RGBALC colour mixing
  • Beam Angle: 20º
  • DMX: 3 and 5-pin IN/OUT
  • Power: P-Con TR1 IN/OUT
  • 24,6 x 28 x 21,7cm (W x H x D)
  • Weight: 5,2 kg
RSP incl. VAT
£389.00
View product

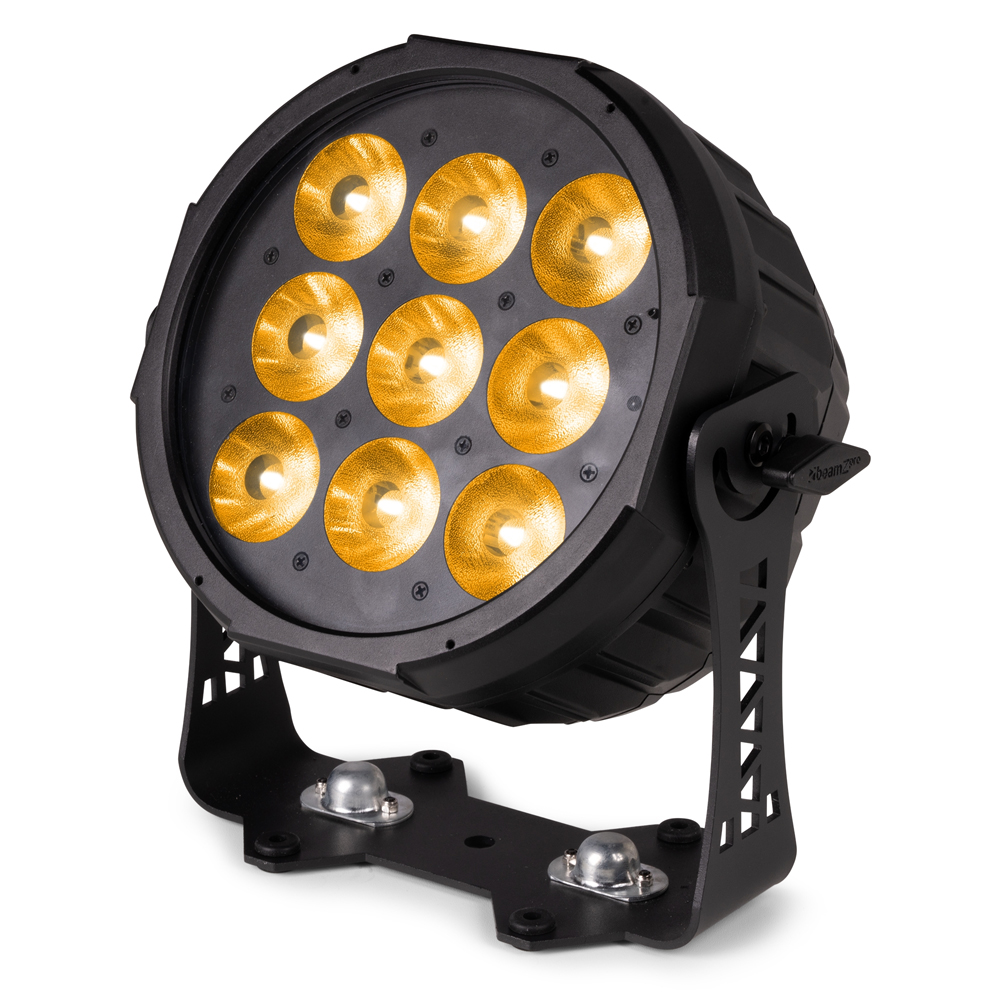

WX92 (coming soon)
WX92 (coming soon)
Outdoor LED Par RGBA
  • 9x 20W 4-in-one LED's
  • RGBA colour mixing
  • Beam Angle: 20º
  • DMX: 3 and 5-pin IN/OUT
  • Power: P-Con TR1 IN/OUT
  • 23,5 x 28 x 21,5cm (W x H x D)
  • Weight: 5,0 kg
RSP incl. VAT
£399.95
View product

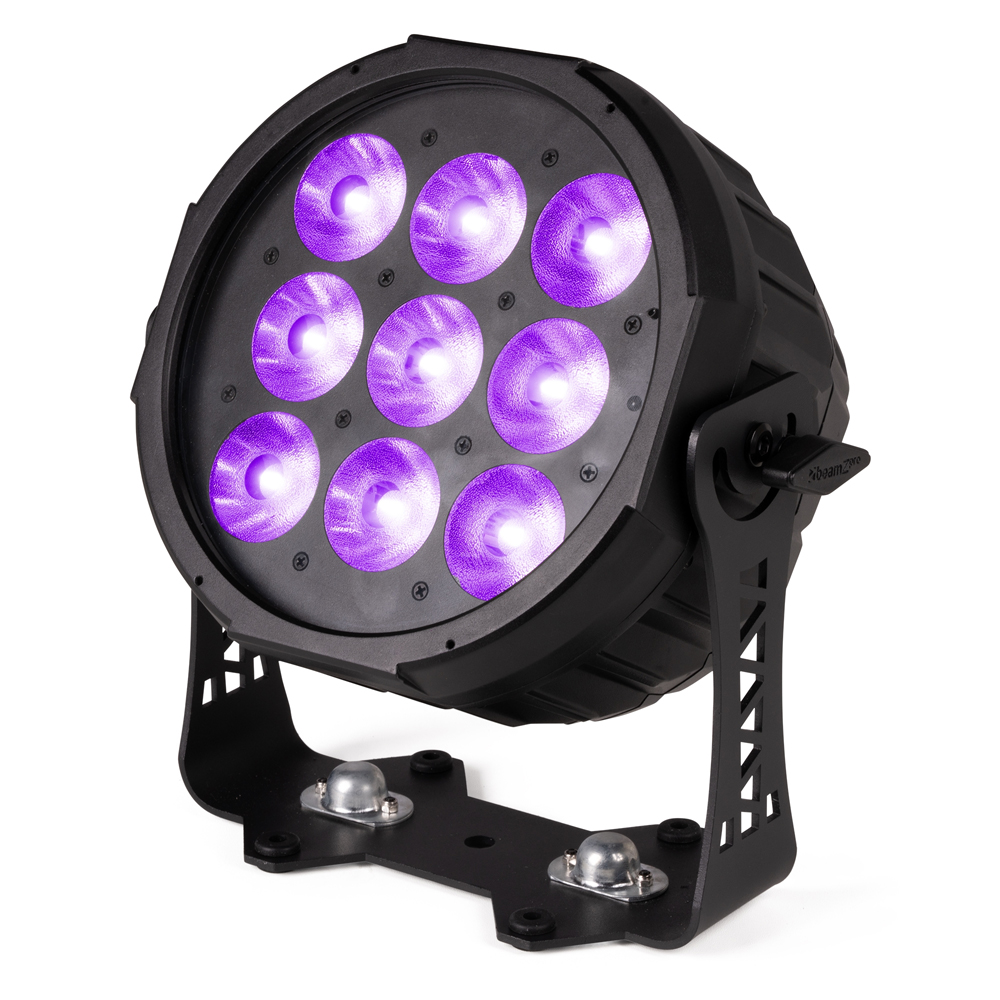

WX94 (coming soon)
WX94 (coming soon)
Outdoor LED Par RGBWA-UV
  • 9x 20W 6-in-one LED's
  • RGBWA-UV colour mixing
  • Beam Angle: 20º
  • DMX: 3 and 5-pin IN/OUT
  • Power: P-Con TR1 IN/OUT
  • 23,5 x 28 x 21,5cm (W x H x D)
  • Weight: 5,0 kg
RSP incl. VAT
£349.00
View product

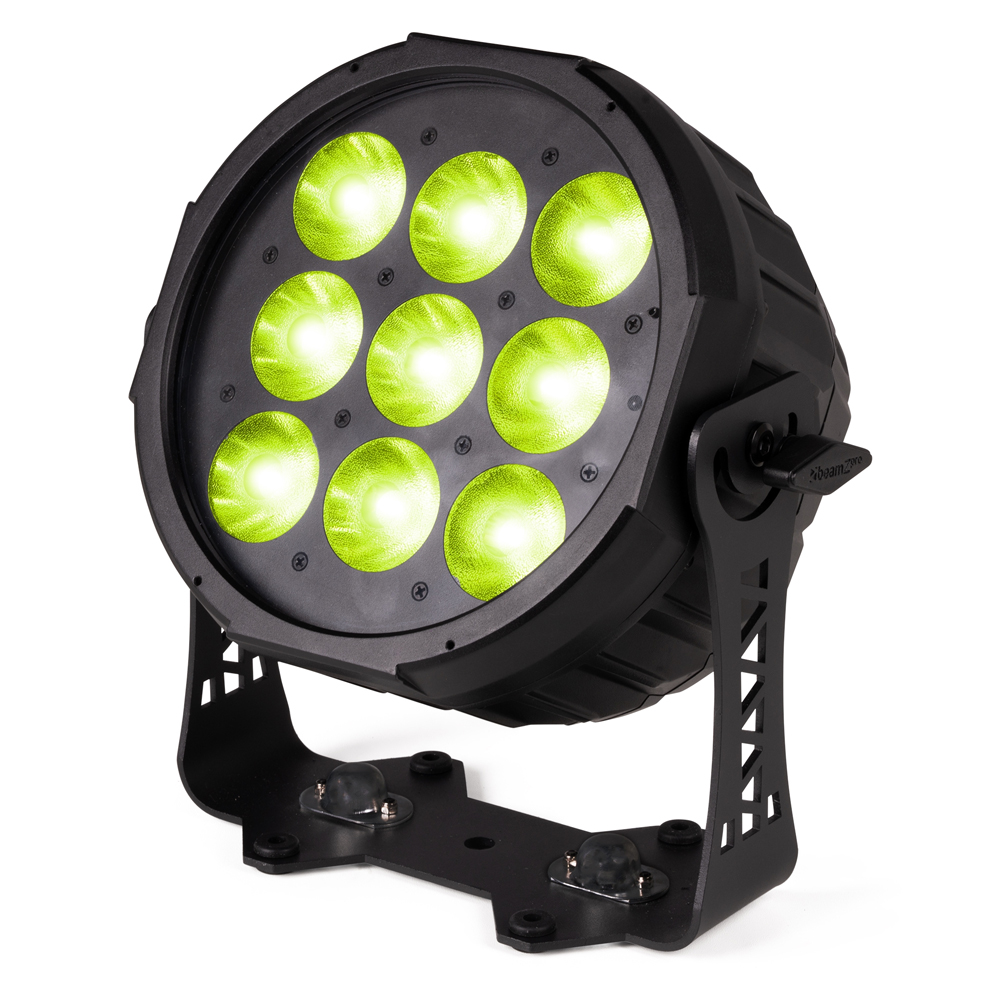

WX96 (coming soon)
WX96 (coming soon)
Outdoor LED Par RGBALC
  • 9x 20W 6-in-one LED's
  • RGBALC colour mixing
  • Beam Angle: 20º
  • DMX: 3 and 5-pin IN/OUT
  • Power: P-Con TR1 IN/OUT
  • 23,5 x 28 x 21,5cm (W x H x D)
  • Weight: 5,0 kg
RSP incl. VAT
£369.00
View product
WX62 (coming soon)
WX62 (coming soon)
Outdoor LED Par RGBA
  • 6x 20W 4-in-one LED's
  • RGBA colour mixing
  • Beam Angle: 20º
  • DMX: 3 and 5-pin IN/OUT
  • Power: P-Con TR1 IN/OUT
  • 21 x 23 x 17cm (W x H x D)
  • Weight: 4,0 kg
RSP incl. VAT
£299.00
View product
WX64 (coming soon)
WX64 (coming soon)
Outdoor LED Par RGBWA-UV
  • 6x 20W 6-in-one LED's
  • RGBWA-UV colour mixing
  • Beam Angle: 20º
  • DMX: 3 and 5-pin IN/OUT
  • Power: P-Con TR1 IN/OUT
  • 21 x 23 x 17cm (W x H x D)
  • Weight: 4,0 kg
RSP incl. VAT
£309.00
View product

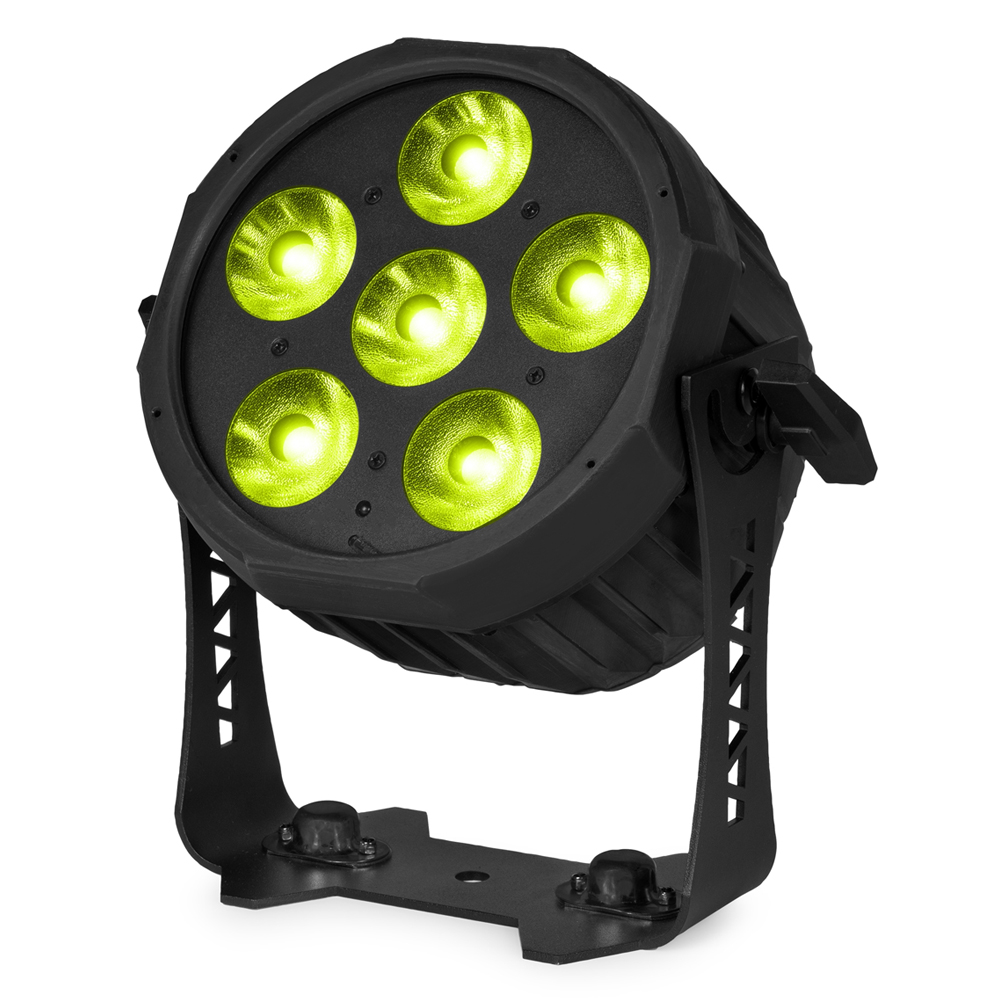

WX66 (coming soon)
WX66 (coming soon)
Outdoor LED Par RGBALC
  • 6x 20W 6-in-one LED's
  • RGBALC colour mixing
  • Beam Angle: 20º
  • DMX: 3 and 5-pin IN/OUT
  • Power: P-Con TR1 IN/OUT
  • 21 x 23 x 17cm (W x H x D)
  • Weight: 4,0 kg
RSP incl. VAT
£325.00
View product

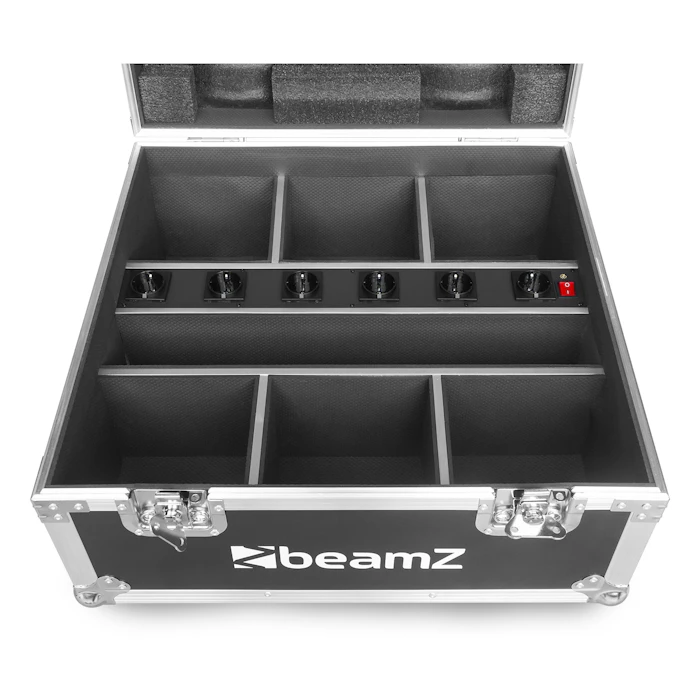

Premium flight cases

For the WXB series, custom-made flight cases are available, which are designed to transport the led parsafely. Flight cases are available for each model, 6 pieces. For the butterfly latches, rounded corner protectors and recessed handles, the renowned brand Penn Elcom was used.

For maximum protection, the flight cases are constructed with thick wooden exteriors and fitted on the inside with firm, high-quality foam. This effectively absorbs shocks and prevents damage to your equipment. In addition, the flight cases have compartments that provide sufficient space for storing cables and accessories.

The as an integrated charging station for battery-powered fixtures. If you use the WXB series, simply connect them to the internal charging module and plug the case into a wall outlet to recharge them for the next show.

Accessories

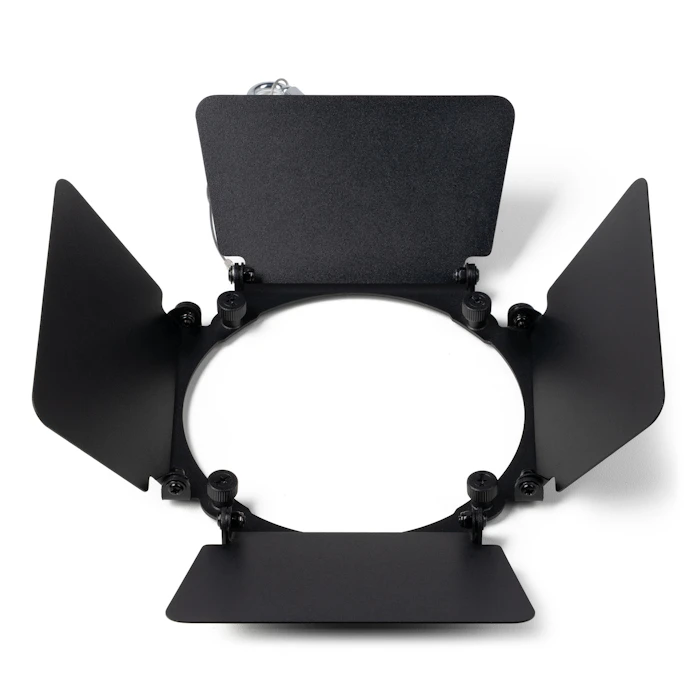

Get the most out of your WXB series with these easy-to-use accessories. Snap on the magnetic frost filter for a smooth glow, and use the adjustable barndoor to shape your beam and block glare. Complete your setup with our Power/DMX combi cables for clean, hassle-free daisy-chaining.
