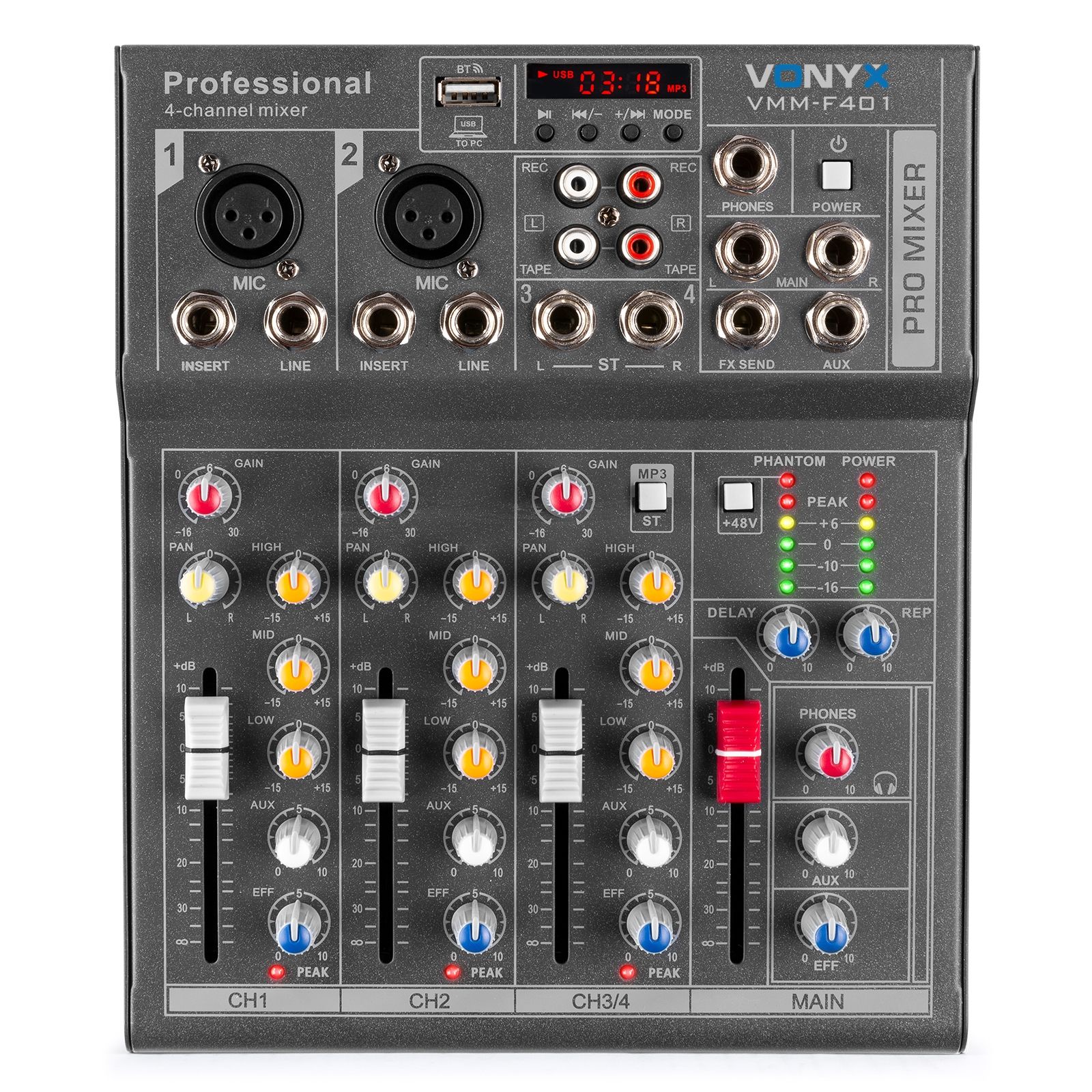

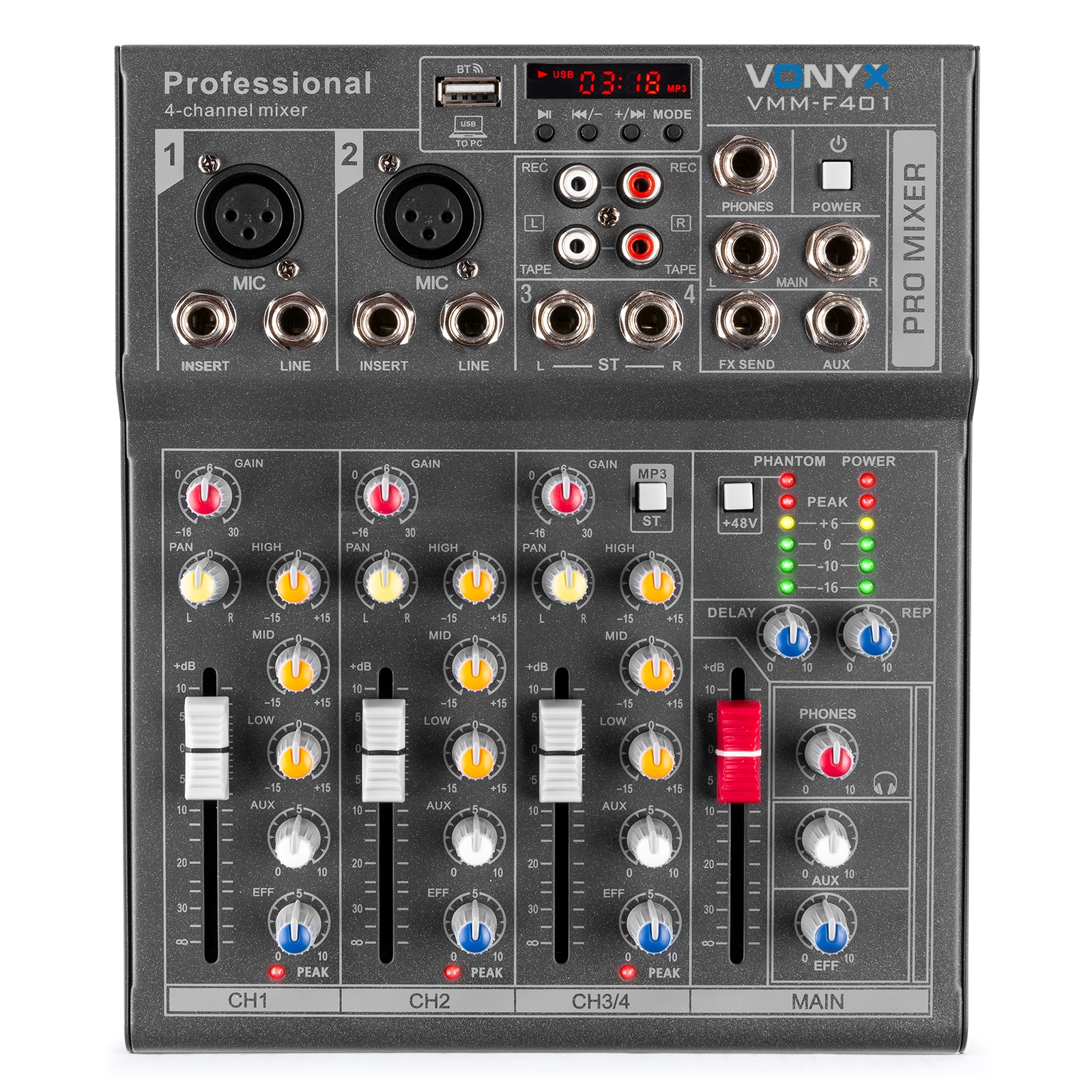

VMM-F401
4-Channel Music Mixer
SKU 172.575
|EAN 8715693292275
All product information
Compare
VMM-F series
Description
Highlights
- Multifunctional 4-channel music mixer
- 2 Mono microphone-/line input (XLR and 6.3mm Jack)
- Integrated USB MP3 Player with display
- Stereo line input (6.3mm Jack)
- Tape input (RCA)
- +48V Phantom power
- Stereo line output (6.3mm Jack)
- Echo effect generator with delay and repeat
- Hi, mid and low control for each channel
- Adjustable FX, Pan and Aux per channel
- Separate headphones and stereo recording outputs
- LED VU meter and Peak LED's
Specifications
BrandVonyx
Product serieVMM-F series
ColourBlack
Channels4
Frequency Response20 - 20,000 Hz
Playback
Playback optionsUSB
Audio specifications
Input Level: Mic.1.5mV, 2 kOhm
THD: Main<0.01%
Output Level: Master1V
Features
FeaturesEffect processor, Playback function
Connections
Input connections
- XLR
- USB-A
- RCA
- 6.3 mm jack
Output connections
- 6.3 mm jack
- RCA
Electrical
Power Supply100-240VAC 50/60Hz (5V USB)
Mechanical
Dimensions
- 195 x 230 x 35 mm (W x D x H)
Weight
- 1.9 kg
Manuals & Documents
Manual
PDF
