VM-KG06

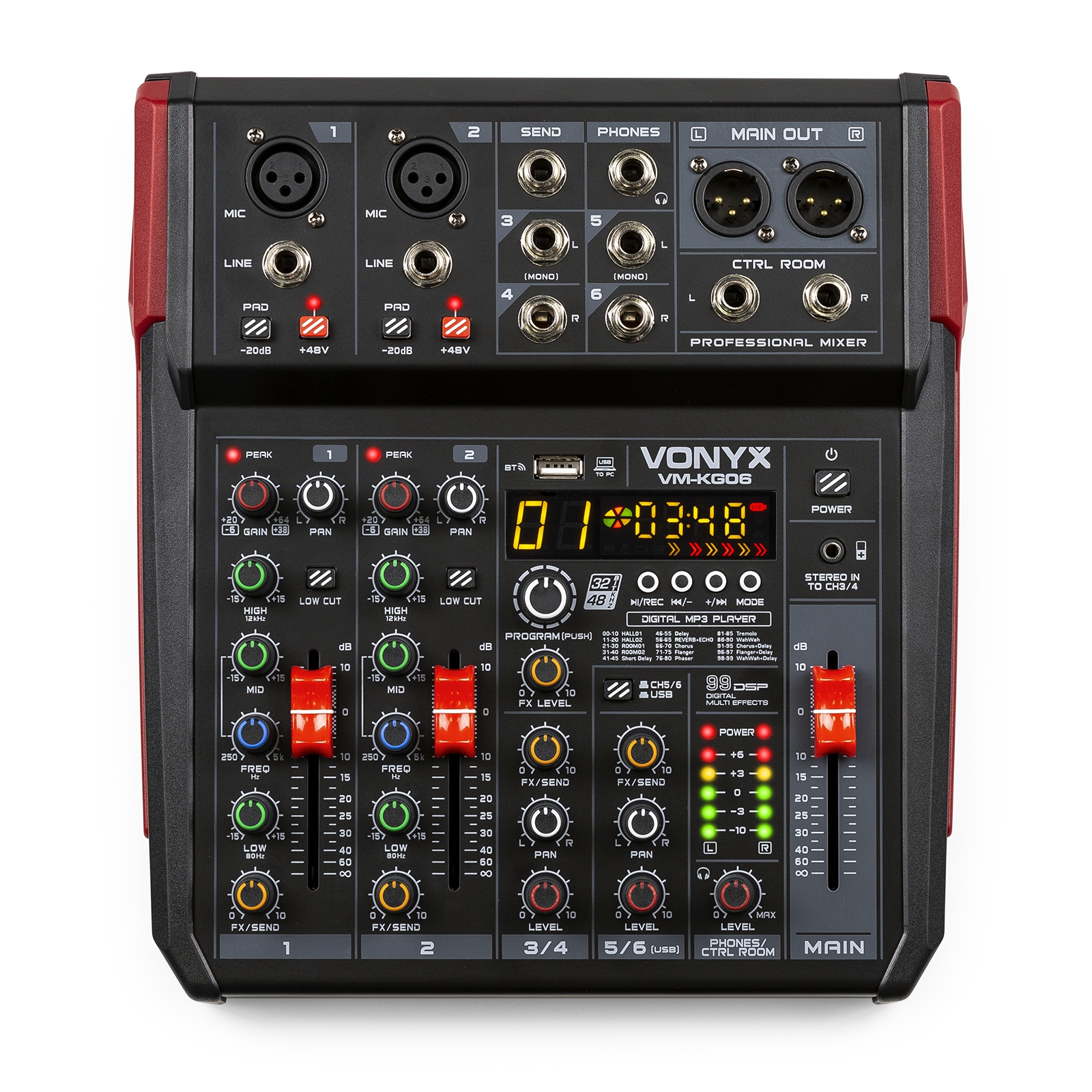

Music Mixer 6-Channel BT/DSP/USB Record
SKU 172.594
|EAN 8715693335507
All product information
Compare
VM-KG series
Description
Highlights
- Studio Music Mixer
- Individual line faders and a master fader
- Built-in USB player with digital display and record function
- BT receiver for audio streaming
- 99 Pre-programmed DSP effects
- 6x Microphone-/line input (Combi XLR/Jack)
- 2x Stereo line input (6.3mm Jack)
- Independent stereo input (3.5mm Jack)
- 2x stereo balanced main outputs (XLR)
- USB to PC for record and play music
- Ultra-musical equalizer (HIGH - MID + FREQ - LOW)
- SEND and CTRL ROOM outputs
- Level indicator
- Phantom power switch (+48V)
Specifications
BrandVonyx
Product serieVM-KG series
ColourBlack
Channels6
Frequency Response20 - 20,000 Hz
Playback
Playback optionsBT streaming, USB
Sound editing
DSP Effects Amount99
DSP Resolution32-bit
Equalizer: Mic/Line3-Bands
Audio specifications
THD: Main<0.5%
Features
FeaturesEffect processor, Playback function, Recording option, USB audio interface
Connections
Input connections
- XLR
- USB-A
- 6.3 mm jack
- 3.5 mm jack
Output connections
- 6.3 mm jack
- USB-B
- XLR
Electrical
Power Supply5V via USB
Mechanical
Dimensions
- 27.5 x 26 x 6 mm (W x D x H)
Weight
- 1.9 kg
