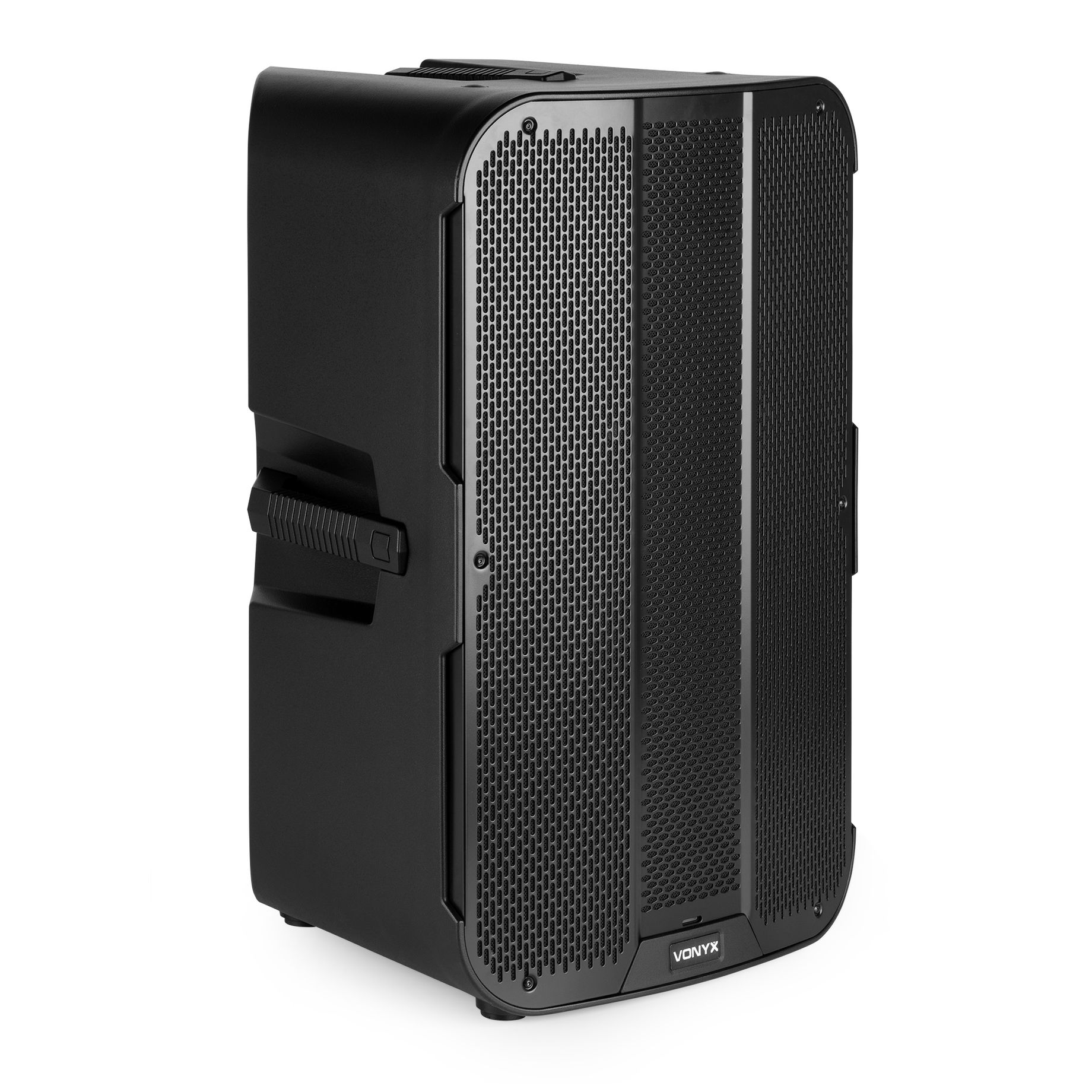

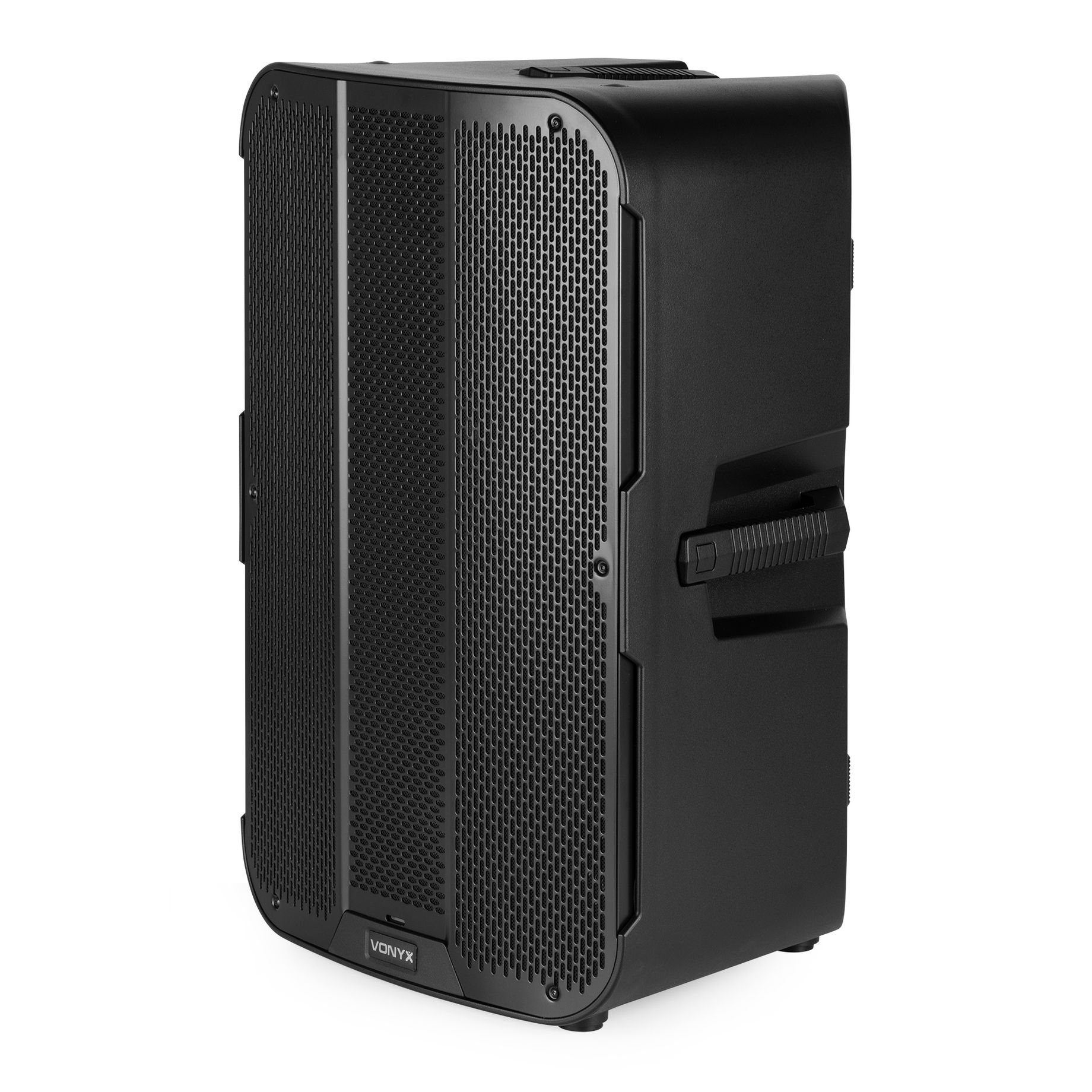

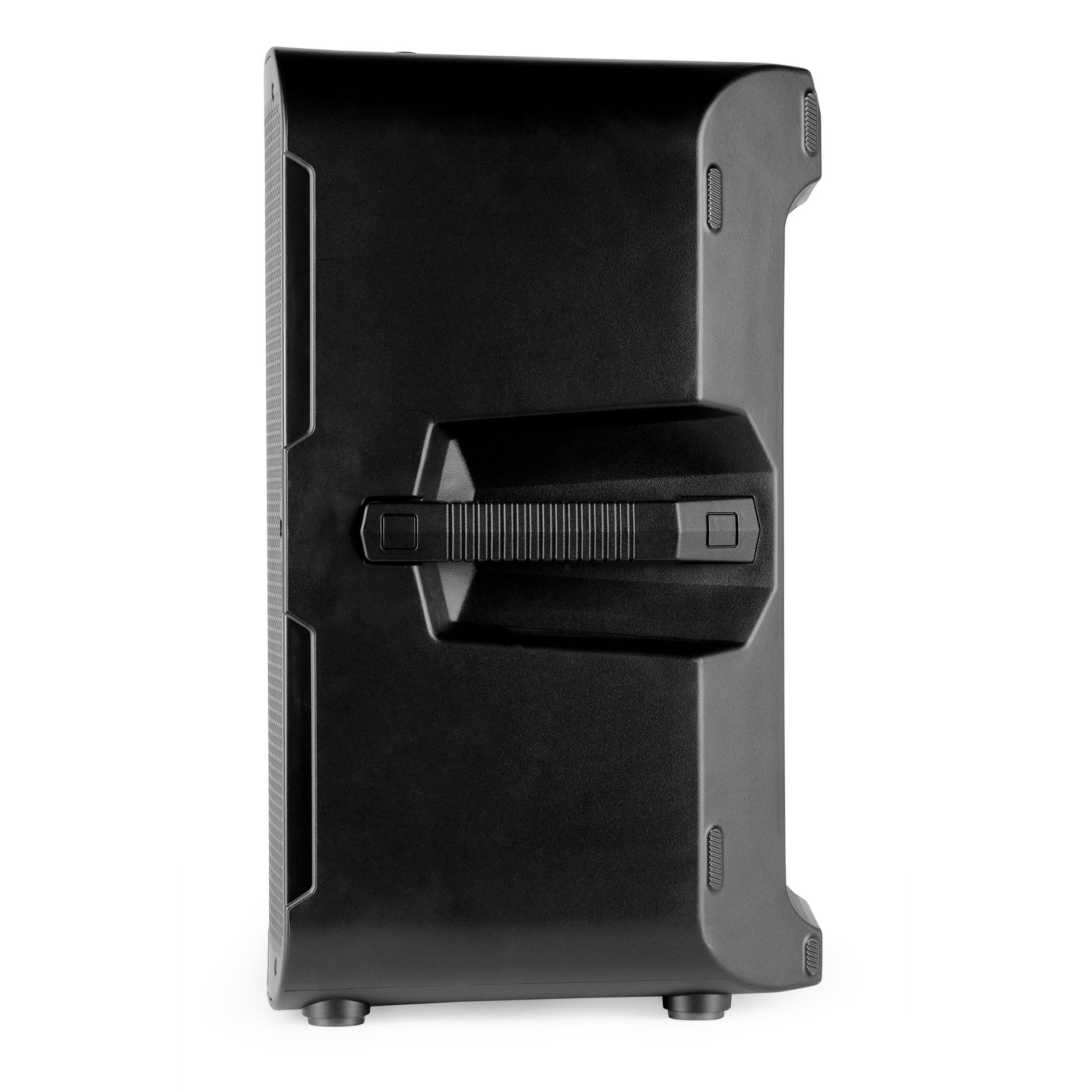

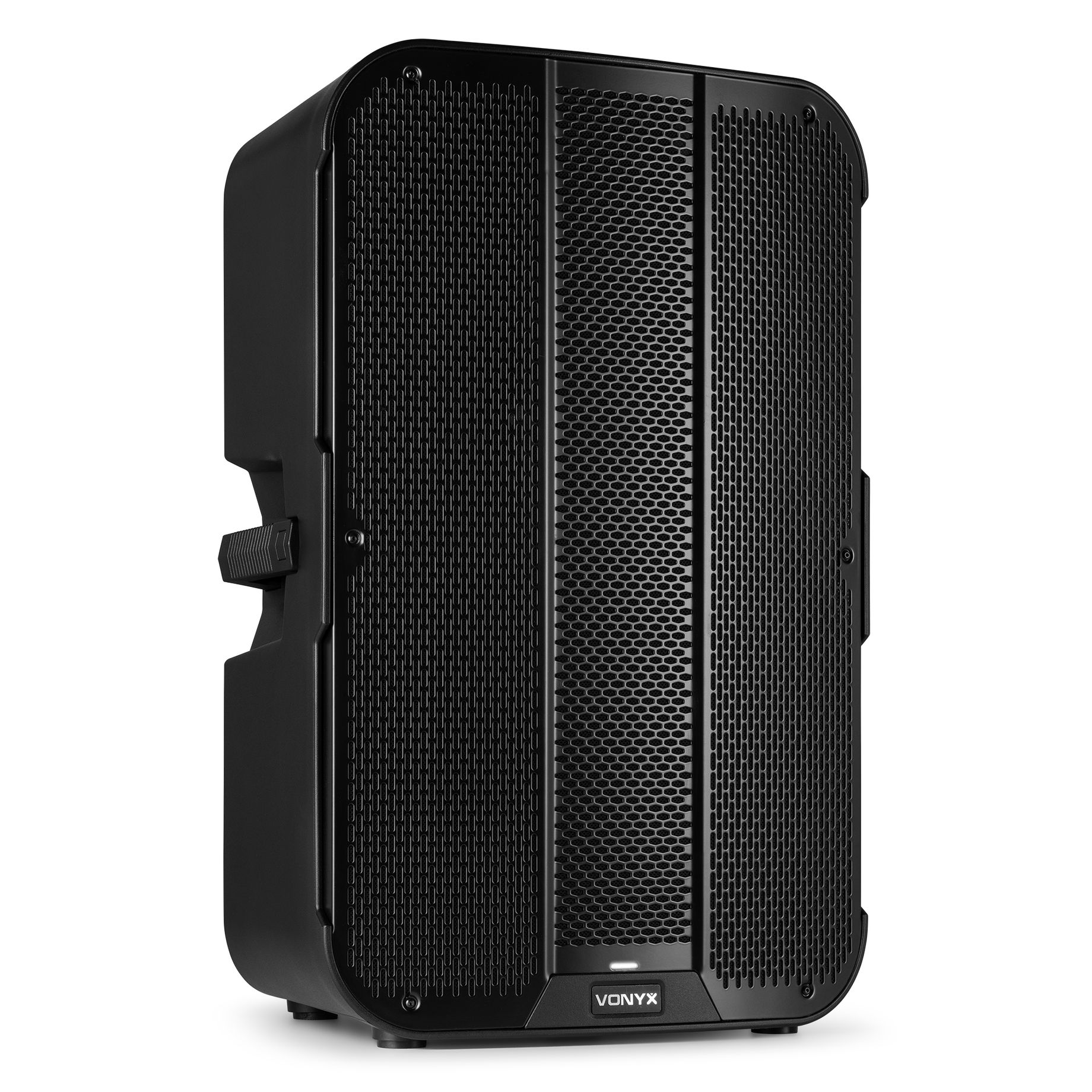

VD715A

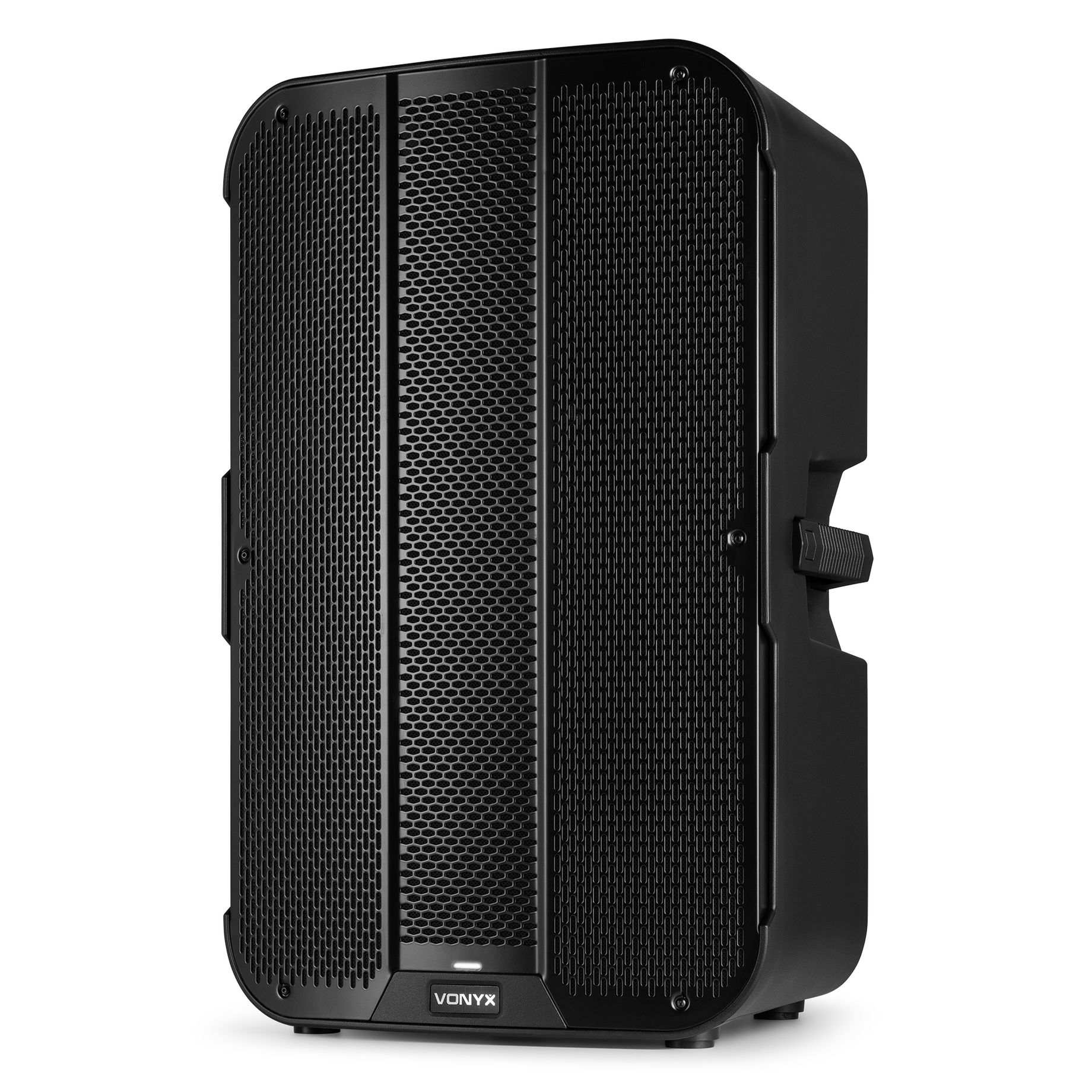

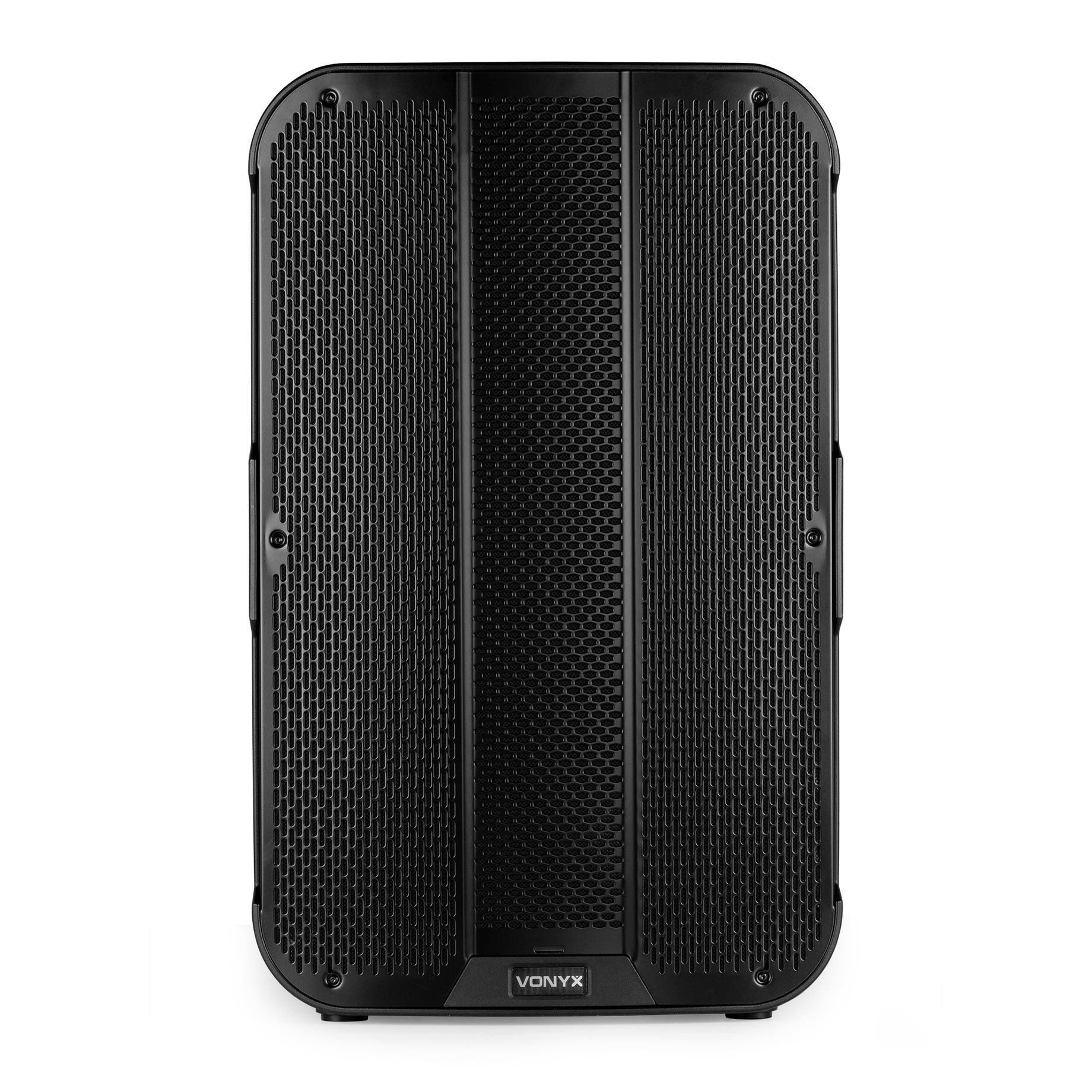

Bi-Amplified Active Speaker 15" DSP
SKU 178.283
|EAN 8715693303384
+7
All product information
Compare
VD7 series
Description
Highlights
- Professional Bi-amplified 15" speaker
- High power class D 900W amplifier
- 1.75" Compression driver
- 4 Preset DSP settings (normal/monitor/DJ/speech)
- Two combi Jack/XLR connectors for microphone/line input
- Mix/Thru output (XLR)
- Built-in 2-way active crossover
- BT 5.0 with TWS (True Wireless Stereo)

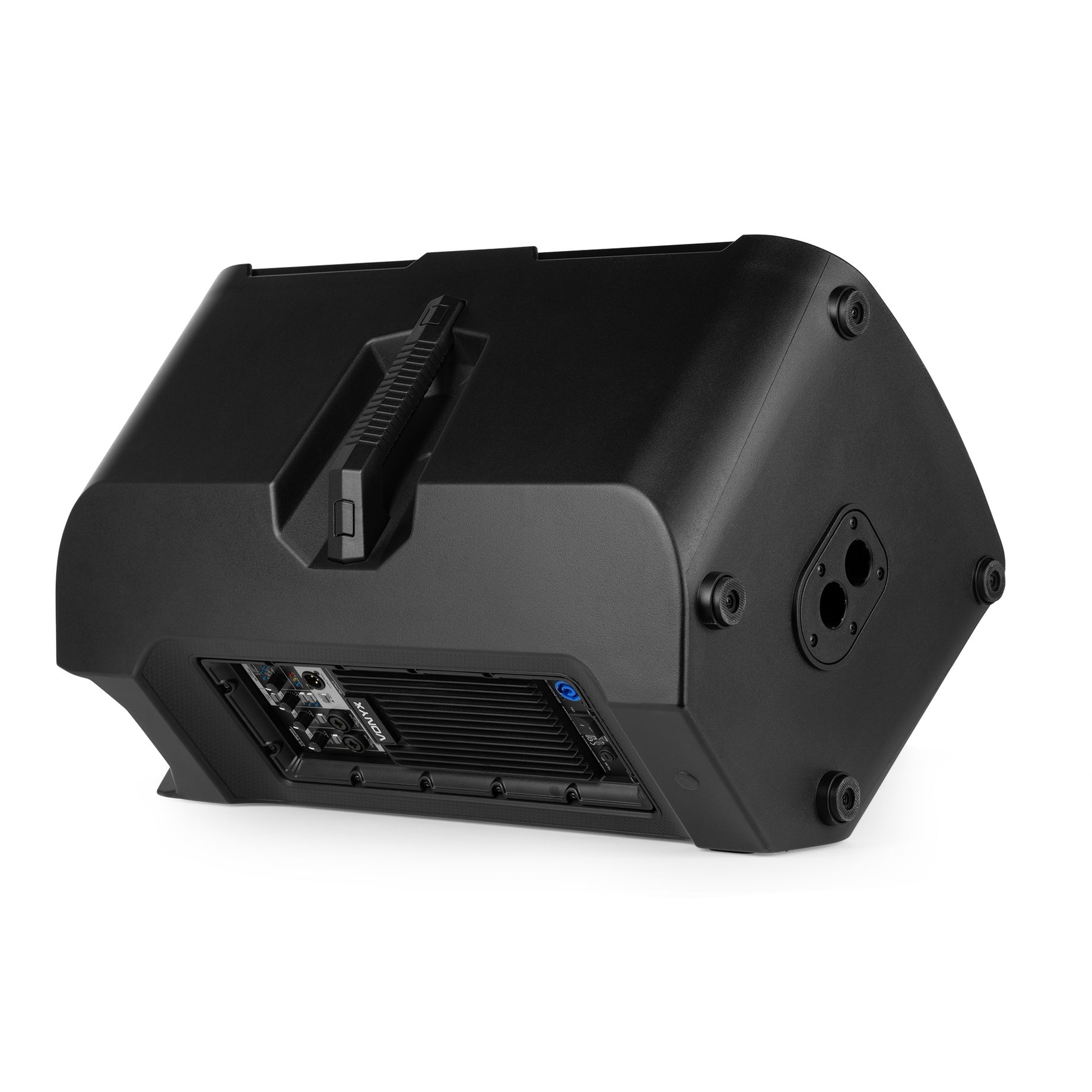

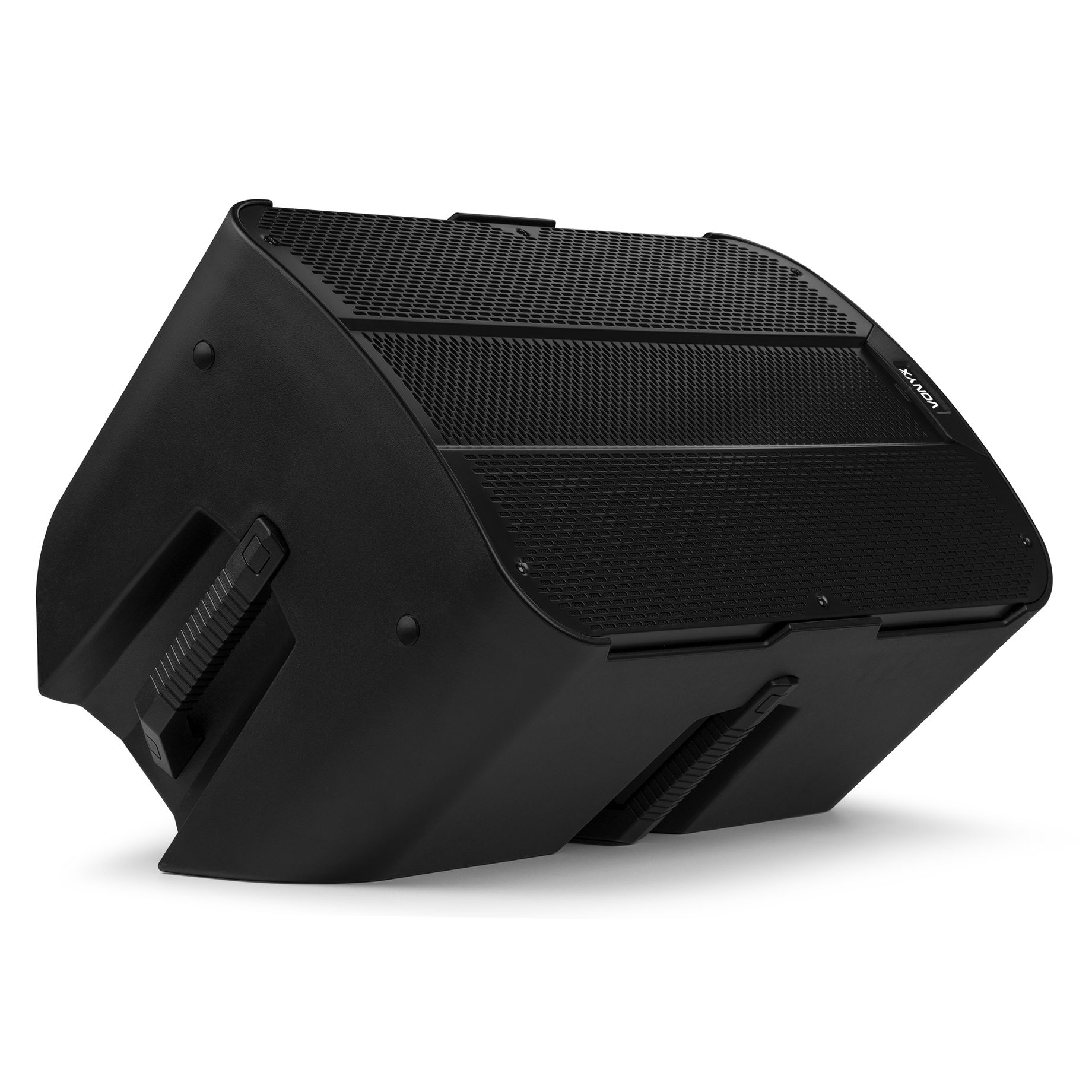

- Angled design, also for use as stage monitor

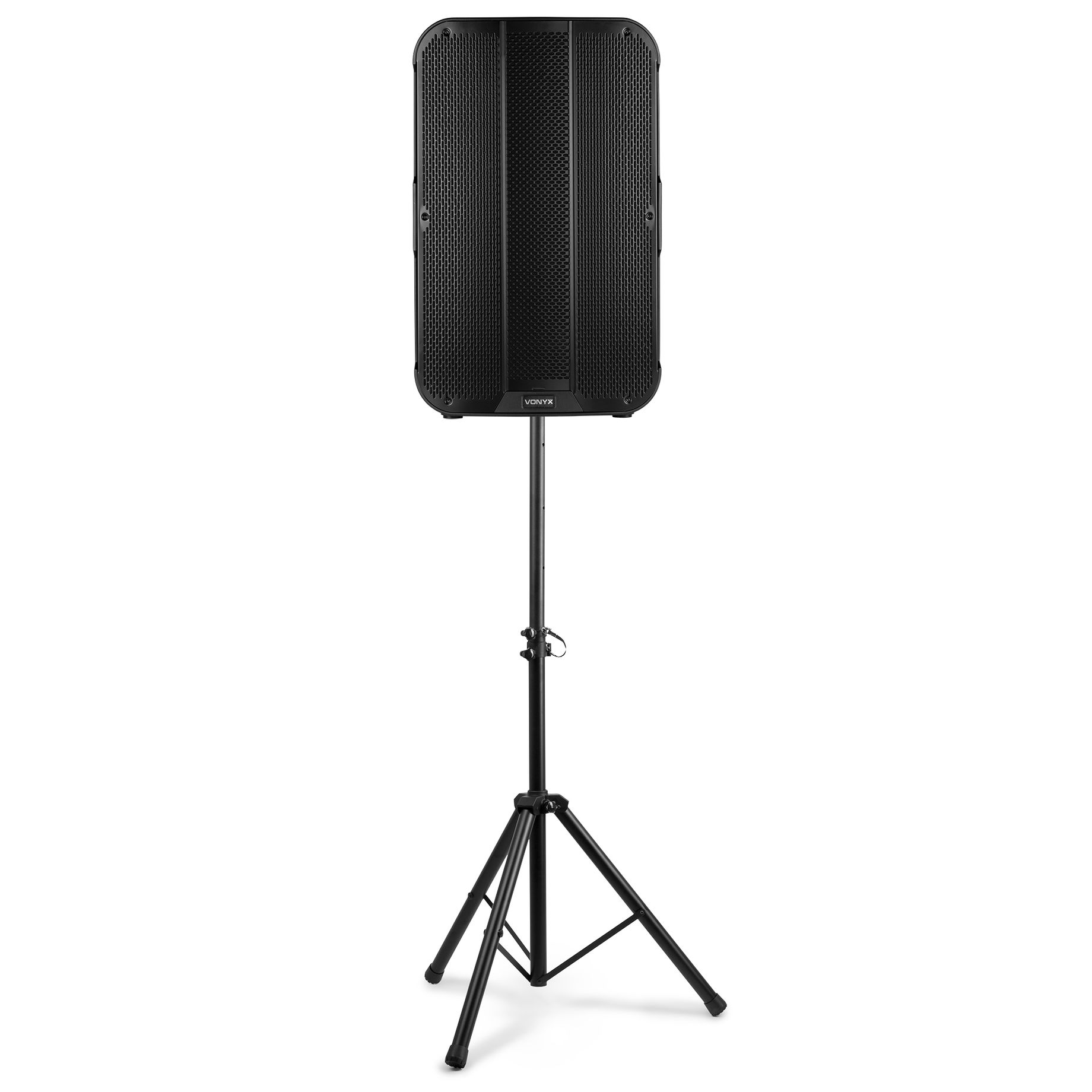

- 35mm socket for tripod or pole-mounting
- Dual tilt pole mount; 0° or 5°
Specifications
BrandVonyx
Product serieVD7 series
ColourBlack
Speaker typeActive (amplified)
Speaker Power Peak900 W
Speaker Power RMS450 W
Frequency Response ± 3dB45 - 20,000 Hz
Frequency Response -10dB35 - 20,000 Hz
Sensitivity (1W/1m)96 dB
Max. SPL (Peak)130 dB
Dispersion (H x V)90° x 60°
General
Accessories150.092
Playback
Playback optionsBT streaming, Line input, Microphone input
Sound editing
DSP Resolution24-bit
Audio specifications
Amplifier specifications
Amplifier classClass D

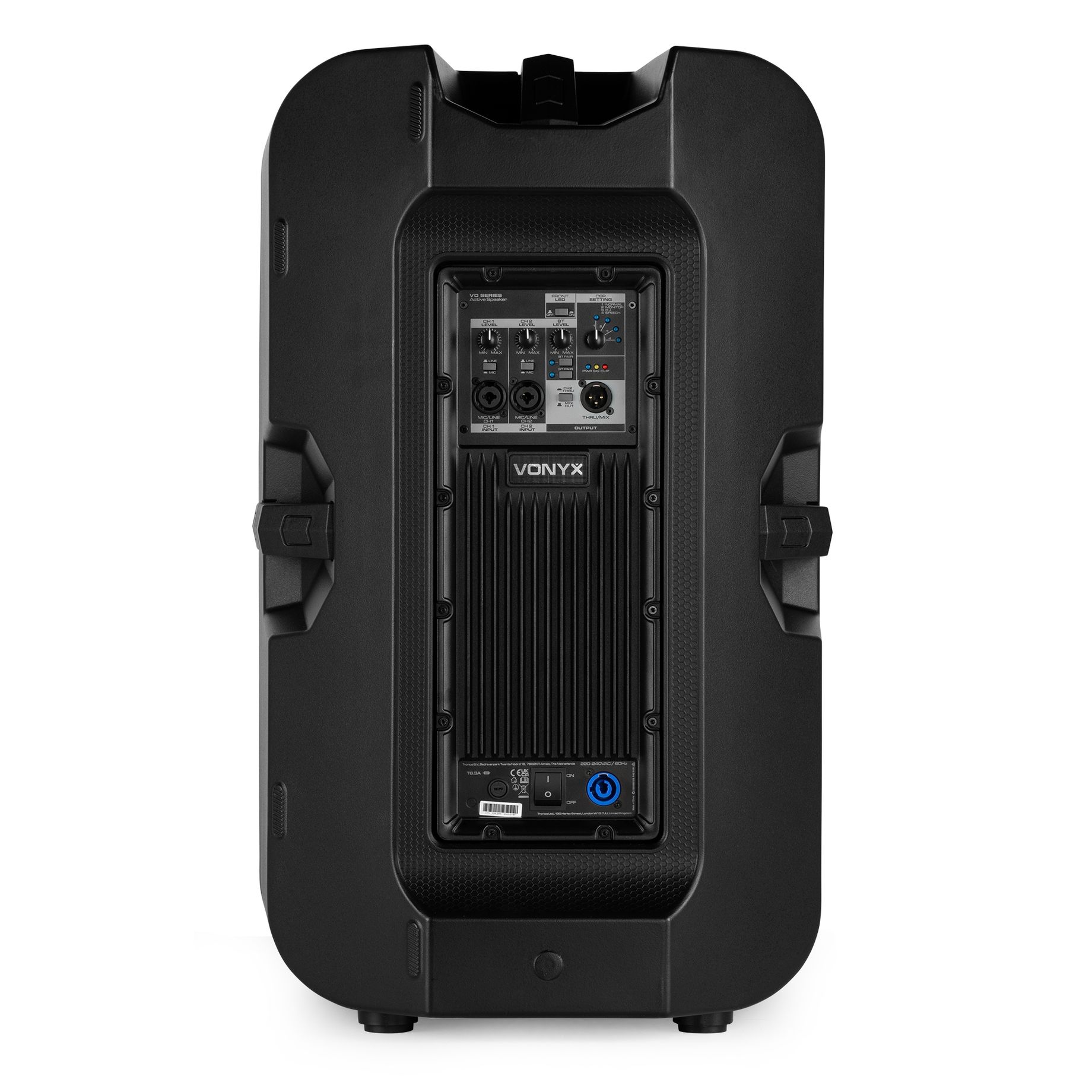

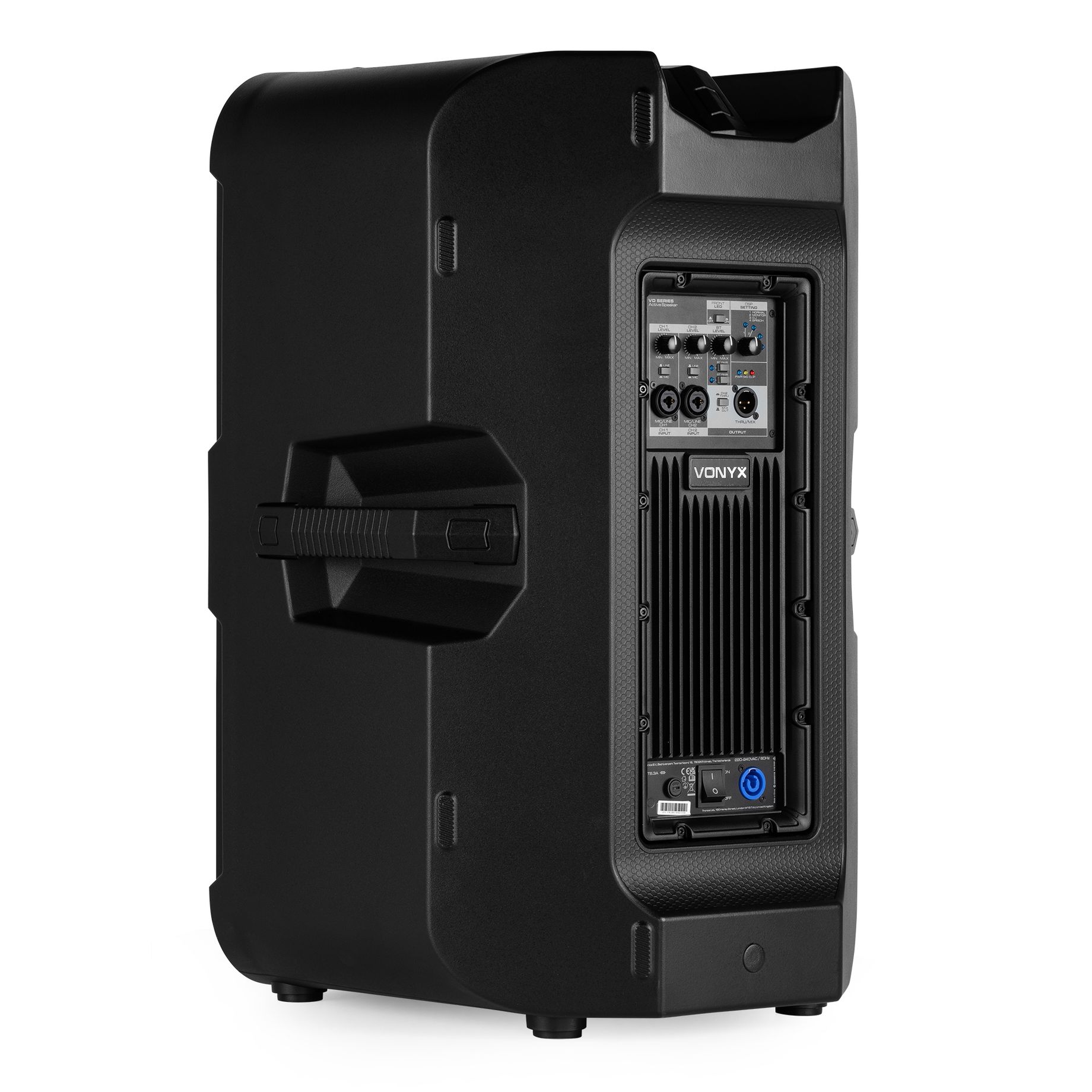

Connections
Input connections
- XLR
- 6.3 mm jack
Output connections
- XLR
Electrical
Power Supply220-240VAC 50/60Hz
Mechanical
Stand Fitting35mm dual tilt pole adapter on bottom
Dimensions
- 470 x 470 x 725 mm (W x D x H)
Weight
- 25.95 kg
Accessories
Included Accessories
- Power cable
Manuals & Documents
Manual
PDF
