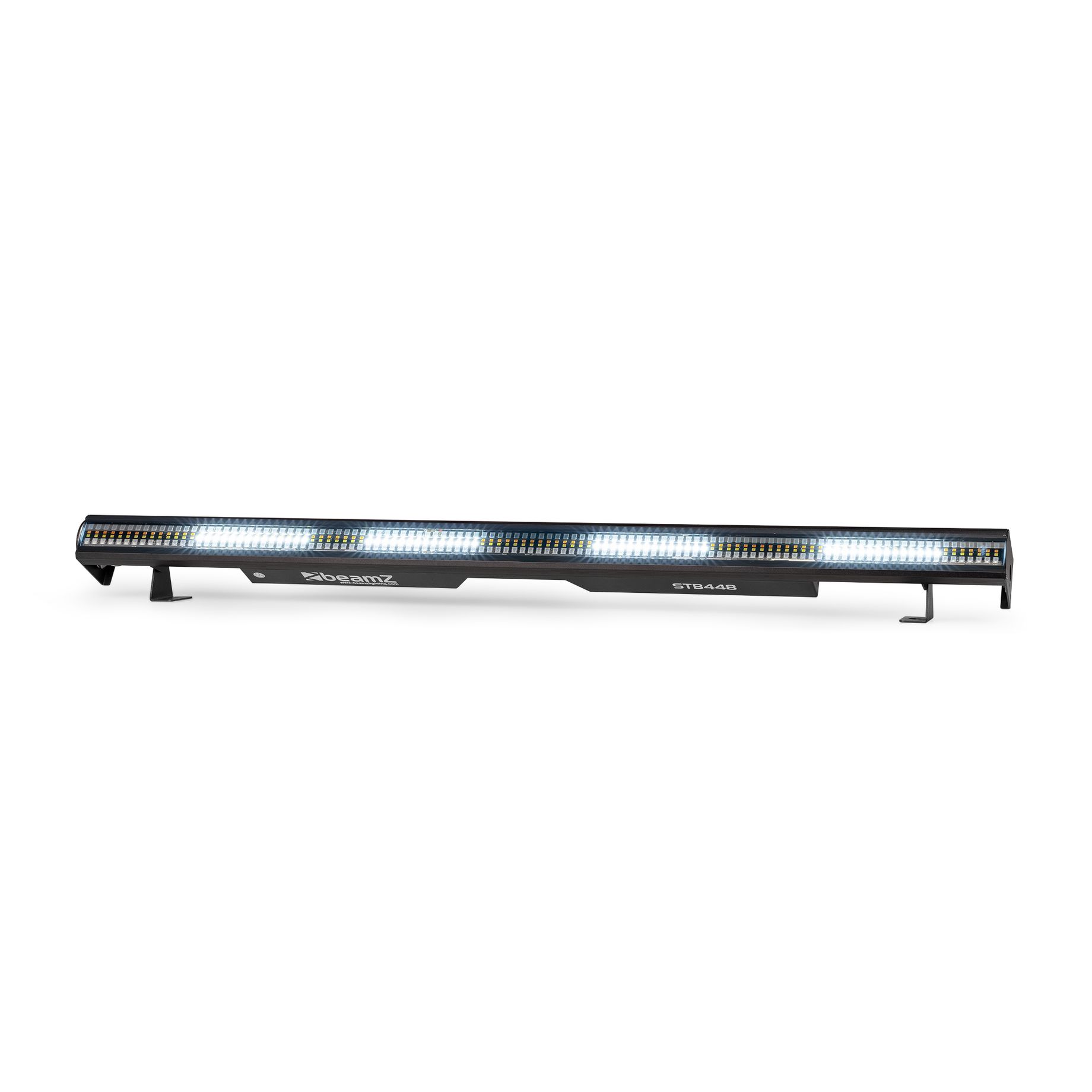

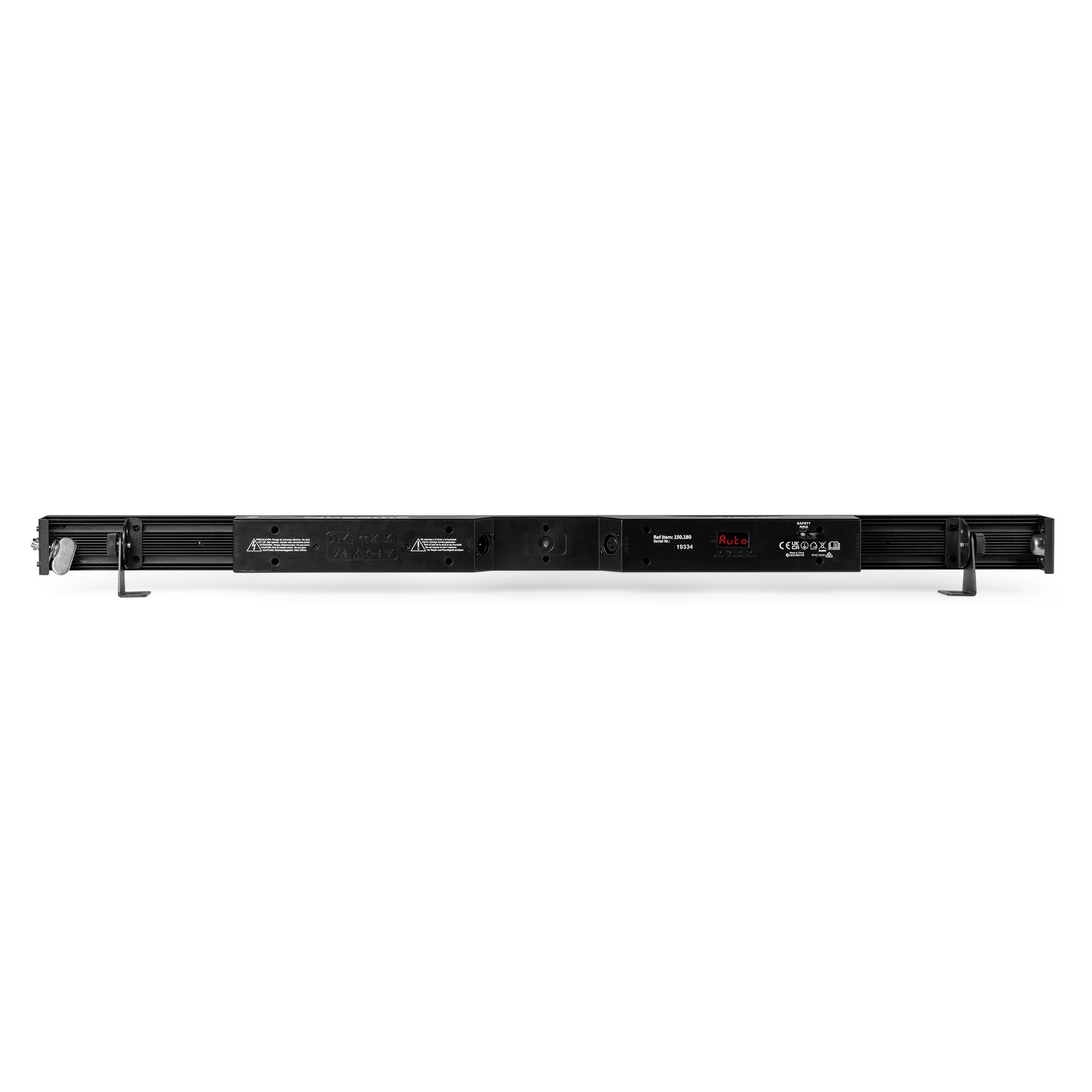

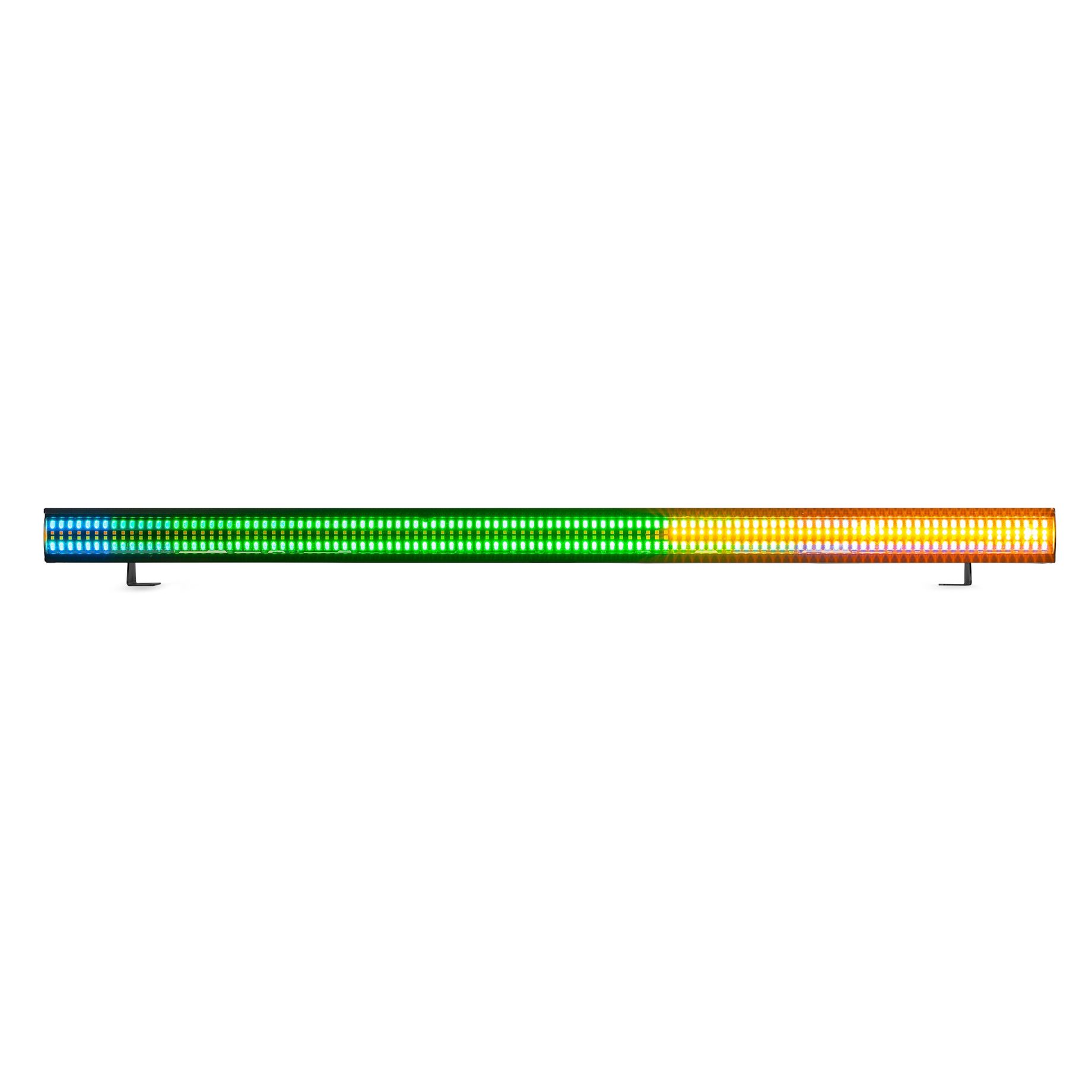

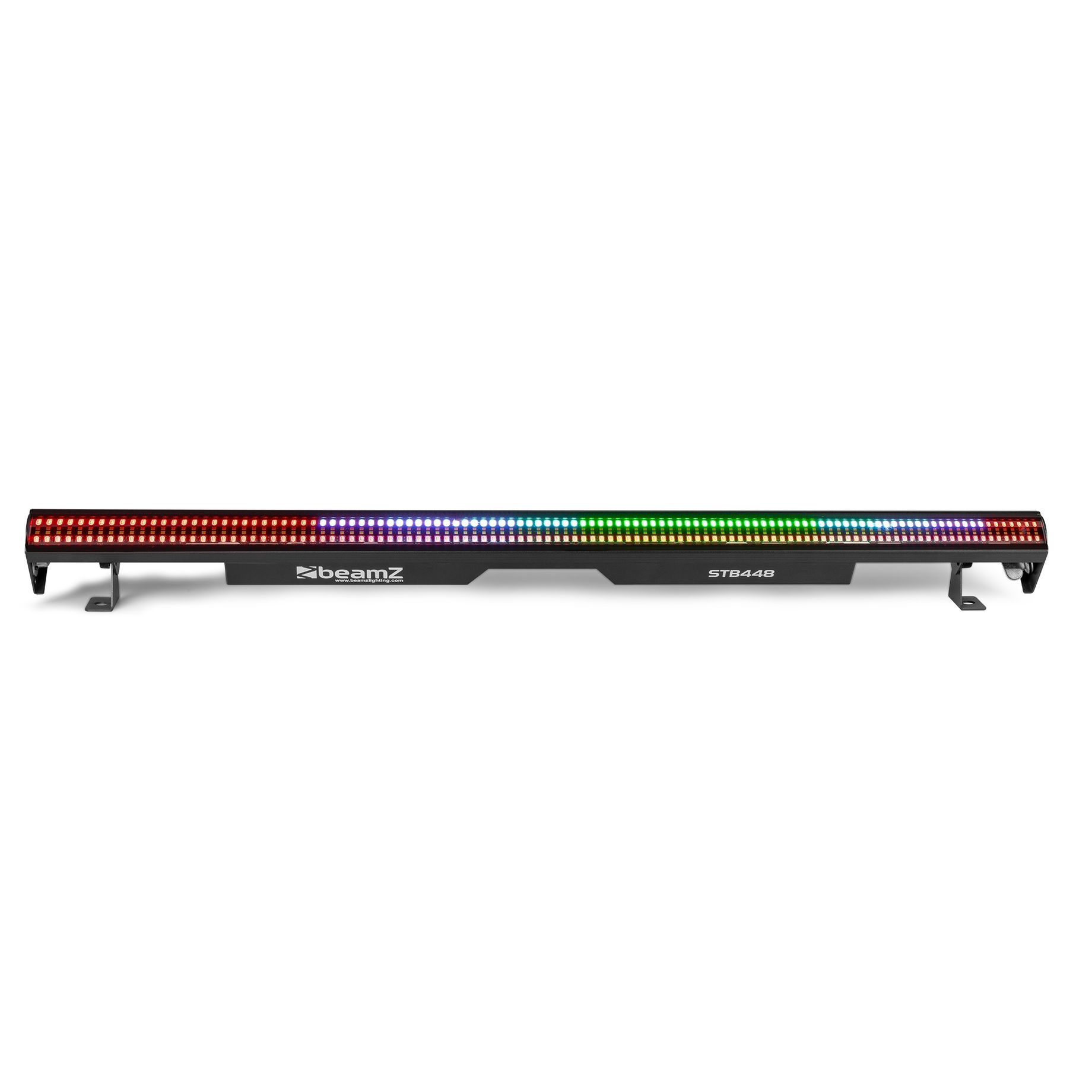

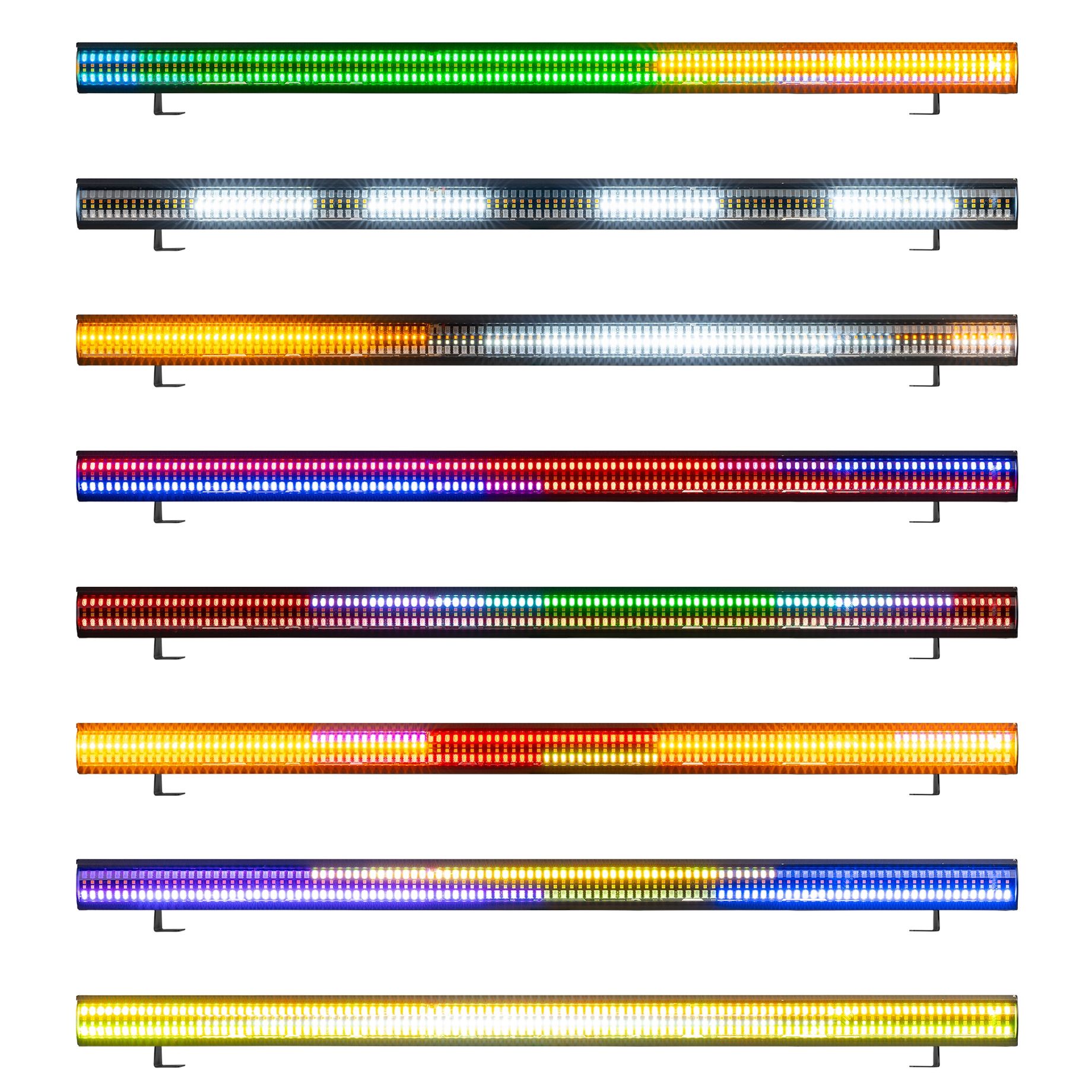

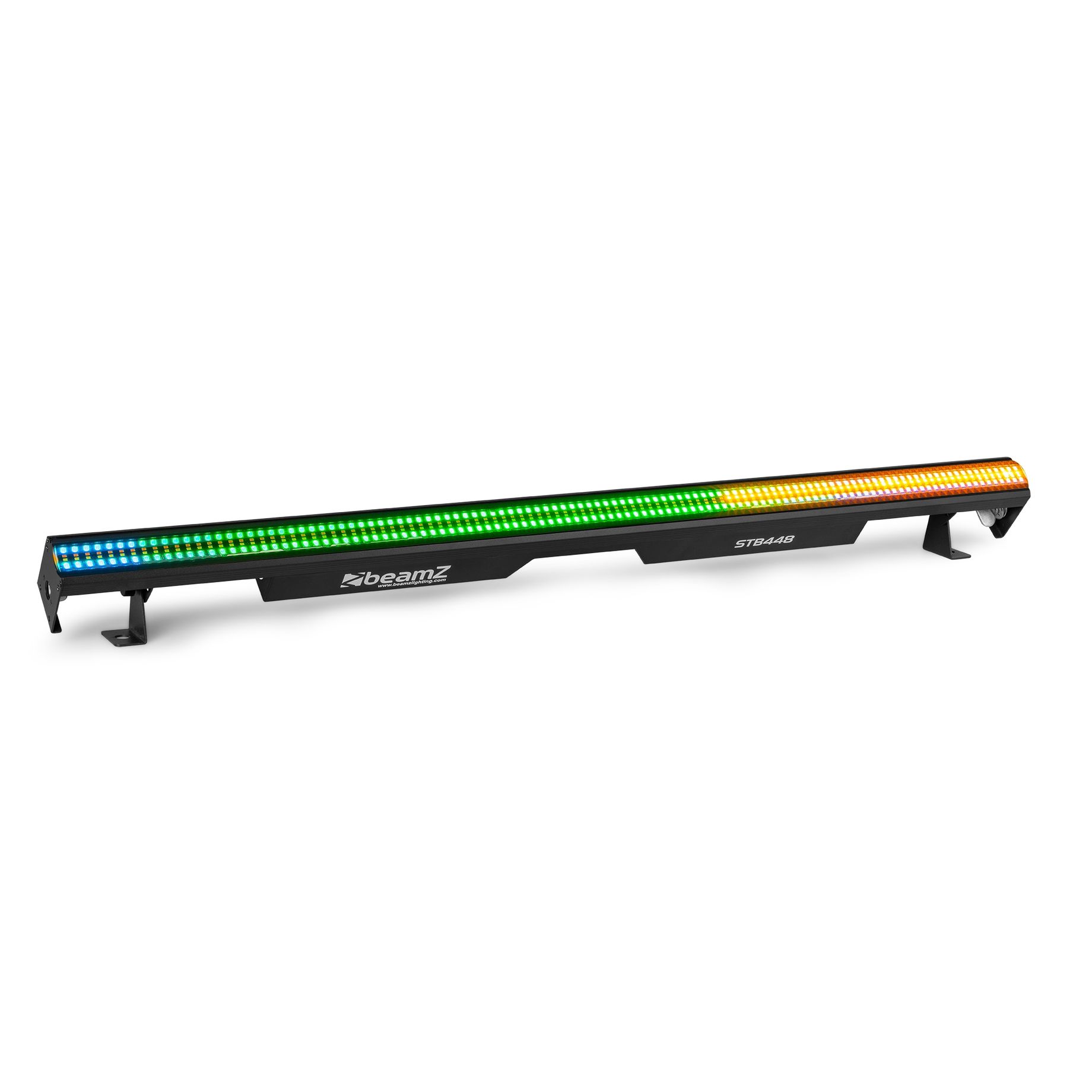

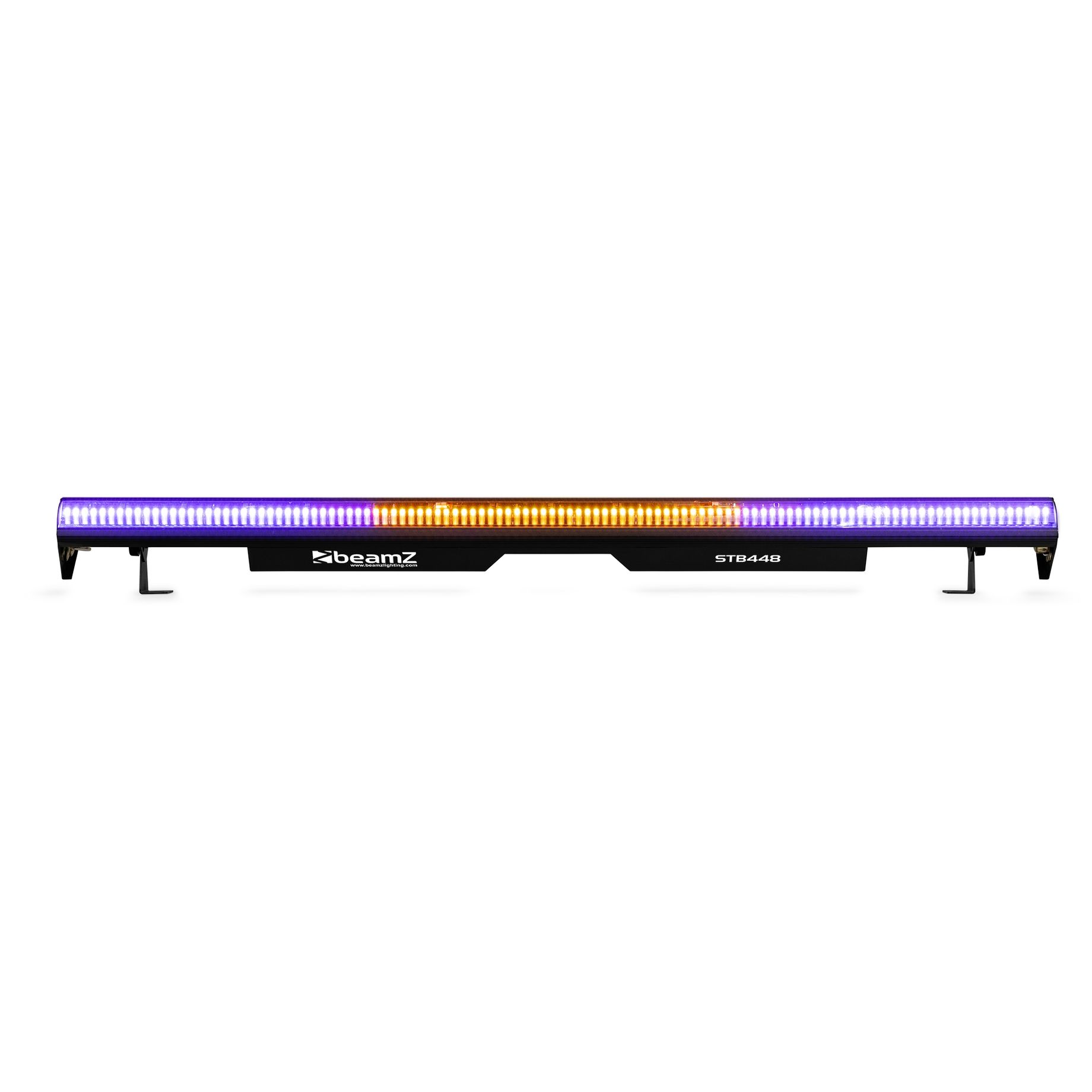

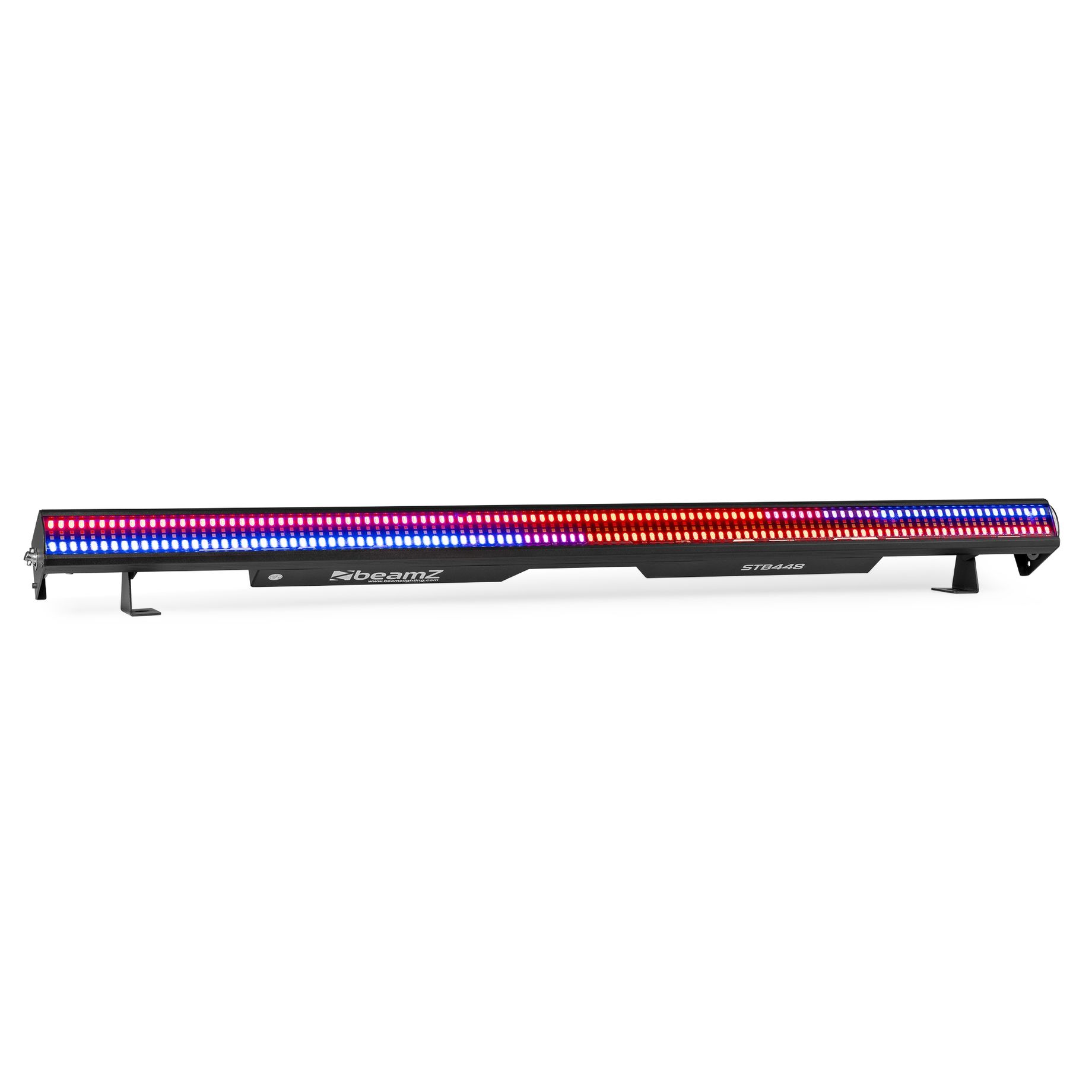

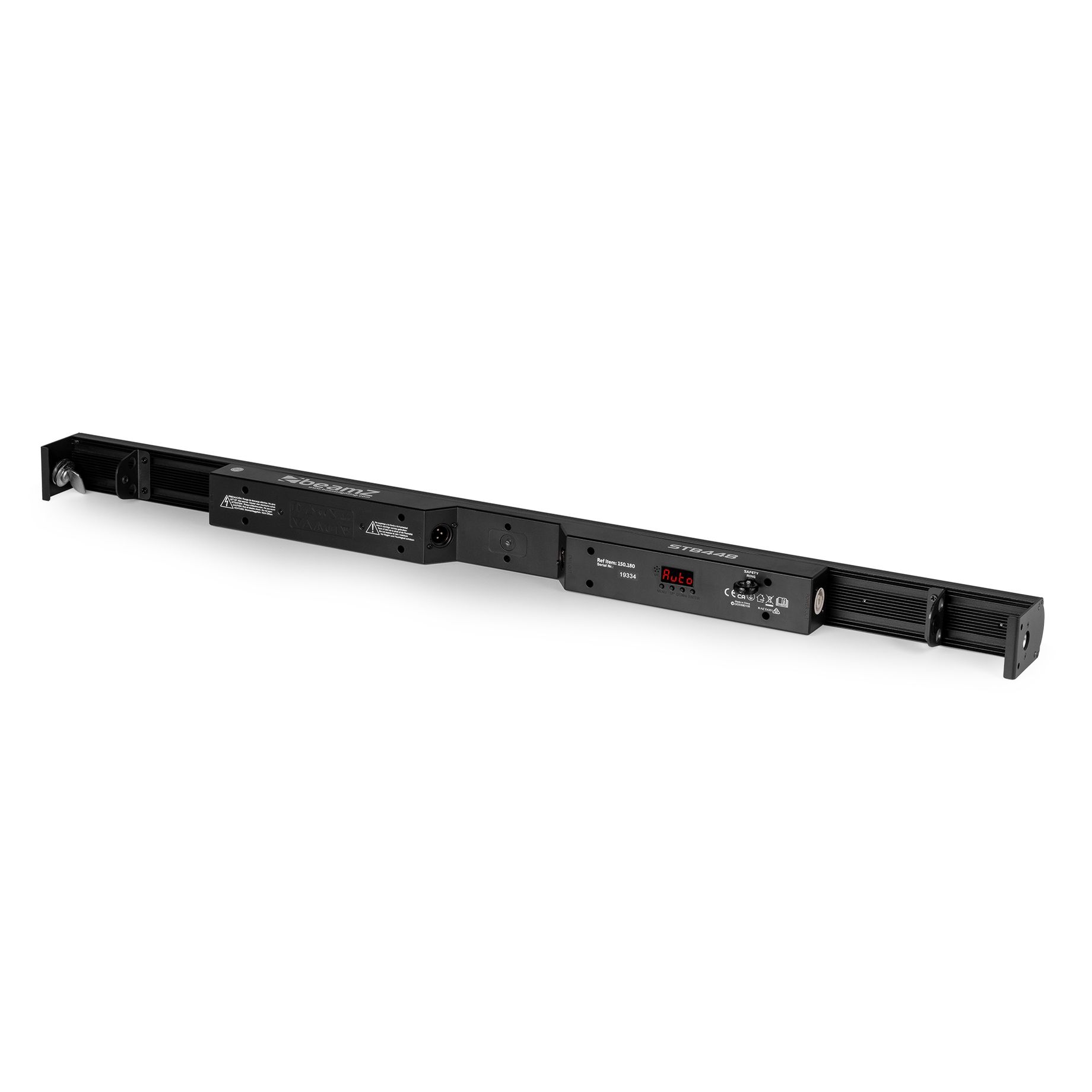

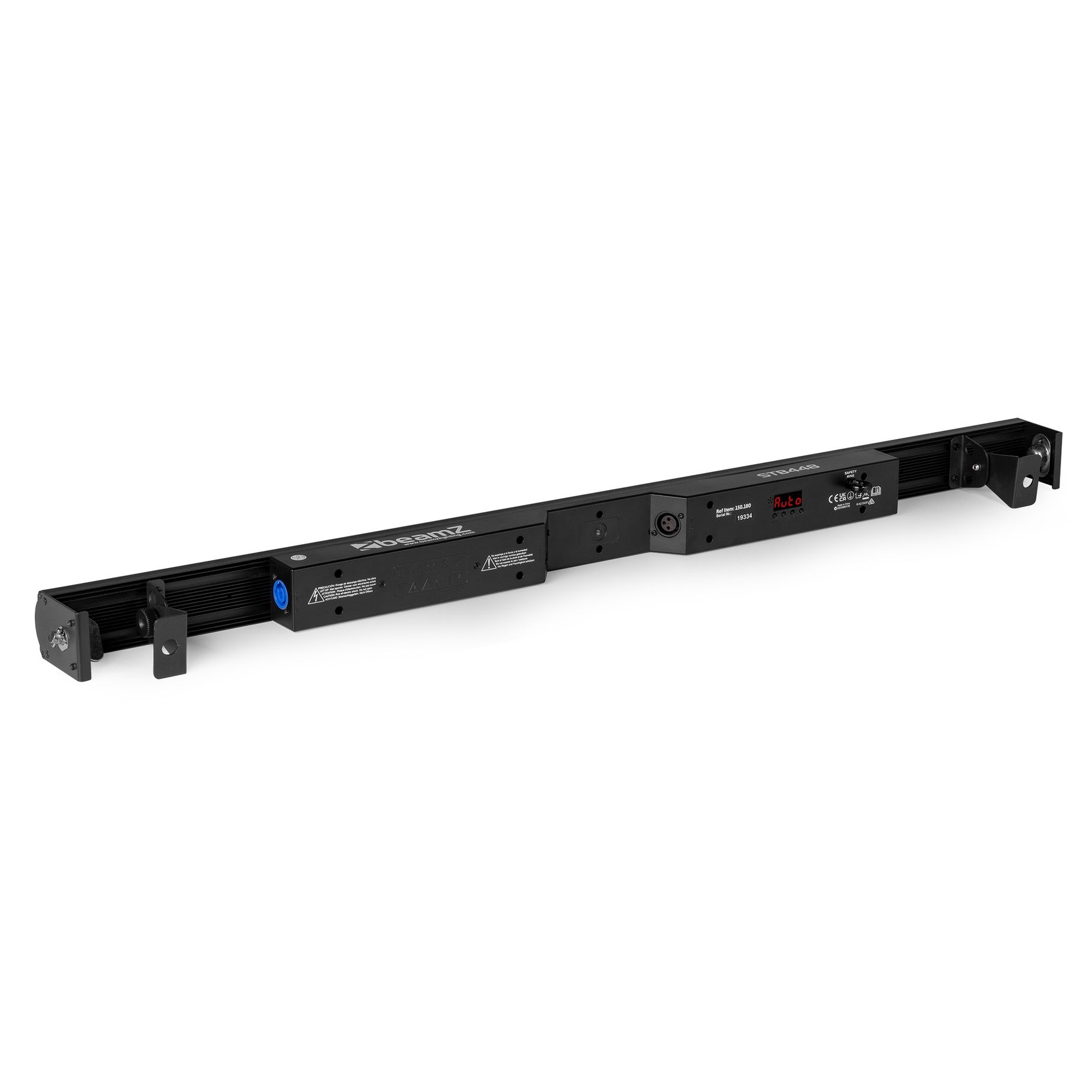

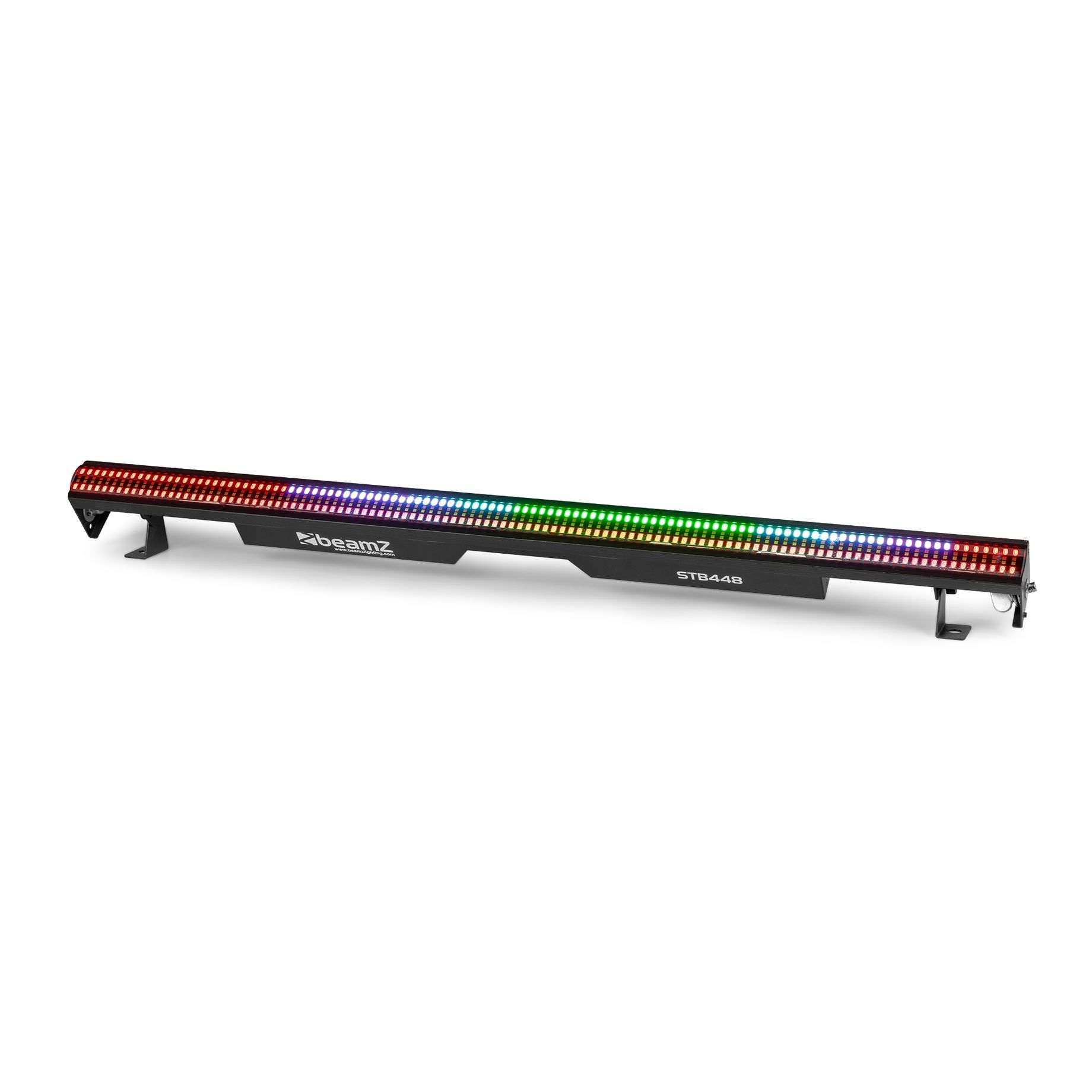

STB448
Strobe Bar RGBAW
SKU 150.180
|EAN 8715693354102
+7
All product information
Compare
STB series
Description
Highlights
- Strobe LED Bar RGBAW
- 224x SMD RGB LEDs (sections top and bottom)
- 112x SMD White LEDs and 112x Amber LEDs (sections centre)
- 4x 16 Sections controllable
- 36 Auto programs for the White & Amber sections
- 68 Auto programs for the RGB sections
- DMX and Stand-alone mode
- Master/slave function
- 3 Sound modes with adjustable sensitivity
- DMX in/output via 3-pin XLR
- P-Con Powerconnector input/output
- Control panel with LCD display
- Linkable with the quick lock coupling system
Specifications
BrandbeamZ
Product serieSTB series
ColourBlack
Light source
Light source: Wash
- 224x 0.5W RGB LED
Light source: Strobe
- 112x 0.5W Amber LED
Light source: Strobe
- 112x 0.5W Cool white LED
Illuminance5486 lx @ 1m
Optics
Beam angle
- 70°
Features
Flash Per Second1 - 23 Hz
Control
Control modesAuto programs, DMX, Master/Slave, Manual, Sound
DMX Channels7, 13, 82, 130, 135
RDMYes
DMX connector3-pin XLR
Connections
Input connections
- 1x Power - Powerconnector (A)
- 1x DMX - 3-pin XLR (M)
Output connections
- 1x Power - Powerconnector (B)
- 1x DMX - 3-pin XLR (F)
Hardware features
Display typeLCD
CoolingConvection
Environmental
IP ratingIP20
Electrical
Power Supply100-240VAC 50/60Hz
Mechanical
Dimensions
- 1000 x 55 x 100 mm (W x D x H)
Weight
- 2.15 kg
Accessories

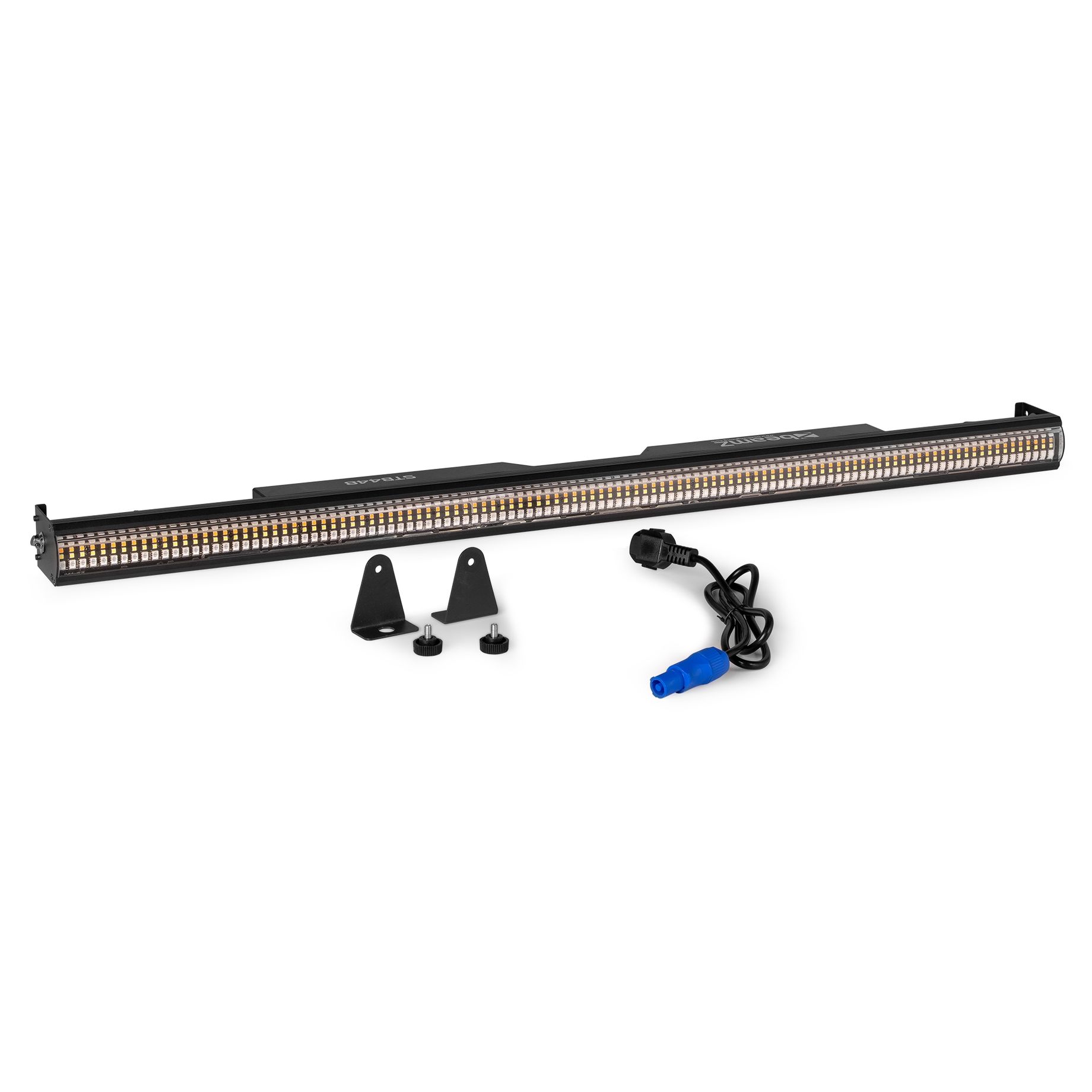

Included Accessories
- Mounting bracket
- Power cable
