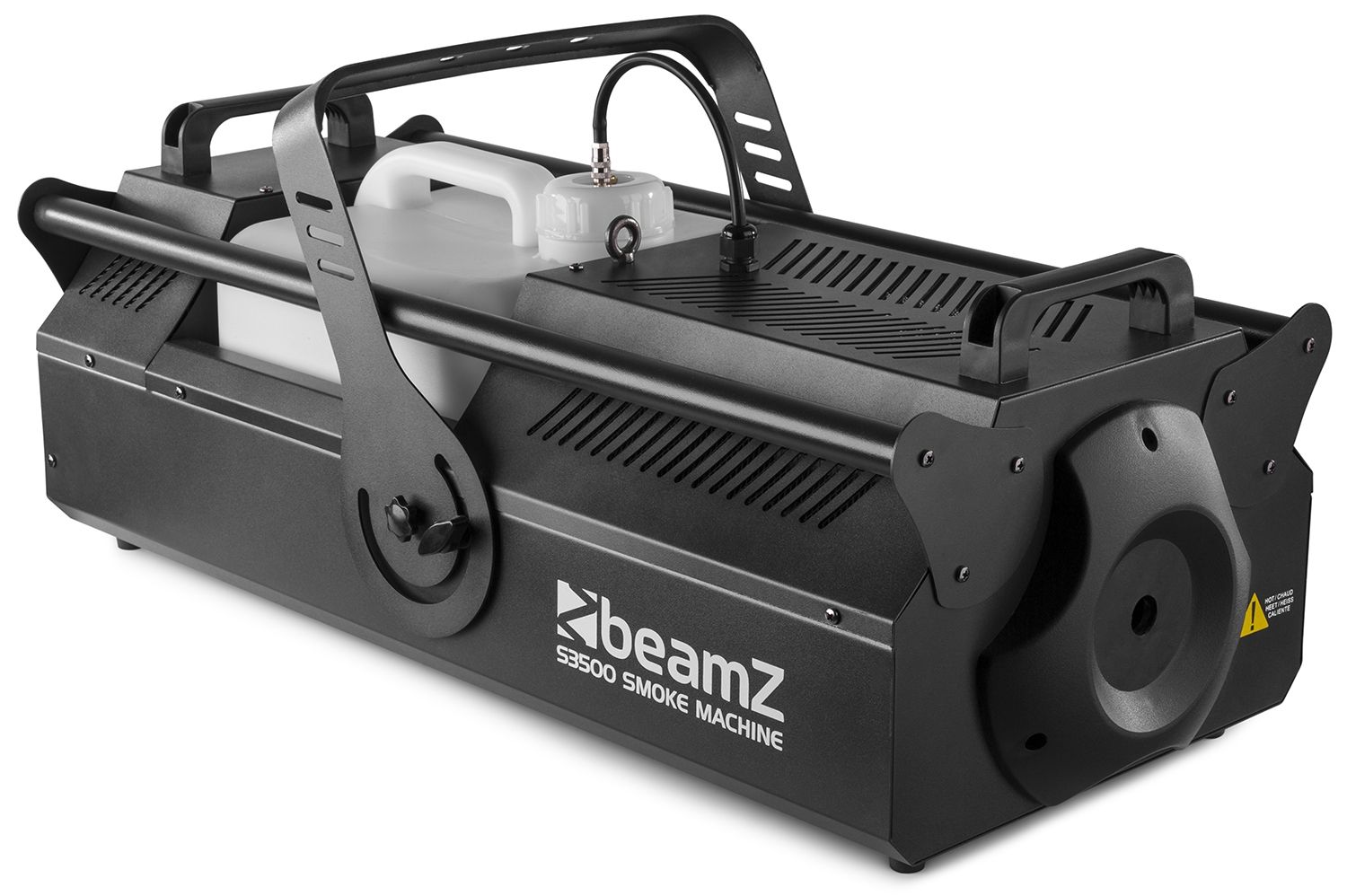

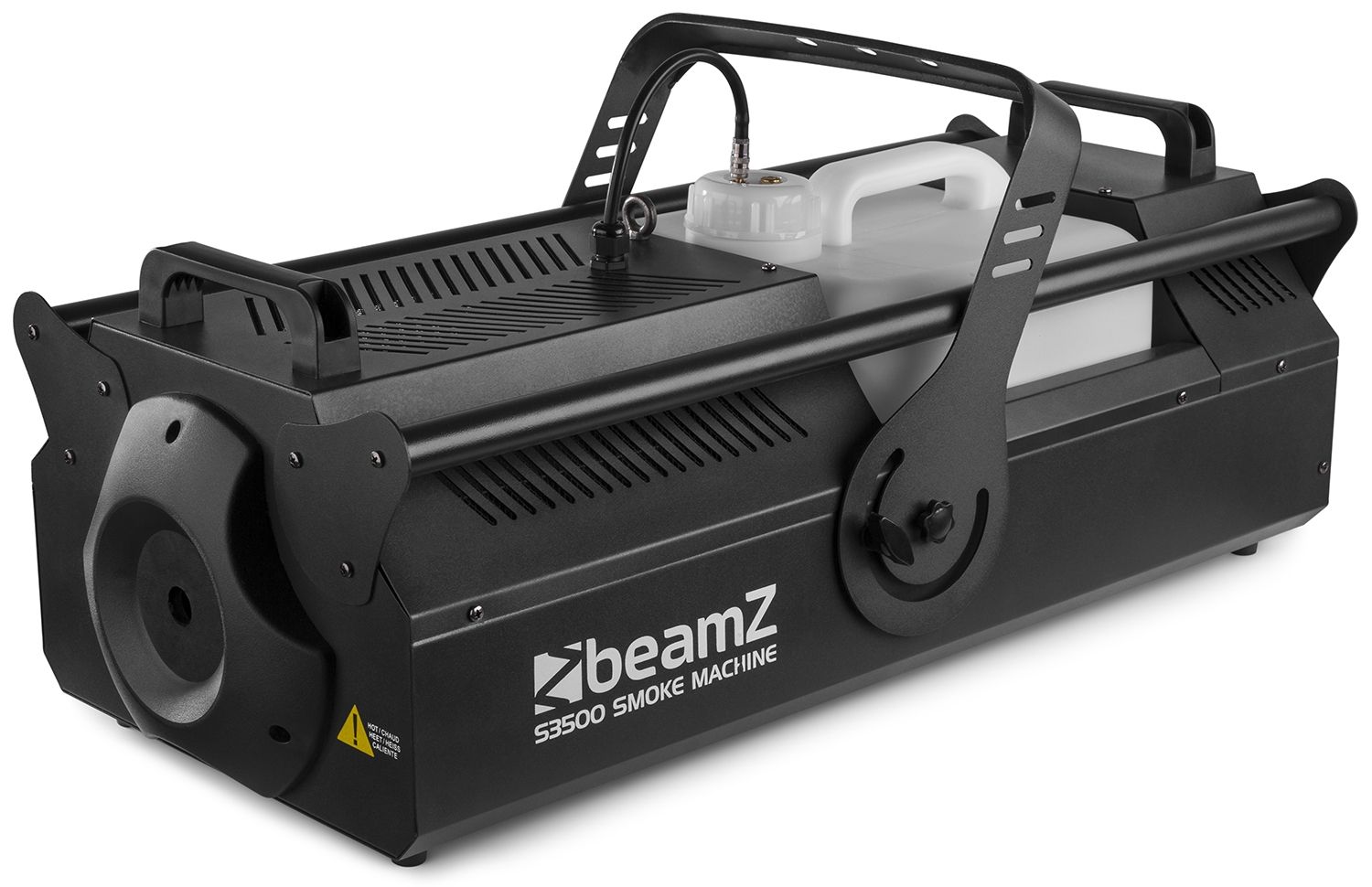

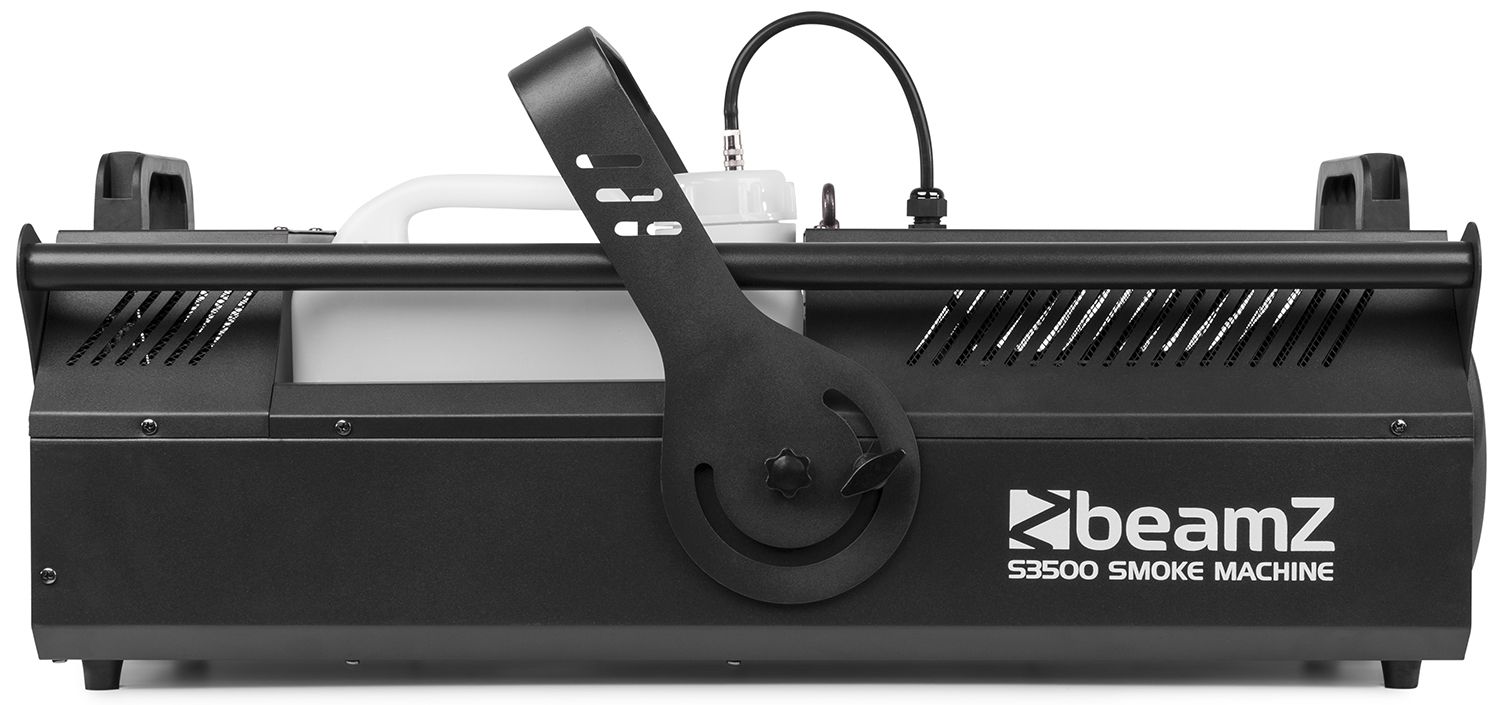

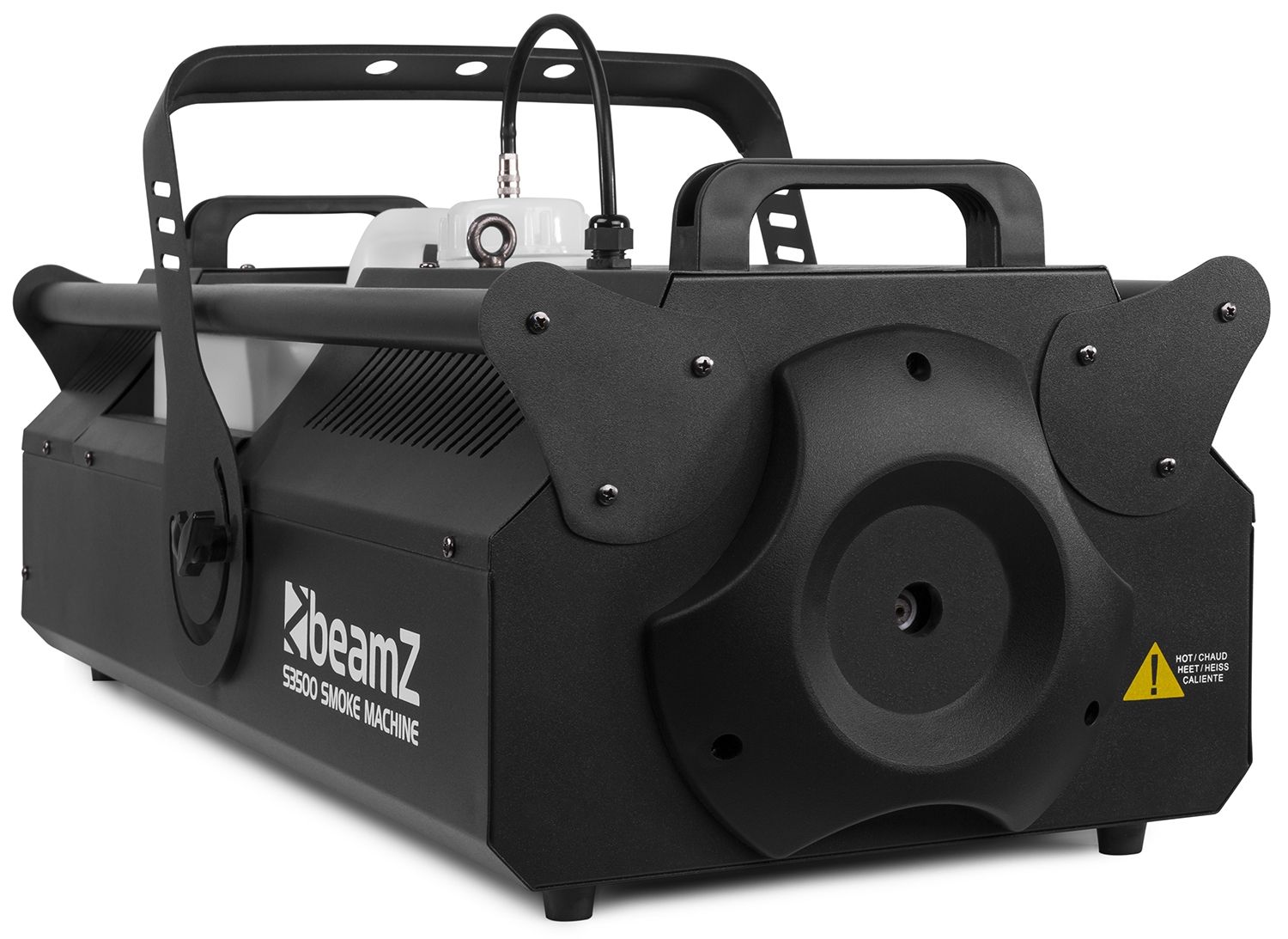

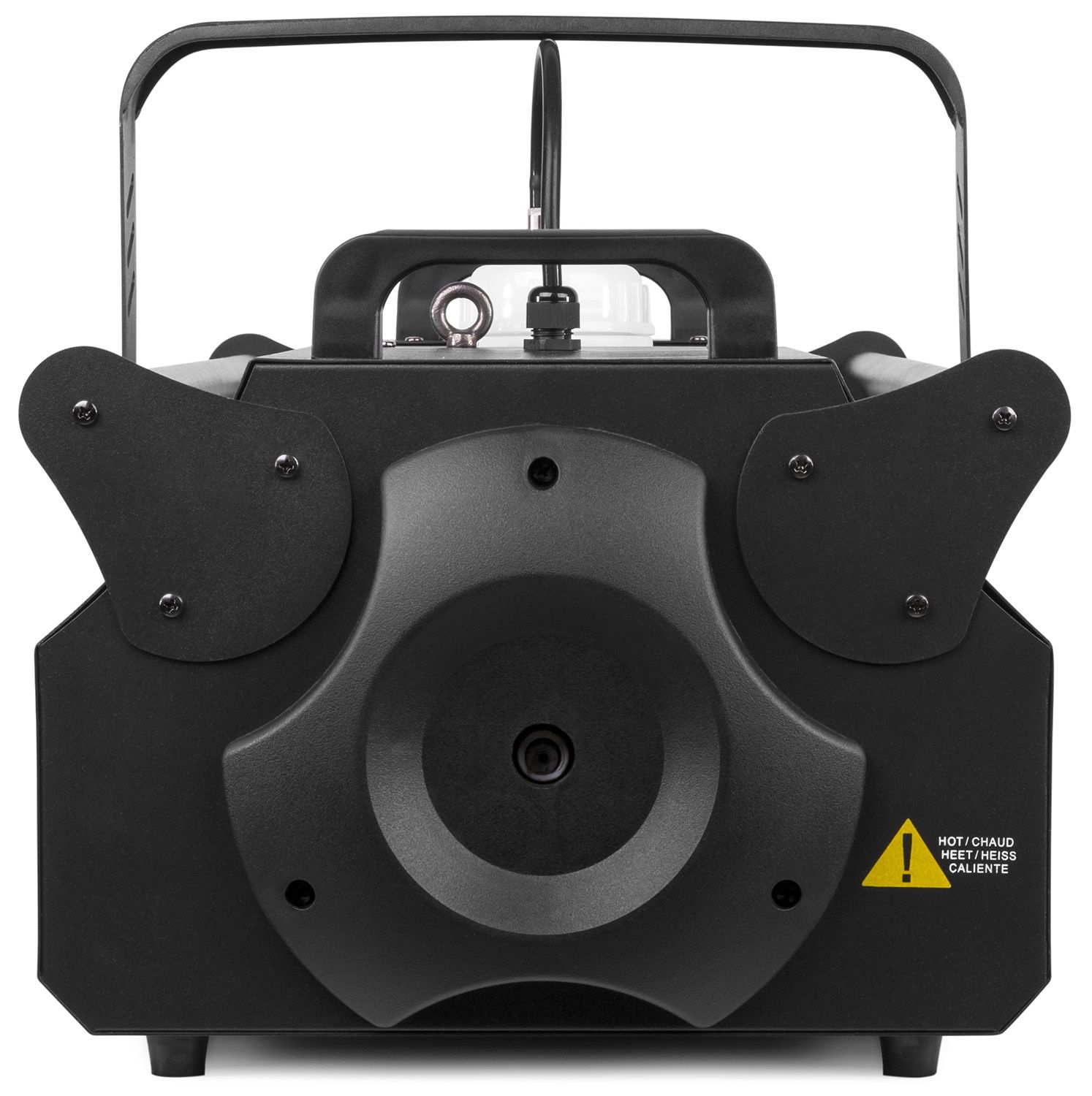

S3500
Smoke Machine DMX
SKU 160.498
|EAN 8715693303513
+6
All product information
Compare
S series
Description
Highlights
- 3500W DMX controlled smoke machine

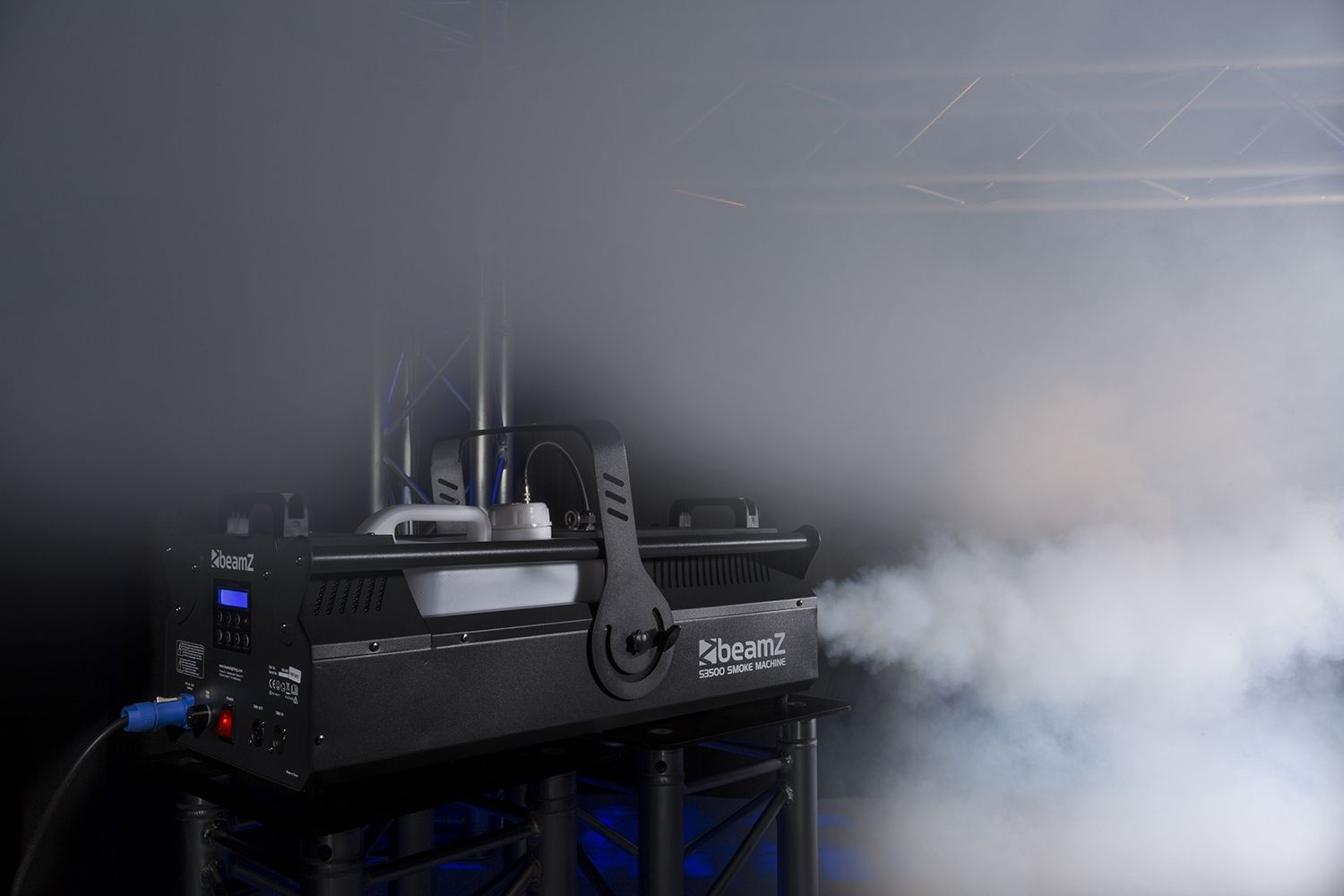

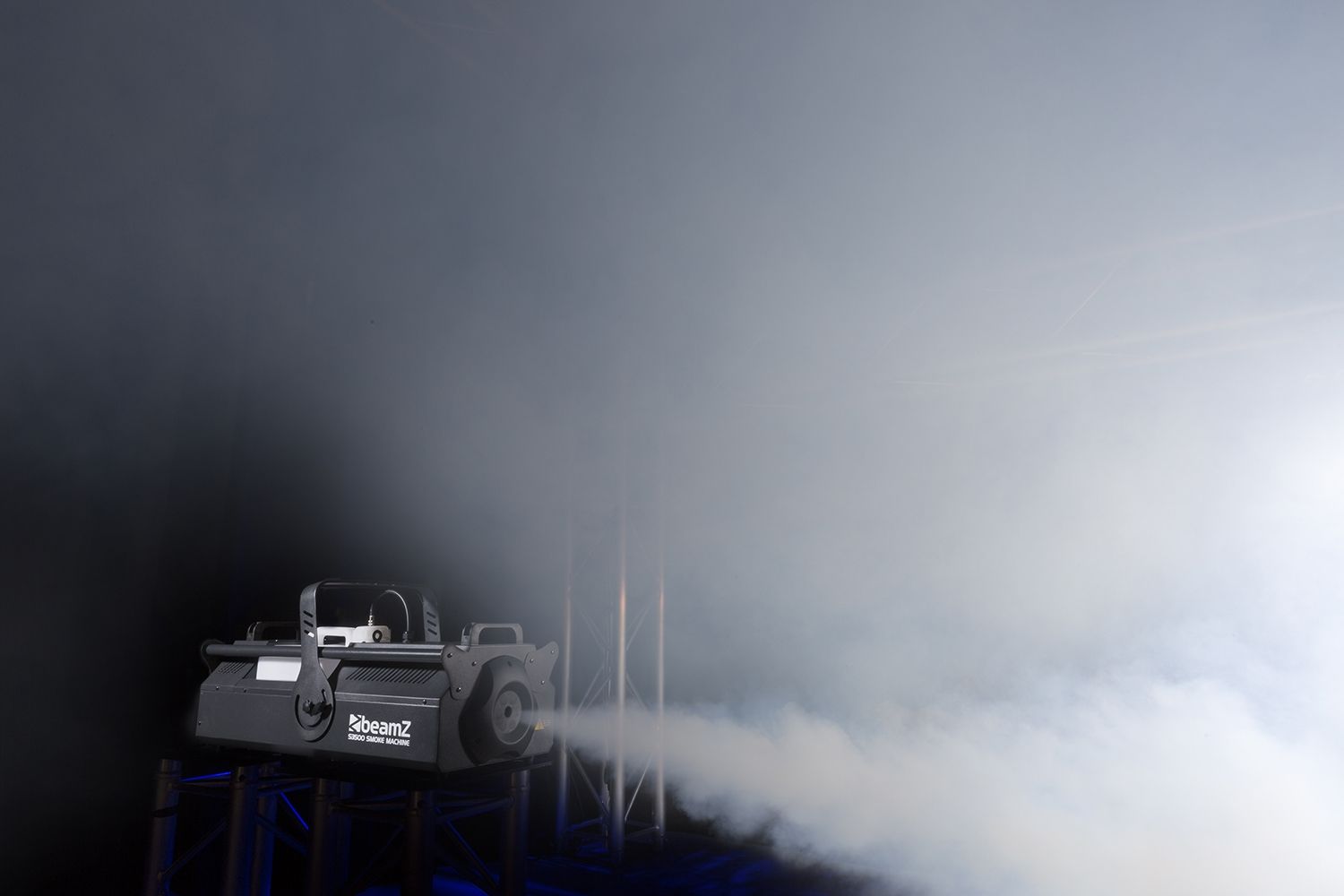

- High smoke output
- Control panel with LCD display
- Variable smoke output for subtle effects
- Maximum smoke operating time at full output: 25 seconds
- Coverage volume: 1217 m3 (42,955 ft3) per minute
- Fluid consumption (max.): 210 ml per minute
- Ready time cold start: 6-minutes (approx.)
- Ready time: 1.5-minutes (approx.)

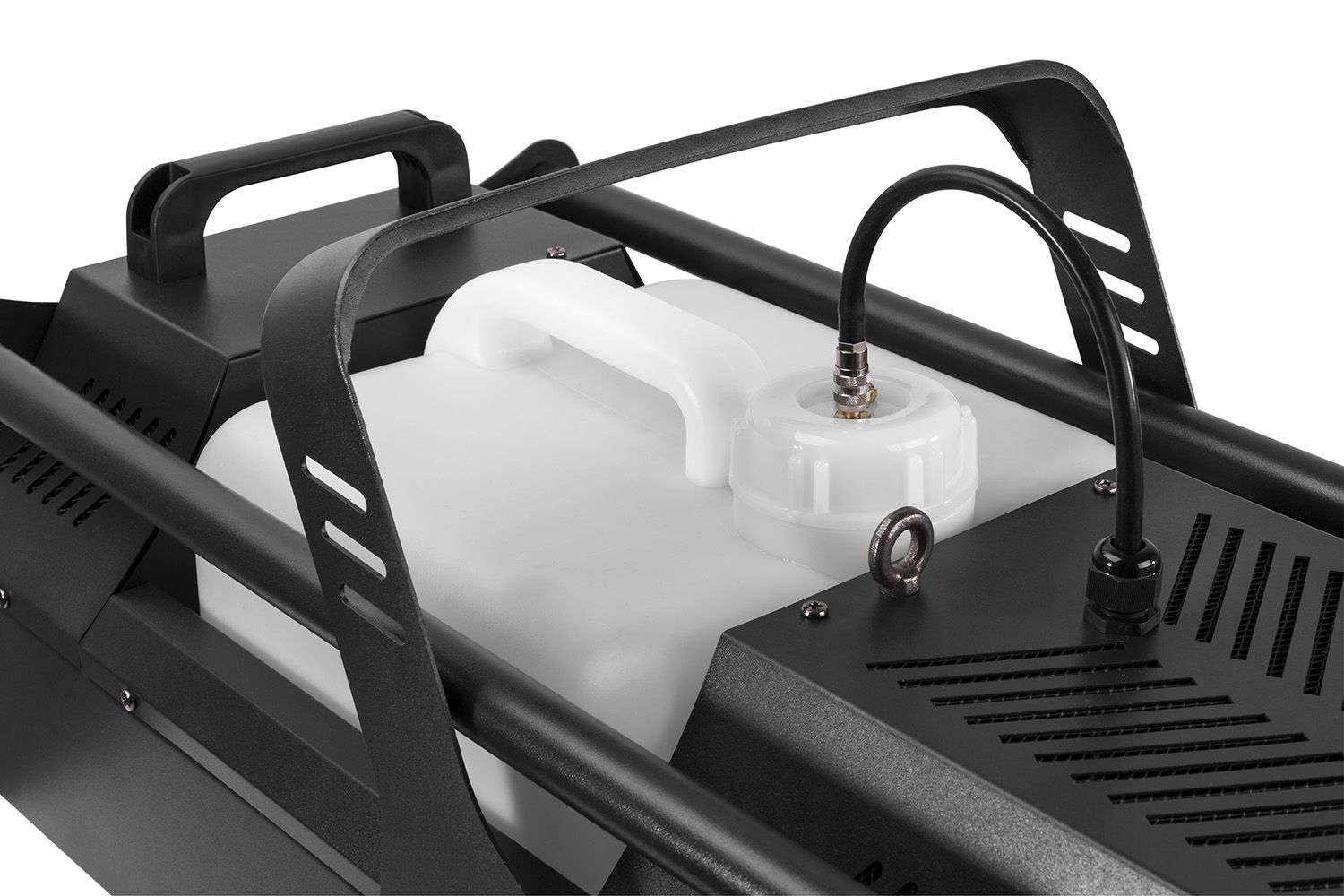

- 5 liter internal tank removable
- Mounting bracket and carrying handles

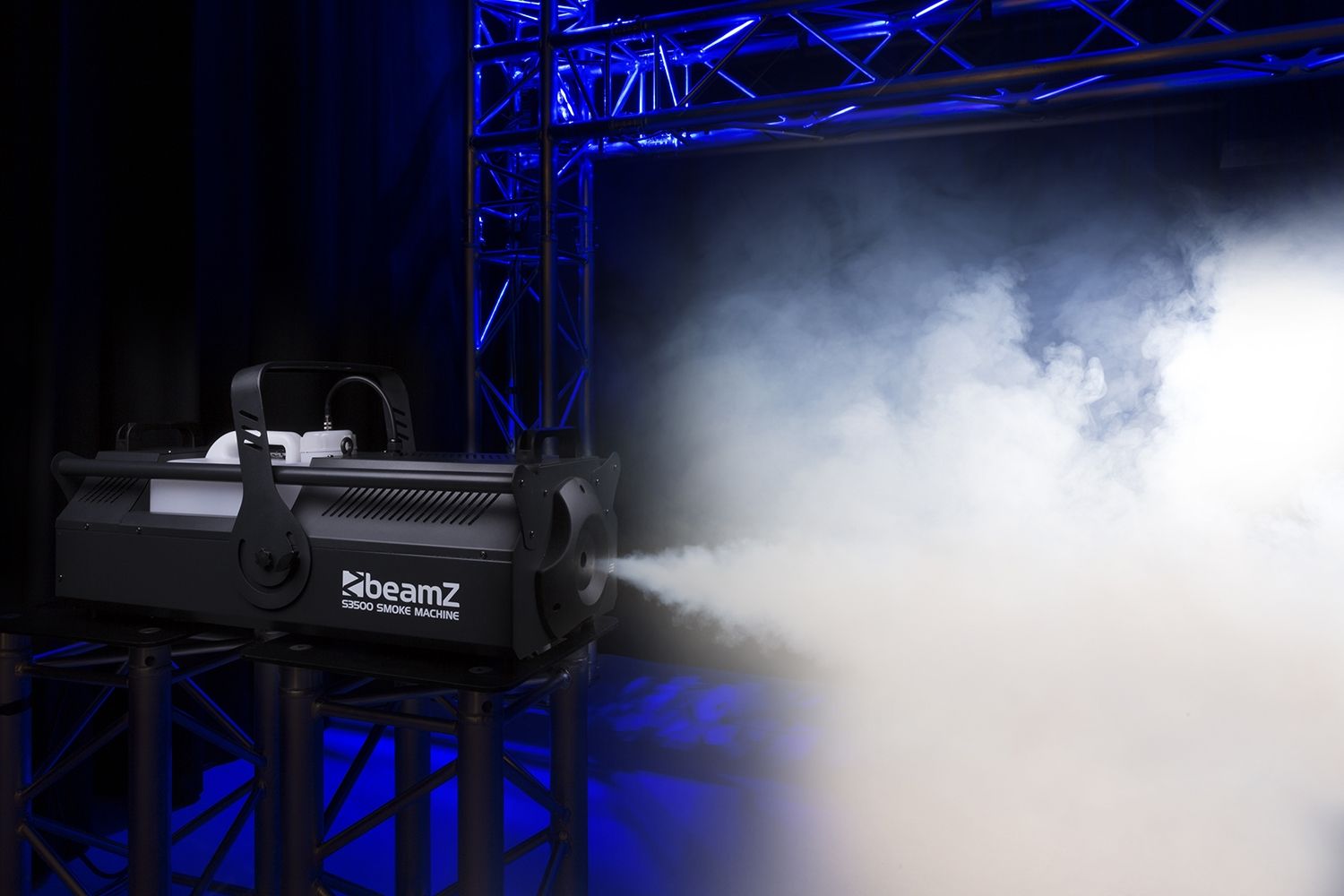

- Floor standing or truss mounting
- Heavy duty construction
- Including wireless control (on/off)
Specifications
BrandbeamZ
Product serieS series
ColourBlack
TypeSmoke
Heating element3500 W
Initial Heat-up Time6 minutes
Re-heat Time1 minutes
Output volume per minute1200 m3
Tank Capacity5l
Features
FeaturesDMX control, Remote control (wireless)
Control
Control modesDMX, Manual
DMX Channels1
DMX connector3-pin XLR

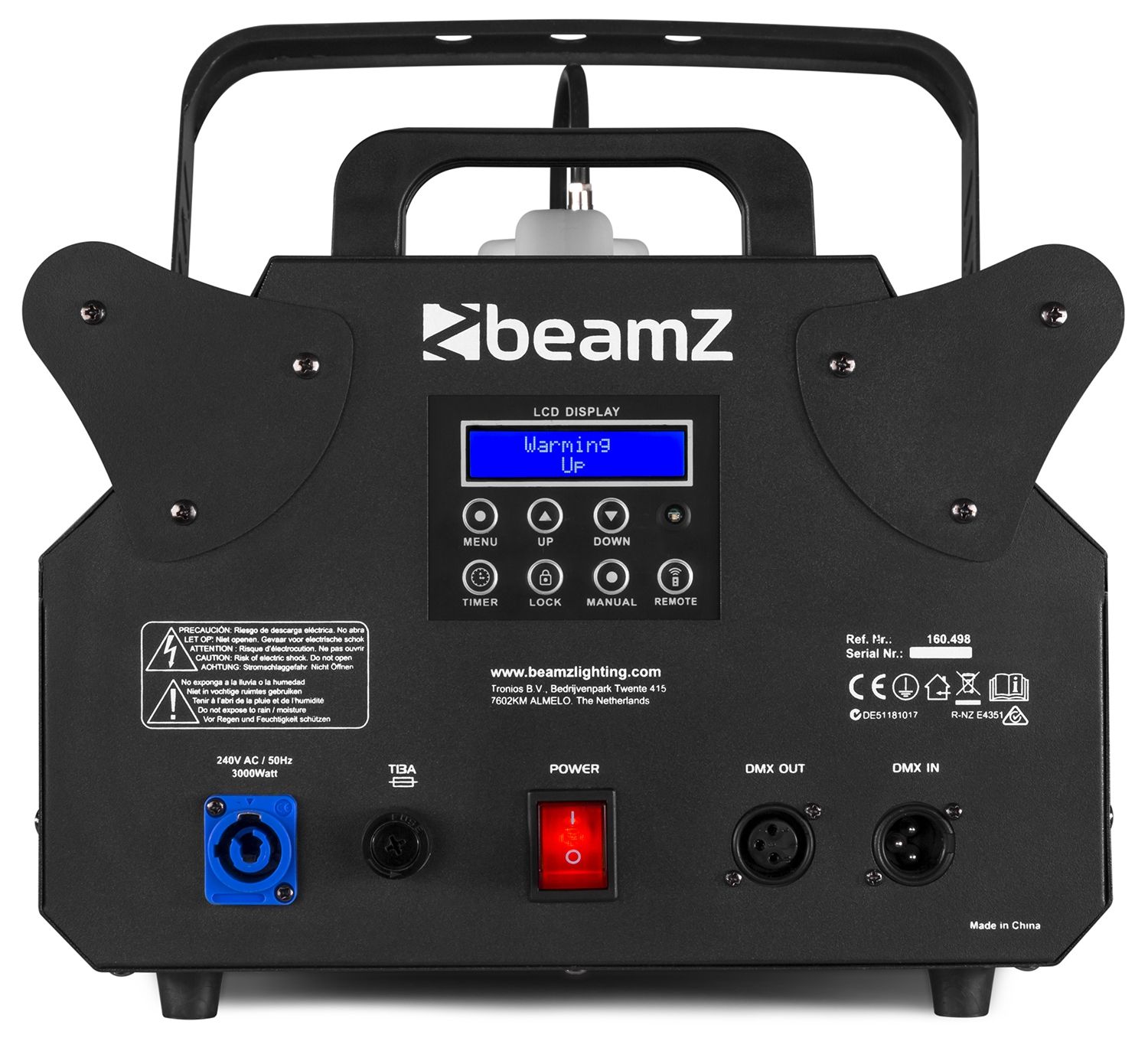

Connections
Input connections
- 1x Power - Powerconnector (A)
- 1x DMX - 3-pin XLR (M)
Output connections
- 1x DMX - 3-pin XLR (F)
Electrical
Power Supply220-240VAC 50Hz
Mechanical
Dimensions
- 660 x 310 x 310 mm (W x D x H)
Weight
- 12.8 kg
Accessories
Included Accessories
- Mounting bracket
- Power cable
- Remote control (wireless)
Manuals & Documents
Manual
PDF
Manual
PDF
