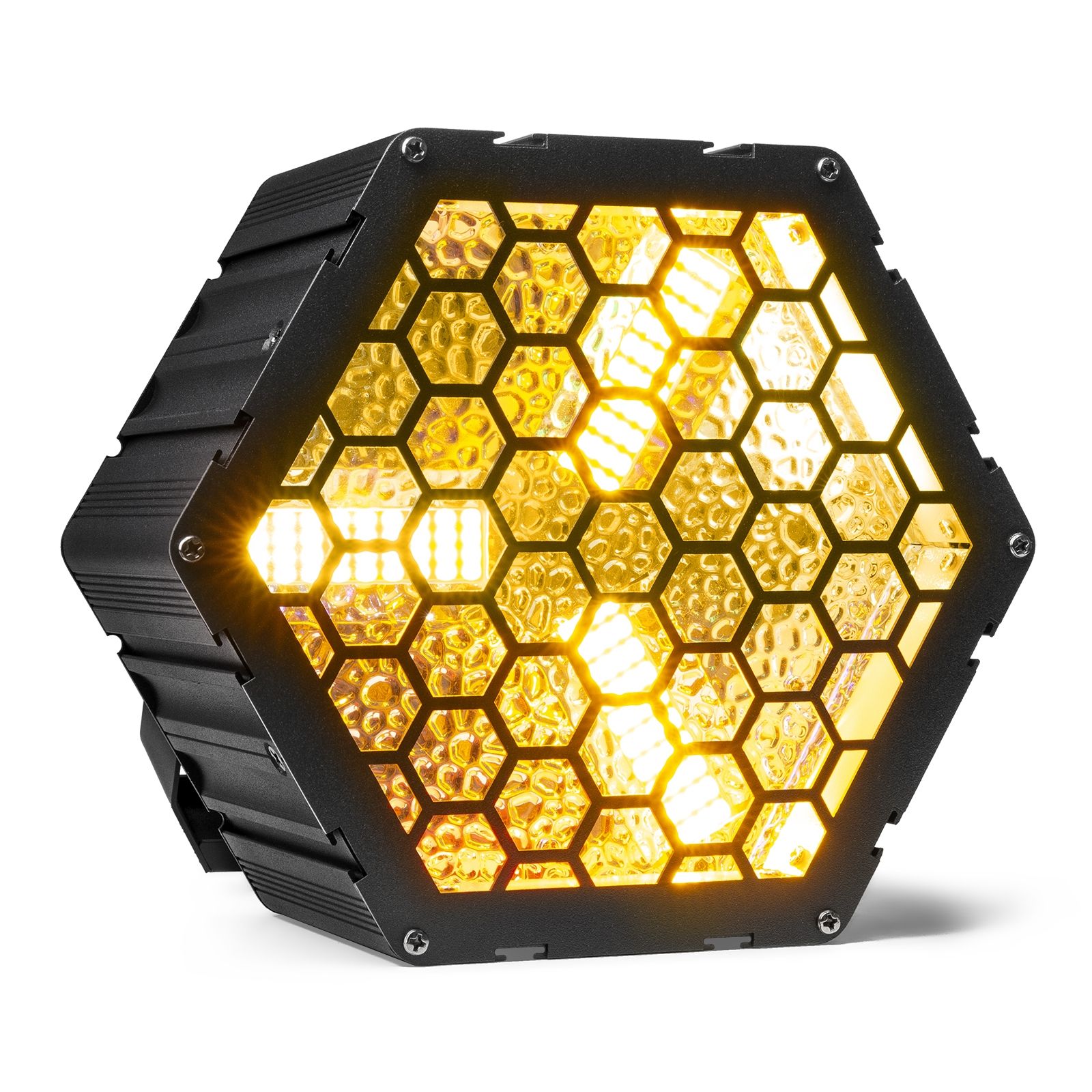

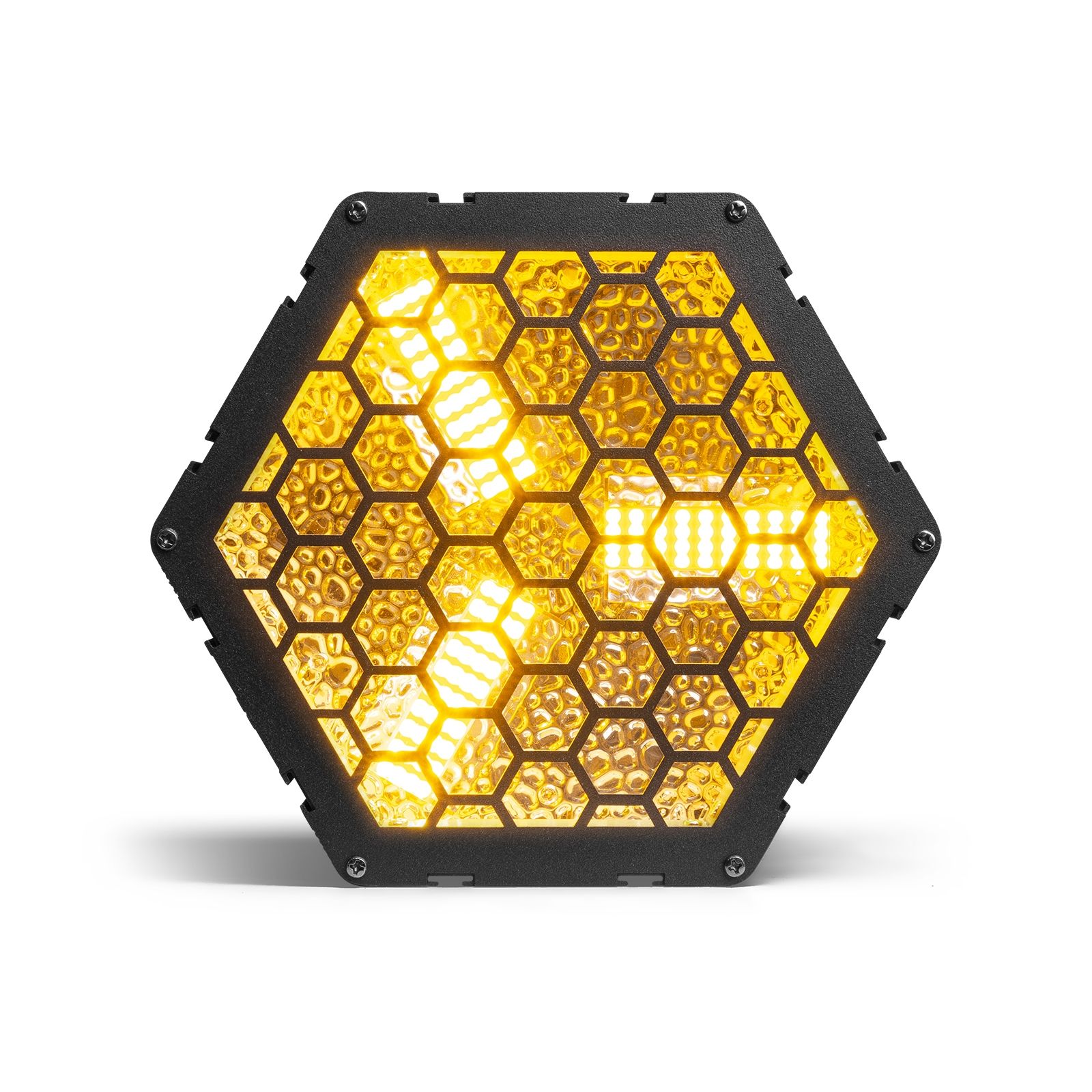

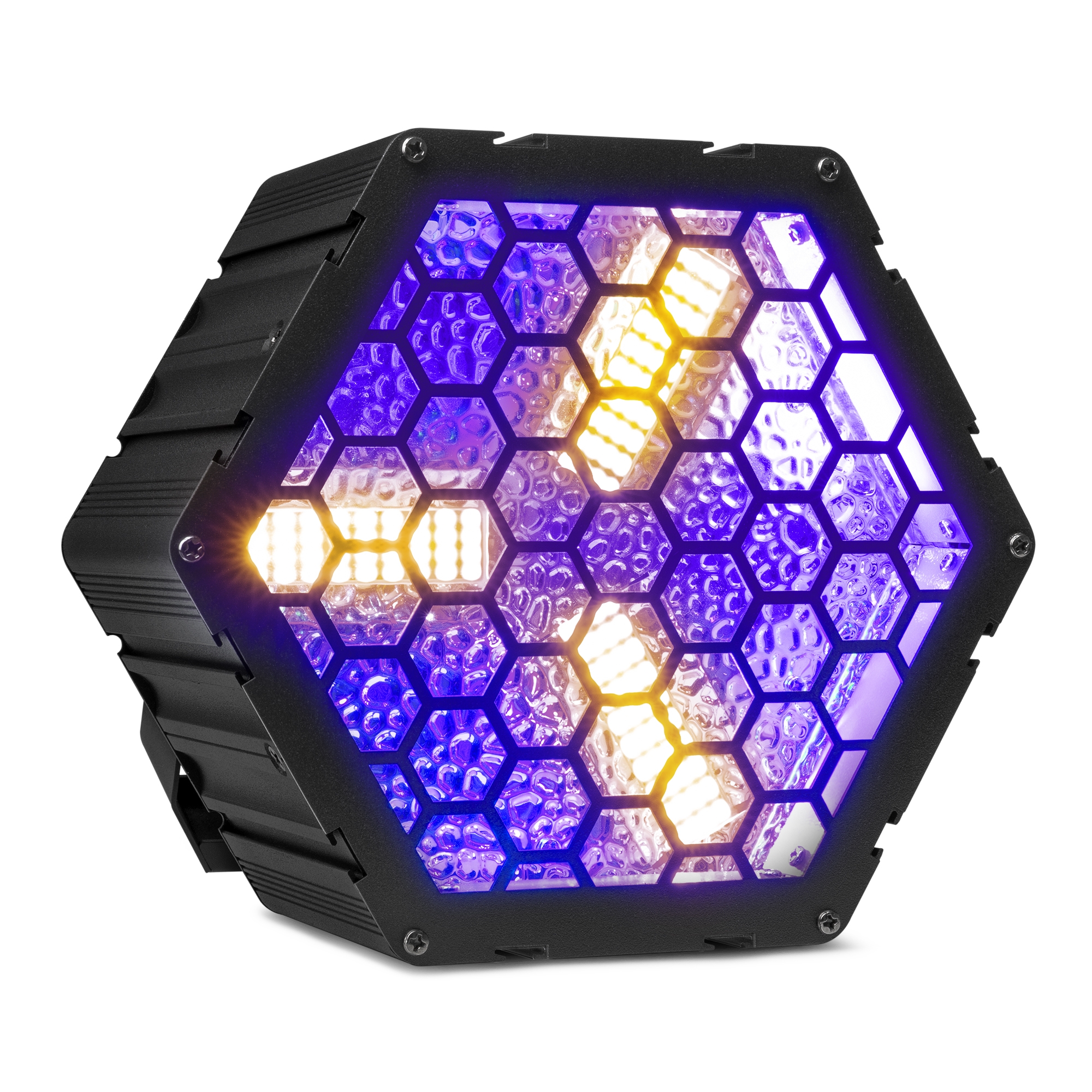

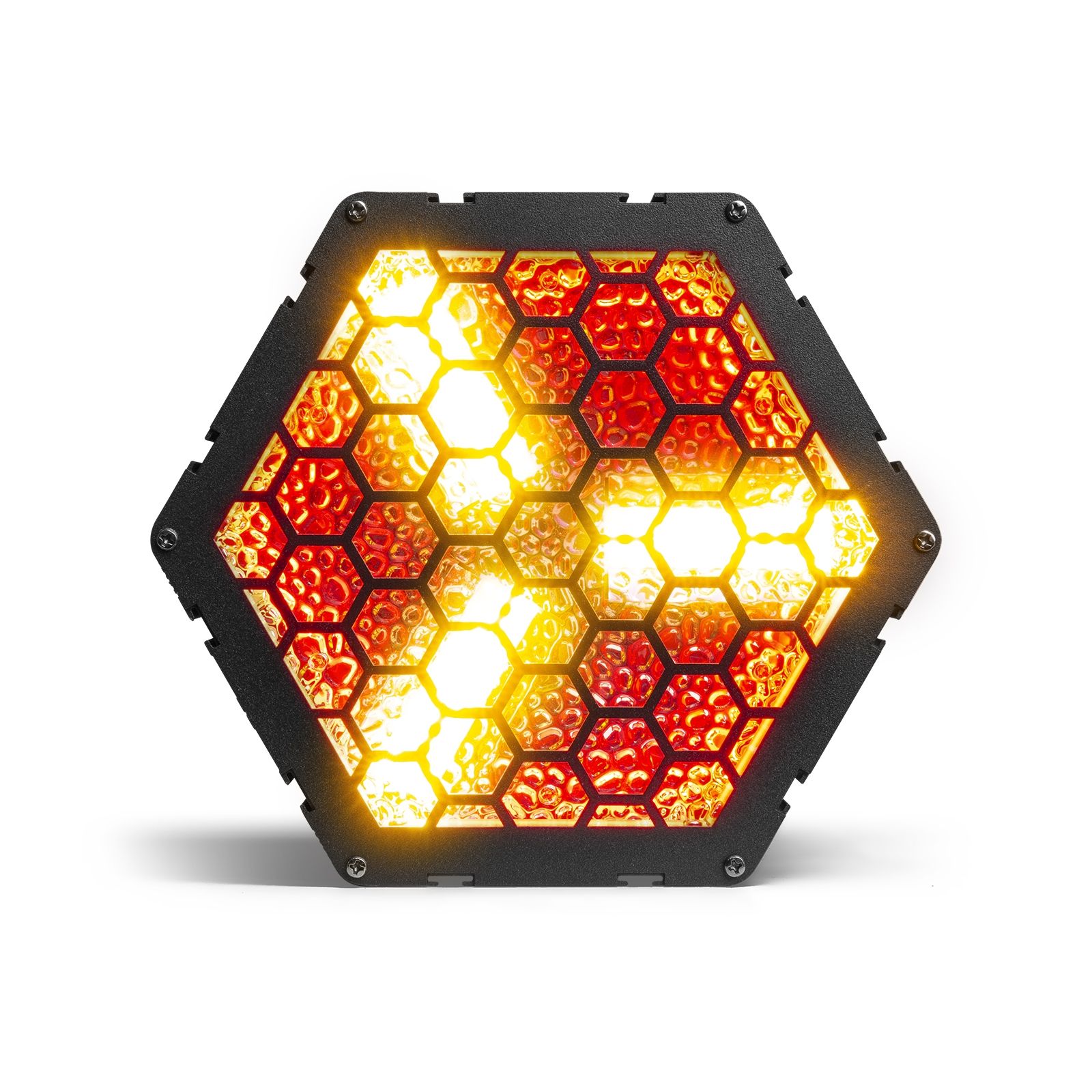

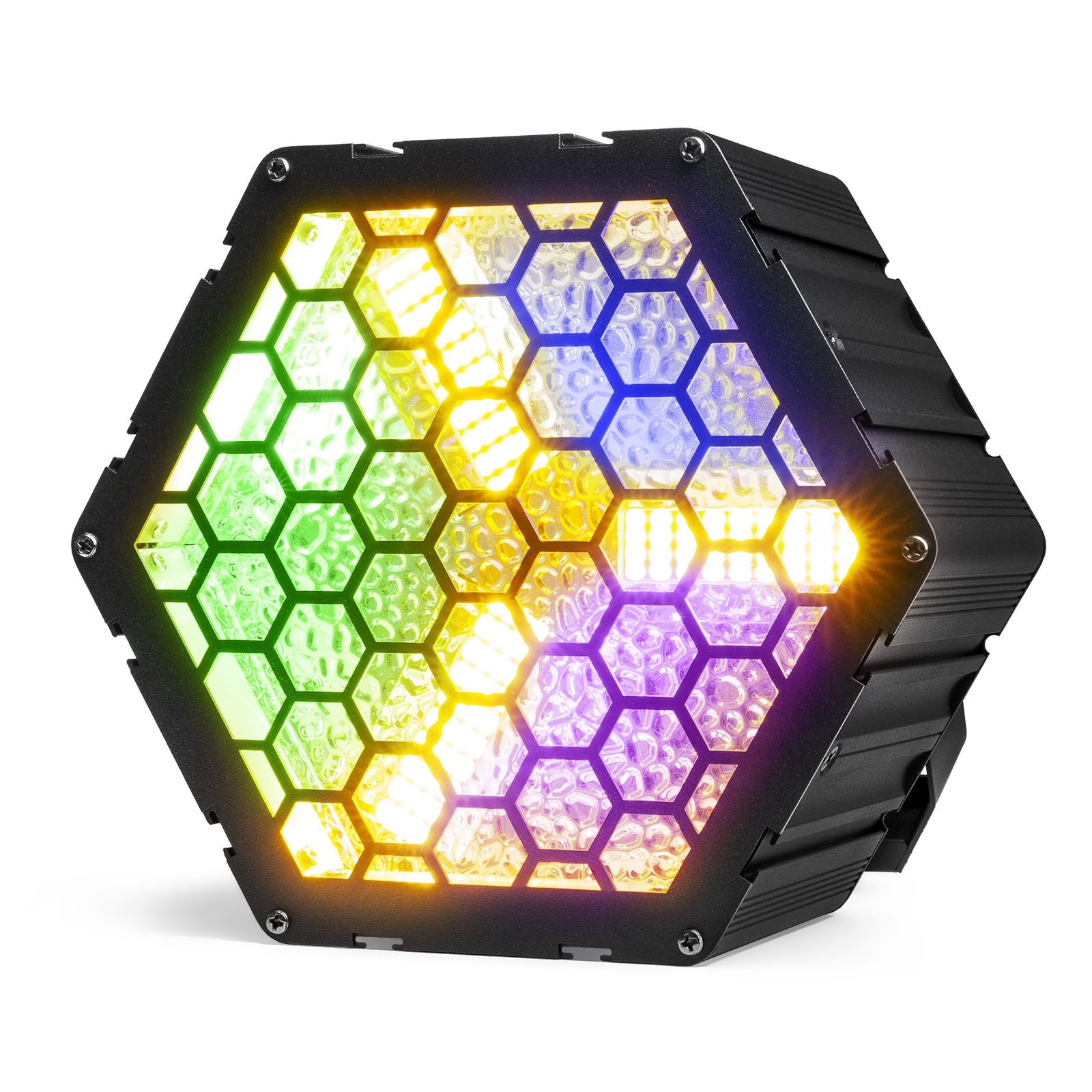

RB90-5
Deco Retro Blinder
SKU 151.521
|EAN 8715693350968
+10
All product information
Compare
RB series
Description
Highlights
- Deco vintage blinder with high power LEDs
- 3x 30W Amber LEDs (2200k)
- 72x 0.5W SMD RGB LEDs (background effects)
- DMX and Stand-alone mode
- Sound activated with adjustable sensitivity
- Pre-programmed shows
- Effect mode with 127 effects and adjustable speed
- Control panel with LED display
- 100% Linear dimming
- 5-pin DMX input/output connections
- PowerConnector power input/output connections

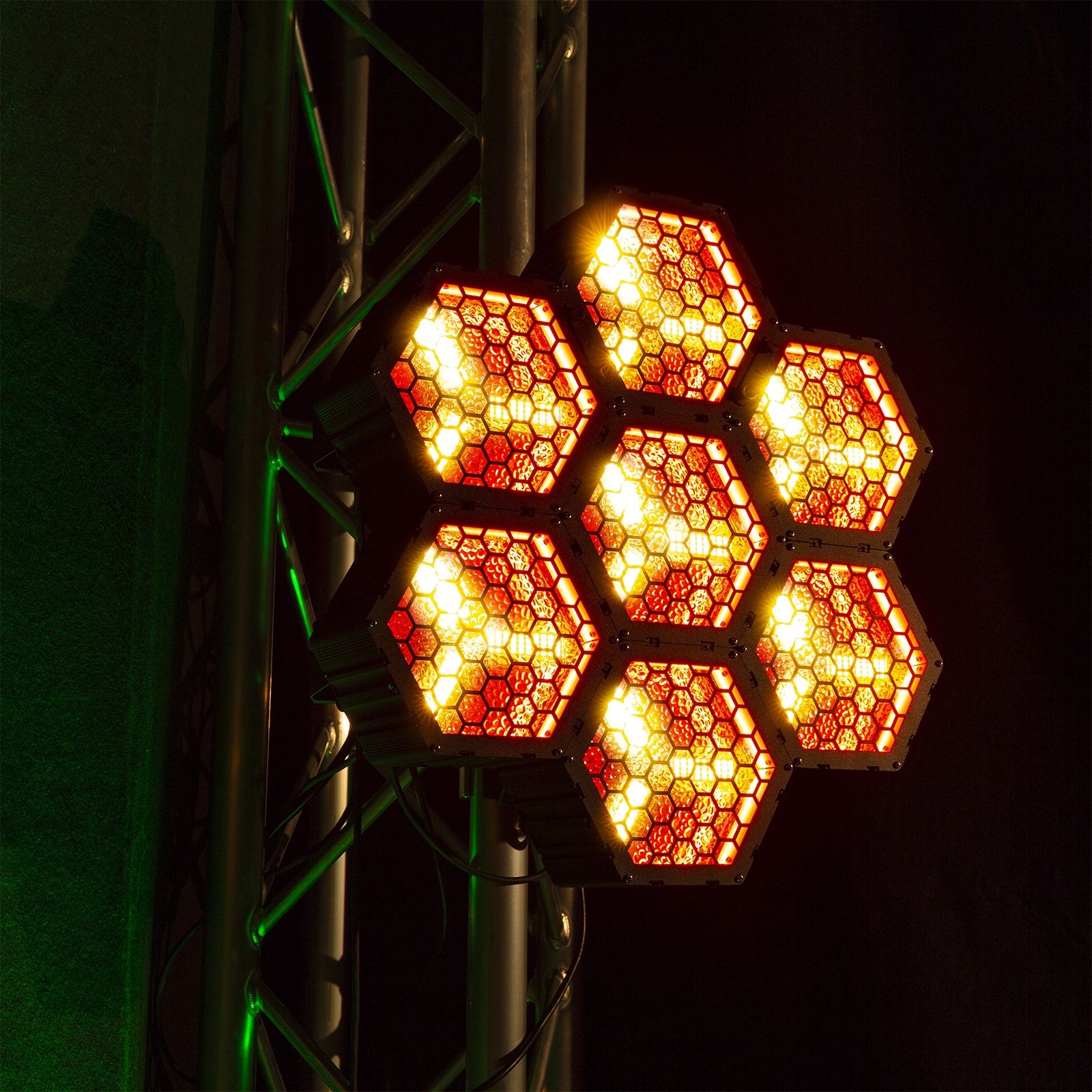

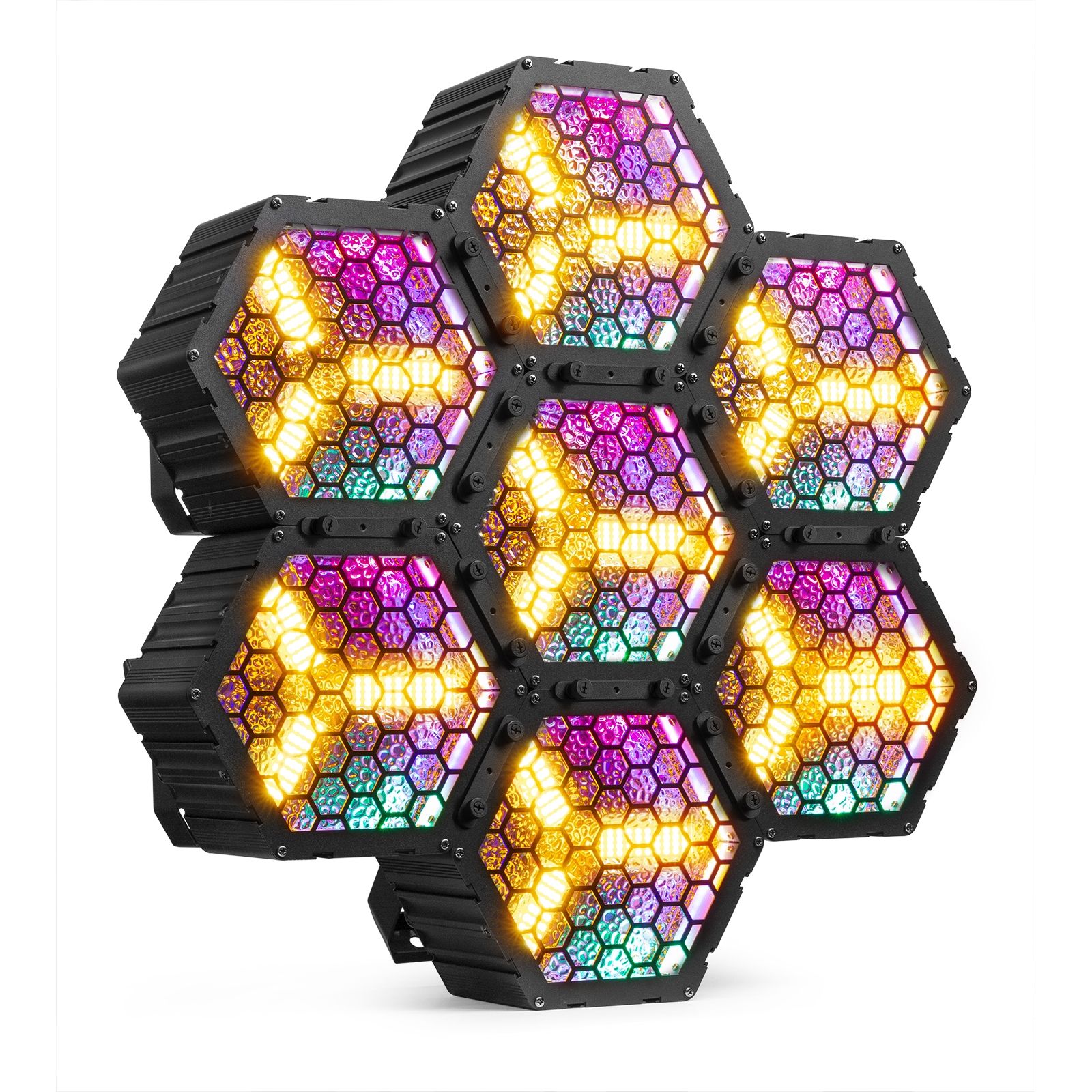

- Linkable with the supplied coupling set
Specifications
BrandbeamZ
Product serieRB series
ColourBlack
Light source
Light source: Blinder
- 3x 30W RGBA LED
Light source: Aura Effect Ring
- 72x 0.5W RGB SMD LED
Colour Temperature1,414 K
Illuminance 12.145 lx @ 0.5m
Optics
Beam angle
- 50°
Features
Flash Per Second1 - 25 Hz
Control
Control modesAuto programs, DMX, Master/Slave, Manual, Sound
DMX Channels16, 34
RDMNo
DMX connector5-pin XLR

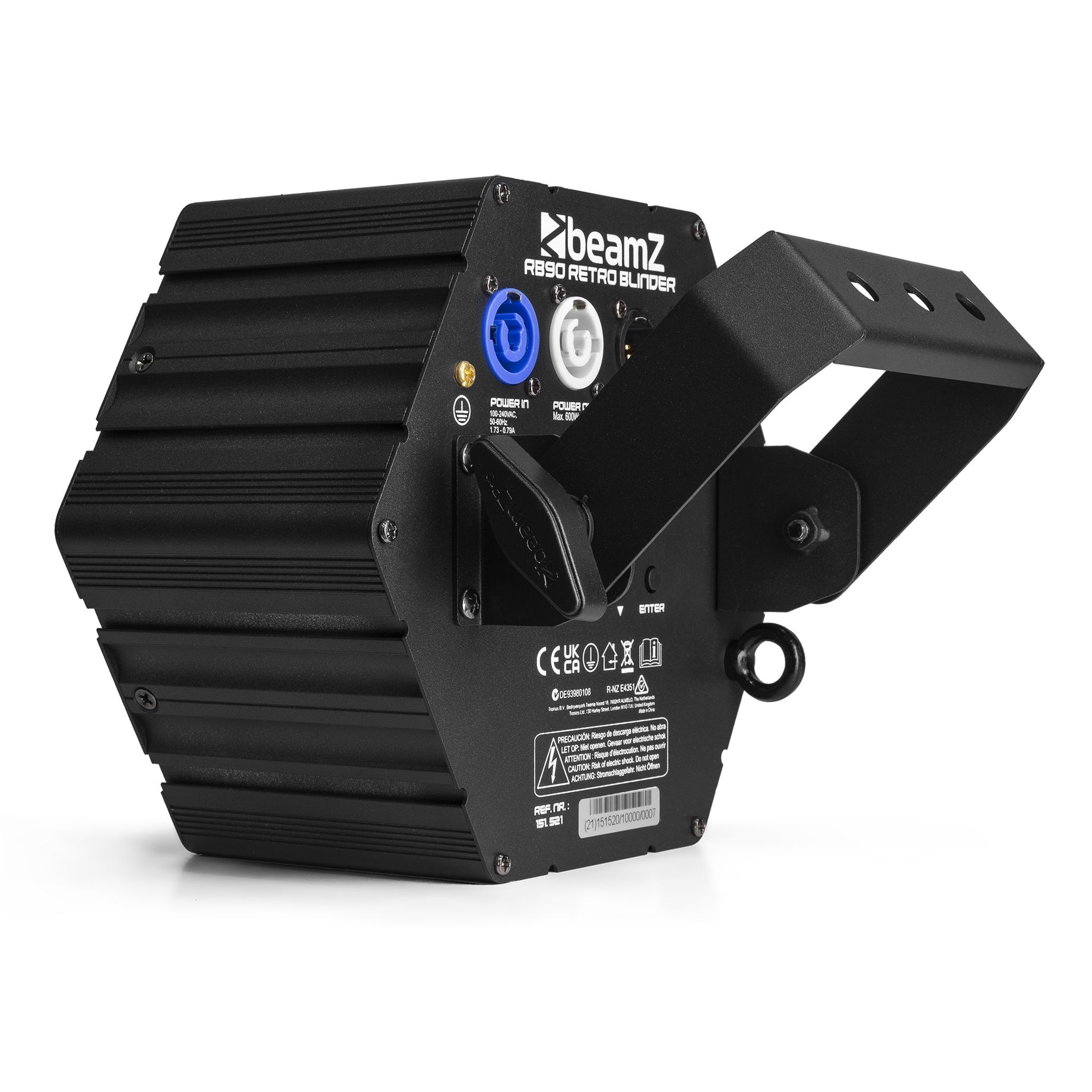

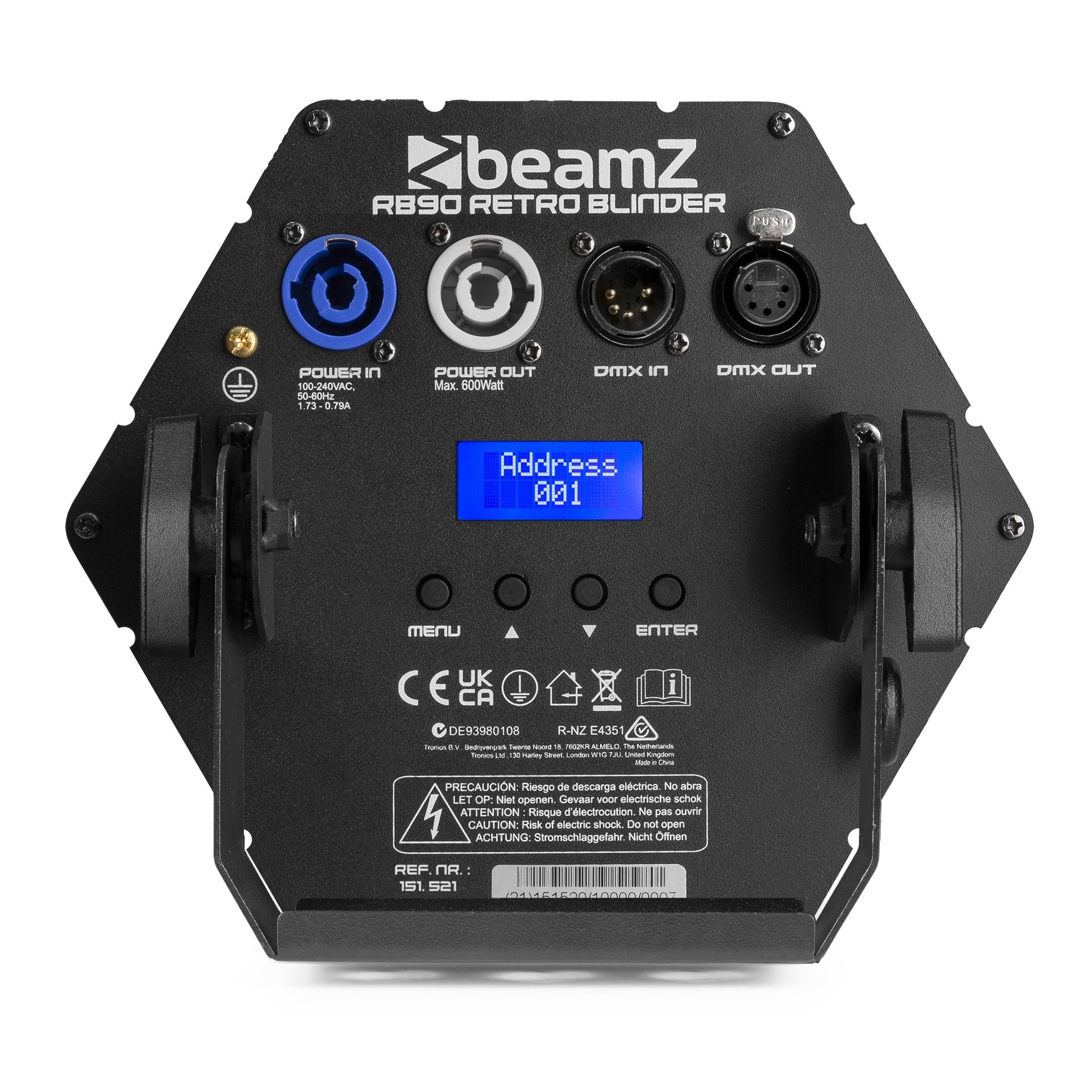

Connections
Input connections
- 1x Power - Powerconnector (A)
- 1x DMX - 5-pin XLR (M)
Output connections
- 1x Power - Powerconnector (B)
- 1x DMX - 5-pin XLR (F)
Hardware features
Display typeLCD
Environmental
IP ratingIP20
Electrical
Power Supply100-240VAC 50/60Hz
Mechanical
Dimensions
- 14.5 x 17.6 x 20 mm (W x D x H)
Weight
- 1.65 kg
Accessories
Included Accessories
- Mounting bracket
- Power cable
