PRM606

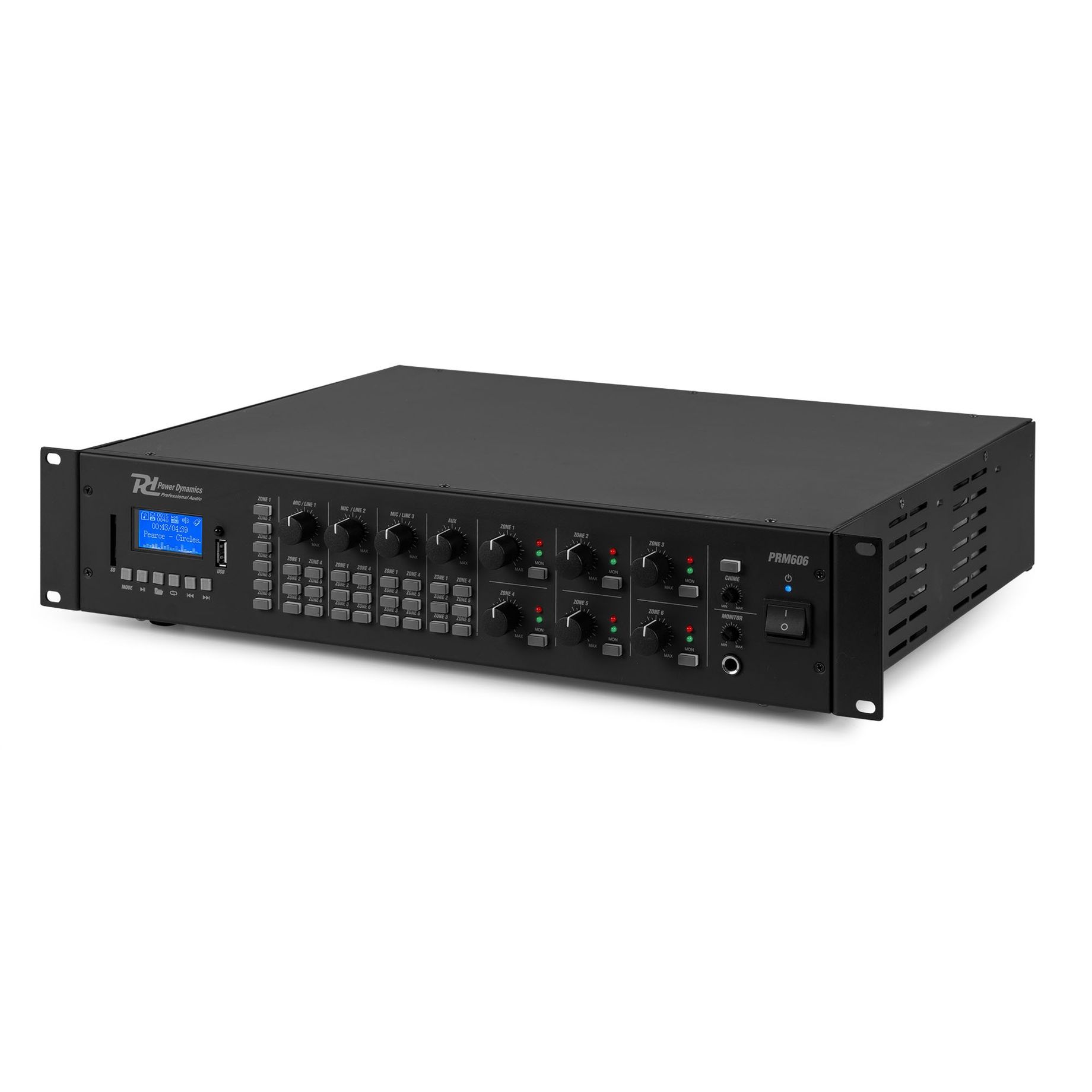

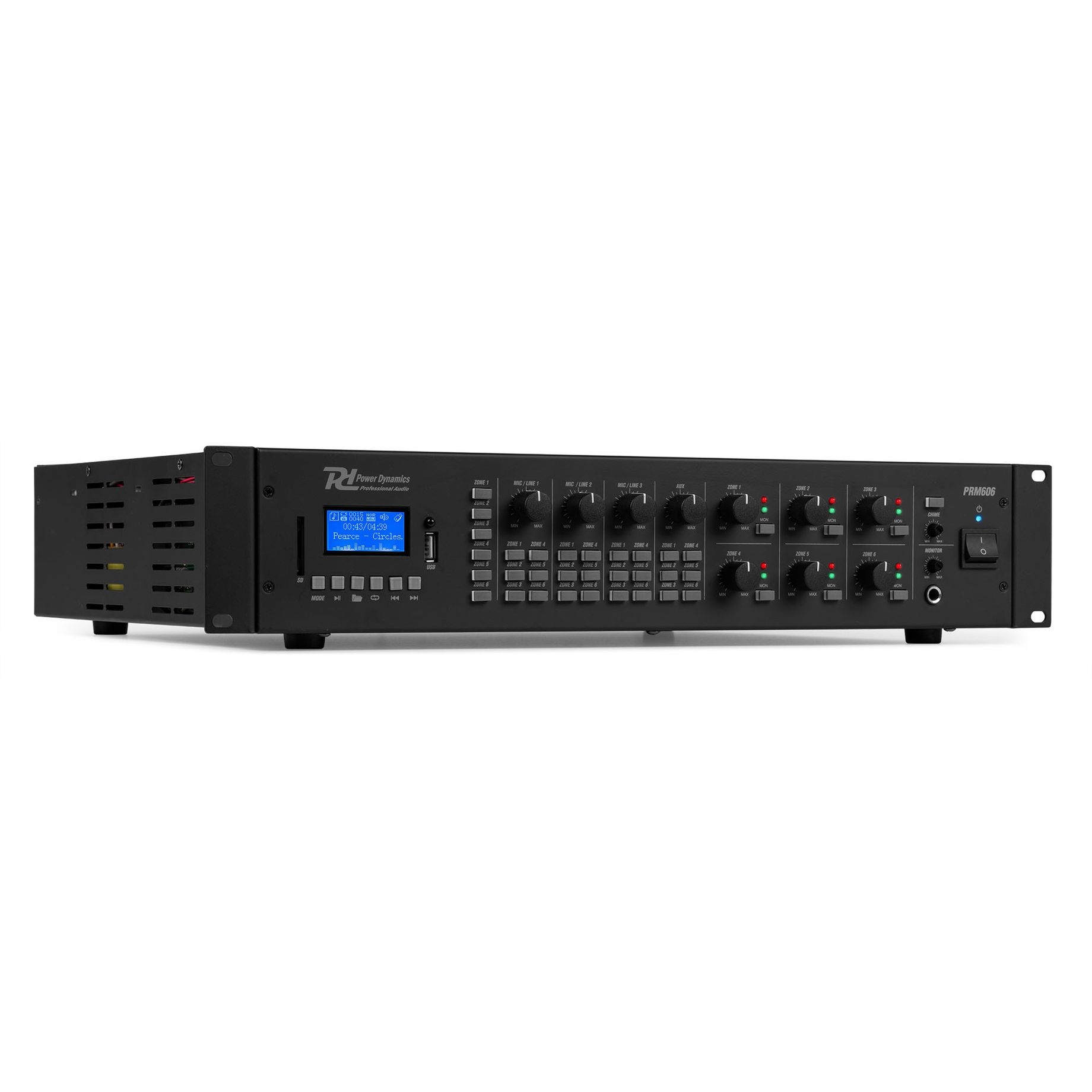

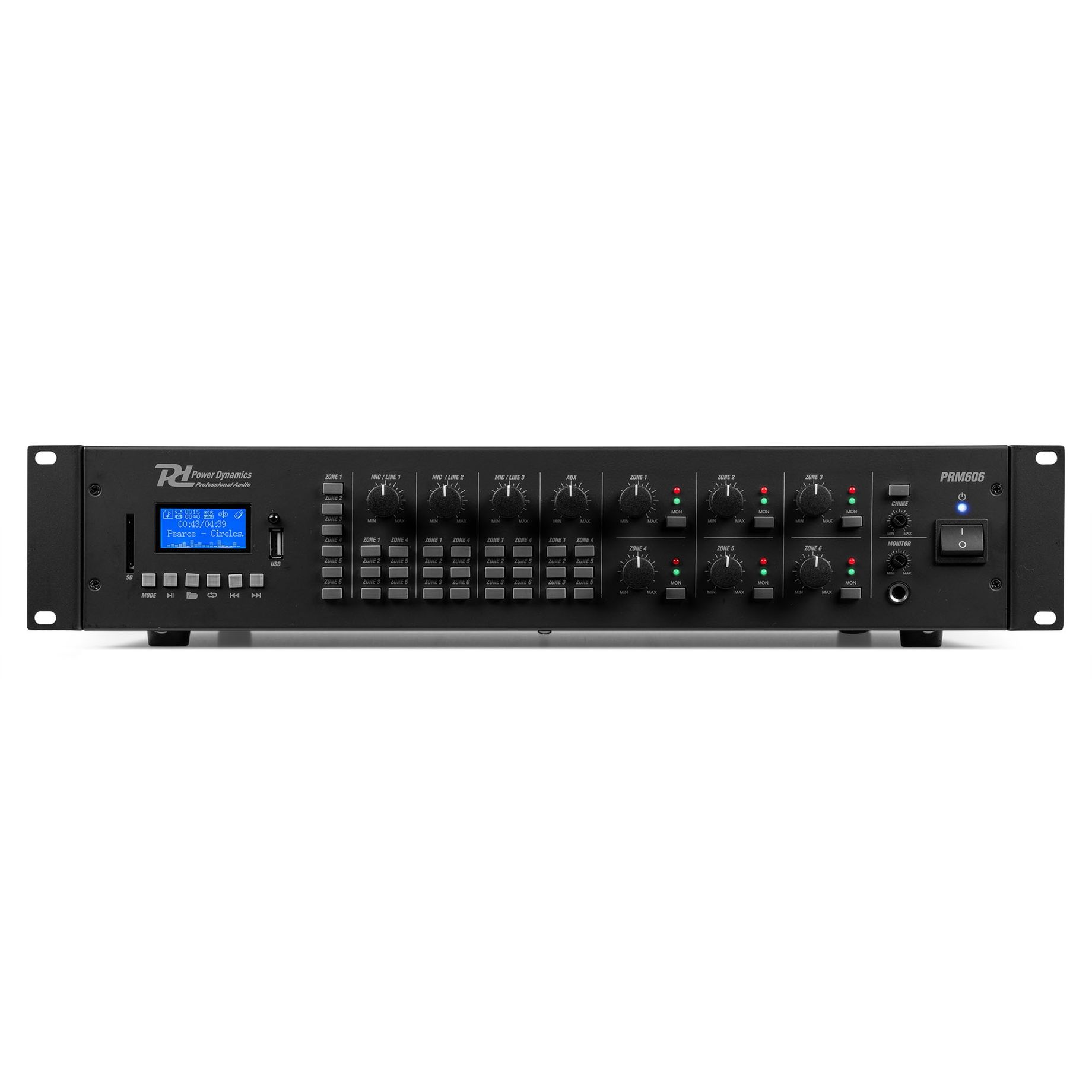

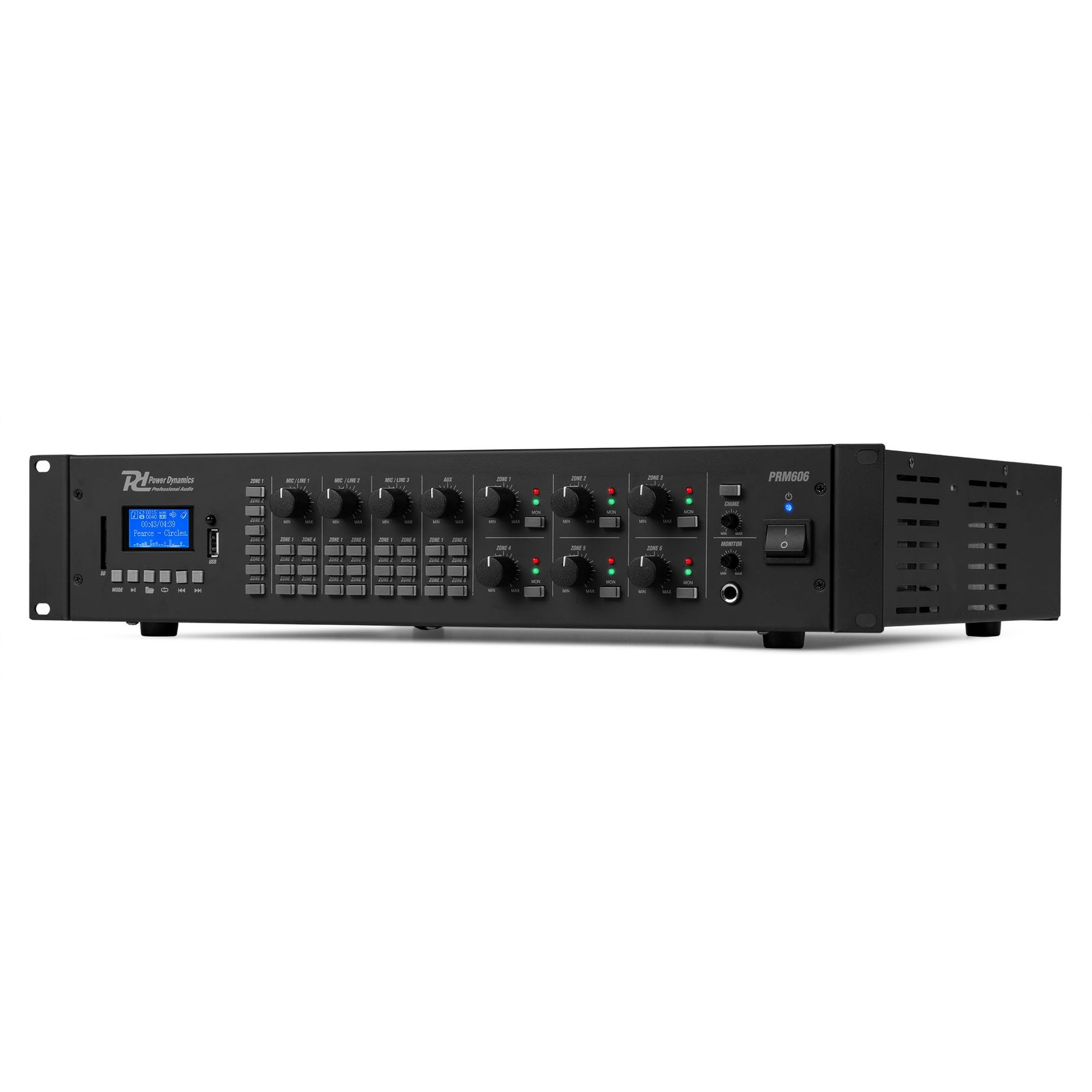

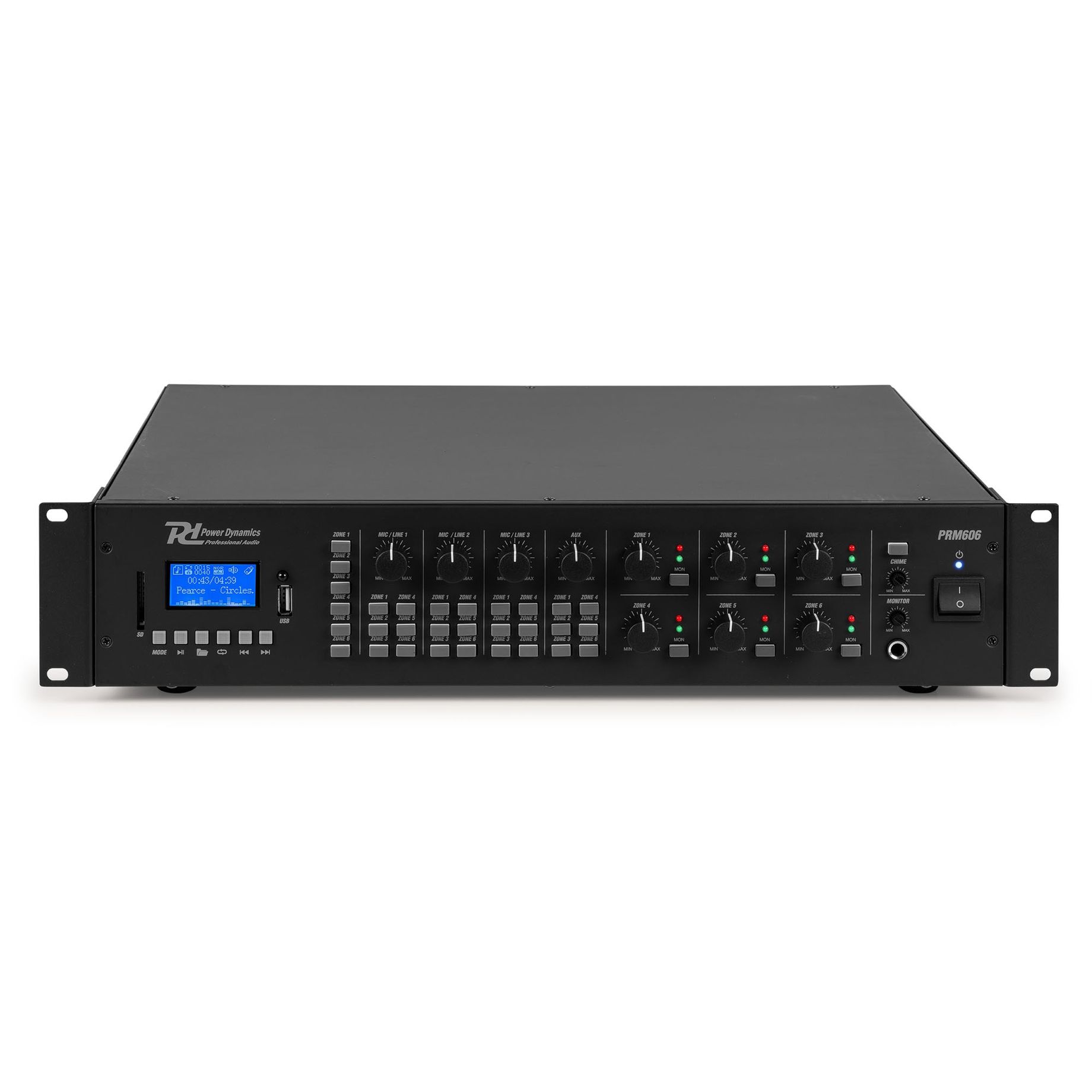

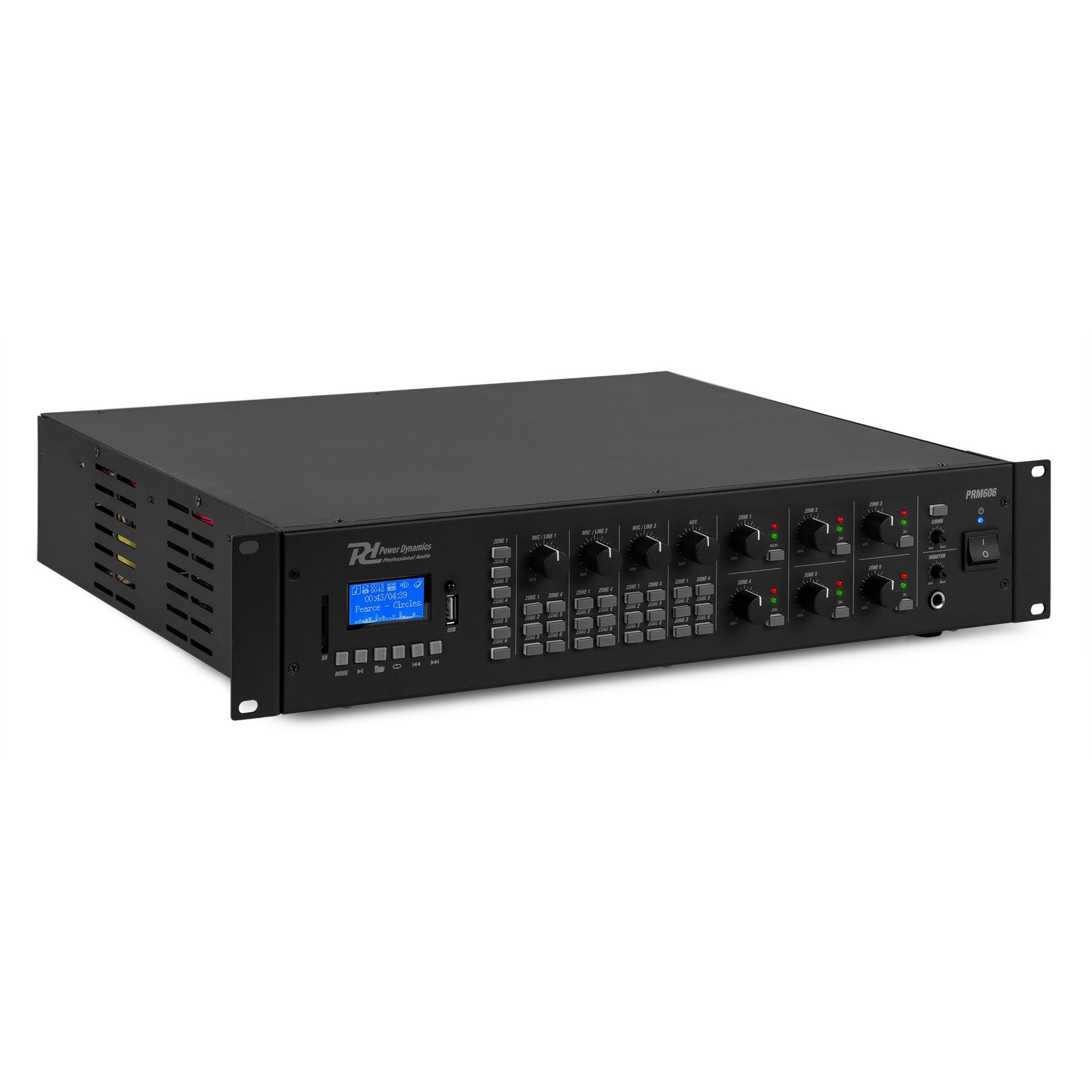

100V 6-Zone Matrix-Amplifier 6x 60W
SKU 952.161
|EAN 8715693311594
+8
All product information
Compare
PRM series
Description
Highlights
- 100V matrix amplifier with 6 independent output zones
- 6x 60W Class D power Section

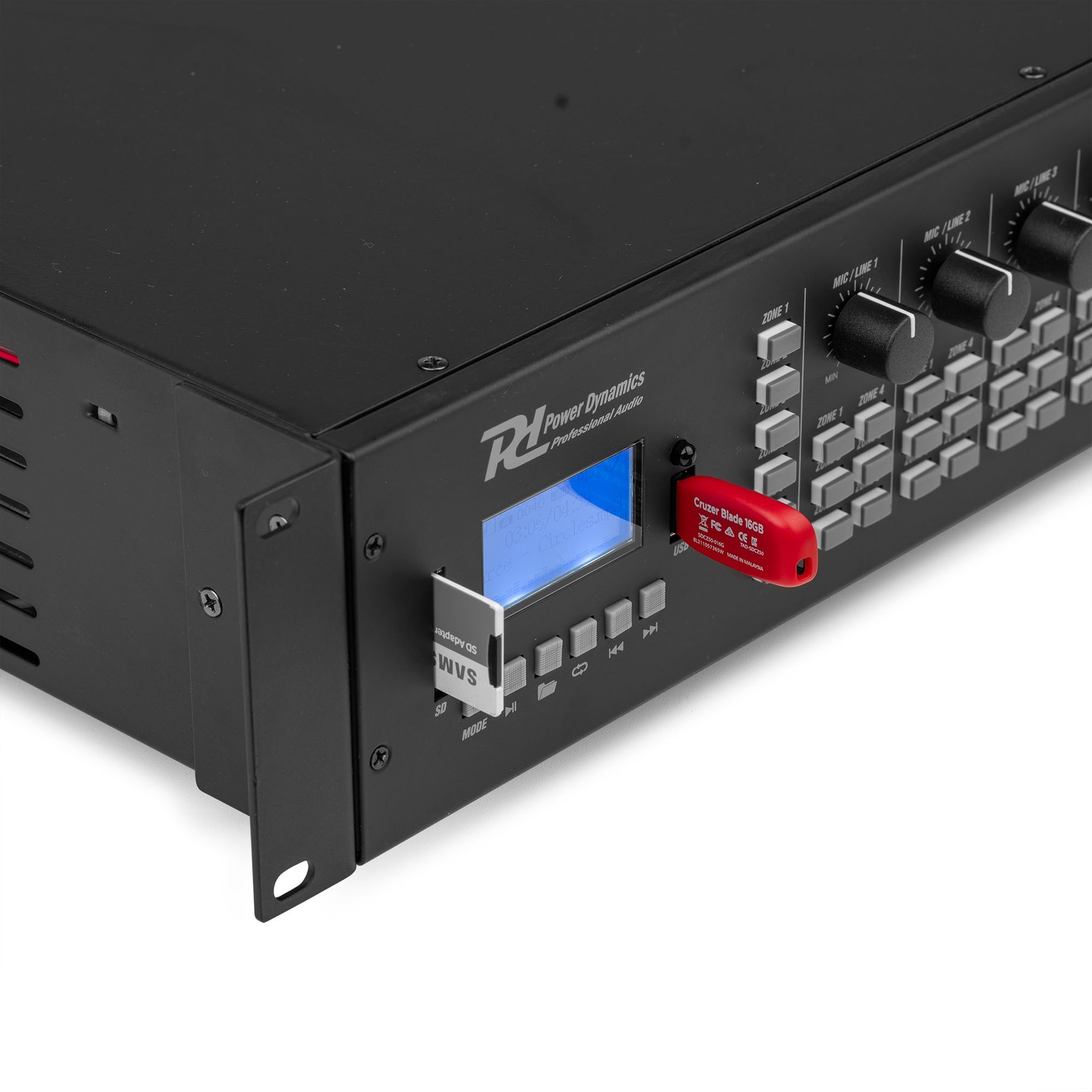

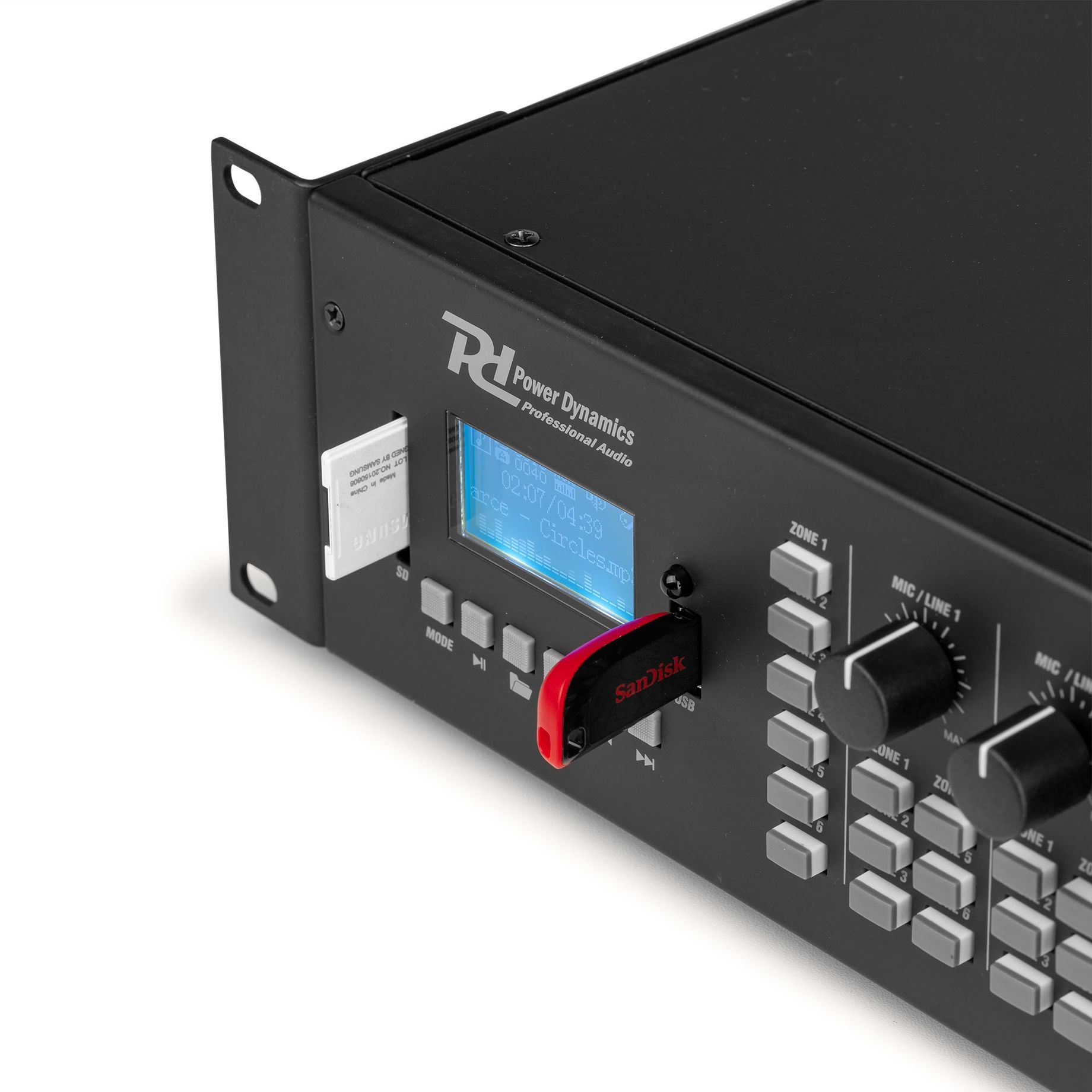

- MP3 Player with USB/SD slot
- Using BT wireless technology for audio streaming
- LCD control panel with ID3 tag

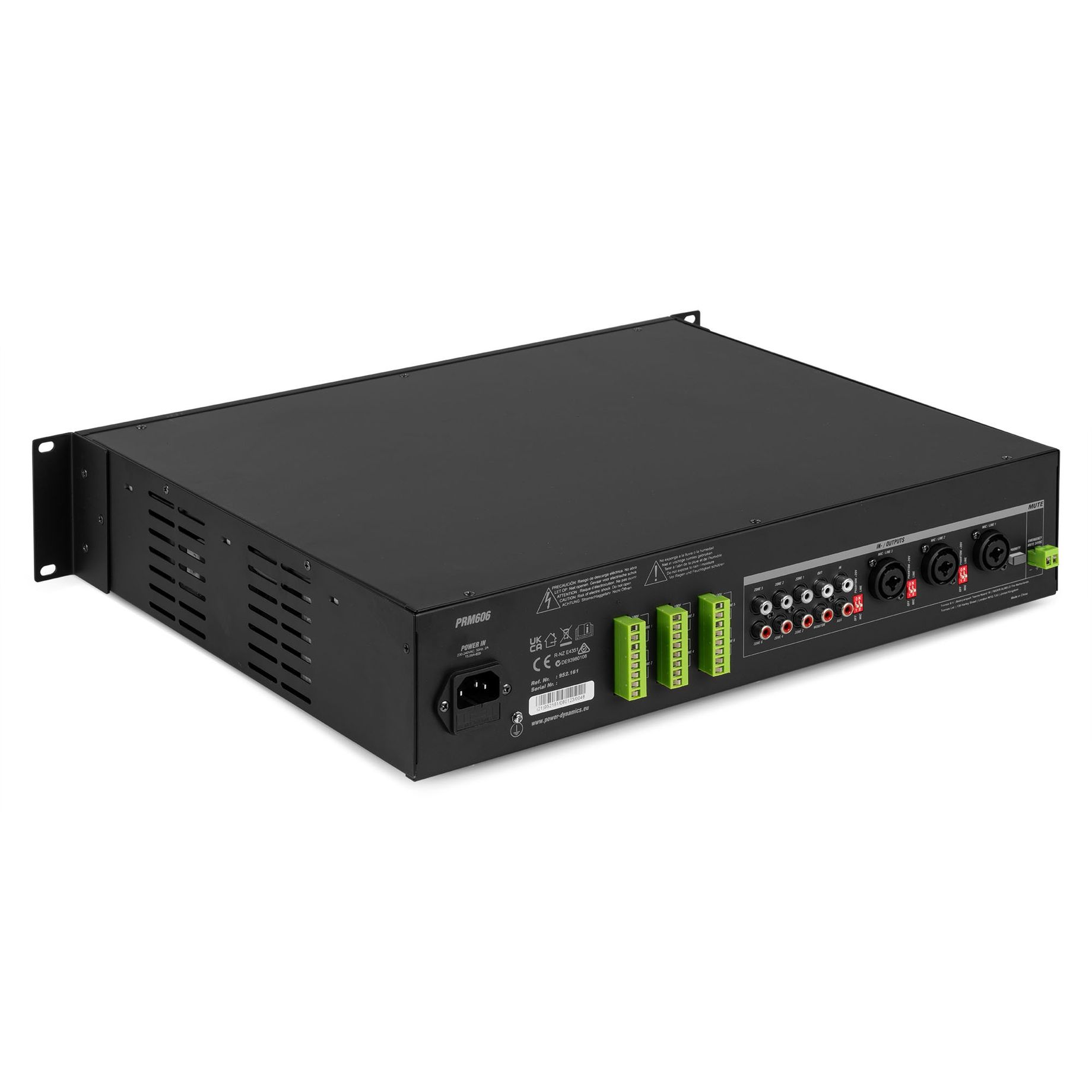

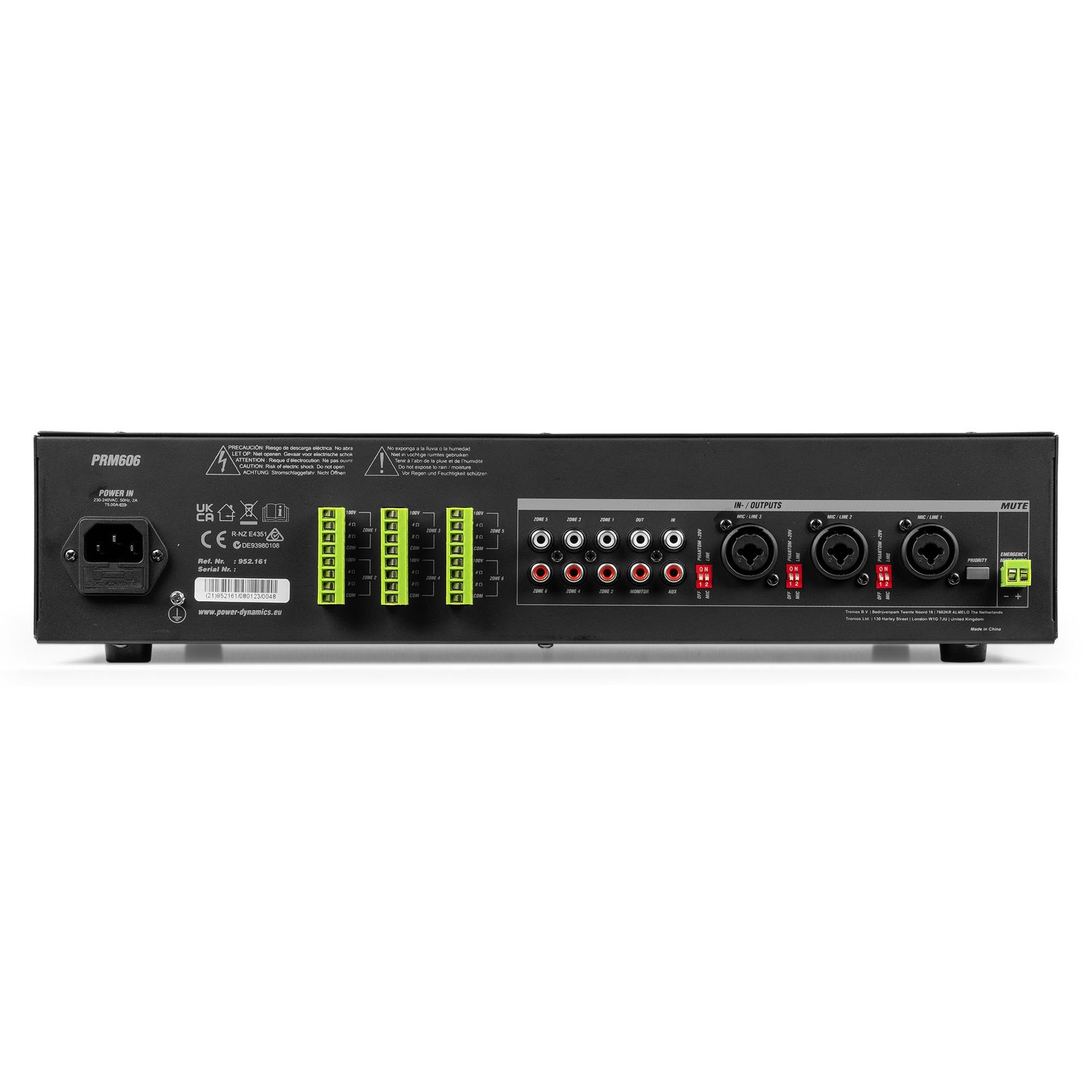

- 3x Mic/line inputs Combi 6.3mm Jack/XLR, 1x RCA line input and 1x RCA line output
- XLR Microphone inputs with switchable phantom power (24V) and VOX priority
- 100V or 4/8 Ohm speaker output
- Zone outputs: 6x Line (RCA Mono)

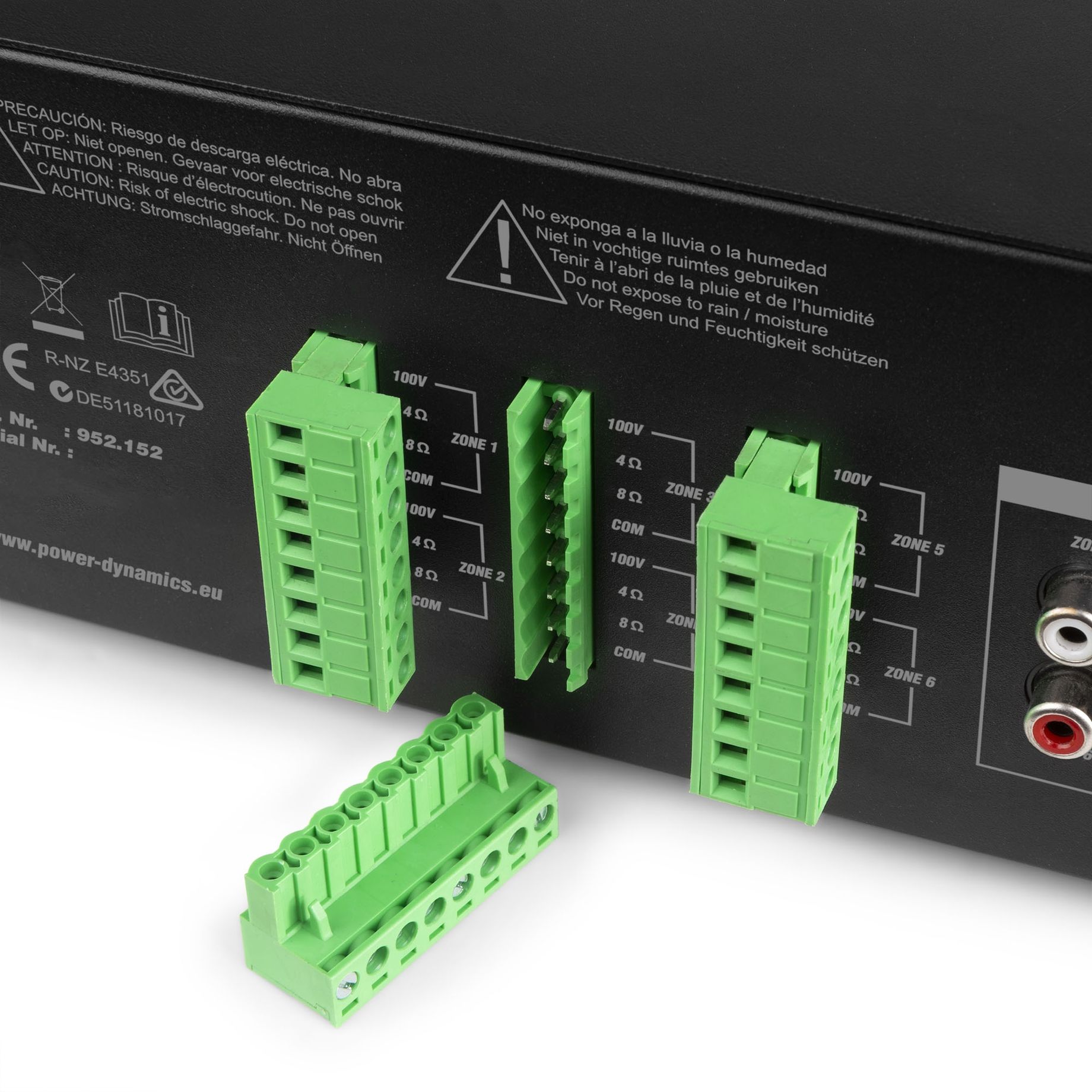

- Zone outputs: 6x Speaker Terminal (100V / 4Ohm / 8Ohm / Com)
- Bass and treble controls
- Chime with level control
- 19" Rack mountable (2U)
- Emergency operation by 24V battery (not supplied)
- Protections: Overheat, short circuit and power on delay
- Emergency mute input
- Including remote control
Specifications
BrandPower Dynamics
Product seriePRM series
ColourBlack
Amplifier typeMatrix amplifier, Mixing amplifier, Multi-zone amplifier
Output channels6
Frequency Response100 - 24,000 Hz
Impedance4 Ω, 8 Ω, 100V
Playback
Playback optionsBT streaming, SD, USB
Electrical
Power Supply220-240VAC 50Hz
Mechanical
Dimensions
- 48.3 x 39 x 9.5 mm (W x D x H)
Weight
- 11.85 kg
Accessories

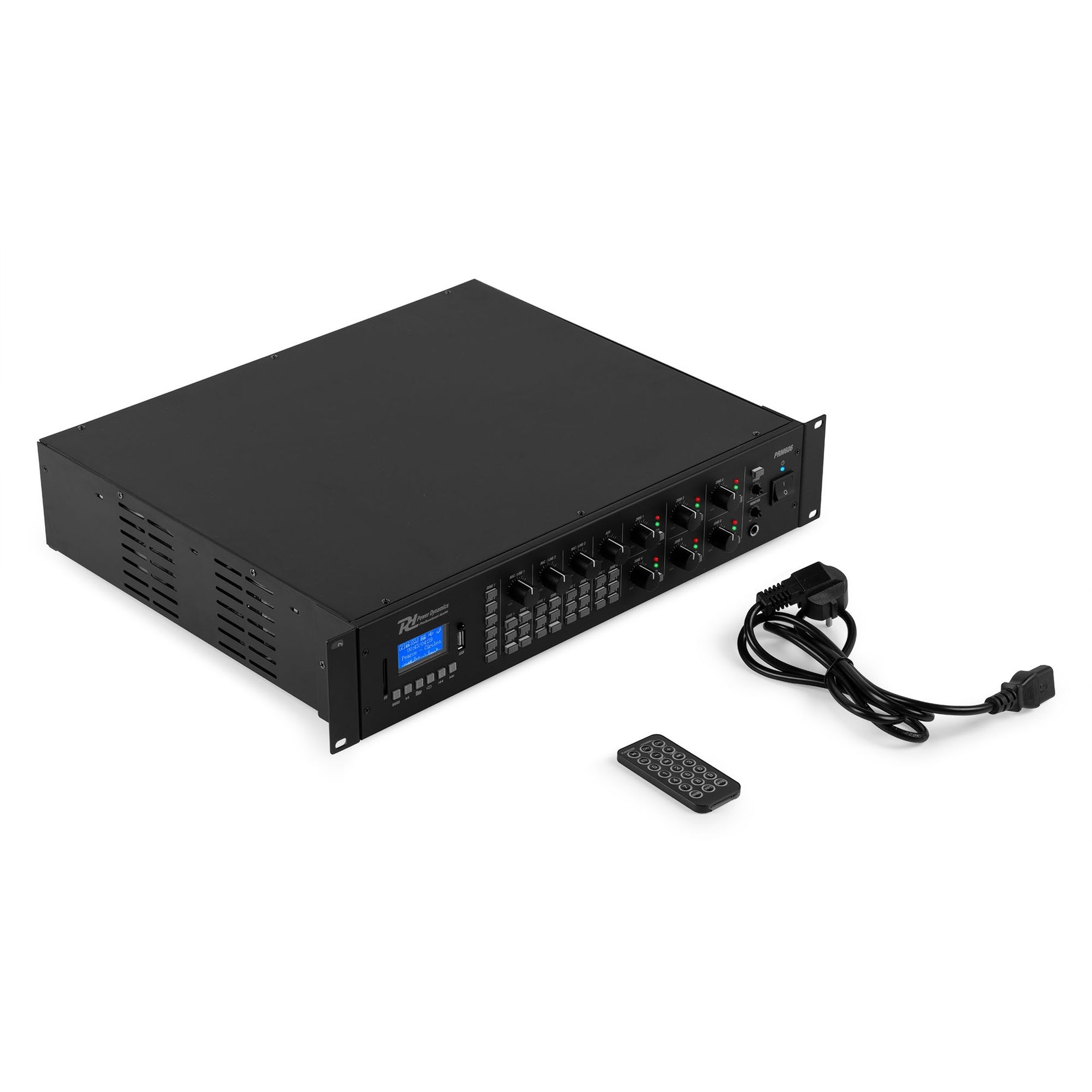

Included Accessories
- Mounting bracket
- Power cable

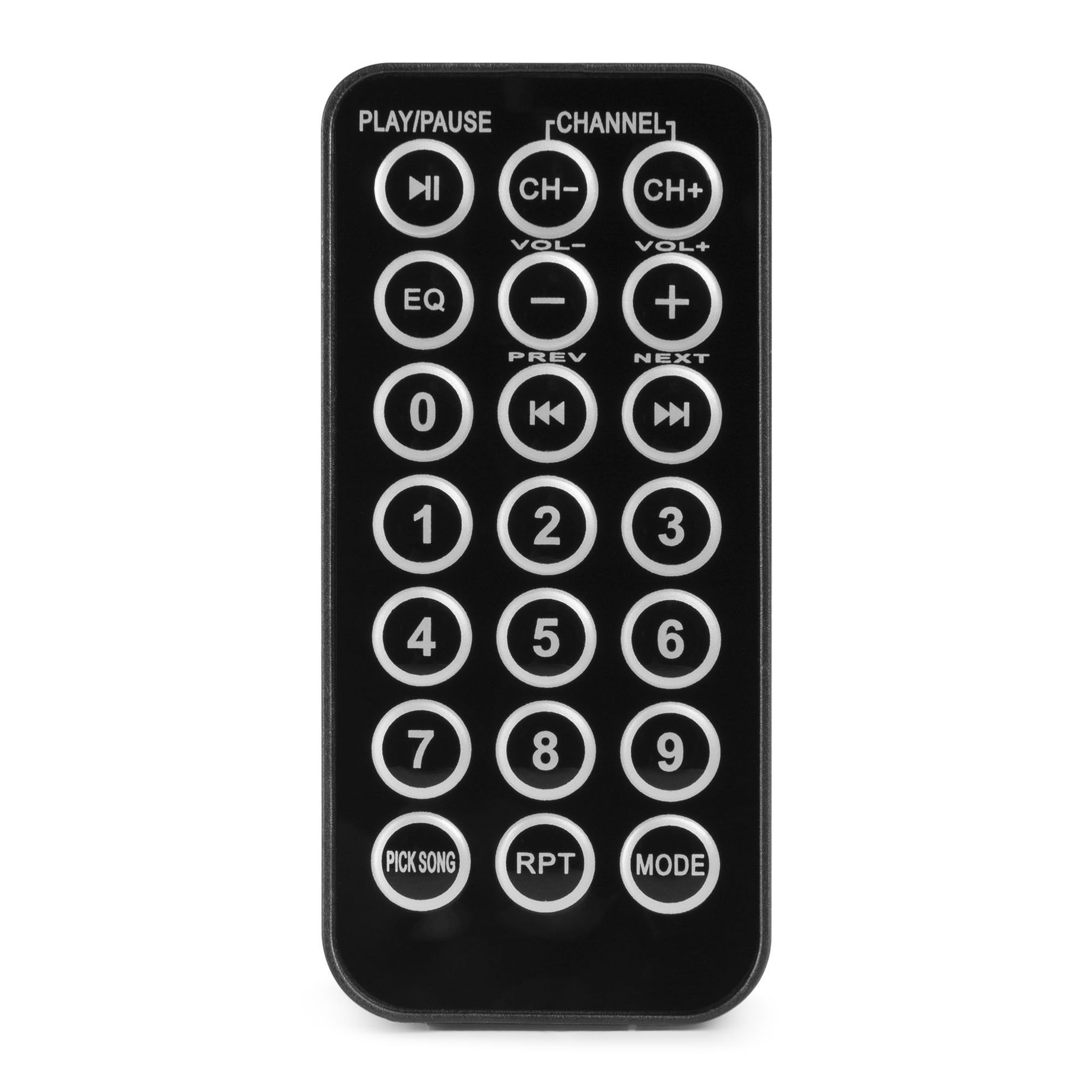

- Remote control (wireless)
Manuals & Documents
Manual
PDF
