PMP480

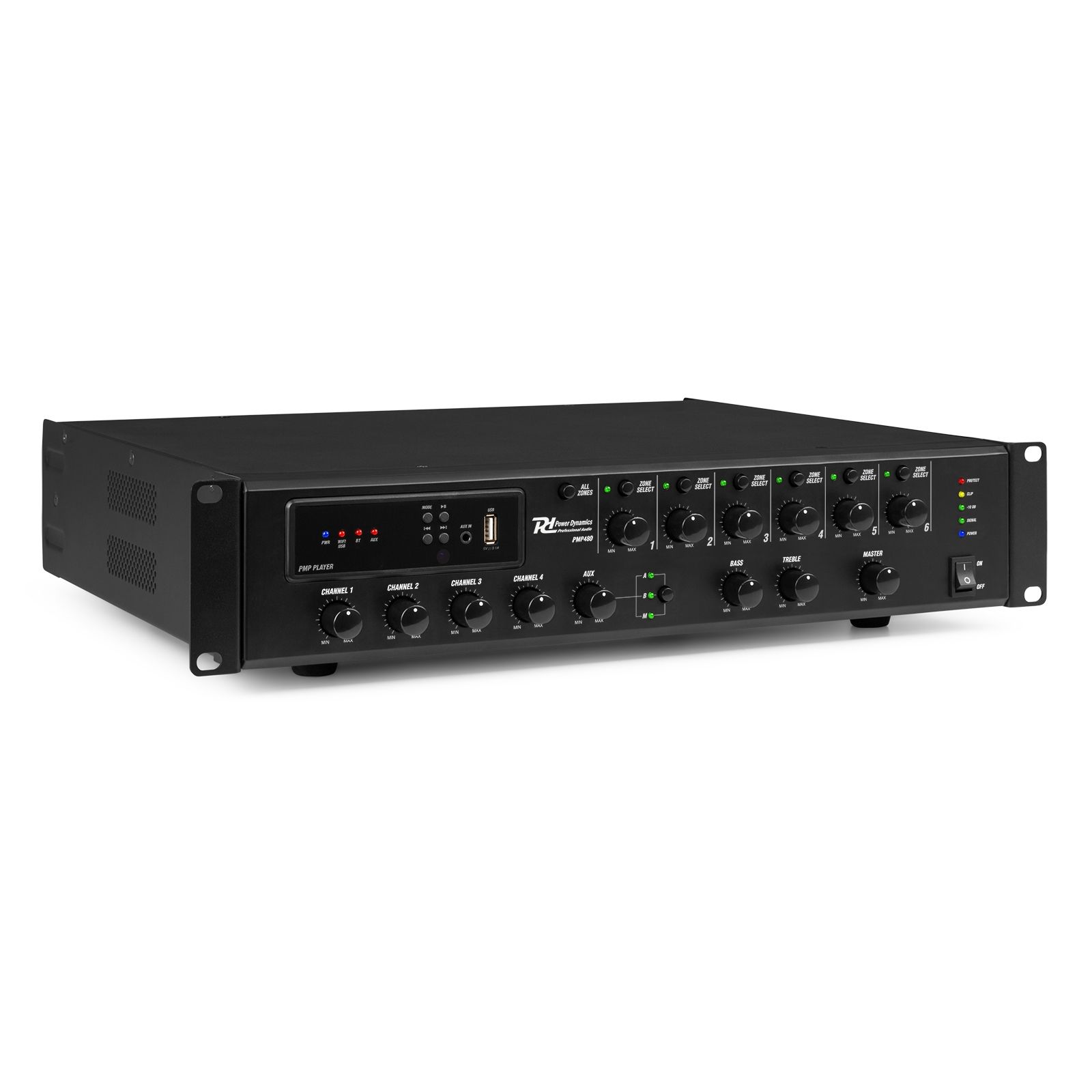

Commercial Mixer Amplifier 480W 6 zones
SKU 954.016
|EAN 8715693342031
All product information
Compare
PMP series
Description
Highlights
- Public Address Amplifier for commercial and industrial use
- 6 Zone Speaker Selector with 6-step attenuator
- Four microphone or line inputs with Euro block screw terminals
- Two AUX input with RCA jacks
- Bass and Treble controls
- Remote microphone input with RJ45 terminal
- 48V Phantom power and VOX control
- Three layer priority muting with EMC (external evacuation message control) input
- Built in user selectable pre-announce chime and siren for evacuation
- Alarm message recording and playback
- Advanced protection system includes current limiting, over current and thermal protection
- Desktop and 19-inches rack mountable Multimedia player module:
- USB Media player
- BT playback receiver
- Internet radio (WiFi or RJ45 via Legacy Player APP)
- Aux 3.5mm jack input
Specifications
BrandPower Dynamics
Product seriePMP series
ColourBlack
Amplifier typeMixing amplifier, Multi-zone amplifier, Power amplifier
Impedance4 Ω, 8 Ω, 16 Ω, 70V, 100V
Playback
Playback optionsBT streaming, Line input, Microphone input, RJ45 ethernet play, USB, WiFi play
Bluetooth Version5
Sound editing
Equalizer: Main2-Bands
Audio specifications
Amplifier specifications
Output power RMS total480 W
Output power 100V zones 240W (max. per zone)
Electrical
Power Supply100-240VAC 50/60Hz
Mechanical
Dimensions
- 370 x 482 x 90 mm (W x D x H)
Weight
- 12.3 kg
Accessories
Included Accessories
- Mounting bracket
- Power cable
