Phantom

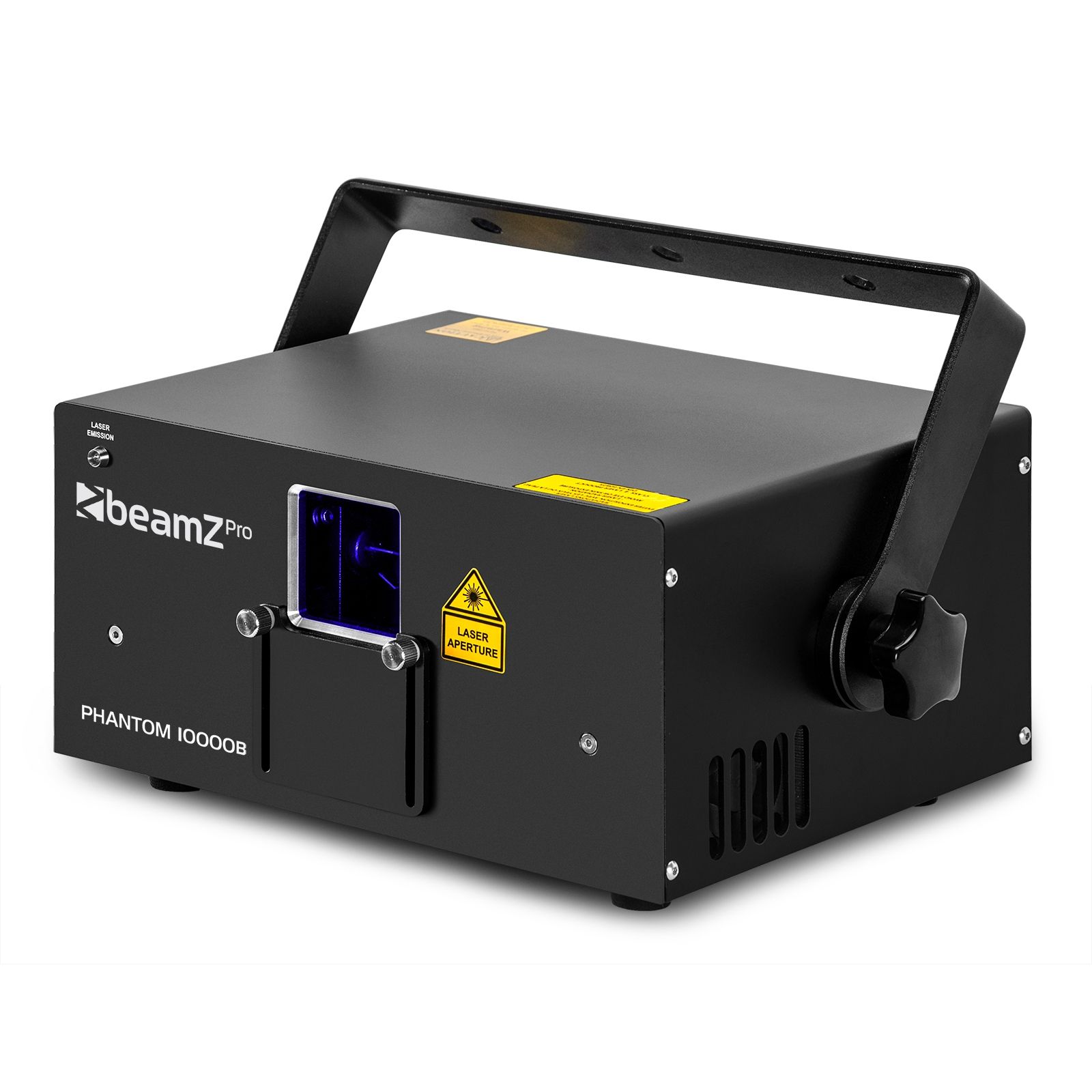

10000B Pure Diode laser RGB
SKU 152.493
|EAN 8715693339215
All product information
Compare
Phantom series
Description
Highlights
- Red (2700mW), Green (2700mW) and Blue (4600mW) Powerful laser
- Guaranteed 10W output
- Analog RGB colour modulation
- 30K @ 8° high speed optical scanner system
- X- and Y-Size inverter
- DMX and Stand-alone mode
- 12 or 23 DMX channels
- Master/slave function
- Sound activated or auto mode
- Pre-programmed shows
- DMX in/output via 3-pin XLR
- Ilda in/output
- Control panel with LED display
- Interlock
- Powerconnector in/output

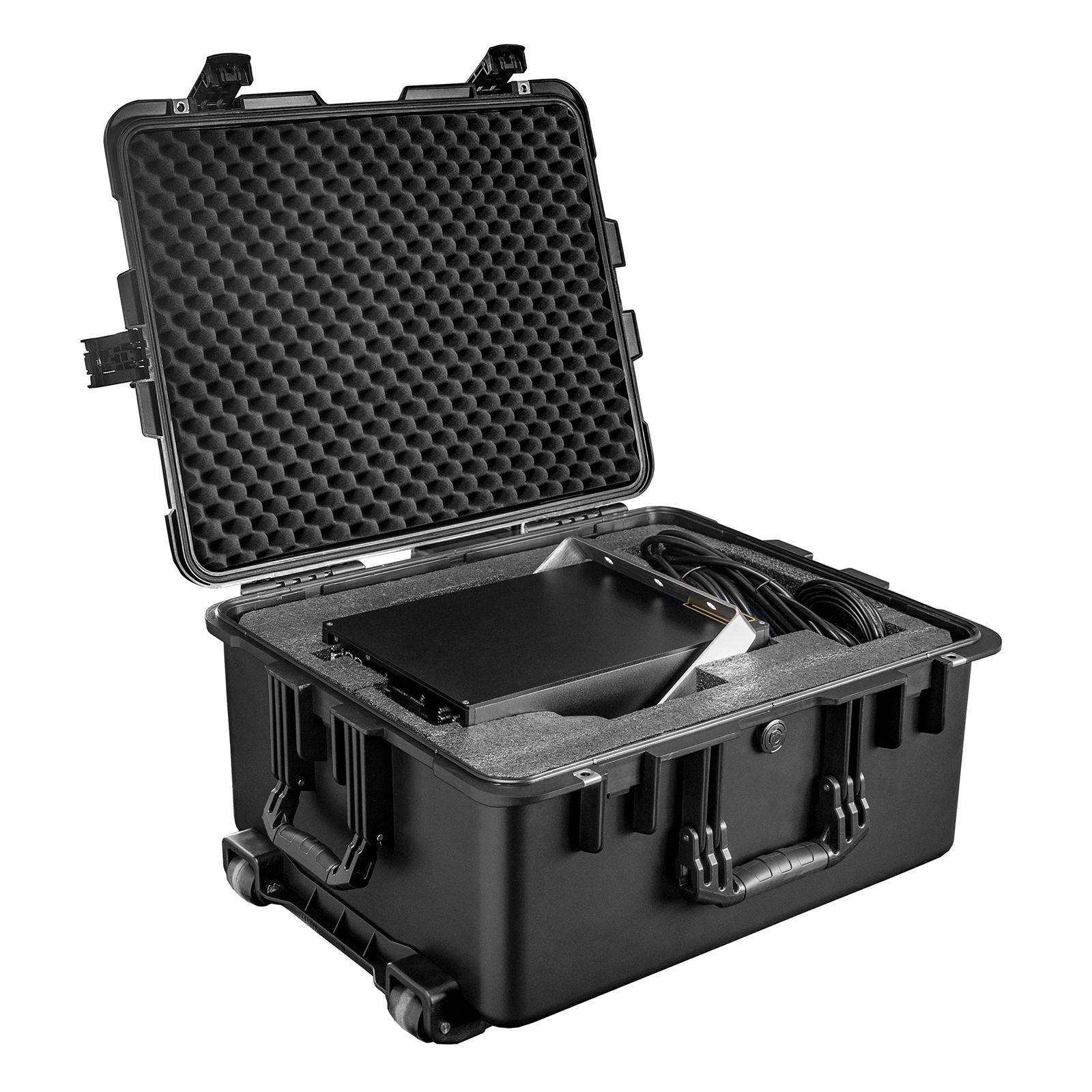

- Including solid waterproof PP flightcase
Specifications
BrandbeamZ Professional
Product seriePhantom series
ColourBlack
Light source
Laser Red2700mW @ 638nm
Laser Green2700mW @ 525nm
Laser Blue4600mW @ 455nm
Control
Control modesAuto programs, DMX, Master/Slave, Manual, Sound, ILDA
DMX Channels12, 23
DMX connector3-pin XLR

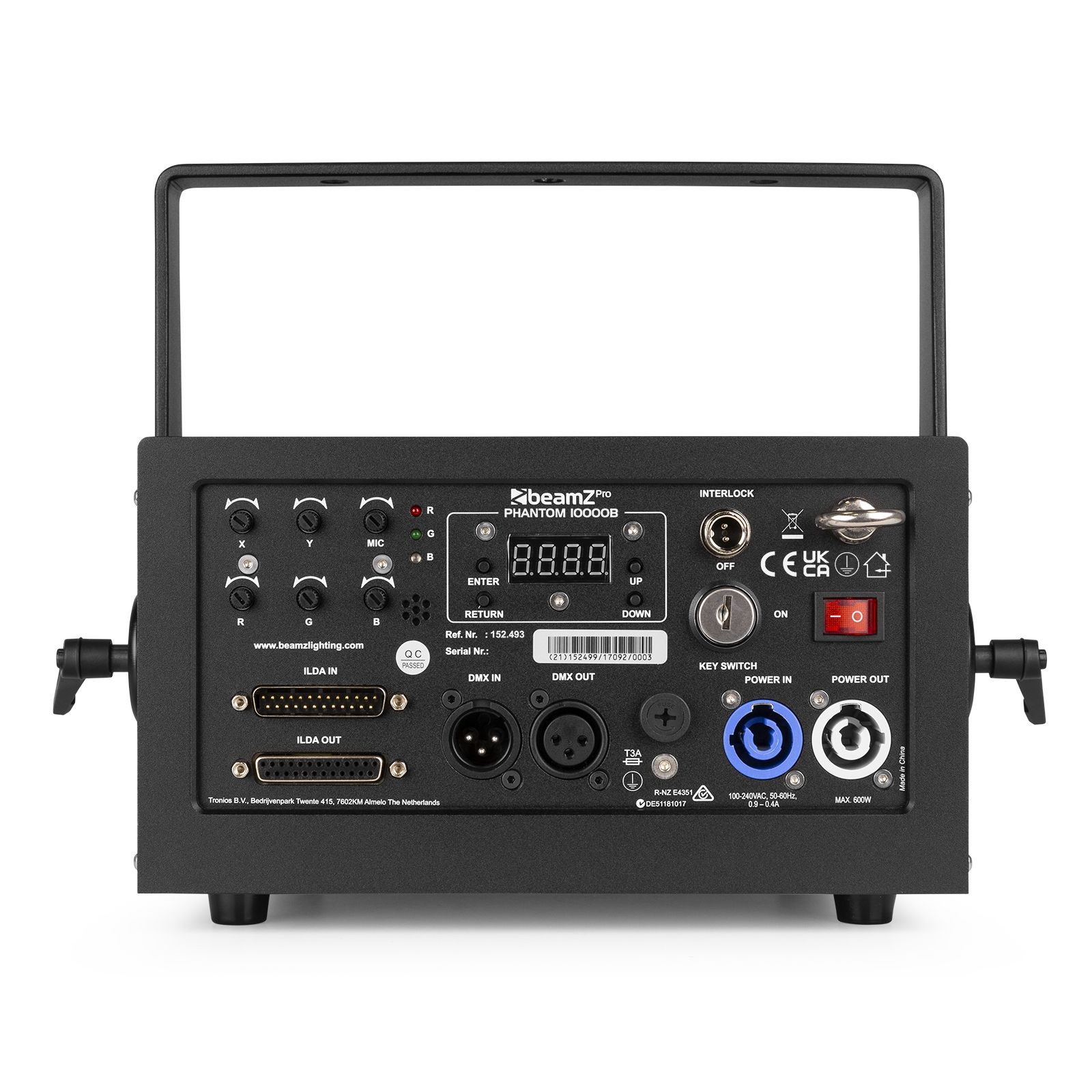

Connections
Input connections
- 1x Power - Powerconnector (A)
- 1x DMX - 3-pin XLR (M)
- 1x Ilda - DB25 (M)
- 1x Interlock - 2-Pin Interlock
Output connections
- 1x Power - Powerconnector (B)
- 1x DMX - 3-pin XLR (F)
- 1x Ilda - DB25 (F)
Electrical
Power Supply100-240VAC 50/60Hz
Mechanical
Dimensions
- 340 x 247 x 148 mm (W x D x H)
Weight
- 12 kg
