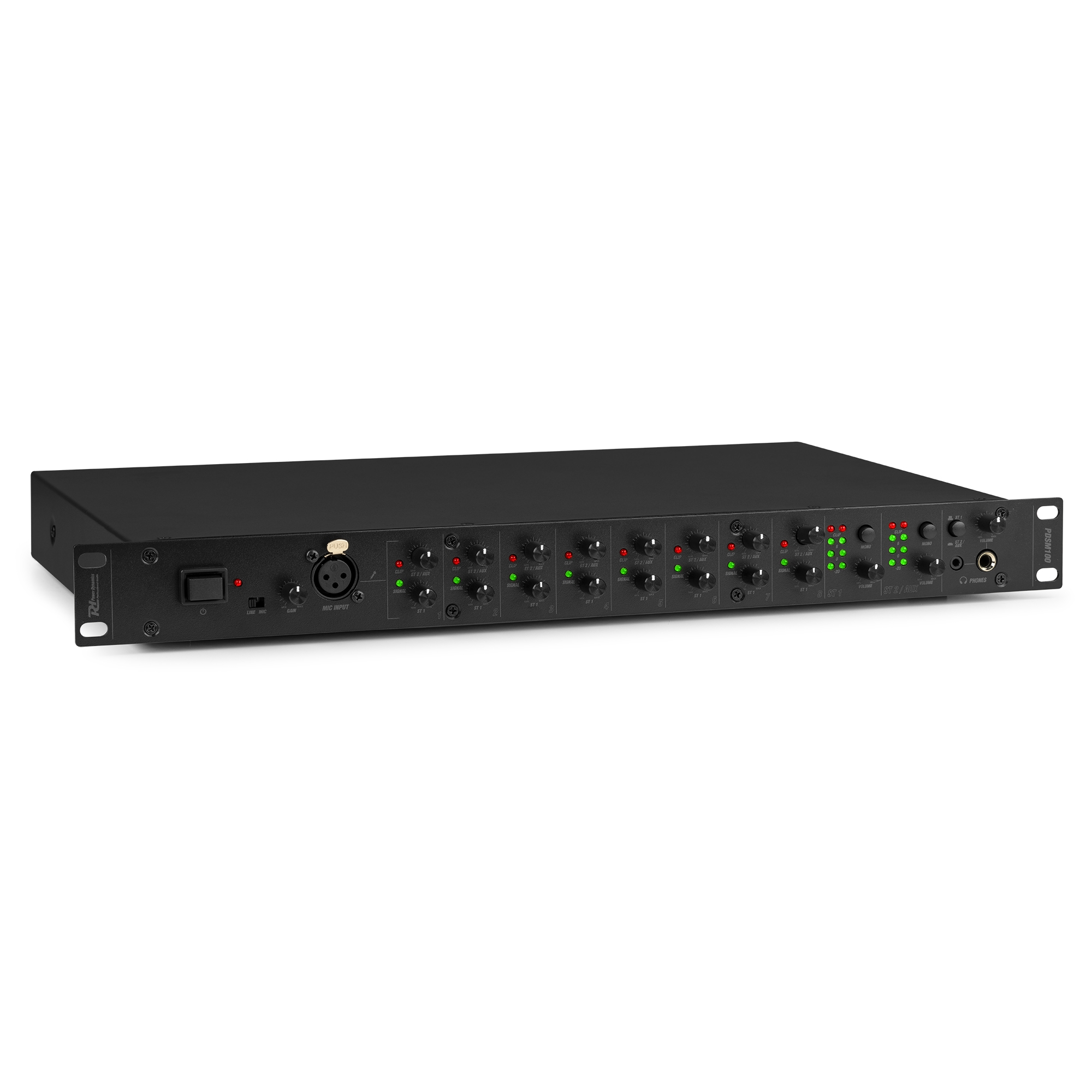

PDSM100
PA Studio Mixer
SKU 172.754
|EAN 8715693342703
All product information
Compare
PDSM series
Description
Highlights
- Multifunctional 8-channel stereo mixer with 2 adjustable zone outputs
- 8 stereo input channels for line sources like CD/MP3 players, tuners, etc.
- Additional mic/line input with level control for channel 1
- 2 Stereo outputs
- Microphone gain control
- Signal presence and overload LEDs on each channel
- Each stereo output is switchable to mono
- Headphone jack
- Ground terminal and ground lift switch
- Input level selectable between +4 dBu and –10 dBV per channel
- 19” Rack installation (1 U)
Specifications
BrandPower Dynamics
Product seriePDSM series
ColourBlack
Frequency Response20 - 20,000 Hz
Audio specifications
Signal-to-noise ratio: Main>92dB
THD: Main<0.9%
Output Level: Main+4 dBu
Connections
Input connections
- XLR
- 6.3 mm jack
Output connections
- 3.5 mm jack
- 6.3 mm jack
- RCA
Electrical
Power Supply100-240VAC 50/60Hz
Mechanical
Dimensions
- 280 x 483 x 44 mm (W x D x H)
Weight
- 3 kg
Manuals & Documents
Manual
PDF
