PDS65B
Pendant Speaker 100V 6,5” Black
SKU 952.514
|EAN 8715693334067
+8
Color
All product information
Compare
PDS series
Description
Highlights
- High performance 2-way suspended speaker
- Suitable for indoor and outdoor installation

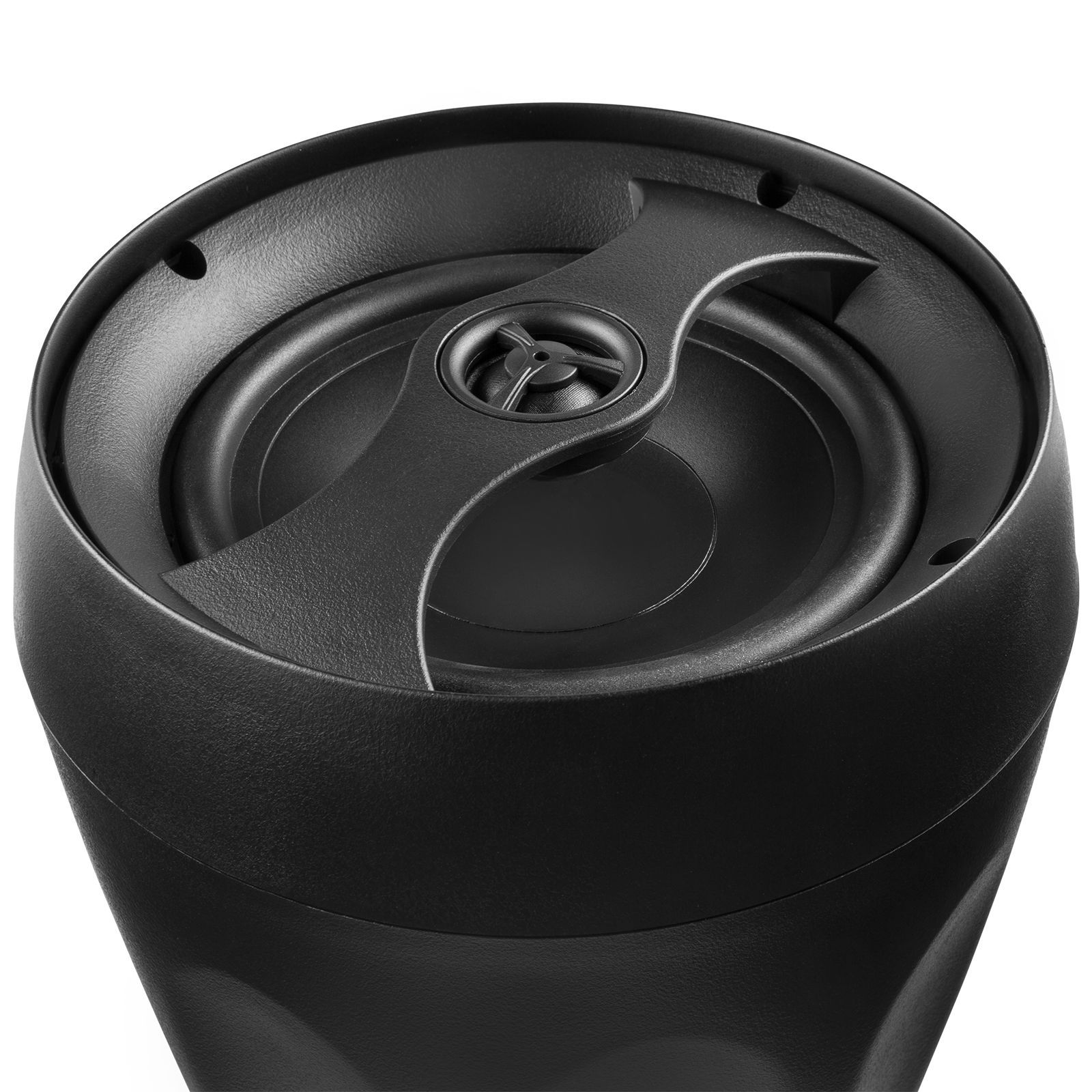

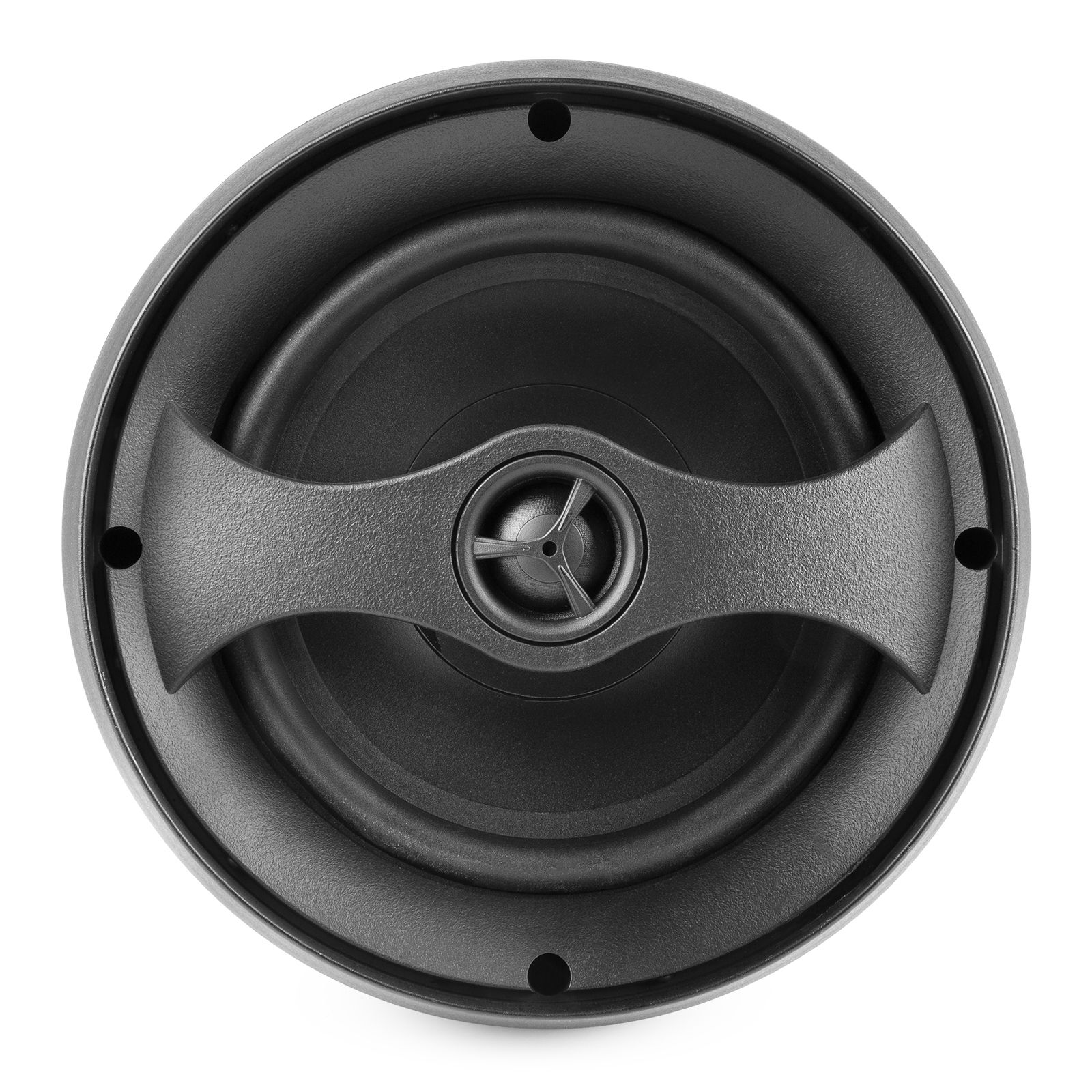

- 6.5" woofer with a coaxial 1" tweeter

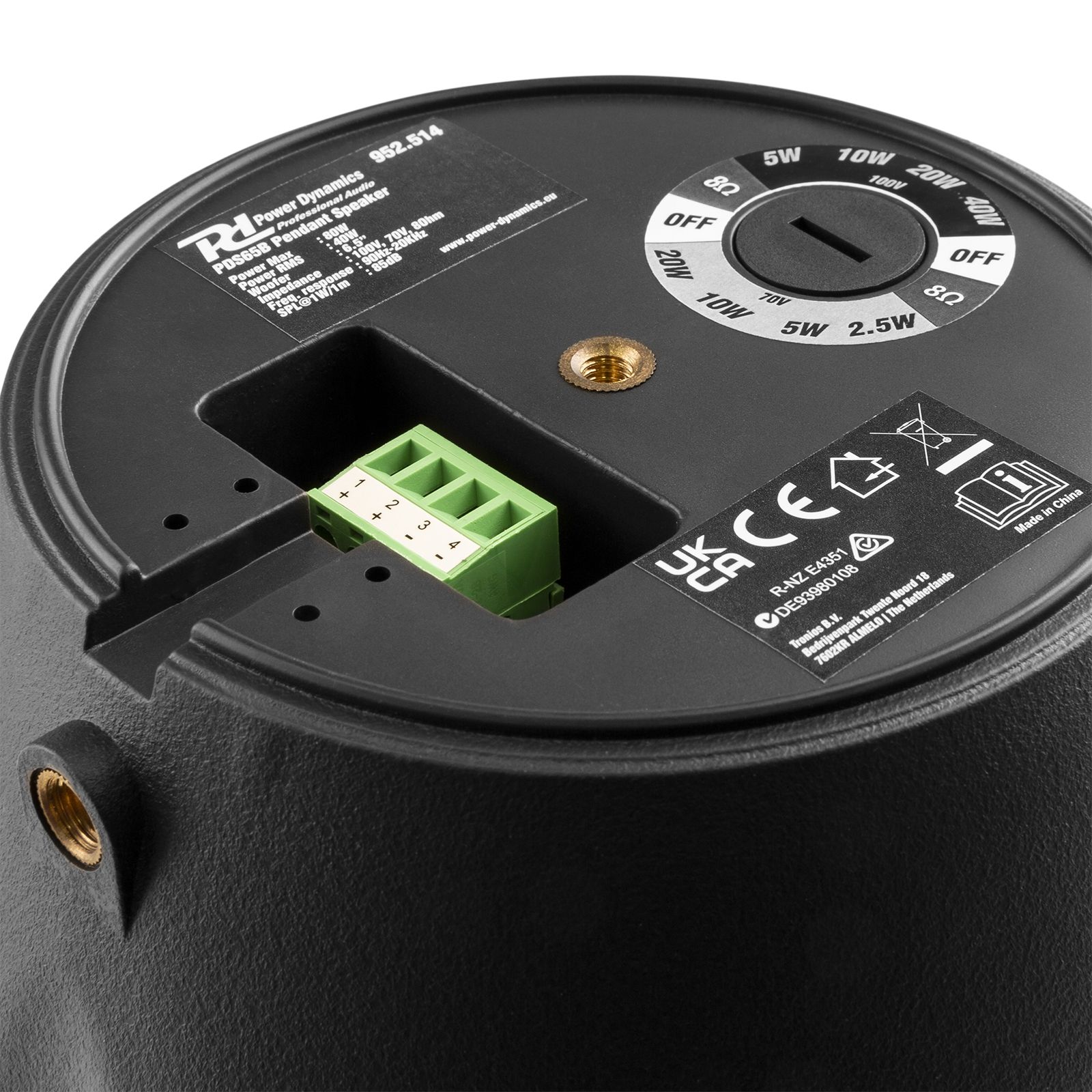

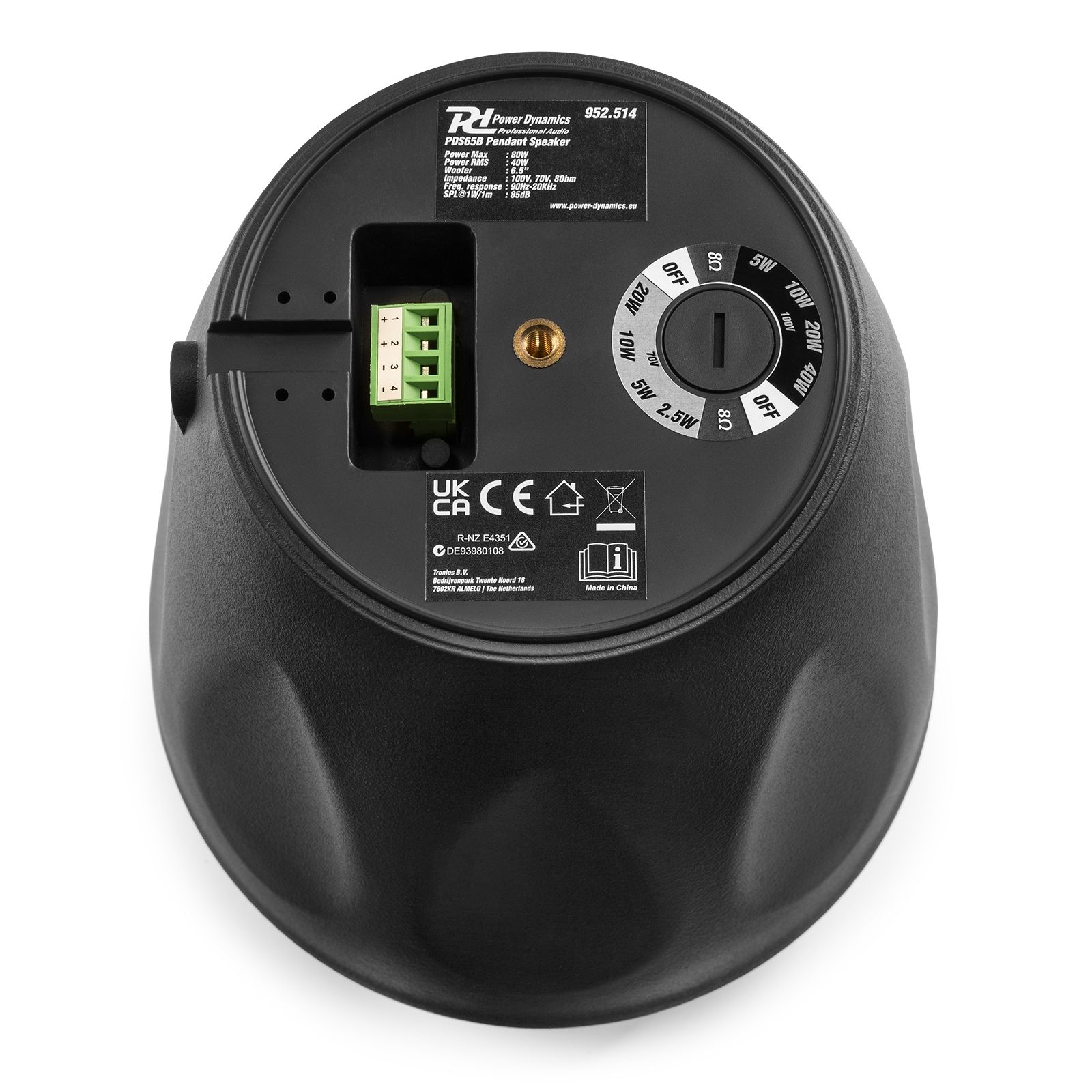

- Integrated 70V/100V transformer with selectable taps and 8 ohm bypass
- Wide opening angle with 360° horizontal coverage
- Sturdy ABS construction

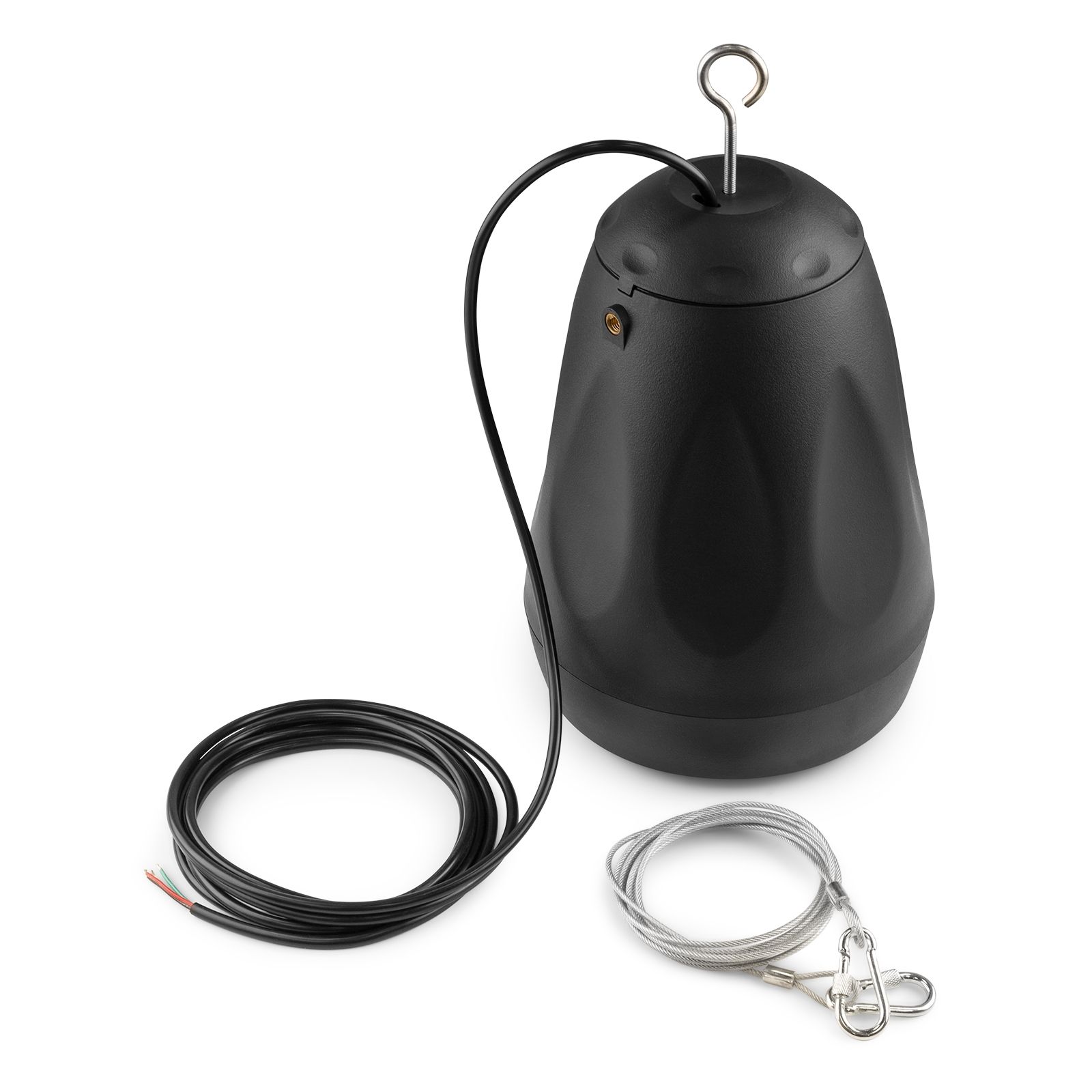

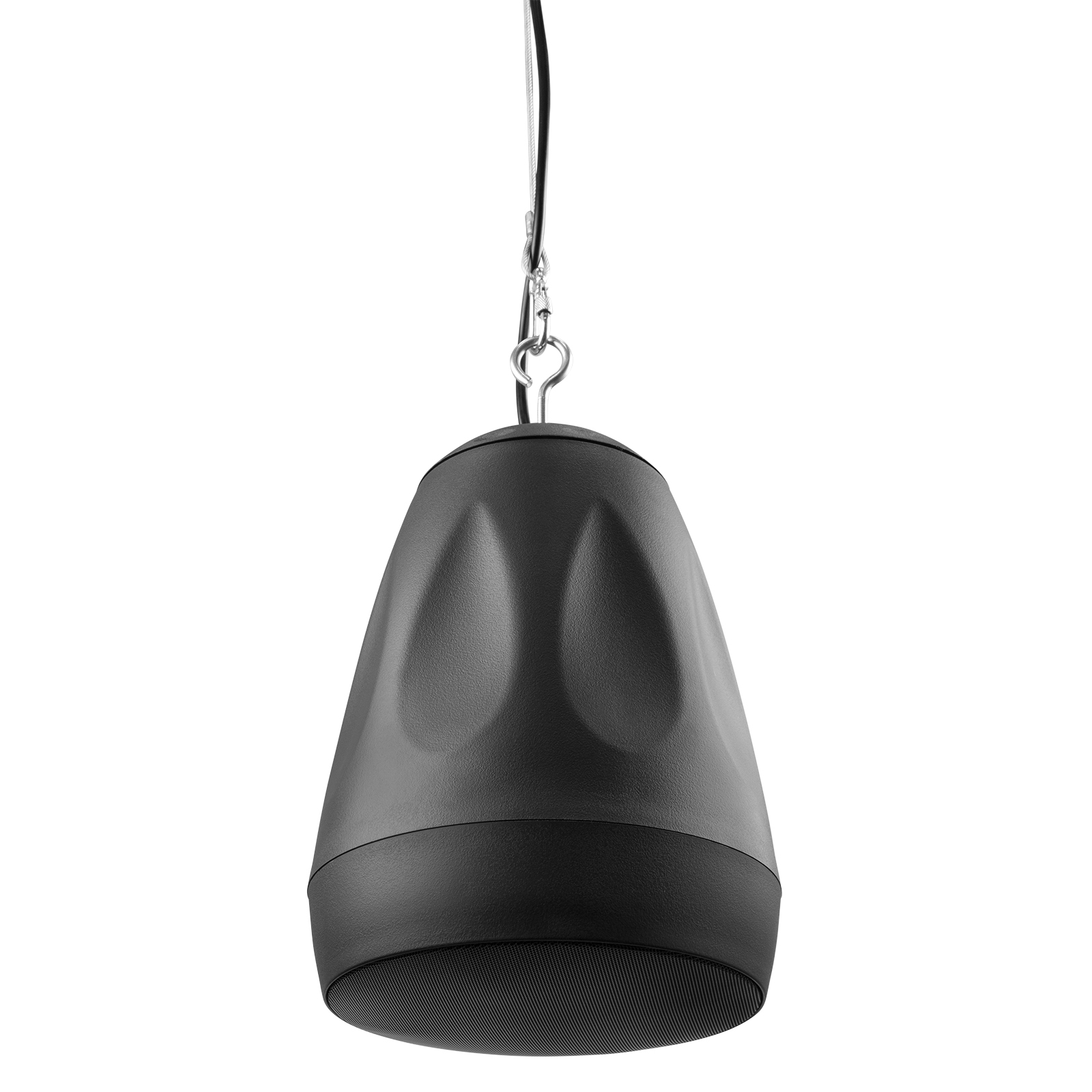

- 3m suspension cable with steel core

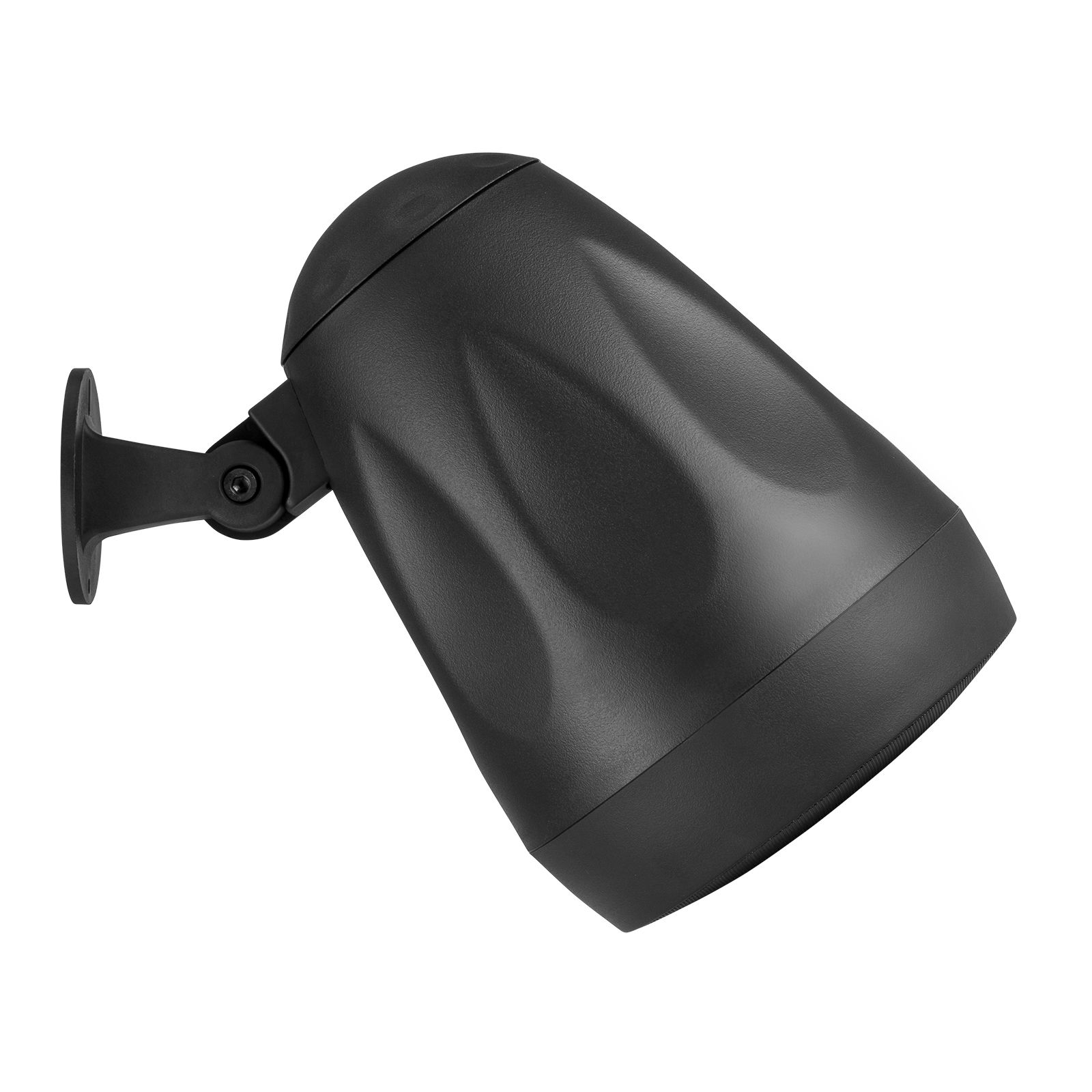

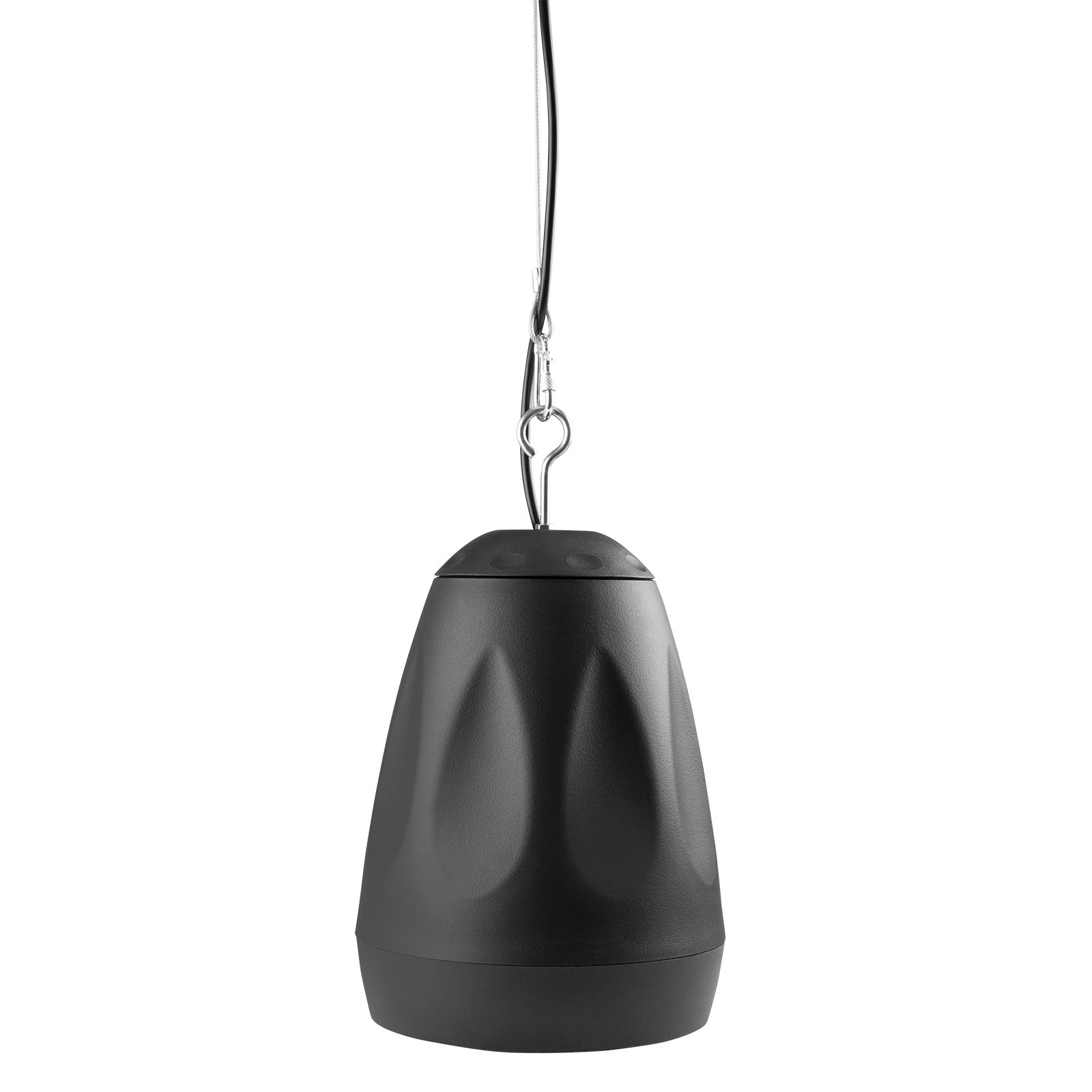

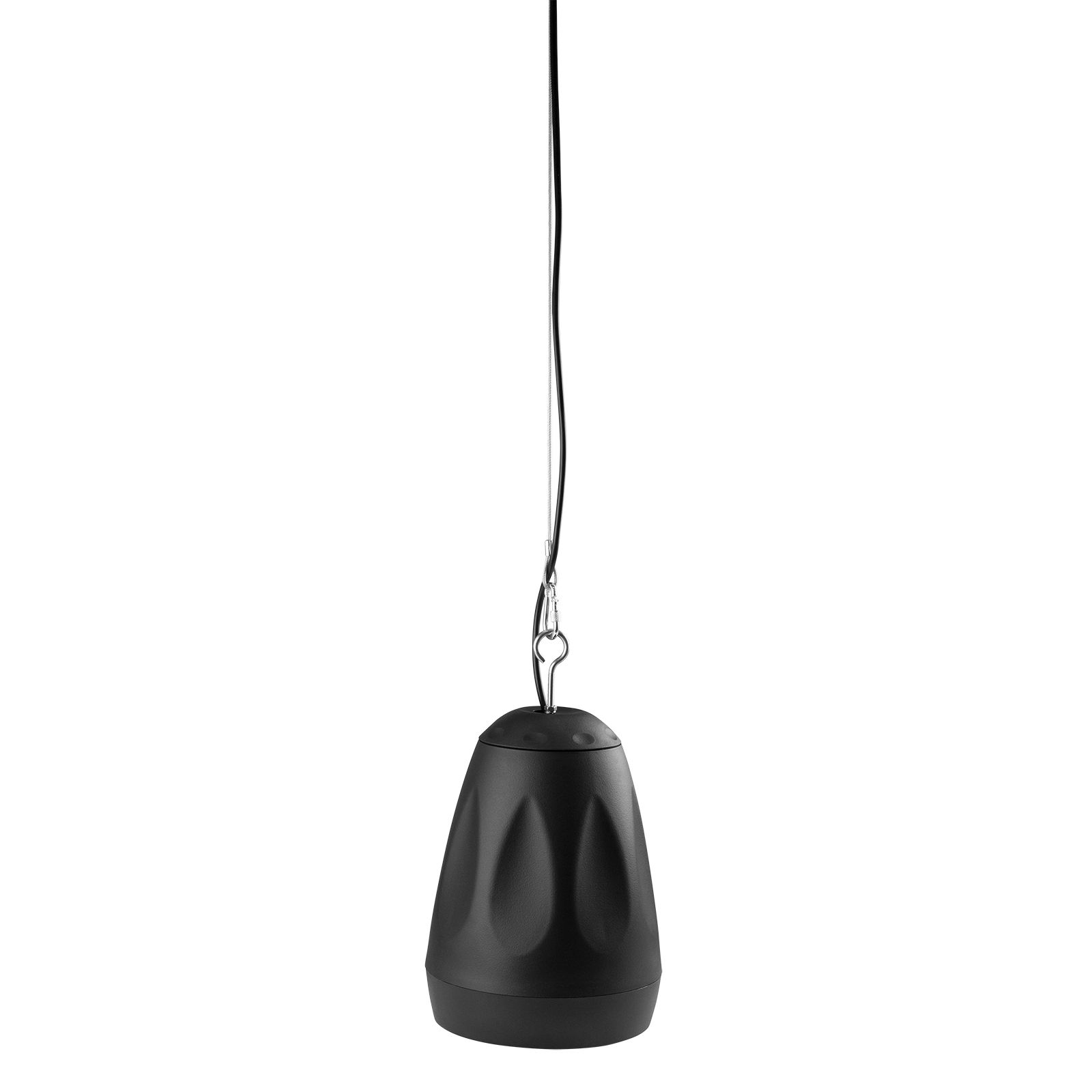

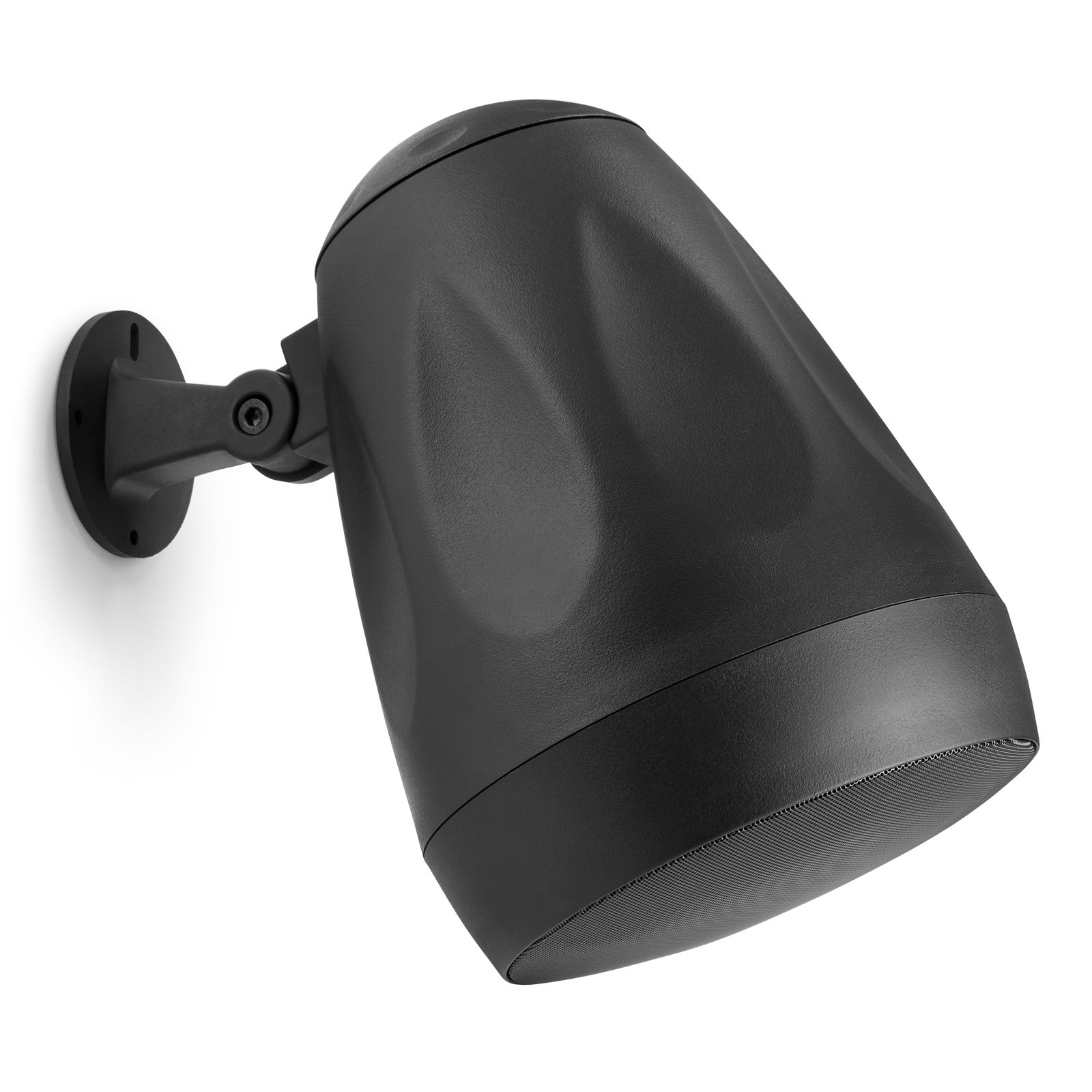

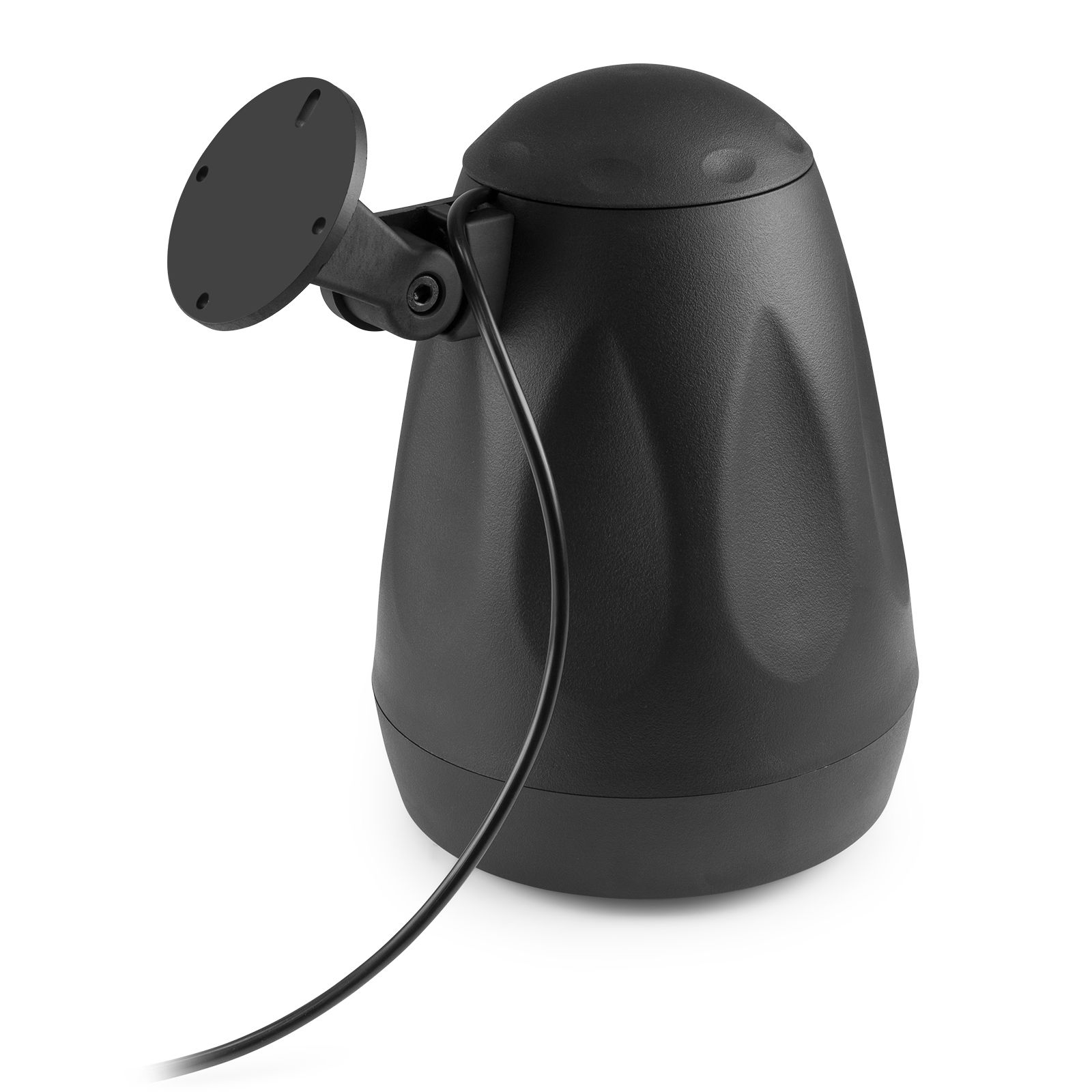

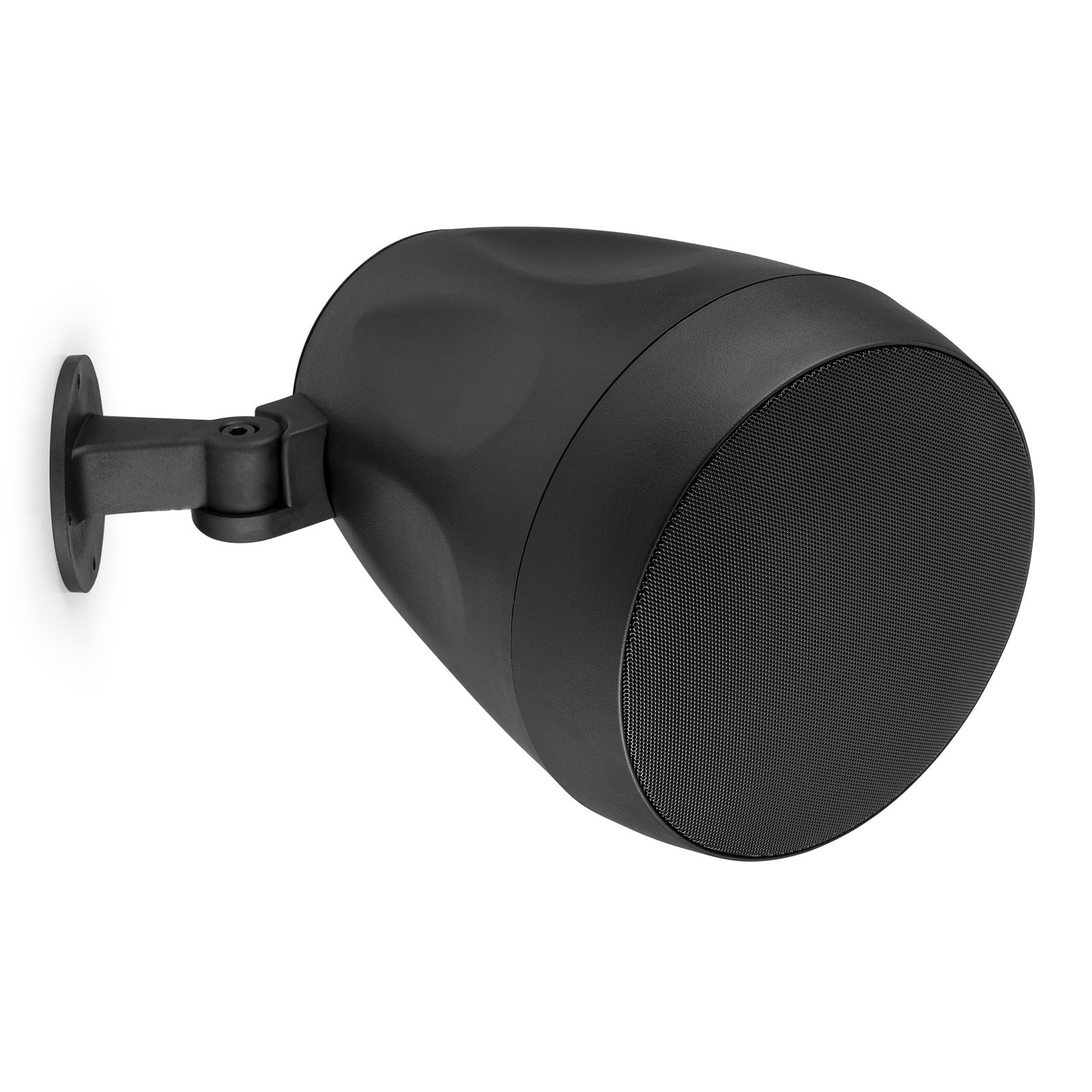

- Versatile mounting brackets for pendant mounting or wall mount
- Colour: Black
- Supplied per piece
Specifications
BrandPower Dynamics
Product seriePDS series
ColourBlack
Speaker Power Peak80 W
Speaker Power RMS40 W
Transformer Taps (100V)5W, 10W, 20W, 40W
Transformer Taps (70V)2.5W, 5W, 10W, 20W
Frequency Response90 - 20,000 Hz
Sensitivity (1W/1m)85 dB
Max. SPL (Peak)104 dB
Impedance8 Ω, 70V, 100V
Audio specifications
Tweeter typeDome
Tweeter diameter1"
Woofer diameter6.5"
Woofer Magnet TypeFerrite
Environmental
IP ratingIPX5
Mechanical
Dimensions
- 208 x 280 x 208 mm (W x D x H)
Weight
- 3 kg

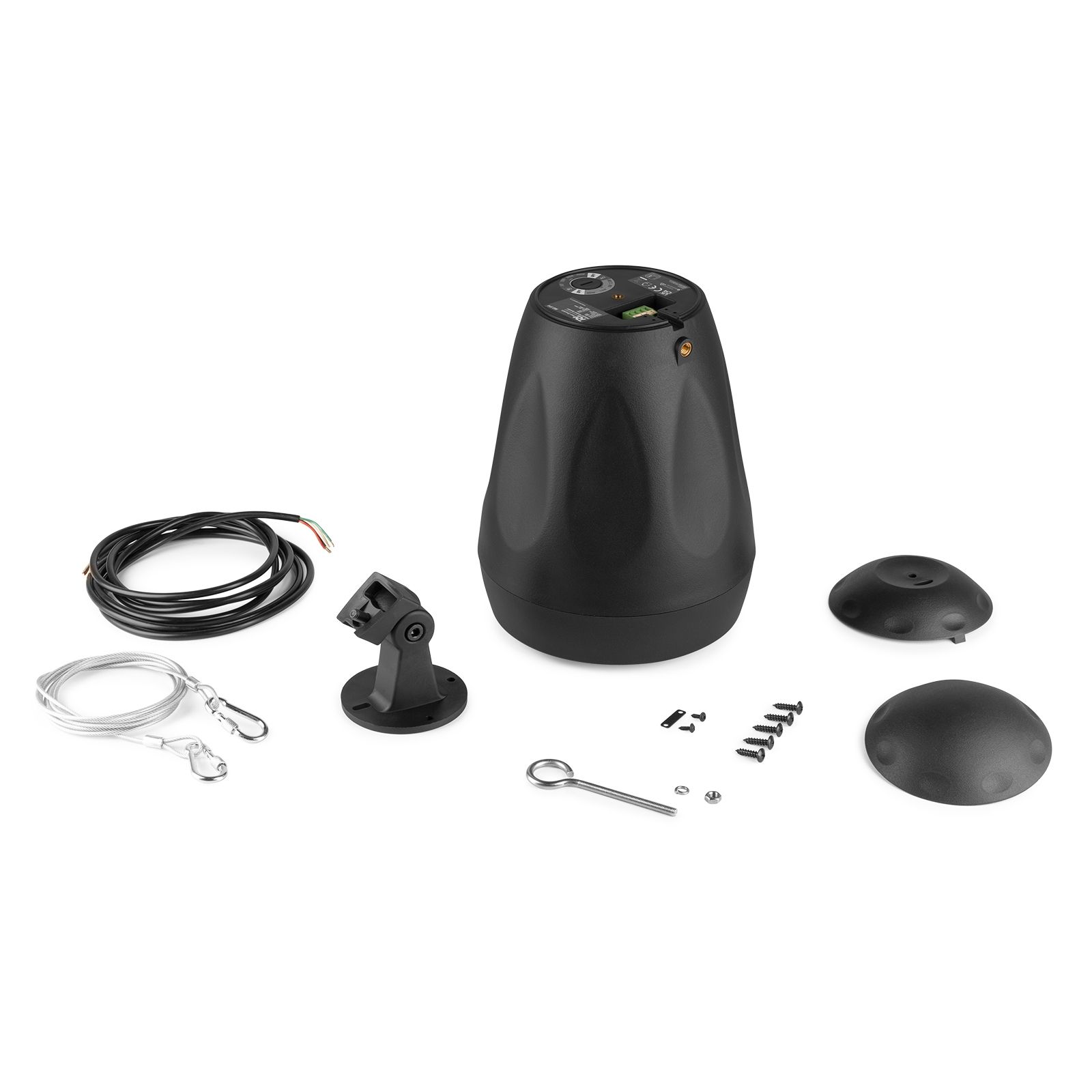

Accessories
Included Accessories
- Mounting bracket
- Safety cord
- Speaker cable
