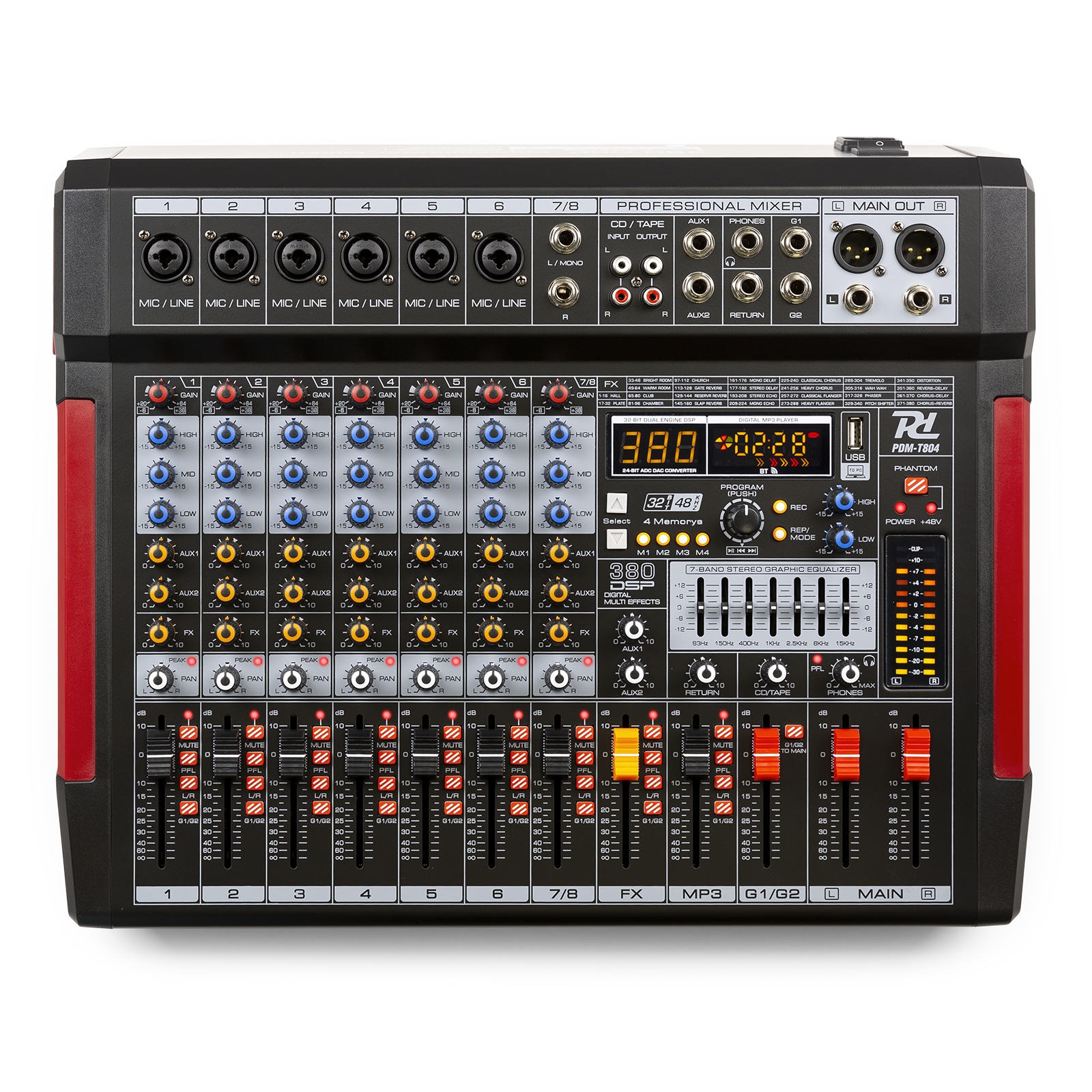

PDM-T804
Stage Mixer 8-Channel DSP/MP3
SKU 172.662
|EAN 8715693335446
All product information
Compare
PDM-T series
Description
Highlights
- 8-Channel multipurpose audio mixer
- MP3 recording/playing via full-duplex USB port (one click recording)
- BT receiver for audio streaming
- +48V phantom power
- Stereo 7-band graphic equalizer
- 380 DSP multi effects with 4 memories
- USB to PC for record and play music (USB interface)
- 8x Microphone-/line input (Combi XLR/Jack)
- High, Mid and Low control for each channel
- Adjustable Pan, aux return input and FX send output
- Adjustable headphone output
- Stereo balanced main outputs (XLR/6.3mm Jack)
- MUTE, PFL (Pre-fader listening), L/R, G1/G2 control on each channel
- LED VU meter and Peak LEDs
Specifications
BrandPower Dynamics
Product seriePDM-T series
ColourBlack
Channels8
Frequency Response20 - 20,000 Hz
Playback
Playback optionsBT streaming, USB
Sound editing
DSP Effects Amount380
DSP Resolution32-bit
Equalizer: Mic/Line3-Bands
Equalizer: Main7-Bands
Audio specifications
THD: Main<0.5%
Features
FeaturesEffect processor, Playback function, Recording option, USB audio interface
Connections
Input connections
- XLR
- USB-A
- RCA
- 6.3 mm jack
Output connections
- 6.3 mm jack
- RCA
- USB-B
- XLR
Electrical
Power Supply100-240VAC 50/60Hz
Mechanical
Dimensions
- 377 x 455 x 120 mm (W x D x H)
Weight
- 4.85 kg
