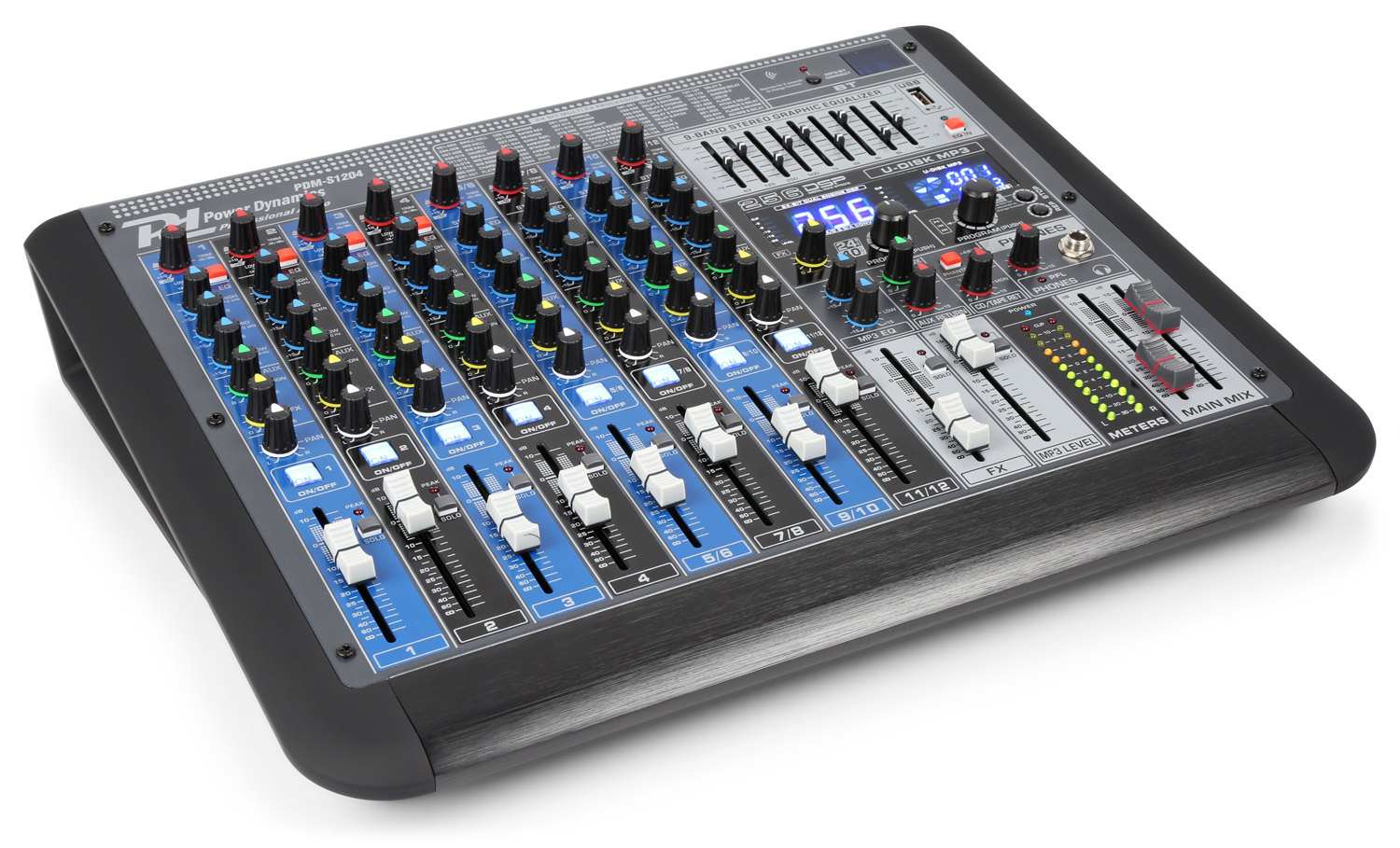

PDM-S1204
12-Channel Professional Analog Mixer
SKU 172.624
|EAN 8715693290844
All product information
Compare
PDM-S series
Description
Highlights
- 6 Balanced mono microphone inputs (XLR)
- 4 Balanced mono line inputs (6.3mm Jack)
- 4 Balanced stereo line inputs (6.3mm Jack)
- +48V phantom power
- Stereo line input (RCA)
- 75Hz Low cut filter channel 1-4
- Multi-FX processor with 256 presets
- Solo switch per channel (PFL)
- On/off switch per channel
- Hi, Mid and Low control for each channel
- FX inserts on each channel
- Aux send per channel
- Adjustable Pan per channel
- 9-band Equalizer
- Stereo balanced main outputs (XLR + 6.3mm Jack)
- Separate control room, headphones and stereo rec outputs
- Built-in USB player with digital display
- BT-receiver for audio streaming
- LED VU meter and Peak LED's
- Supplied with telephone holder
Specifications
BrandPower Dynamics
Product seriePDM-S series
ColourBlack
Channels12
Frequency Response10 - 45,000 Hz
Playback
Playback optionsBT streaming, USB
Sound editing
DSP Effects Amount256
DSP Resolution24-bit
DSP effectsAmbience, Chapel, Chorus, Delay, Early reflex, Echo, Flanger, Gated reverse, Hall, Leslie, Phaser, Ping pong delay, Pitch, Plate, Reverb delay, Room, Spring, Stadium
Audio specifications
Features
FeaturesEffect processor, Playback function
Connections
Input connections
- XLR
- USB-A
- RCA
- 6.3 mm jack
Output connections
- 6.3 mm jack
- RCA
- XLR
Electrical
Power Supply100-240VAC 50Hz
Mechanical
Dimensions
- 335 x 410 x 95 mm (W x D x H)
Weight
- 4.3 kg
