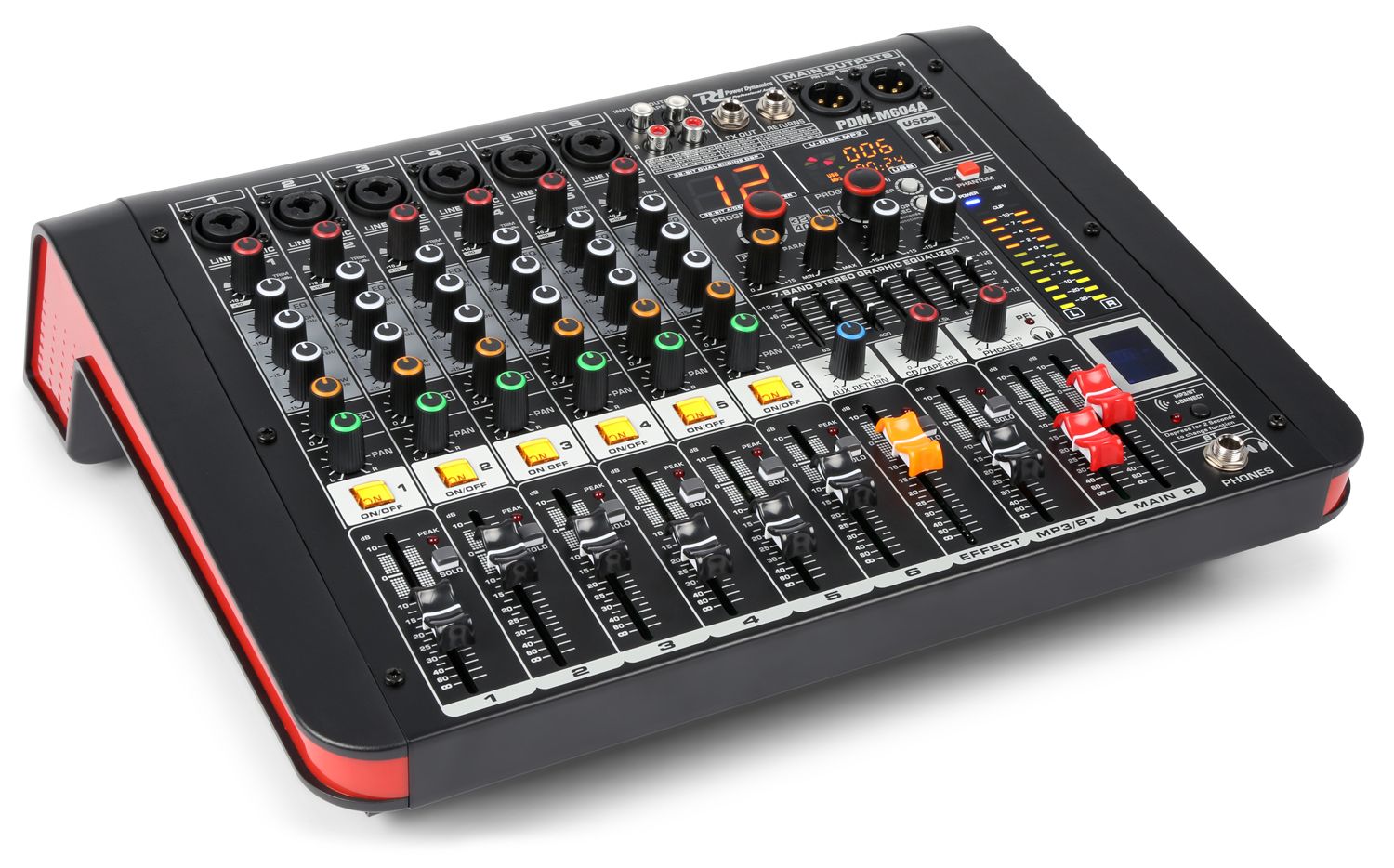

PDM-M604A
6-Channel Music Mixer with Amplifier
SKU 172.612
|EAN 8715693290806
All product information
Compare
PDM-M series
Description
Highlights
- 6 Balanced mono microphone-/line input (Combi XLR/Jack)
- +48V phantom power with individual preamp per channel
- Stereo line input (RCA)
- Multi-FX processor with 16 presets
- Solo switch per channel (PFL)
- On/off switch per channel
- Hi, Mid and Low control for each channel
- Adjustable FX volume per channel
- Adjustable Pan per channel
- Stereo balanced main outputs (XLR)
- Separate headphones and stereo rec outputs
- 7-Band equalizer
- Built-in 2x 200W RMS Amplifier
- Built-in USB player with digital display
- BT-receiver for audio streaming
- LED VU meter and Peak LED's
Specifications
BrandPower Dynamics
Product seriePDM-M series
ColourBlack
Channels6
Frequency Response10 - 45,000 Hz
Playback
Playback optionsBT streaming, USB
Sound editing
DSP Effects Amount16
DSP Resolution24-bit
DSP effectsDelay, Echo, Hall, Ping pong delay, Reverb delay, Room
Audio specifications
Features
FeaturesBuild-in amplifier, Effect processor, Playback function
Connections
Input connections
- XLR
- USB-A
- RCA
- 6.3 mm jack
Output connections
- NL4
- RCA
- XLR
Electrical
Power Supply220-240VAC 50Hz
Mechanical
Dimensions
- 350 x 370 x 125 mm (W x D x H)
Weight
- 7.3 kg
Manuals & Documents
Manual
PDF
