PDC90
Media Player with Amplifier DAB+/USB/MP3/BT
SKU 172.800
|EAN 8715693336979
+3
All product information
Compare
PDC series
Description
Highlights
- Multifunctional media player with Class-D amplifier
- Integrated DAB+ tuner
- BT-receiver for streaming audio

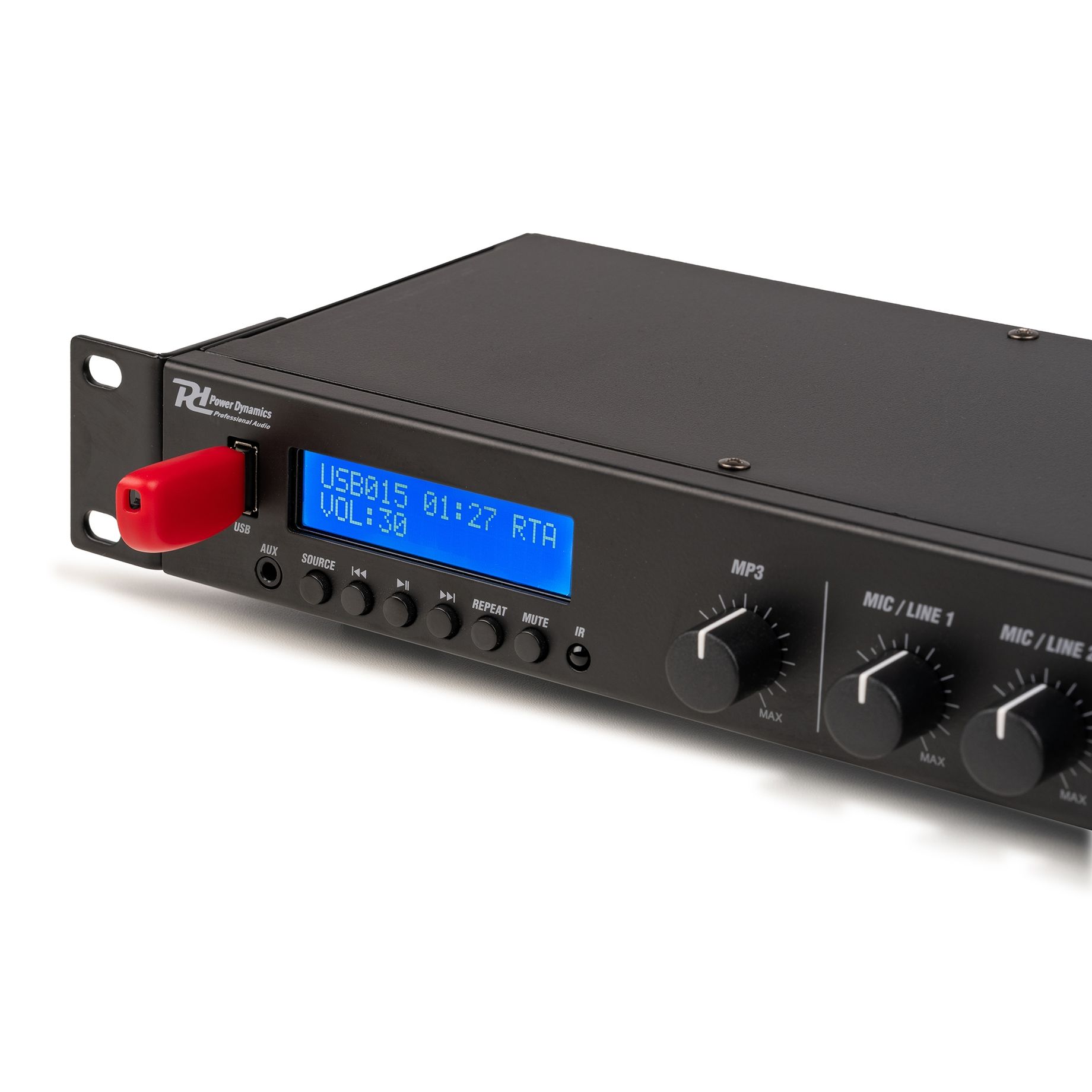

- USB media player with display
- 1x 3.5mm Aux input
- 3x Mic/Line inputs (XLR) with phantom power
- VOX priority on Mic/Line1 with mute level control
- Mix output balanced XLR
- RCA pre-amplifier output
- 24V DC Mute control input
- Separate level control per input
- Treble and bass control
- Remote control for MP3 player
Specifications
BrandPower Dynamics
Product seriePDC series
ColourBlack
Frequency Response100 - 20,000 Hz
Playback
Playback optionsBT streaming, DAB+ radio, Line input, Microphone input, USB
Bluetooth Version5
Audio specifications
Signal-to-noise ratio: Line>80dB
Signal-to-noise ratio: Mic.>80dB
THD: Main<2%
Output Level: Main0dBV
Connections
Input connections
- XLR
- USB-A
- RCA
- 3.5 mm jack

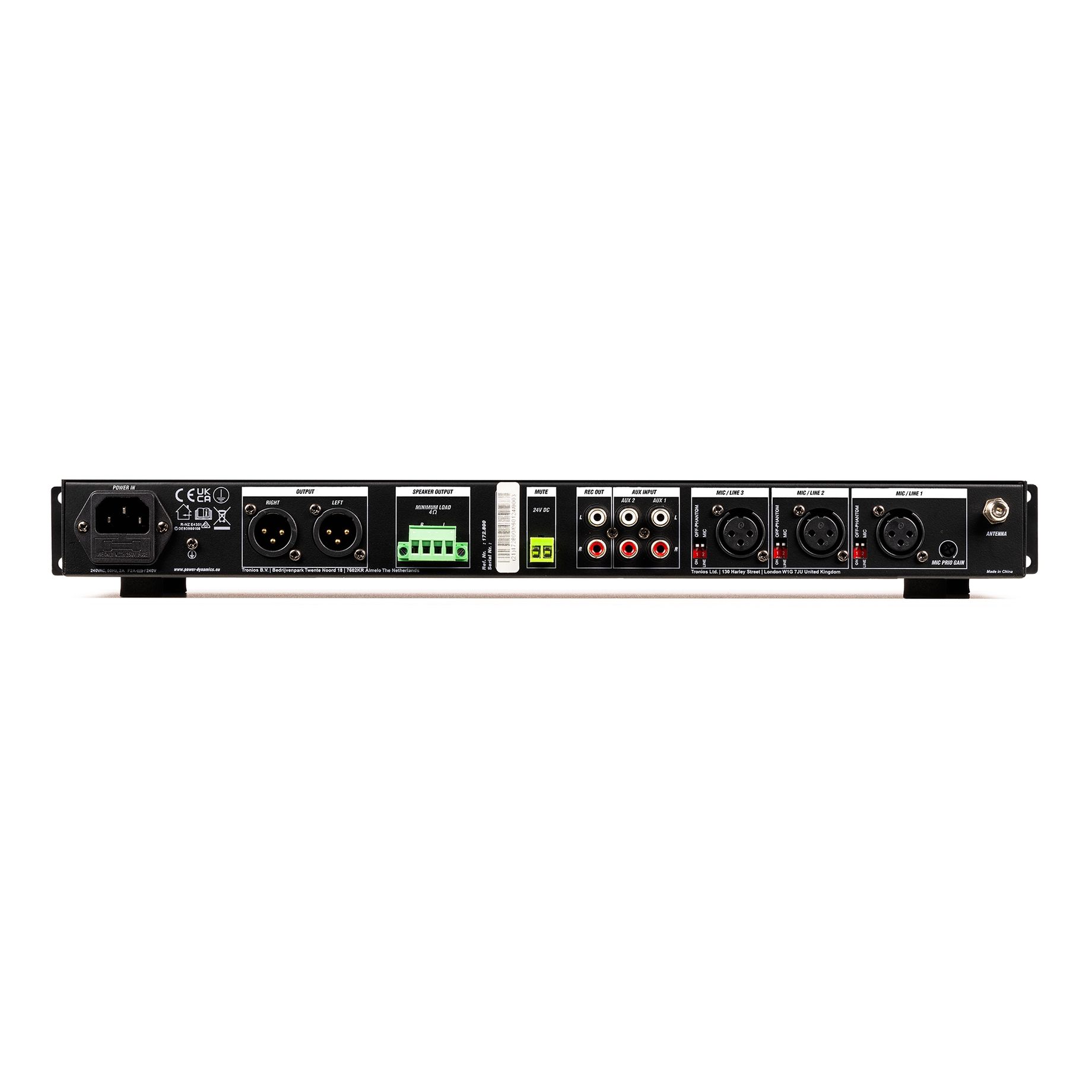

Output connections
- RCA
- Screw terminal
- XLR
Electrical
Power Supply100-240VAC 50/60Hz
Mechanical
Dimensions
- 135 x 483 x 45 mm (W x D x H)
Weight
- 1.9 kg
Accessories

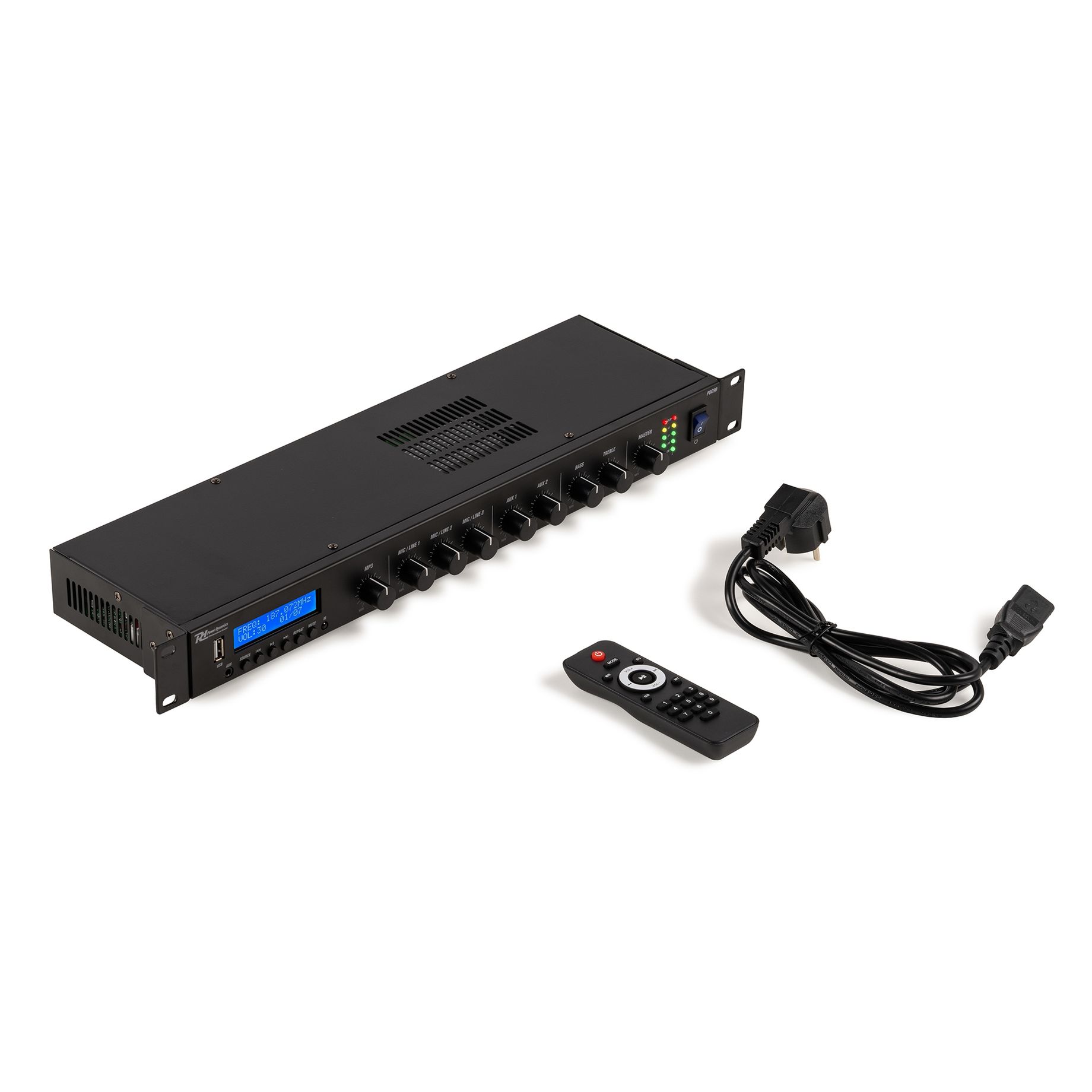

Included Accessories
- Power cable

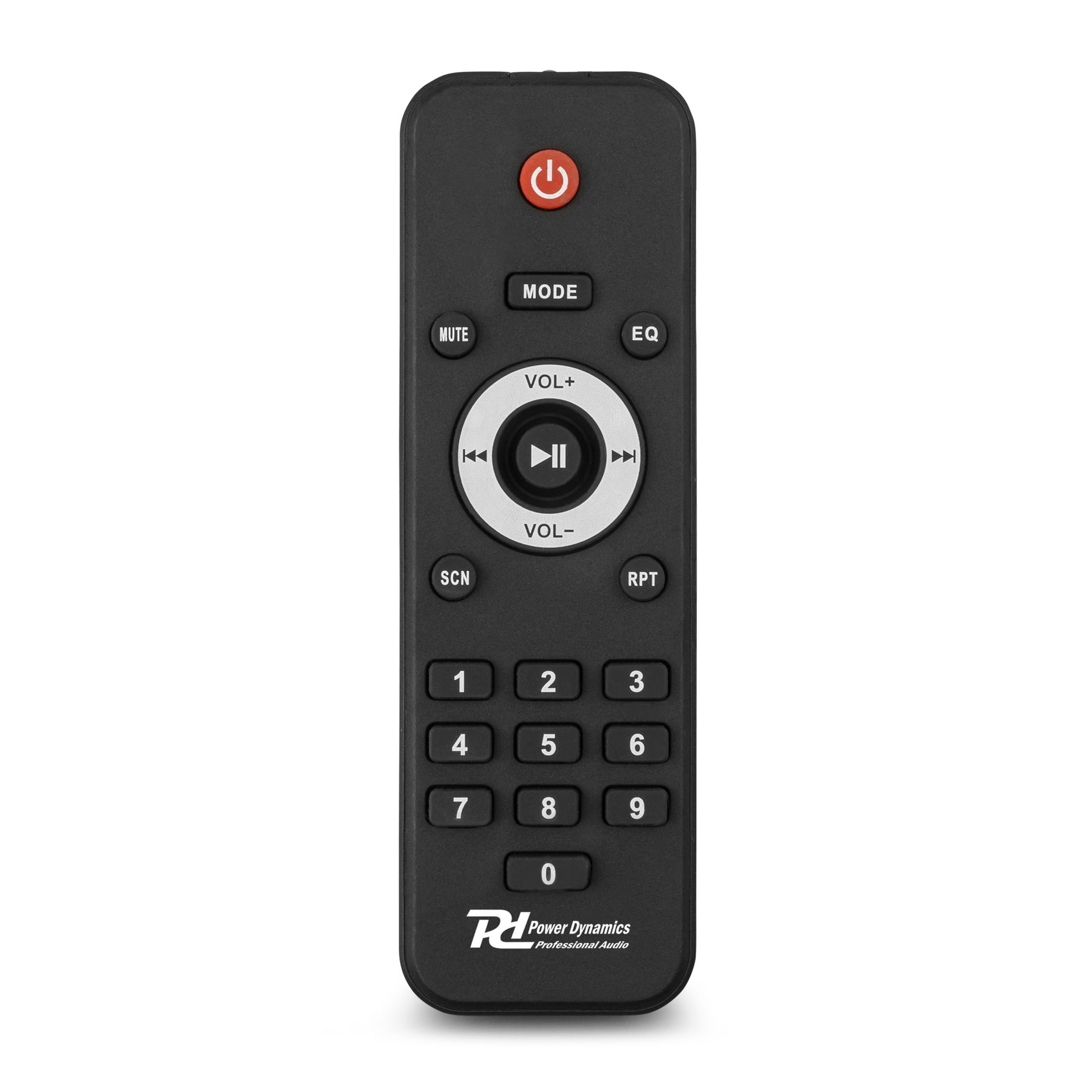

- Remote control (wireless)
