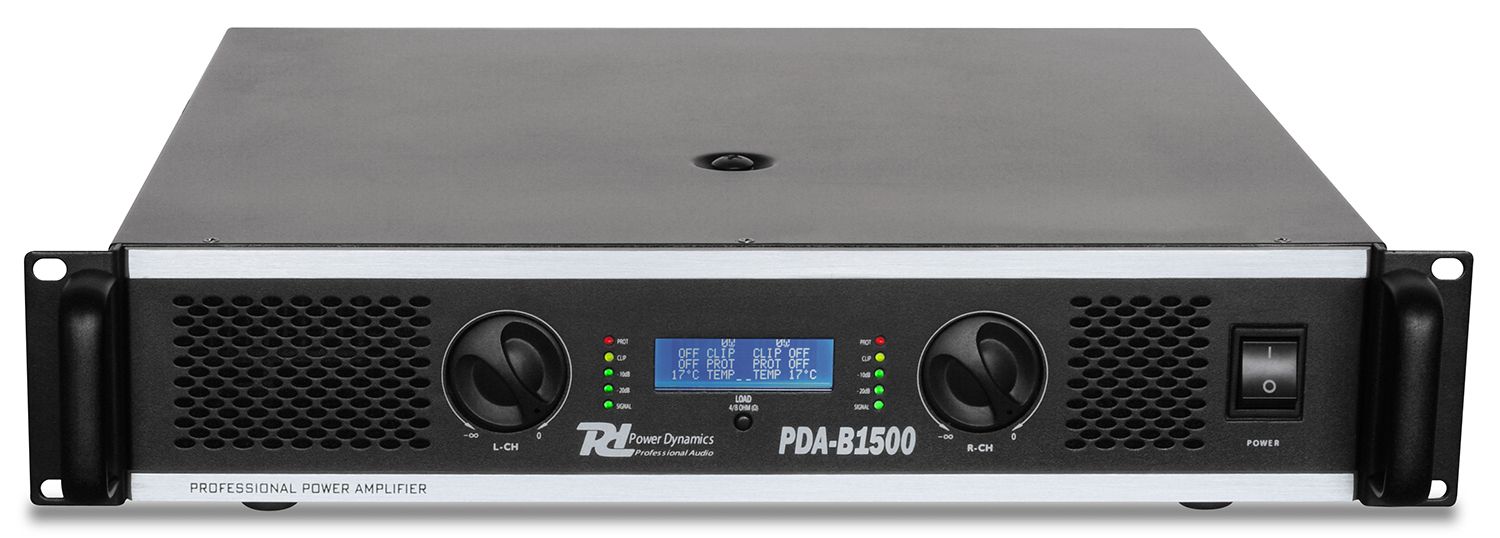

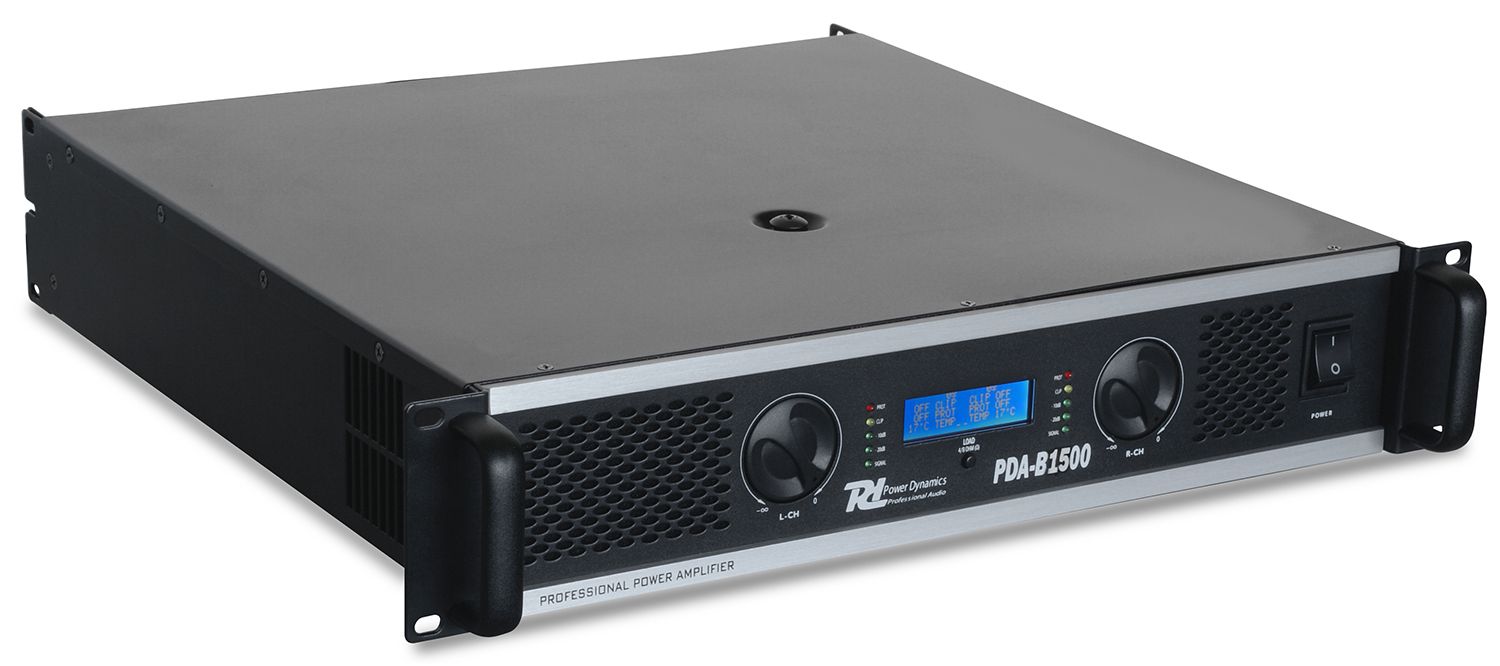

PDA-B1500
Professional Amplifier
SKU 171.193
|EAN 8715693258004
All product information
Compare
PDA-B series
Description
Highlights
- 2 Ohm reliable
- Blue LCD Display for temperature, operating mode, power, protection and audio level
- Signal, overload and bridge LED indicator on each channel
- Automatic clip limiter and Ground lift function
- Soft-Start function

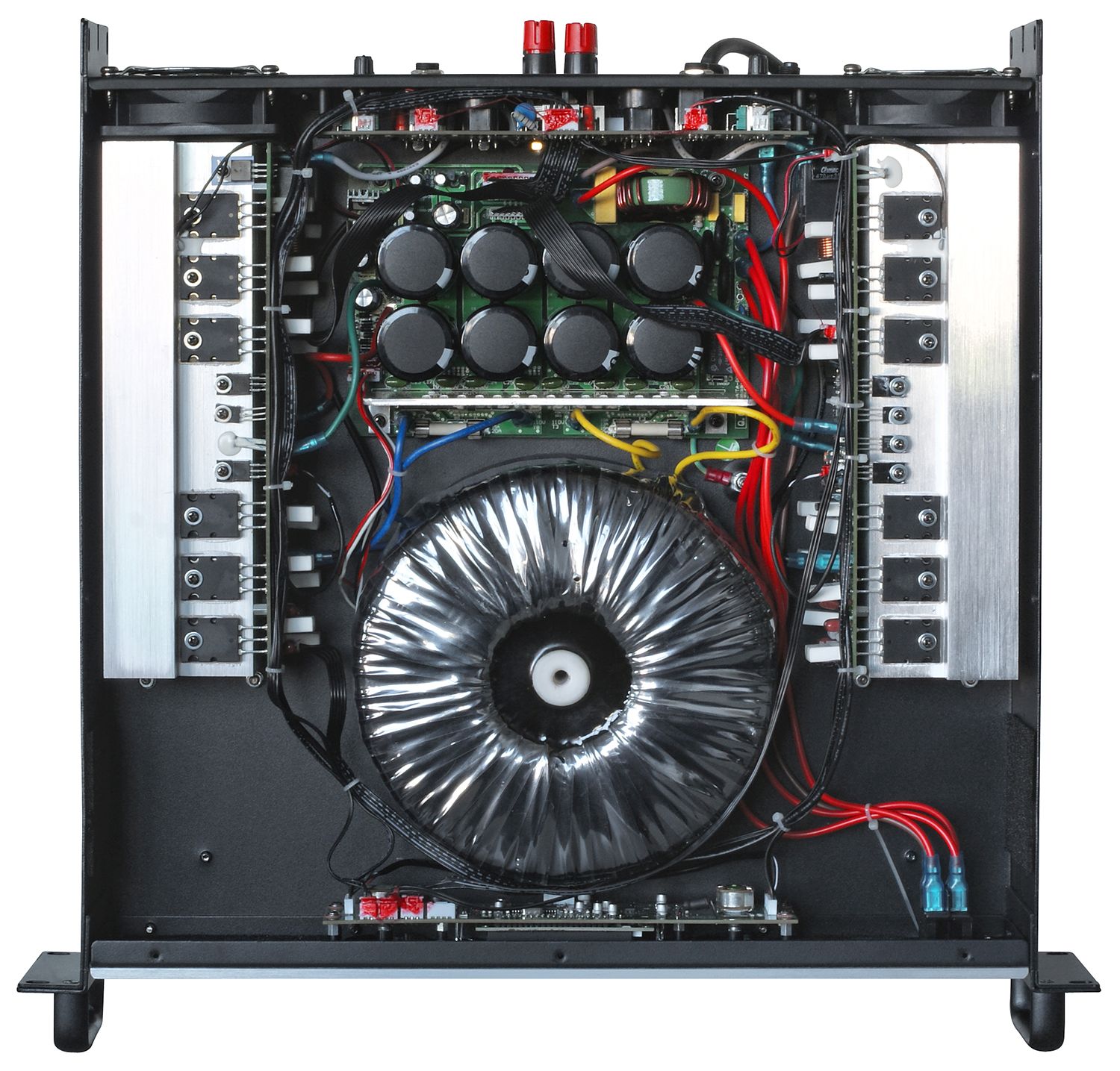

- Innovative heatsink with temperature-controlled fan
- Adjustable crossover network : 45-960 Hz / 450-9600 Hz
- Switchable h.p.f. or l.p.f.
- Suitable for 19" rack mounting (2U)
- Protected against short circuits, overload and heat
- Stereo, parallel & bridge mode
- High power output and excellent sound quality
Specifications
BrandPower Dynamics
Product seriePDA-B series
ColourBlack
Amplifier typePower amplifier
Output channels2
Frequency Response10 - 20,000 Hz
Audio specifications
Input Level: Line775mV - 1.2V, 20 kOhm
Signal-to-noise ratio: Main>95dB
Amplifier specifications

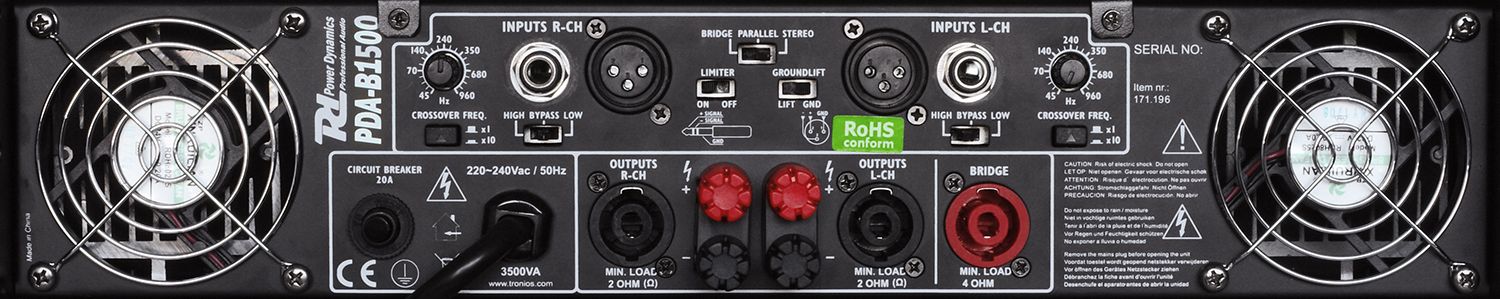

Connections
Input connections
- 2x Balanced Line - 3-pin XLR (F)
- 2x Balanced Line - 6.3 mm jack (mono) (F)
- XLR
- 6.3 mm jack
- 2x Balanced Line - 3-pin XLR (F)
- 2x Balanced Line - 6.3 mm jack (mono) (F)
Output connections
- 2x Speaker - NL2
- 1x Speaker (bridge) - NL2
- 2x Speaker - 2-Pole Speaker (M)
- NL4
- 2x Speaker - NL2
- 1x Speaker (bridge) - NL2
- 2x Speaker - 2-Pole Speaker (M)
Environmental
IP ratingIP20
Operating Temperature-20 °C ~ 40 °C
Electrical
Power Supply220-240VAC 50Hz
Mechanical
Rack units2U
Dimensions
- 48.2 x 46.5 x 8.8 mm (W x D x H)
Weight
- 17.75 kg
Manuals & Documents
Manual
PDF
