PD632BP

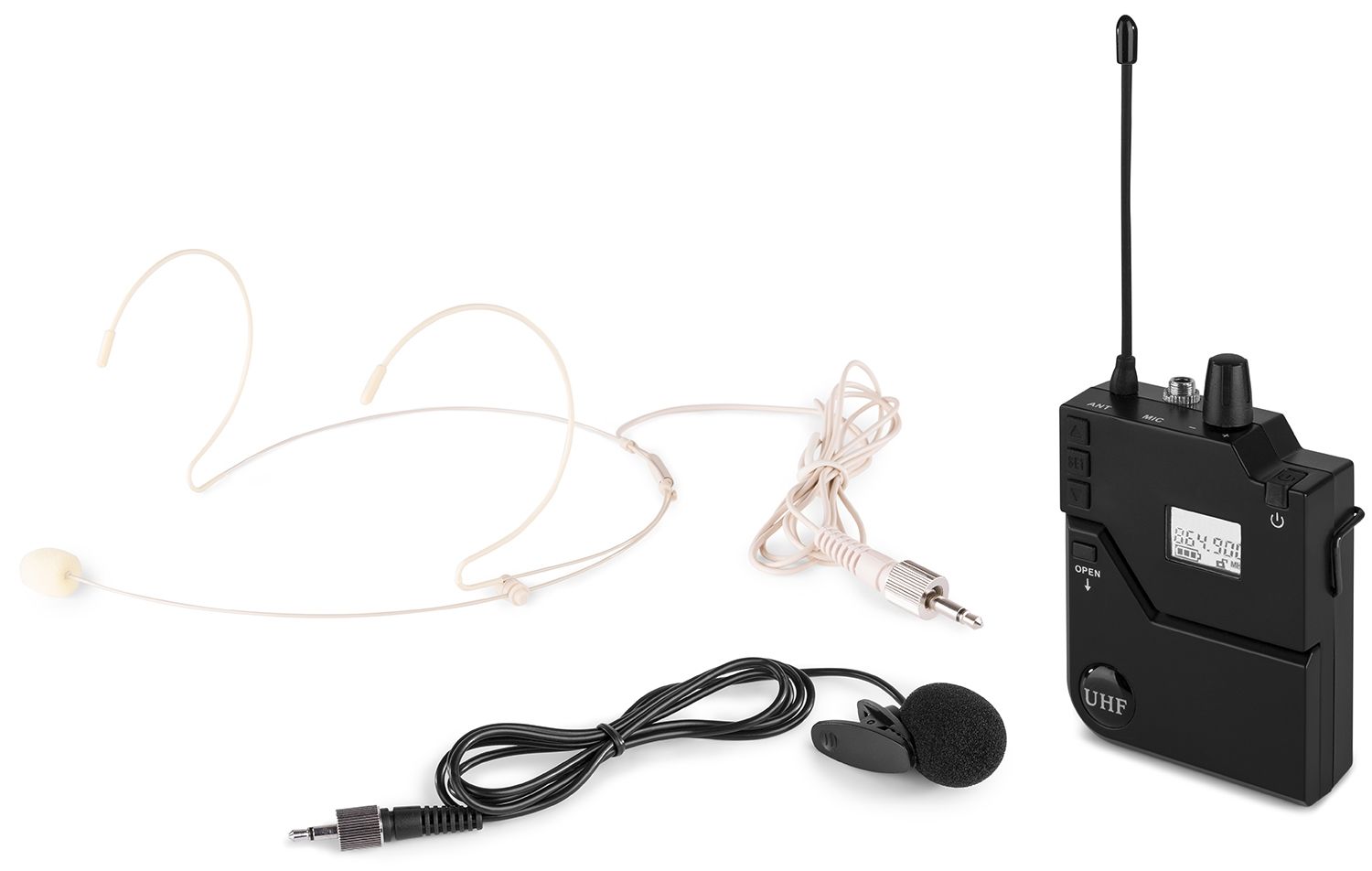

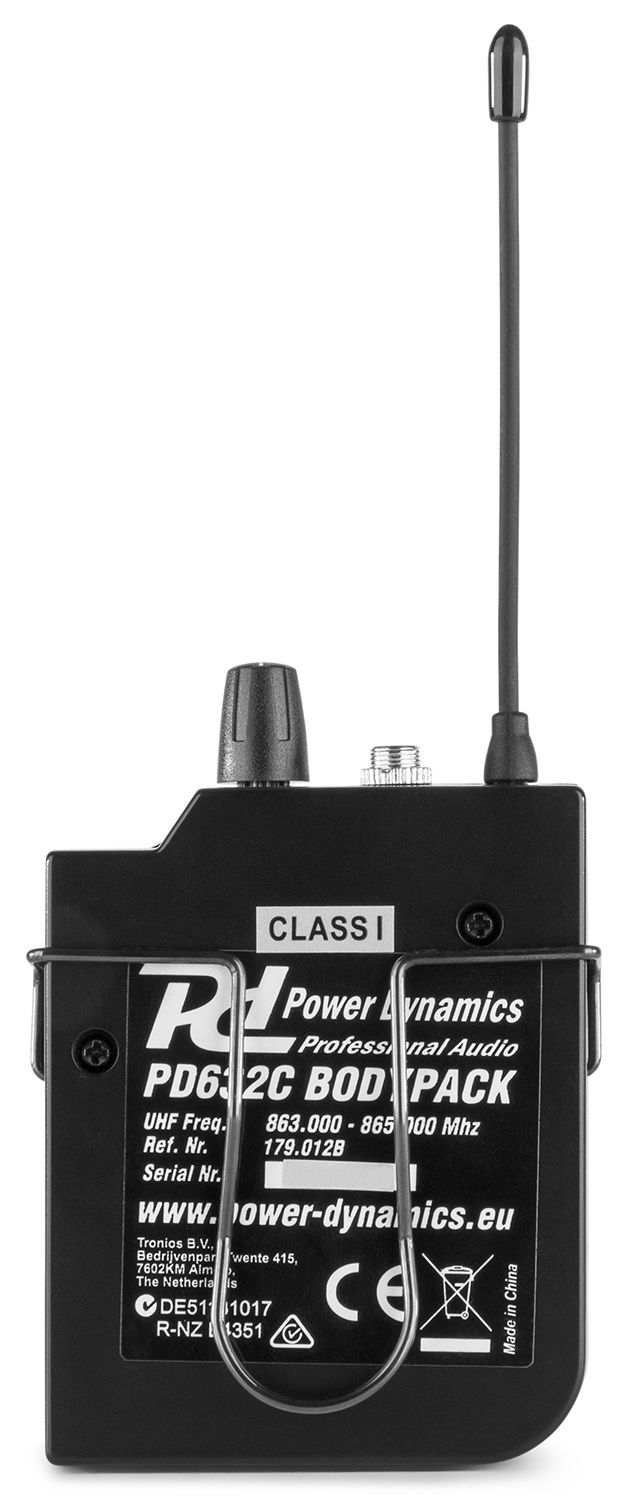

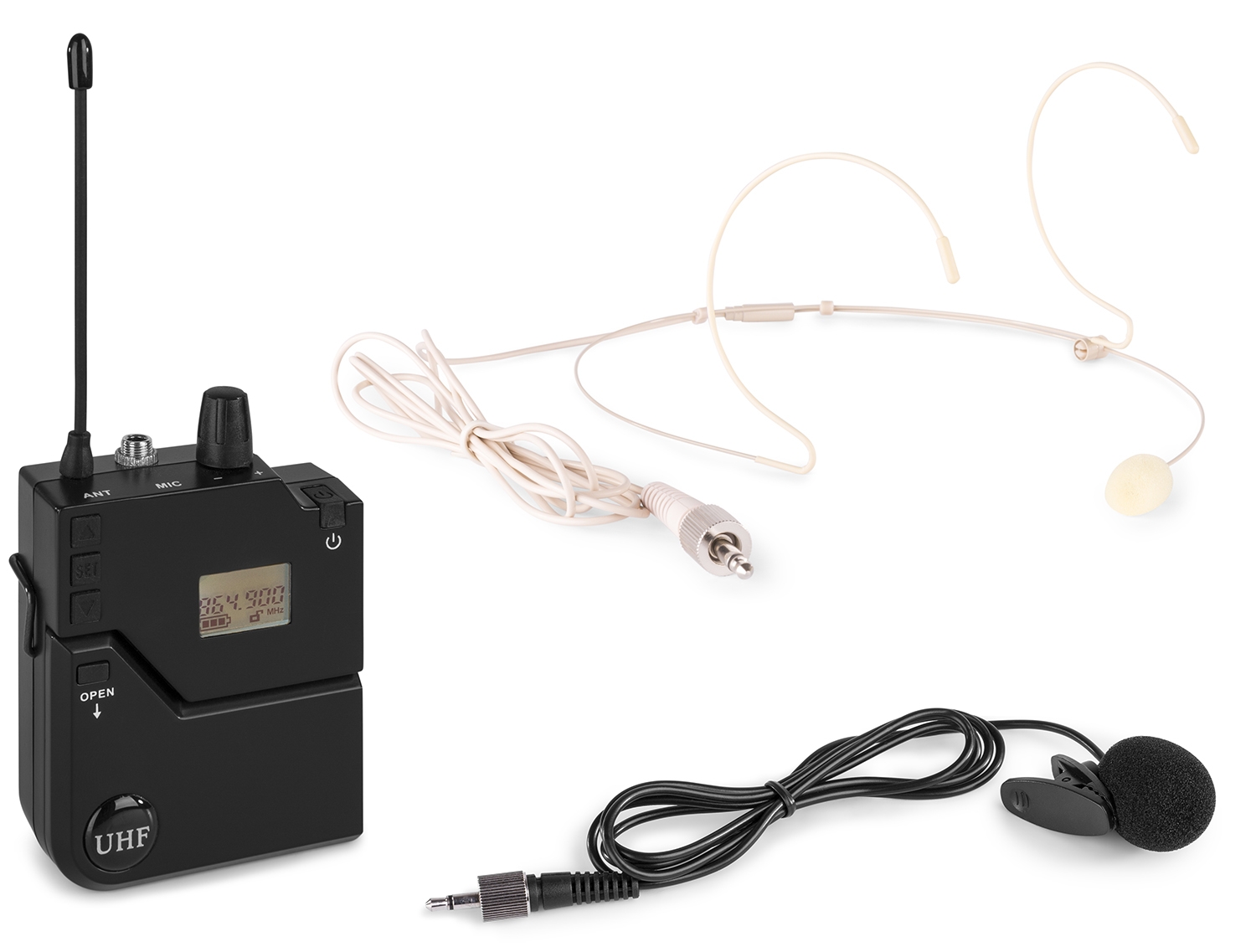

Bodypack microphone for PD632 series
SKU 179.014
|EAN 8715693301427
+2
All product information
Compare
PD632 series
Description
Highlights
- 20 Selectable UHF channels
- Bodypack with mute
- IR data transmission for channel selection

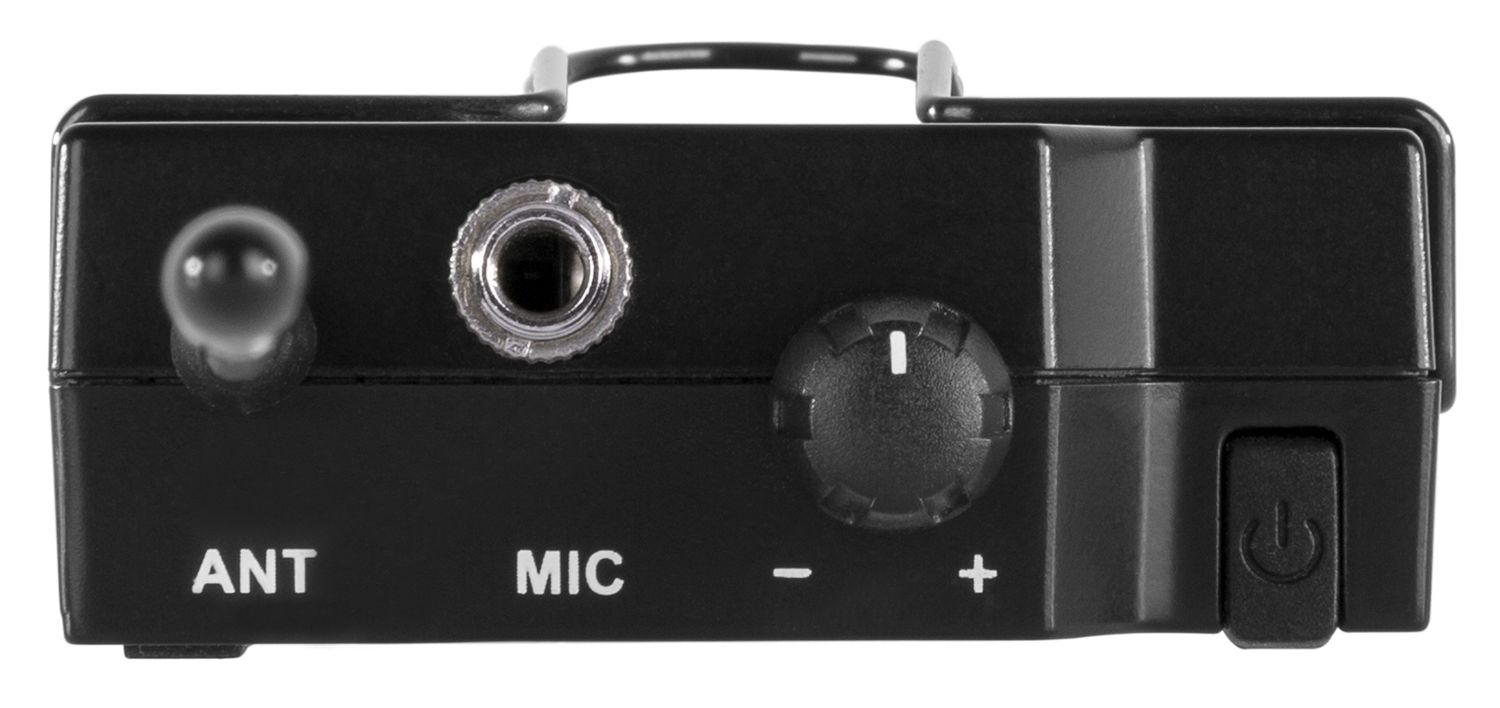

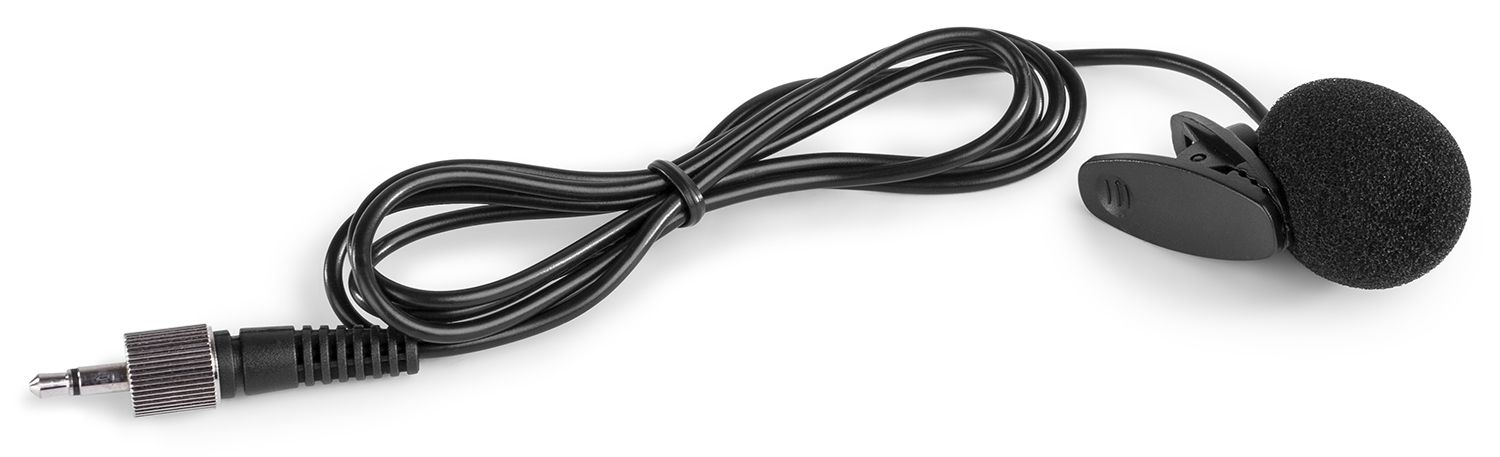

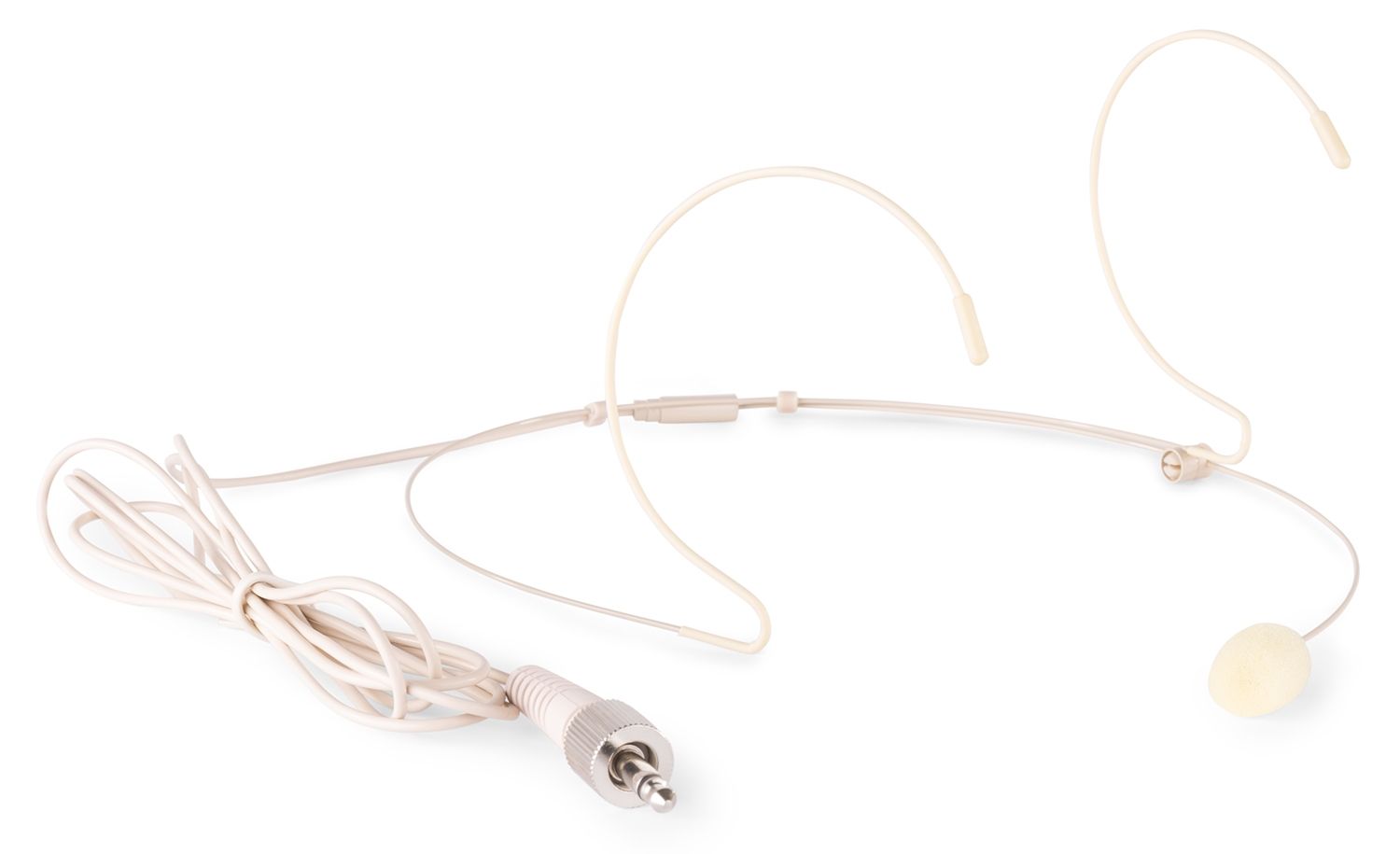

- Microphone connection using 3,5mm screwable jack

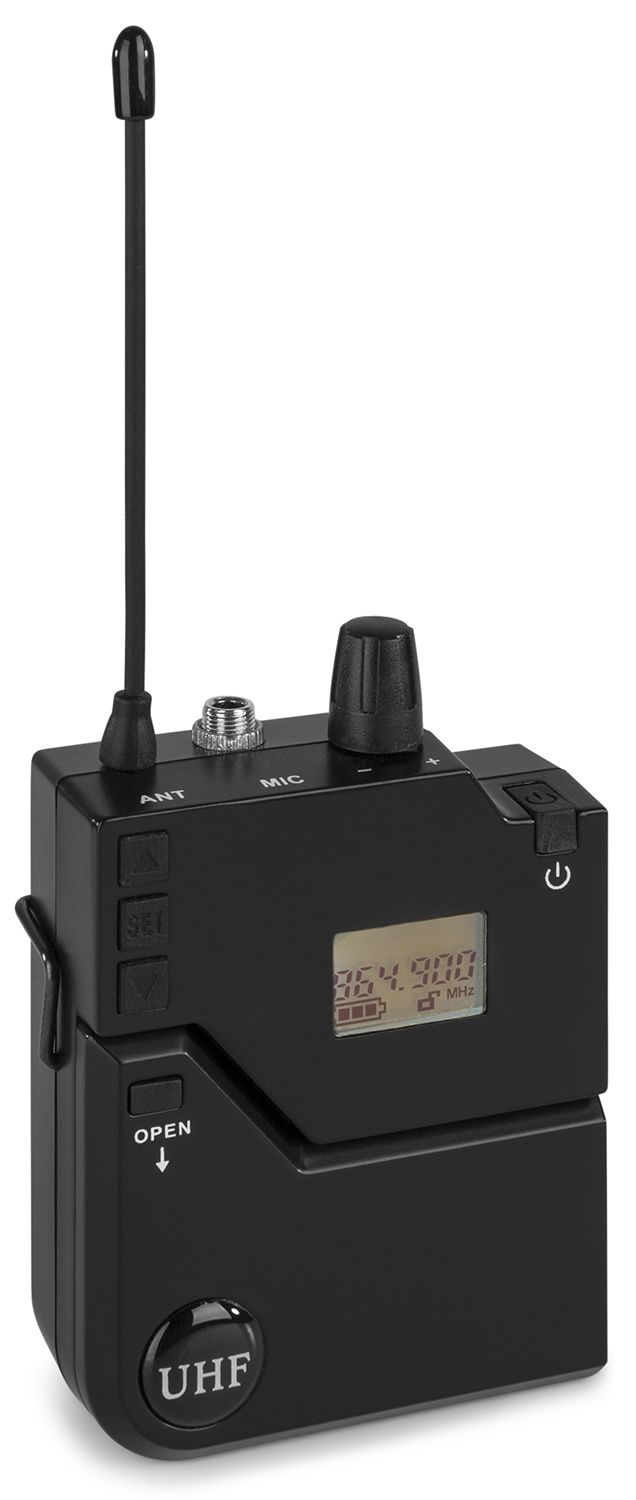

- Transmitter with display showing the frequency and battery low indication
Specifications
BrandPower Dynamics
Product seriePD632 series
ColourBlack
RF specifications
RF channels20 channels
RF frequency receiver863.000 - 865.000 MHz
RF Output Power<10mW
RF Frequency Stability0.0015 %
Audio specifications
Signal-to-noise ratio: Main>97dB
THD: Main<1%
Connections
Input connections
- 3.5 mm jack
Output connections
- 3.5 mm jack
Electrical
Power Supply100-240VAC 50/60Hz (12V Adapter)
Mechanical
Weight
- 0.14 kg
Dimensions: Bodypack
- 6 x 7.5 x 2.3 mm (W x D x H)
Weight: Bodypack
- 0.2 kg
Manuals & Documents
Manual
PDF
