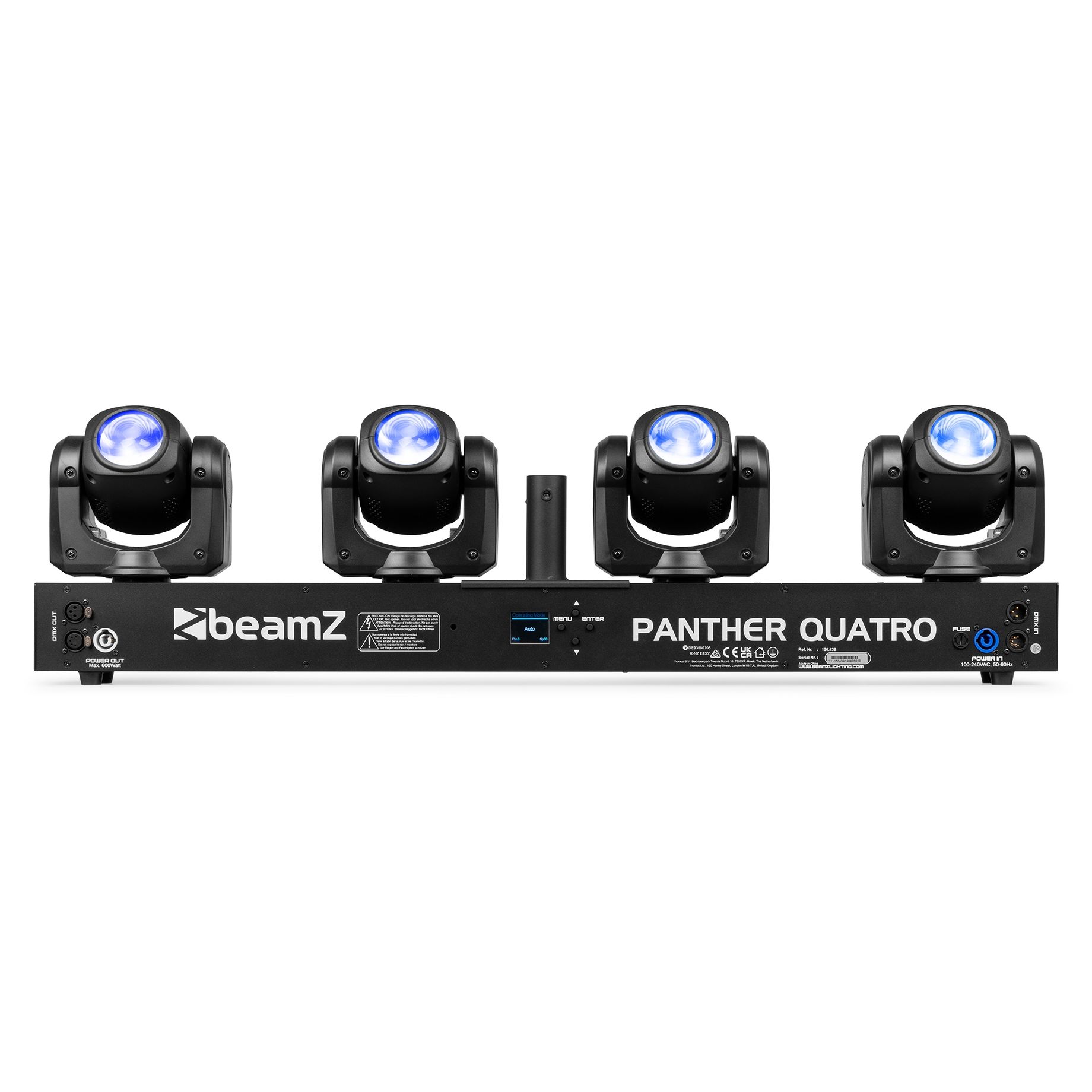

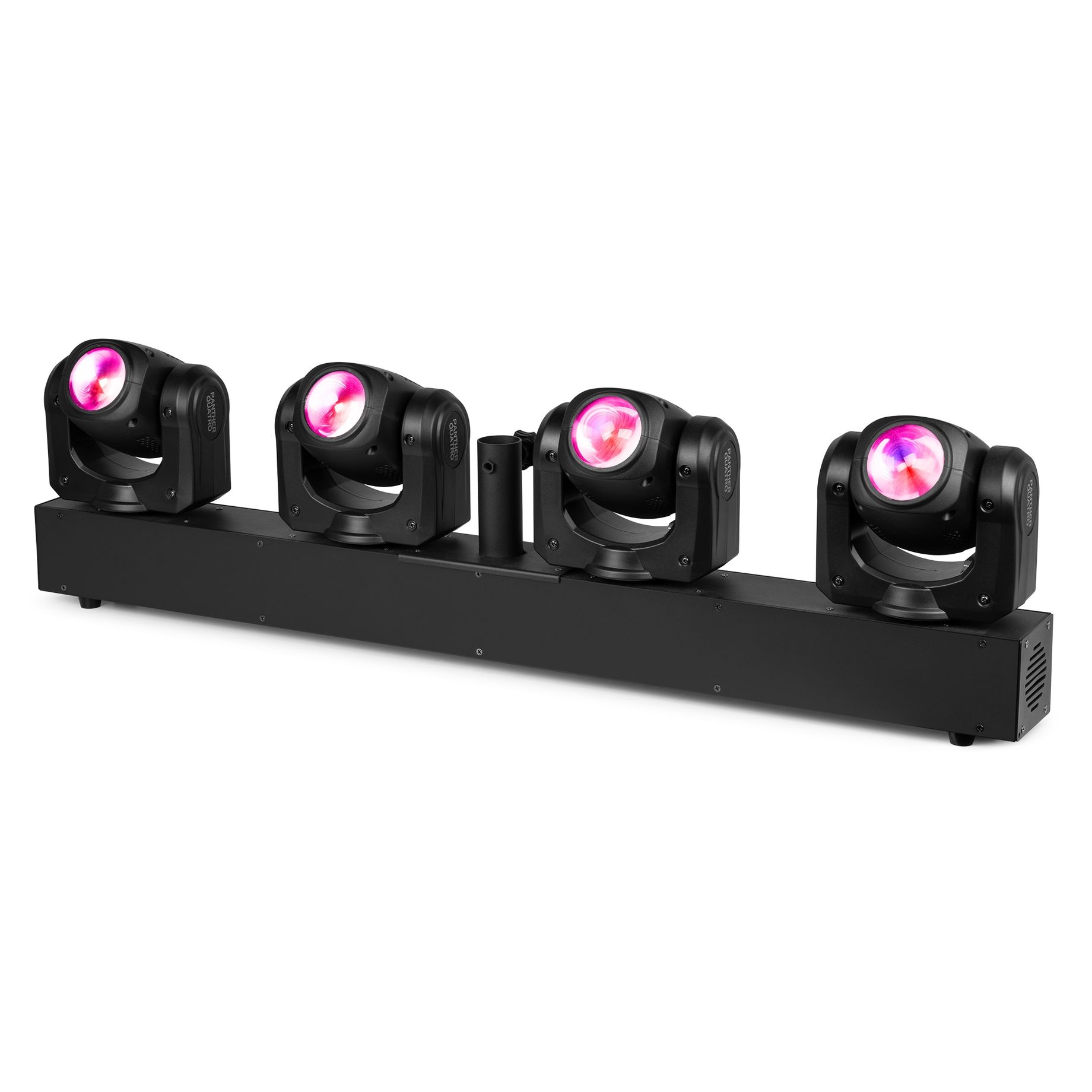

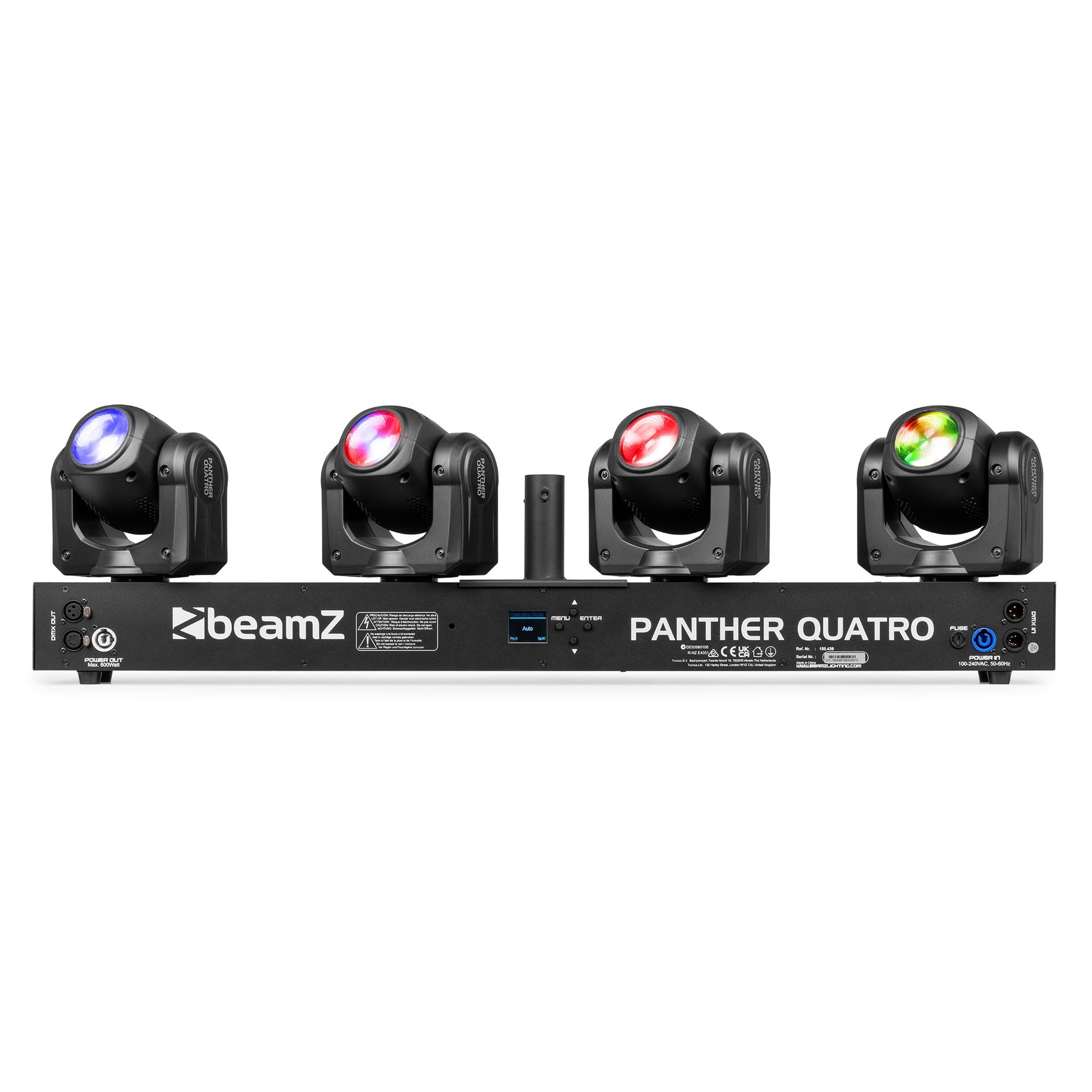

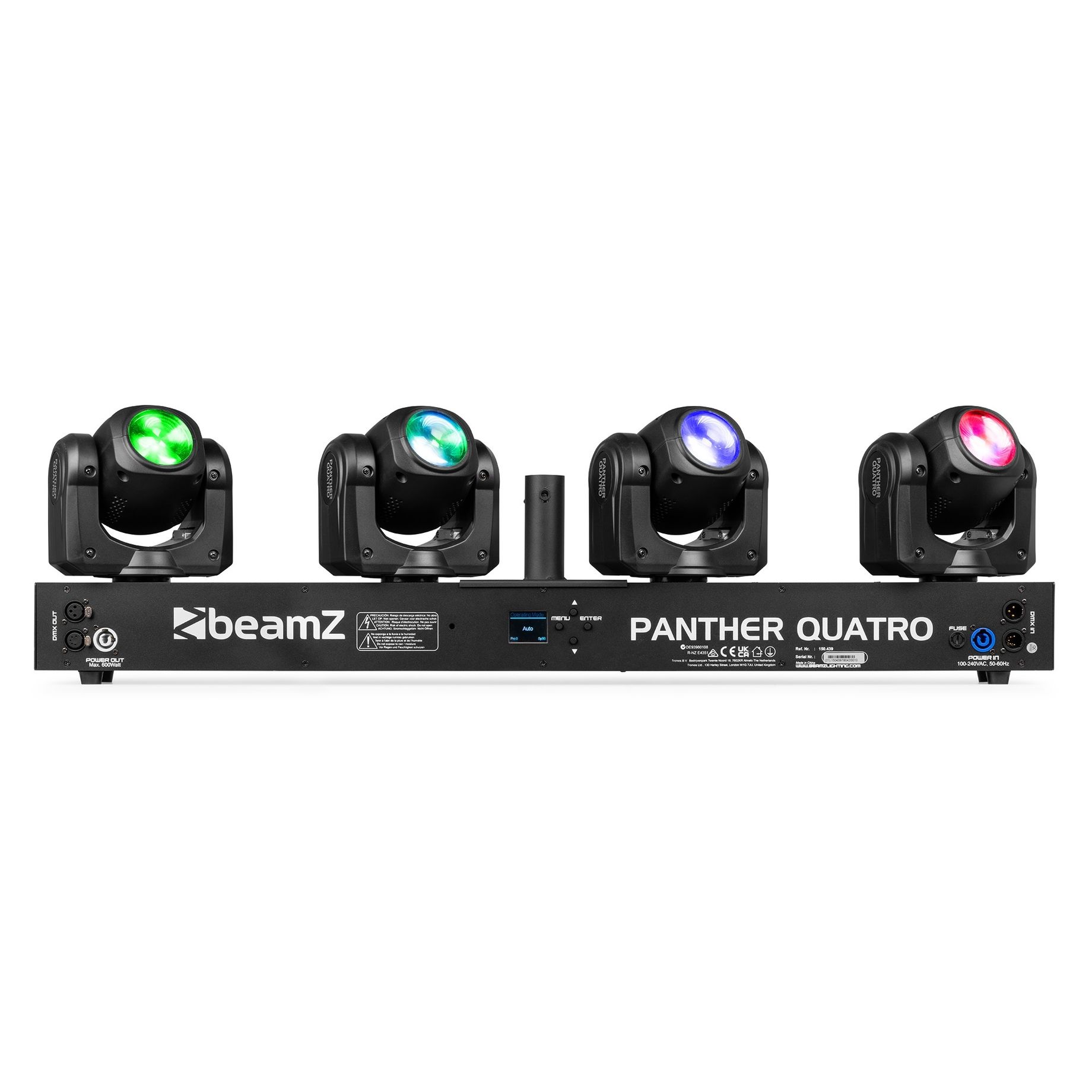

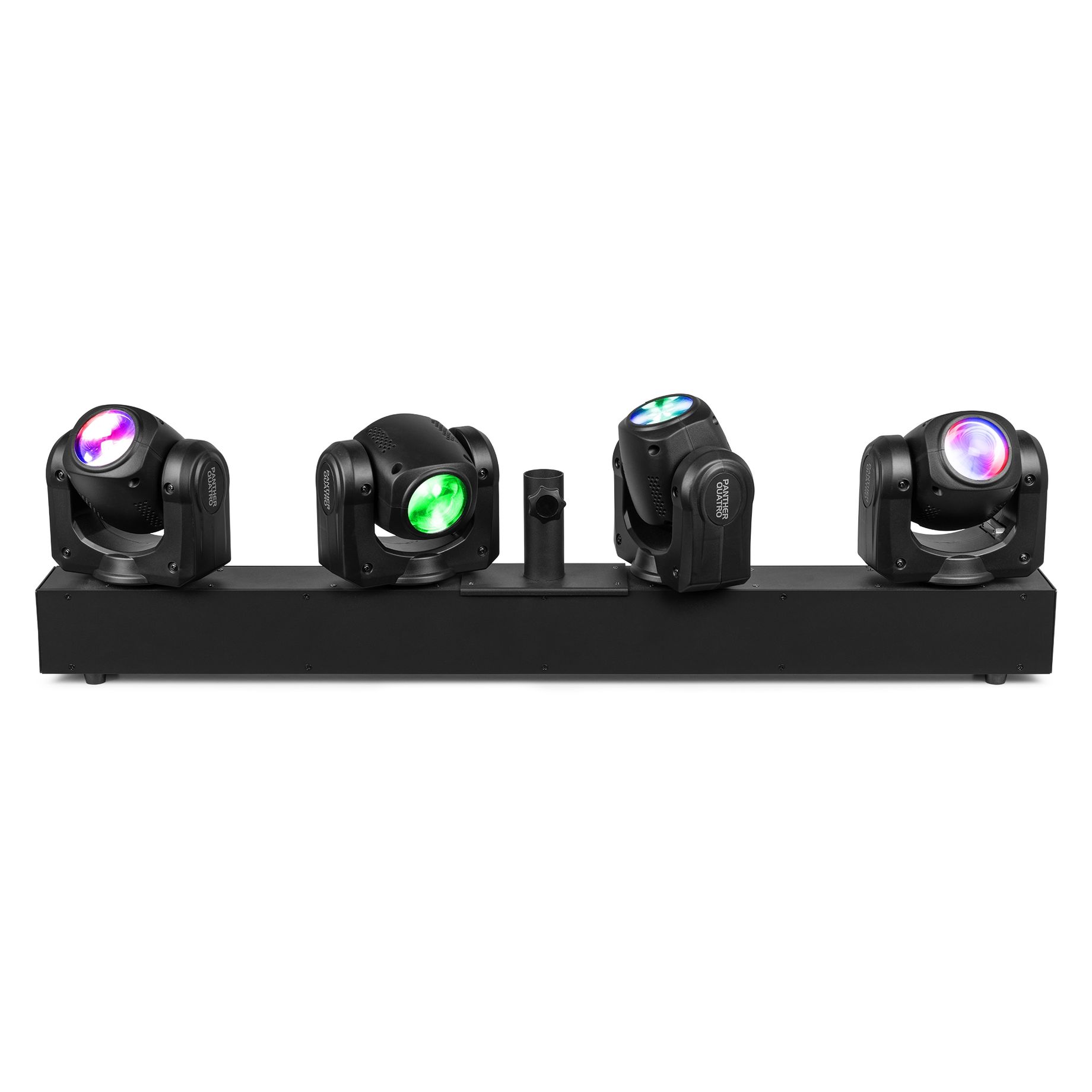

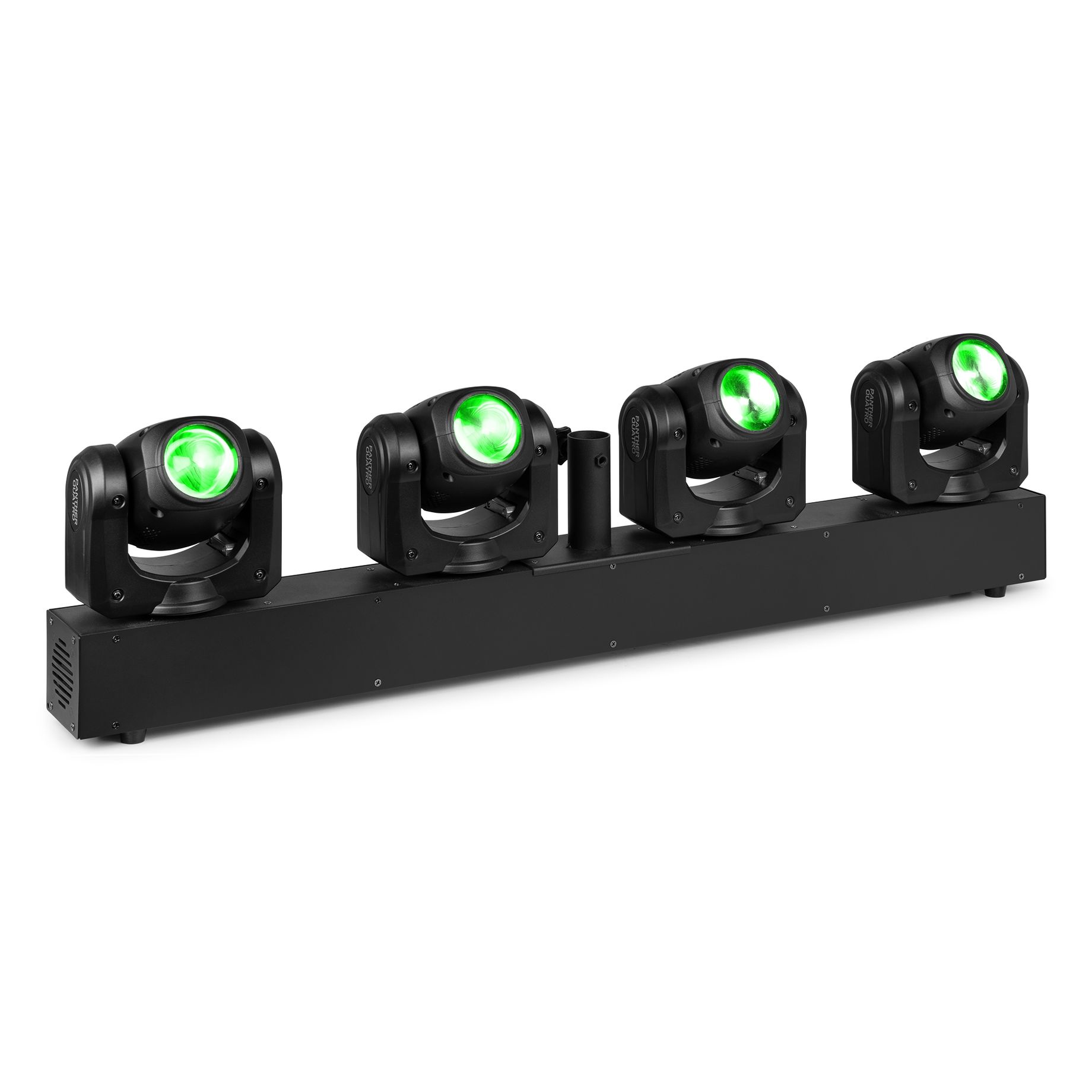

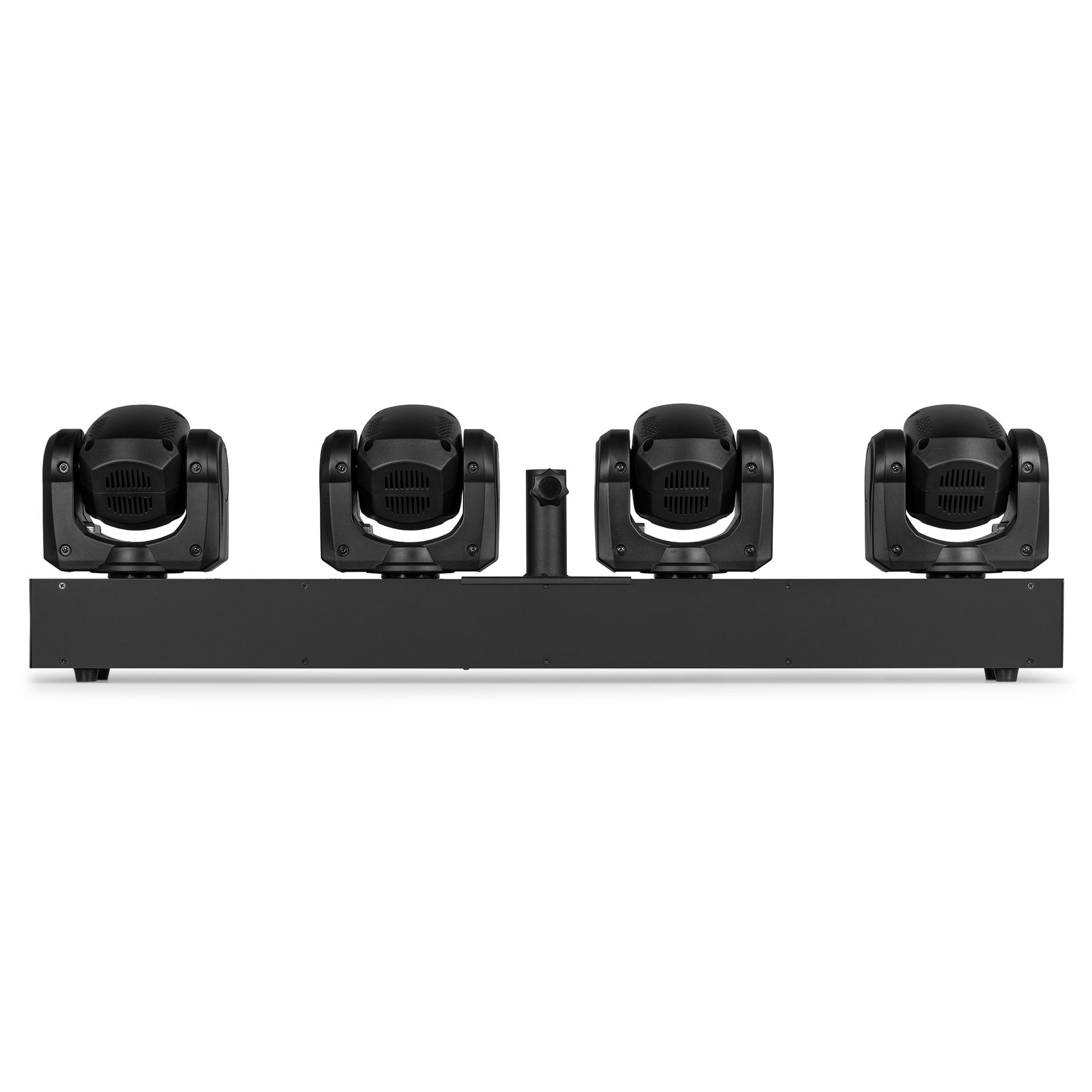

PANTHER

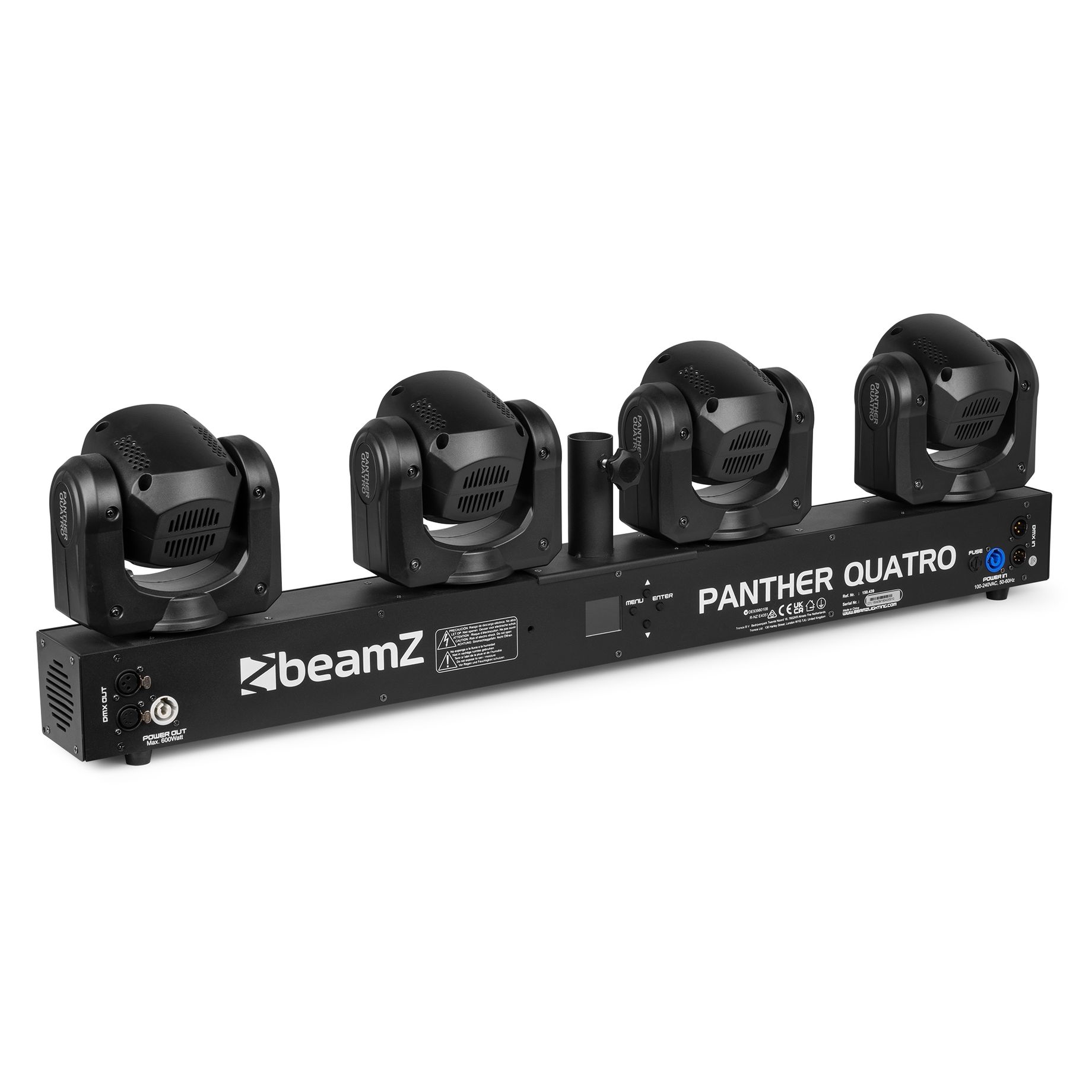

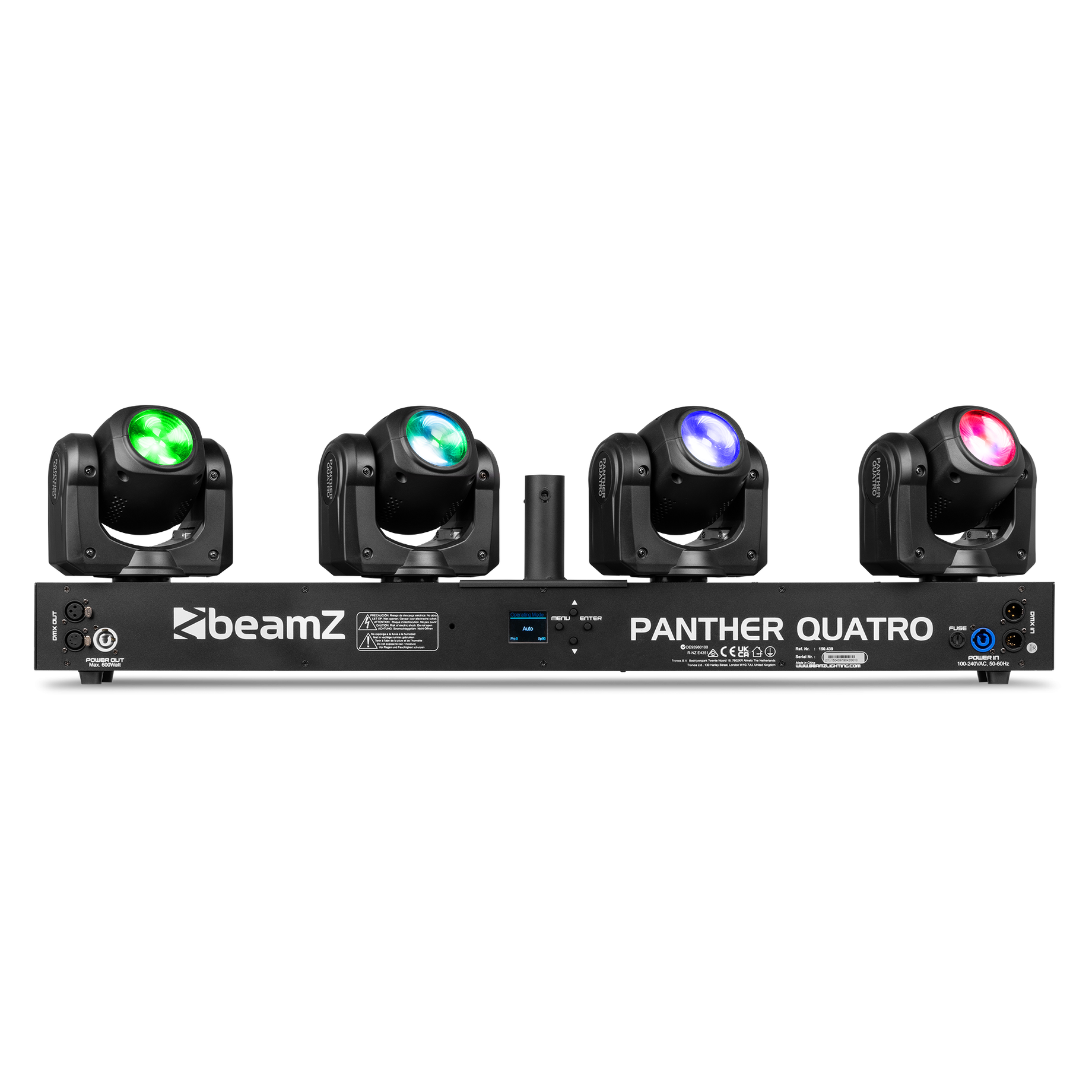

Quatro Beam Bar
SKU 150.439
|EAN 8715693344233
+7
All product information
Compare
Panther series
Description
Highlights
- LED Lighting bar with 4 individually controllable moving heads
- Ultra-Bright 40W 4-in-1 LEDs
- Colour: RGBW
- 16 auto-run programs
- Sound control with adjustable sensitivity
- DMX and Stand-alone mode
- Master/slave synchronization
- Adjustable speed strobe function
- Control panel with LCD display

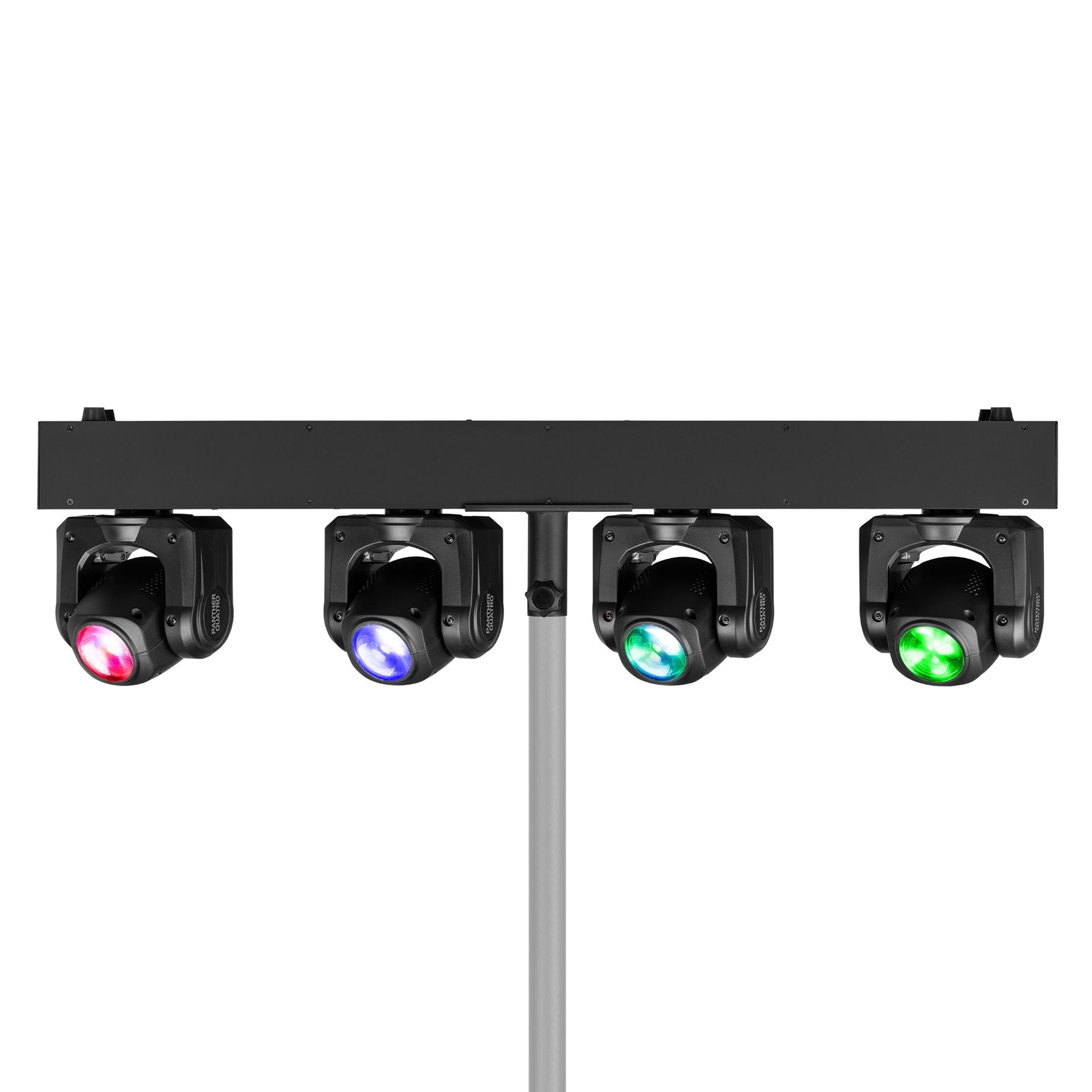

- Multiple mounting options
- Easy daisy chaining and power linking
- DMX in/output via 3/5-pin XLR
- P-Con in/output
- Including 2 Omega Quick Lock brackets
Specifications
BrandbeamZ
Product seriePanther series
ColourBlack
Moving head typeBeam
Light source
Light source
- 4x 40W RGBW LED
Illuminance Red 24.000 lx @ 1m, Green 50.000 lx @ 1m, Blue 80.000 lx @ 1m, White 68.000 lx @ 1m
Optics
Beam angle
- 2.5°
ZoomNo
Movement
Pan Movement540°
Tilt Movement180°
Features
Gobo ShakeNo
Interchangeable GoboNo
Frost FilterNo
Flash Per Second1 - 19 Hz
Control
Control modesAuto programs, DMX, Master/Slave, Manual, Sound
DMX Channels6, 10, 19, 32, 56
RDMNo
DMX connector3-pin XLR, 5-pin XLR
Connections
Input connections
- 1x Power - Powerconnector (A)
- 1x DMX - 3-pin XLR (M)
- 1x DMX - 5-pin XLR (M)
Output connections
- 1x Power - Powerconnector (B)
- 1x DMX - 3-pin XLR (F)
- 1x DMX - 5-pin XLR (F)
Hardware features
Display typeLCD
CoolingFan
Environmental
IP ratingIP20
Electrical
Power Supply220-240VAC 50Hz
Mechanical
Dimensions
- 1050 x 175 x 175 mm (W x D x H)
Weight
- 9.8 kg

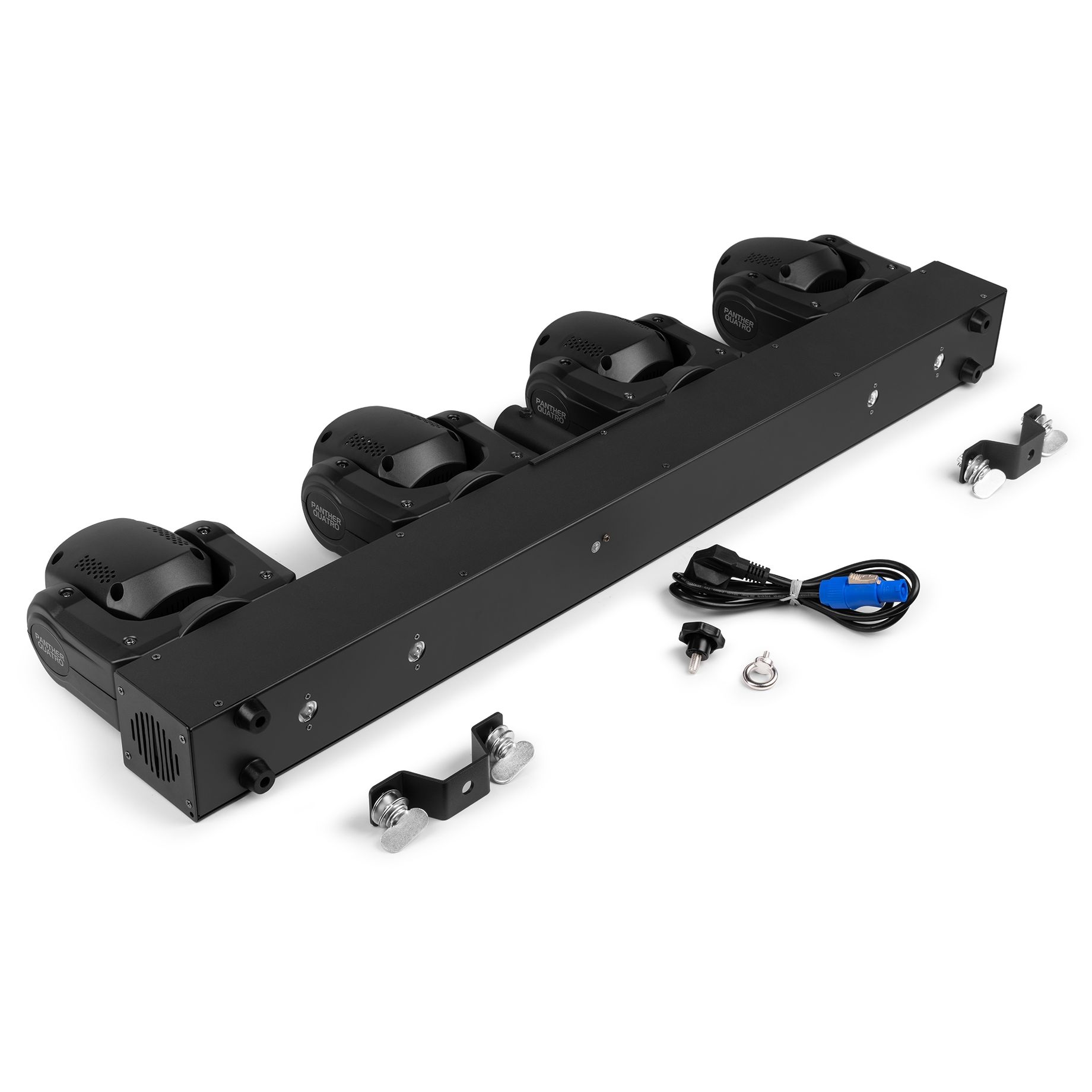

Accessories
Included Accessories
- Mounting bracket
- Power cable
Manuals & Documents
Manual
PDF
