PAM2004
4-Zone Matrix Amplifier 4x 200W
SKU 952.163
|EAN 8715693328189
All product information
Compare
PAM series
Description
Highlights
- 100V matrix amplifier with 4 independent output zones
- 4x 200W power Section
- Using BT wireless technology for audio streaming
- 4x Mic/line inputs Combi 6.3mm Jack/XLR, 1x RCA line input
- XLR Microphone inputs with switchable phantom power
- Priority function on channel 1
- Integrated limiter
- 100V or 8 Ohm speaker output

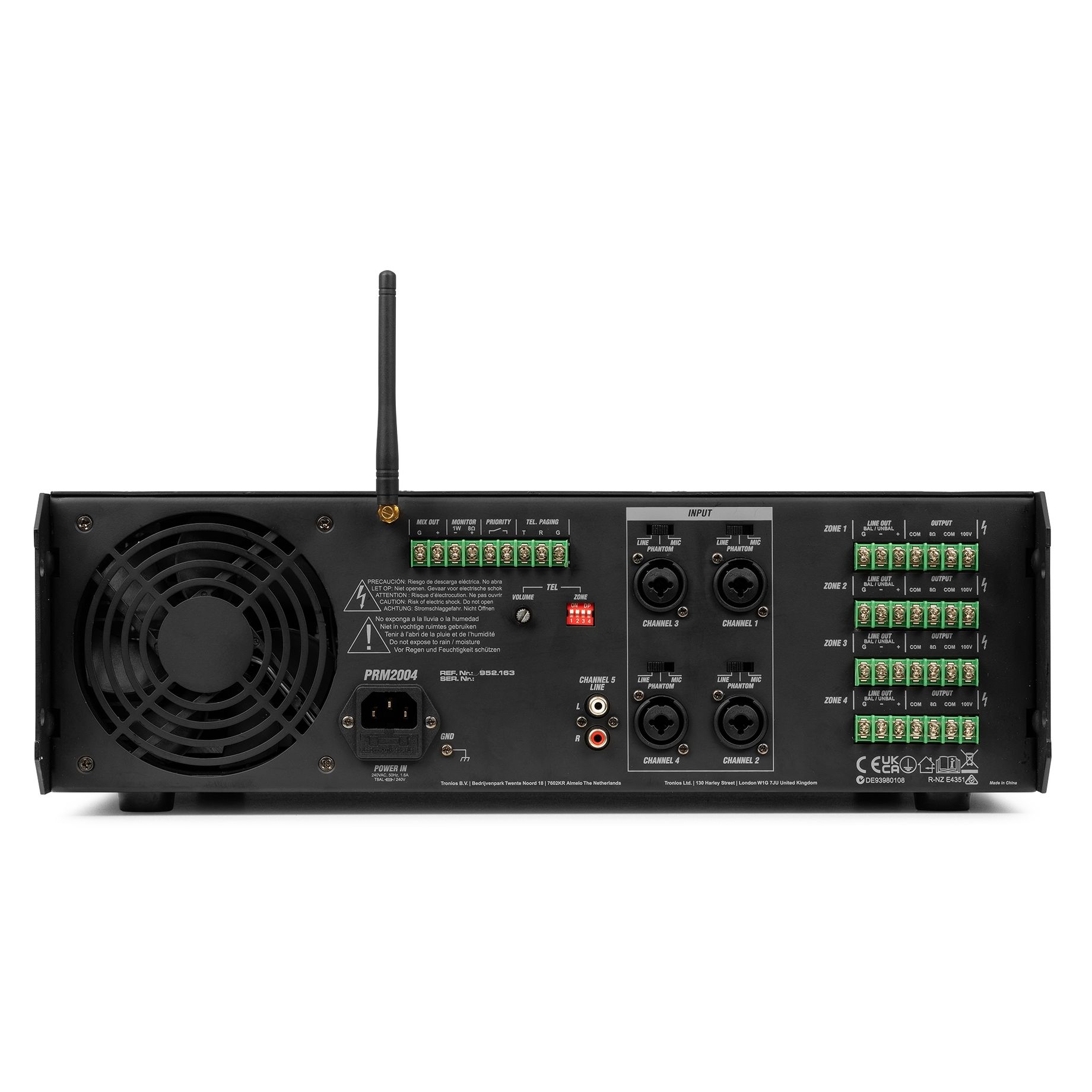

- Zone connections: 4x Speaker Terminal (100V / 8Ohm / Com)
- Bass and treble controls
- Independent paging input, can be routed to all zones
- Level control via VU meters
- Adjustable headphone connection
- 19" Rack mountable
- Protections: Overheat, short circuit and power on delay
Specifications
BrandPower Dynamics
Product seriePAM series
ColourBlack
Amplifier typeMixing amplifier, Multi-zone amplifier
Output channels4
Frequency Response50 - 17,000 Hz
Impedance4 Ω, 8 Ω, 100V
Playback
Playback optionsBT streaming
Audio specifications
Electrical
Power Supply220-240VAC 50Hz
Mechanical
Dimensions
- 490 x 485 x 140 mm (W x D x H)
Weight
- 26.3 kg
Accessories
Included Accessories
- Mounting bracket
- Power cable
