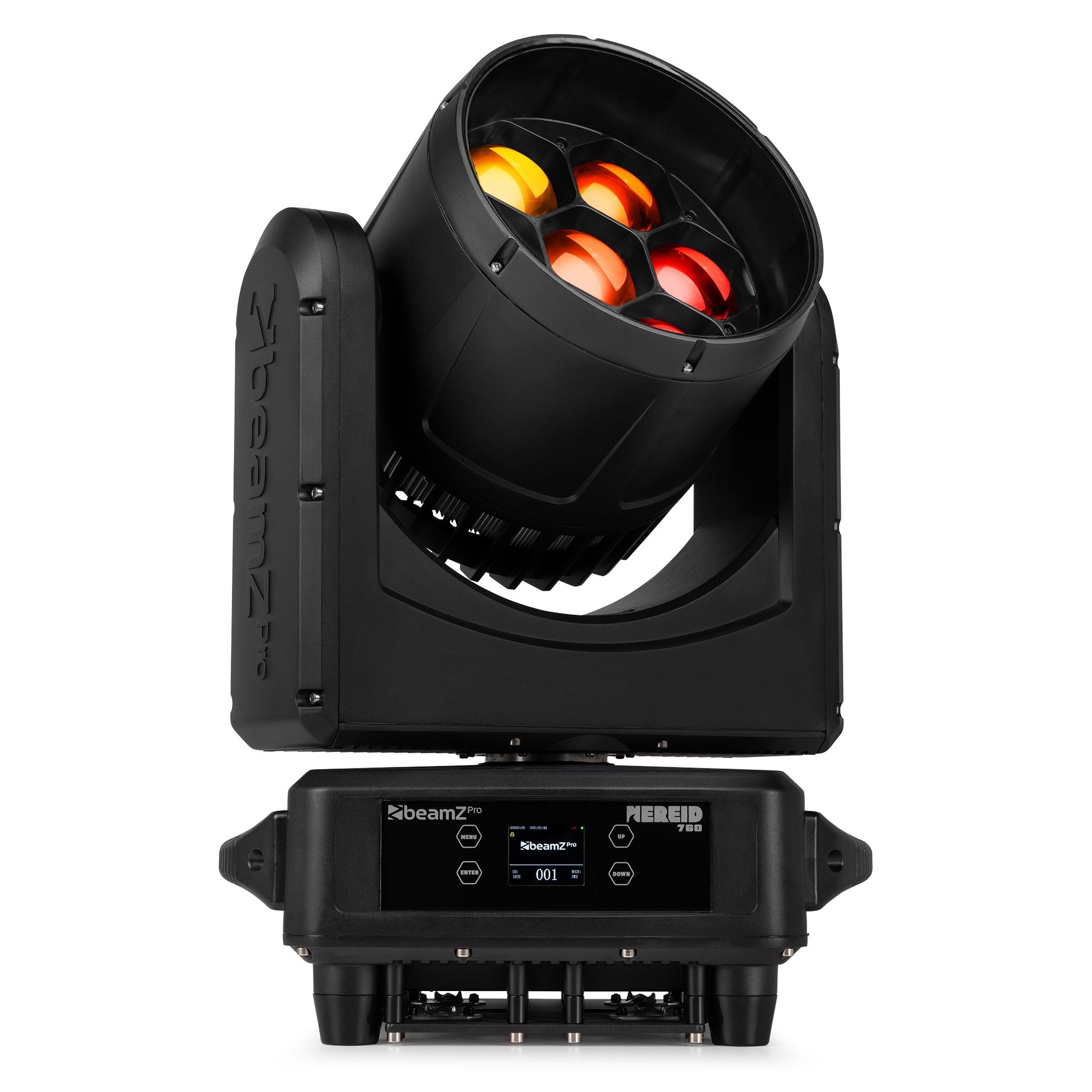

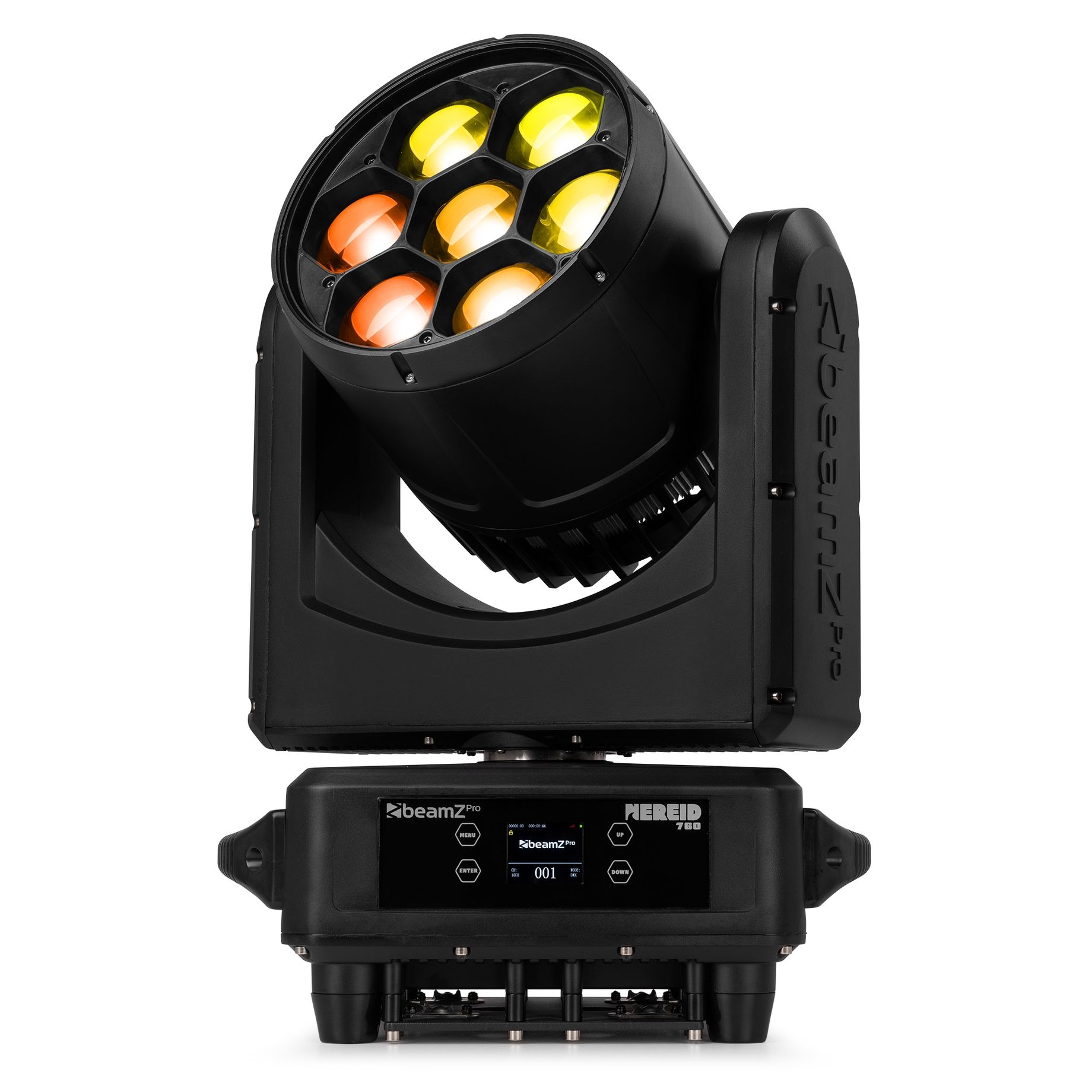

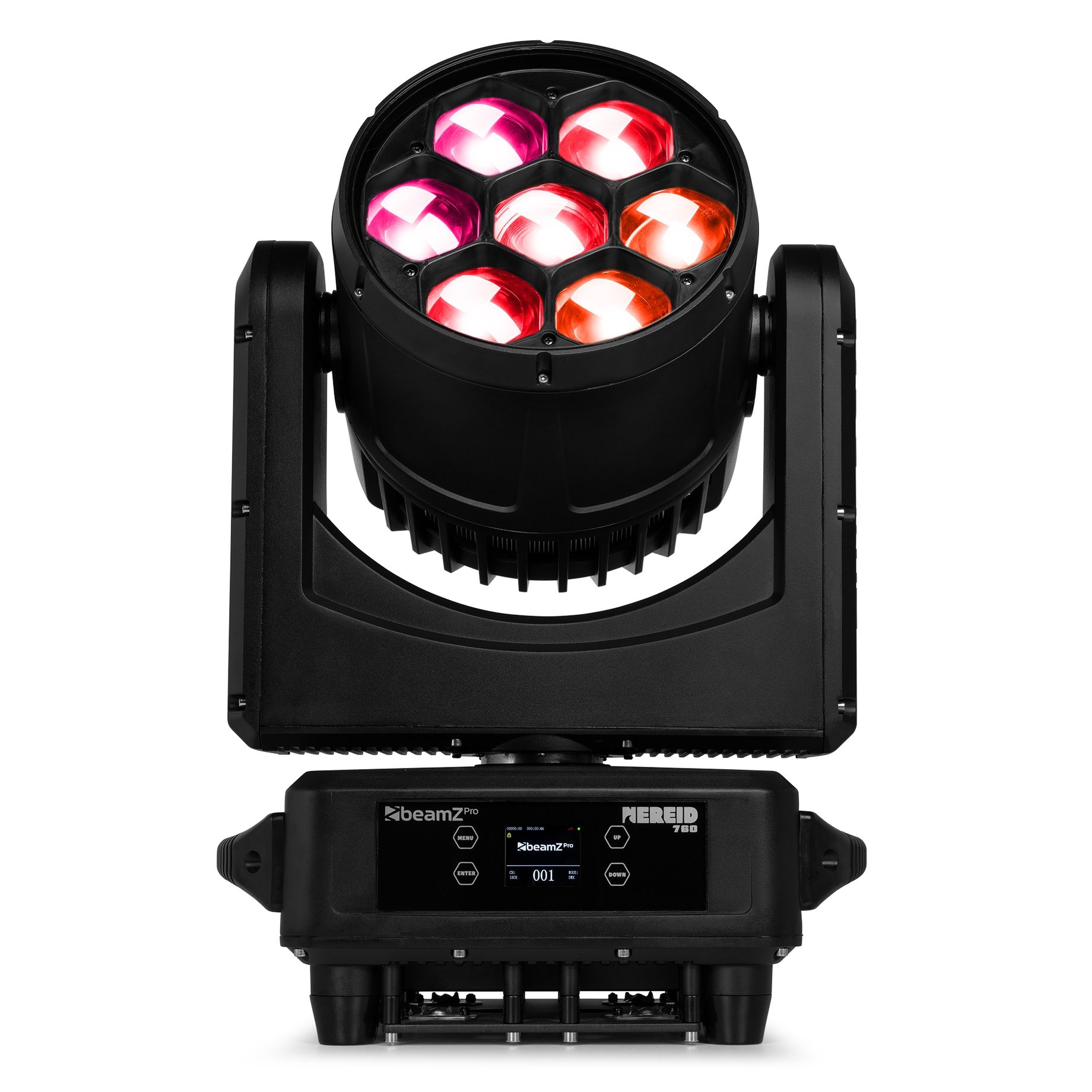

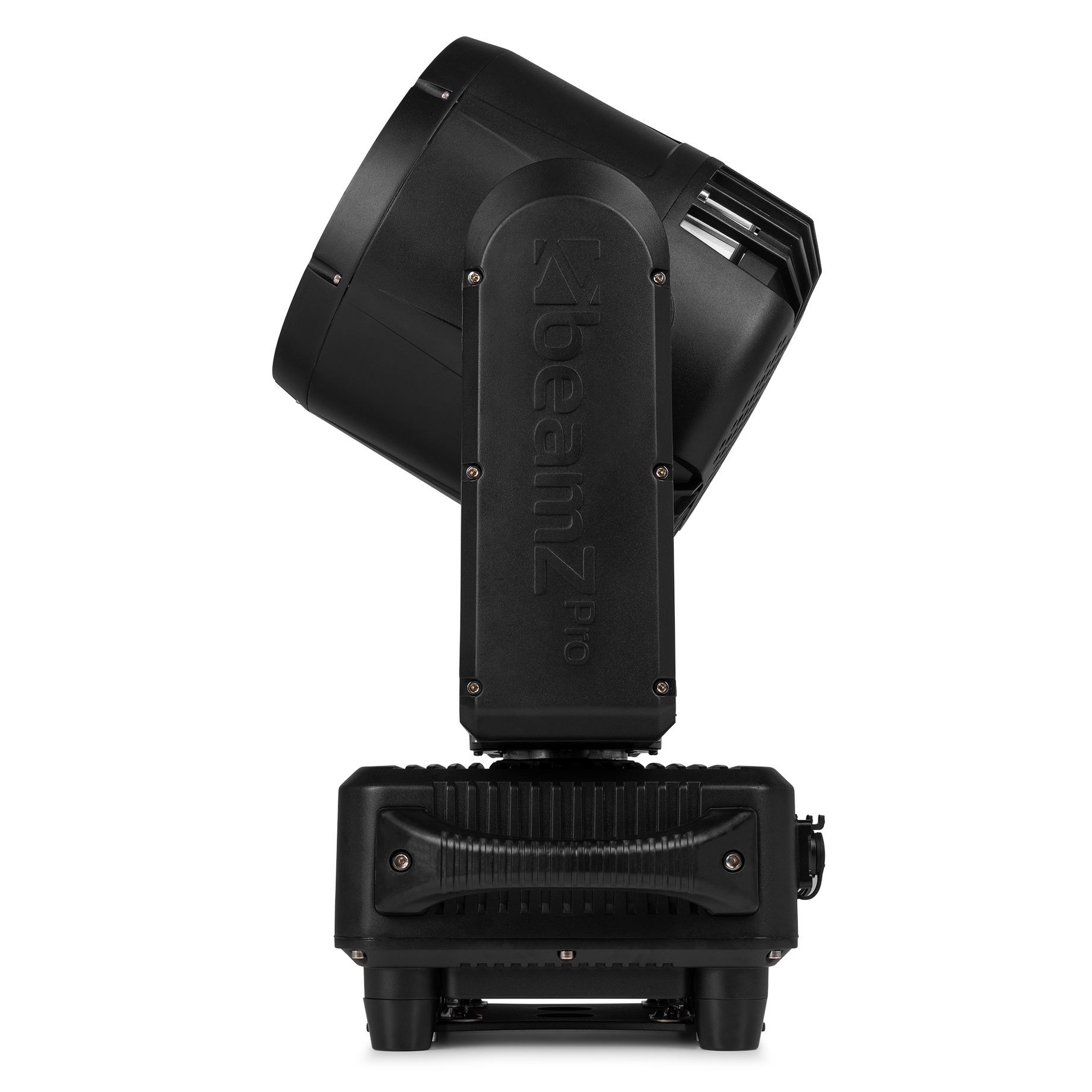

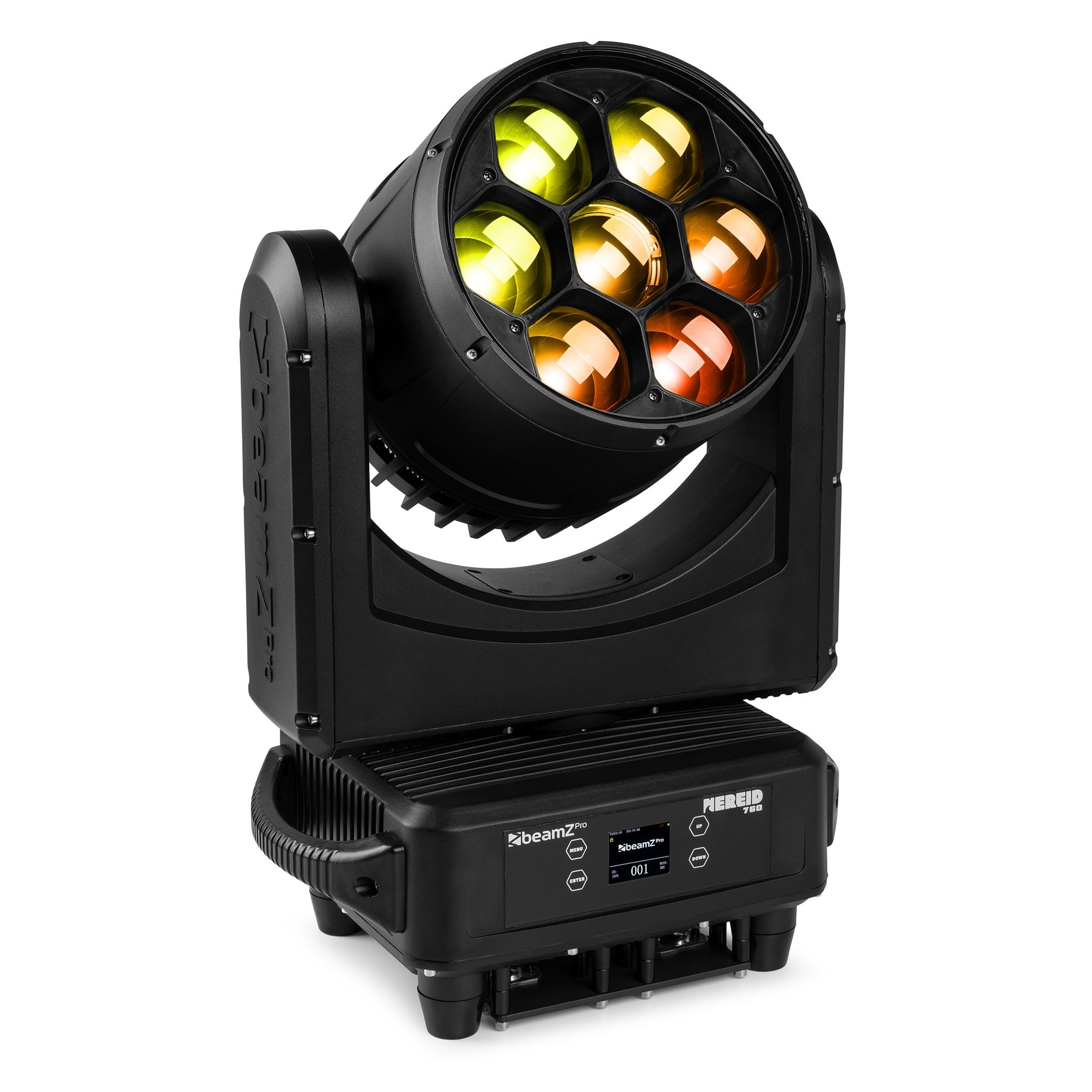

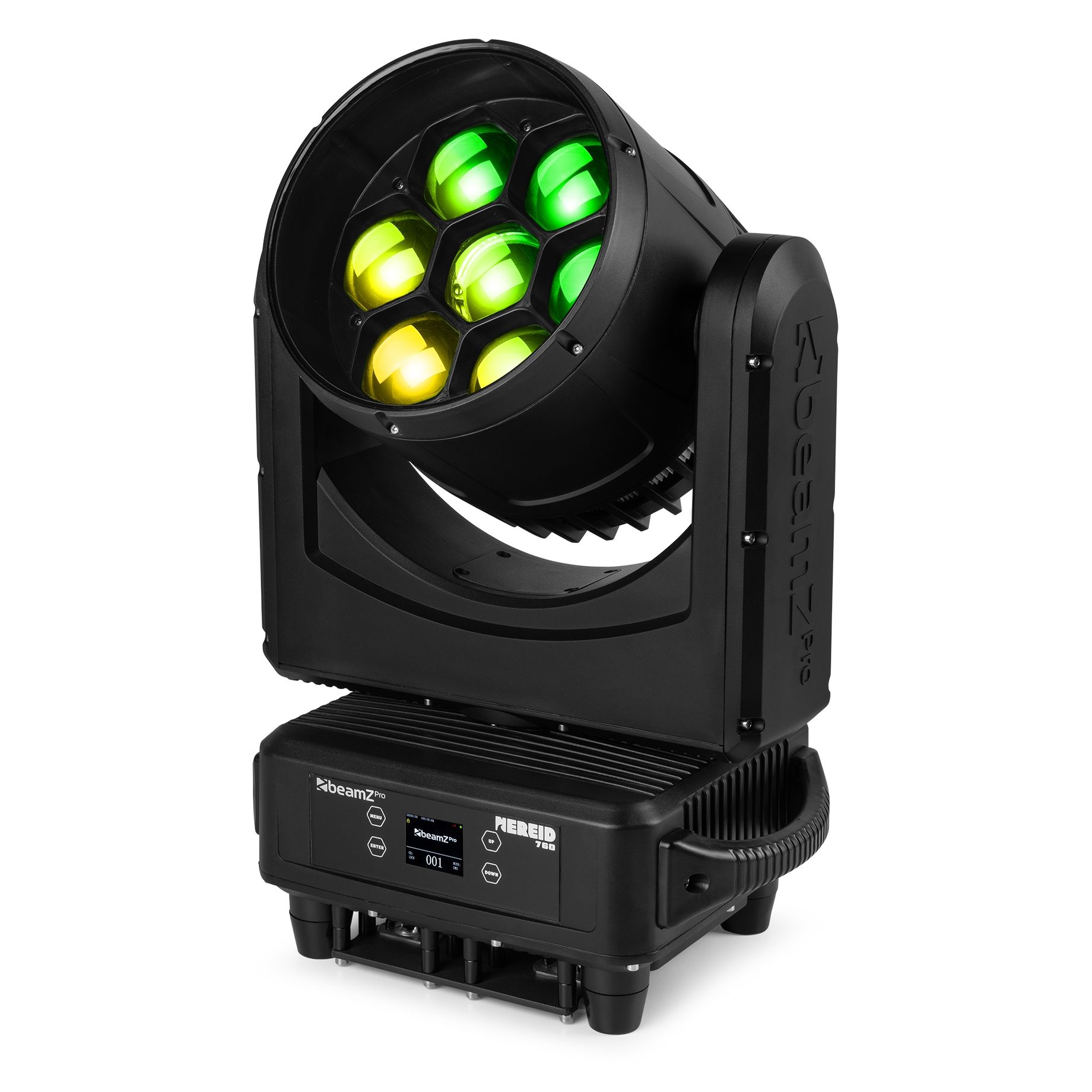

Nereid760
Outdoor LED Bee Eye Moving Head with Zoom
SKU 152.080
|EAN 8715693354355
+7
All product information
Compare
Nereid760
Description
Highlights

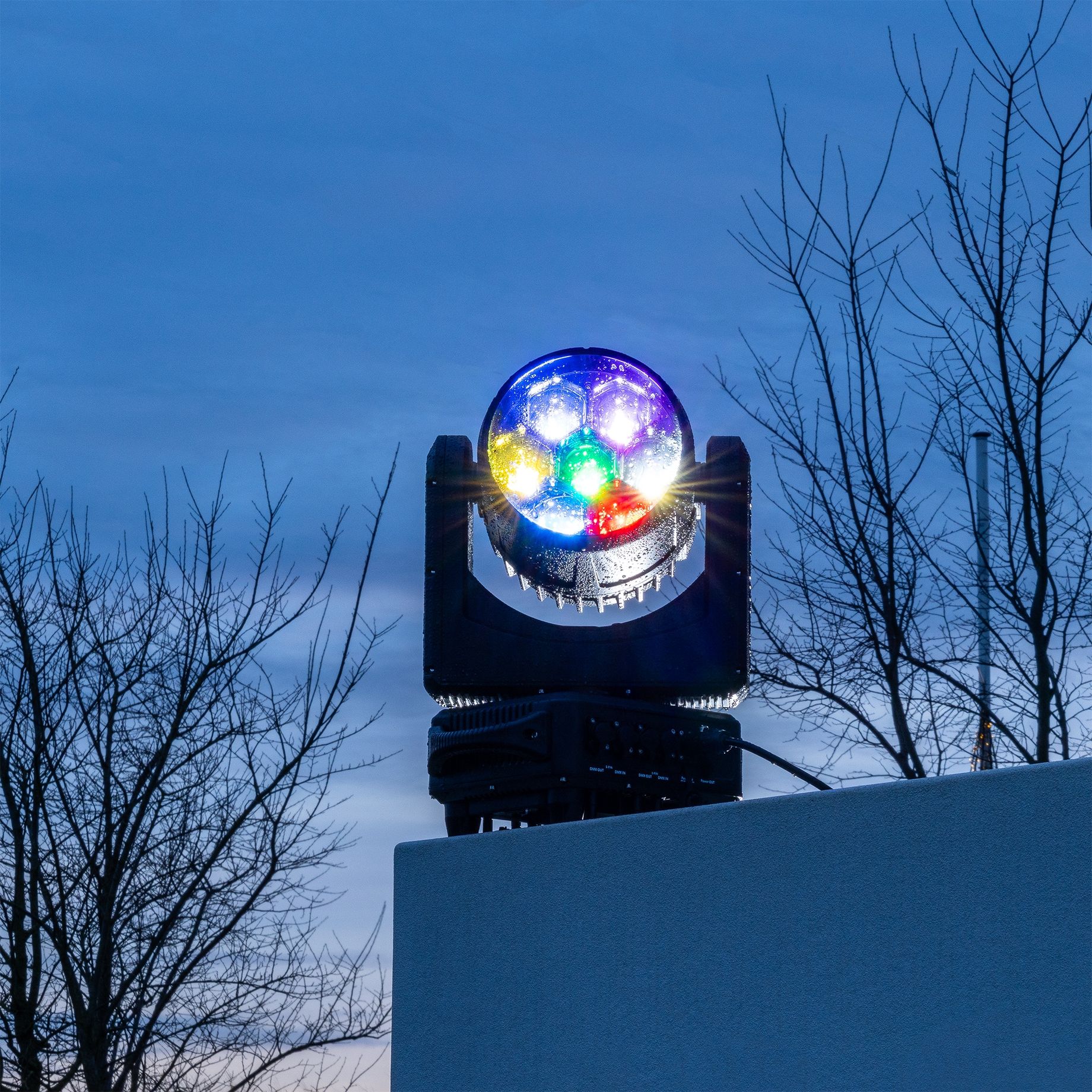

- LED Moving head for indoor/outdoor use
- Rotating Bee Eye lenses for wide-ranging beam & wash effects
- 7x 60W 4-in-1 RGBW LEDs
- Single pixel control
- High-efficiency motorized zoom optical system (ratio 1:6.7)
- Pre-programmed macro effects with variable speed
- Master/slave synchronization
- Dimmer: 16-bit
- Controle panel with LCD display
- DMX in/output via 3/5-pin XLR
- P-Con input/output
- Quick lock omega clamps included
Specifications
BrandbeamZ Professional
Product serieNereid series
ColourBlack
Moving head typeWash
Light source
Light source
- 7x 60W RGBW LED
Colour Temperature2,000 - 8,000 K
Illuminance136770 lx @ 1m
Optics
Beam angle
- 7 - 46
ZoomYes
Movement
Pan Movement540° (16-bit)
Tilt Movement180° (16-bit)
Features
Flash Per Second1 - 22 Hz
Control
Control modesAuto programs, DMX, Manual
DMX Channels23, 35, 51
RDMYes
DMX connector3-pin XLR, 5-pin XLR

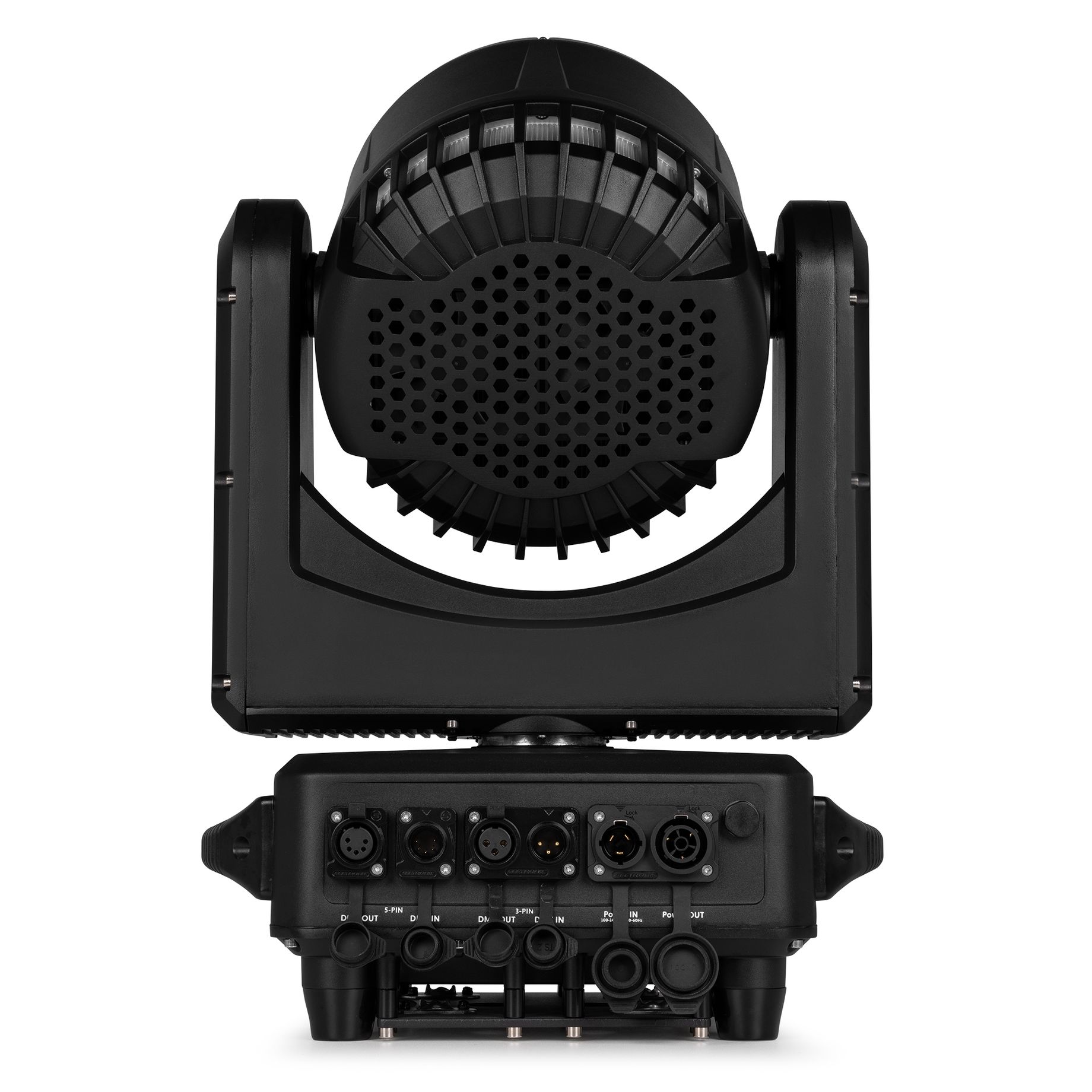

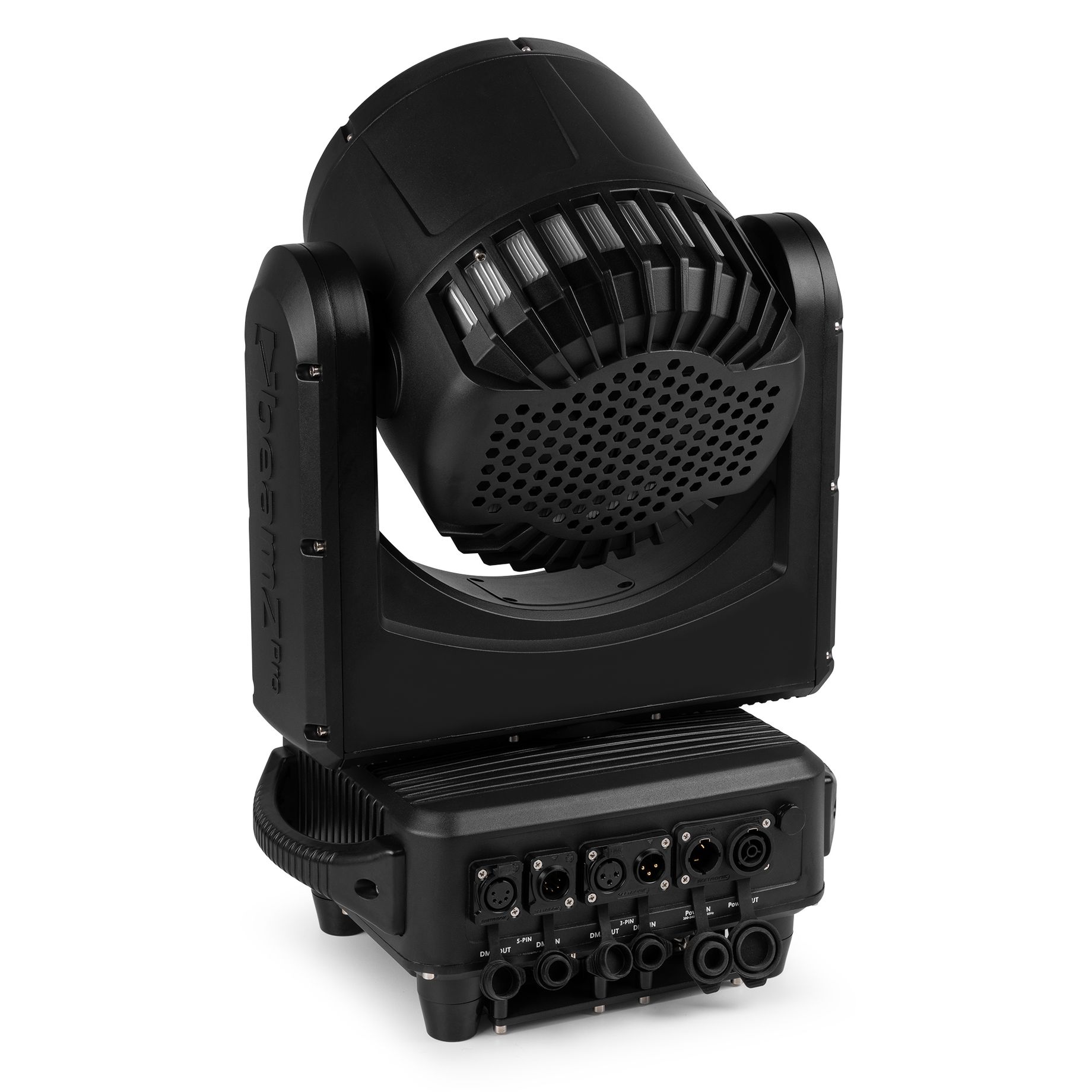

Connections
Input connections
- 1x Power - Powerconnector TR1 IP65 (A)
- 1x DMX - 3-pin XLR IP65 (M)
- 1x DMX - 5-pin XLR IP65 (M)
Output connections
- 1x Power - Powerconnector TR1 IP65 (B)
- 1x DMX - 3-pin XLR IP65 (F)
- 1x DMX - 5-pin XLR IP65 (F)
Hardware features
Display typeLCD
CoolingTemperature controlled fan
Environmental

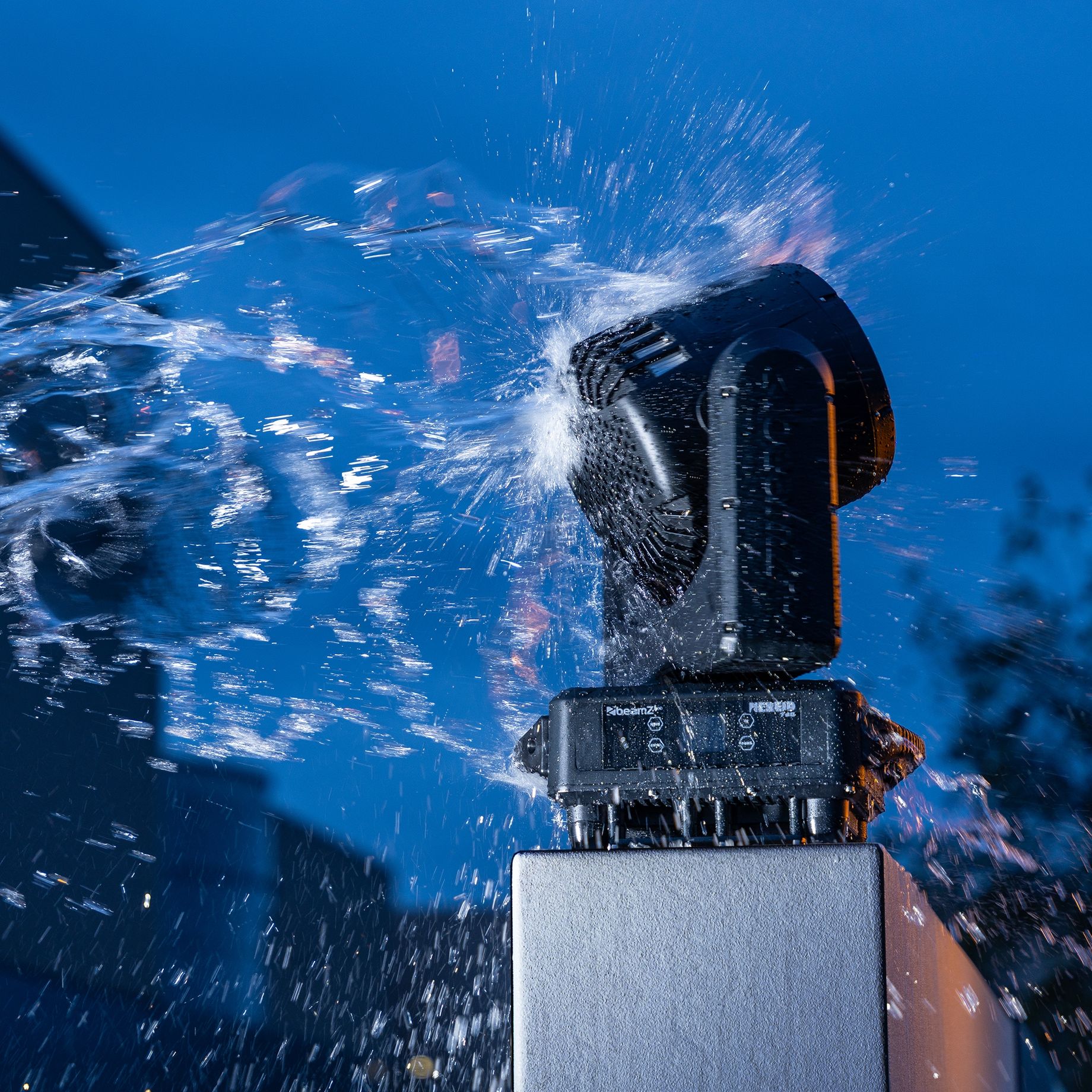

IP ratingIP65
Electrical
Power Supply100-240VAC 50/60Hz
Mechanical
Dimensions
- 345 x 235 x 490 mm (W x D x H)
Weight
- 17.2 kg

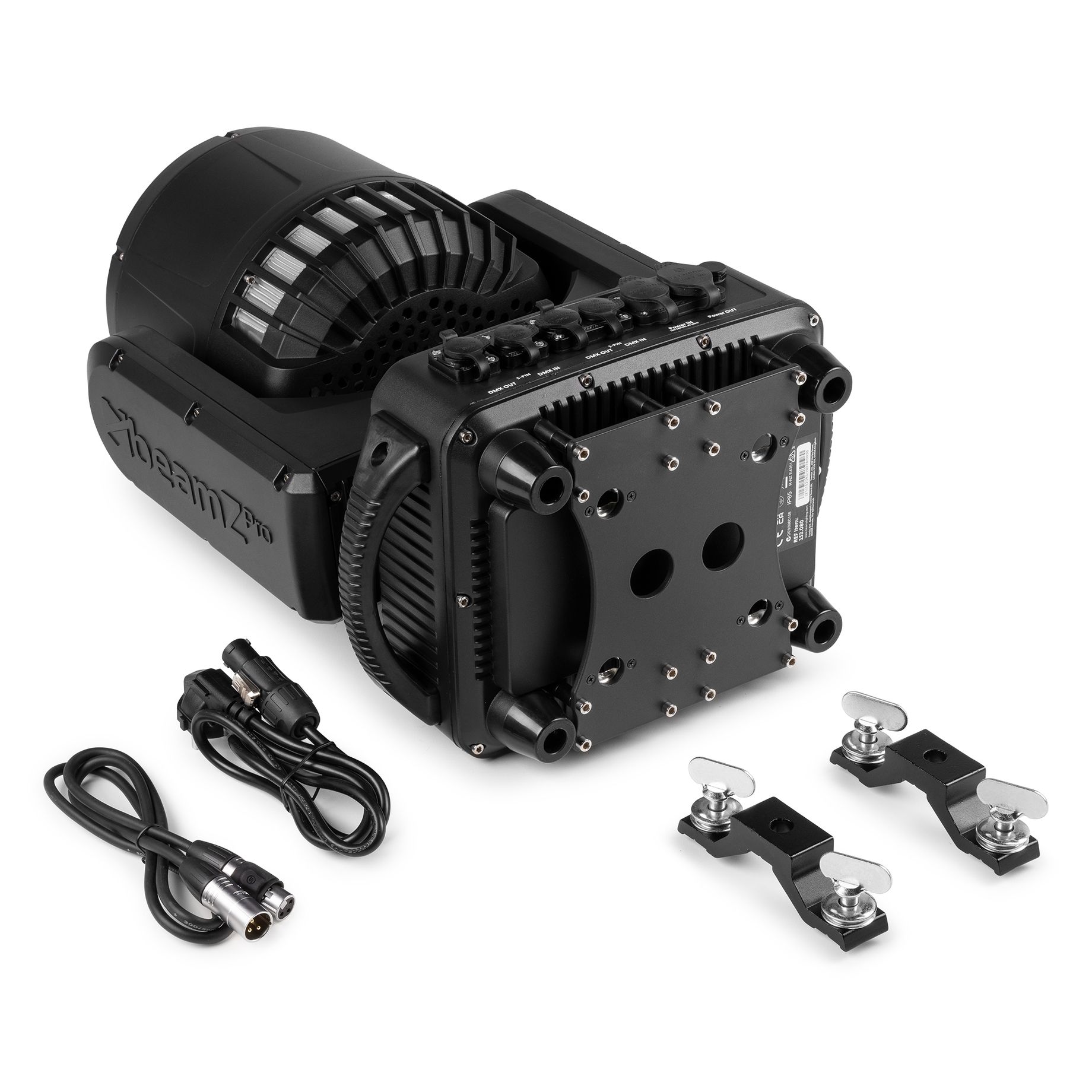

Accessories
Included Accessories
- Mounting bracket
Manuals & Documents
Manual
PDF
