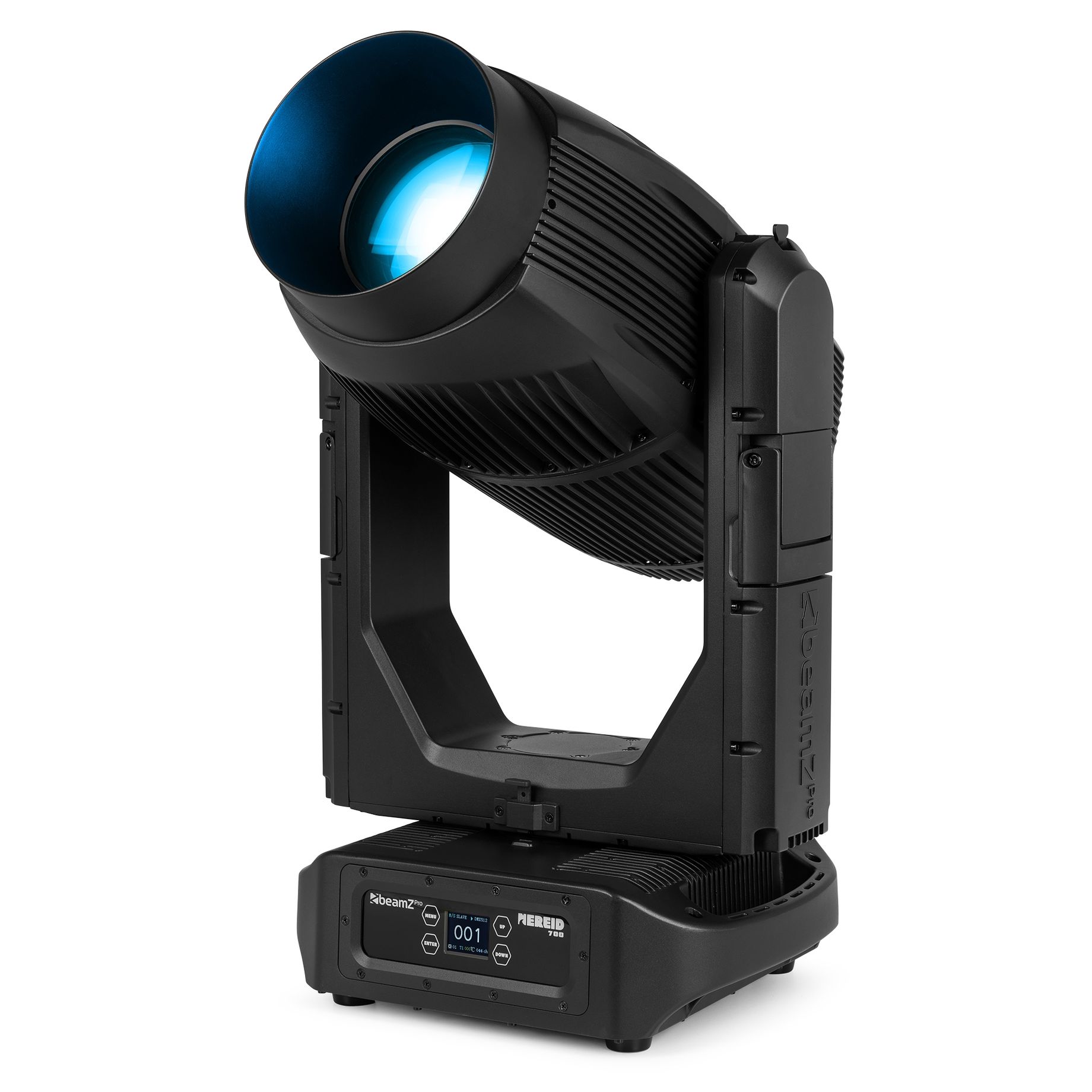

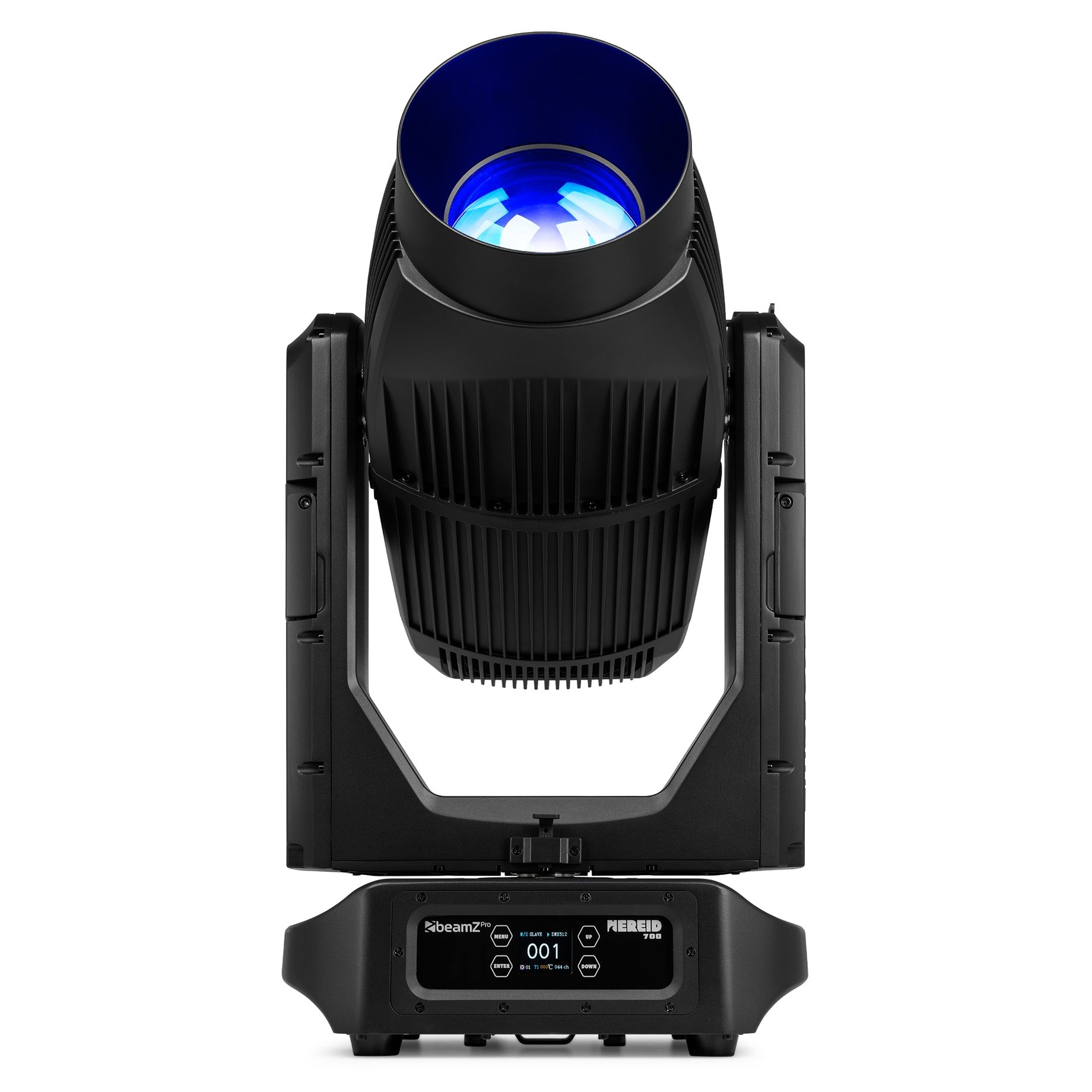

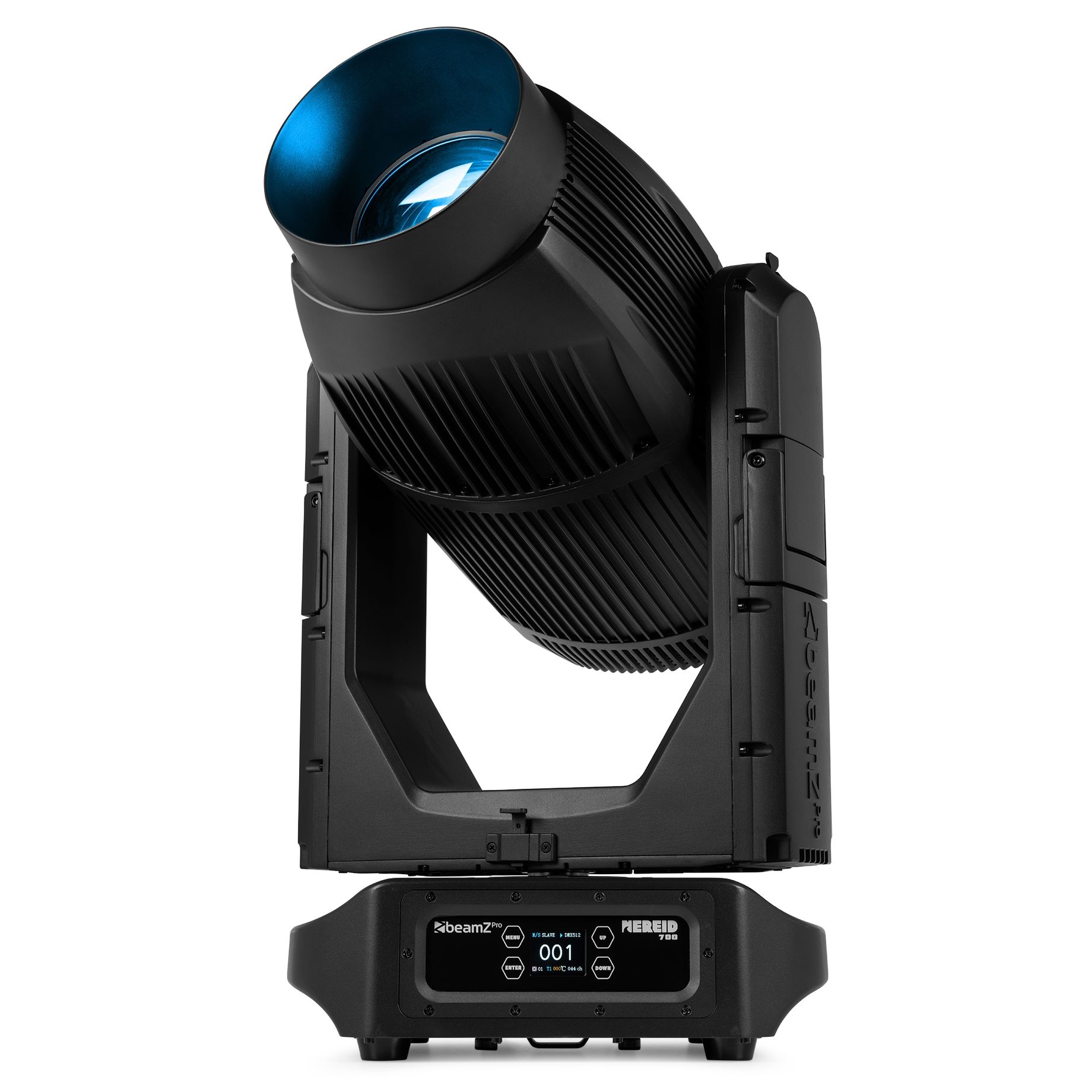

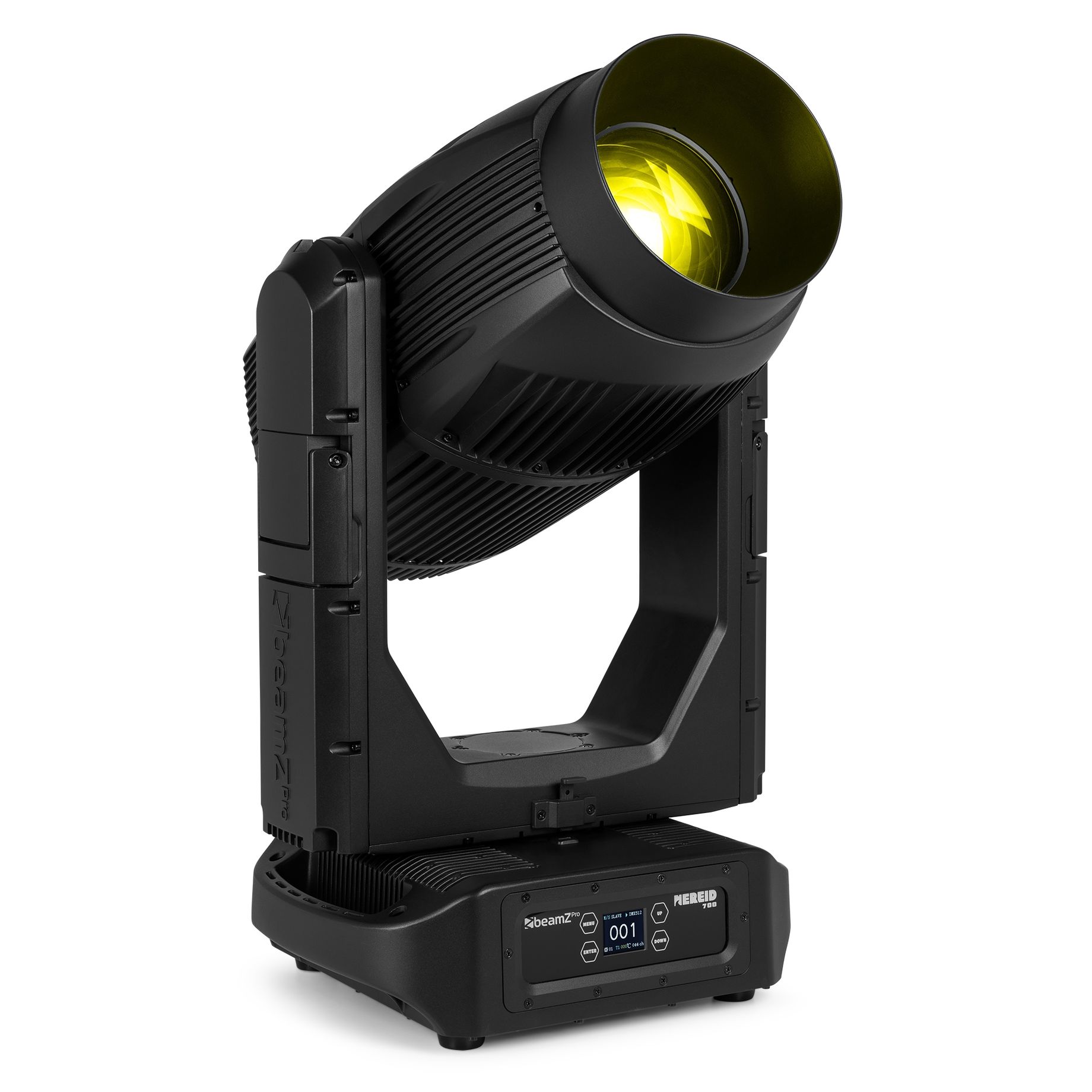

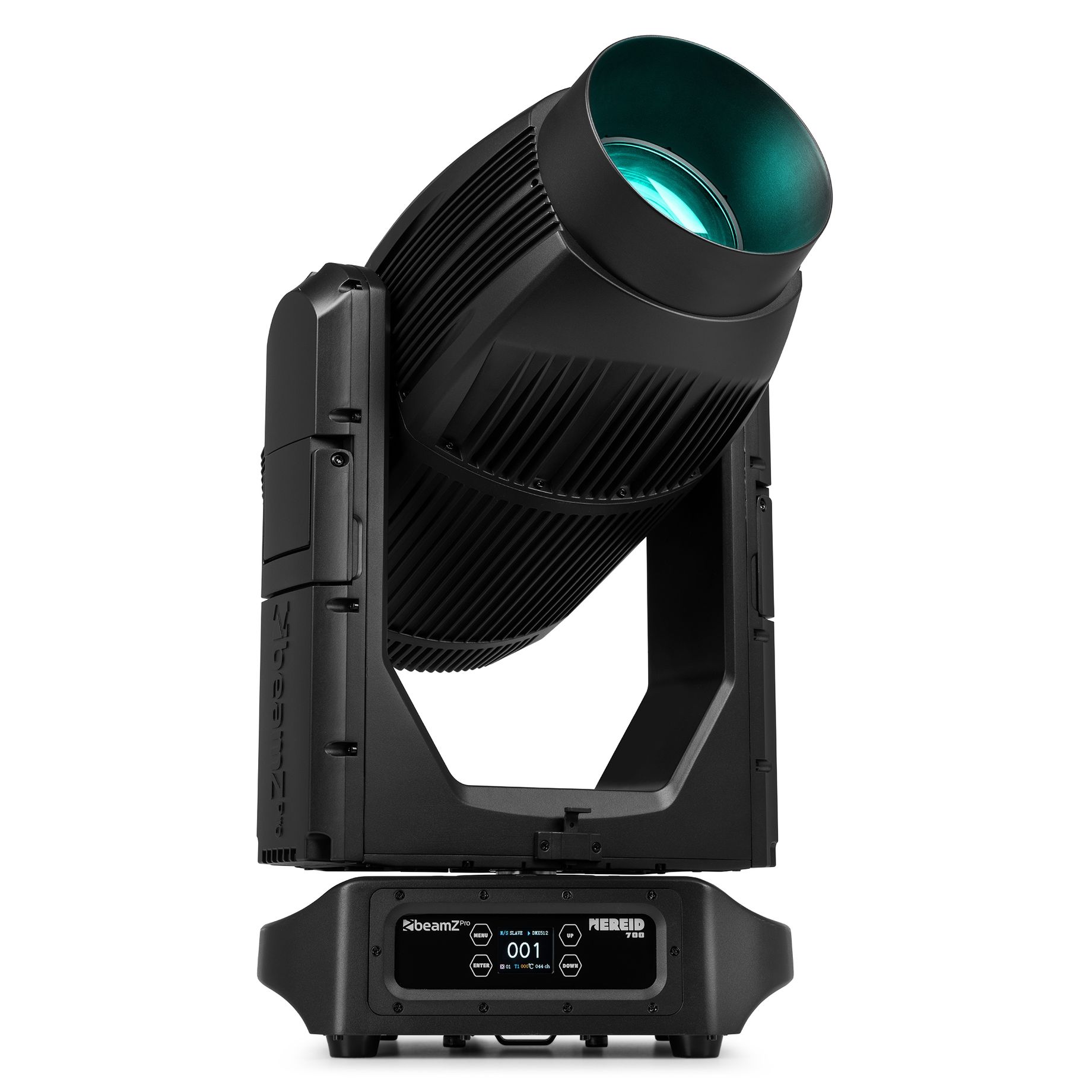

Nereid700
Hybrid Outdoor Framing Moving Head
SKU 152.096
|EAN 8715693360271
+4
All product information
Compare
Nereid700
Description
Highlights
- Light Source: 700W white LED module
- Colour Temperature: 6.700K (CRI 69)
- CRI 90 (when using the CRI correction filter)
- Zoom Range: 4° to 50°
- Static Gobo Wheel: 9 gobos plus open, featuring shake and bidirectional rotation
- Rotating Gobo Wheel: 7 indexable gobos plus open, with shake and bidirectional rotation
- 360 degree Animation Effect Wheel
- Framing System: Equipped with 4 cutting blades for precise beam shaping (60 -120 degree rotating)
- Iris Control: Mechanical linear adjustment for beam size modulation
- Prism System: 2 prism wheels with bidirectional rotation, cannot work overlapping (4-face circular prism and 4-face linear prism)
- Colour Wheel: 7 colours plus open, offering half-colour and linear adjustments
- CMY: Independent CMY wheel with linear colour change and macro effect
- CTO Filter: Adjustable colour temperature ranging from 3.000K to 6.700K
- Frost Filters: Two levels (light and medium) for achieving soft wash effects
- Endless Tilt/Pan movement
- Control Modes: Supports DMX512, Master/Slave, Auto, and RDM protocols
- Connectivity: DMX 3-pin and 5-pin in/out; P-Con in/out
- Display: User-friendly LCD interface
- Durability: IP65-rated weatherproof design
Specifications
BrandbeamZ Professional
Product serieNereid series
ColourBlack
Moving head typeHybrid
Light source
Light source
- 1x 700W White LED (6700K)
Colour Temperature3,000 - 6,700 K
Illuminance 106.301 lx @ 5m
CRI≥69 (≥90 with filter)
Optics
Beam angle
- 4 - 47
ZoomYes
FocusMotorised
Movement
Pan Movement540° 16-bit (endless)
Tilt Movement360° 16-bit (endless)
Features
Control
Control modesAuto programs, DMX, Manual
DMX Channels44, 59
RDMYes

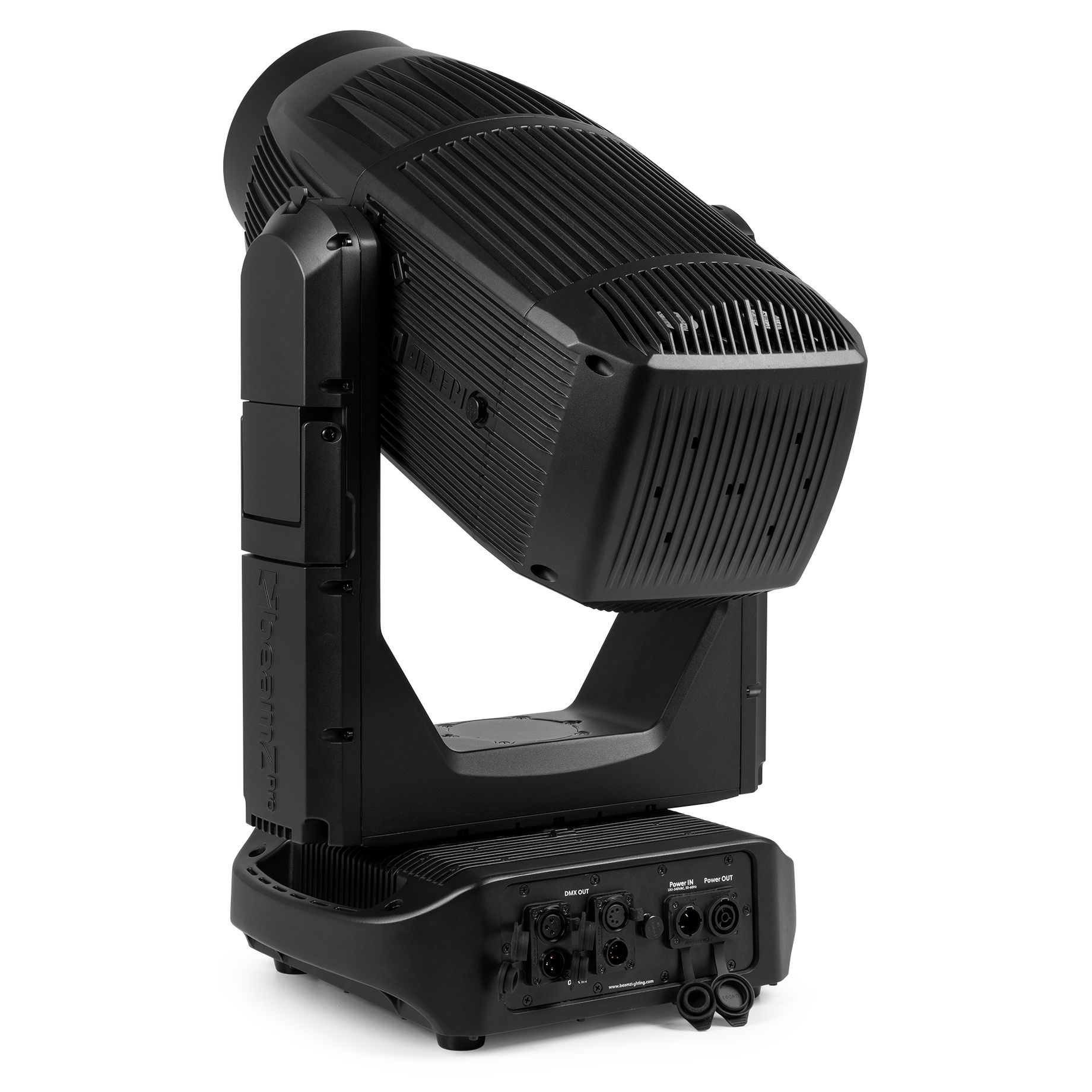

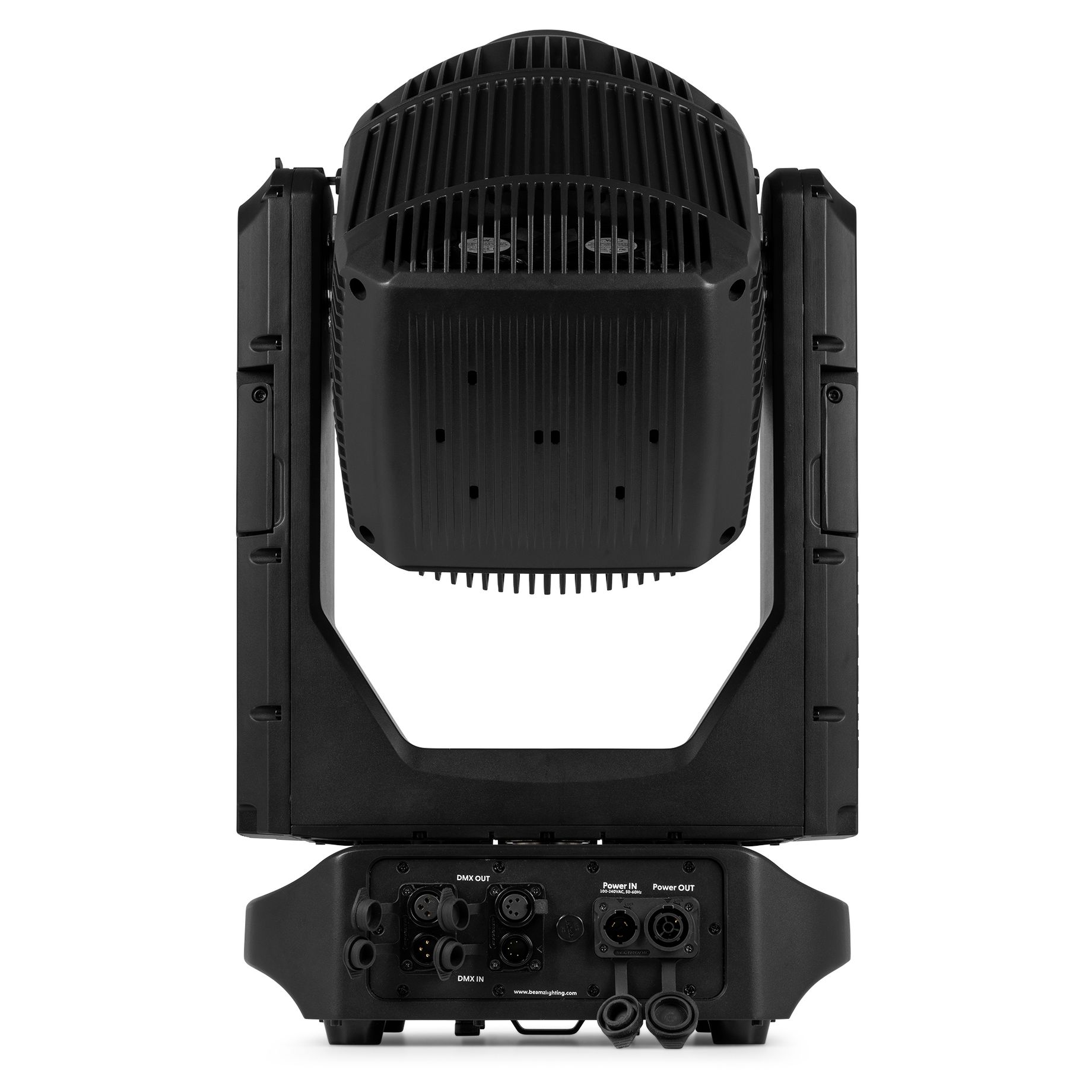

Connections
Input connections
- 1x Power - Powerconnector TR1 IP65 (A)
- 1x DMX - 3-pin XLR IP65 (M)
- 1x DMX - 5-pin XLR IP65 (M)
Output connections
- 1x Power - Powerconnector TR1 IP65 (B)
- 1x DMX - 3-pin XLR IP65 (F)
- 1x DMX - 5-pin XLR IP65 (F)
Hardware features
Display typeLCD
CoolingTemperature controlled fan
Environmental
IP ratingIP65
Electrical
Power Supply100-240VAC 50/60Hz
Mechanical
Dimensions
- 390 x 310 x 788 mm (W x D x H)
Weight
- 36.45 kg
Accessories
Included Accessories
- Mounting bracket
