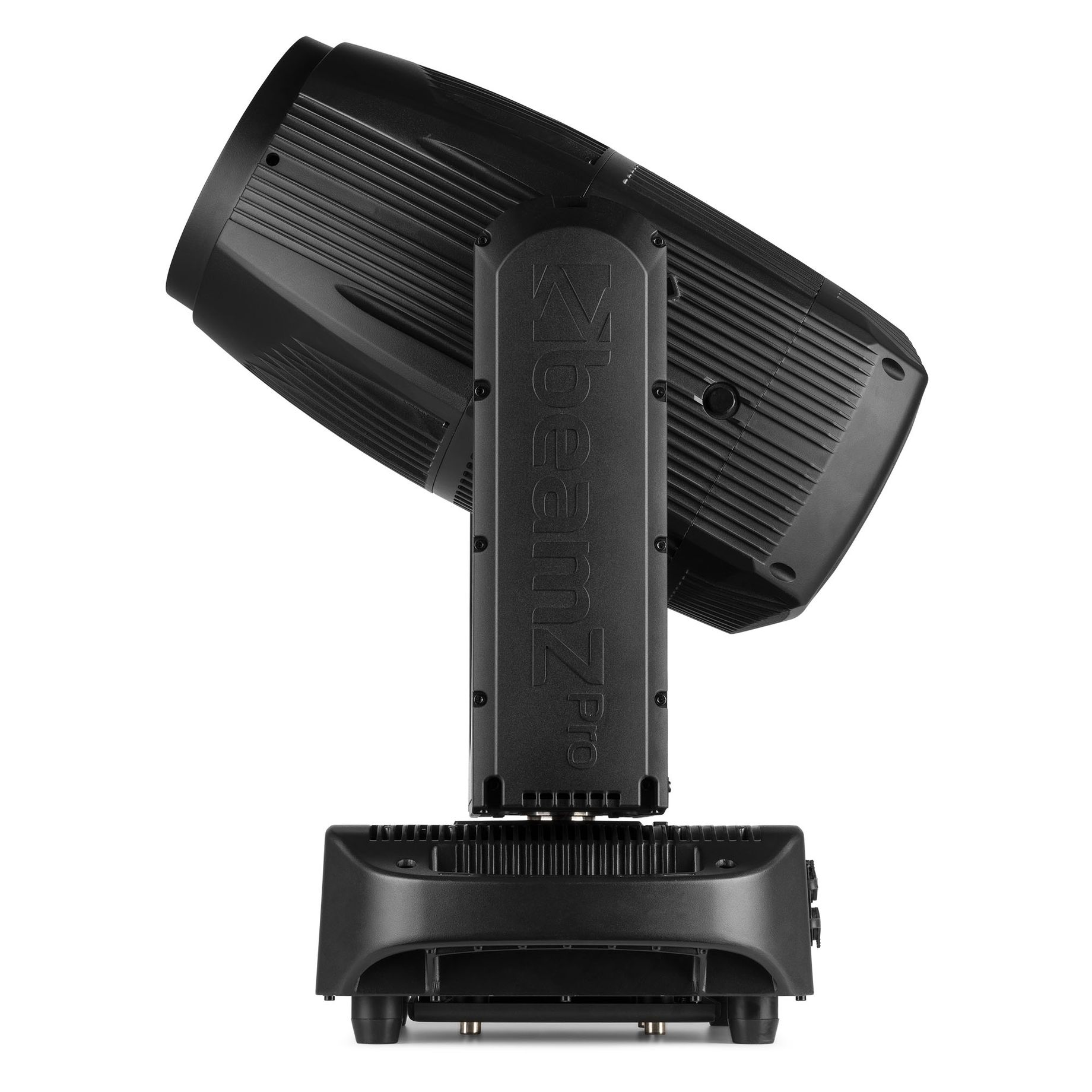

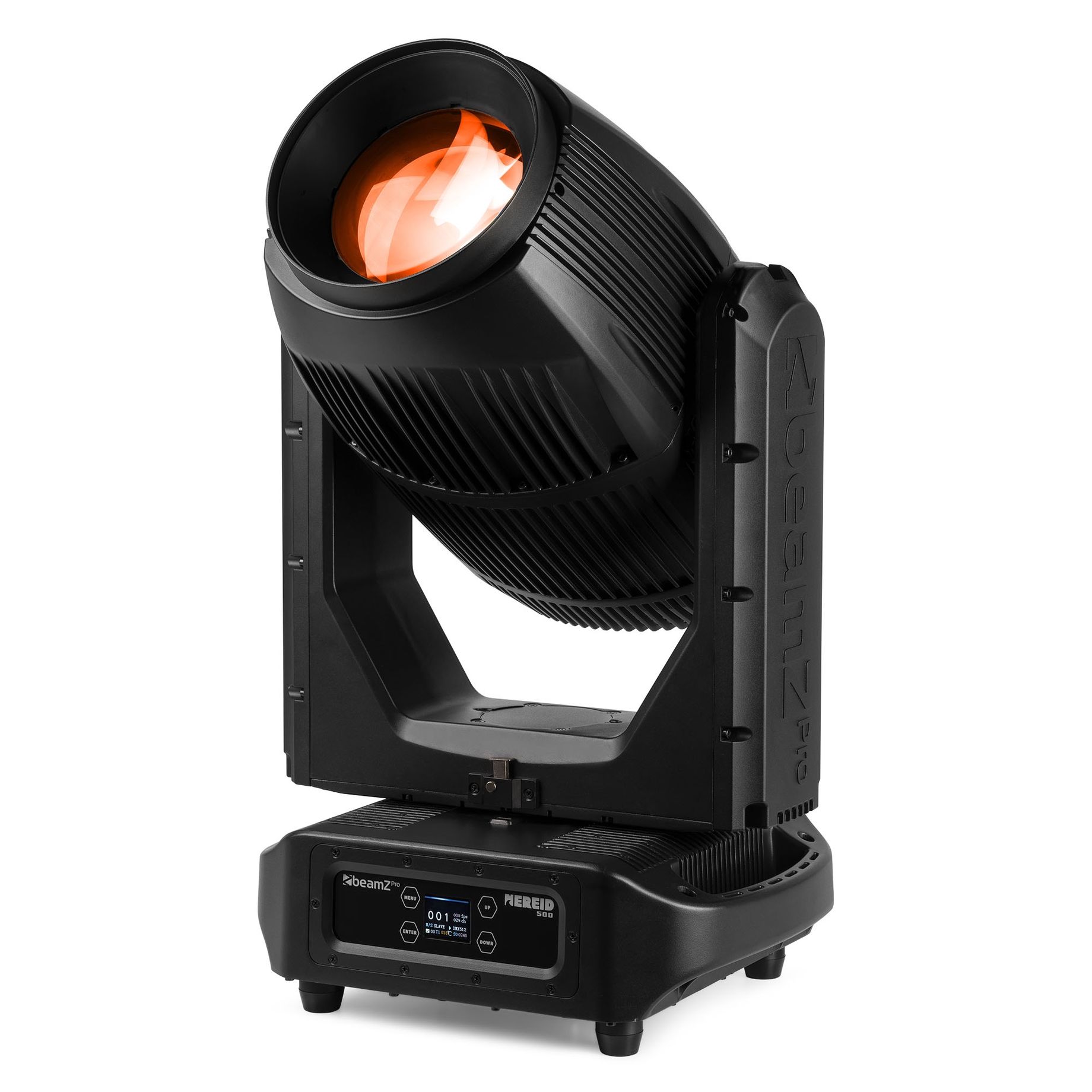

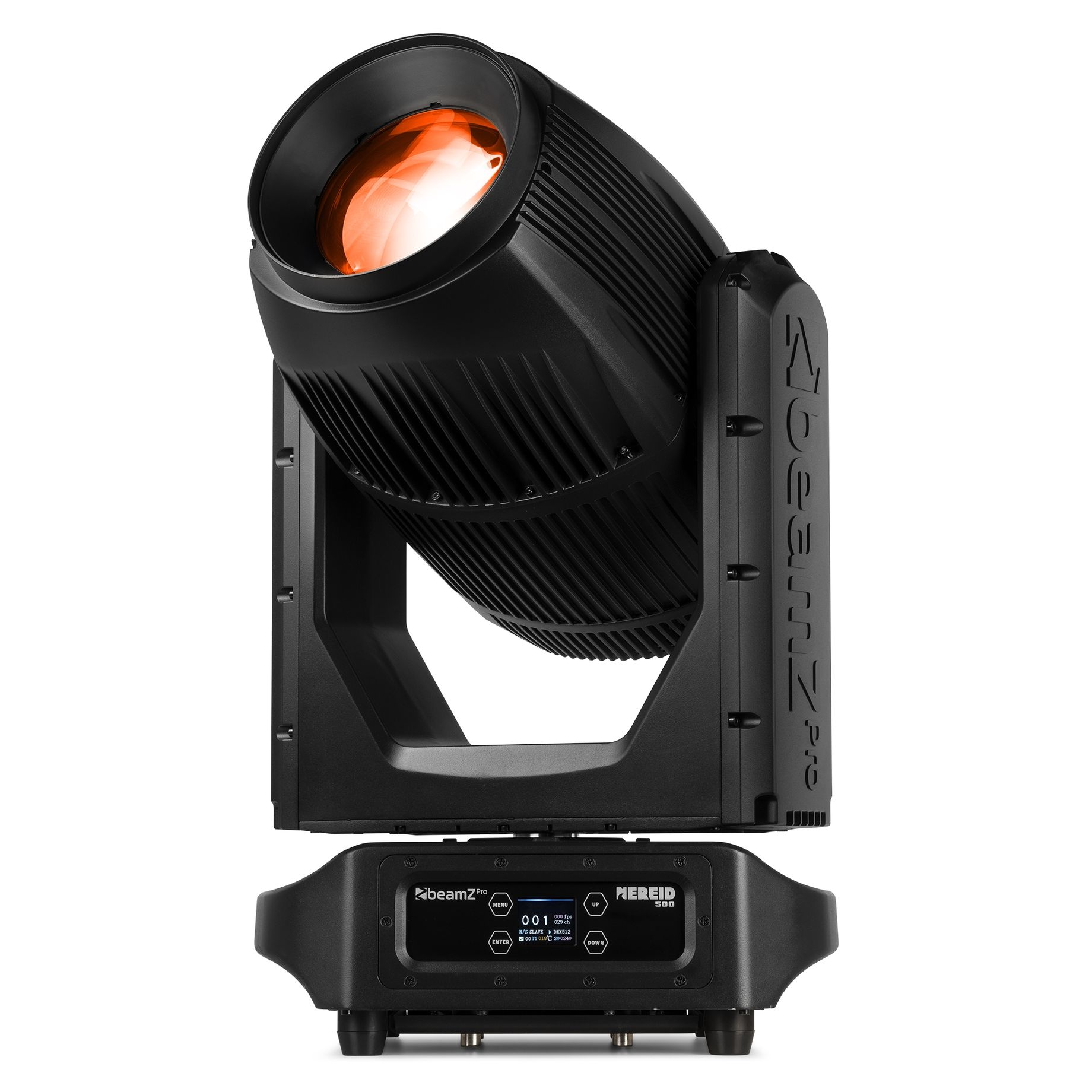

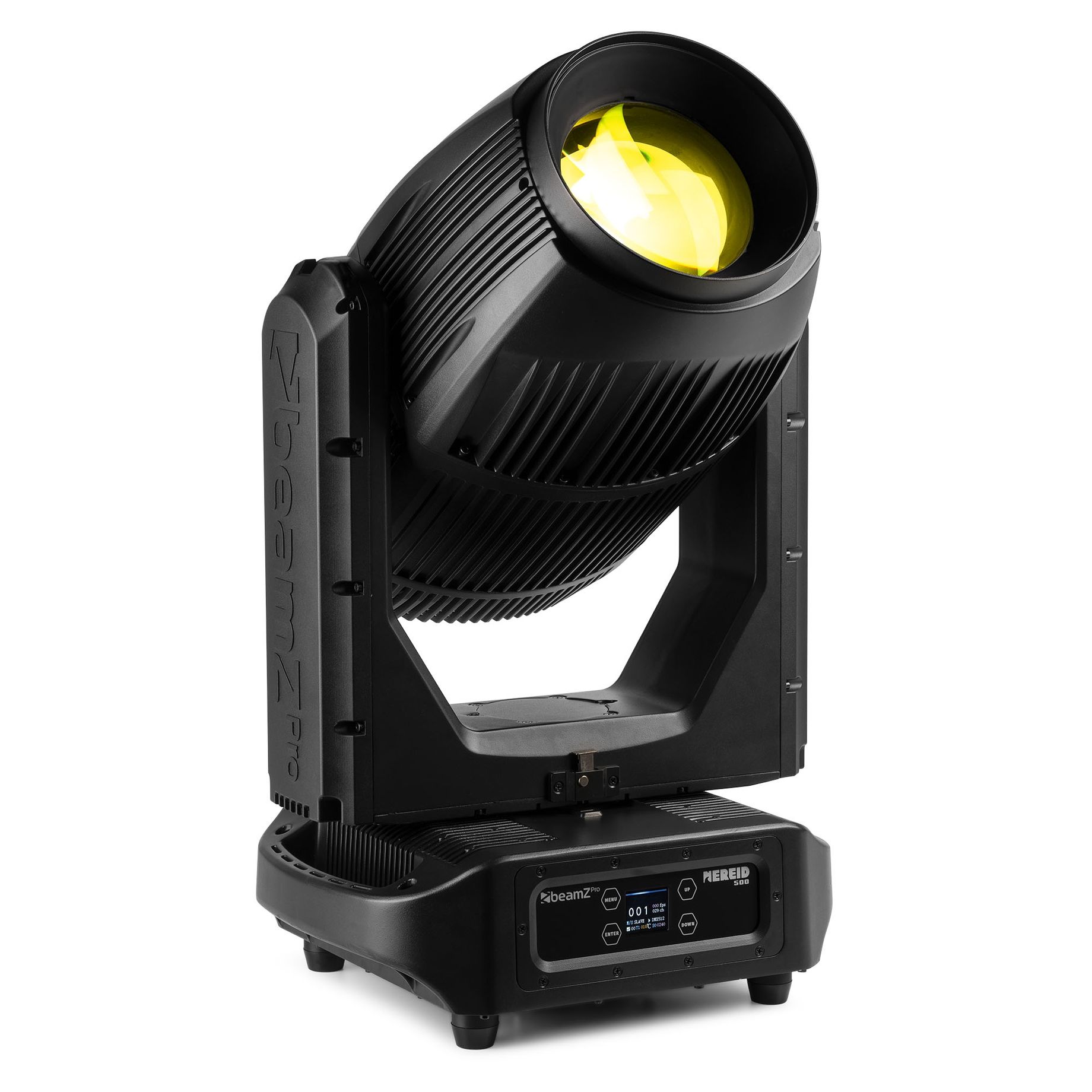

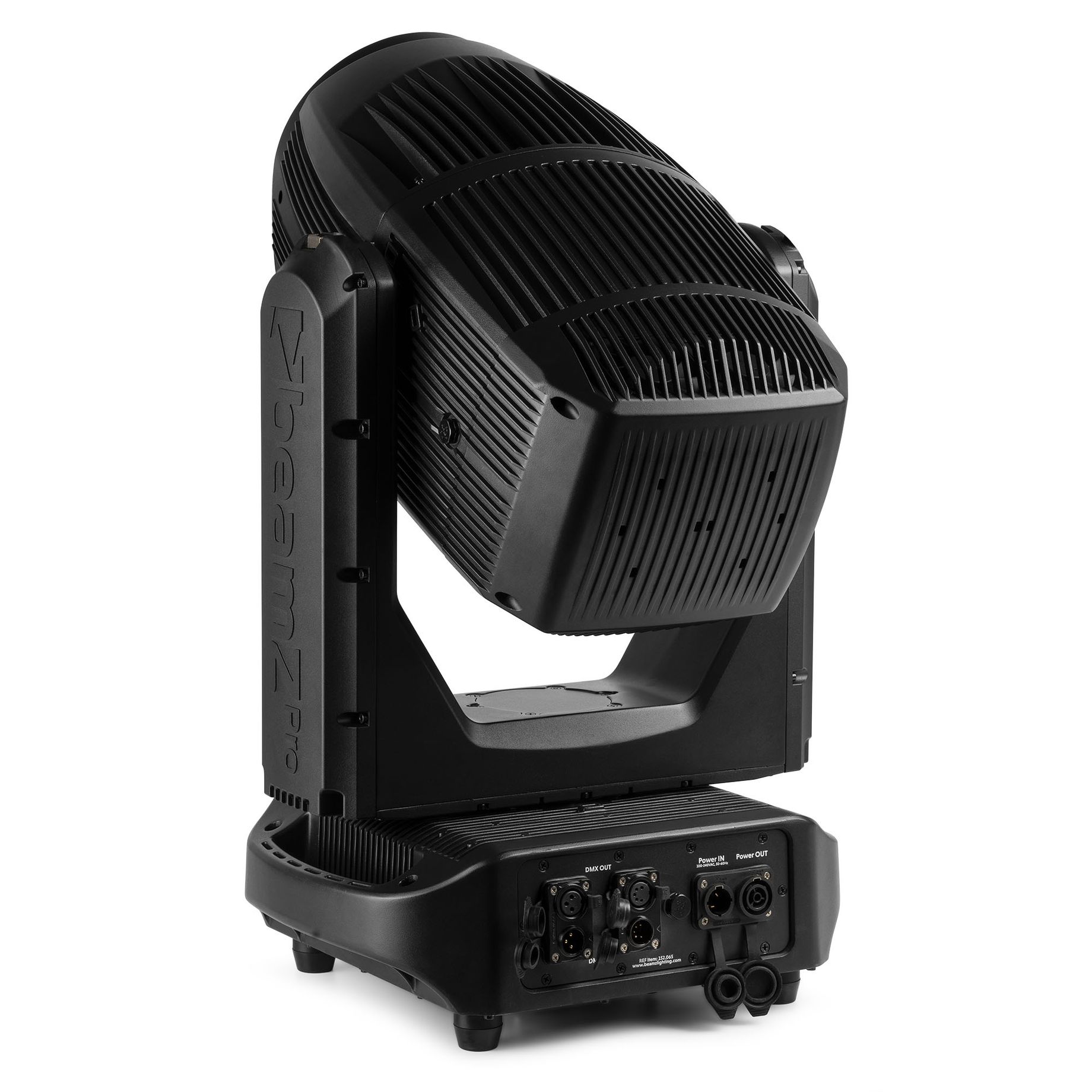

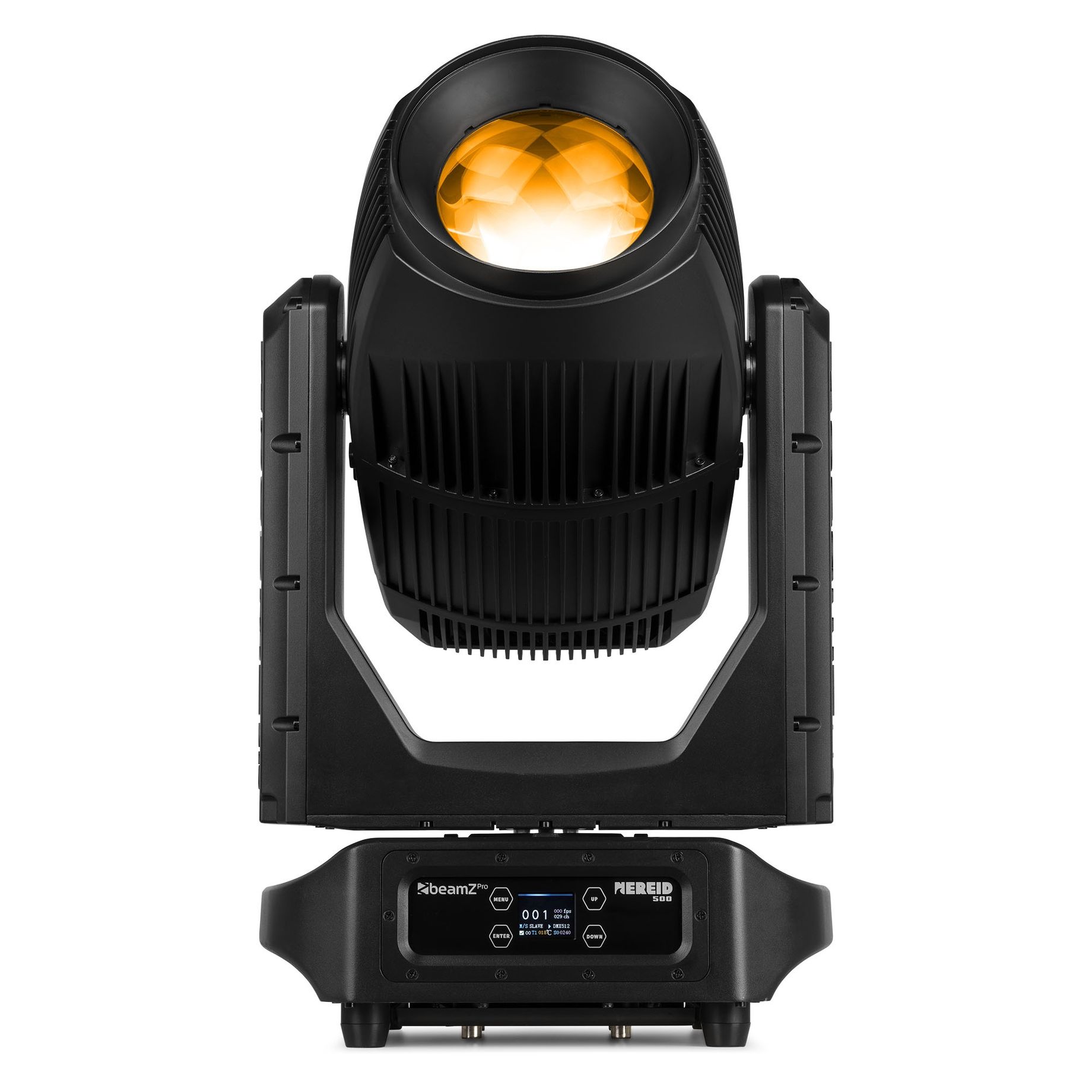

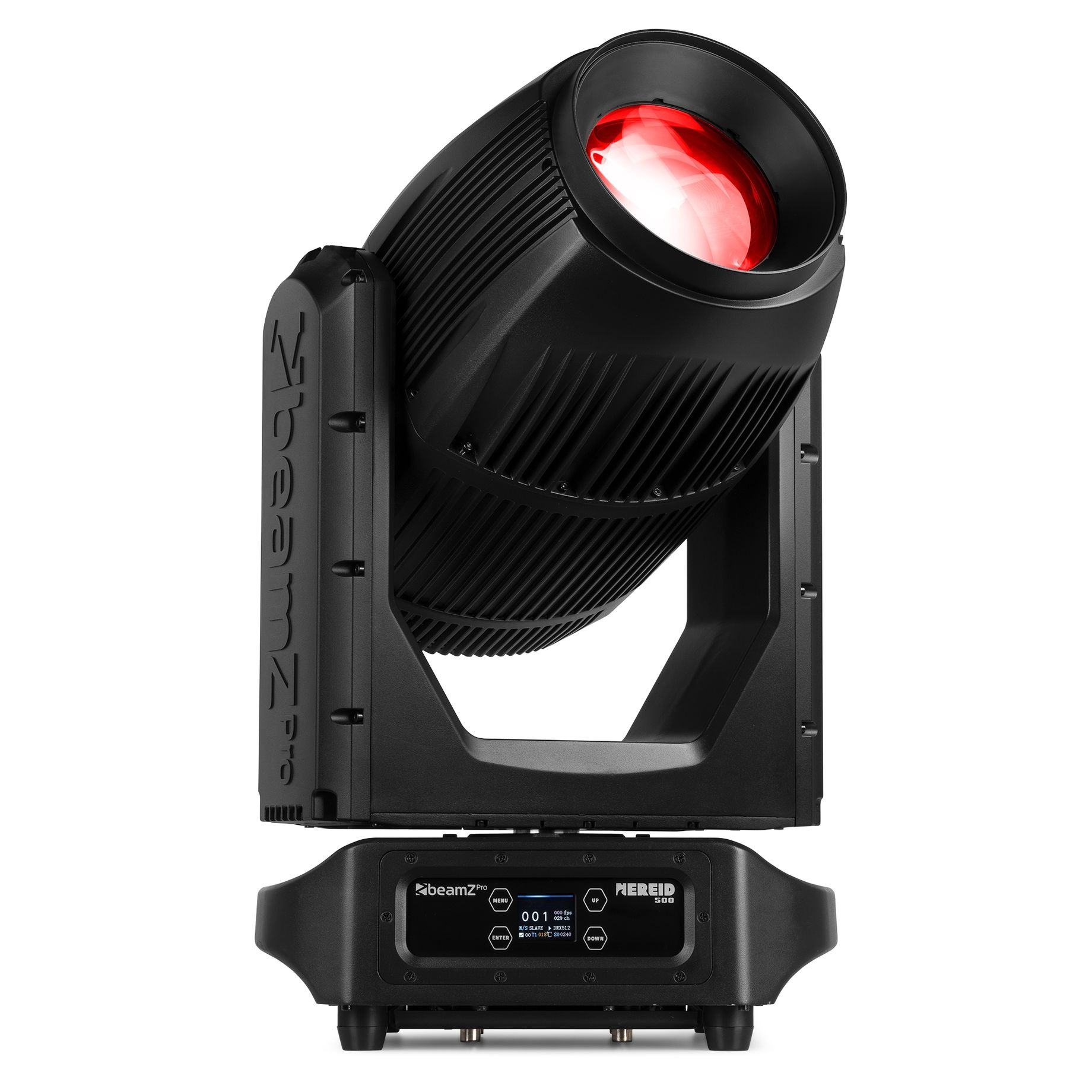

Nereid500
Hybrid Outdoor Moving Head
SKU 152.065
|EAN 8715693353754
+5
All product information
Compare
Nereid500
Description
Highlights
- Hybrid Moving Head Beam for Indoor/Outdoor use
- Beam/Spot/Wash combination
- 500W High Intensity LED
- Static Gobo Wheel: 12 static gobos + open
- Rotating Gobo Wheel: 7 rotating gobos + open
- Colour wheel: 13 colours + open
- CMY Colour Wheel
- CTO Filter: Adjustable colour temperature
- Frost effect wheel
- 1x linear and 1x circle prism
- Motorized zoom
- IP65 Outdoor-rated classification
- DMX, master/slave and auto mode
- 0-100% Electronic Dimmer
- 16bit Control: Dimmer, colour, focus, zoom, pan/tilt
- RDM Control
- DMX in/output via 3-pin and 5-pin XLR
- Control panel with LCD display
- P-Con Powerconnector TR1 in/output
- Quick lock omega clamps included
Specifications
BrandbeamZ Professional
Product serieNereid series
ColourBlack
Moving head typeHybrid
Light source
Light source
- 1x 500W White LED (6500K)
Colour Temperature3,000 - 5,500 K
Illuminance 78.241 lx @ 5m
CRI≥70
Optics
Beam angle
- 7 - 44
ZoomYes
FocusMotorised
Movement
Pan Movement540° (16-bit)
Tilt Movement270° (16-bit)
Features
Control
Control modesAuto programs, DMX, Manual
DMX Channels29
RDMYes
DMX connector3-pin XLR, 5-pin XLR

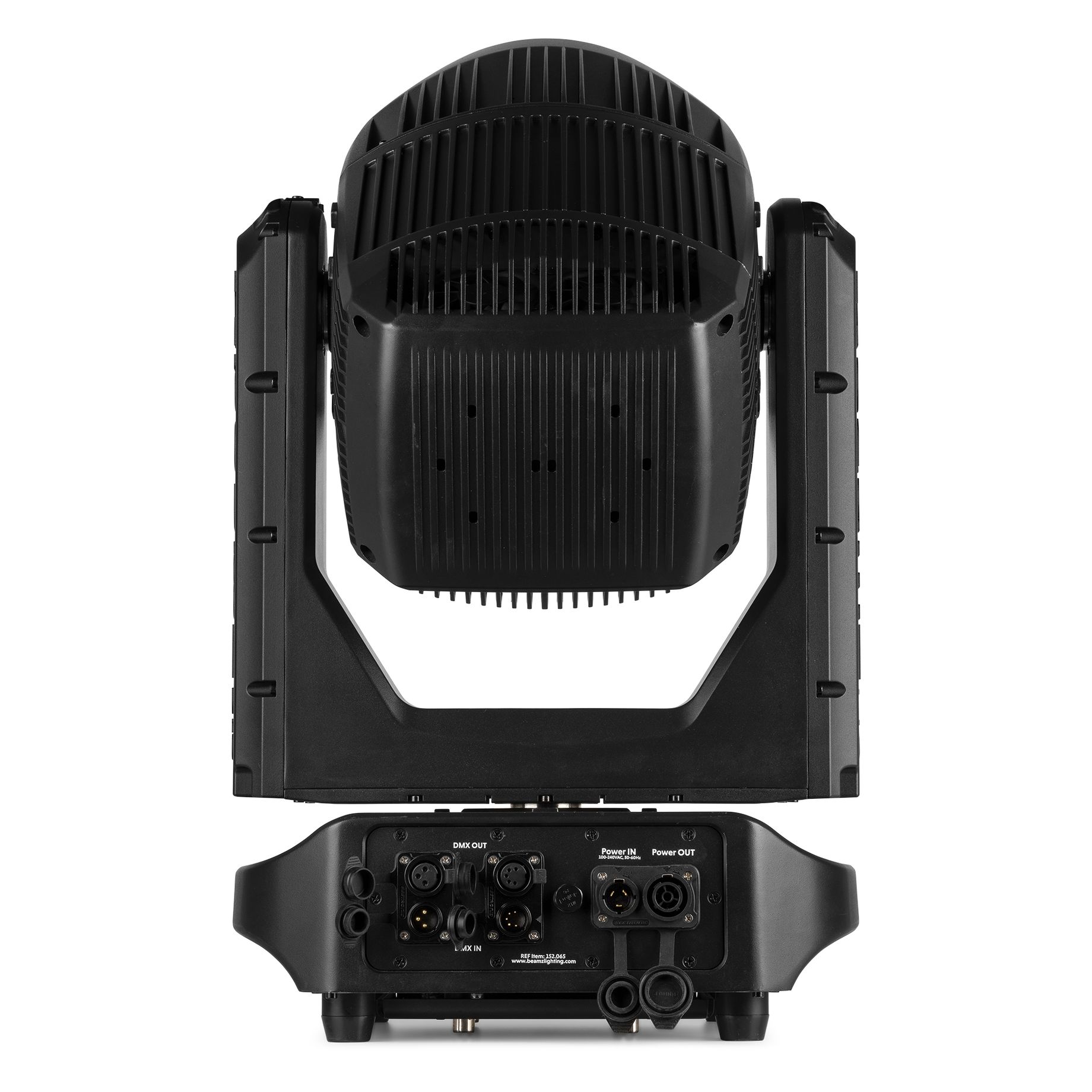

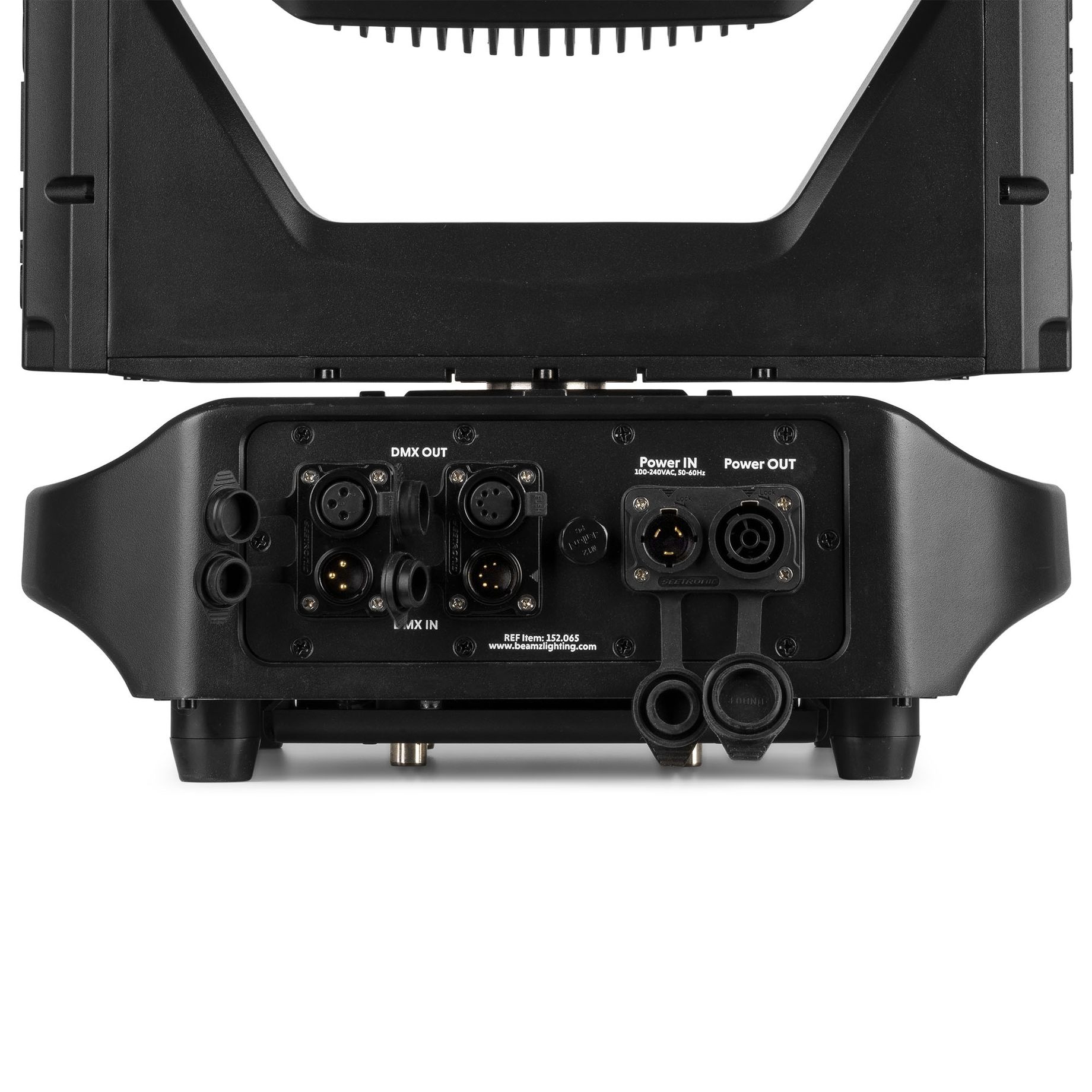

Connections
Input connections
- 1x Power - Powerconnector TR1 IP65 (A)
- 1x DMX - 3-pin XLR IP65 (M)
- 1x DMX - 5-pin XLR IP65 (M)
Output connections
- 1x Power - Powerconnector TR1 IP65 (B)
- 1x DMX - 3-pin XLR IP65 (F)
- 1x DMX - 5-pin XLR IP65 (F)
Hardware features
Display typeLCD
CoolingTemperature controlled fan
Environmental
IP ratingIP65
Electrical
Power Supply100-240VAC 50/60Hz
Mechanical
Dimensions
- 380 x 315 x 735 mm (W x D x H)
Weight
- 29.8 kg
Accessories

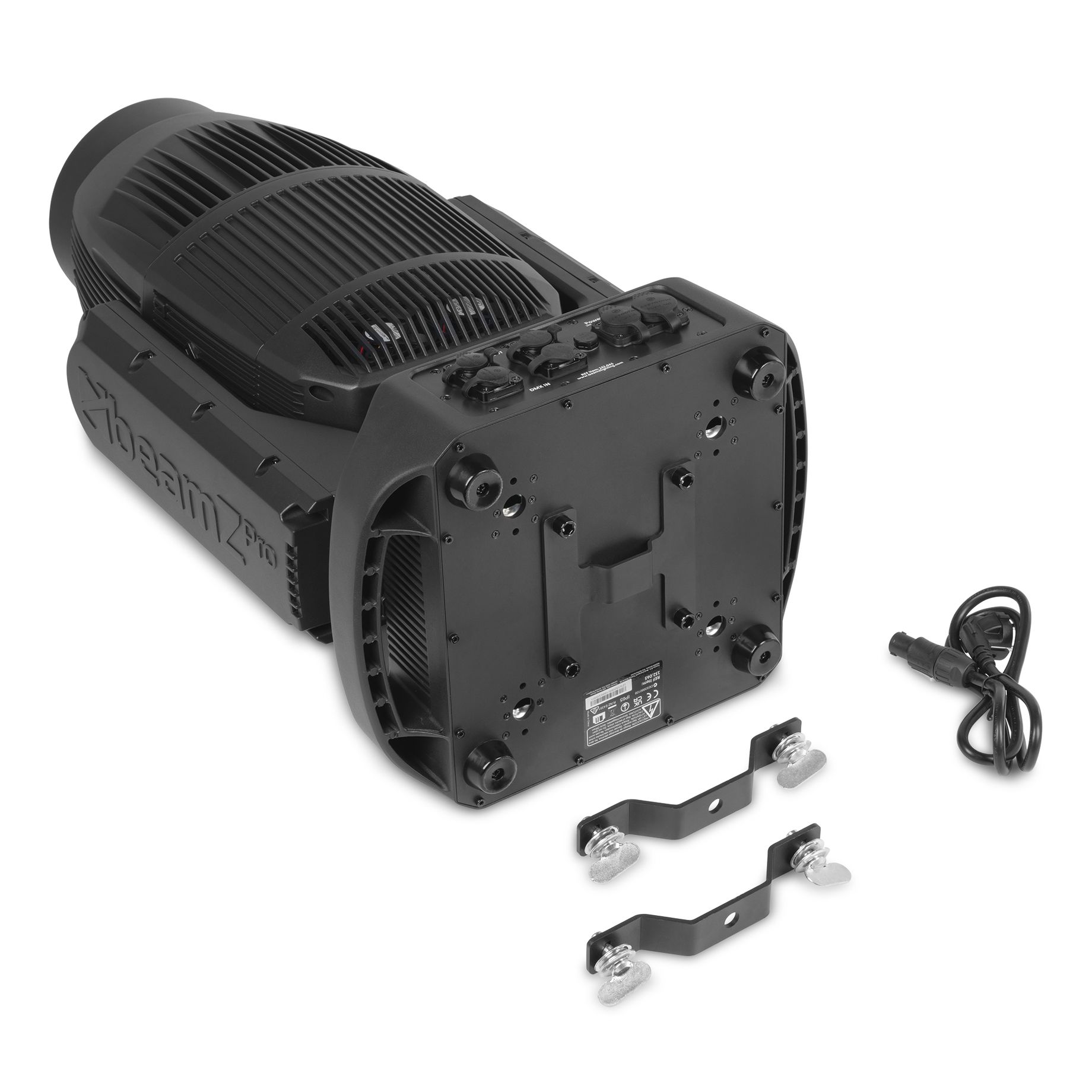

Included Accessories
- Mounting bracket
Manuals & Documents
Manual
PDF
