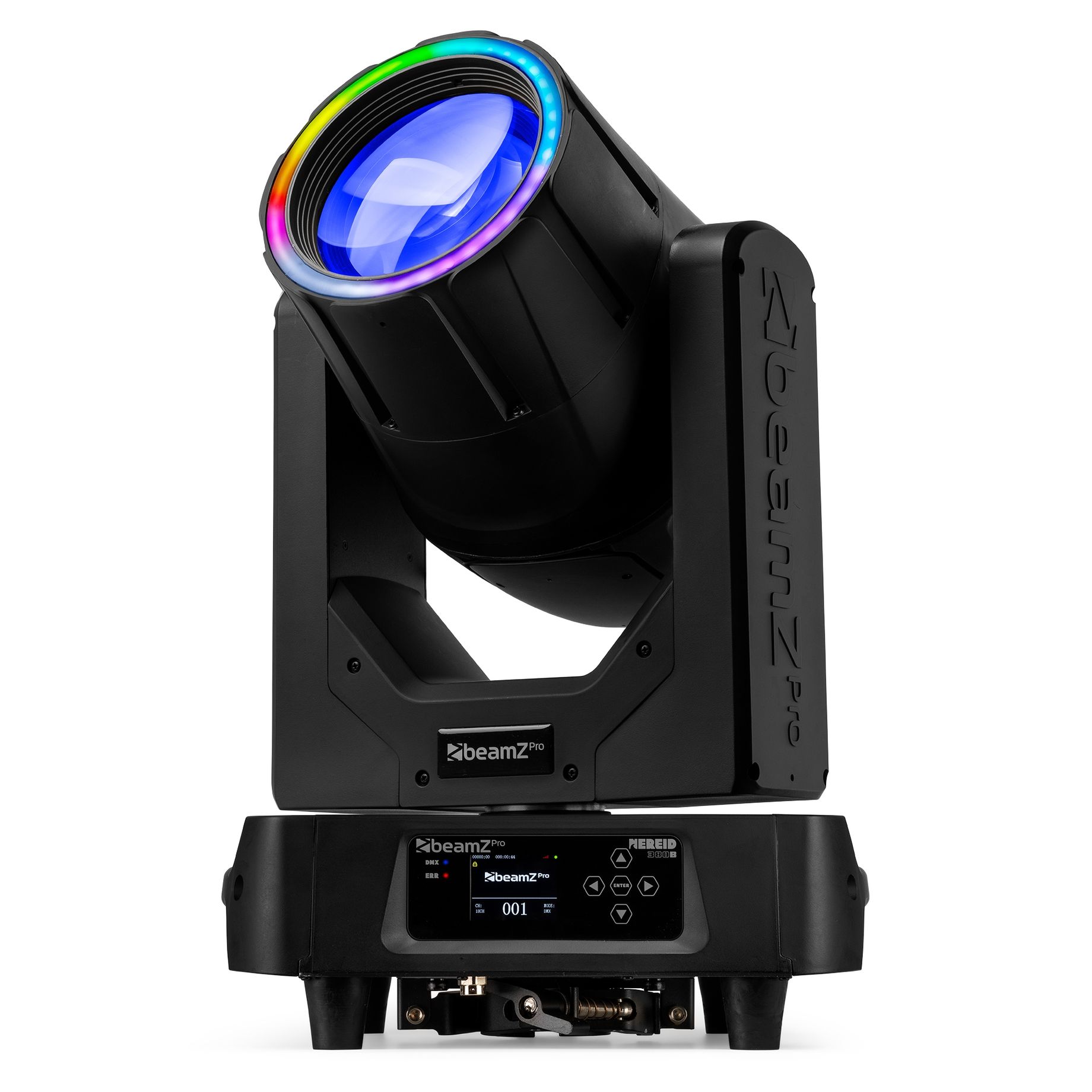

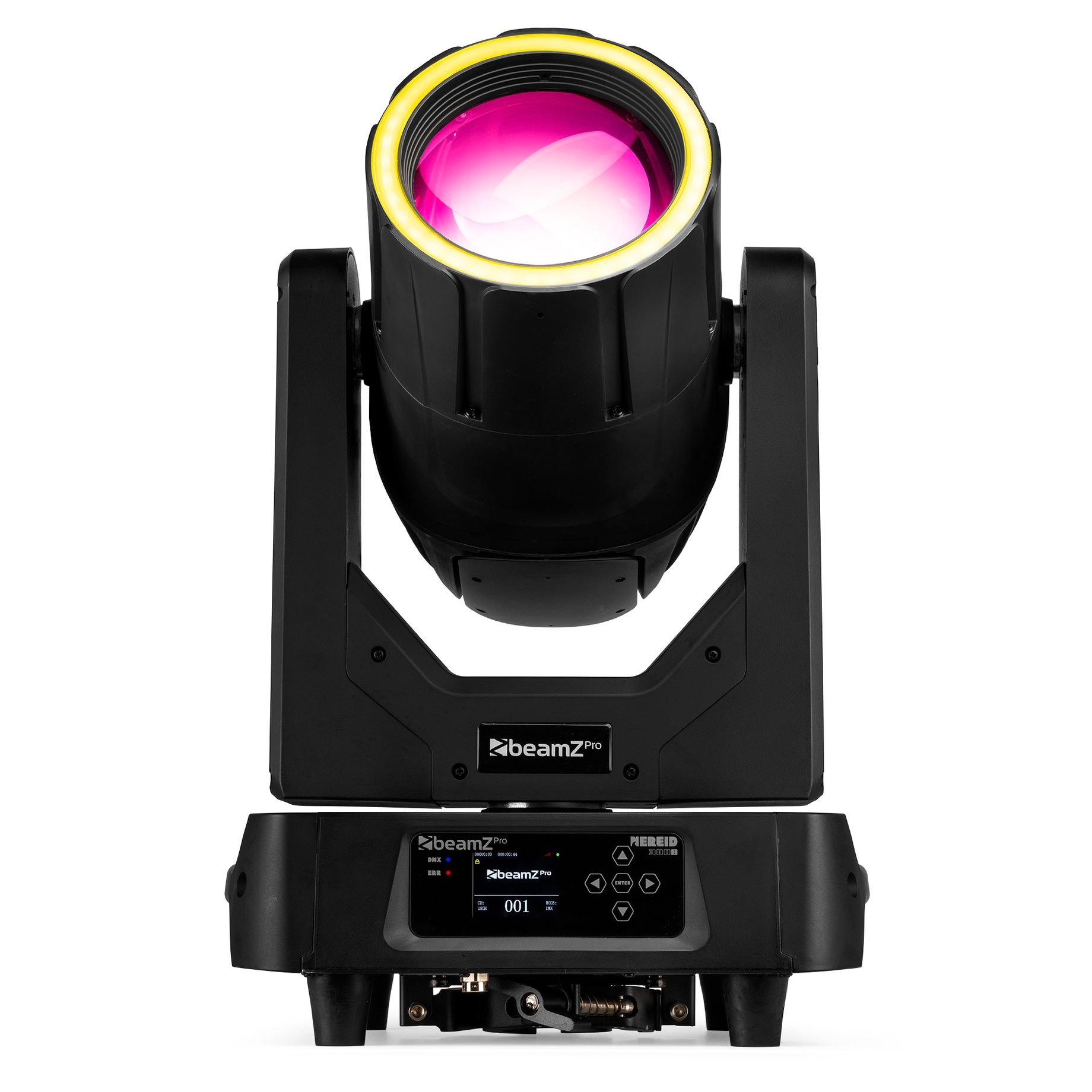

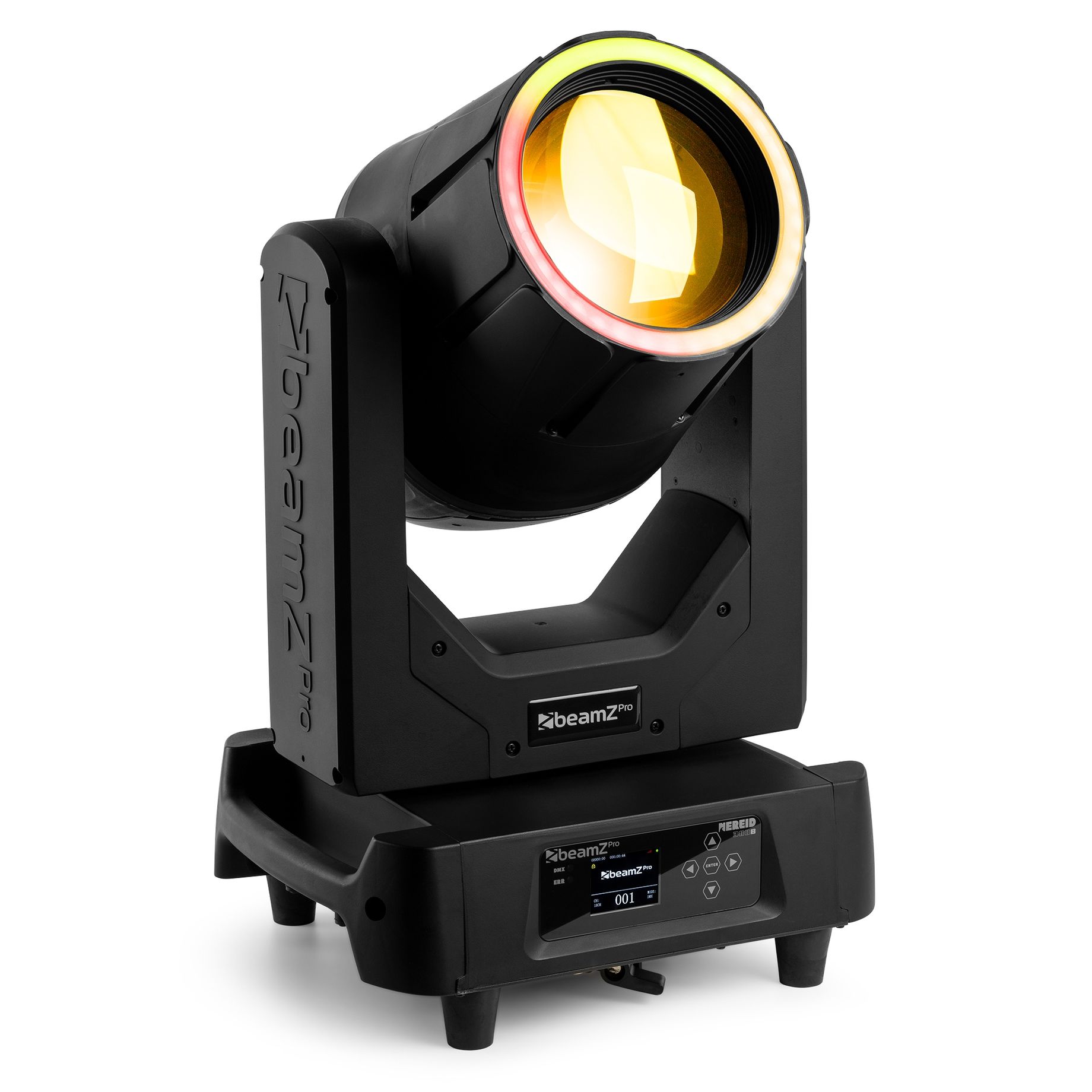

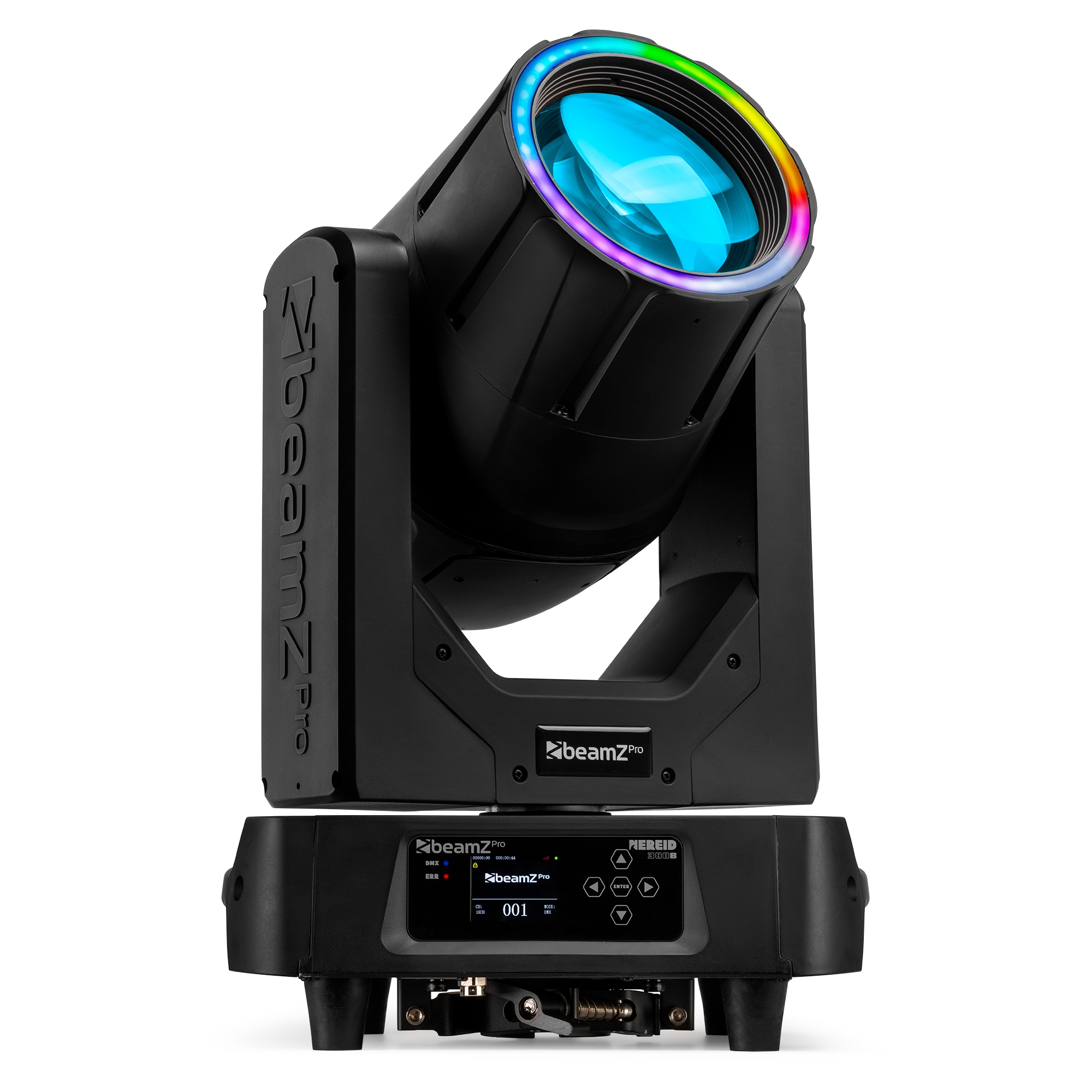

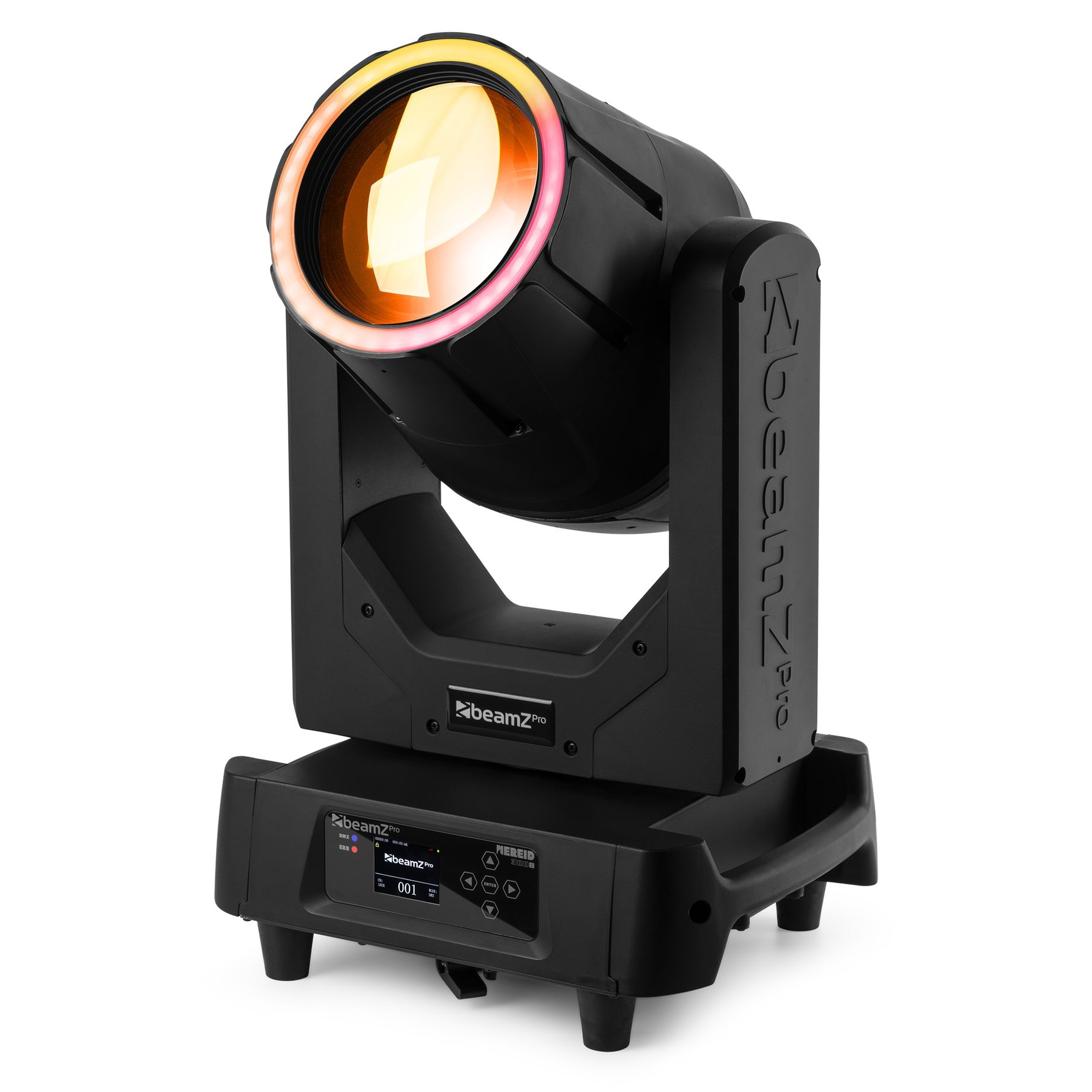

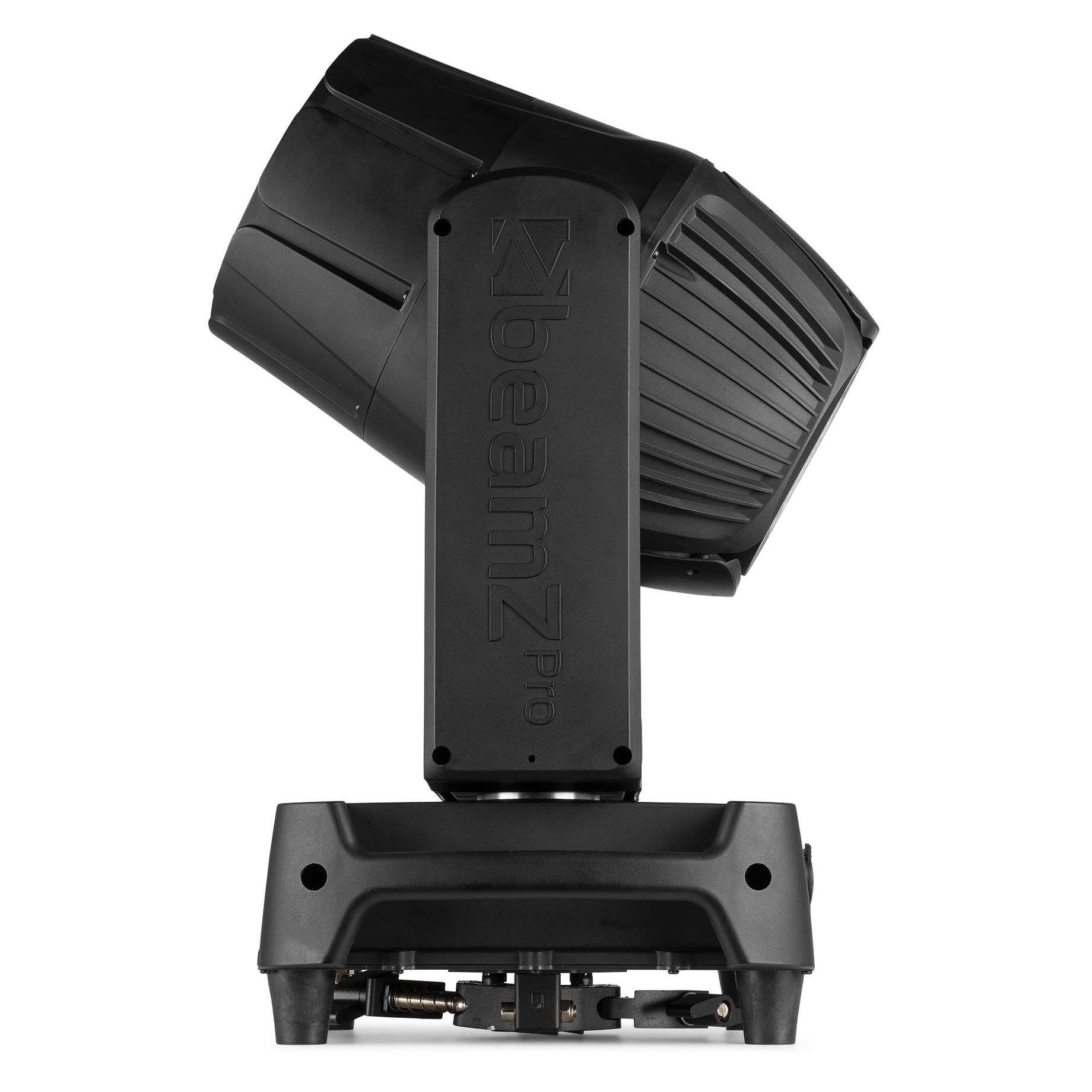

Nereid380B
Outdoor Moving Head Beam
SKU 152.040
|EAN 8715693348040
+7
All product information
Compare
Nereid380B
Description
Highlights

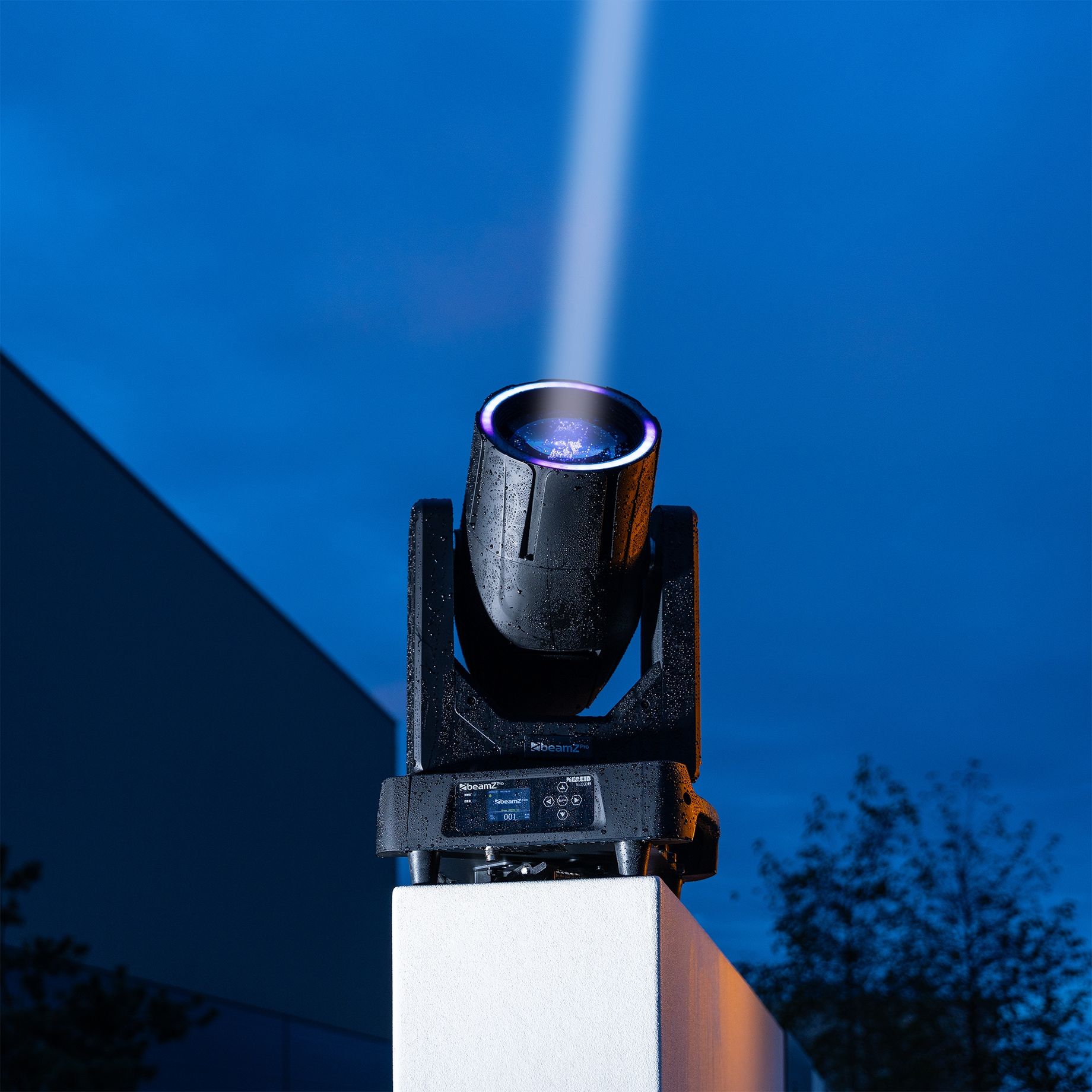

- Moving Head Beam with LED ring Indoor/Outdoor use
- 380W High Intensity discharge bulb included
- Aura Effect Ring: 40x RGB SMD LEDs
- Gobo Wheel: 12 static gobos + 5 glass gobos + open
- Gobo functions: gobo shake + bi-directional flow effect
- Colour wheel: 14 colours + open
- Colour wheel functions: split colours + bi-directional flow effect
- Effect wheel and frost filter
- Rotatable prisms (can be overlapped) with adjustable rotating speed and direction
- Motorized focus
- 0-100% Electronic Dimmer
- Automatic pan/tilt correction
- DMX, master/slave and stand-alone mode
- RDM Remote Control, bidirectional data transmission
- DMX in/output via weatherproof 3-pin XLR
- P-Con TR1 in/output

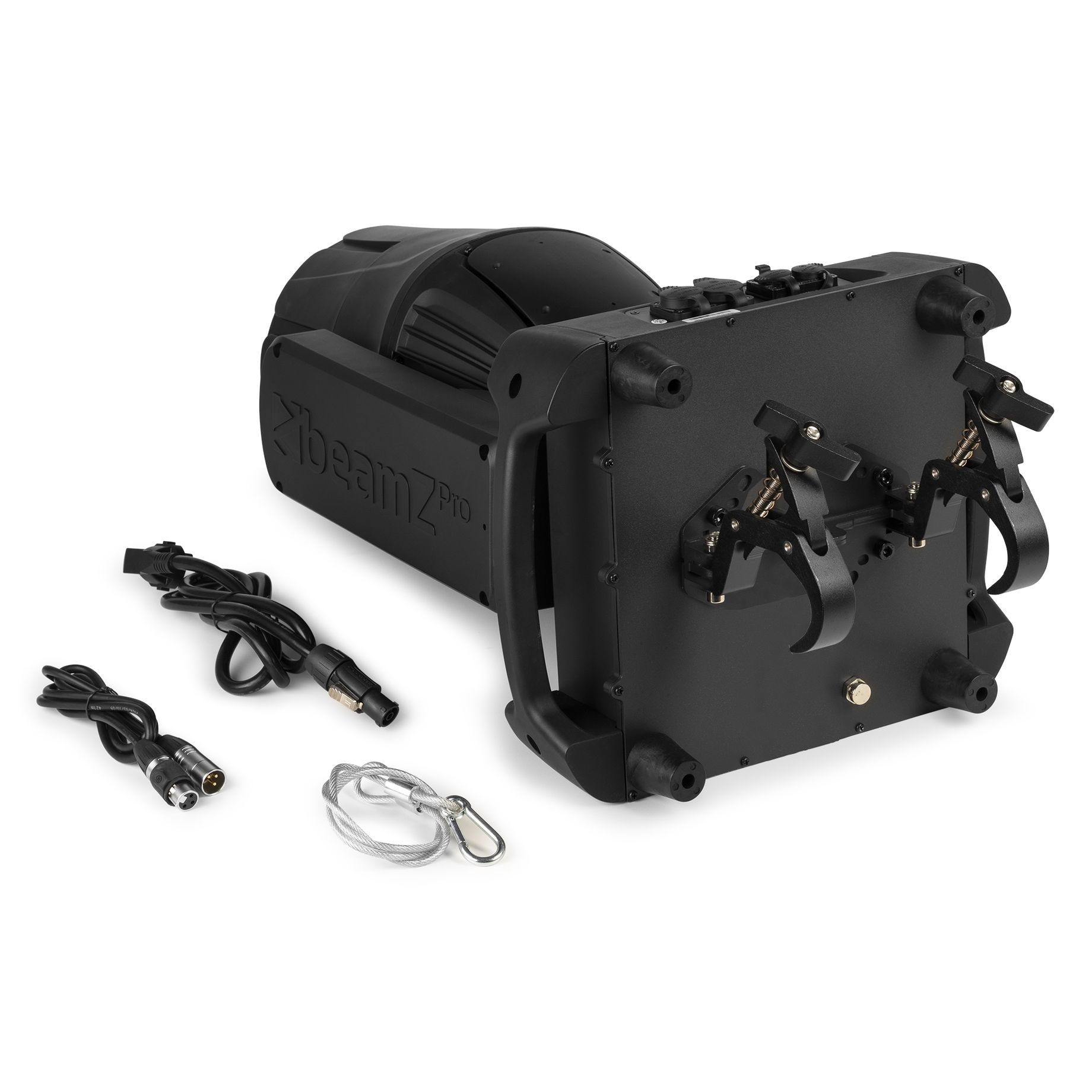

- Foldable clamps included
Specifications
BrandbeamZ Professional
Product serieNereid series
ColourBlack
Moving head typeBeam
Light source
Light source: Beam
- 1x 380W White MSD 18R bulb (8000K)
Light source: Aura Effect Ring
- 40x RGB SMD LED
Illuminance 209.000 lx @ 7m
Optics
Beam angle
- 1°
ZoomNo
FocusMotorised
Movement
Pan Movement540° (16-bit)
Tilt Movement270° (16-bit)
Features
Control
Control modesAuto programs, DMX, Manual
DMX Channels18
RDMYes
DMX connector5-pin XLR

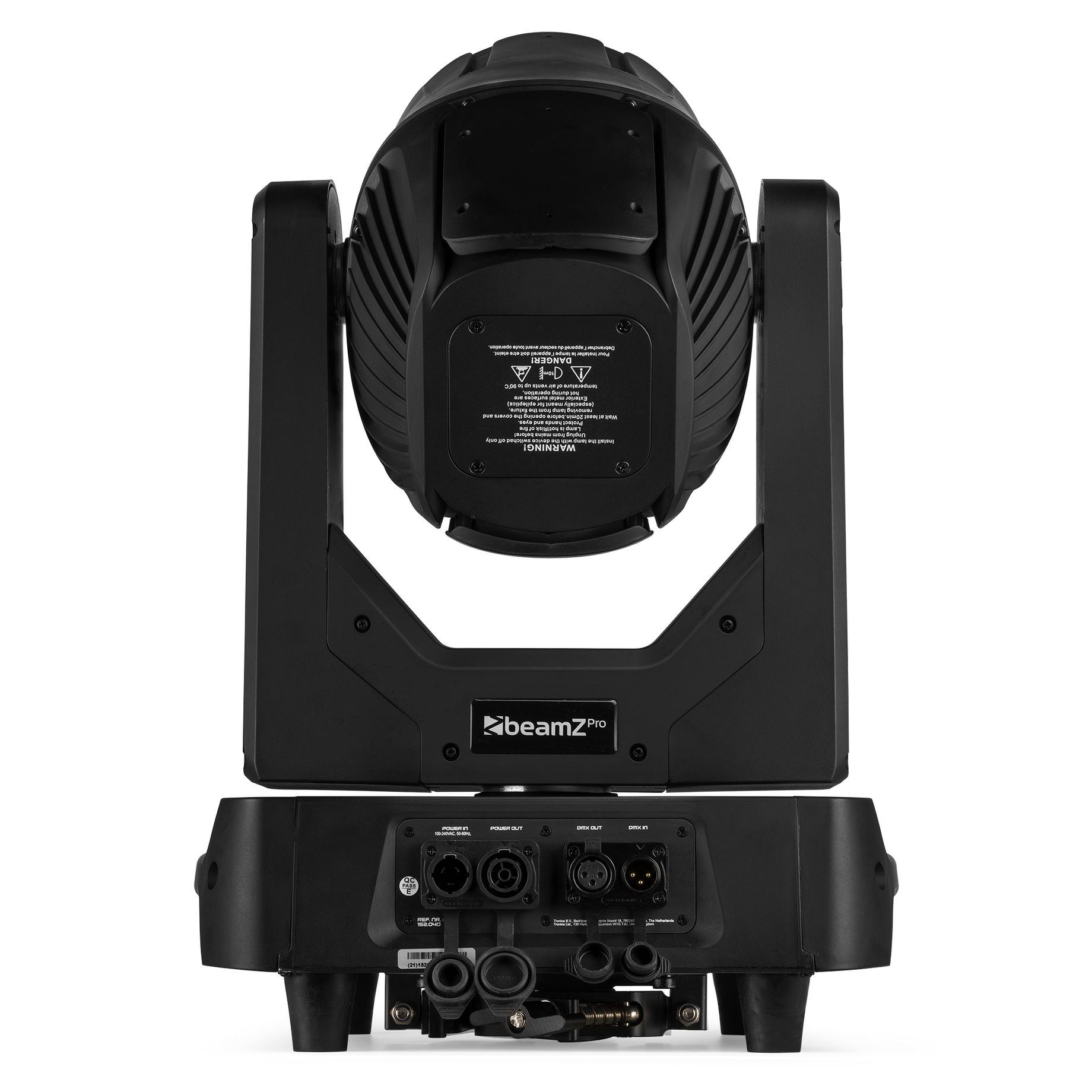

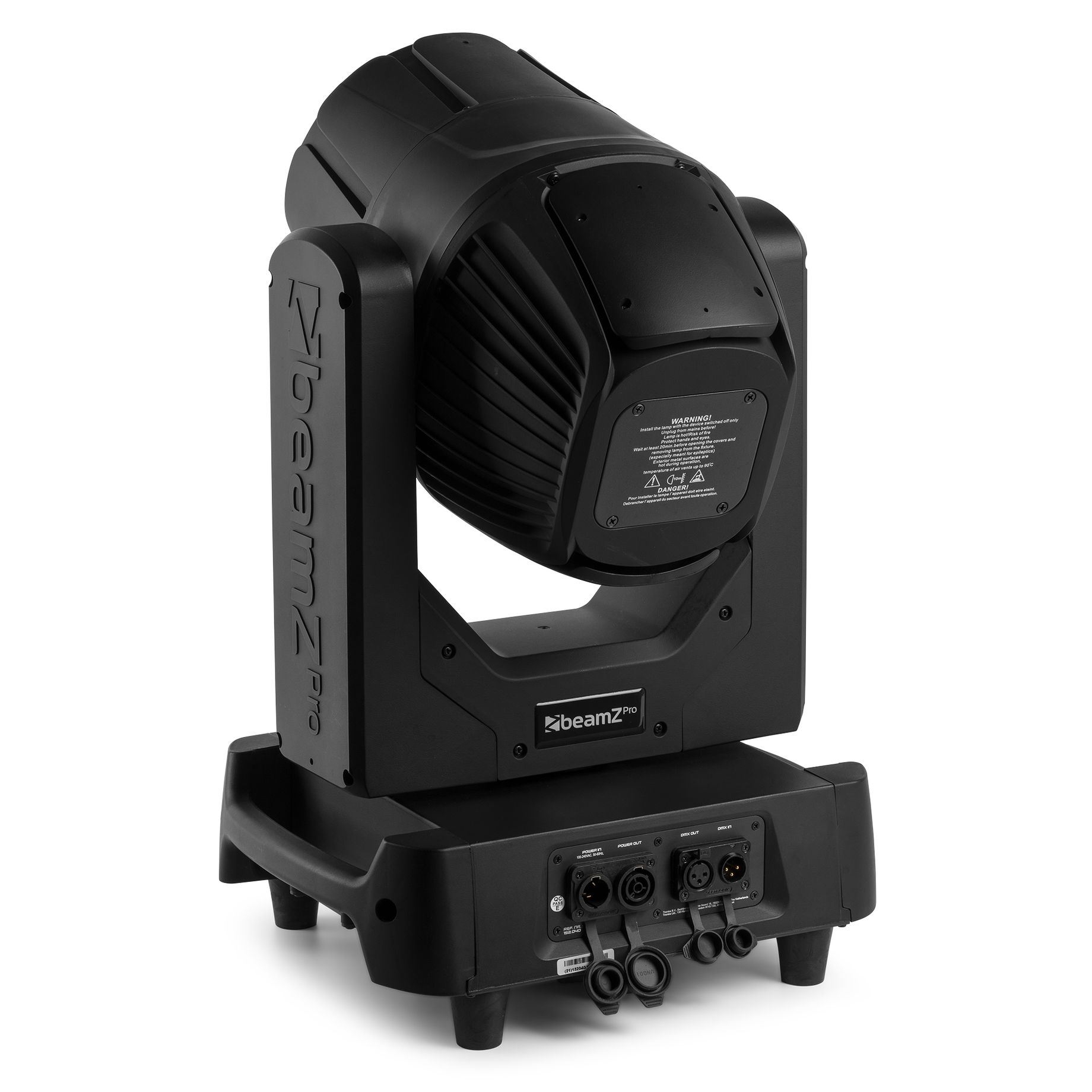

Connections
Input connections
- 1x Power - Powerconnector TR1 IP65 (A)
- 1x DMX - 5-pin XLR IP65 (M)
Output connections
- 1x Power - Powerconnector TR1 IP65 (B)
- 1x DMX - 5-pin XLR IP65 (F)
Hardware features
Display typeOLED
CoolingFan
Environmental

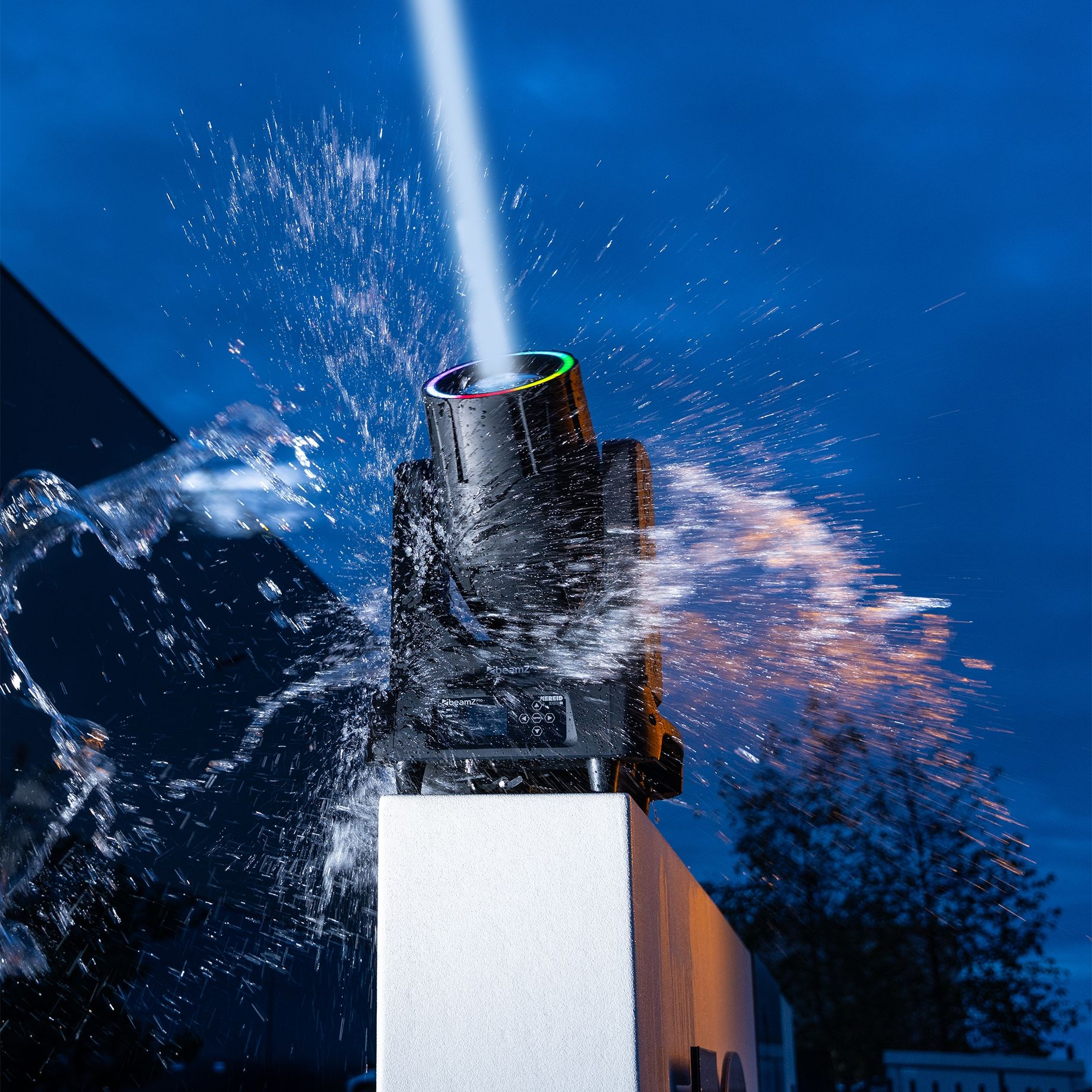

IP ratingIP65
Electrical
Power Supply100-240VAC 50/60Hz
Mechanical
Dimensions
- 390 x 300 x 600 mm (W x D x H)
Weight
- 22.1 kg
Accessories
Included Accessories
- Mounting bracket
