MultiBox

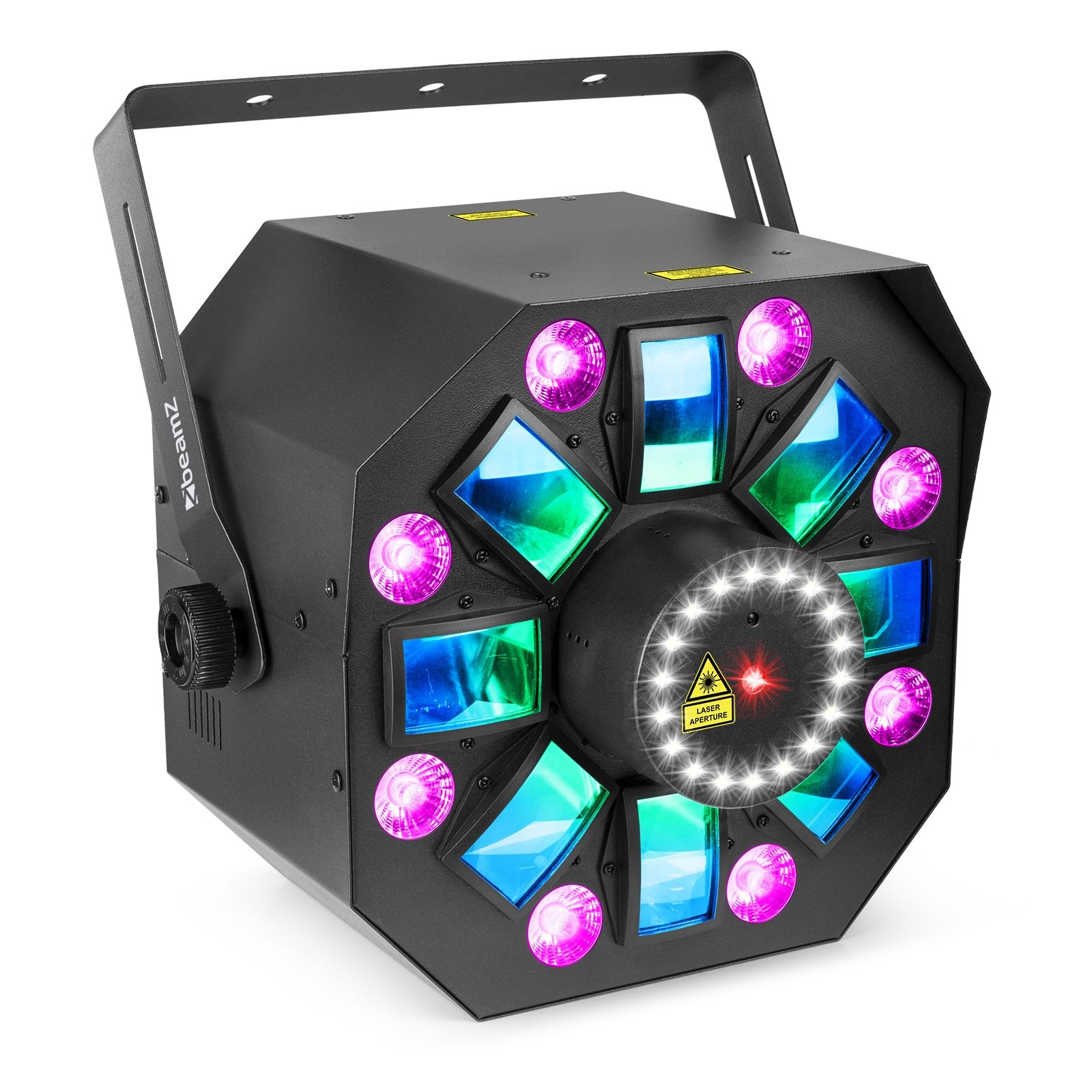

LED Effect with Laser and Strobe
SKU 153.682
|EAN 8715693330465
+5
All product information
Compare
MultiBox series
Description
Highlights

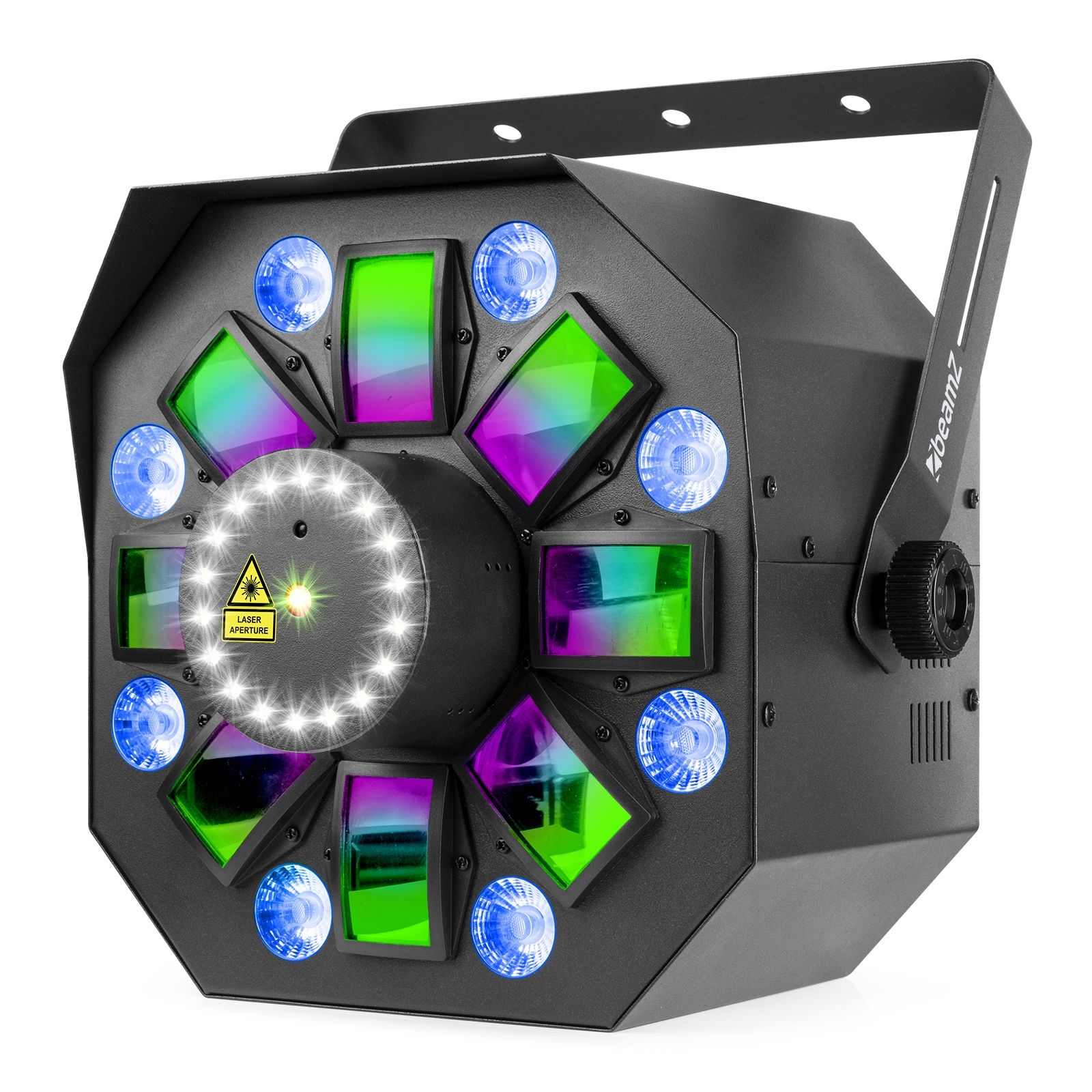

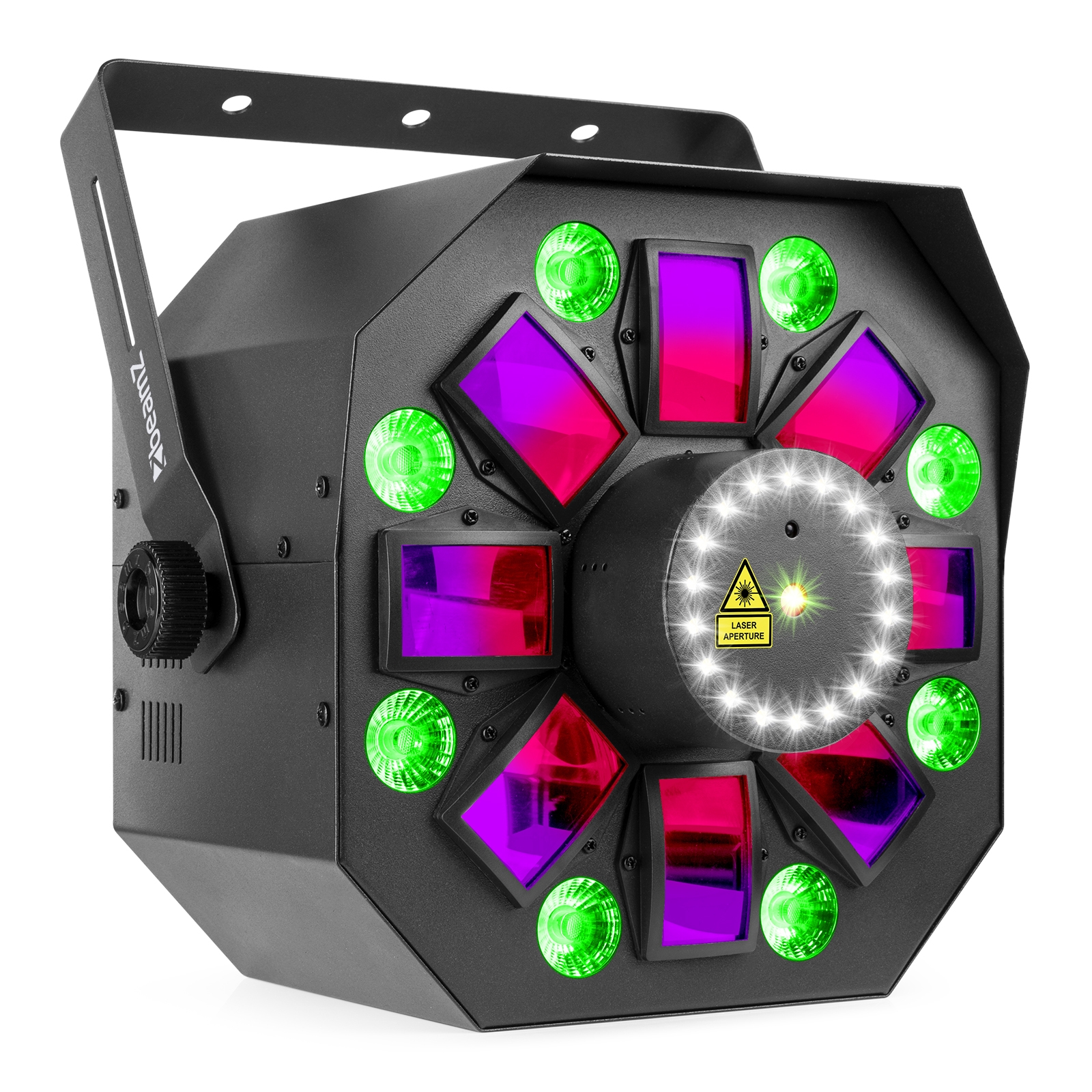

- 4-in-1 effect with Derby, PAR, Laser and Strobe effect
- Derby effect with 6x 3W RGBWAP LEDs
- PAR effect with 8x 8W RGB-UV LEDs
- Laser red (100mW) and green (50mW)
- Strobe 18x 0.2W white SMD LED
- All effects separately controllable
- 3, 11 or 19 channels
- IR-remote control
- DMX and stand-alone mode
- Master/slave function
- Sound activated with adjustable sensitivity
- Auto mode with pre-programmed shows
- DMX in-/output via 3-pin XLR
- Control panel with LED display
- Power Connector in/output
Specifications
BrandbeamZ
Product serieMultiBox series
ColourBlack
Light source
Light source: Derby
- 6x 3W RGBWAP LED
Light source: LED par
- 8x 8W RGB-UV LED
Light source: Strobe
- 18x 0.2W Cool white SMD LED
Laser Red100mW @ 650nm
Laser Green50mW @ 532nm
Features
Flash Per Second1 - 24 Hz
Control
Control modesAuto programs, DMX, Master/Slave, Manual
DMX Channels3, 11, 19

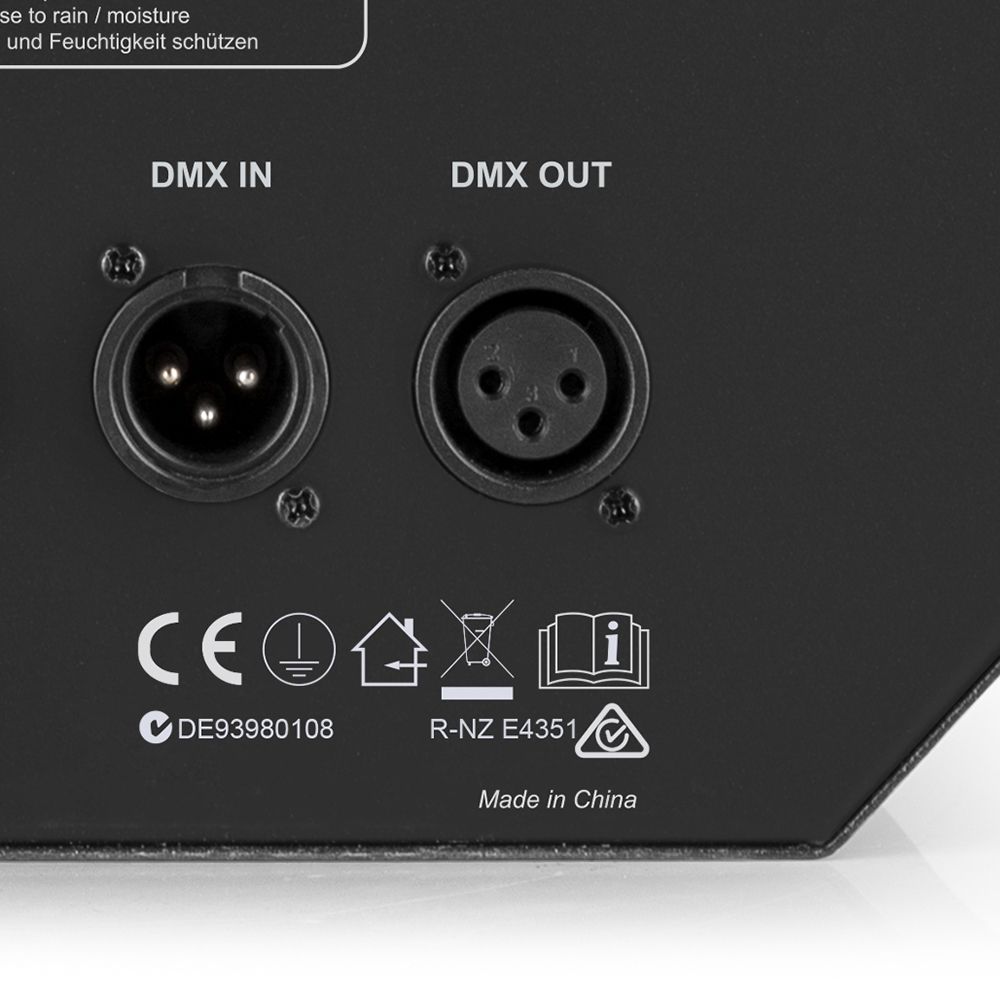

DMX connector3-pin XLR

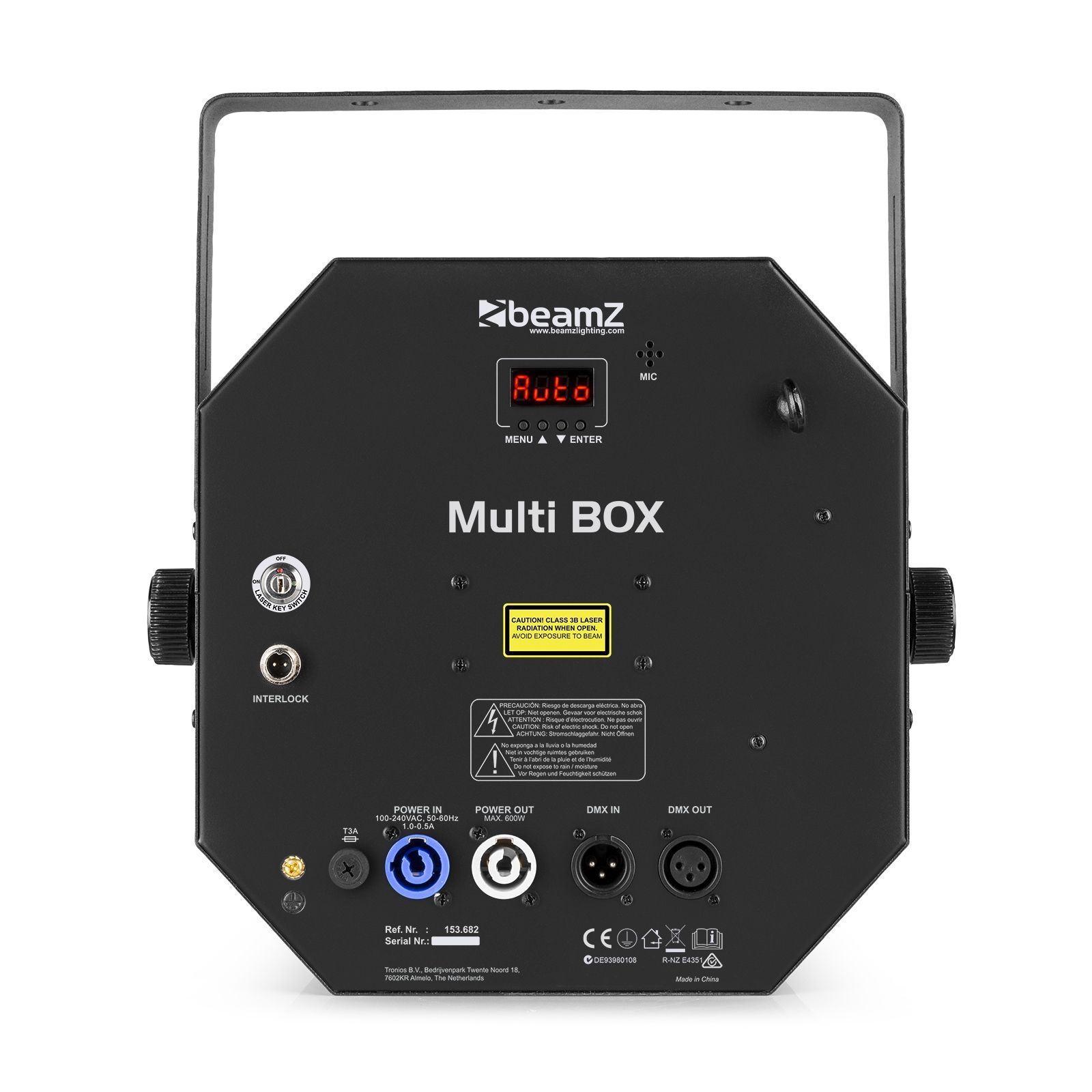

Connections
Input connections
- 1x Power - Powerconnector (A)
- 1x DMX - 3-pin XLR (M)
Output connections
- 1x Power - Powerconnector (B)
- 1x DMX - 3-pin XLR (F)
Electrical
Power Supply100-240VAC 50/60Hz
Mechanical
Dimensions
- 275 x 320 x 350 mm (W x D x H)
Weight
- 4.6 kg
Accessories
Included Accessories
- Mounting bracket
- Power cable
- Remote control (wireless)
