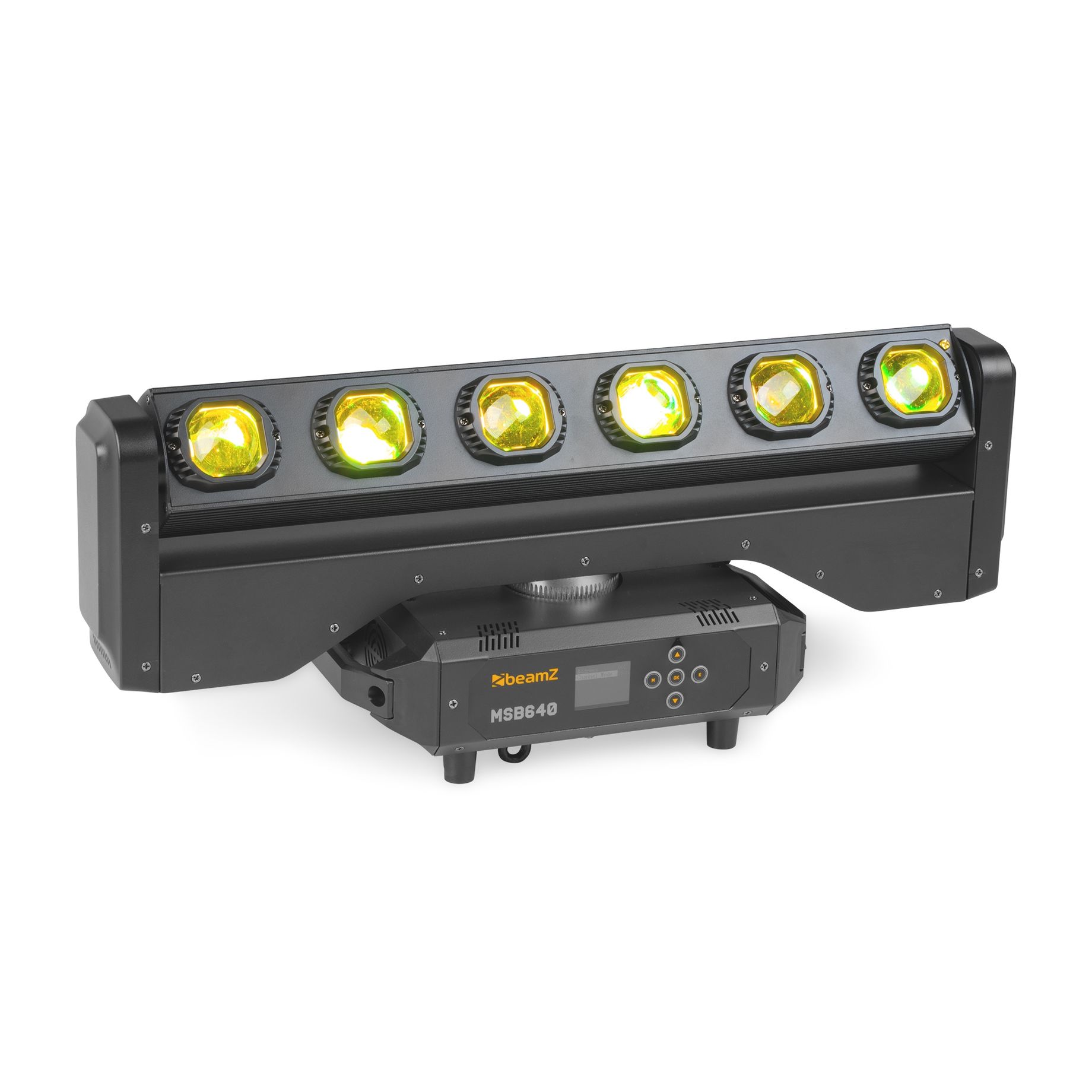

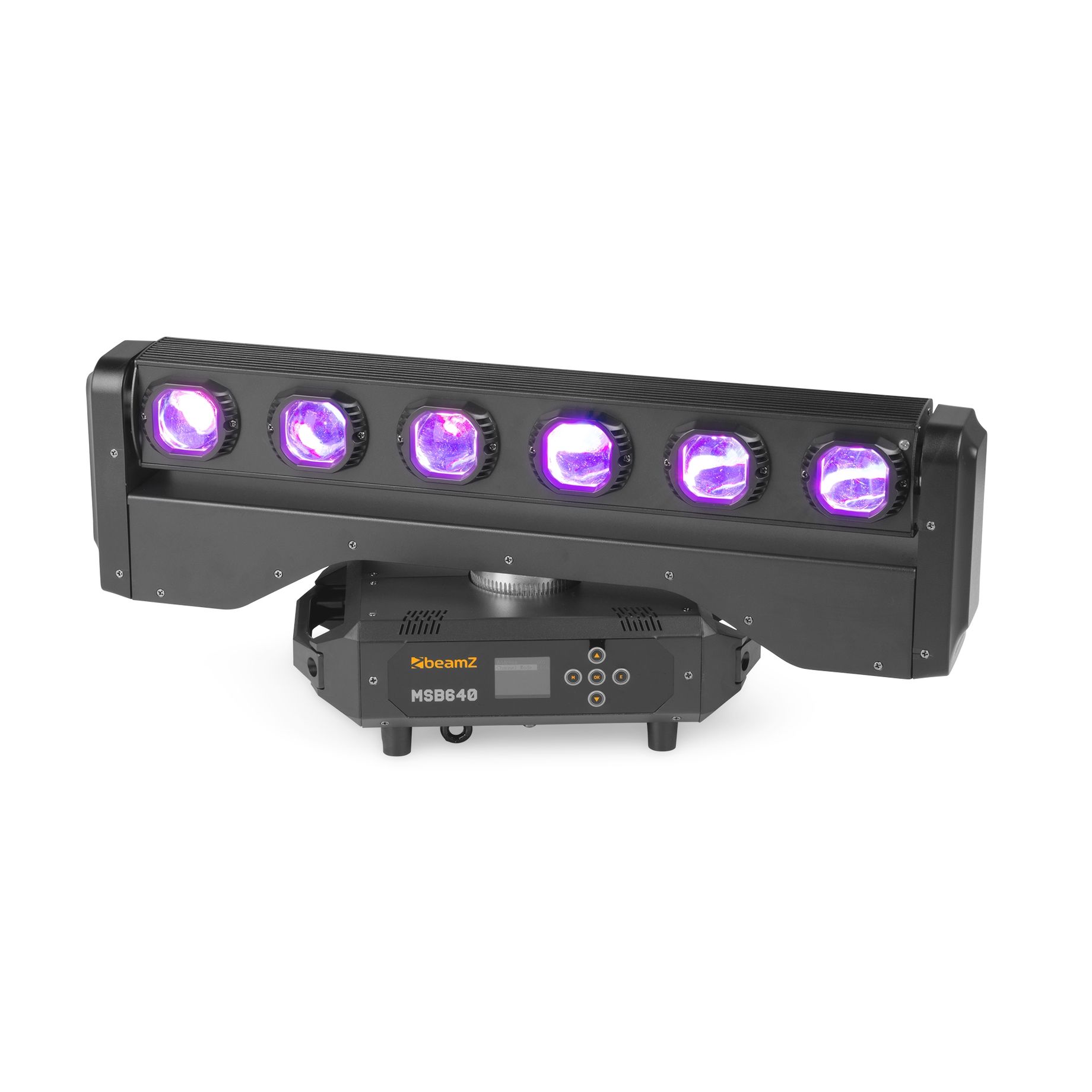

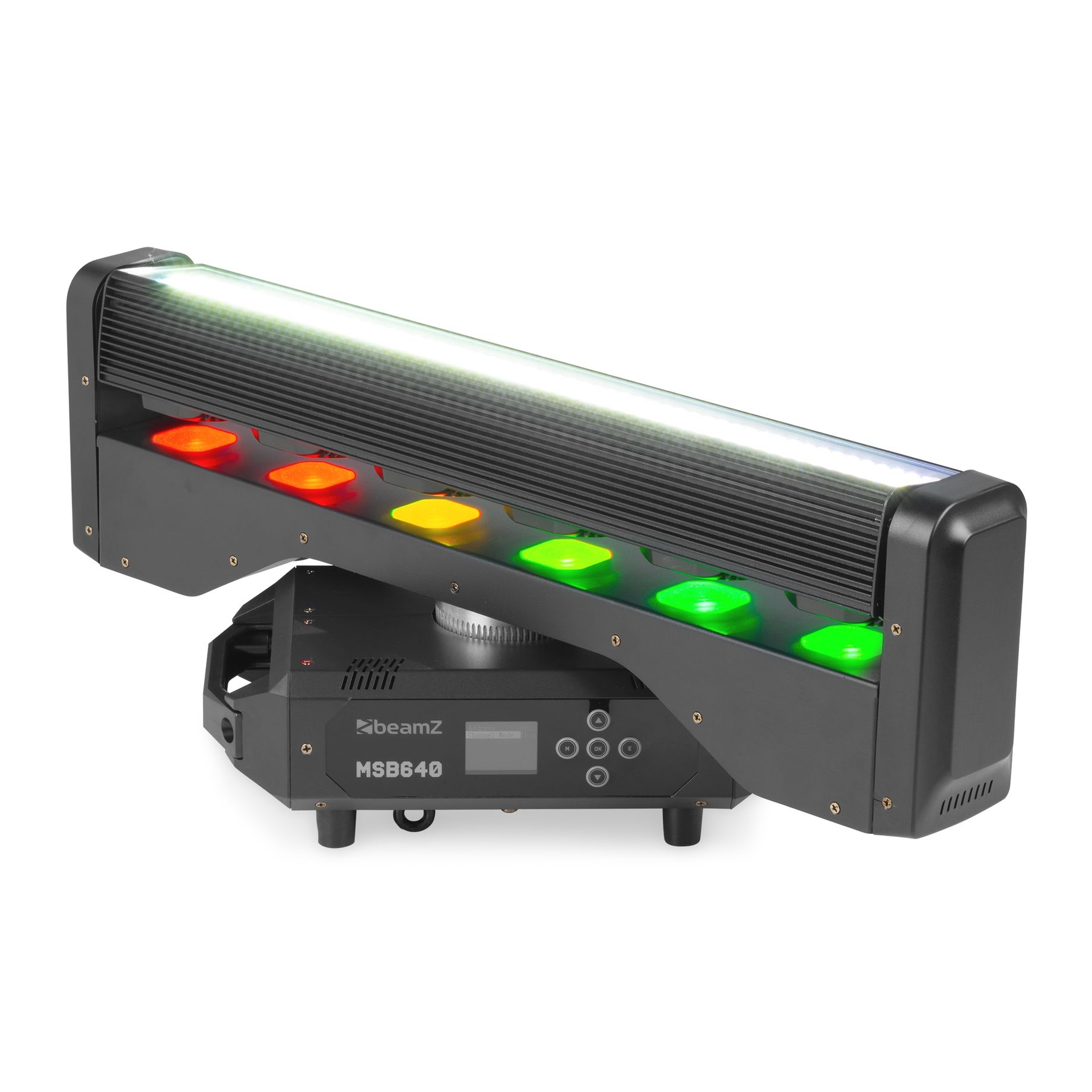

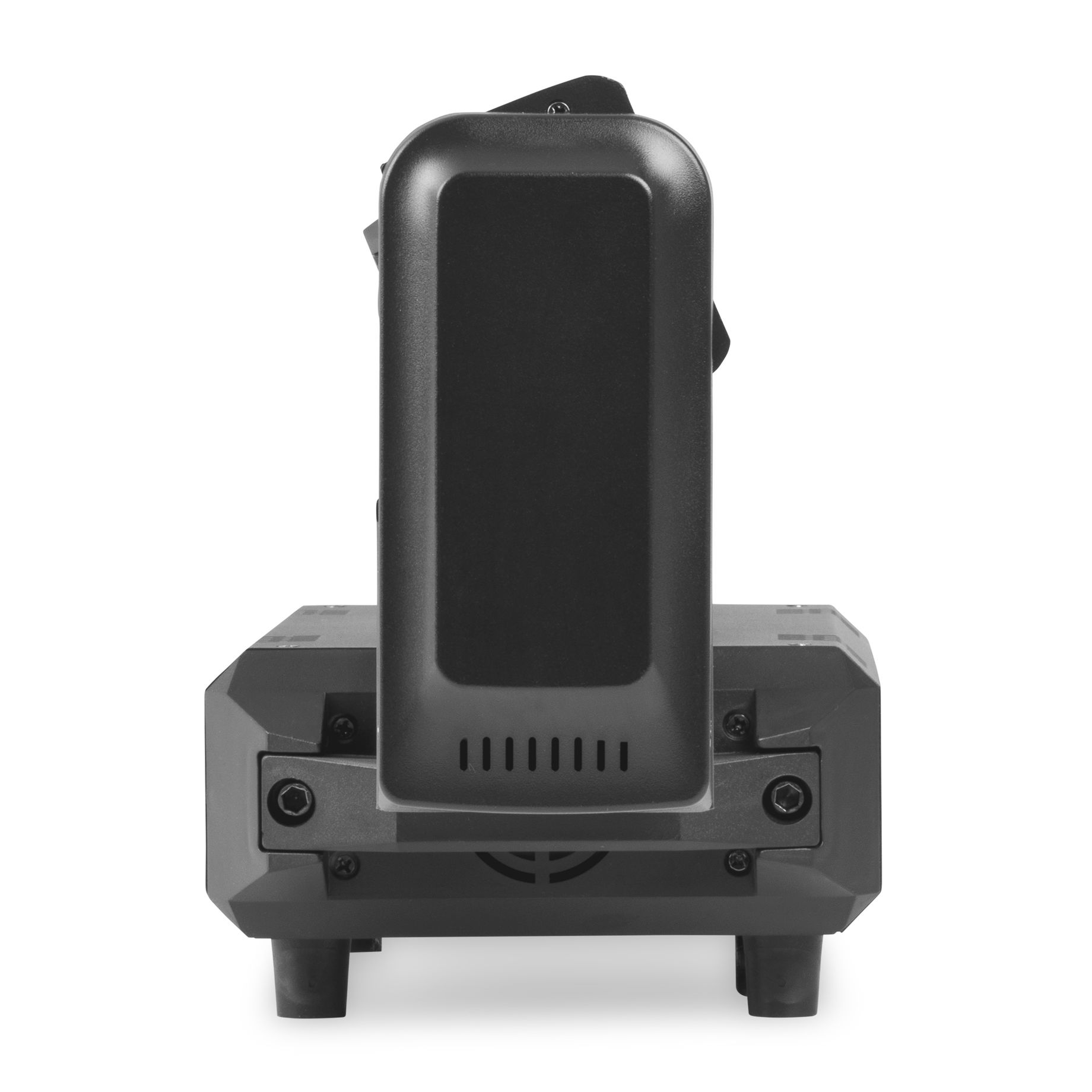

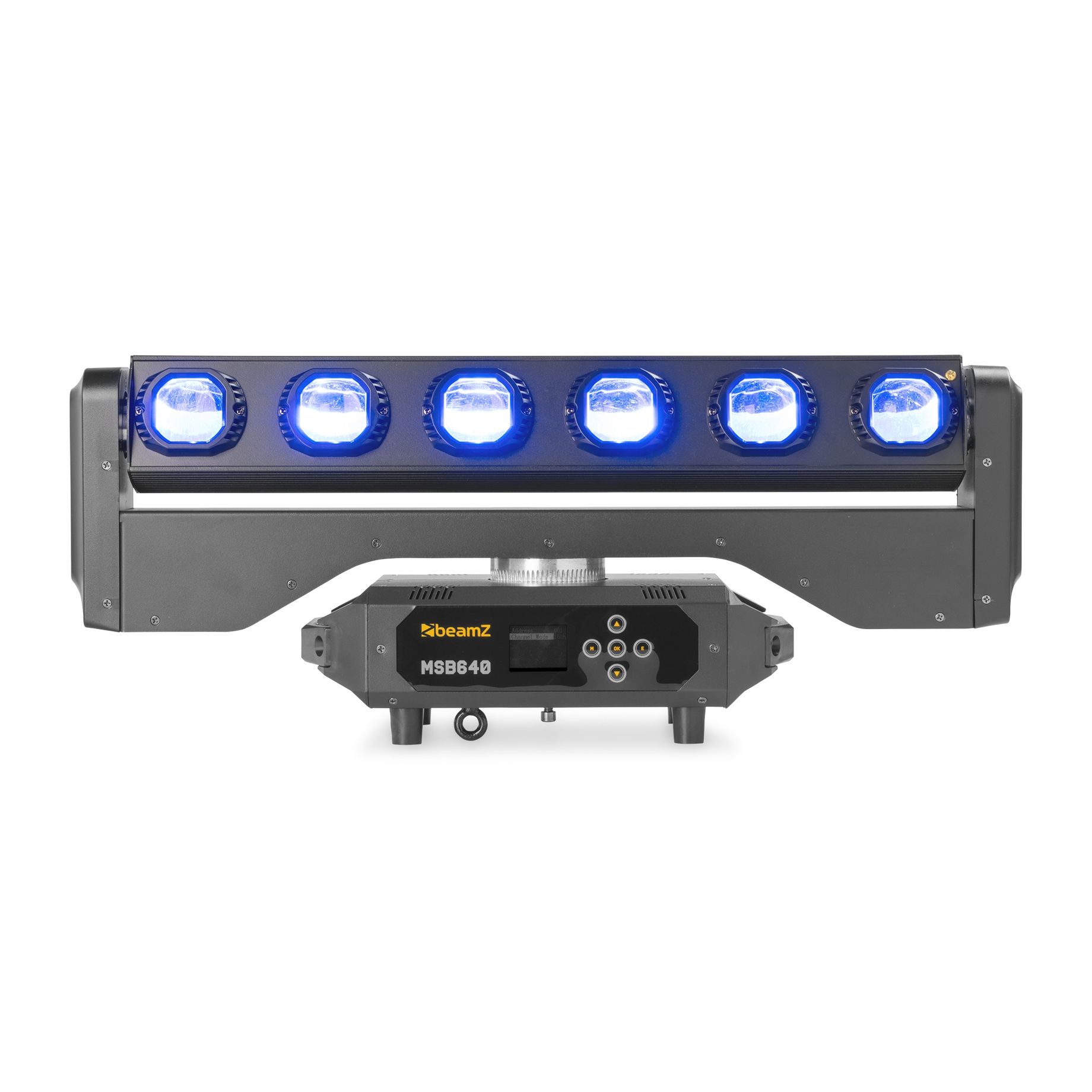

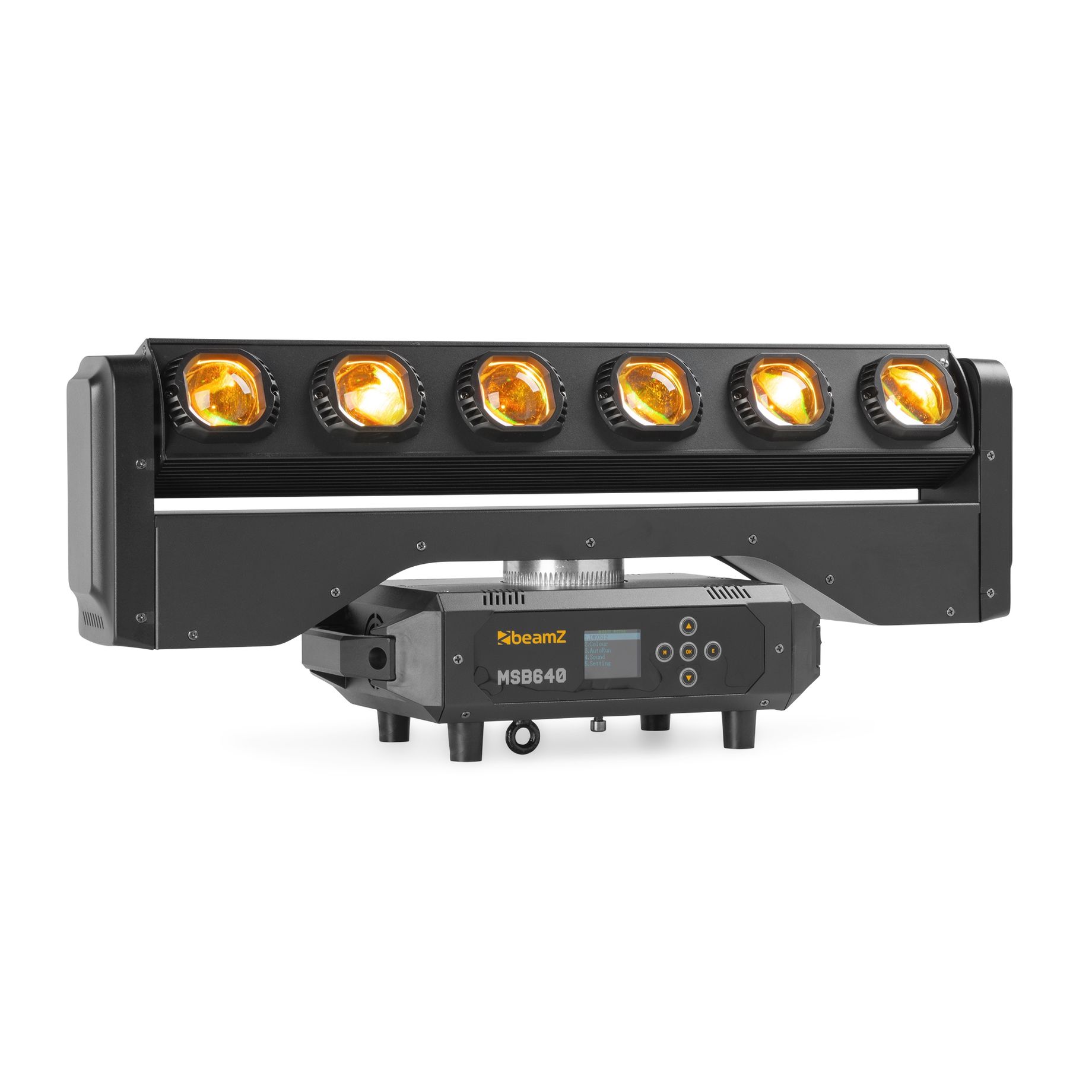

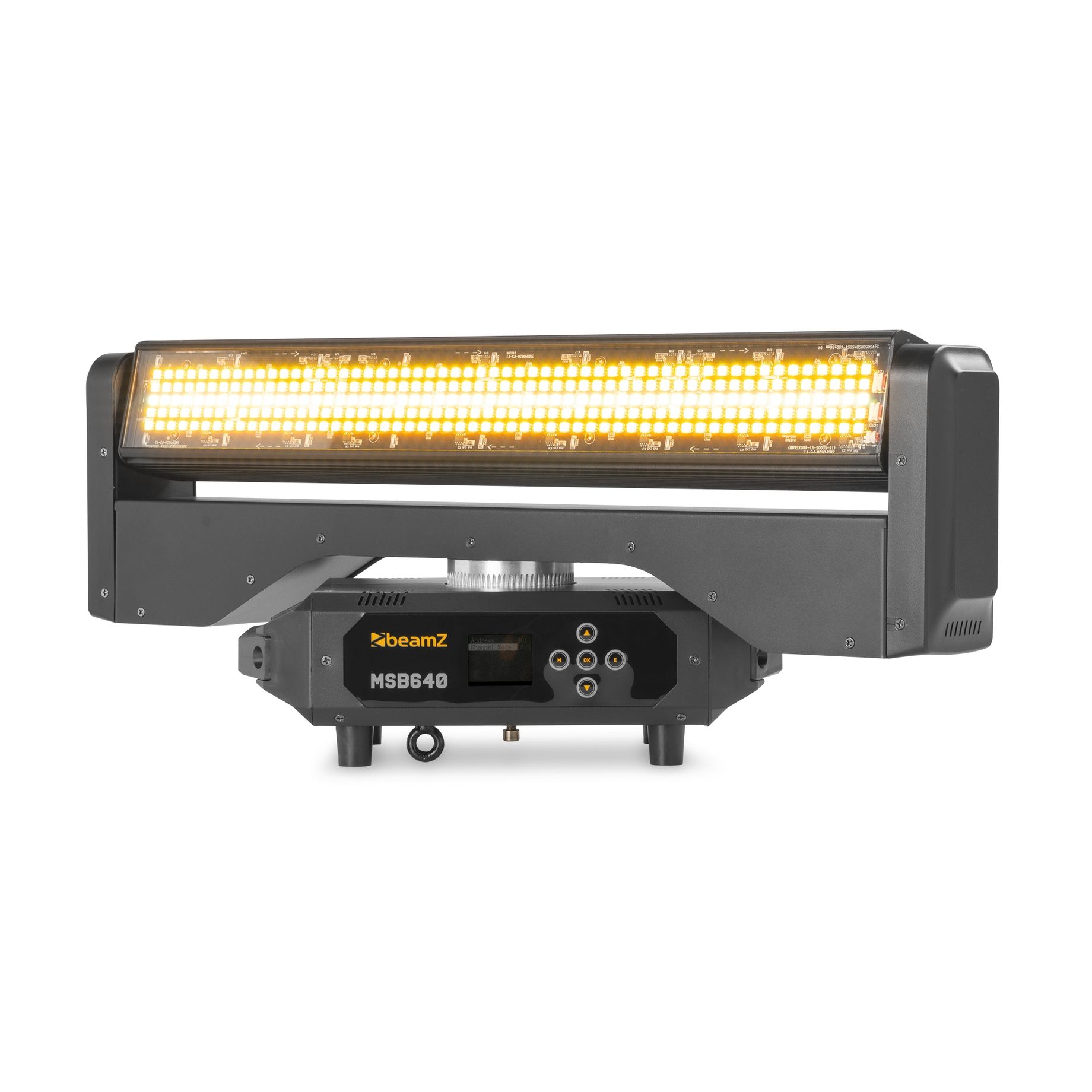

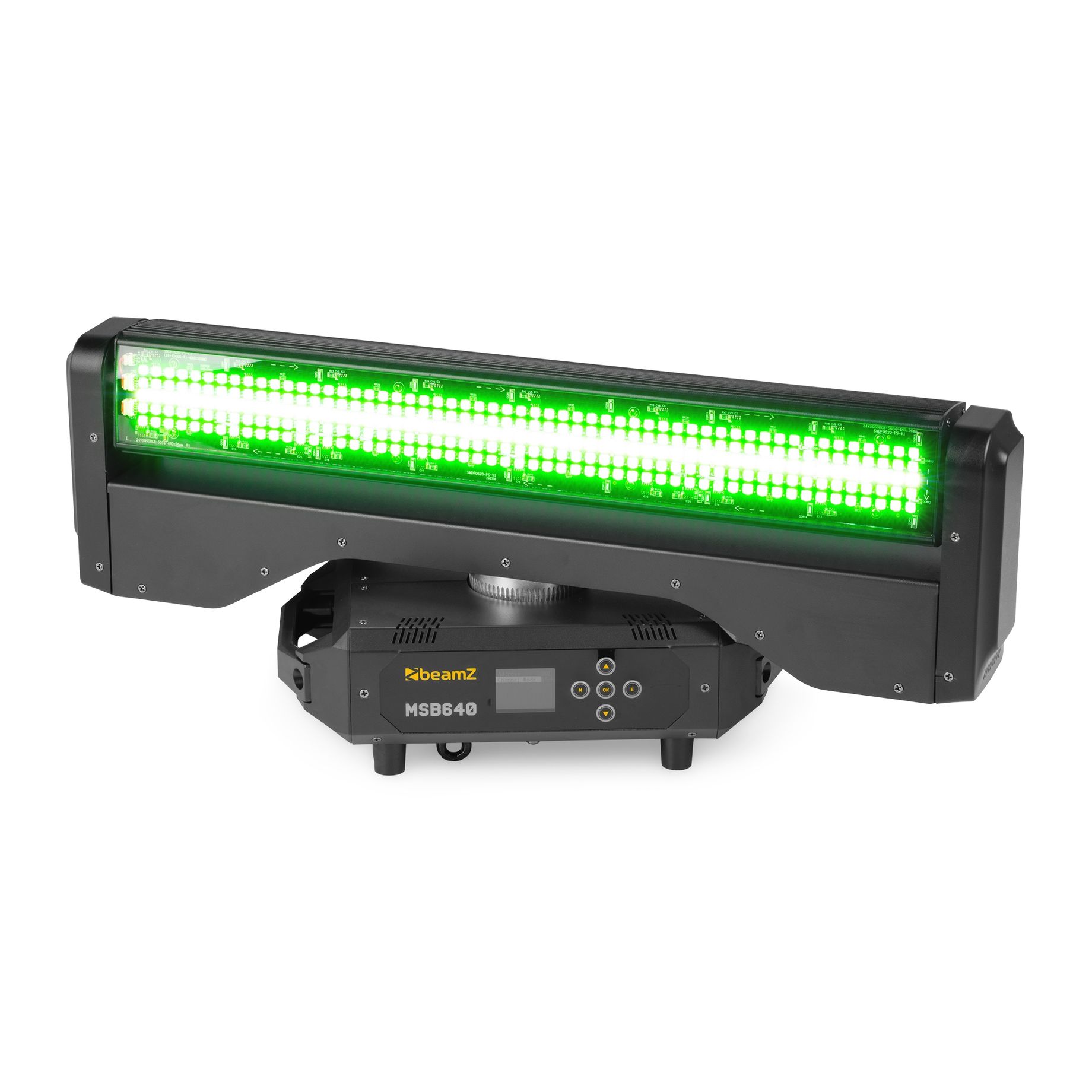

MSB640
Double-Sided Moving Bar
SKU 150.178
|EAN 8715693359657
+13
All product information
Compare
MSB series
Description
Highlights
- Double-Sided Moving Bar

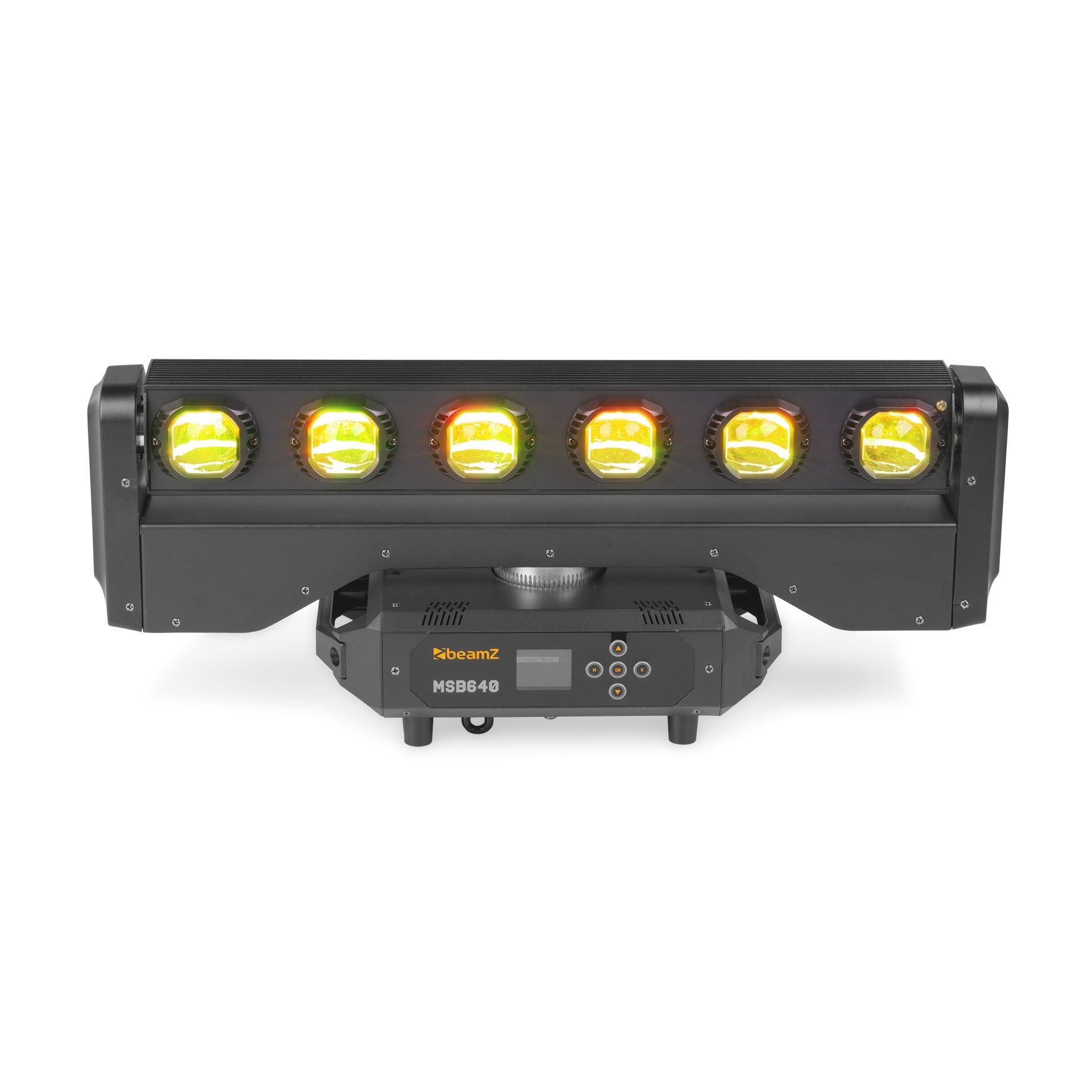

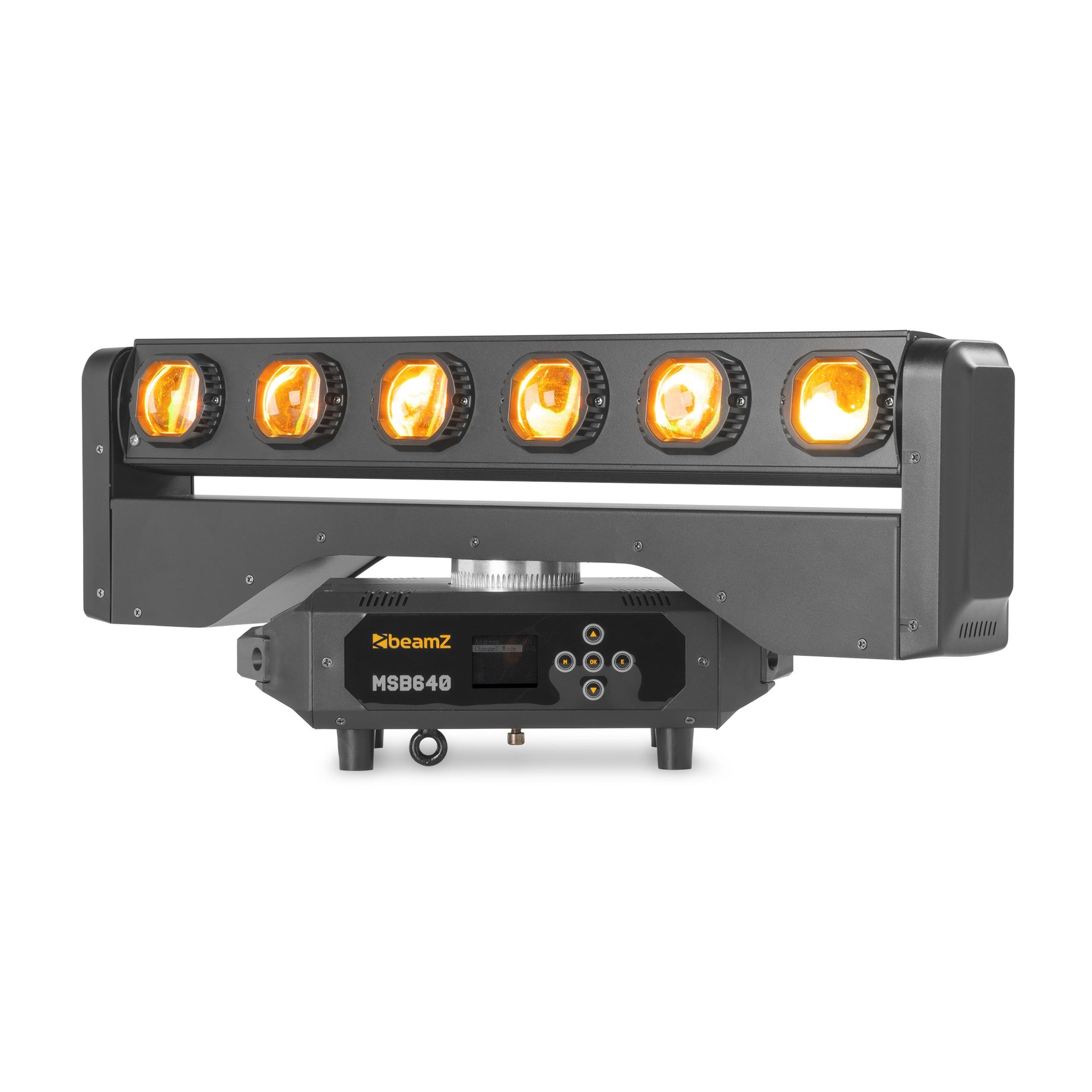

- Zoom Wash Side Light Source: 6x 40W 4-in-1 RGBW LEDs

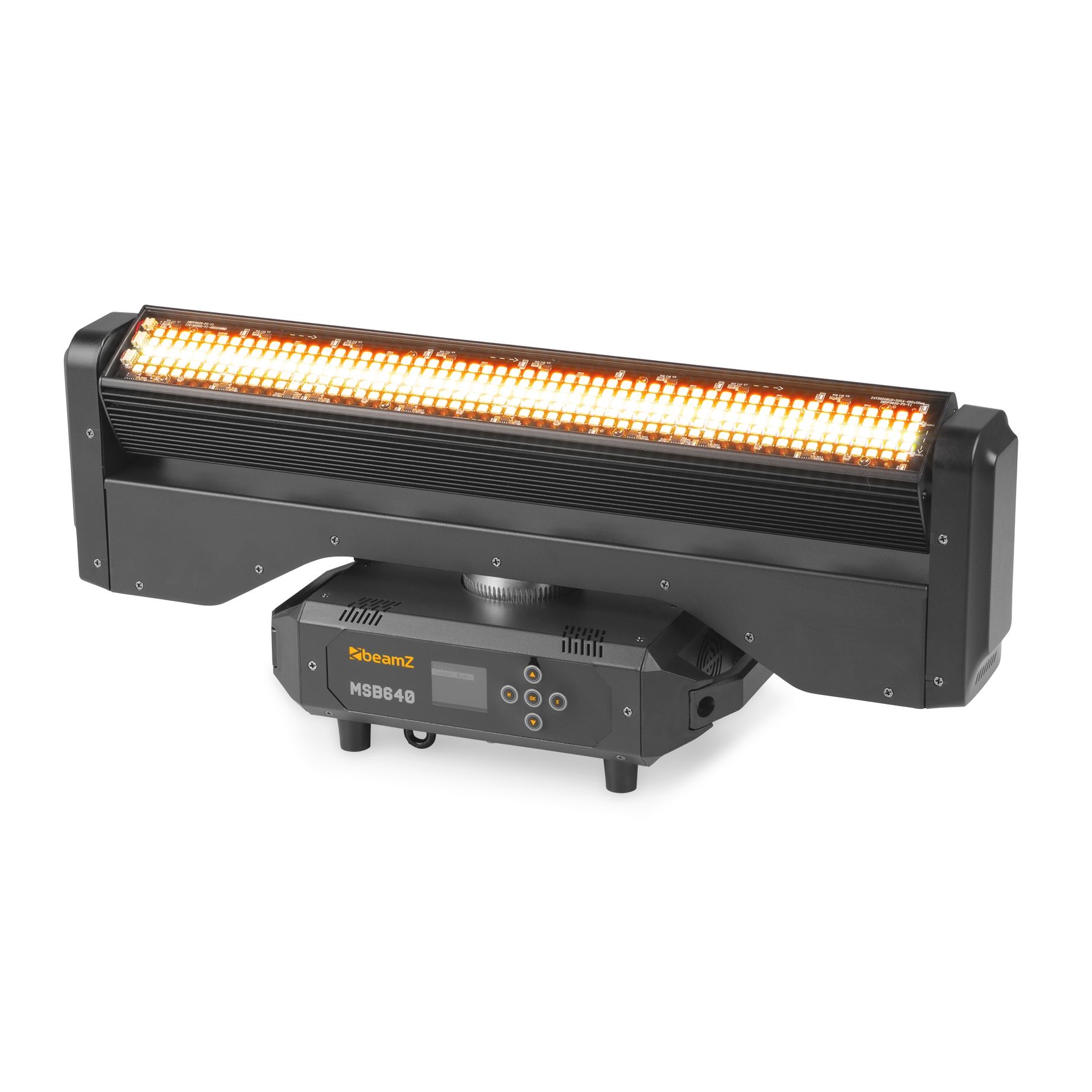

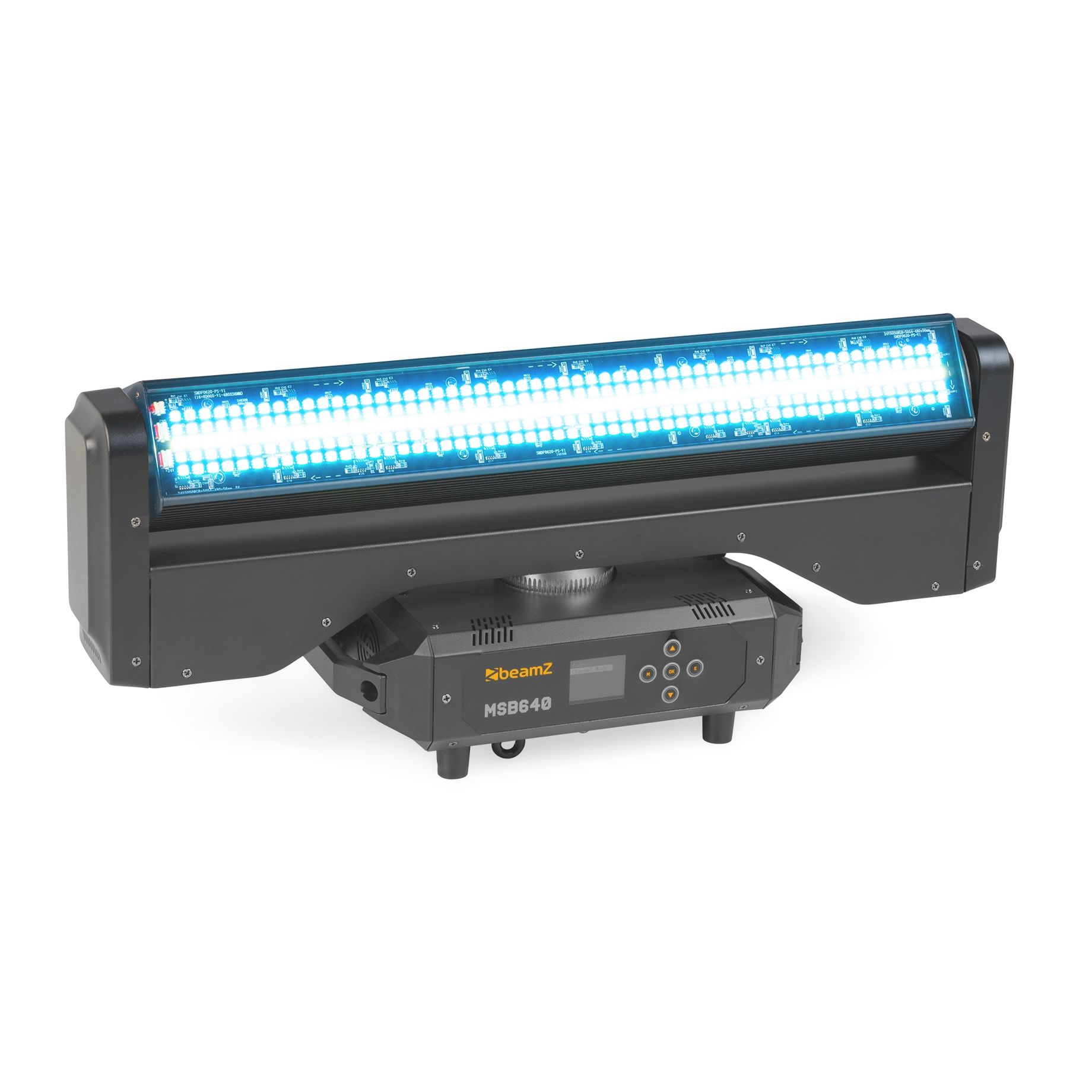

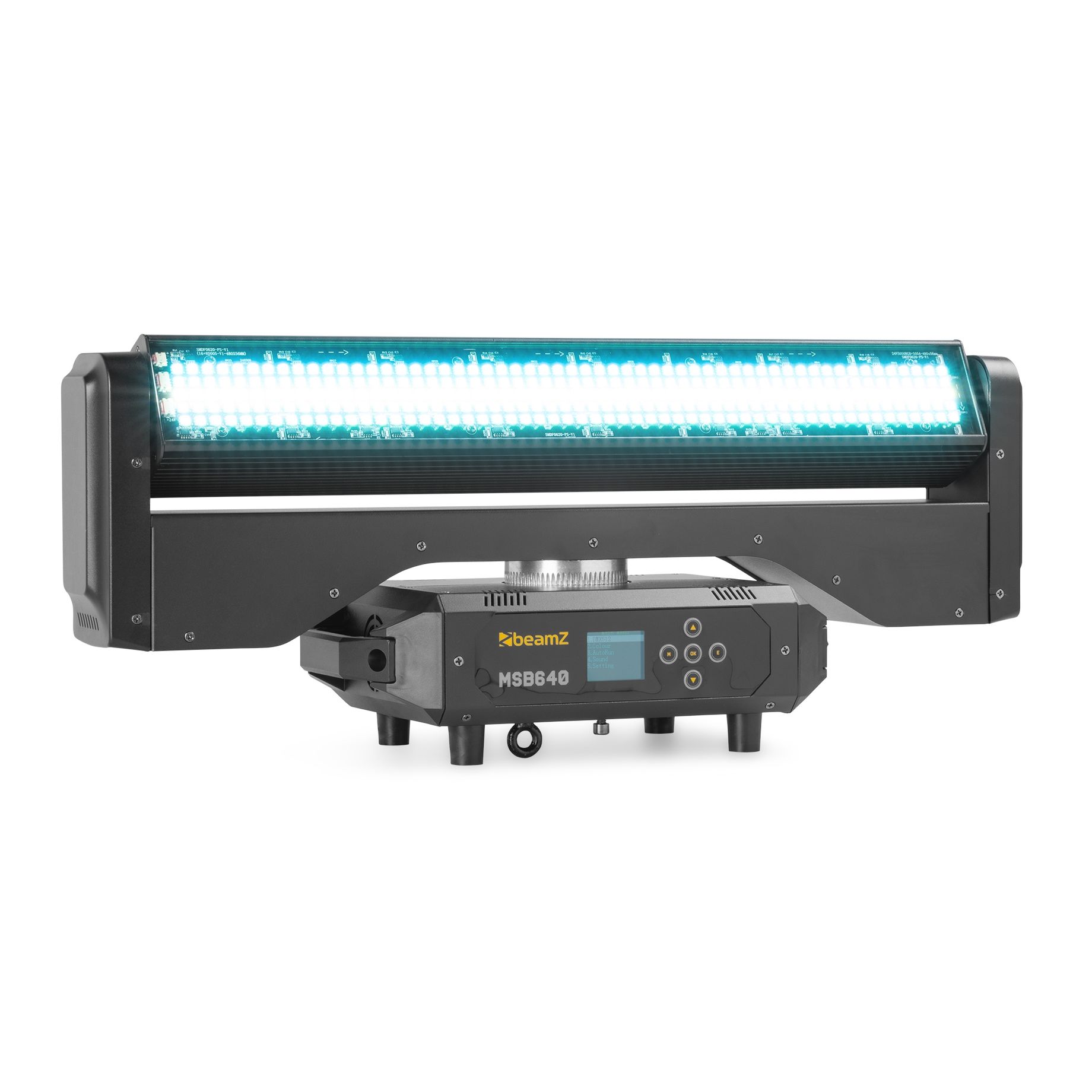

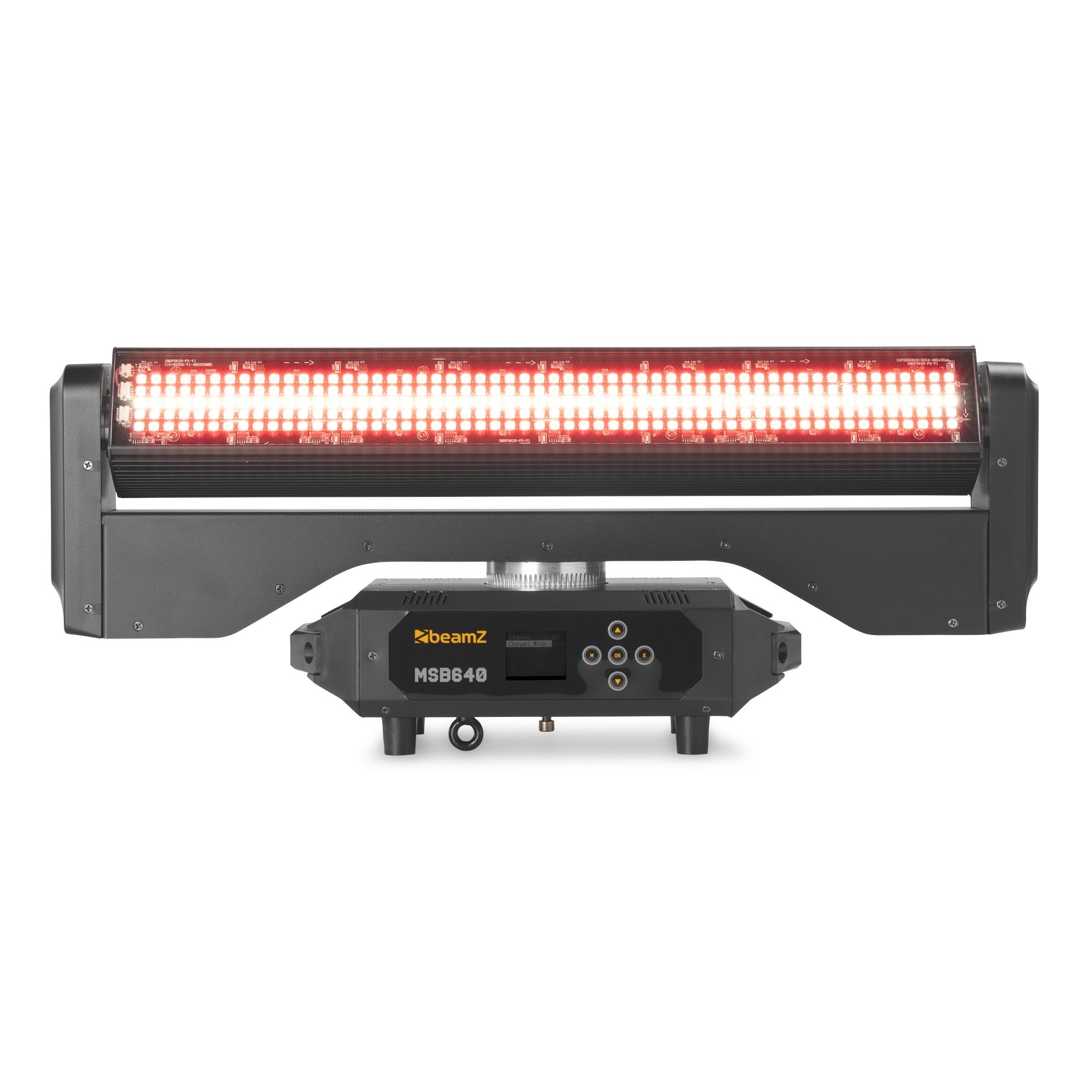

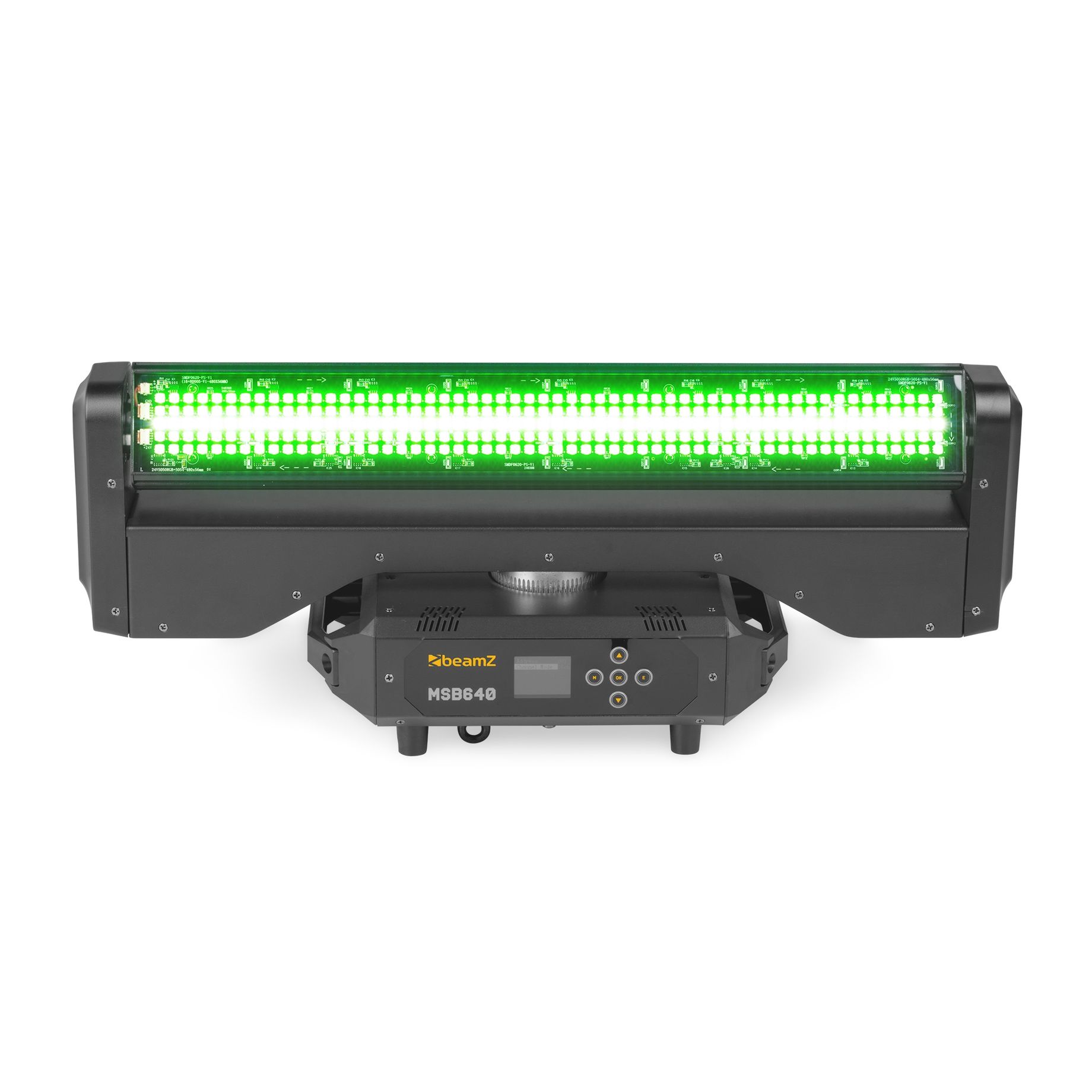

- Strobe Side Light Source: 224x RGB LEDs + 56x White LEDs
- DMX and Stand-alone mode
- Master/slave function
- Sound mode with adjustable sensitivity
- Auto mode with adjustable speed
- Pre-programmed shows
- 720° pan and infinite tilt movement
- Control panel with LCD display
- DMX in/output via 3/5-pin
- RDM Function
- Efficient low noise fan cooling system
- P-Con Power Connector in/output
Specifications
BrandbeamZ
Product serieMSB series
ColourBlack
Moving head typeWash
Light source
Light source: Wash
- 6x 40W RGBW LED
Light source: Backlight
- 224x RGB LED
Light source: Strobe
- 56x White LED
Optics
Beam angle
- 65°
ZoomYes
Movement
Pan Movement720°
Tilt MovementInfinite
Features
Flash Per Second1 - 22 Hz
Control
Control modesAuto programs, DMX, Master/Slave, Manual, Sound
DMX Channels16, 29, 86
RDMYes
DMX connector3-pin XLR, 5-pin XLR

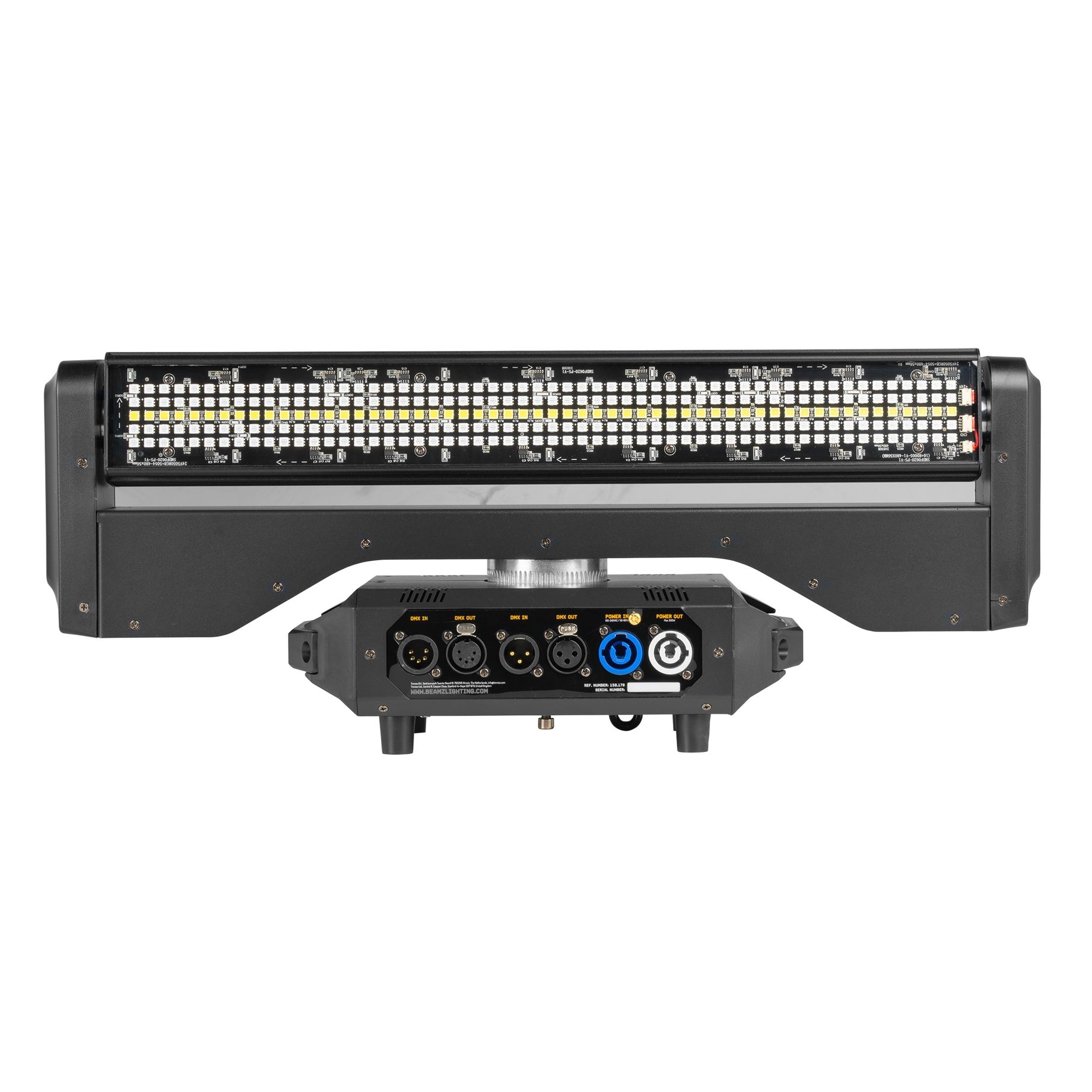

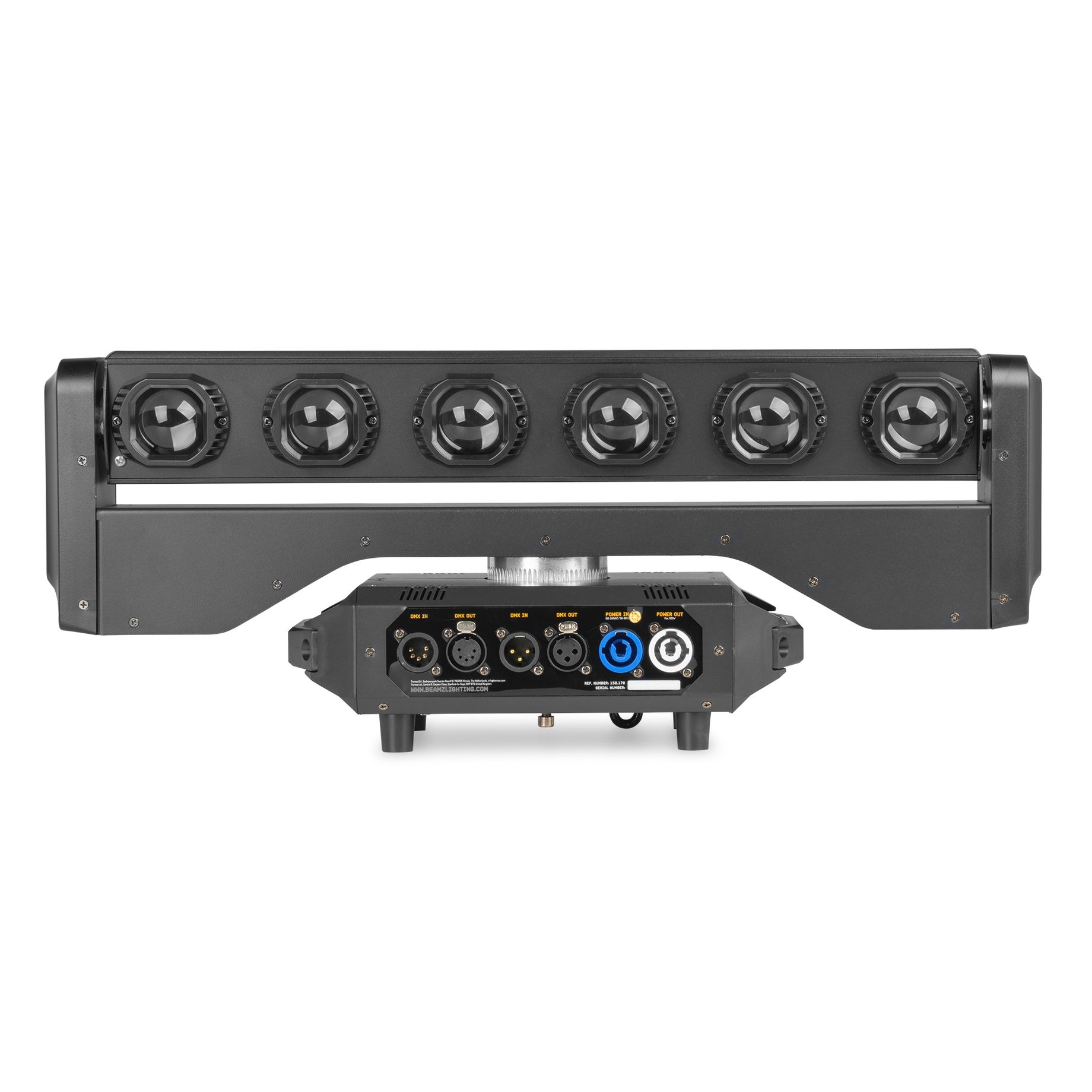

Connections
Input connections
- 1x Power - Powerconnector (A)
- 1x DMX - 3-pin XLR (M)
- 1x DMX - 5-pin XLR (M)
Output connections
- 1x Power - Powerconnector (B)
- 1x DMX - 3-pin XLR (F)
- 1x DMX - 5-pin XLR (F)
Hardware features
Display typeLCD
CoolingTemperature controlled fan
Environmental
IP ratingIP20
Electrical
Power Supply100-240VAC 50/60Hz
Mechanical
Dimensions
- 555 x 169 x 225 mm (W x D x H)
Weight
- 6.49 kg
Accessories
Included Accessories

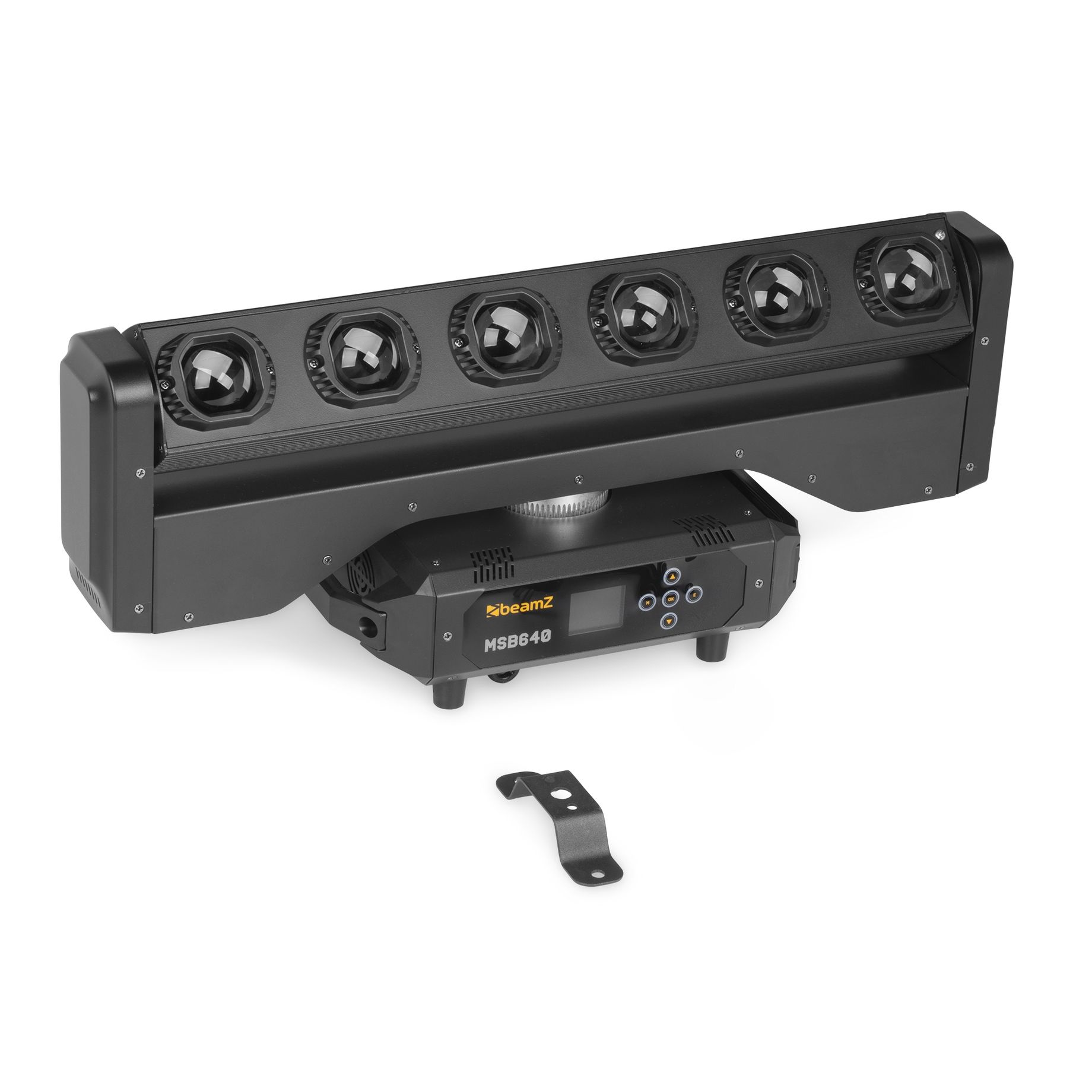

- Mounting bracket
- Power cable
