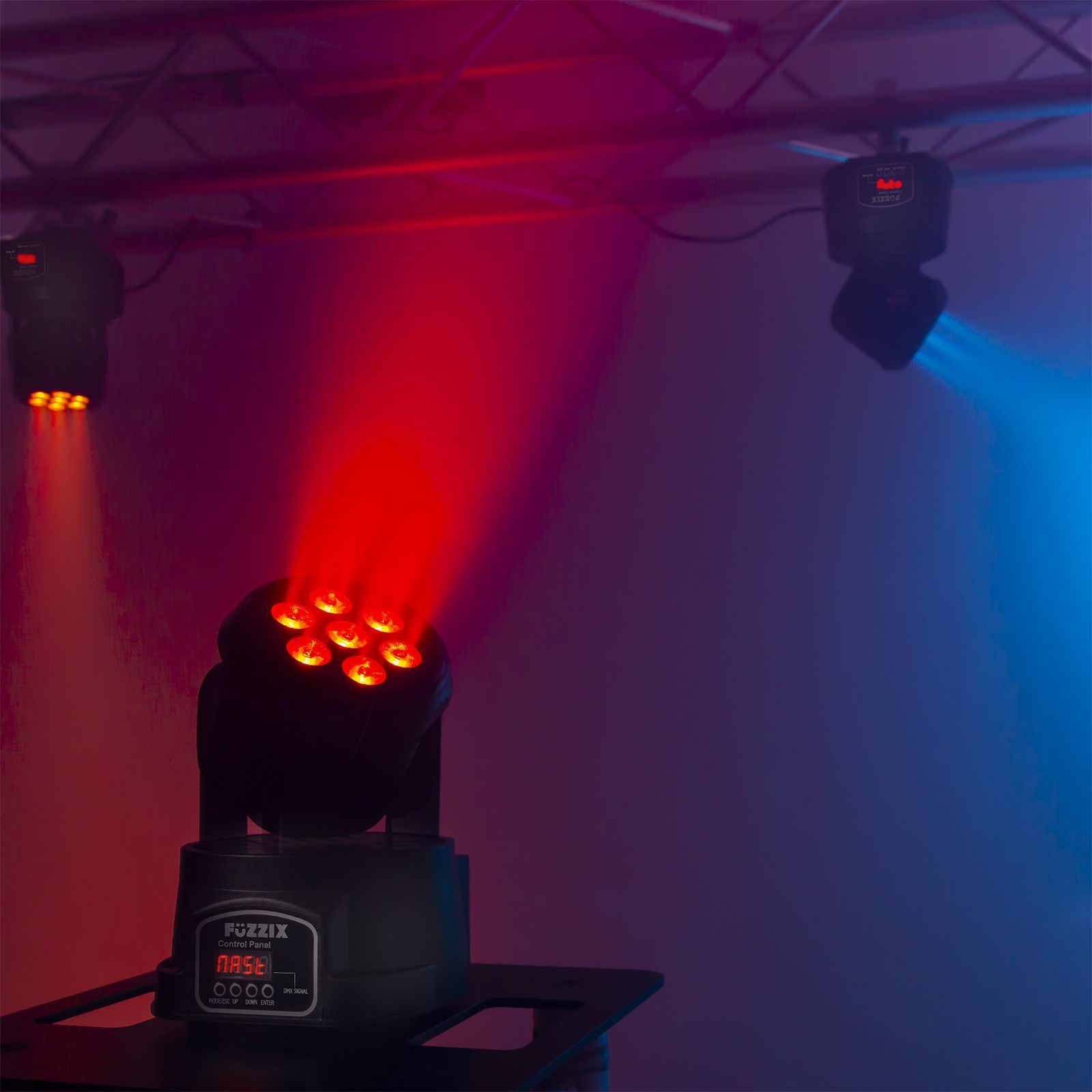

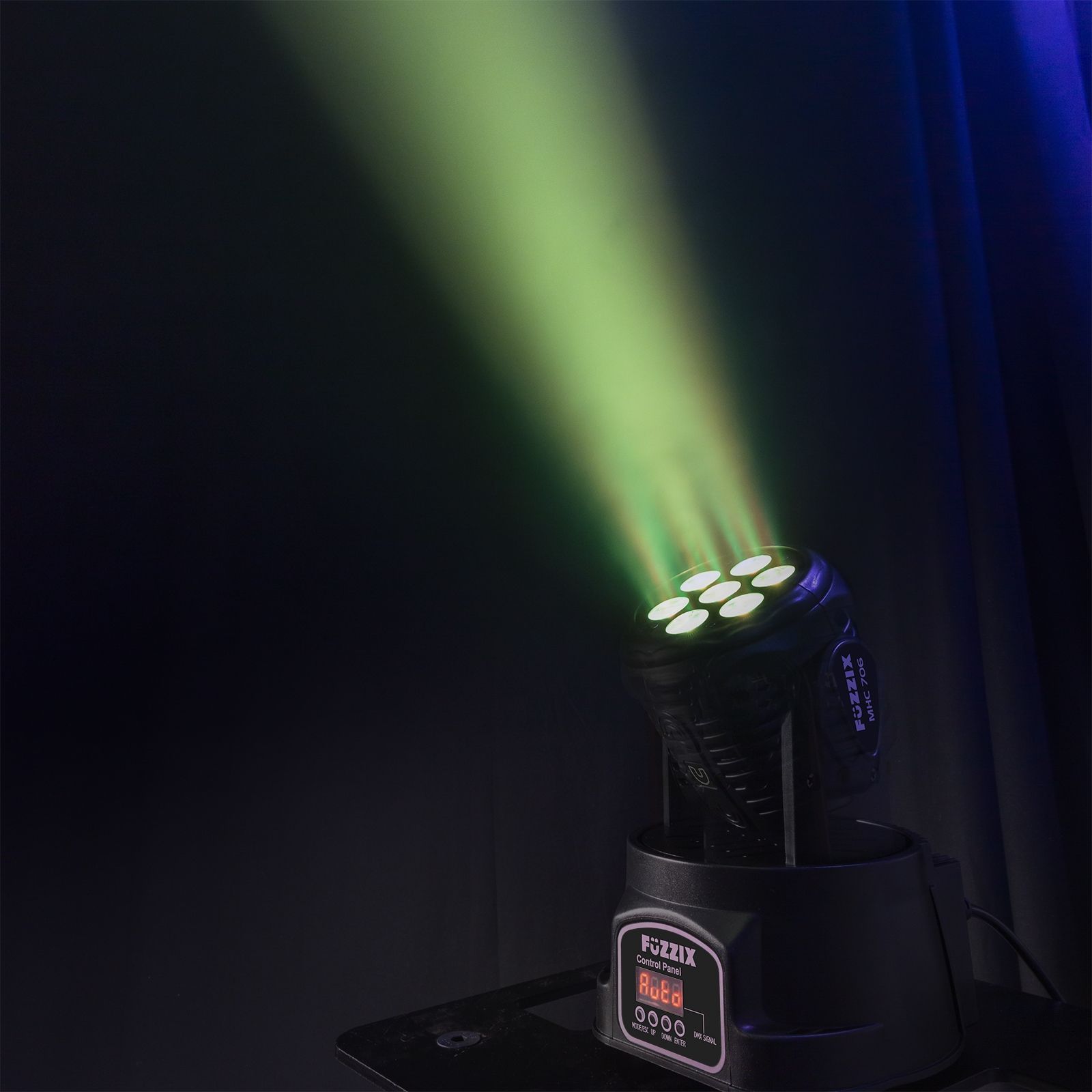

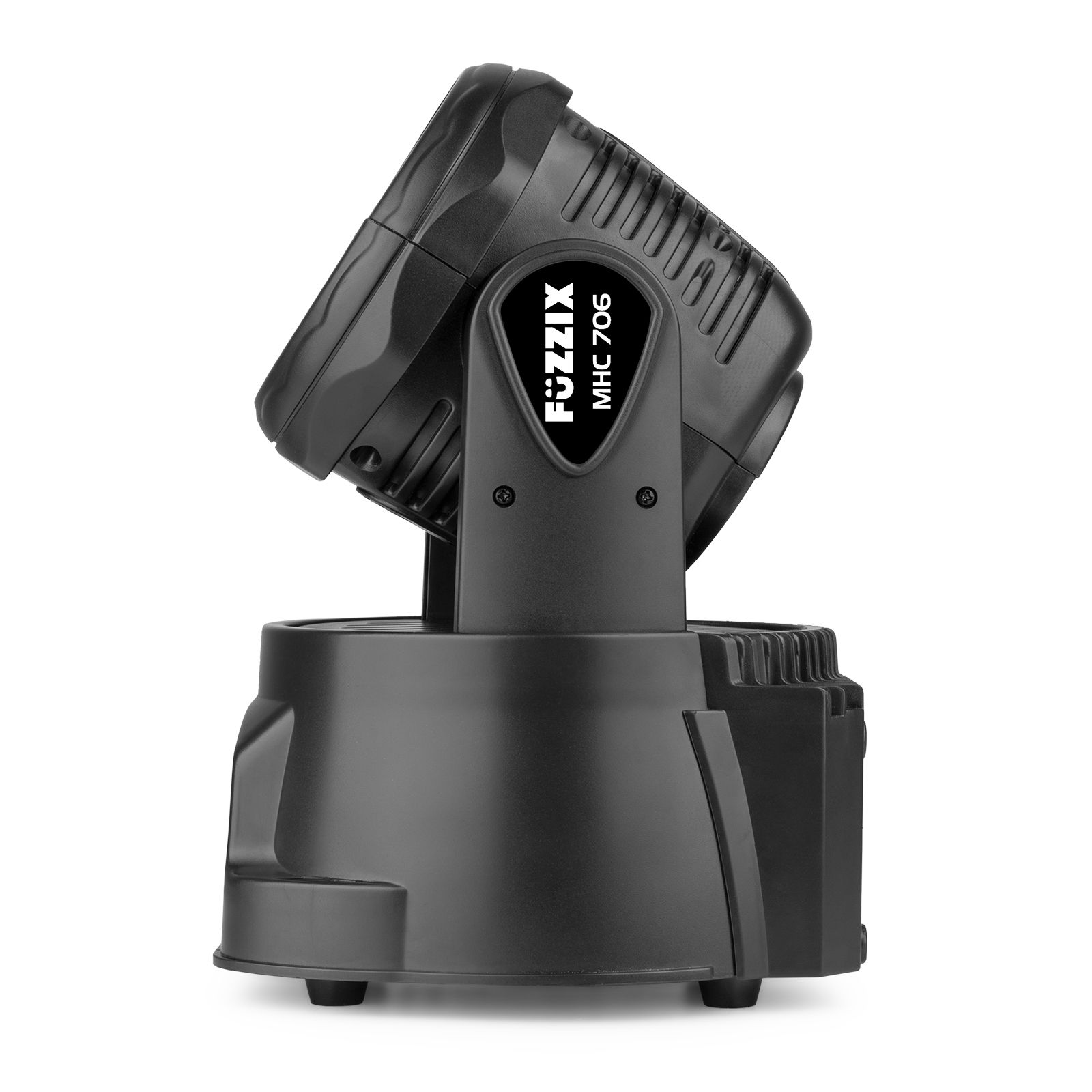

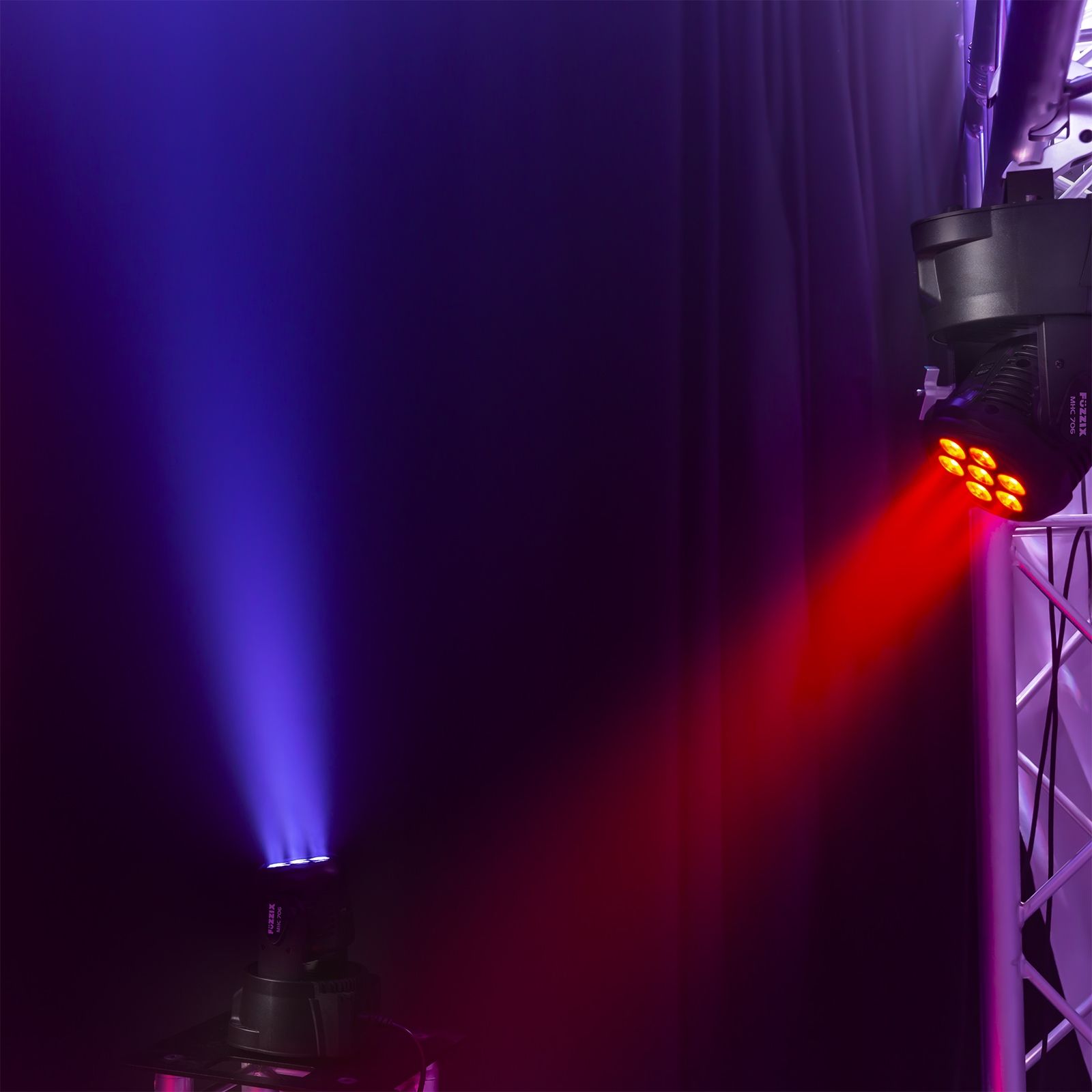

MHC706
LED Wash Moving Head
SKU 150.511
|EAN 8715693335392
+10
All product information
Compare
MHC series
Description
Highlights
- High power 7x 6W 4-in-1 LEDs
- RGBW colour mixing
- 9 or 14 Channel DMX mode
- Adjustable strobe speed
- 0-100% Dimmer
- DMX and Stand-alone mode
- Master/Slave function
- Sound activated
- Pre programmed shows

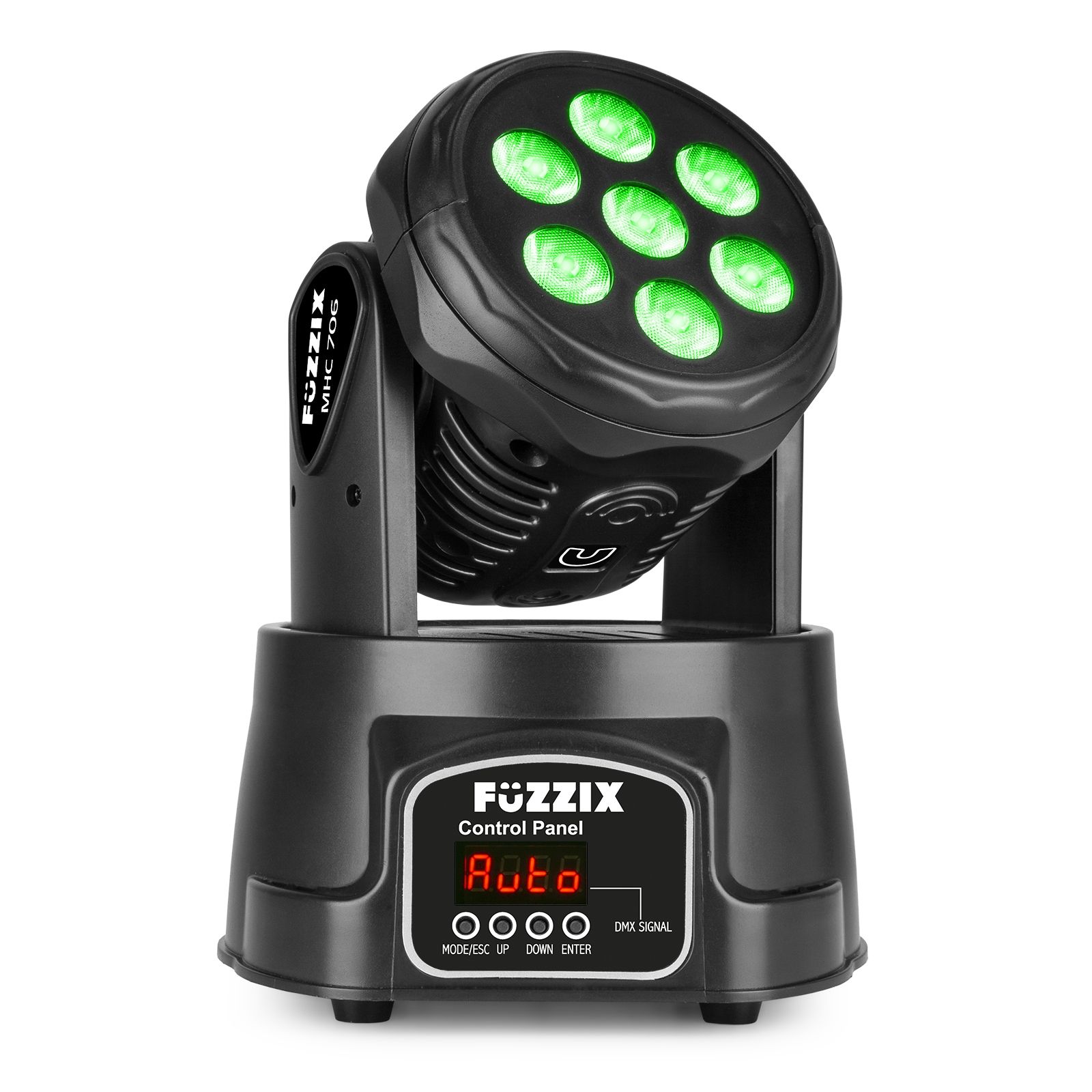

- LED display and control panel
- DMX in/output via 3-pin XLR
Specifications
BrandFuzzix
Product serieMHC series
ColourBlack
Moving head typeWash
Light source
Light source
- 7x 6W RGBW LED
Illuminance4700 lx @ 1m
Optics
Beam angle
- 19°
ZoomNo
Features
Gobo ShakeNo
Interchangeable GoboNo
Frost FilterNo
Flash Per Second1 - 20 Hz
Control
Control modesAuto programs, DMX, Master/Slave, Manual, Sound
DMX Channels9, 14
DMX connector3-pin XLR

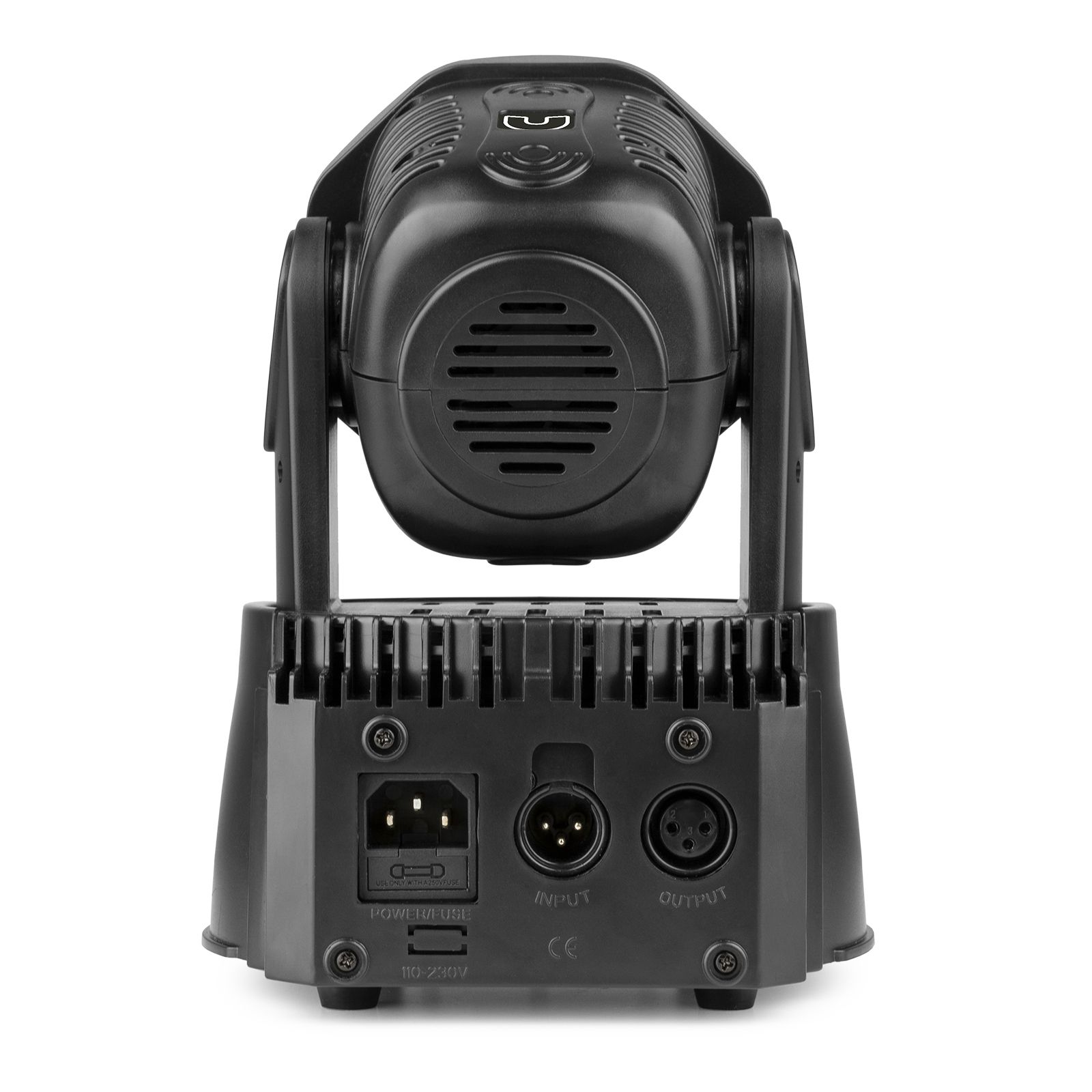

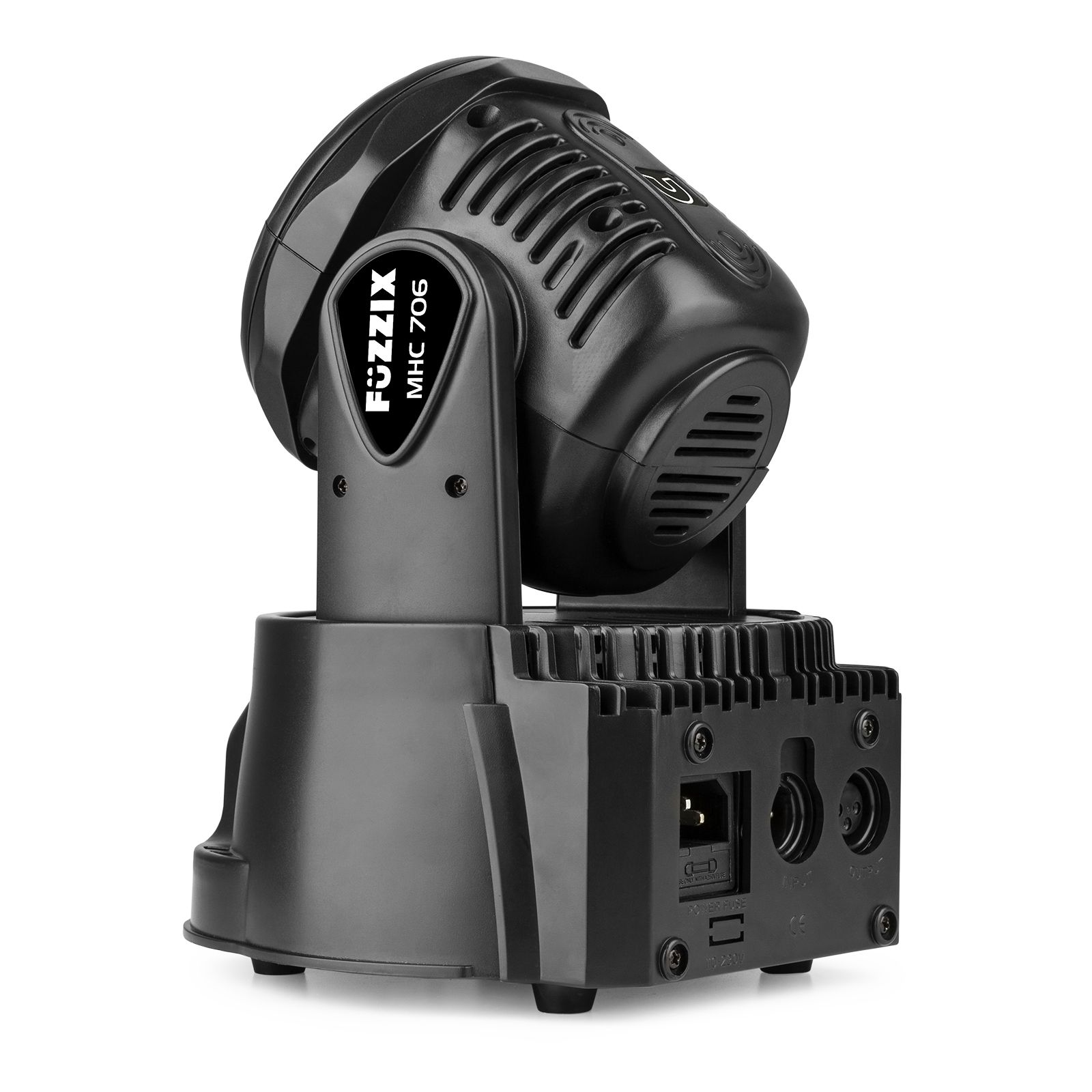

Connections
Input connections
- 1x Power - IEC (M)
- 1x DMX - 3-pin XLR (M)
Output connections
- 1x DMX - 3-pin XLR (F)
Hardware features
Display typeLED
CoolingTemperature controlled fan
Electrical
Power Supply100-240VAC 50/60Hz
Mechanical
Dimensions
- 173 x 180 x 240 mm (W x D x H)
Weight
- 1.65 kg
Accessories

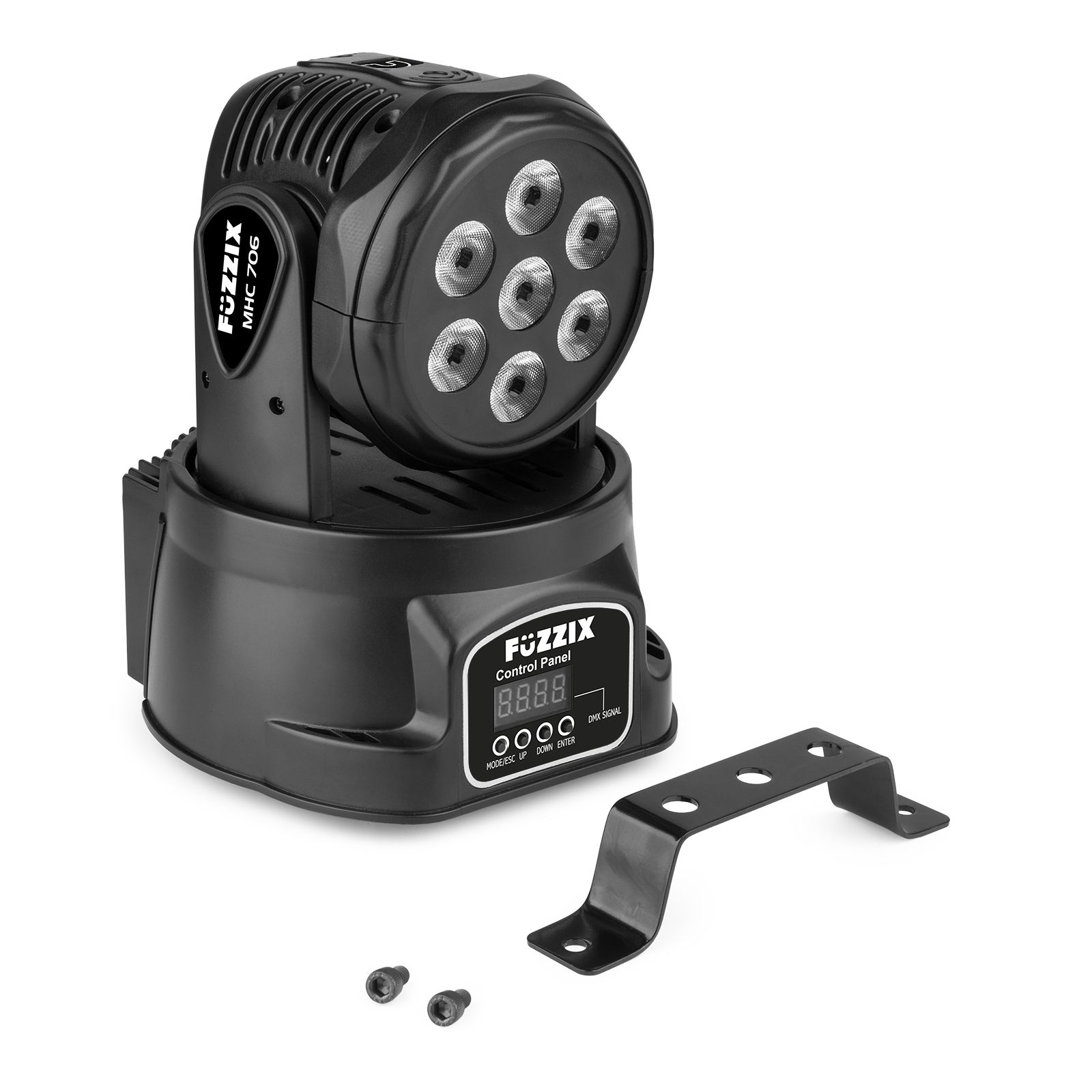

Included Accessories
- Mounting bracket
- Power cable
