LUCID

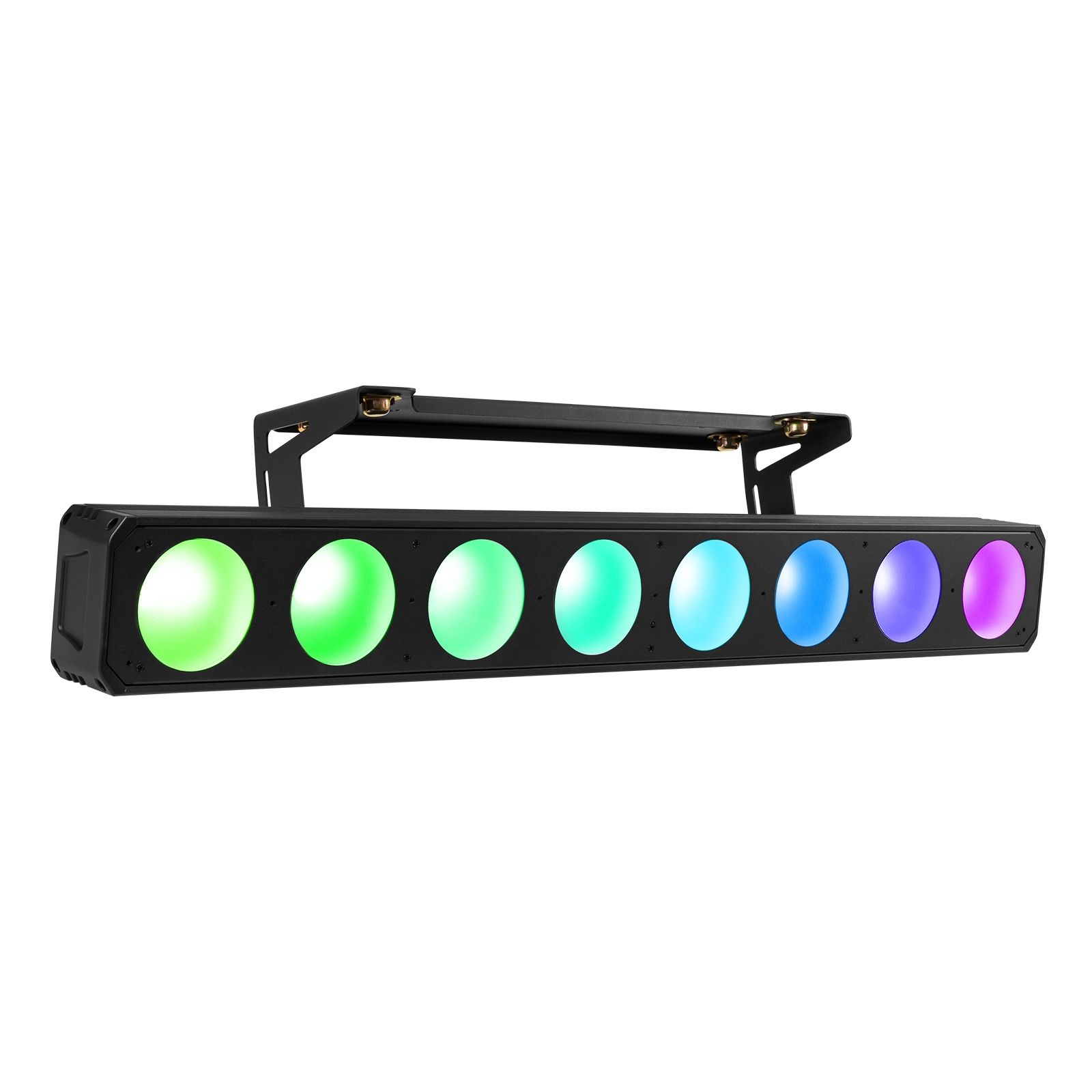

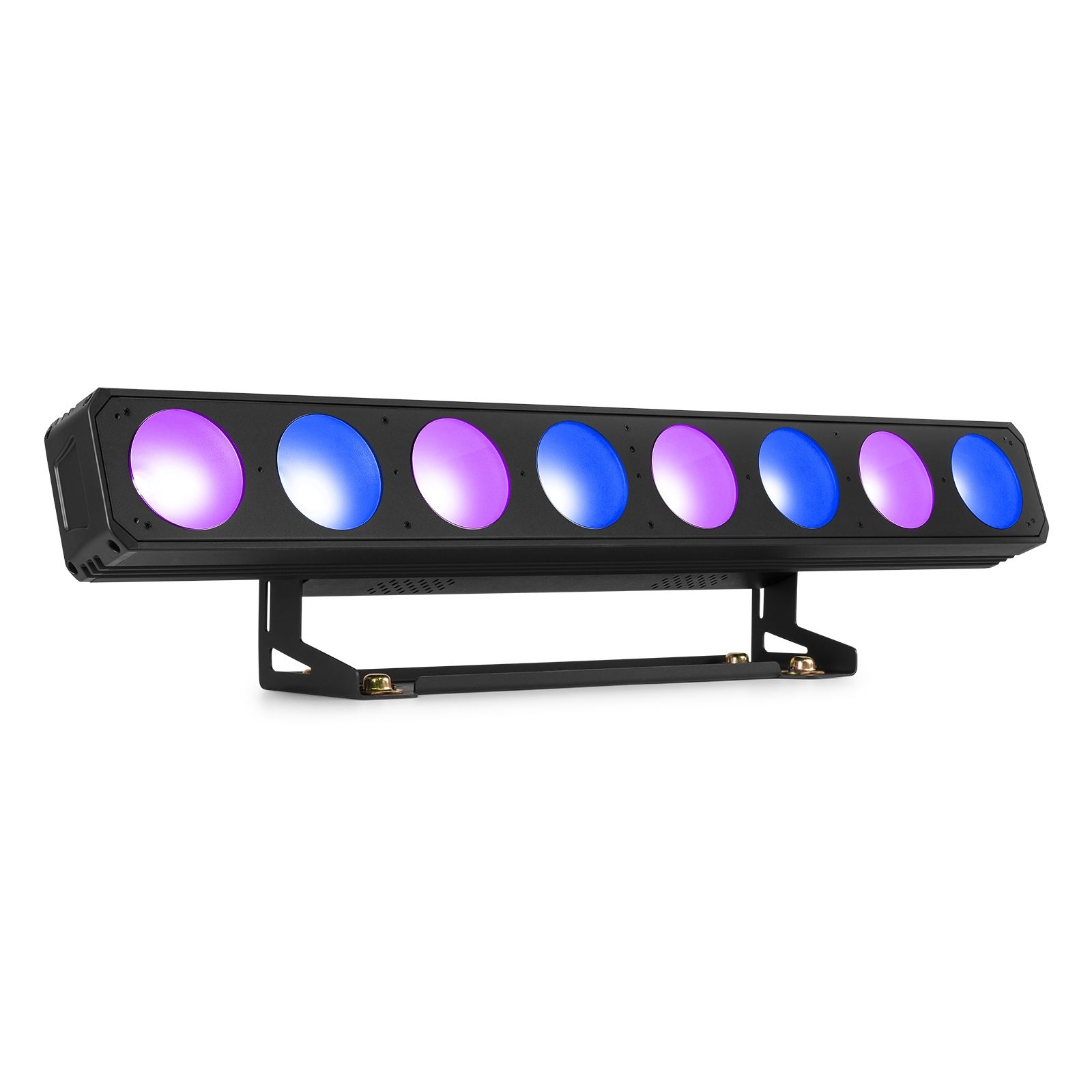

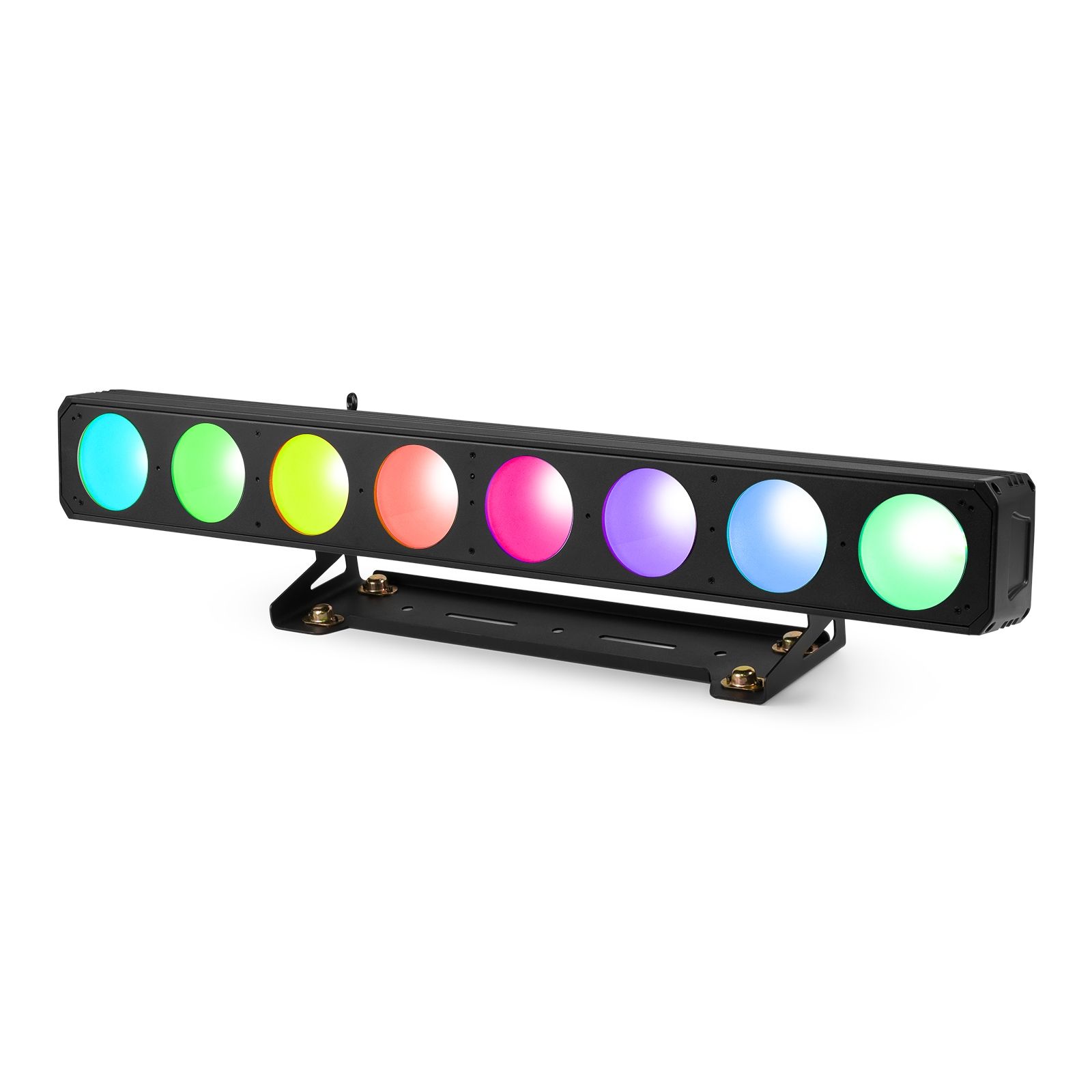

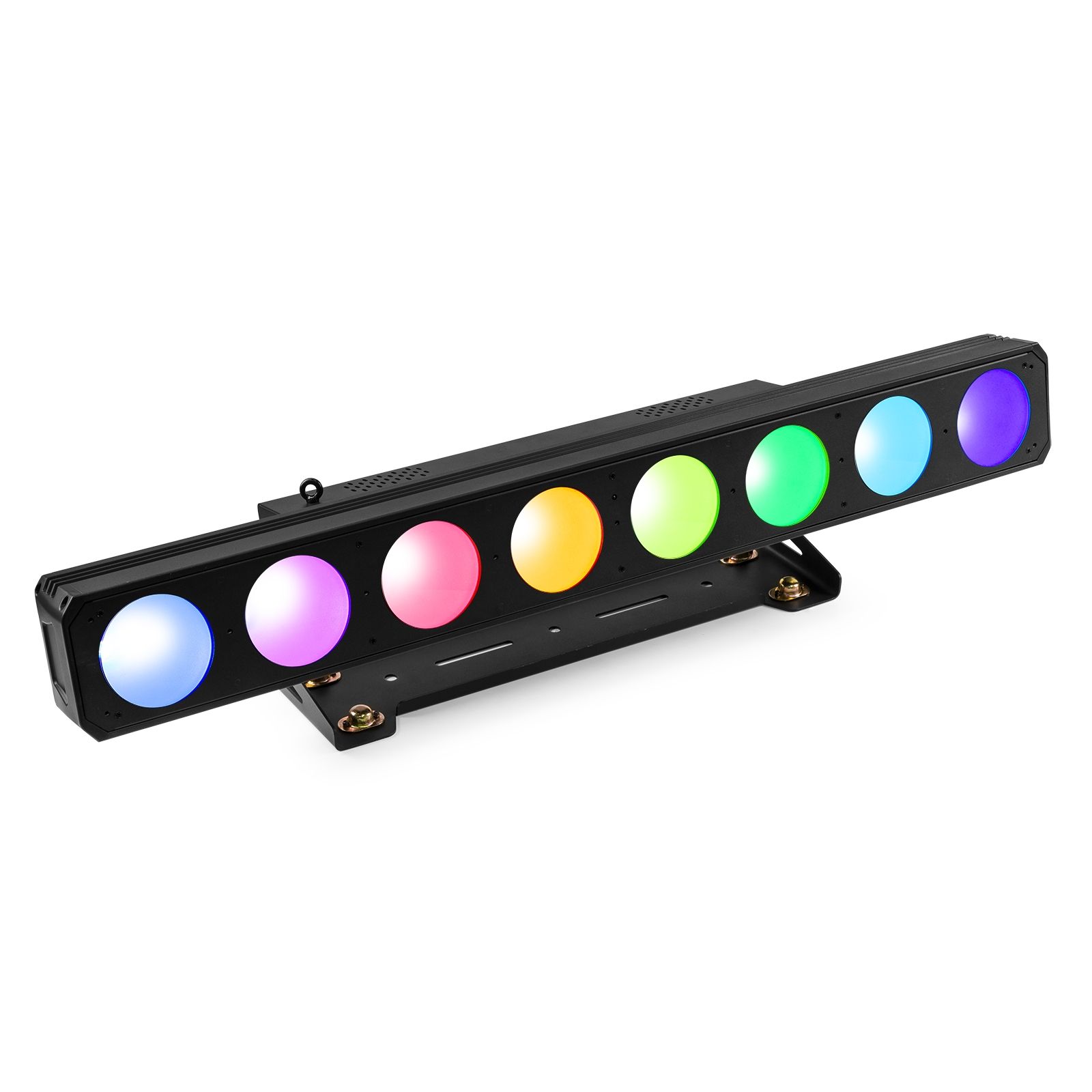

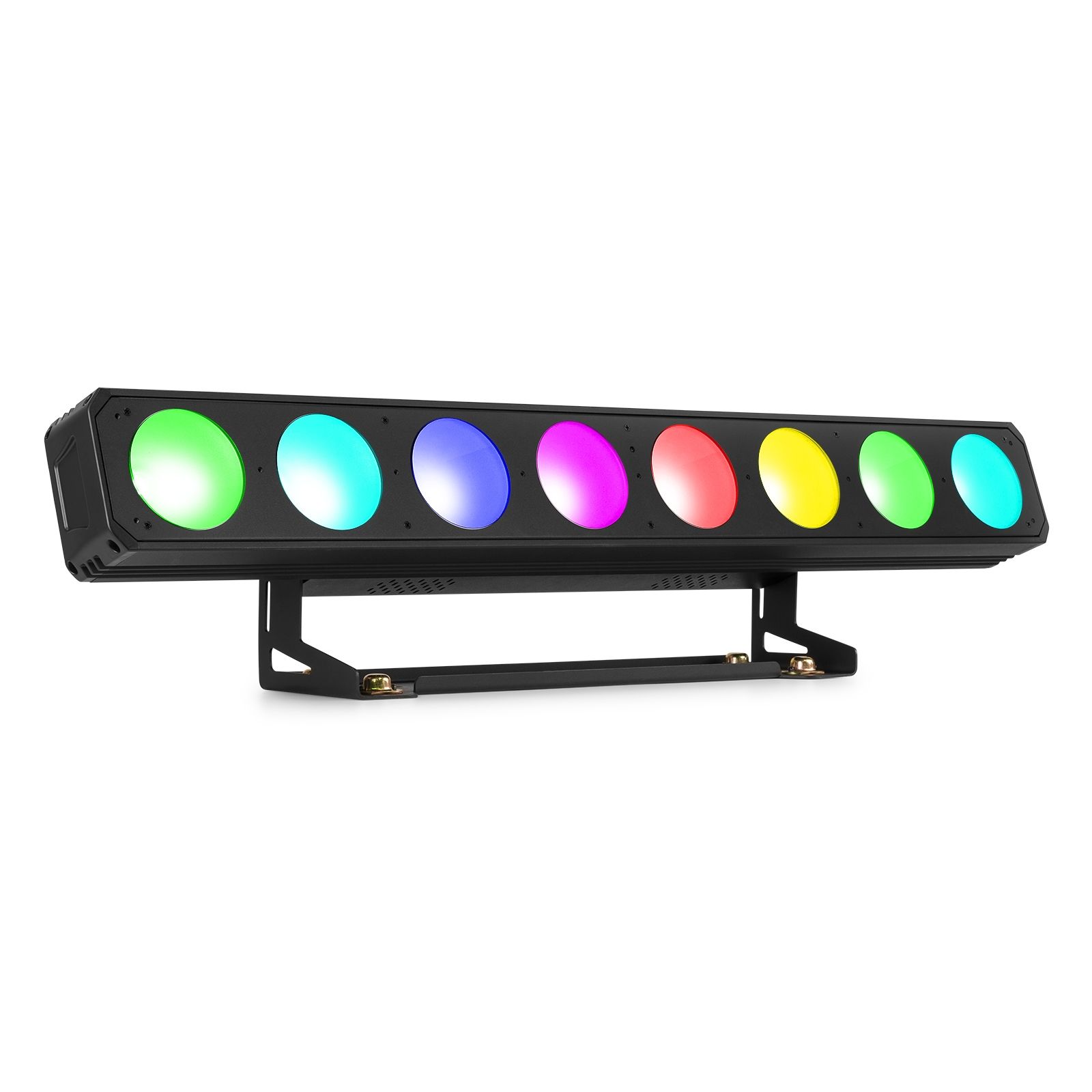

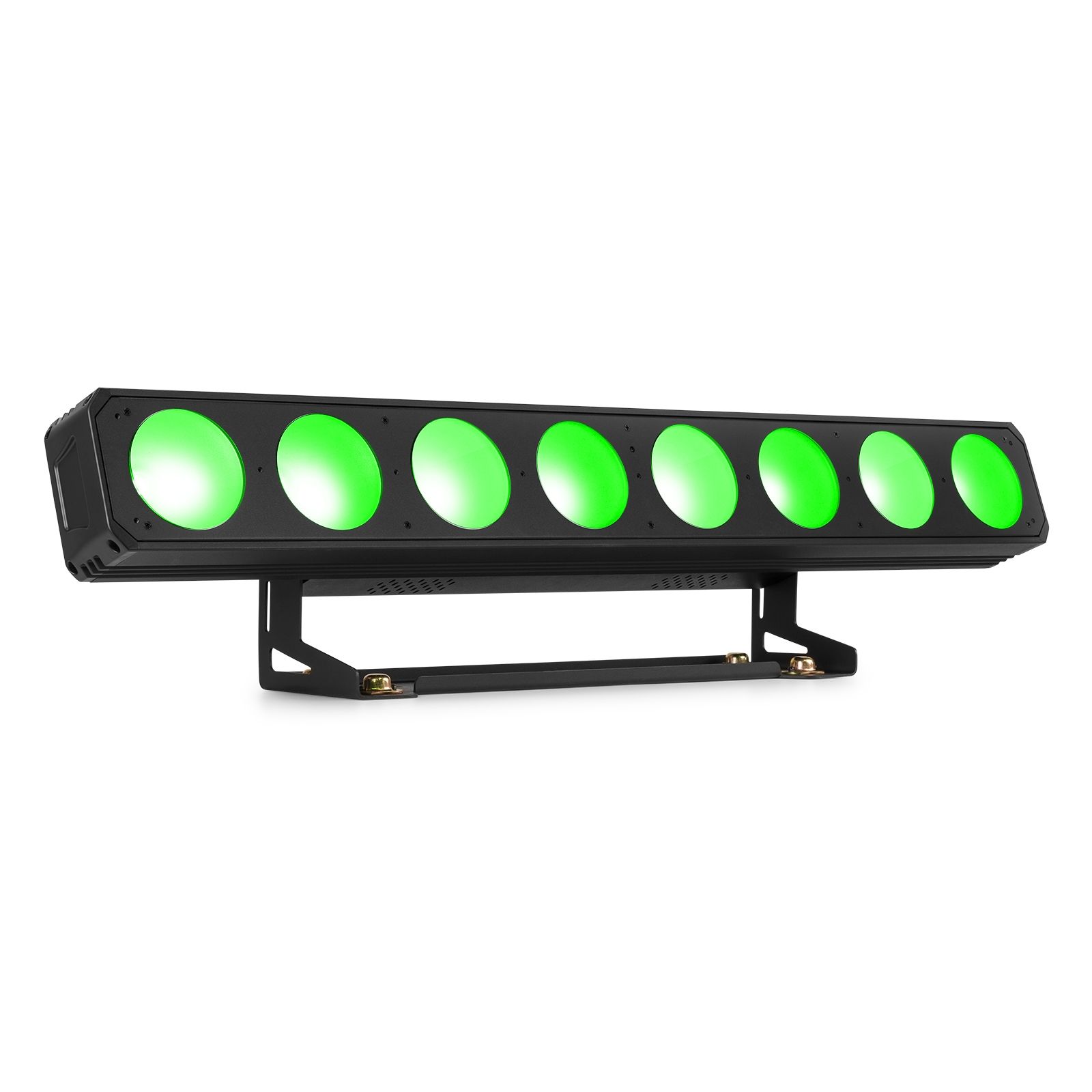

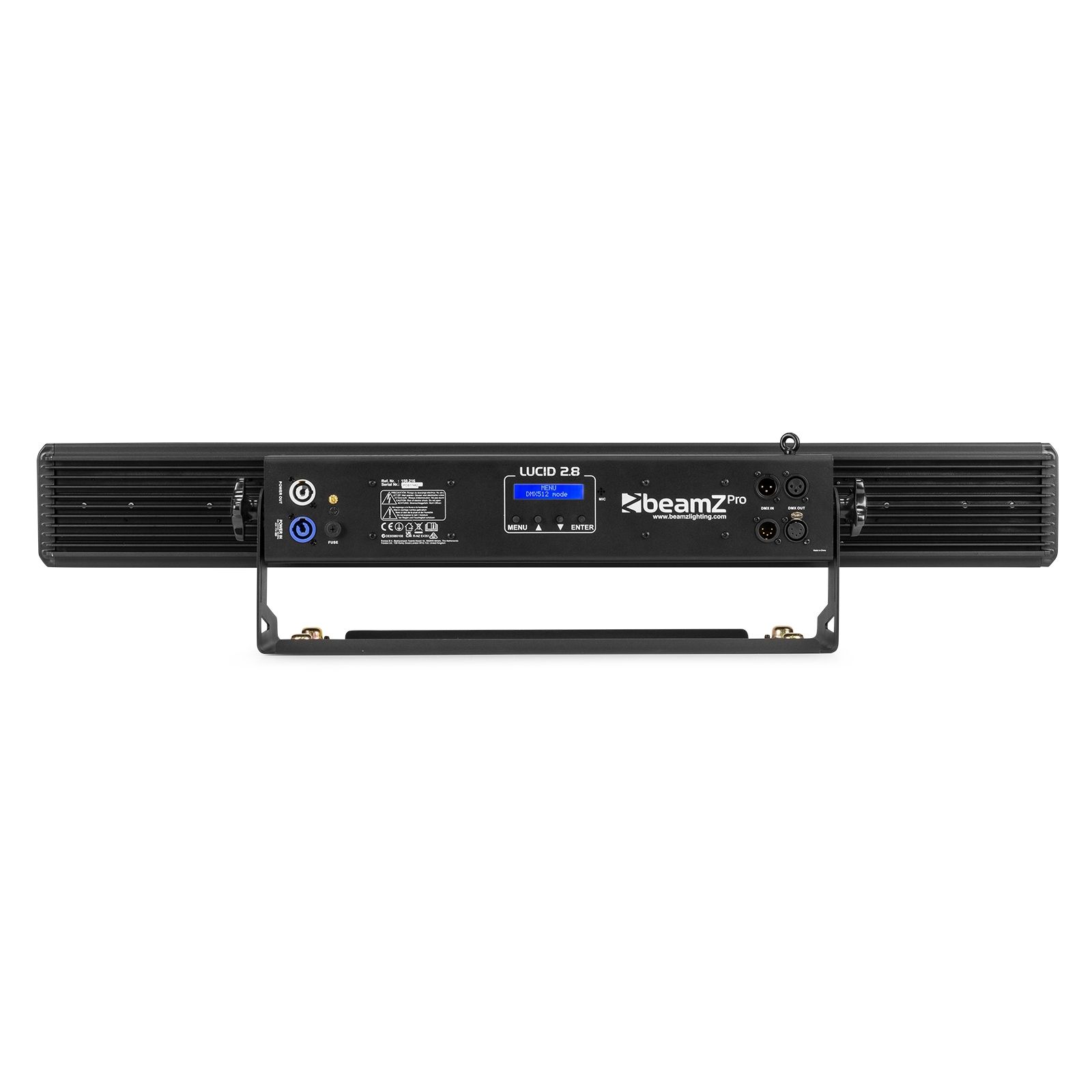

2.8 LED BAR 8x 30W RGBW
SKU 150.216
|EAN 8715693334524
+7
All product information
Compare
LUCID series
Description
Highlights
- LED BAR with 8x 30W COB LEDs
- RGBW Colour mixing
- Individually controllable LEDs
- 3, 4, 5, 6, 8, 16 or 20 DMX channels
- IR remote control
- DMX and Stand-alone mode
- Master/slave function
- Sound activation with adjustable sensitivity
- Auto mode with adjustable speed
- DMX in/output via 3/5-pin XLR
- Power-connector input/output
- Aluminium housing
- Control panel with LCD display

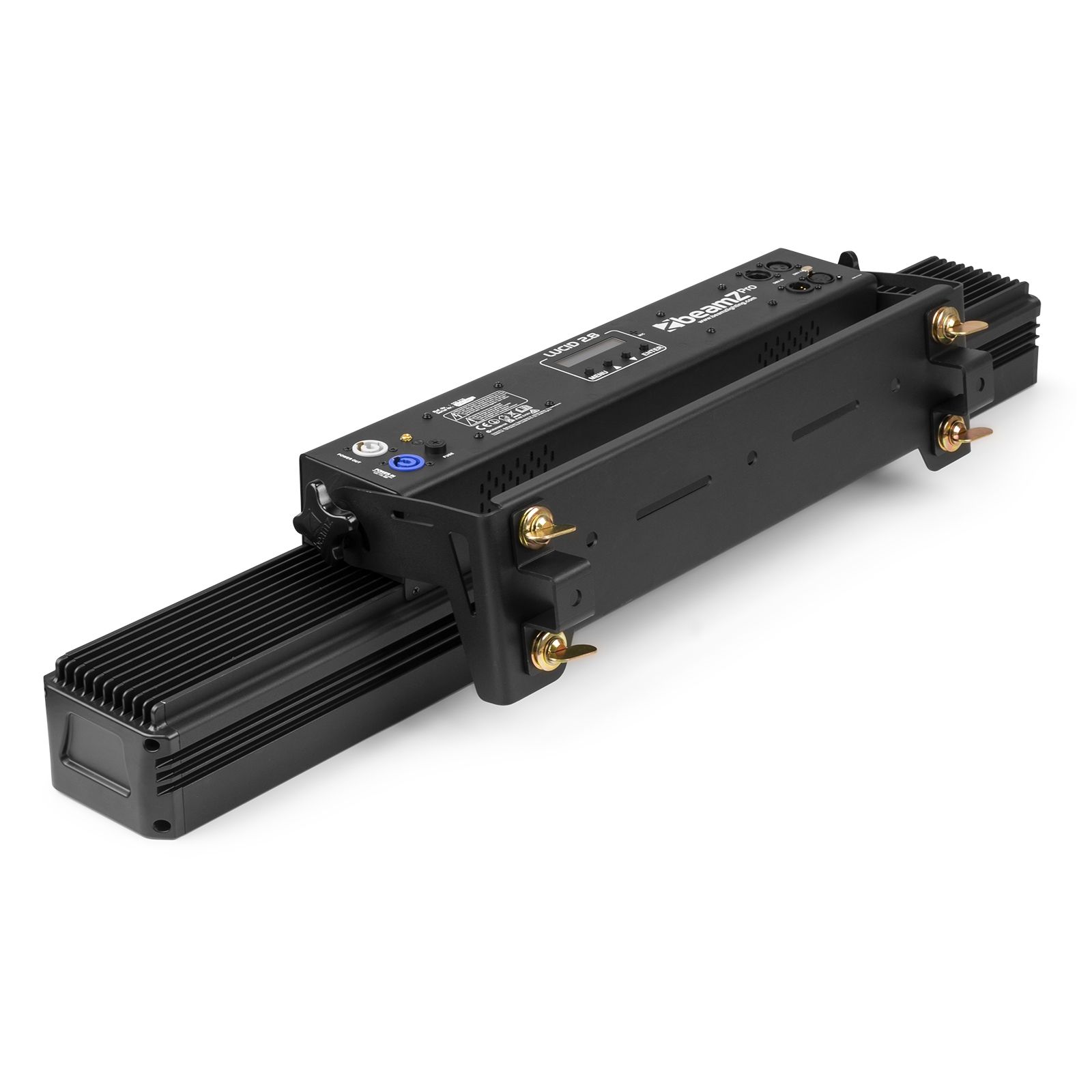

- Bracket with Quick lock Omega
Specifications
BrandbeamZ Professional
Product serieLUCID series
ColourBlack
Light source
Light source
- 8x 30W RGBW LED
Illuminance4300 lx @ 1m
Optics
Beam angle
- 45°
Features
Flash Per Second1 - 20 Hz
Control
Control modesAuto programs, DMX, Master/Slave, Manual, Sound
DMX Channels3, 4, 5, 6, 12, 32, 36
DMX connector3-pin XLR, 5-pin XLR

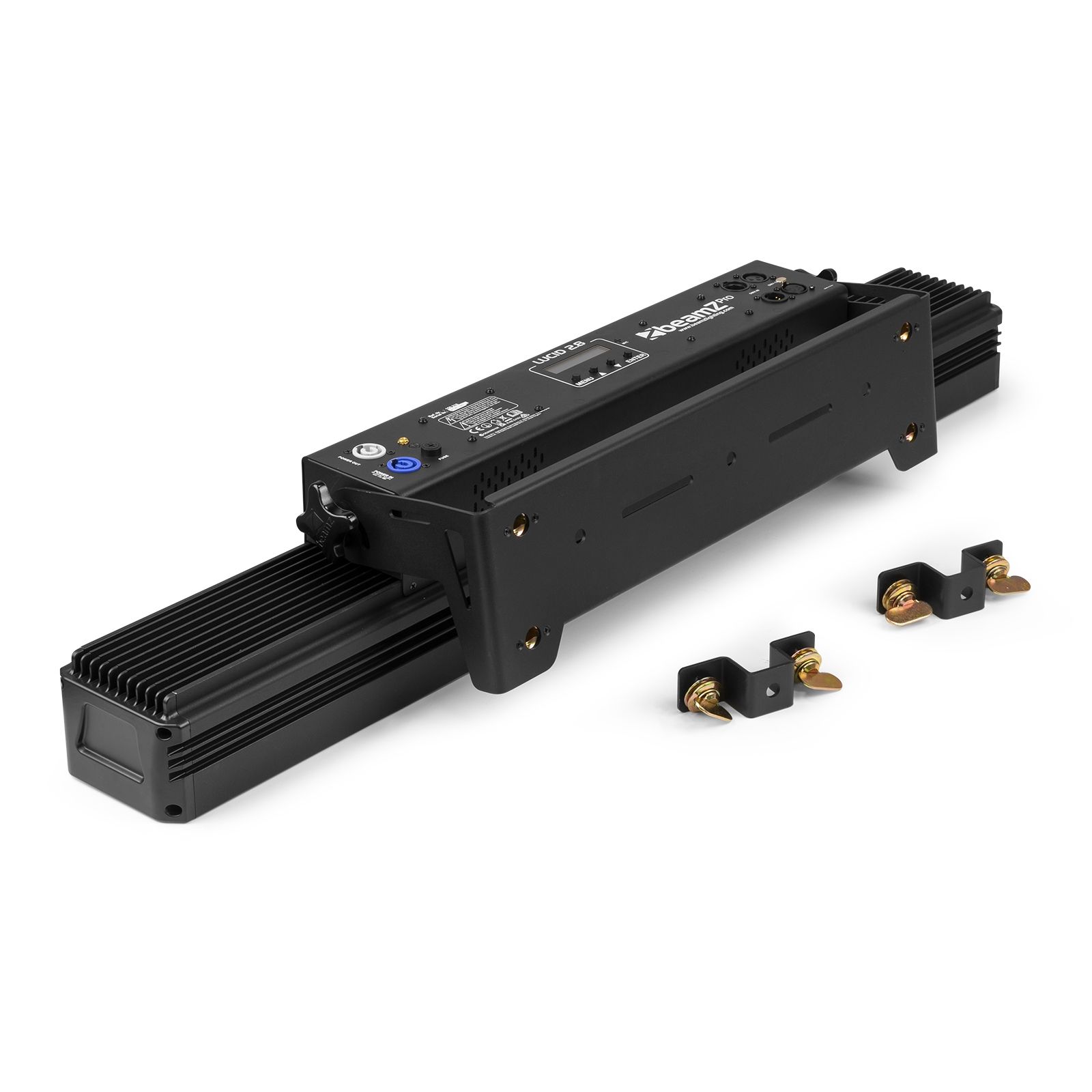

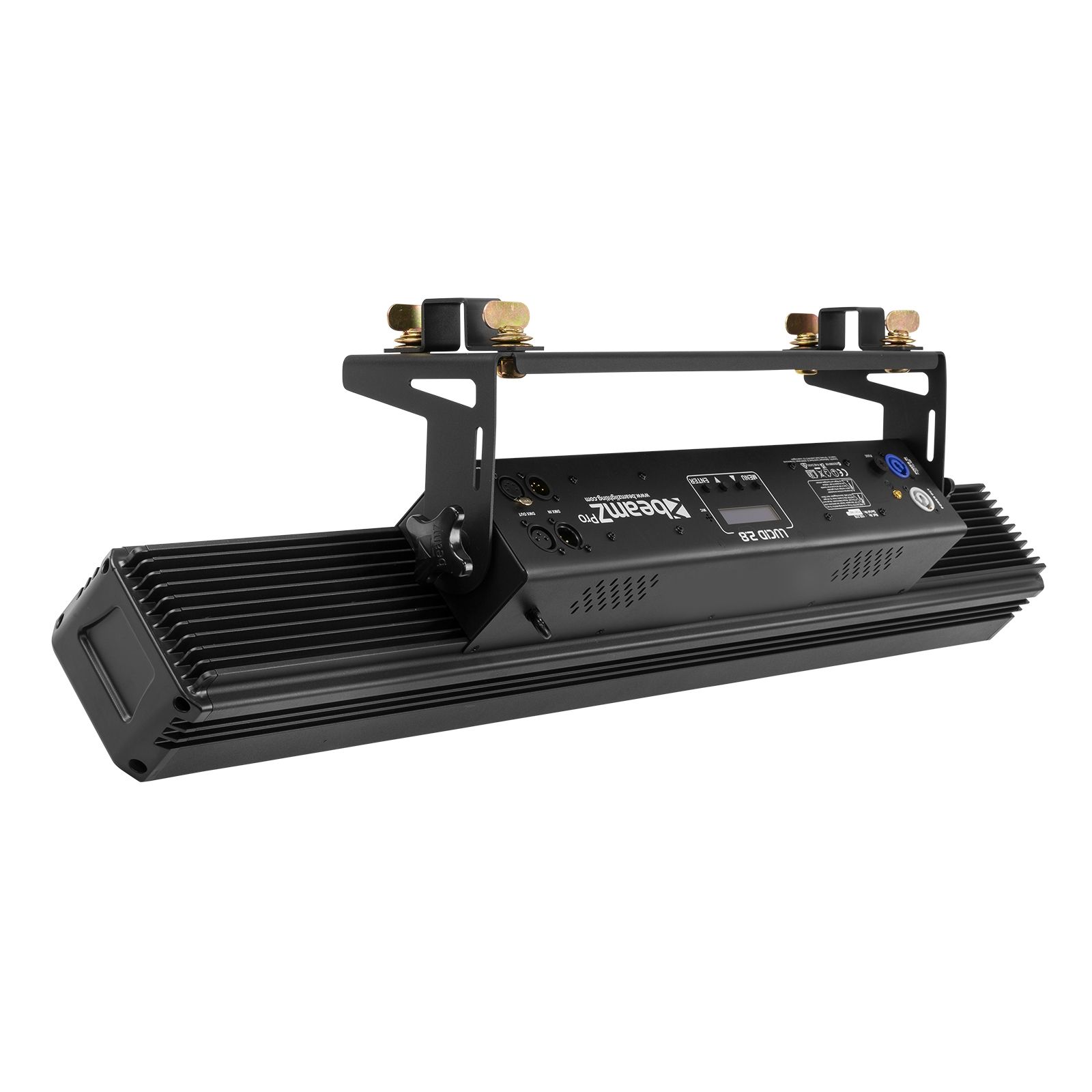

Connections
Input connections
- 1x Power - Powerconnector (A)
- 1x DMX - 3-pin XLR (M)
- 1x DMX - 5-pin XLR (M)
Output connections
- 1x Power - Powerconnector (B)
- 1x DMX - 3-pin XLR (F)
- 1x DMX - 5-pin XLR (F)
Hardware features
Display typeLCD
CoolingFan
Environmental
IP ratingIP20
Electrical
Power Supply220-240VAC 50Hz
Mechanical
Dimensions
- 980 x 242 x 150 mm (W x D x H)
Weight
- 10 kg

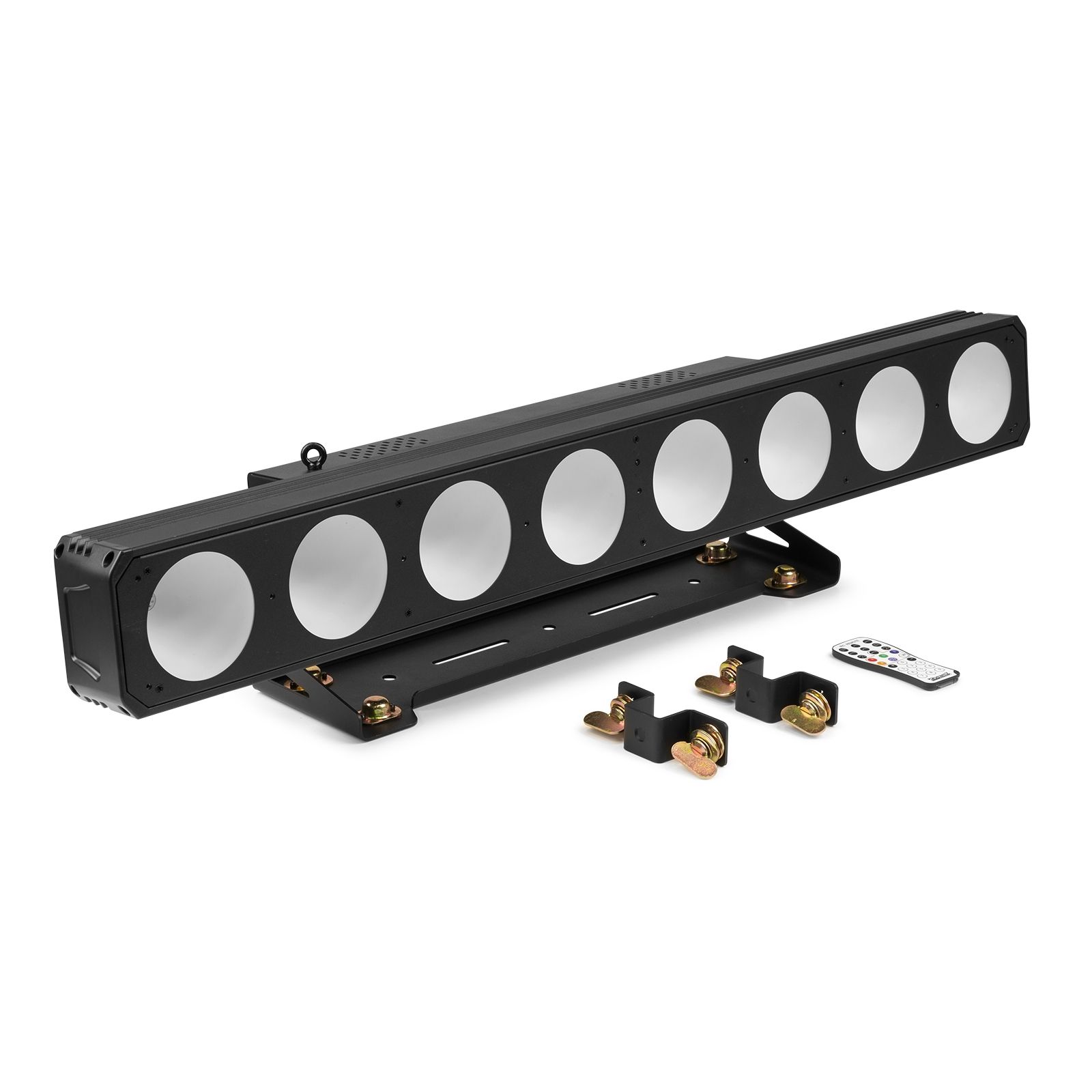

Accessories
Included Accessories
- Mounting bracket
- Remote control (wireless)
Manuals & Documents
Manual
PDF
