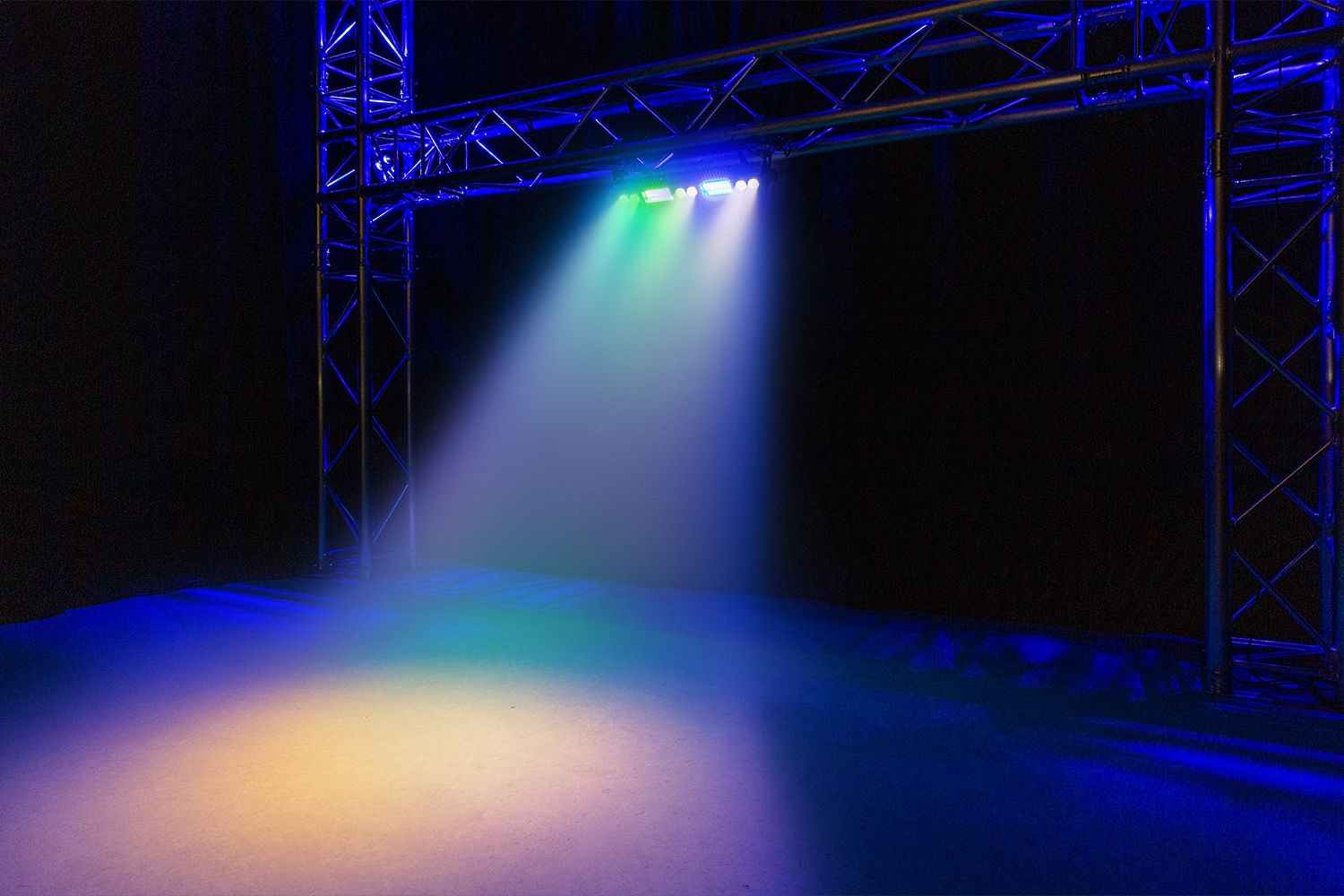

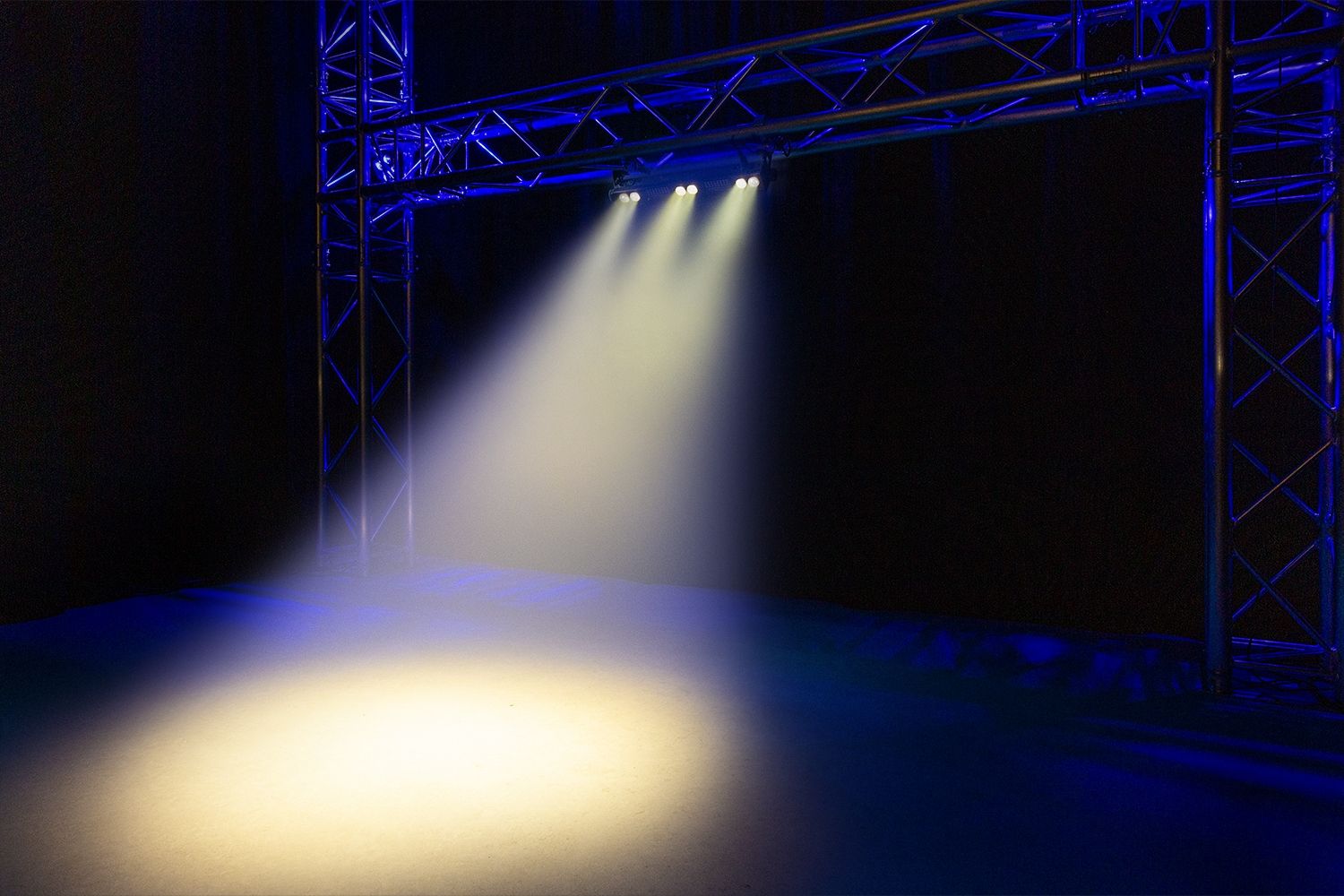

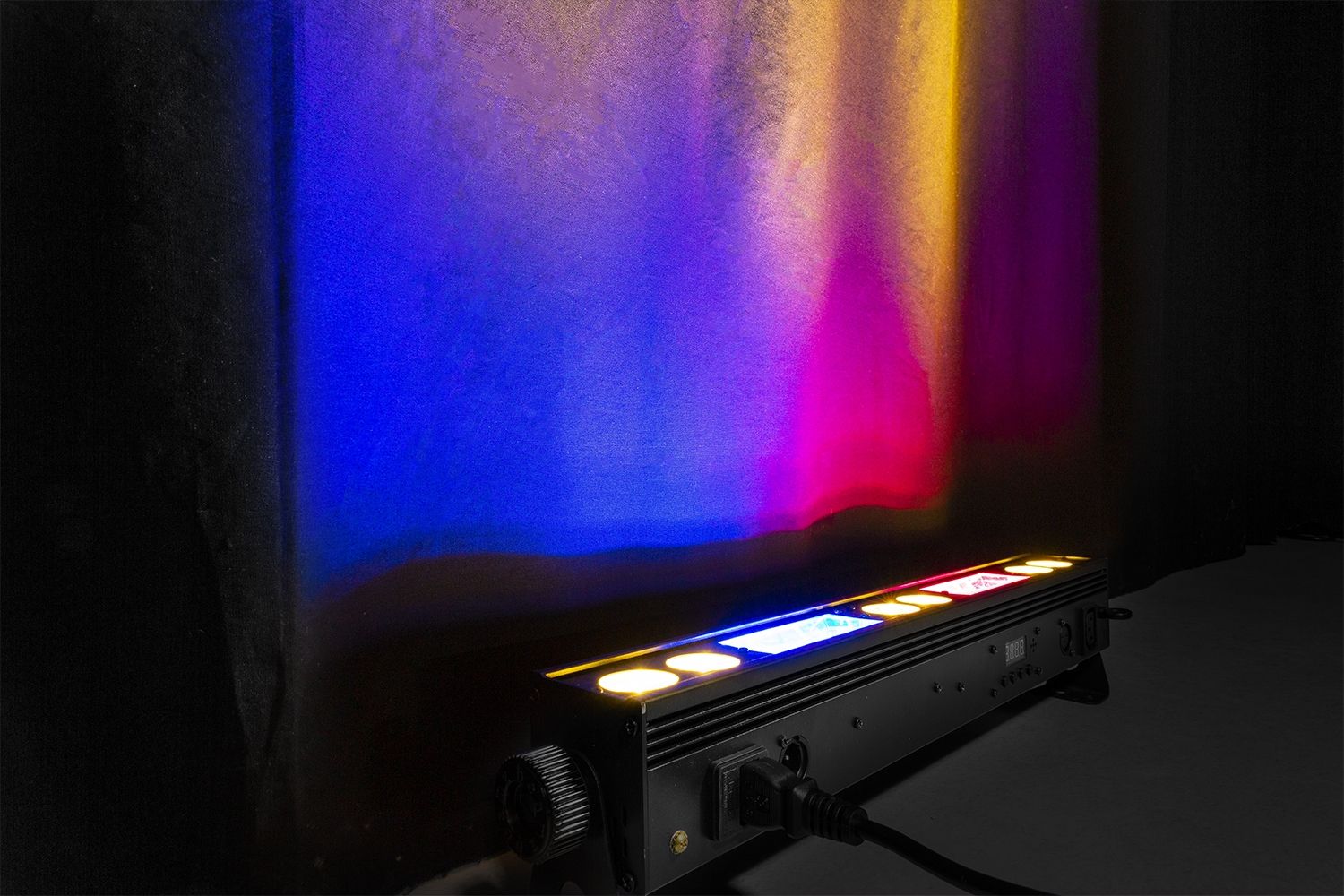

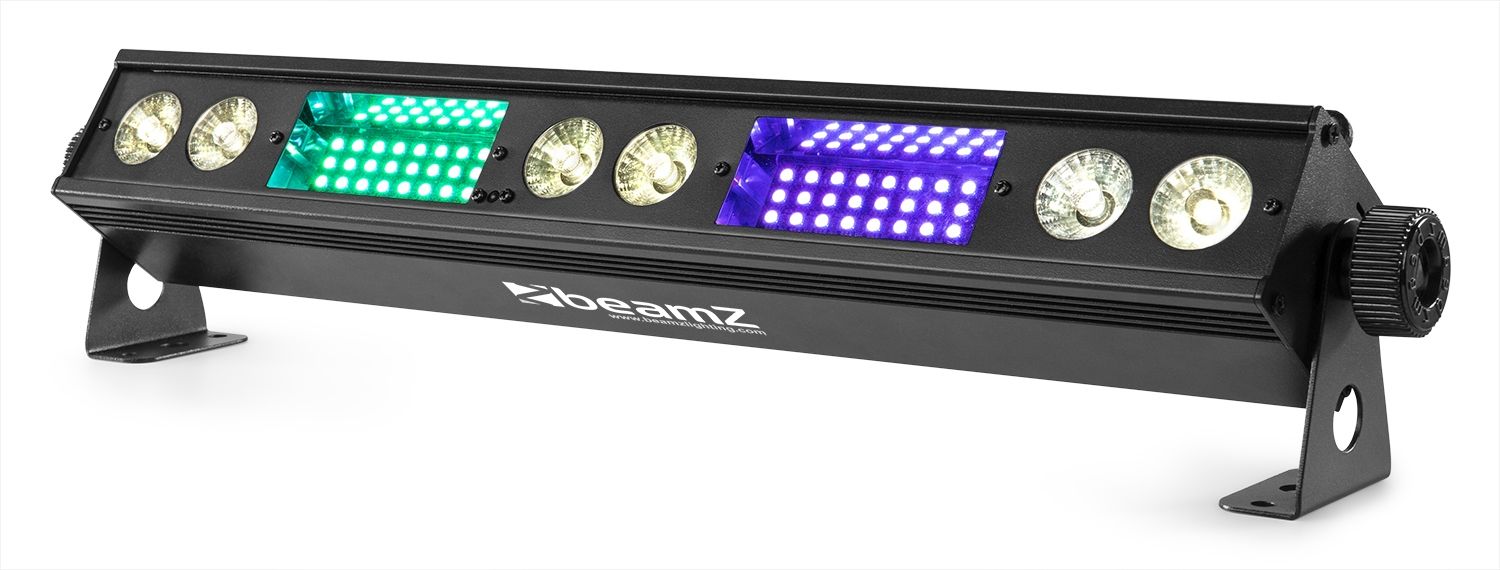

LSB340
Multi Effect LED Bar RGB
SKU 150.573
|EAN 8715693311396
+8
All product information
Compare
LSB series
Description
Highlights
- 6x 3W warm white LEDs
- 54x RGB 0.5W SMD LEDs
- 7 or 13 DMX channels
- DMX and Stand-alone mode
- Master/slave function
- Sound activated with adjustable sensitivity
- Auto mode with adjustable speed
- LED fade and strobe effect
- Control panel with LED display
- DMX in/output via 3-pin XLR
- IEC-connector input/output

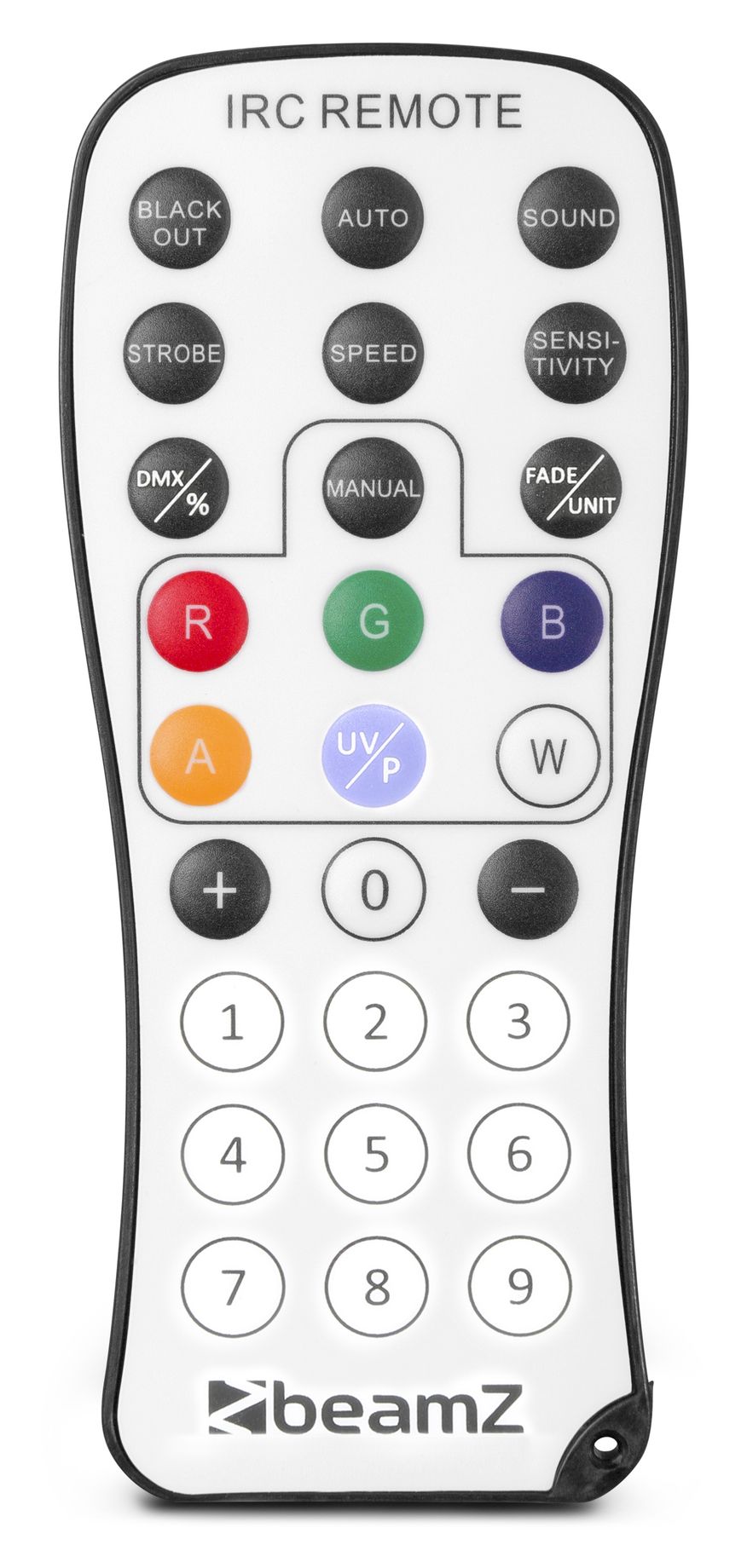

- IR remote control
Specifications
BrandbeamZ
Product serieLSB series
ColourBlack

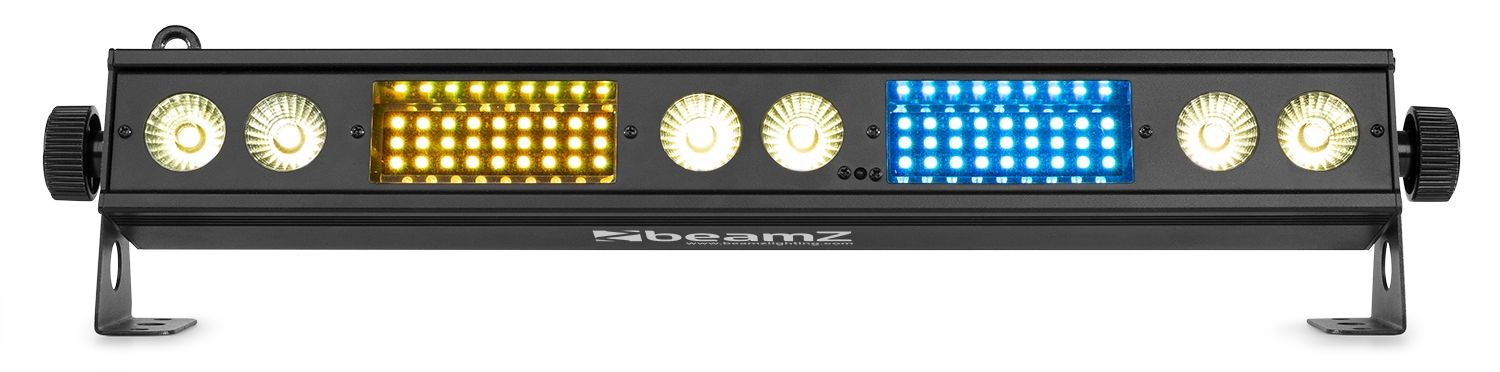

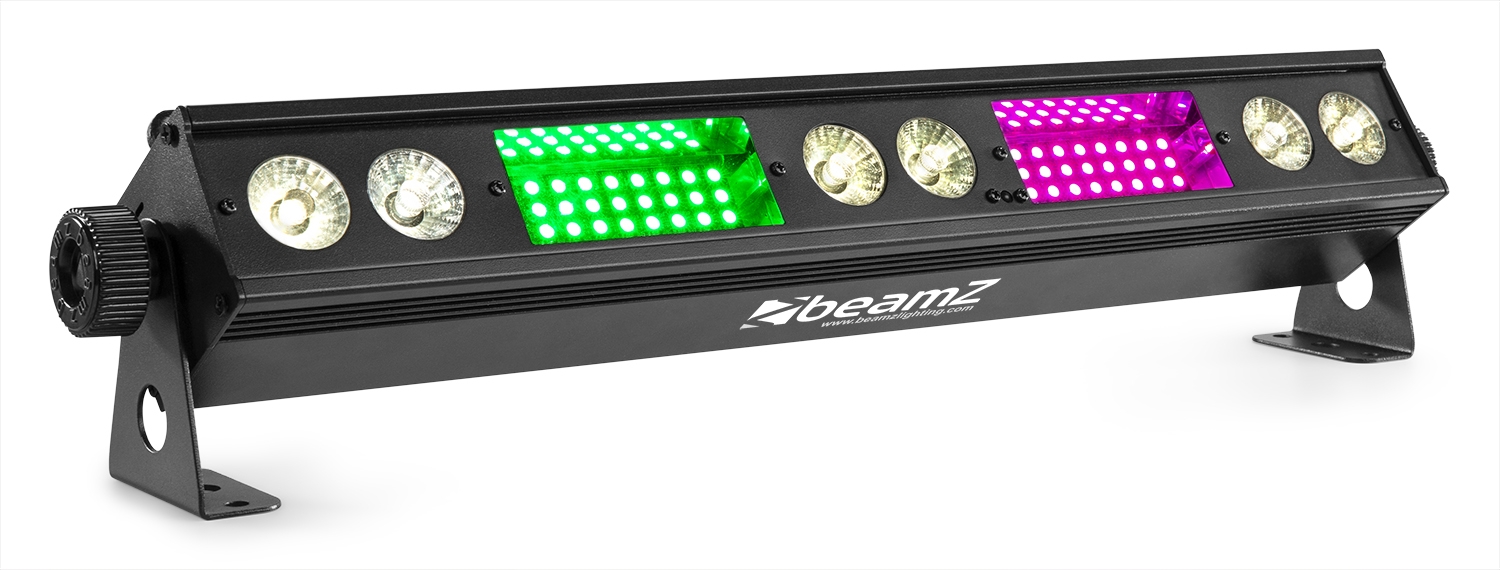

Light source
Light source: Strobe
- 6x 3W Warm white LED
Light source: Wash
- 54x 0.5W RGB SMD LED
Features
Flash Per Second1 - 20 Hz
Control
Control modesAuto programs, DMX, Master/Slave, Manual, Sound
DMX Channels7, 13
DMX connector3-pin XLR

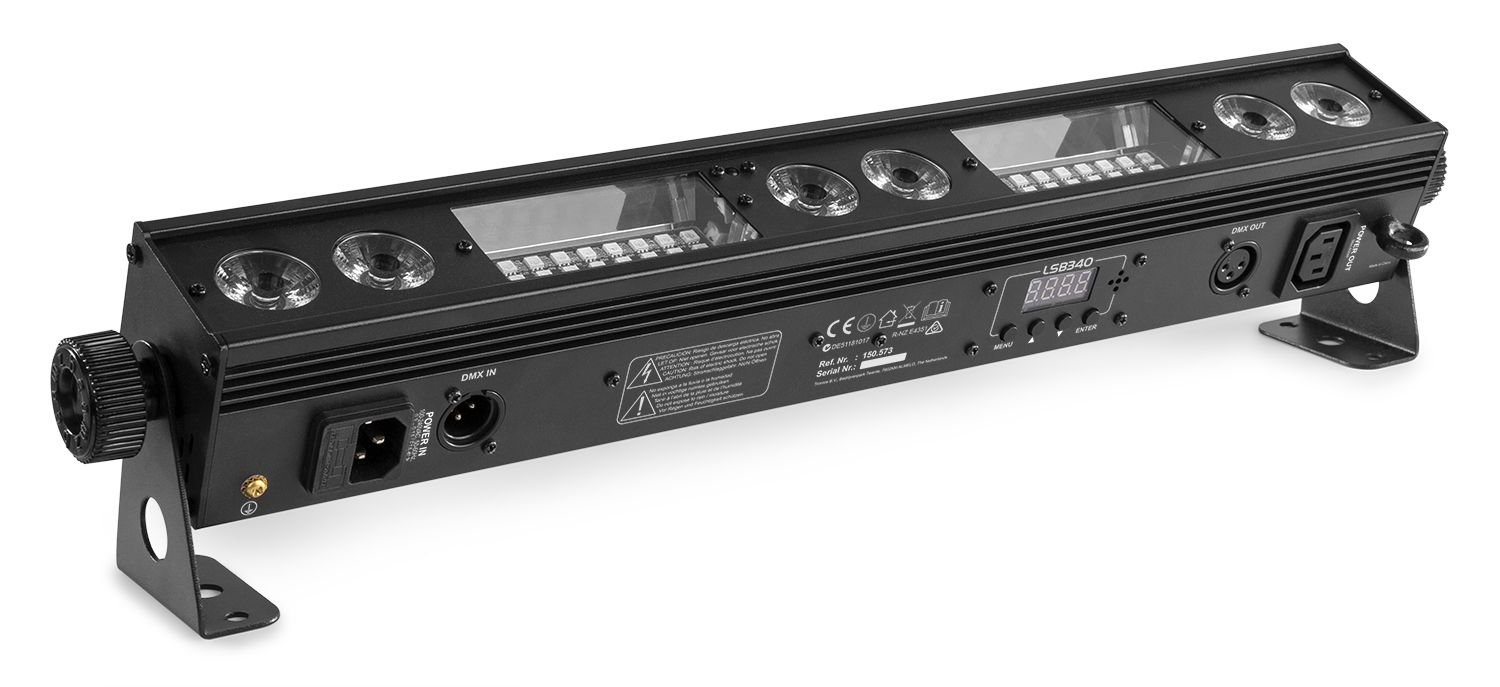

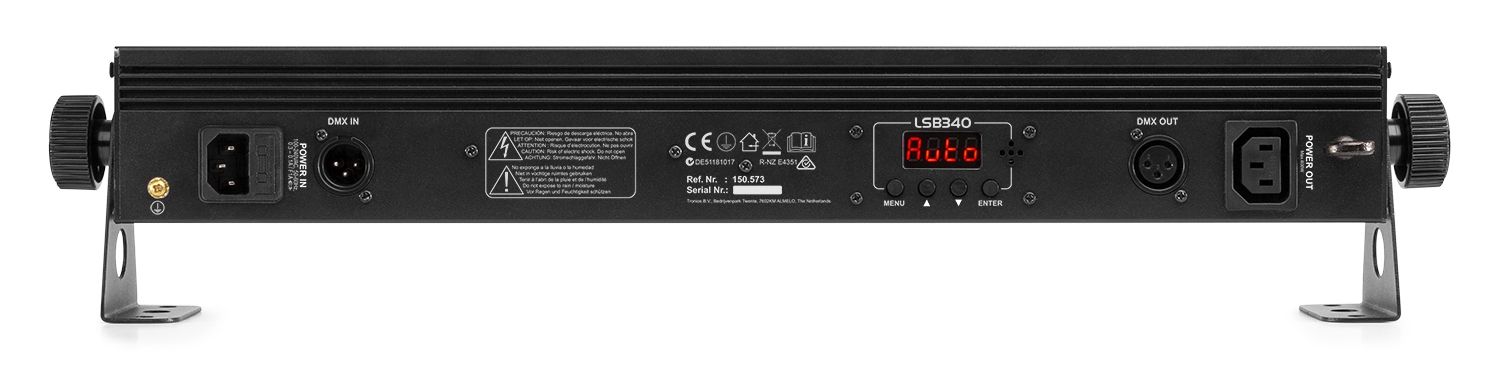

Connections
Input connections
- 1x Power - IEC (M)
- 1x DMX - 3-pin XLR (M)
Output connections
- 1x Power - IEC (F)
- 1x DMX - 3-pin XLR (F)
Environmental
IP ratingIP20
Electrical
Power Supply100-240VAC 50/60Hz
Mechanical
Dimensions
- 570 x 70 x 110 mm (W x D x H)
Weight
- 1.7 kg
Accessories
Included Accessories

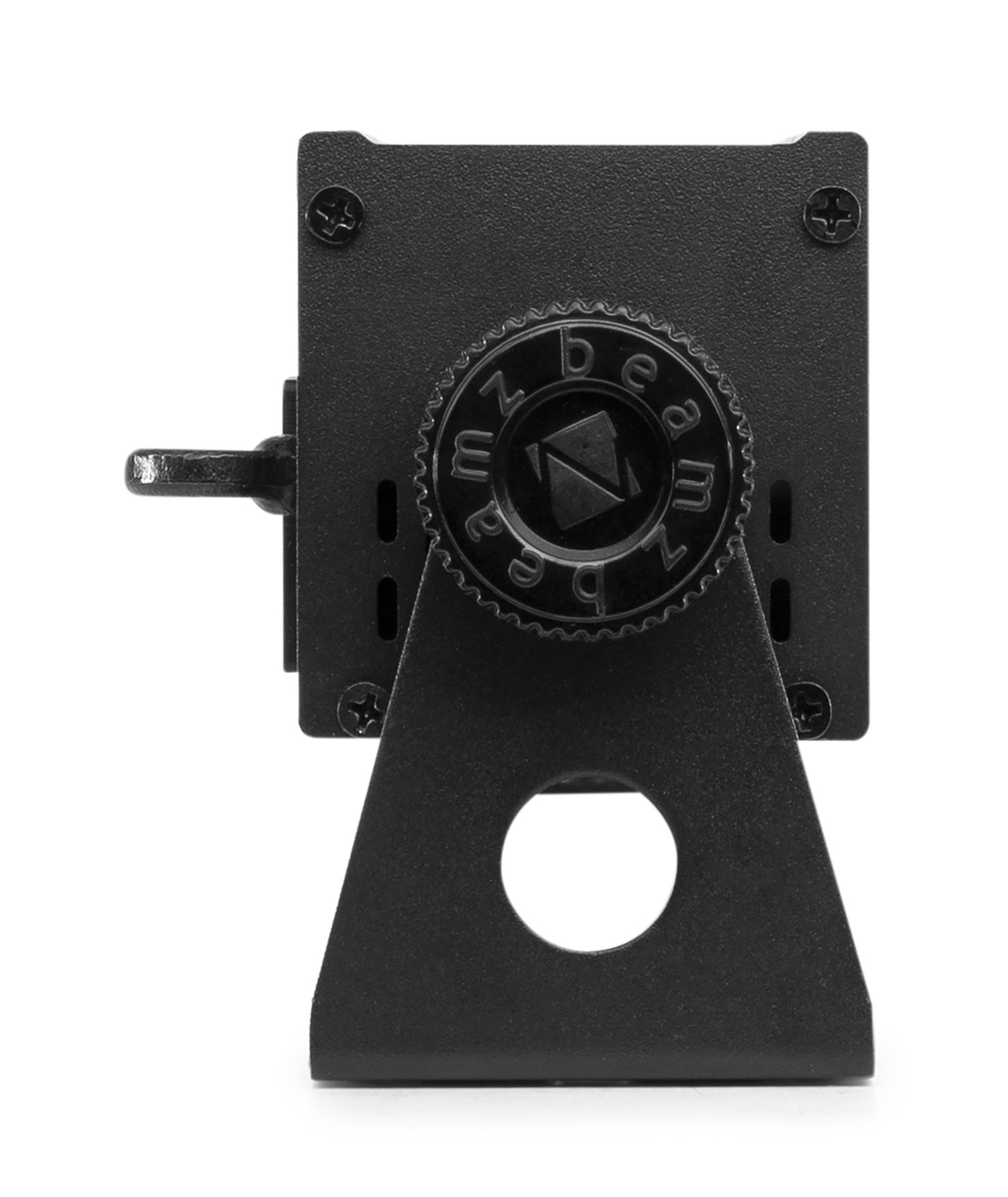

- Mounting bracket
- Power cable
- Remote control (wireless)
Manuals & Documents
Manual
PDF
