LMB1040IP

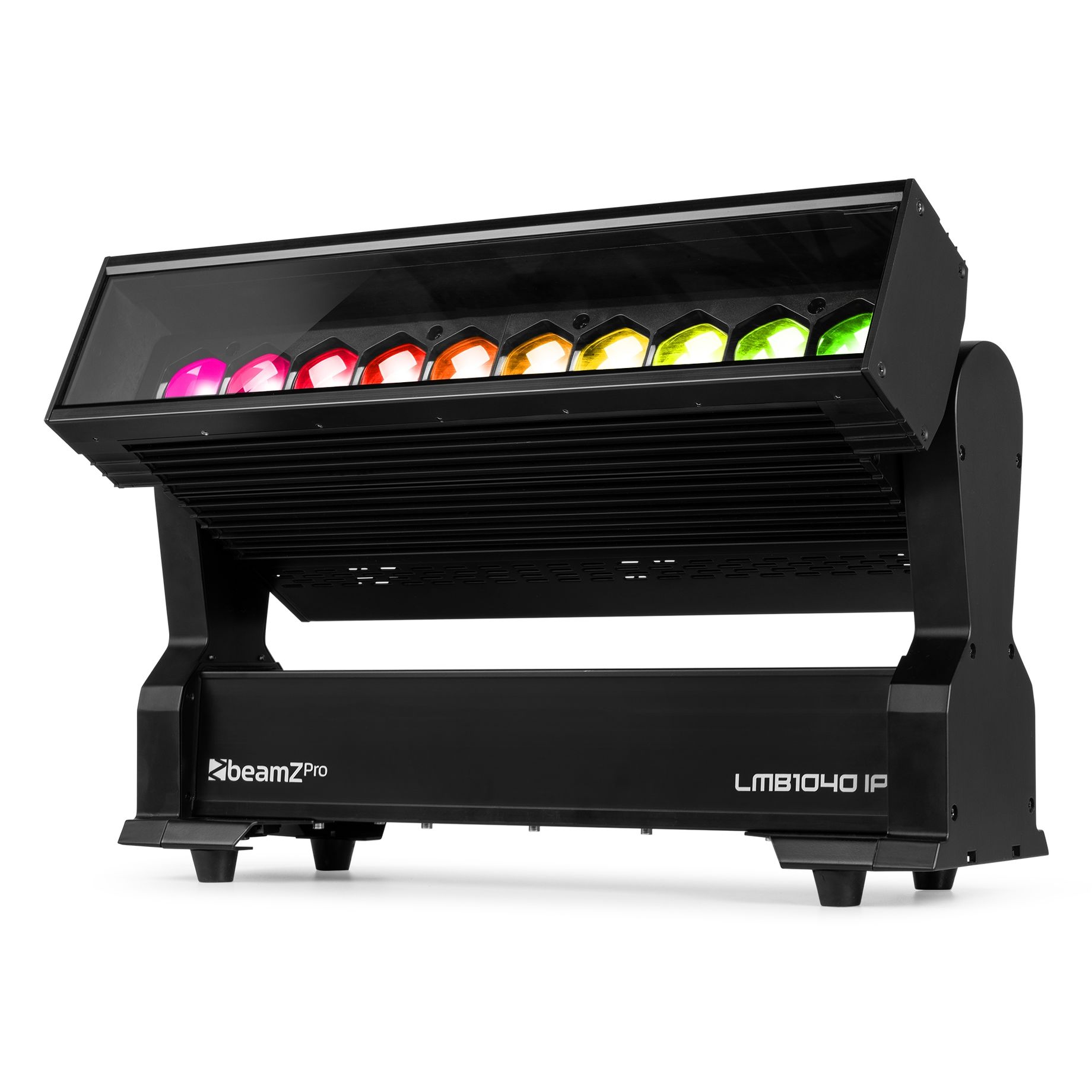

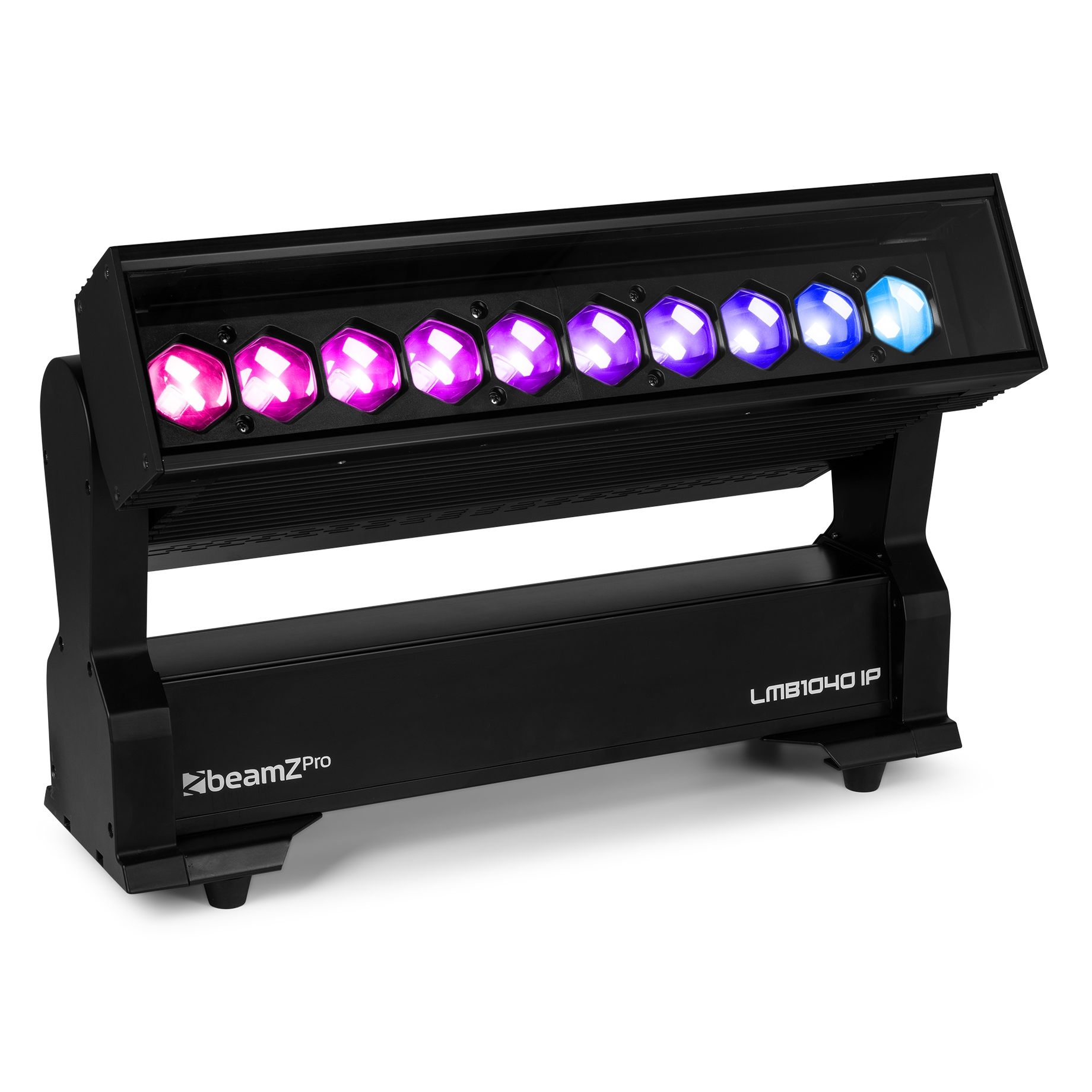

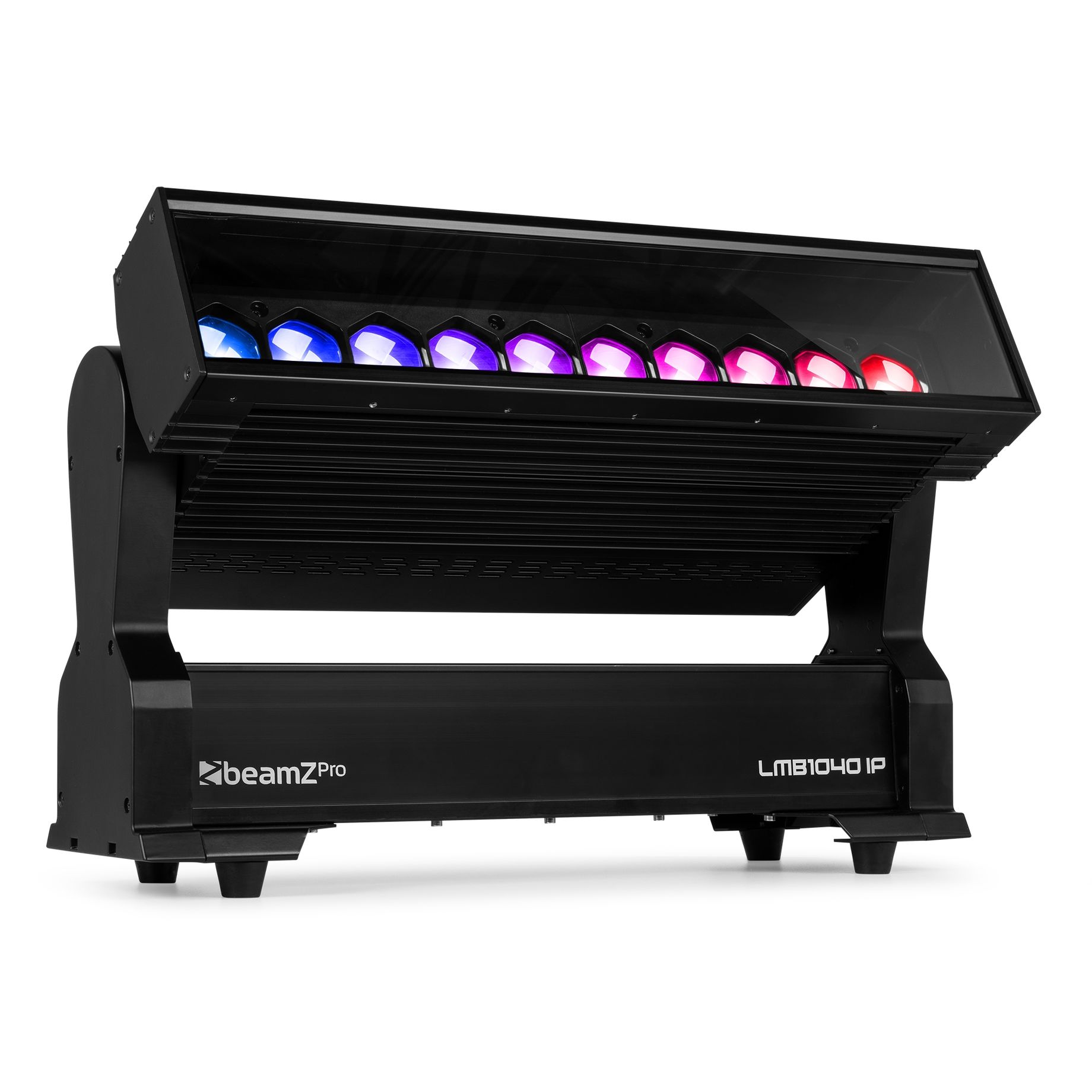

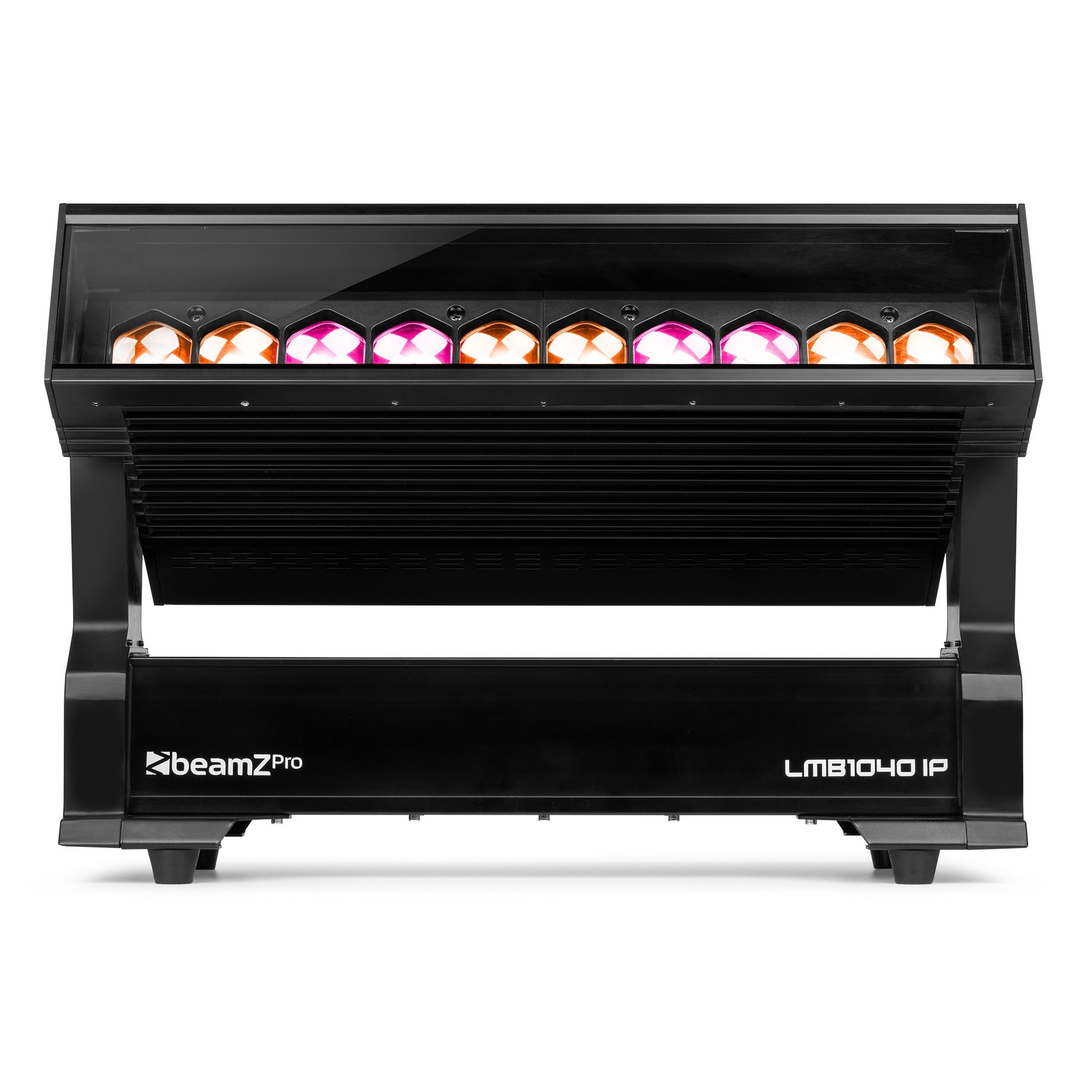

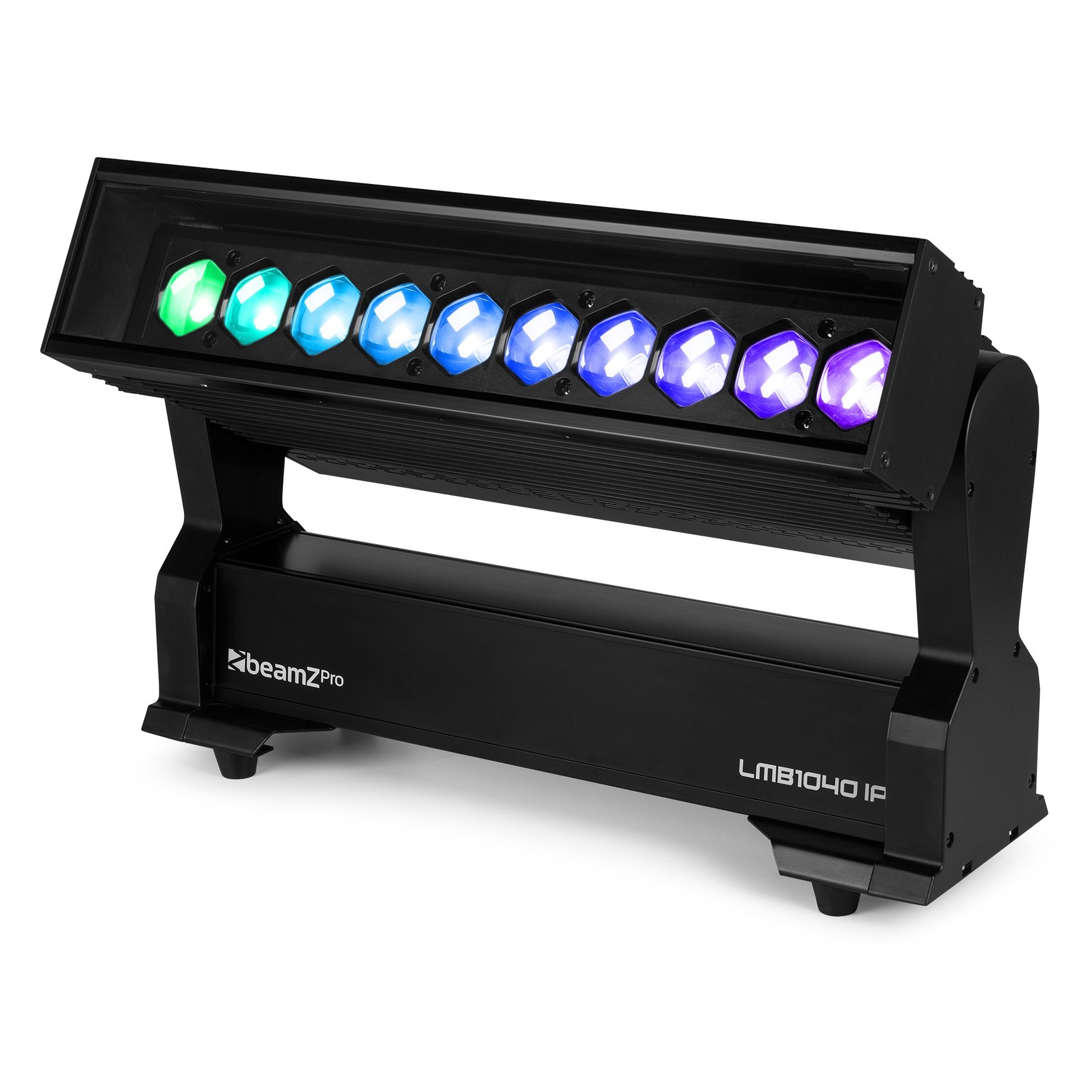

Outdoor Moving Bar with Zoom
SKU 153.282
|EAN 8715693346886
+11
All product information
Compare
LMB series
Description
Highlights
- High Performance Outdoor Moving Bar with Zoom
- Source: 10x 40W 4-in-1 LEDs
- Single pixel control
- Effect: Beam/Wash with RGBW Colour mixing
- Tilt movement: 240°
- Motorized zoom (3° - 37°)
- Linear dimmer: 0-100%
- DMX and Stand-alone mode
- Master/slave function
- Auto mode with adjustable speed
- Control panel with LCD display
- Efficient low noise fan cooling system
- DMX in/output via 3/5-pin IP65 XLR
- P-Con TR input/output

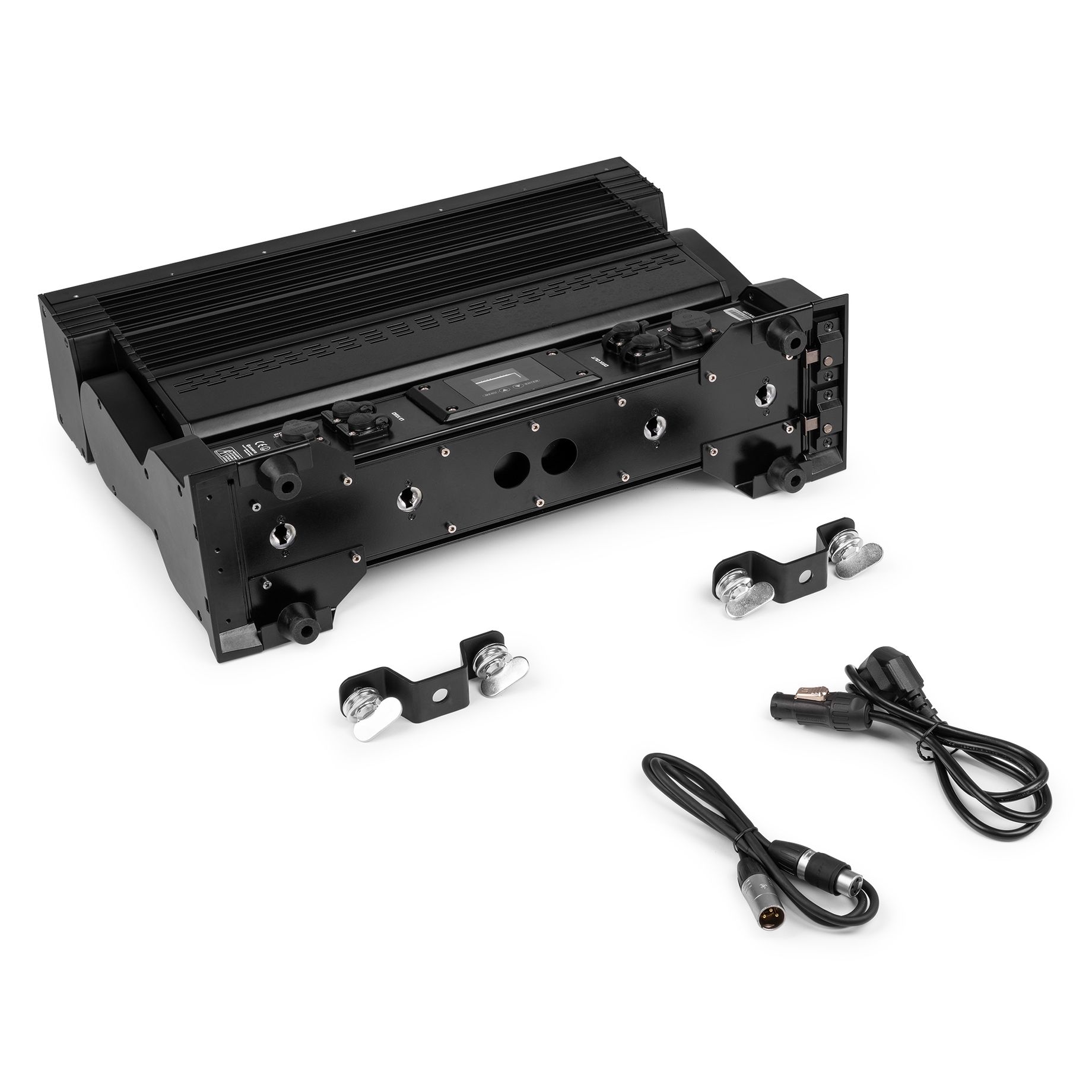

- Including Omega brackets
Specifications
BrandbeamZ Professional
Product serieLMB series
ColourBlack
Light source
Light source
- 10x 40W RGBW LED
Colour Temperature2,700 - 8,000 K
Illuminance20666 lx @ 1m
Optics
Beam angle
- 3 - 37
ZoomYes
Features
Flash Per Second1 - 24 Hz
Control
Control modesAuto programs, DMX, Master/Slave, Manual
DMX Channels13, 26, 27, 28, 29, 46, 47
DMX connector3-pin XLR, 5-pin XLR

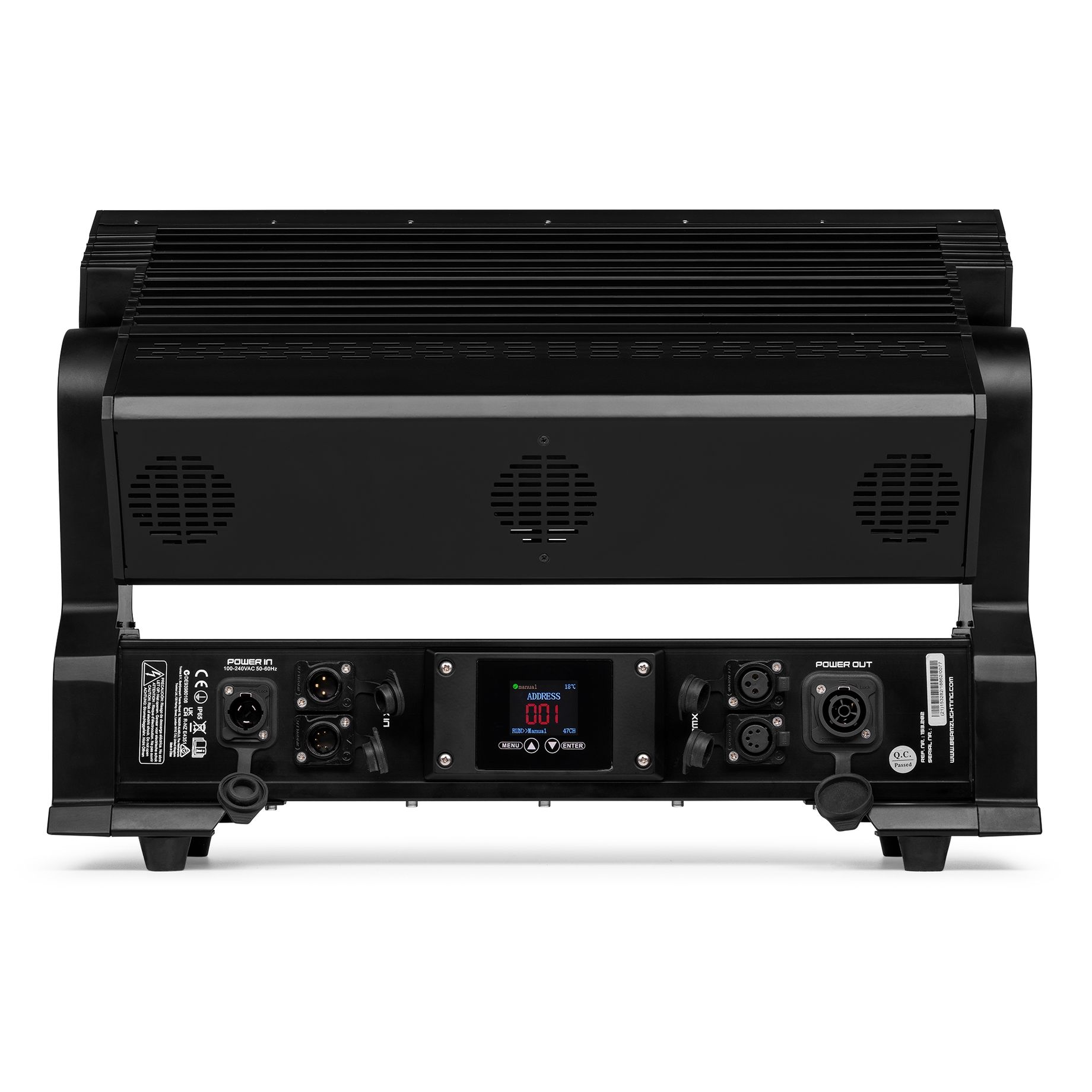

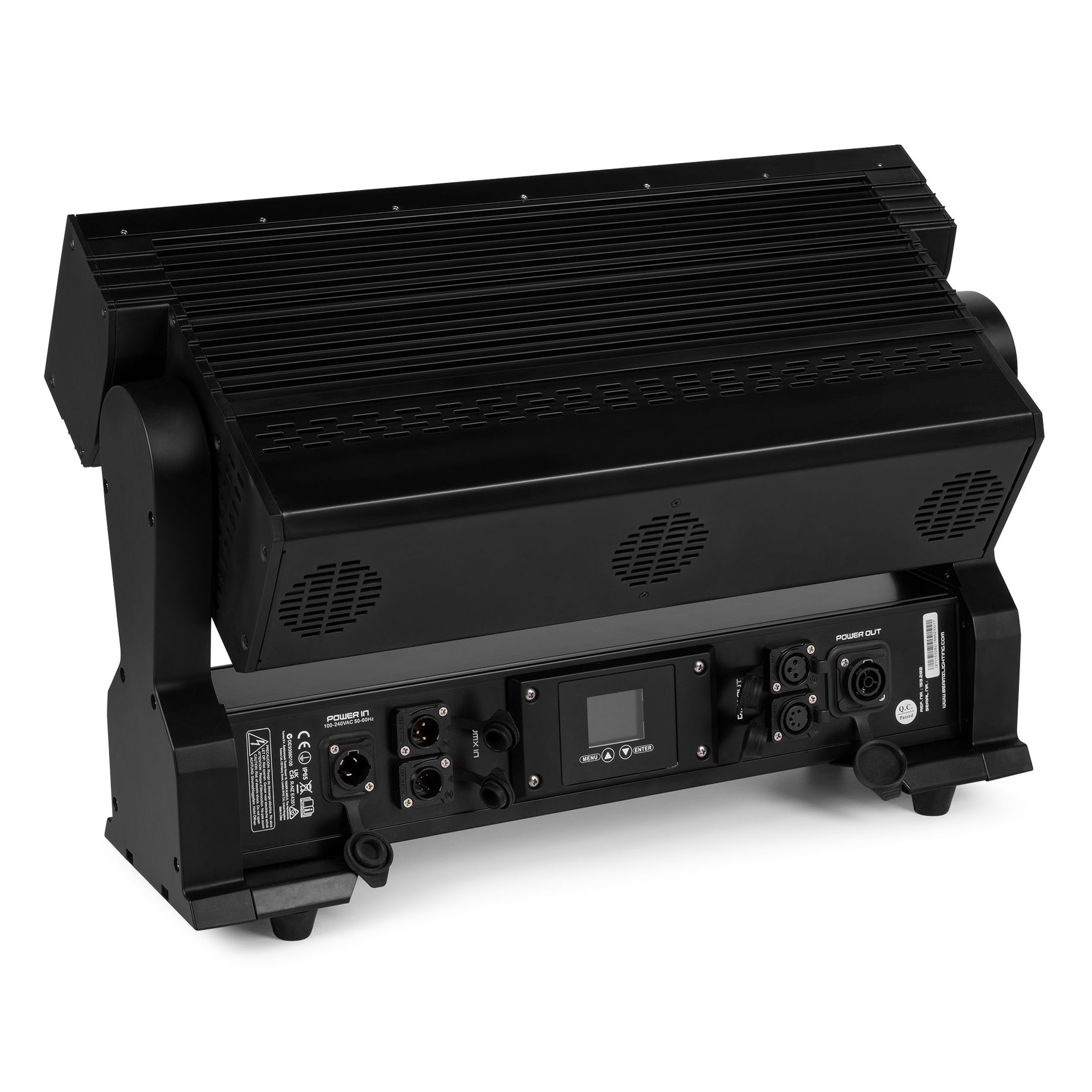

Connections
Input connections
- 1x Power - Powerconnector TR1 IP65 (A)
- 1x DMX - 3-pin XLR IP65 (M)
- 1x DMX - 5-pin XLR IP65 (M)
Output connections
- 1x Power - Powerconnector TR1 IP65 (B)
- 1x DMX - 3-pin XLR IP65 (F)
- 1x DMX - 5-pin XLR IP65 (F)
Hardware features
Display typeLCD
CoolingTemperature controlled fan
Environmental
IP ratingIP65
Electrical
Power Supply100-240VAC 50/60Hz
Mechanical
Dimensions
- 536 x 159 x 398 mm (W x D x H)
Weight
- 17.95 kg
